New Age Workbench Series Bedienungsanleitung

Workbench Series

Warning: Excessive weight hazard!

Use two or more people to move, assemble or install workbench.

Failure to do so can result in back or other injury.

For assistance, call 1.877.306.8930; for UK 0800.031.4069; e-mail at info@newageproducts.com

8 ft. WORKBENCH

WORKBENCH6 ft.

Short Support

Beam

Short croSS Beam

tool tray

leg (a) leg (B)

tool tray dividerS

9/16” X 5/8”

heX BoltS

9/16” lock

waSherS

#8-32 X 7/8”

BoltS

#8-32 X3/4”

ScrewS

#8-32 X1”

ScrewS

#8-32 lock

waSherS

and nutS

adjuStaBle Feet

worktop

long croSS Beam

long Support Beam For 96”Bench

Parts List

WARNING:

Mechanical is Max load. 2000lb.

Electrical limitations is Max 15A.

Parts and Hardware Supplied

Rated Weight Capacity

Tools Needed

1 x Pencil1 x Pliers1 x #2 Phillips Bit Screwdriver

1 x 9/16” Socket driver wrench 1 x 12” Magnetic Leveler 1 x Tape Measure

Evenly Distributed

Weight Capacity (lbs)

Tray Weight Capacity (lbs)

6 ft.

8 ft.

Workbench 2000 40

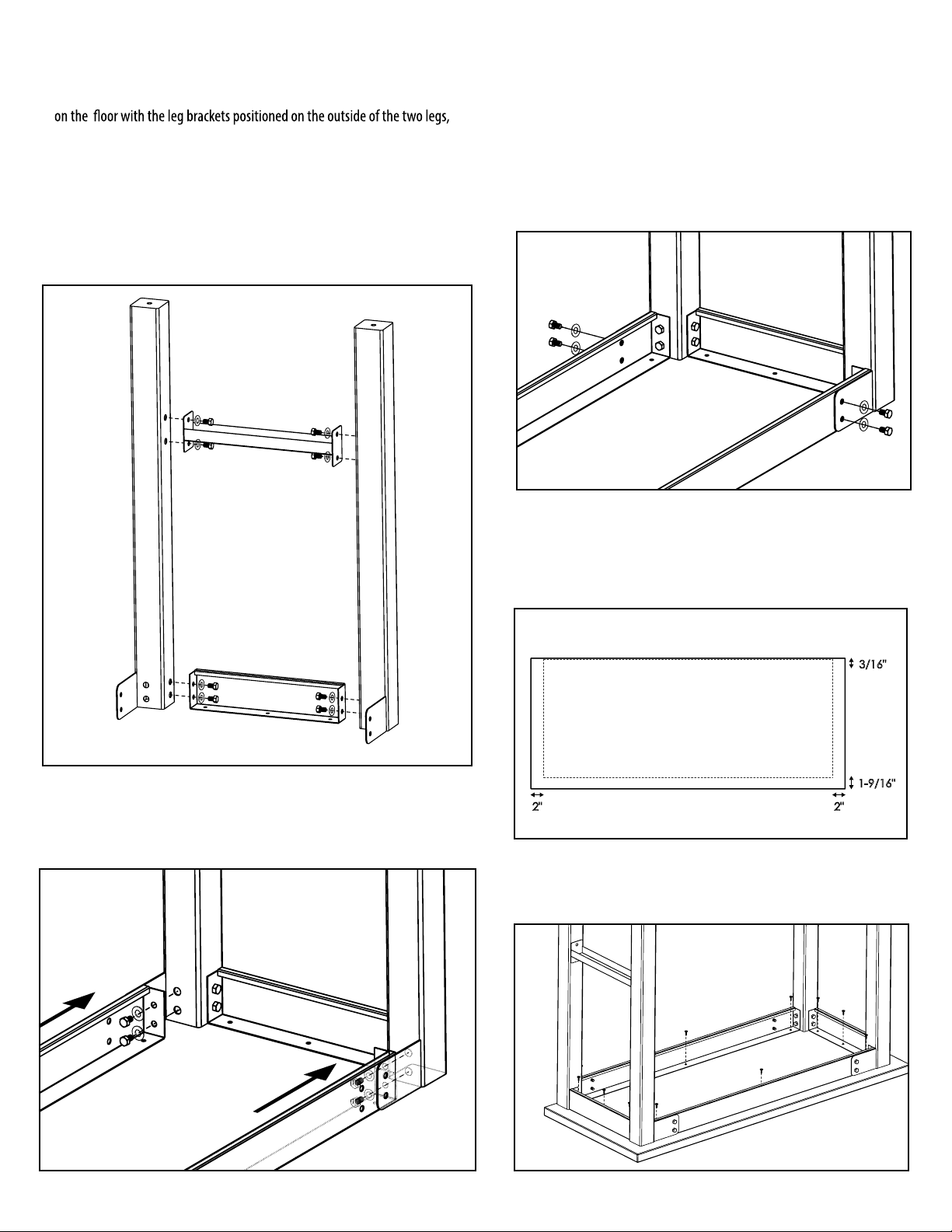

1. Select one Leg (A) and one Leg (B) and lay them opposite one another

and facing in the same direction. See Figure 1.

2. Select one Short Cross Beam, and one Short Support Beam, and bolt the side

frame assembly together with the supplied 9/16”hex bolts and lock washers.

See Figure 1.

Note: Legs are shown being assembled upside down, as this will be easiest

for assembly and installing the top.

3. Repeat steps 1 and 2 for assembling the opposite side frame assembly.

4. Secure the two Long Cross Beams to the post of the two legs

with the supplied 9/16”hex bolts and lock washers. See Figure 2

5. Repeat Step 4 for the opposite side to secure the two side frame

assemblies to the Long Cross Beams.

6. Secure the leg brackets to the Long Cross Beams with the supplied 9/16”

hex bolts and lock washers. See Figure 3.

7. Repeat Step 6 for the remaining leg brackets.

8. Place the workbench top upside down on a protected surface and mark

the top with a pencil 2” in from the sides, 1-9/16”in from the front

edge, and 3/16”in from the back edge as seen in Figure 4.This boundary

represents the correct mounting location for the steel workbench frame.

9. Place the frame within the marked boundary and attach the top

with the supplied #8 x 5/8”wood screws in the 12 locations provided.

For bamboo top: Drill 1/16”pilot holes and install screws. See Figure 5.

Assemble The Frame

3/16"

1-9/16"

Fig.1

LEG (A) LEG (B)

Front Edge

Rear Edge

Fig.2

Fig.5

Fig.4

Fig.3

3. Slide the tray down over the screws

and tighten with a screwdriver to

secure the tray to the workbench.

Insert screwdriver through

the access holes for easy

installation.

4. Thread in the leveling feet and

adjust as needed for leveling the

workbench.

5. Insert tray dividers in the desired

locations.

2. Slide the keyholes on the side of the

tray over the heads of the screws.

TRAY

WORKTOP

Side View

KEYHOLE ON TRAY

MARK CENTER HERE

Installing Bamboo Top Tray

Fig.1

Mounting

The Tool Tray

Fig.2

1. For Bamboo Top:

Place tray ﬂush with the top of

worktop (Figure 1) and use the tray

as a guide to mark the center of the

top of the keyholes for the 4 screw

locations along the edge. (Figure 2)

Drill 1/16”pilot hole and install

screws 3/4 of the way in.

1. Insert the two #8-32 bolts into the

slots on the back of the power bar.

Secure the screws in the lower gap

towards the cord.

Using the supplied 9/32”wrench,

ﬁx the power bar in place with the

provided lock washers and #8-32

nuts.

Note: It may be necessary to grip the

ends of the bolt with a pair of pliers to

prevent the bolt from spinning while

tightening.

Install the power bar onto the

workbench by inserting the two

screws through the corresponding

holes on the front, or sides of the

workbench.

If installing the power bar on the

front of the workbench you can feed

the cord for the power bar through

the rubber grommets on the front

and back of the workbench.

inStall taBlet Stand (optional):

1. Angle the tablet stand and insert

through slots located on the workbench

tray and allow the hooks to engage under

the workbench tray.

Use the tablet stand with your favorite

device.

Mounting

Power Bar

Note: Ensure your device is stable inside the stand. Newage products will not be

responsible for any damage caused to your device as a result accidental droppage or use

of this stand.

Thank you for purchasing fromNewAge Product.

NewAge Products INc. wIll Not PAy for:

1. Service calls to correct the installation of any NewAge products or to instruct you how to use or install them.

2. Damage resulting from improper handling or shipping of products, or products damaged by accident, misuse,

abuse, re, ood, improper installation, acts of God, neglect, corrosion, modication or mishandling.

3. Products damaged by improperly loading beyond the specied maximum weight capacity outlined in the

instructions provided with the product.

4. Repairs or replacement when your product is used in other than normal, single-family household use, such as

a commercial environment, or handled in any way inconsistent with the installation instructions included with

the product.

5. Cosmetic damage, including scratches, dings, dents or cracks in paint that do not aect the structural or functional

capability of the product.

6. Surfaces damaged due to chemical interaction resulting in corrosion of paint or metal.

7. Replacement parts for NewAge products outside Canada, United States, or United Kingdom.

8. Replacement keys or locking mechanisms.

9. Loss of product contents due to theft, re, ood, accident or acts of God.

10. Shipping or freight fees to deliver replacement products or to return defective products.

11. Any labor costs during the limited warranty period.

dIsclAIMer of IMPlIed wArrANtIes; lIMItAtIoN of reMedIes

IMPLIED WARRANTIES, INCLUDING TO THE EXTENT APPLICABLE WARRANTIES OF MERCHANTABILITY OR FITNESS

FOR A PARTICULAR PURPOSE, ARE EXCLUDED TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTIES

THAT MAY BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR THE SHORTEST PERIOD ALLOWED BY LAW. SOME

STATES AND PROVINCES DO NOT ALLOW LIMITATIONS OR EXCLUSIONS ON HOW LONG AN IMPLIED WARRANTY OF

MERCHANTABILITY OR FITNESS LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS

WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE

TO STATE OR PROVINCE TO PROVINCE

When this product is installed, operated and maintained according to the instructions attached to or furnished with the

product, NewAge Products Inc. will replace the defective product or parts if the part fails as a result of defective materials

or workmanship for a period of ten years from the date of purchase.

NEWAGE PRODUCTS INC. WELDED WORKBENCH

10 YEAR LIMITED MANUFACTURER WARRANTY

Need more information? Try WWW.NEWAGEPRODUCTS.COM

Call At 1.877.306.8930; for UK 0800.031.4069

Or e-mail at info@newageproducts.com

NewAge Products Inc.

201 Chrislea Road, Vaughan, ON

L4L 8N6, Canada
