New Air AI-100SS Bedienungsanleitung

Manual v1.1

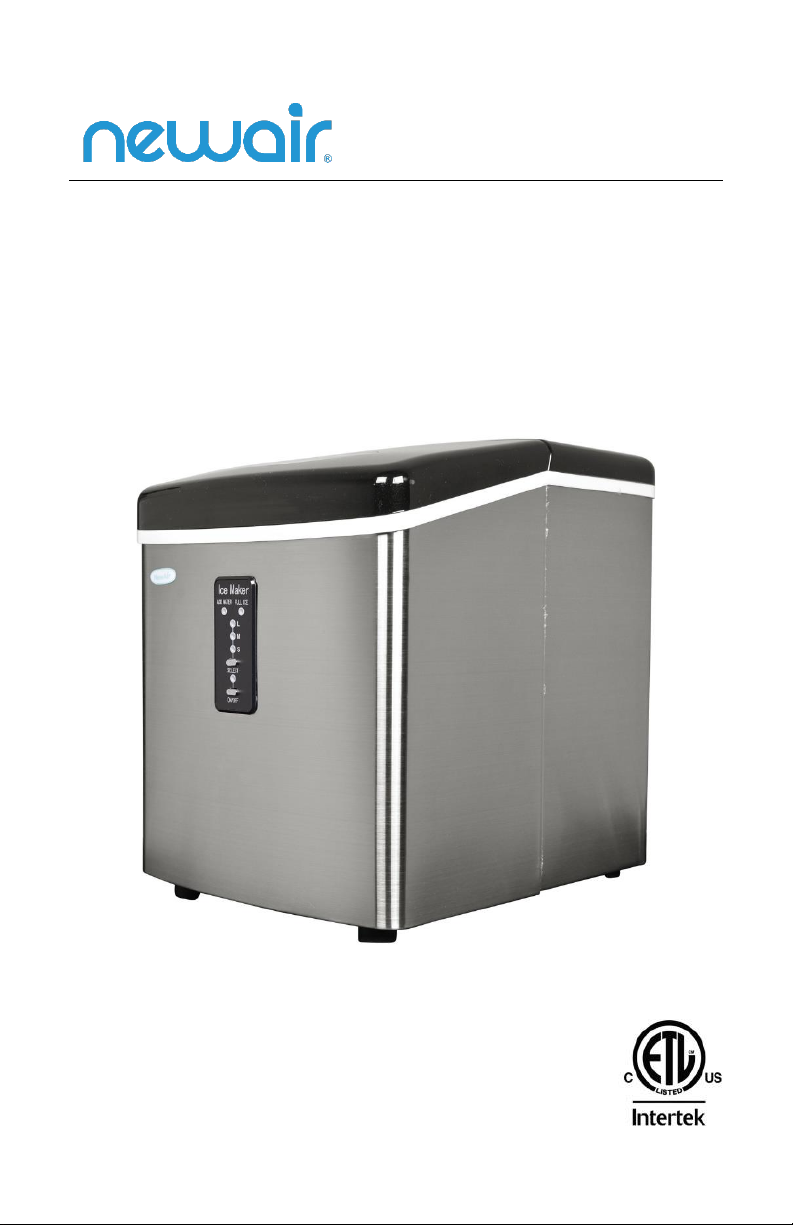

Portable Countertop Ice

Maker

OWNERS MANUAL

Read and save these instructions.

SKU: AI-100SS

newair.com

Take advantage of all the benefits product registration has to offer:

Service and Support

Diagnose troubleshooting and service issues faster and more

accurately

Recall Notifications

Stay up to date for safety, system updates and recall notifications

Special Promotions

Opt-in for NewAir promotions and offers

Registering your product information online is safe & secure and takes less

than 2 minutes to complete:

Alternatively, we recommend you attach a copy of your sales receipt below and

record the following information, located on the manufacturer’s nameplate on

the rear of the unit. You will need this information if it becomes necessary to

contact the manufacturer for service inquiries.

Date of Purchase: ___________________________________________

Serial Number: ____________________________________________

Model Number: ____________________________________________

newair.com/register

READ AND SAVE THESE INSTRUCTIONS.

TABLE OF CONTENTS

Safety Information & Warnings .....................................................4

Parts List ........................................................................................5

Assembly & Installation .................................................................6

Operating Instructions...................................................................7

Cleaning & Maintenance................................................................8

Storage...........................................................................................8

Troubleshooting.............................................................................9

Limited Manufacturer’s Warranty ...............................................11

SPECIFICATIONS

MODEL NO.

AI-100SS

RATED VOLTAGE:

115V / 60Hz

CURRENT:

1.9/2.7 amps

POWER CONSUMPTION:

120 watts

REFRIGERANT :

R600a

CAPACITY (DAILY):

28 pounds

CAPACITY (PER CYCLE):

9 pieces

ICE SIZES:

newair.com

SAFETY INFORMATION & WARNINGS

As with any electrical appliance, basic safety precautions must be

followed in order to reduce the risk of fire, electrical shock and/or

injury to persons or property. Be sure to read all instructions

before using this appliance and observe the following safety tips:

•Do not operate this appliance if it has a damaged cord.

•Only connect the ice maker to a properly polarized outlet. No other

appliance should be plugged into the same outlet. Make sure the plug

is fully inserted into the receptacle.

•An extension cord is not recommended, as it may overheat and

become a fire risk. If necessary, use an extension cord with a minimum

size of No. 14 AWG and rated for no less than 1875 watts.

•Do not place hands or objects on or near the ice maker’s evaporator

when it is in operation.

•Do not run the power cord over carpeting or heat insulators. Do not

cover the cord. Keep the cord away from high traffic areas and never

submerge it in water.

•Always turn off and unplug the ice maker from the power supply

before cleaning and servicing.

•Exercise caution and make sure there is supervision when this

appliance is being used near children.

•In the ice maker is brought in from the outside in the winter, allow the

ice maker to warm up to your room’s temperature for a few hours

before plugging it in.

•Do not clean your ice maker with flammable fluids. The fumes can

create a fire hazard or cause an explosion.

PARTS LIST

BASIC PARTS DIAGRAM

CONTROL PANEL DIAGRAM

BUTTONS:

Power - Turns unit on and off

Select - Selects ice size

INDICATOR LIGHTS:

S- Small ice size selected

M- Medium ice size selected

L- Large ice size selected

Ice - Ice basket is full

Add water - Water reservoir is

empty

newair.com

ASSEMBLY & INSTALLATION

1. Remove the exterior and interior packaging. Check that the ice basket and

ice scoop are included. If any parts are missing, please contact customer

service.

2. Clean the interior with lukewarm water and a soft cloth. Take out the ice

basket and clean it.

3. Place your ice maker in a location that is protected from direct sunlight and

other heat sources (e.g., stove, furnace, and radiator). Make sure it is on a

level surface with at least 5 inches of space between the back and sides of

the unit and the wall.

4. Allow one hour for the refrigerant fluid to settle in the compressor before

plugging the ice maker in.

NOTICE: After unpacking your ice maker, it must rest

in an upright position for at least one hour before you

plug it in or the compressor may be damaged,

shortening the life span of the unit.

5. Plug in your appliance into an exclusive, properly installed and grounded

wall outlet. Do not under any circumstances cut or remove the third

(ground) prong from the power cord. Any questions concerning power

and/or grounding should be directed to a certified electrician.

We recommend you clean your ice maker thoroughly before using it. Please

see Cleaning & Maintenance on page 6 of this guide.

OPERATING INSTRUCTIONS

1. Press the “SELECT” button to choose the ice cube size. If the ambient room

temperature is lower than 60°F, it is recommended that you select small or

medium sized ice cubes in order to prevent the ice from sticking together.

2. Open the unit’s cover, remove the ice basket, and pour water into the

water reservoir. Keep the water level below the “MAX” line marked inside

the reservoir.

3. Press the “POWER” button on the control panel to begin the ice making

cycle.

4. The ice making cycle lasts anywhere from 6 to 15 minutes, depending on

the size of the ice cubes you select and the ambient room temperature. Ice

making time may vary significantly in extremely high room temperatures.

5. Periodically verify the water level in the water reservoir when the ice

maker is on. If the water level is too low, the ice maker will automatically

stop and the “ADD WATER” indicator light will turn on. Press the “POWER”

button, fill the reservoir with water up to the level mark, and press the

“POWER” button again to restart the unit. Allow at least 3 minutes for the

refrigerant inside the compressor to settle before restarting.

6. The ice maker automatically stops working when the ice basket is full. The

“ICE” indicator light will also turn on at this time.

7. Change the water in the reservoir every 24 hours to ensure hygienic ice. If

the ice maker will not be used for an extended period of time, drain the

water from the reservoir by unplugging the drain off cap located on the

side of the ice maker.

newair.com

CLEANING & MAINTENANCE

1. Unplug the unit and remove the ice basket.

2. Clean the interior, including the water reservoir, with diluted detergent,

warm water and a soft cloth.

3. Clean the outside of the ice maker with a mild detergent solution and

warm water.

4. Dry the interior and exterior with a soft cloth.

5. Replace the ice basket and plug the unit in again.

To remove the build-up of calcium or other impurities, add a capful of vinegar

or lemon juice to the water in the reservoir and run for two or three ice-making

cycles. Drain and refill the reservoir with clean, warm water. Run two more

cycles to rinse the vinegar or lemon-juice.

When the machine is not in use, open the water drain cap to completely drain

the water reservoir.

STORAGE

Before storing your ice maker, clean it according to the directions above and

allow it to dry thoroughly (at least 24 hours) in order to prevent the growth of

mold or mildew.

Store your ice maker in the original packaging, or cover with a soft cloth or

plastic sheet.

TROUBLESHOOTING

Problem

Possible Cause

Solution

The “ADD WATER”

indicator light is on.

There is not enough

water in the tank.

Press the “POWER”

button to turn off the

unit. Fill the reservoir

with water. Press

“POWER” to restart.

The “ICE” indicator light

is on.

The ice basket is full.

Remove ice from the

basket.

The “ADD WATER” and

“ICE” lights are both

flashing.

The ice shovel may be

incorrectly positioned.

Make sure the ice

shovel is properly

positioned.

Ice may be blocking

the sensor.

Remove any ice that

may be blocking the

sensor.

The ice making cycle

appears to be normal

but no ice is being

produced.

The refrigerant may

be leaking.

Consult a qualified

technician.

A pipe in the cooling

system may be

blocked.

Consult a qualified

technician.

The ice cubes are too

small.

The ambient

temperature or water

temperature may be

too high.

Select large sized ice

cubes by pressing the

“SELECT” button.

The compressor may

need to warm up.

If this is the first time

the unit is being used,

allow the ice maker to

cycle a few times. This

should result in larger

cubes.

The ice has a “plastic”

taste.

The unit’s interior may

need to be cleaned.

Add a tablespoon of

lemon juice or vinegar

to a full tank of water

and allow the ice maker

to cycle a few times.

newair.com

Problem

Possible Cause

Solution

The unit produces a

large block of ice

instead of cubes.

The ambient

temperature may be

too low.

Unplug the unit and let

the ice thaw out. Allow

the ice maker to defrost

for a few hours and

restart the unit.

The ice cubes have a

cloudy appearance.

There may be trace

minerals in your water

or ice is being

produced too quickly.

Ice cubes may develop

cloudiness when water

is frozen quickly. As ice

develops on the surface

of water, certain gases

can no longer remain

dissolved and begin to

surface as microscopic

bubbles. This cloudiness

is normal.
