NewAir AI-120S

Portable Ice Maker & Ice Dispenser



Owner’sManual





TABLE OF CONTENTS

SECTION 1: IMPORTANT SAFETY INSTRUCTIONS

1.1 General Safety Instrucons…………………………………………………………………………………....……………. 1

1.2 Addional Safety Tips……………………………………………………………………………………………...………..... 2

SECTION 2: GETTING TO KNOW YOUR PORTABLE ICE MAKER

2.1 List of Main Parts…………………………………………………………………………………………………………....…... 3

2.2 The Control Panel……………………………………………………………………………………………………....……..… 4

SECTION 3: PREPARING YOUR ICE MAKER FOR USE

3.1 Unpacking Your Ice Maker……………………………………………………………………………………………….... 5

3.2 Electrical Hazards………………………………………………………………………………………………………………….5

SECTION 4: USING YOUR ICE MAKER

4.1 How toStart the Unit……………………………………………………………………………………………………….….. 6

4.2 How toDispense Ice Cubes….………………………………………………………………………………………………..6

4.3 Draining Your Ice Maker…………………………..…………………………………………………………………………..7

SECTION 5: OPERATING YOUR ICE MAKER

5.1 Operang Your Ice Maker………… ……………………………………………………………………………………….. 7

5.2 Cleaning and Maintaining Your Ice Maker……………………………………………………………………..…….. 8

SECTION 6: TROUBLESHOOTING……………………………………………………………………………………………………….……. 9

SECTION 7: DETAILED PARTS DIAGRAM ……………………………………………………………………………………………..… 10

SECTION 8: ELECTRICAL DIAGRAM…………………………………………………………………………………………………….…..11

SECTION1:IMPORTANTSAFETYINSTRUCTIONS

1.1GeneralSafetyInstructions

Yoursafetyandthesafetyofothersareveryimportant.Wehaveprovidedmanyimportantsafety

messagesinthismanualandonyourappliance.Pleasecarefullyreadandobeyallsafetymessages.

Thisisthesafetyalertsymbol:

 

Thissafetyalertsymbolandthewords“DANGER”or“WARNING”willprecedeallsafetymessages.



Failuretocomplywithsafetyinstructionscouldresultinpersonalinjuryand/orpropertydamage.

1.2AdditionalSafetyTips

Aswithanyelectricalappliance,basicsafetyprecautionsmustbefollowedinordertoreducetheriskof

fire,electricalshockand/orinjurytopersonsorproperty.Pleasereadallinstructionsbeforeusingthis

applianceandobservethefollowingsafetytips:

•Donotoperatethisapplianceifithasadamagedcord.

•Onlyconnecttheicemakertoaproperlypolarizedoutlet.Nootherapplianceshouldbe

pluggedintothesameoutlet.Alsomakesuretheplugisfullyinsertedintothereceptacle.

•Donotplacehandsorobjectsonorneartheicemaker’sevaporatorwhenitisinoperation.

•Donotcoverthepowercordorrunitundercarpetingorheatinsulators.Keepthecordaway

fromhightrafficareasandneversubmergeitinwater.

•Alwaysturnoffandunplugtheicemakerfromthepowersupplybeforecleaningorservicing.

•Closesupervisionisnecessaryiftheicemakerisusednearchildren.

•Iftheicemakerhasbeenpreviouslystoredorusedincooltemperatures,allowtheunittowarm

uptoyourroom’stemperatureforafewhoursbeforepluggingitin.

•Donotcleanyouricemakerwithflammablefluids.Thefumescancreateafirehazardorcause

anexplosion.



SECTION 2: GETTING TO KNOW YOUR PORTABLE ICE MAKER

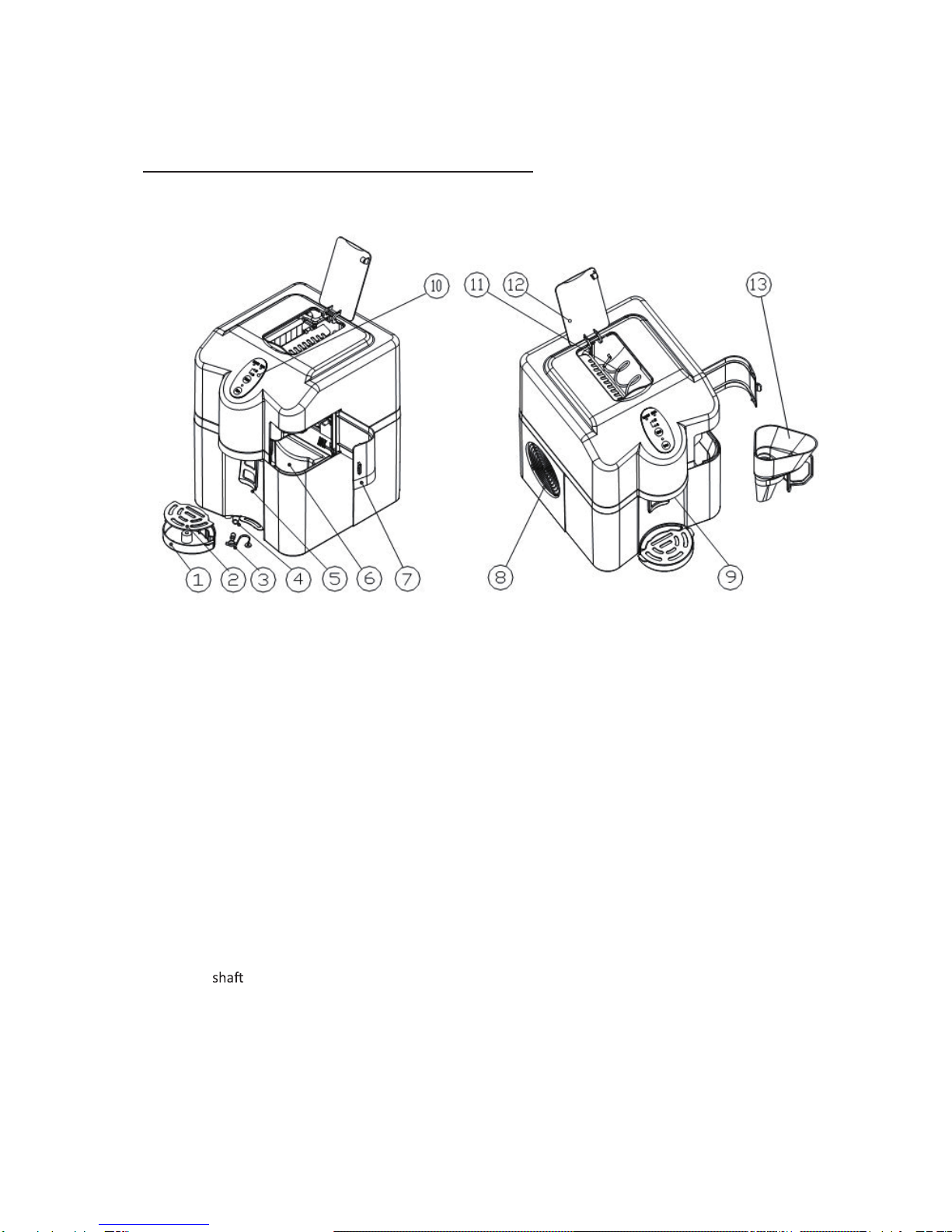

2.1 List of Main Parts

1. Water drip tray

2. Water drip tray cover (also used to support the ice container)

3. Water drainage cap

4. Water drainage port

5. Ice dispensing lever

6. Internal water reservoir

7. Internal water reservoir access door

8. Exhaust

9. Ice cube tap

10. Control panel

11. Ice

12. Clear viewing window

13. Water Funnel

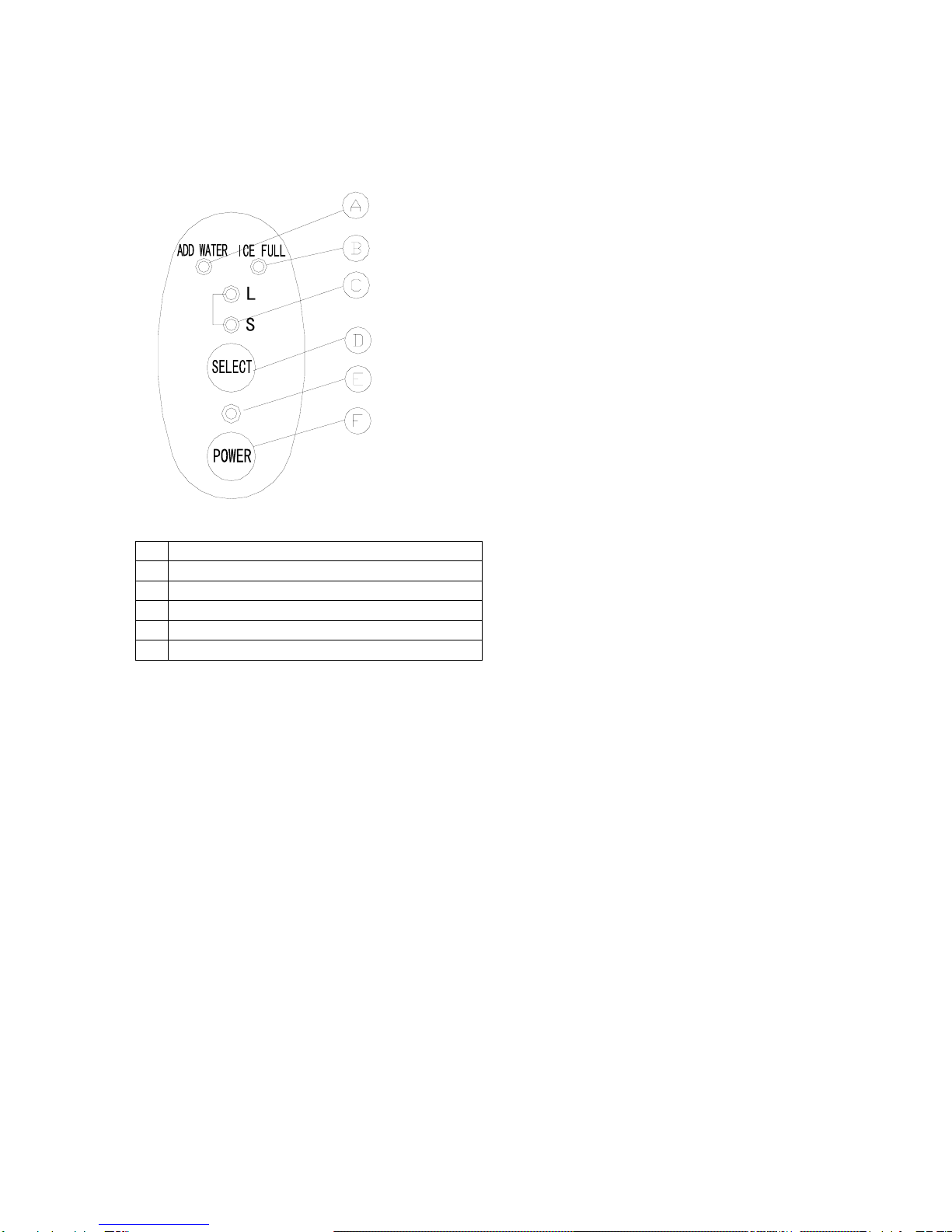

2.2TheControlPanel



AADDWATER(TankEmpty)Indicator

BICEFULLIndicator

CCubeSizeIndicator(Large/Small)

DCubeSizeSelectorButton

EPOWERONIndicator

FPOWERON/OFFButton

SECTION3:PREPARINGYOURICEMAKERFORUSE

3.1:UnpackingYourIceMaker

1. Removetheicemaker’sexteriorandinteriorpackaging,andremoveanytapefromtheunit.Do

notdiscardtheunit’sbox.Keepitforfuturestoragepurposes.

2. Checktomakesurethecomponentsshowninthelistofmainpartsareincluded(seeSection

2.1).

3. Cleantheinteriorwithlukewarmwaterandasoftcloth.

4. Findalocationforyouricemakerthatispositionedawayfromdirectsunlightandotherheat

sourcessuchasstoves,furnacesandradiators.

3.2ElectricalHazards



Thisappliancerequiresastandard115volt,60Hzelectricaloutlet.Consultacertifiedelectricianforany

questionsregardingpowerand/orgroundingissues.

PleaseNote:Improperuseofthegroundedplugcanresultinelectricshock.Donotusethisicemaker

ifthepowercordisdamaged.



Maximum

Water Level

SECTION 4: USING YOUR ICE MAKER

4.1 How to Start the Unit

1. Open the water reservoir access door and pour clean drinking water into the water reservoir. Keep

the water level below the “MAX” water level mark.

2. Press the “POWER” buon on the control panel to begin the ice making cycle.

3. The default ice cube size is set to large. To select a diﬀerent ice cube size, press the “SELECT” buon.

If the ambient room temperature is lower than 60°F, we recommend selecng the small size ice

cubes, as this will prevent the ice from scking together.

4. The ice making cycle lasts anywhere from 6 to 13 minutes, depending on the size of the ice cubes

selected and the ambient temperature. The ice making me may vary signiﬁcantly if the unit is

being used in extremely warm temperatures.

5. While the ice maker is on, periodically verify the water level in the reservoir. If there is not enough

water in the reservoir, the ice maker will automacally stop, and the “ADD WATER” indicator light

will turn on.

6. Once this occurs, turn oﬀ the ice maker by pressing the “POWER” buon. Allow the refrigerant

inside the compressor to sele for 3 minutes. Fill the reservoir with water up to the water level

mark and press the “POWER” buon again to restart the unit.

7. If the ice maker is full of ice, the unit will automacally stop making ice and the “ICE FULL” indicator

light will turn on.

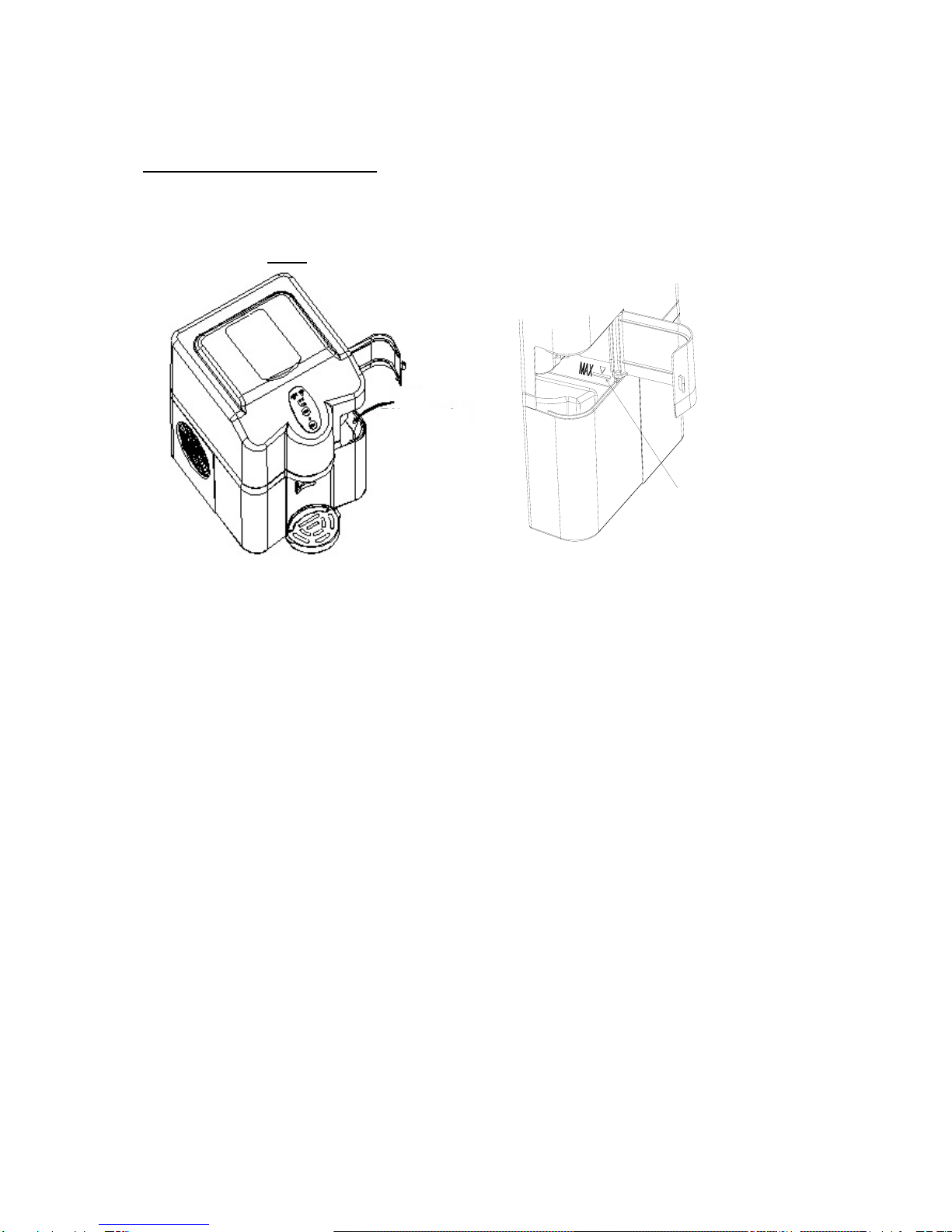

4.2 How to Dispense Ice Cubes

1. Use a glass, cup or other receptacle to gently push the ice dispensing lever forward (part #5 in the

parts diagram). Ice cubes will be dispensed into your glass or cup from the ice cube tap. Please

Note: When dispensing ice cubes, always make sure the transparent viewing window located on top

of the ice maker is closed, as the ice maker will not dispense ice cubes if the window is le open.

2. When the ice dispensing lever is pushed, a blue indicator light will turn on. If this light does not turn

on, the ice maker will not dispense ice cubes.

Fill water

here

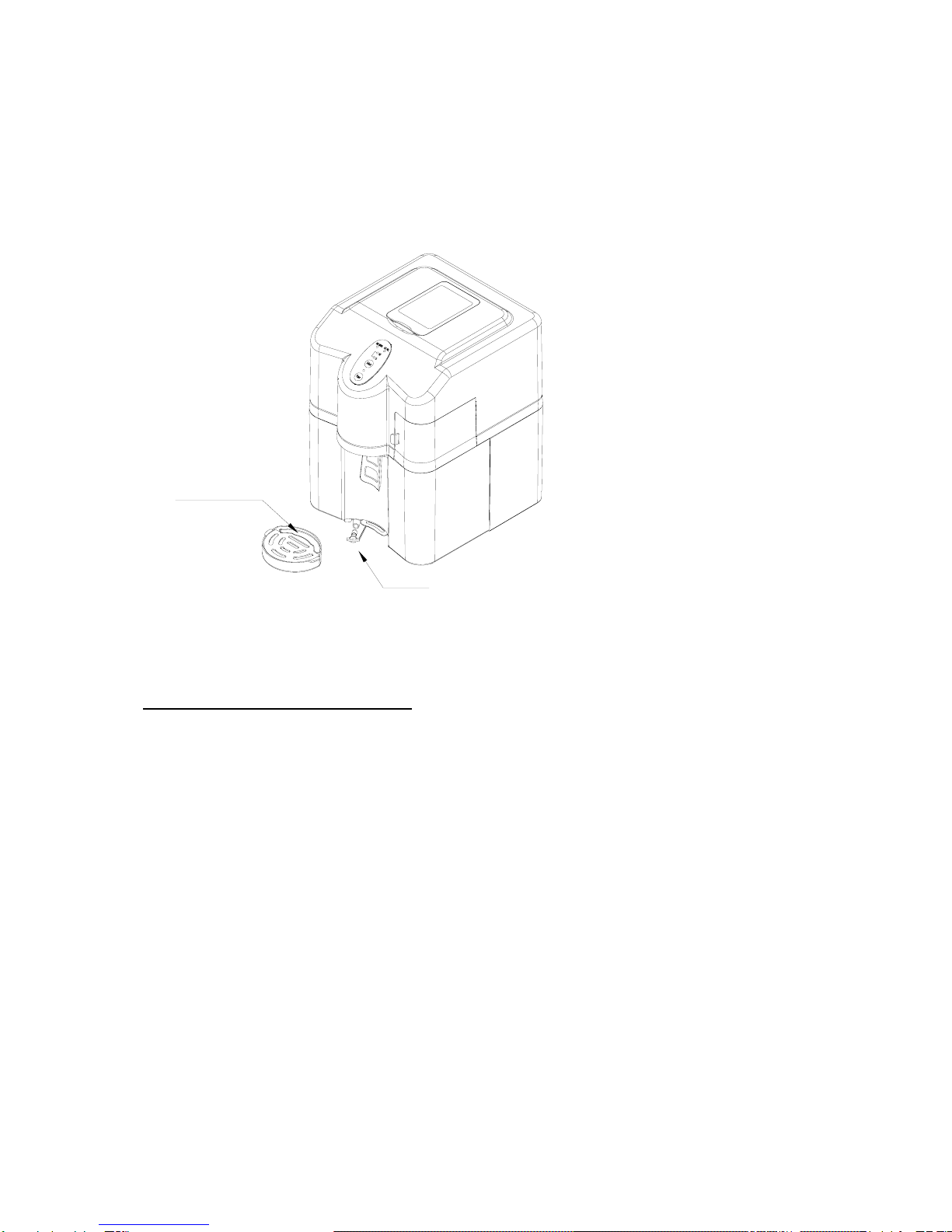

4.3 DrainingYourIceMaker

1. Emptythewaterreservoirbeforecleaningtheunit’sinterior.Todothis,firstdisassemblethewater

driptrayandunplugthewaterdrainagecap.Thewaterwillflowoutfromtheunitcompletely.



Disassemble the

water drip tray

Unplug the drain cap



2. Changethewaterinthewaterreservoirevery24hours.Iftheunitwillnotbeinuseforan

extendedperiodoftime,drainallofthewaterleftinthewaterreservoir.



SECTION5:OPERATINGYOURICEMAKER

5.1 OperatingYourIceMaker

1. Cleantheicemaker’sinterior(waterreservoir,iceshaft,etc.)withlukewarmwaterandasoftcloth.

2. Positionyouricemakerawayfromdirectsunlightandotherheatsourcessuchasstoves,furnaces

andradiators.Placetheicemakeronaflat,levelsurfaceandmakesurethereisatleast6inchesof

spaceinbetweenthebackandsidesoftheicemakerandthewall.

3. Allowtherefrigerantinsidetheicemaker’scoolingsystemtosettleforapproximatelyonehour

beforepluggingyouricemakerinforthefirsttime.

4. Makesuretheicemaker’splugisfullyaccessible.



DANGER







Improperuseofthegroundedplugcanresultinelectricshock.Ifthepowercordisdamaged,please

contactcustomerservice.

1. Thisunit’splugshouldbeproperlygroundedforyoursafety.Thepowercordisequippedwitha

three‐prongplugwhichiscompatiblewithstandardthreeprongwalloutletstominimizetheriskof

electricshock.

2. Thisappliancerequiresastandard115volt,60Hzelectricaloutletwithathree‐prongground.

3. Plugtheicemakerintoadedicated,groundedwalloutlet.Donot,underanycircumstances,remove

thethird(grounded)prongfromthepowercord.Directanyquestionsconcerningpowerand/or

groundingtoacertifiedelectrician.

5.2CleaningandMaintainingYourIceMaker

Itstronglyrecommendedthatyoucleanyouricemakerbeforeuse.Toproperlycleanyouricemaker,

followtheseinstructions:



1. Unplugtheunitfromthepowersupply.

2. Placeasmallcontainerorreceptacleunderthedrainageportandcleantheinteriorwithdiluted

detergent,warmwaterandasoftcloth.Firstpourthewarmwaterwithdiluteddetergentintothe

internalwaterreservoirandthenintothespacebelowtheclearviewingwindow.

3. Usethiswateranddetergentsolutiontocleantherestoftheicemaker’sinterioranddrainoutthe

waterbyunpluggingthedraincaplocatedonthebottomoftheunit.Drytheinteriorwithasoft

cloth. 

4. Usewarmwateranddiluteddetergenttocleantheexterioroftheicemaker.Drytheexteriorwith

asoftcloth.

5. Iftheicemakerwillnotbeinuseforanextendedperiodoftime,openthedraincapanddrainout

allofthewaterfromthewaterreservoir.
