NewLine FLEX Bedienungsanleitung
Quick Guide
TT-2721AIO
FLEX Quick Guide
・Unpacking your Newline Flex
45° 45°
・Newline Flex can be tilted up to 45 degrees
・Camera Installation
Camera Front Facing Installation:
With the camera facing forward,
align the USB Type-C Connector and
gently push down until fully seated.
Use the two thumb screws to secure
the modular camera to the Flex.
Camera Rear Facing Installation:
With the camera facing to the rear,
align the USB Type-C Connector and
gently push down until fully seated.
Use the two thumb screws to secure
the modular camera to the Flex.
1. Lay the carton on a flat
surface and open the box.
2. Remove the packing
materials.
3. Lift the Flex out of the box
and set on a flat sturdy surface.
4. Remove remaining packaging
materials and setup up in
designated area.
FLEX Quick Guide
・Control Buttons
・SDM (Smart Display Module) (Sold separately)
・Attaching the stylus to the Flex

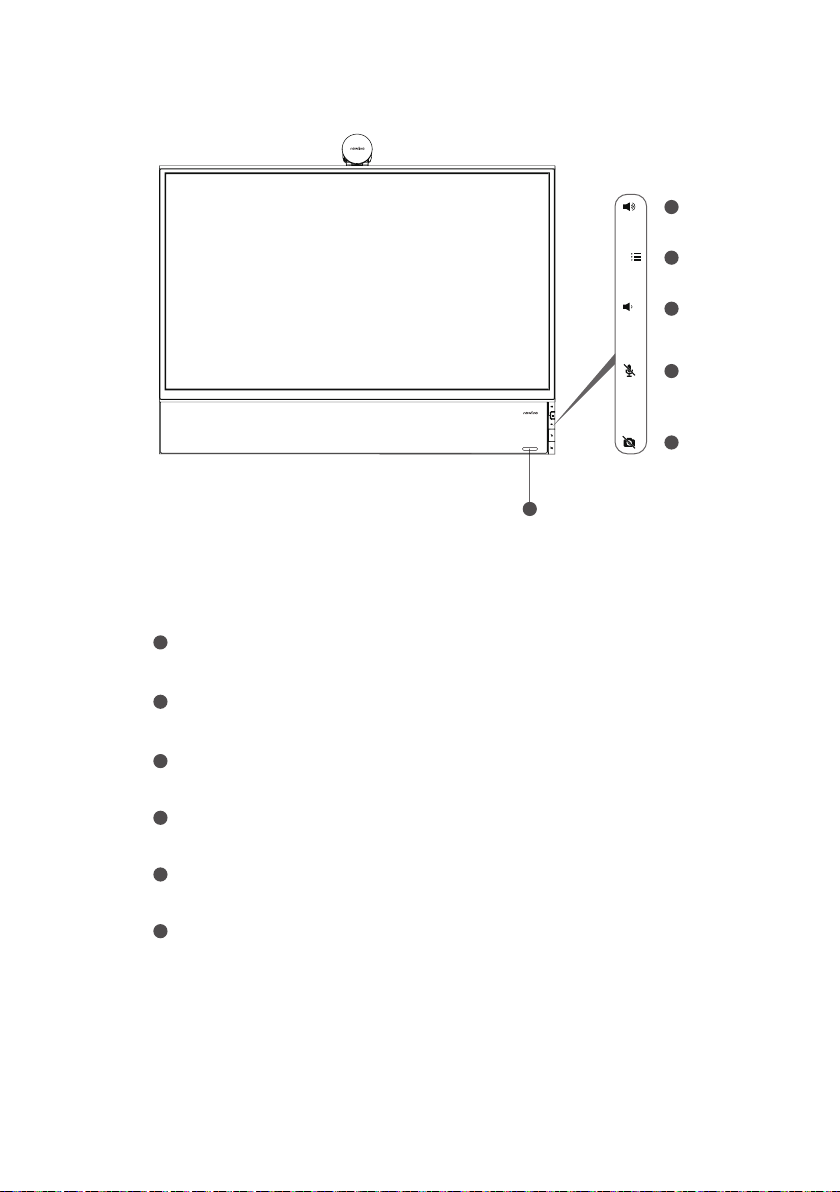

Power Button
1.
2.
3.
Magnetically attach the stylus to the right/left side of the Flex.
Volume Up
Menu
Volume Down
Microphone Mute/Unmute
Camera Toggle On/Off
SDM Security Screws
SDM Face Plate
SDM Installation Procedure:
Unscrew the two security screws using a Phillips head
screwdriver to remove the blank SDM faceplate.
Align the SDM grooves and rmly push the module into
place to ensure it is seated correctly.
Use the screws from step one to secure the SDM Module.
FLEX Quick Guide
DC Adapter 19V Input
Line Out Audio Output (Headphones)
Line In Audio Input
HDMI In HDMI Input 2.0
Touch Port Enables touch for externally connected devices.
USB Type-C Supports Audio/Video/Touch and 60Watts of power delivery.
USB 3.0 Dynamic USB port for easy access to externally connected devices.
・I/O Connection Interface
・Understanding your USB Type-C capability with Newline Flex
2
2
3
3
4
4
5
5
6
6
1
1
7
7
USB Symbol USB Version
Data
Transfer
Only
Audio Video Touch Power
Delivery
USB 2.0 High Speed √
USB 3.1 Gen 1 (Formerly USB 3.0) Super Speed √√√√
USB 3.1 Gen 2 (Formerly USB 3.1) Super Speed Plus √√√√
USB 3.1 Gen 1 (Formerly USB 3.0) Super Speed √√√√√
USB 3.1 Gen 2 (Formerly USB 3.1) Super Speed Plus √√√√√
Thunderbolt 3 √√√√√
FLEX Quick Guide
・Button Function
Control Botton Control Description
Power Button
Power the system On/O. If the SDM module is installed, the Flex will power
and boot directly to the SDM source. When powered o, the SDM will power
down and the Flex will shut down. If a SDM is not installed, the Flex will power
o immediately.
Camera Toggle On/O Enable or disable the attached Flex camera. If the camera is disabled, the
camera button will turn red and will o when the camera is re-enabled.
Microphone Mute/
Unmute
Enable or disable the integrated Flex microphone array. If the microphone
array is disabled, the microphone button will turn red and will o when the
microphone is re-enabled.
Volume Down On-screen volume adjustment indicator will appear when adjusting the
volume.
Menu Access to Flex menu.
Volume Up On-screen volume adjustment indicator will appear when adjusting the
volume.
1
1
2
2
3
3
4
4
5
5
6
6
FLEX Quick Guide
・Description of OSD Functions
Display Mode
Image Settings
1
1
2
3
4
5
6
Standard mode: Suitable for browsing websites.
Graphics mode: Suitable for viewing photos and graphics.
Reading mode: Suitable for viewing documents.
Movie mode: Suitable for watching movies.
Night mode: Suitable for night browsing.
Eye protection mode: Reduces blue light.
6
1
2
3
4
5
Brightness: Adjust the image brightness.
Contrast: Adjust the image contrast.
Gamma: Adjust the median value of brightness.
Full screen: Enlarges image to ll screen. Suitable for images with a 16:9 aspect ration.
4:3: Adjusts image to scale to a 4:3 aspect ratio. Suitable for images with a 4:3 aspect ratio.
Black balance: Adjust the brightness of the black area.
Sharpness: Adjust the clarity of the image.
6
1
2
3
4
5
1
2
3
4
5
6
Image scale
FLEX Quick Guide
Color Temperature Settings
Saturation: Adjust the intensity of the color.
Tone: Adjust the image tone.
1
2
1
1
2
2
3
Warm color temperature
Cool color temperature
Custom color temperature: you can select red (R), green (G) and blue (B) according to your preference
in the user customization.
1
2
3
FLEX Quick Guide
・PIP/PBP Mode
1
1
2
3
4
4
5
5
1
2
3
4
5
Sub-input selection: Select the sub-input source.
PIP location: Adjust the PIP location, top left/top right/bottom left/bottom right.
PIP size: Adjust the PIP size.
Sound channel: Select the sound channel.
Picture exchange: Main picture and sub-picture swapping.
FLEX Quick Guide
・OSD Settings
・Other Settings
1
1
2
2
3
3
4
5
1
2
3
4
5
Input signal source: Select a source.
Response time: Improve the response time of the LCD display.
Volume: Adjust the volume and select the sound mode.
USB Type-C Power Delivery: USB Type-C charging option.*
Reset: Restore all OSD settings to the default values.
1
2
3
OSD display time: Set the length of time the OSD menu remains on the screen.
OSD transparency: Adjust the transparency of the OSD menu.
Language: Select the language available for the OSD menu.
* By default, USB-C Power Delivery is disabled in Energy Saving Mode.To use USB-C with power delivery feature, please enable it in the “Other Settings” menu.
FLEX Quick Guide
When connecting to the line out port, a dialogue box will appear prompting to choose single or double screen mode. In single
screen mode, the line out outputs left and right channels, but the embedded speakers will not have any output. In double screen
mode, both the embedded speakers and line out will have sound.
When the volume adjustment buttons are pressed, the volume adjustment indicator appears on the screen. The volume can be
adjusted and muted / unmuted using the on-screen indicator.
The dynamic USB 3.0 port will automatically switch to any connected device for easy access. The modular camera and
integrated microphone will automatically switch to the active source.
・Notes
By default, the SDM source is automatically selected. When other sources are detected, a dialogue box will appear allowing user
to switch sources.
