4G GPS

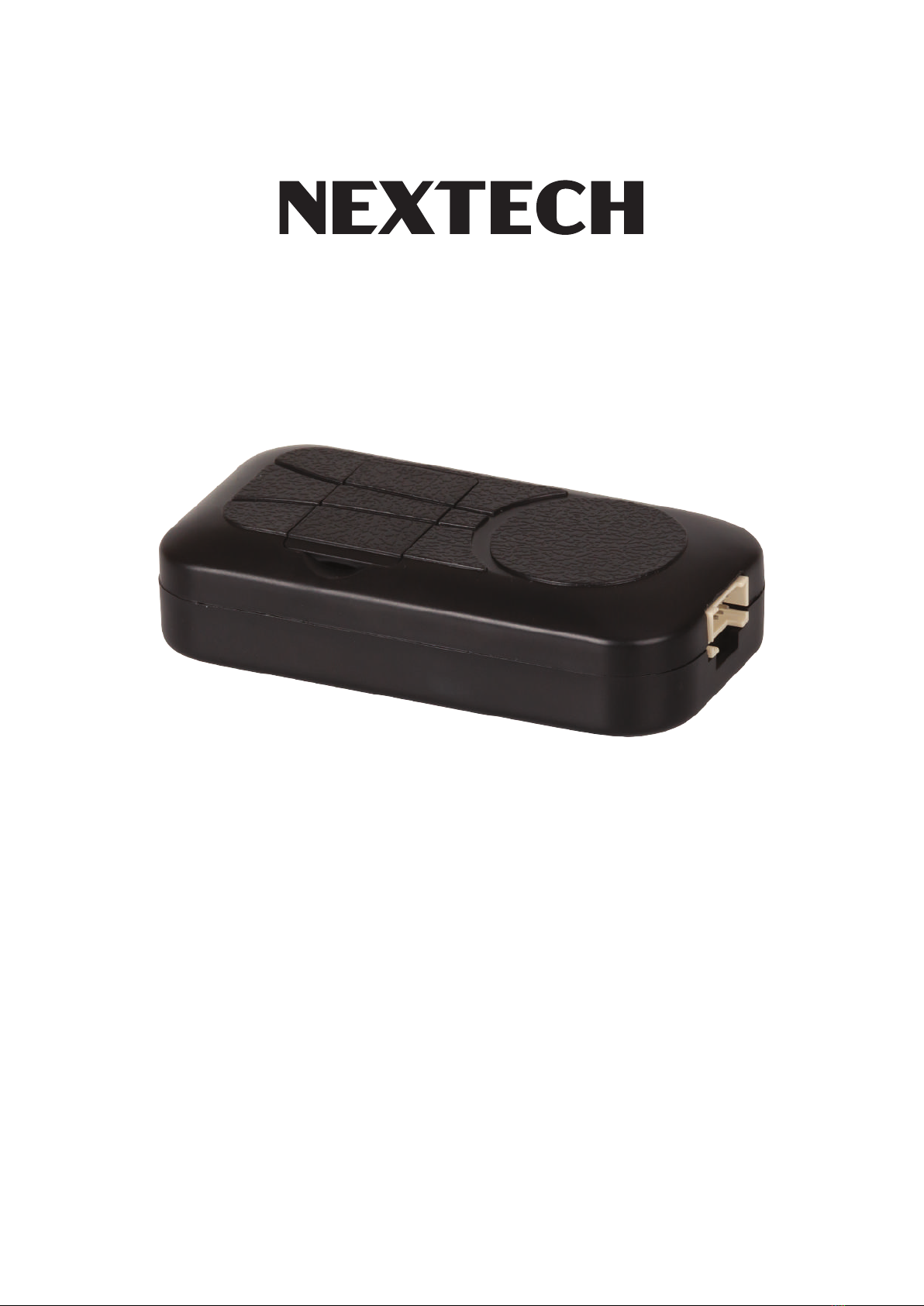

Vehicle Tracker

LA9038

User Manual

-1-

Welcome to use this real time car GPS tracker .This product is with GPS module and 2G GSM /

3G WCDMA / 4G LTE module, that has many new and unique functions, such as built in rechargeable battery

for power down alarm & tracker removed alarm, remote turn off car engine, playing back history tracking on

website or mobile phone, SMS locate with Google map link, sensitive shock sensor built in to control power

saving etc. the tracker can auto configure APN & GPRS setting, it is very easy to install and use, just connect

the power supply is OK, the working voltage range is 7-40V, it can be used for car (12V) or tuck (24V) bus etc.

The tracker sends the real time location to internet server through internet, so that user visit the website

with the applied user’s name and password (default user name is the last 7 digital of

the ID, password is same as user name or is 123456, E.g. ID is 803201712345678, user name is 2345678,

password is 2345678 or 123456) through any PC or mobile phone with available internet, current location

checking, history tracking playing back, alarm & running report etc can be operated, normally the platform

service charge is free (some distributor maybe sale different package of 1 year service charge free), please

confirm expired date after login the website, and the tracker will be active after the tracker power on.

User also can download Android or iPhone iOS app software to android or iPhone mobile phone, click the

app, logon with user name and password, you can locate current location & display history tracking, the user

name and password is same with the website login.

This GPS tracker can be used as car alarm, fleet management, driver management etc, it can be used for

tracking cars, company vehicles, buses, taxis, trucks, etc.

Use PC or mobile phone browser to visit the website can download or read the

manual online.

QR-Manual Download (Pdf)

iPhone App Download Android App Download

LA9038

tracker

-2-

Product Specification

Easy installation (only 2-4 wires)

Global 2G / 3G / 4G frequency band;

Fast GPS locating with A-GPS function;

GPS + BEIDOU dual mode module;

Built in microphone to listen sound in car(Optional external microphone);

Open protocol and protocol can be customized by client;

Connect to client private server or use our open API platform server;

Built in G-sensor for shock alarm car security;

GPS / GPRS power saving intelligent control;

Cars, Trucks, Vans, Touring Cars all can be used;

Backup battery for power down & remove alarm;

iOS & Android App & Web tracking;

Wide working voltage(9-40V)

Suit for car truck bus transportation gps tracking & fleet management;

System LED Indicator

GREEN LED Flash once : 2/3/4G & GPS working well

GREEN LED Flash twice : 2/3/4G working well and no GPS signal

GREEN LED Flash three times : 2/3/4G & GPS working well but battery low

GREEN LED Flash four times : 2/3/4G working well, battery low and no GPS signal

GREEN LED ON continuously : 2/3/4G searching network

GREEN LED OFF : Power off

RED LED Flash once : uploading tracking is ok

RED LED Flash twice : can not upload tracking

ON/OFF

Switch

LED

Indicator

SIM Card

Socket

Standard Wire

Harness

GPS

Antenna

-3-

In the following content, all the SMS content is mark by “”, and this “” is not include

in the SMS content, it is only to used to mark the SMS content.

Before Using

1 Power on / off

Open SIM card room cover with finger, slide the switch to the ON position (please refer the following

diagram), in the direction of the arrow , the tracker will power on, if the tracker battery is low, the power & GND

wire connect to car battery is OK, after the tracker is powered on, the LED will flash, if the Green LED flash

once every 4 seconds, it means the tracker work well, please refer the above detail LED flash indicator.

2 Install SIM card (Micro SIM Card)

This tracker use 2G/3G/4G Micro sim card, open the SIM card room cover, the SIM card holder can be

seen, slide the metal cover to “OPEN” direction to open the sim card holder, put the SIM card to the SIM card

holder (pay attention to the SIM card direction), press and slide the metal cover to “LOCK” direction to lock the

SIM card.

Note:

1> This tracker use 2G/3G/4G network, and it upload tracking only through internet.

2> Enable the SIM card data service (some SIM card need send SMS or USSD command to enable

GPRS function), order a data package (20-30M/month) can save data charge (Normally most of the

tracker every month data cost is lower than 20MB).

Slide the switch

To “ON” position

-4-

3> Before installing or uninstalling the SIM card, please power off the tracker.

3 Installation

For CC-338, the tracker uses the 9-40V DC power supply, it is necessary connecting to car battery all the

time, after the backup battery is full, the built in recharging circuit will stop recharging, and if the tracker is not

move, the tracker will go to power saving mode (GPS off, GPRS online), when the tracker begin to move, the

tracker will back to normal working mode.

The standard wire suit for all the cars, the wire function description is as follow, if the car can be controlled

by OBD can bus, then use the OBD wire harness connect to the OBD socket is OK, it is easy and convenient.

RED or BROWN----------12V/24V car battery

BALCK------GND (Car Body)

WHITE -------ON Signal(Engine Running) Positive Input

Note: ON signal is used to indicator the engine is running (Positive means engine is running), if ON signal

is positive then the tracker will begin to upload location to server, if the ON signal is open the tracker will stop to

upload location to server. If the GREEN wire is not connected to ON signal, the uploading will be controlled by

shock sensor, if the car begin to move the tracker will begin to upload location to server, after the car stop

moving 2 minutes the tracker will stop to upload location to server.

YELLOW----Turn off Engine Negative Output (Connect to Relay)

The engine cut command need add a rely to execute, the tracker have a output engine cut wire, when the

tracker turn off the engine, this yellow wire will output a negative signal continuously, this wire can drive the

relay to control engine power supply or petrol pump power supply, then can turn off the car engine. The output

current of the yellow wire is smaller than 500mA, and a diode is necessary to add to protect the tracker driving

wire, the diagram is as follow, Normally the turn off engine output used to control the car starting motor or oil

pump motor line or ON wires.

-5-

start motor wire, this will make driver can not remote turn off car engine, but can not start car

engine.

For car security the tracker need be installed in hidden place, normally the back of the seat or arm rest box

or under the back window or room on the panel etc. please note that the install location of the tracker must can

receive the 2/3/4G & GPS signal, the GPS antenna need face to sky to receive the GPS signal, before

recovery the cover panel please confirm the tracker can locate after installation, if the location is not right and

lost points very often, please try to change a place to install.

4 Internet Vising APN & User Name and Password

Most SIM card need set APN and user name & password to visit the internet, then the tracker can upload

the location to server, send SMS to tracker can set the APN and username & password, call the tracker SIM

card supplier to get the APN and user name & password, send SMS “APN*12345678*apnname” to set APN,

12345678 is the tracker device password, apnname is the SIM card data service APN name, the device will

reply SMS “APN: apnname”. Send SMS “USERNAME*12345678*username*password” to set username &

password, username is the internet visiting account name, password is the account password, the device will

reply “USERNAME: username, PASSWORD: password”.

Note: if the SIM card in the device is M2M card that has not SMS service, the device can not receive SMS,

then please put a normal SIM card into the device to set the APN and username & password first, and then

change the M2M card back to device.

5 Back Up Battery & Power Down Alarm:

When the tracker power supply is off or the voltage is too low, the tracker will send power down alarm

GPS Antenna Side

This Side face to sky

Attention: Turning off engine is very dangerous when car is driving, this will make the car

difficult to control and maybe cause a accident, so we recommend connect the relay to cut the

SMS to the authorized number. This means the tracker power is removed or the tracker is removed, please

confirm.

6 Back to Factory Setting

Send the SMS command to the tracker can reset the tracker setting to the factory mode (just like new

tracker). The SMS command is FACTROY*12345678. FACTORY is command, 12345678 is tracker password.

-6-

Simply Using Step

1. First to buy a 2G GSM / 3G WCDMA / 4G LTE mobile phone SIM card and enable data service, order a

data package 20-30M (Normally most of the tracker every month data cost is lower than 30MB), install in the

tracker, please refer Before Using 2. Some SIM card need send SMS to active internet data service, please

call the SIM card supplier to confirm.

2. Connect the tracker power wire to the car battery and slide the switch to ON position, the Green LED

will be on continuously, the tracker is powered on, put the tracker outdoor for easy get GPS & mobile phone

network signal.

3. Check LED flash, refer System LED Indicator for detail, If Green LED flash once means mobile phone

and GPS signal are well. And Red LED flash once means the location has been uploaded to the server.

4. This tracker can auto configure APN & GPRS user name & password, if the auto configuration is not

right, the tracker can not visit internet, so the tracker location can not update on the app & website, and the red

LED will flash twice, then you need send SMS to tracker to change the APN & GPRS manually, please send

SMS “CHECK*12345678” to tracker to check the APN auto configuration, call the tracker SIM card supplier to

confirm the APN & GPRS is right. Send “APN*12345678*apnname” and

“USERNAME*12345678*username*password” to tracker can change the APN & GPRS setting, please refer

the following Tracker Setting Command 8 for detail.

5. Visit & login the tracking platform can select different language,

check current location, playback history tracking etc can be operated, platform user name and password is the

last 7 digital numbers of the tracker’s ID (for example ID is : 803201712345678, the user name is : 2345678,

password is :2345678 or 123456, user can change the password, send SMS “ID*12345678” to tracker can

check tracker ID).

6. iPhone Android App also use the same user name and password with website login, visit

with mobile phone, click the app icon on the login page, or scan the QR code on login

click,

7 Using Condition

The working temperature is -20℃to 60℃, over this range the specification maybe can not reach the

standard level. the storage temperature can reach to -40℃to 80℃.

the iPhone & Android app can be download & installed, please refer the platform operation guide.

7. Fleet user can be created for easy fleet management, call your distributor to create a fleet.

page,

-7-

Locate Operation

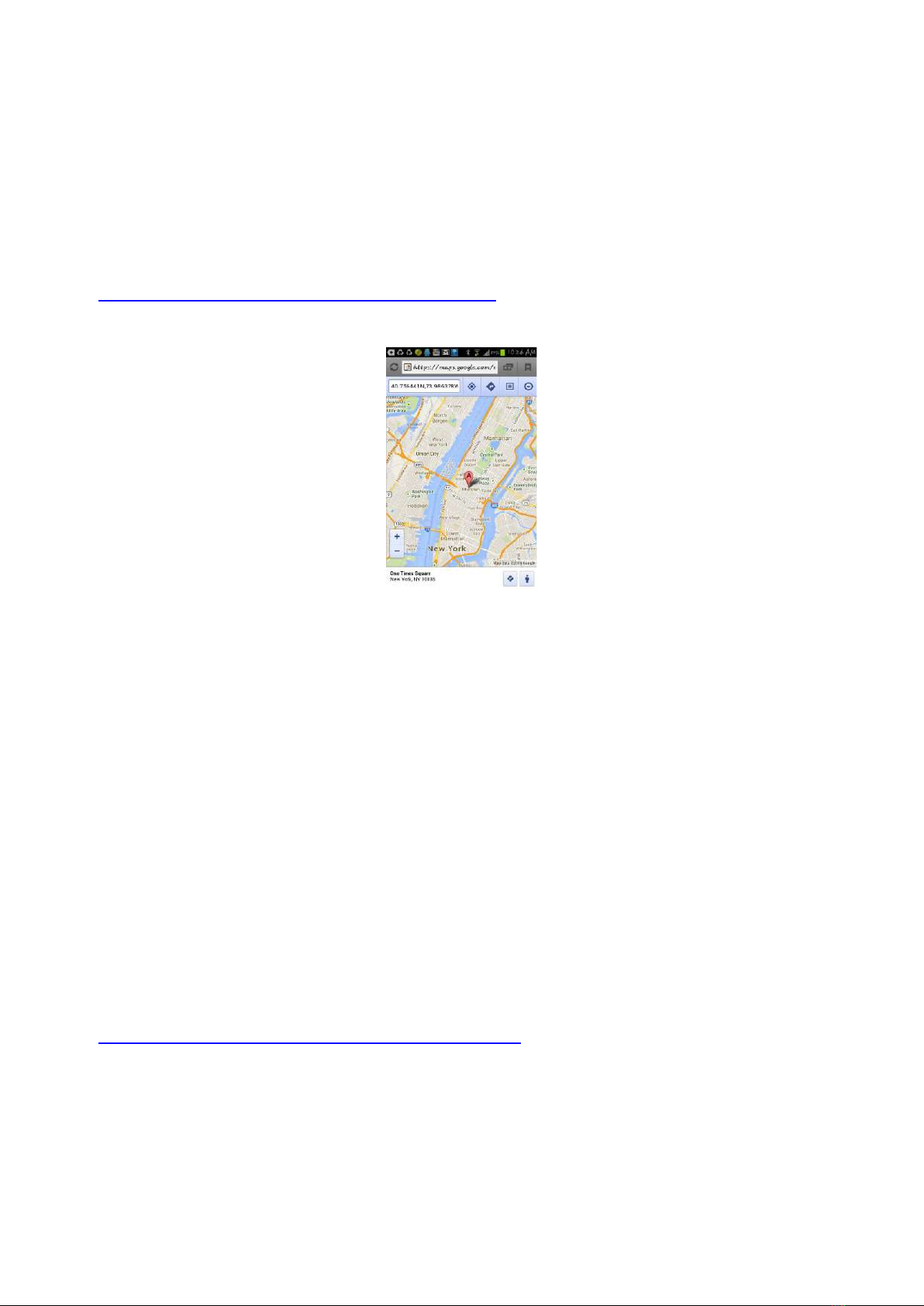

1. Sending SMS to trigger report location by Google map link

Send SMS “URL*12345678” to the tracker, “URL” is a command, "12345678" is password. If the operation

is success, the tracker will send back the location information with Google map link to the sender. User click

the link, the location in google map will display, the SMS example is as follow:

https://maps.google.com/maps?q=22.67680,114.15188

Battery:88%

2. Arm / Disarm (Shock Alarm) by sending SMS

Send SMS “ARM*12345678” to tracker, “ARM” is a command, "12345678" is password, the tracker will

send back the information “Set Shock Alarm ON” to indicate the operation is success and go to arm state, if the

password is not right, the operation is fault, the tracker will send back information “Wrong Password”.

After go to shock alarm state, the system will check shock sensor, if the shock sensor is trigger (only

continuously shock can trigger the shock alarm to avoid trigger by mistake), the tracker will send alarm

and location information by SMS to the authorized phone number, and send the alarm information to the

website server, also the tracker will call the authorized number A first, if no answered then B and C, if 3

authorized all no answered, then stop calling, If the tracker is triggered continually, every authorized phone will

receive max 3 alarm SMS per hour.

The shock alarm SMS is as follow:

Shock Alarm

https://maps.google.com/maps?q=+40.756441,-73.986378

Send SMS “DISARM*12345678” to tracker, “DISARM” is a command, "12345678" is password, the

tracker will send back the information “Set Shock Alarm OFF” to indicate the operation is success and disable

-8-

the shock alarm, if the password is not right, the operation is fault, the tracker will send back information

“Wrong Password”.

Shock alarm notice by sending SMS & calling can be enabled ON or OFF, please refer Tracker Setting

Command 3 &4.

3. Listening or Monitor sound around tracker

Send SMS “LISTEN*12345678” or “LISTEN*12345678*13987654321” to tracker, “LISTEN” is a command,

“12345678” is password, “13987654321” is the phone number that need to call back, then the tracker will make

a call back to the SMS sender or the number that assigned like 3987654321 , user pick up the calling and then

the sound around the tracker can be listened. Hang up the calling will stop the LISTEN command.

4. Remote Turn Off Car Engine (Cut Oil Power)

Send SMS “FREEZE*12345678” to tracker, “FREEZE” is a command, "12345678" is password, the car

engine will be turned off immediately. The tracker will send back information “Turn Off Car Engine Success”, if

the password is not right, the operation is fault, the tracker will send back information “Wrong Password”.

5. Cancel Turn Off Car Engine Command

Send SMS “RELEASE*12345678” to tracker, “RELEASE” is a command, "12345678" is password, the

output of the tracker engine cut wire will change to open, then user can start engine later. The tracker will send

back information to indicate the turn off engine command has been disabled, if the password is not right, the

operation is fault, the tracker will send back information “Wrong Password”.

Tracker Setting Command

1. Add / Delete / Check authorized number:

The authorized phone number is used to send alarm information by SMS, or use mobile phone to locate

the tracker without platform, if the authorized phone number is not set, then the alarm information can not send

to user by SMS (alarm, battery low, SOS, etc). The Add command please see “Basic Locate Operation &

Setting”.

Add authorized phone number

Send SMS“ADDPHONE*12345678*A*number”(Not including the quotation marks “”, Number means the

telephone number you want preset, the following is same) to tracker is OK, “ADDPHONE” is a command;

"12345678" is password; “A” is authorized number location, every tracker have 3 authorized phone number

locations, A and B, and C, so you can set 3 phone numbers, if the add operation is success, the tracker will

send back the information ”Add Preset Phone OK”, if the password is not right, the operation is fault, the

tracker will send back information “Wrong Password”.

Delete authorized phone number by SMS

-9-

Send SMS “DELETEPHONE*12345678*A” to the tracker, “DELETEPHONE” is a command; "12345678"

is password; “A” is authorized phone number location, there are 3 locations “A” and “B” and “C”; if the delete

operation is success, the tracker will send back the information ”Delete Preset Phone OK”, if the password is

not right, the operation is fault, the tracker will send back information “Wrong Password”.

Check authorized phone number by SMS

Send SMS “CHECKPHONE*12345678” to tracker, “CHECKPHONE” is a command; "12345678" is

password; if the operation is success, the tracker will send back the information “Preset Phone

A:13987654321; B:13876543210; C:13765432100 , the phone number is just an example. if the password is

not right, the operation is fault, the tracker will send back information or “Wrong Password”.

2. Change / Check Tracker Password

The tracker password is used to protect the tracker only can be operated by owner, every SMS command

need follow tracker password, the default tracker password is 123456, for higher security please change the

tracker password.

Change tracker password

Send SMS “CHANGEPASSWORD*12345678*888888” to tracker, “CHANGEPASSWORD” is a command;

"12345678" is old password; “88888888” is new password; if the operation is success, the tracker will send the

information “ New Password: 88888888” to every preset phone number, if the password is not right, the

operation is fault, the tracker will send back information “Wrong Password”.

Note: Only The authorized phone can change the password.

Check tracker password

Send SMS “CHECKPASSWORD” to the tracker, “CHECKPASSWORD” is a command, if the operation is

success, the tracker will send back the information “Password:88888888”; “88888888”is an example.

Note: Only The authorized phone can check the password.

3. Alarm Notice by Calling ON/OFF:

Send SMS “CALLON*12345678” to tracker, in which, “CALLON” is the fixed command and "12345678"is

the password. Having successfully been made, there will be a reply sms to indicate the alarm will be noticed by

making a call. Send SMS “CALLOFF*12345678” to tracker, in which, “CALLOFF” is the fixed command and

"12345678"is the password. Having successfully been made, there will be a reply sms to indicate the alarm will

not be noticed by making a call. If the alarm notice is set to CALLOFF, then the tracker only sending sms or

sending information to platform when the alarm is triggered.

4. Alarm Notice by SMS ON/OFF:

Send SMS “SMSON*12345678” to tracker, in which, “SMSON” is the fixed command and "12345678"is

the password. Having successfully been made, there will be a reply sms to indicate the alarm will be noticed by

sending a sms. Send SMS “SMSOFF*12345678” to tracker, in which, “SMSOFF” is the fixed command and

"12345678"is the password. Having successfully been made, there will be a reply sms to indicate the alarm will

Andere Handbücher für LA9038

Inhaltsverzeichnis

Andere Nex-tech GPS Handbücher

Nex-tech

Nex-tech LA9038 Bedienungsanleitung

Beliebte GPS Handbücher anderer Marken

Raven

Raven Cruizer II Handbuch

Hama

Hama 53118 Bedienungsanleitung

Garmin

Garmin SOUNDER 125 Bedienungsanleitung

Garmin

Garmin DEZL 580 Bedienungsanleitung

Jigabot

Jigabot EX Bedienungsanleitung

Pointer

Pointer Cellocator CelloTrack XT LTE Installationsanleitung

Queclink

Queclink GV55LITE Bedienungsanleitung

Voxson

Voxson Voxtrack GPS500 Gebrauchsanweisung

Garmin

Garmin ECHOMAP PLUS Bedienungsanleitung

Starcom Systems

Starcom Systems Kylos Compact Bedienungsanleitung

Garmin

Garmin 15 H Series Bedienungsanleitung

Cobra

Cobra Marine MC 600Ci Bedienungsanleitung

Cellocator

Cellocator CelloTrack T Bedienungsanleitung

Enfora

Enfora Mini-MT GSM2228UG001 Bedienungsanleitung

Magellan

Magellan eXplorist 100 Bedienungsanleitung

LTE

LTE G50B Bedienungsanleitung

Garmin

Garmin DEZL OTR500 Bedienungsanleitung

SkyGolf

SkyGolf SkyCaddie SG1 Bedienungsanleitung
