INSTALLATION MANUAL

Ground source heat pump

NIBE F1245

Quick guide

Navigation

Ok button (confirm/select)

Back button (back/undo/exit)

Control knob (move/increase/reduce)

A detailed explanation of the button functions can be found on page 38.

How to scroll through menus and make different settings is described on page 41.

Set the indoor climate

INDOOR CLIMATE

HEAT PUMP INFO

HOT WATER

The mode for setting the indoor temperature is accessed by pressing the OK button twice, when in the start

mode in the main menu.

Increase hot water volume

To temporarily increase the amount of hot water, first turn the control knob to mark menu 2 (water droplet)

and then press the OK button twice.

41 Important information

4Safety information

4Symbols

4Marking

5Serial number

5Recovery

5Environmental information

6Inspection of the installation

72 Delivery and handling

7Transport

7Assembly

8Supplied components

8Removing the covers

9Removing parts of the insulation

103 The heat pump design

10General

12Distribution boxes

14Cooling section (EP14)

164 Pipe connections

16General

17Dimensions and pipe connections

18Brine side

18Heating medium side

19Cold and hot water

19Docking alternatives

215 Electrical connections

21General

23Connections

25Settings

26Optional connections

30Connecting accessories

326 Commissioning and adjusting

32Preparations

32Filling and venting

33Start-up and inspection

36Setting the heating curve

387 Control - Introduction

38Display unit

39Menu system

438 Control - Menus

43Menu 1 - INDOOR CLIMATE

43Menu 2 - HOT WATER

43Menu 3 - INFO

45Menu 4 - HEAT PUMP

46Menu 5 - SERVICE

599 Service

59Service actions

6610 Disturbances in comfort

66Manage alarm

6911 Accessories

7112 Technical data

71Dimensions and setting-out coordinates

72Electrical data

73Technical specifications

75Energy labelling

80Item register

83Contact information

3Table of ContentsNIBE F1245

Table of Contents

Safety information

This manual describes installation and service proced-

ures for implementation by specialists.

The manual must be left with the customer.

This appliance can be used by children

aged from 8 years and above and persons

with reduced physical, sensory or mental

capabilities or lack of experience and

knowledge if they have been given super-

vision or instruction concerning use of the

appliance in a safe way and understand

the hazards involved. Children shall not

play with the appliance. Cleaning and user

maintenance shall not be made by children

without supervision.

Rights to make any design or technical

modifications are reserved.

©NIBE 2020.

Water may drip from the safety valve’s

overflow pipe. The entire length of the over-

flow water pipe must be routed to a suitable

drain and be inclined to prevent water pock-

ets, and must also be frost-proof. The over-

flow pipe must be at least the same size as

the safety valve. The overflow pipe must be

visible and its mouth must be open and not

located close to electrical components.

F1245 must be installed via an isolator

switch. The cable area has to be dimensioned

based on the fuse rating used.

Symbols

NOTE

This symbol indicates danger to person or ma-

chine .

Caution

This symbol indicates important information

about what you should consider when installing

or servicing the installation.

TIP

This symbol indicates tips on how to facilitate

using the product.

Marking

The CE mark is obligatory for most products sold

in the EU, regardless of where they are made.

Classification of enclosure of electro-technical

equipment.

IPX1B

Danger to person or machine.

Read the User Manual.

NIBE F1245Chapter 1 | Important information4

1 Important information

Serial number

The serial number can be found at the bottom right of

the front cover, in the info menu (menu 3.1) and on the

type plate (PZ1).

Serial number

Caution

You need the product's ((14 digit) serial number

for servicing and support.

Recovery

Leave the disposal of the packaging to the in-

staller who installed the product or to special

waste stations.

Do not dispose of used products with normal

household waste. It must be disposed of at a

special waste station or dealer who provides this type

of service.

Improper disposal of the product by the user results in

administrative penalties in accordance with current le-

gislation.

Environmental

information

F-GAS REGULATION (EU) NO. 517/2014

This unit contains a fluorinated greenhouse gas that is

covered by the Kyoto agreement.

The equipment contains R407C, a fluorinated green-

house gas with a GWP value (Global Warming Potential)

of 1,774. Do not release R407C into the atmosphere.

5Chapter 1 | Important informationNIBE F1245

Inspection of the installation

Current regulations require the heating installation to be inspected before it is commissioned. The inspection must

be carried out by a suitably qualified person.

In addition, fill in the page for the installation data in the User Manual.

DateSigna-

ture

NotesDescription

✔

Brine (page 18)

System flushed

System vented

Antifreeze

Level/Expansion vessel

Particle filter

Safety valve

Shut off valves

Circulation pump setting

Heating medium (page 18)

System flushed

System vented

Expansion vessel

Particle filter

Safety valve

Shut off valves

Circulation pump setting

Electricity (page 21)

Connections

Main voltage

Phase voltage

Fuses heat pump

Fuses property

Outside sensor

Room sensor

Current sensor

Safety breaker

Earth circuit-breaker

Setting of emergency mode thermo-

stat

NIBE F1245Chapter 1 | Important information6

Transport

F1245 should be transported and stored vertically in a

dry place. When being moved into a building, F1245

may be leant back 45 °.

Ensure that F1245 has not been damaged during trans-

port.

Caution

The product can be tail heavy.

Remove the outer panels in order to protect them when

moving in confined spaces inside buildings.

EXTRACTING THE COOLING MODULE

To simplify transport and service, the heat pump can be

separated by pulling the cooling module out from the

cabinet.

See page 62 for instructions about the separation.

Assembly

• Place F1245 on a solid foundation indoors that can

take the heat pump's weight. Use the product's ad-

justable feet to obtain a horizontal and stable set-up.

30 - 50 mm

15 - 40 mm

20-55 mm

• Because water comes from F1245, the area where

the heating pump is located must be equipped with

floor drainage.

•Install with its back to an outside wall, ideally in a room

where noise does not matter, in order to eliminate

noise problems. If this is not possible, avoid placing

it against a wall behind a bedroom or other room

where noise may be a problem.

• Wherever the unit is located, walls to sound sensitive

rooms should be fitted with sound insulation.

• Route pipes so they are not fixed to an internal wall

that backs on to a bedroom or living room.

INSTALLATION AREA

Leave a free space of 800 mm in front of the product.

Approx. 50 mm free space is required on each side, to

remove the side panels (see image). The panels do not

need to be removed during service. All service on F1245

can be carried out from the front. Leave space between

the heat pump and the wall behind (and any routing of

supply cables and pipes) to reduce the risk of any vibra-

tion being propagated.

(50) (50)

800

* A normal installation needs 300 – 400 mm (any side) for connection

equipment, i.e. level vessel, valves and electrical equipment.

7Chapter 2 | Delivery and handlingNIBE F1245

2 Delivery and handling

Supplied components

LEK

Current sensor

3 x

Room sensor

1 x

Outside sensor

1 x

LEK

Level vessel

1 x

O-rings

8 x

LEK

Safety valve

0.3 MPa (3 bar)

1 x

WILO

LEK

WILO

2,5(22)

H- 50 - 2,5

TUV-SV-97-525

WILO

LEK

WILO

2,5(22)

H- 50 - 2,5

TUV-SV-97-525

Particle filter

6 – 10 kW

1 x G1

1 x G3/4

12 kW

1 x G1

1 pcs G1 1/4

Compression ring

couplings

6-10 kW

2 x (ø28 x G25)

3 x (ø22 x G20)

12 – 15 kW

5 x (ø28 x G25)

17 kW

3 x (ø28 x G25)

2 x (ø35 x G32)

LOCATION

The kit of supplied items is placed in packaging on top

of the heat pump.

Removing the covers

FRONT COVER

LEK

1. Remove the screws from the lower edge of the

front panel.

2. Lift the panel out at the bottom edge and up.

SIDE COVERS

LEK

The side covers can be removed to facilitate the install-

ation.

1. Remove the screws from the upper and lower

edges.

2. Twist the cover slightly outward.

3. Move the hatch outwards and backwards.

4. Assembly takes place in the reverse order.

NIBE F1245Chapter 2 | Delivery and handling8

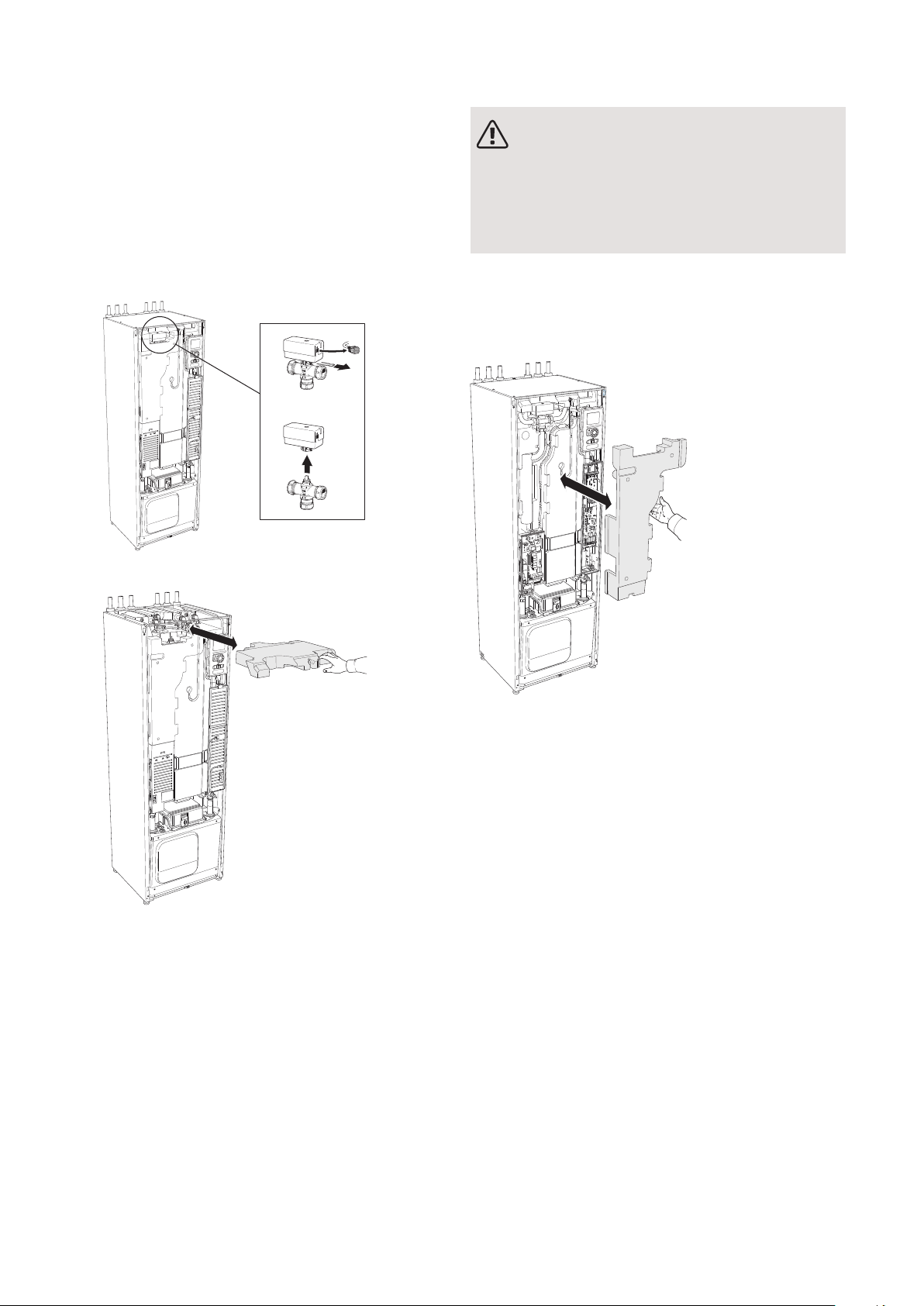

Removing parts of the

insulation

Parts of the insulation can be removed to facilitate the

installation.

INSULATION, TOP

1. Disconnect the cable from the motor and remove

the motor from the shuttle valve as illustrated.

LEK

2. Grip the handle and pull straight out as illustrated.

LEK

INSULATION, IMMERSION HEATER

NOTE

Electrical installation and service must be car-

ried out under the supervision of a qualified

electrician. Electrical installation and wiring

must be carried out in accordance with the

stipulations in force.

1. Remove the cover for the junction box according to

the description on page 22.

2. Grip the handle and pull the insulation carefully to-

wards you as illustrated.

LEK

9Chapter 2 | Delivery and handlingNIBE F1245

General

F1245

BT7

QN10

BT2

EB1

PF1

UB1

QM34

QM31

XL1

XL6

XL4

FR1

XL3

XL7

XL2

QM22

UB3

AA4

W130

SF1

AA4-XJ4

AA4-XJ3

BT6

UB2

QM32

QM33

PF2

EP14

EP14-AA11

VIEW FROM ABOVE

XL5 BT7

VIEW FROM BEHIND

BF1

NIBE F1245Chapter 3 | The heat pump design10

3 The heat pump design

Andere Handbücher für F1245

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Nibe Wärmepumpe Handbücher

Nibe

Nibe F1145 series Bedienungsanleitung

Nibe

Nibe F1126 Bedienungsanleitung

Nibe

Nibe F1245 Bedienungsanleitung

Nibe

Nibe FIGHTER 1240 Bedienungsanleitung

Nibe

Nibe SOLAR 40 Benutzerhandbuch

Nibe

Nibe F110 Bedienungsanleitung

Nibe

Nibe Fighter 2005 Original Betriebsanleitung

Nibe

Nibe F470 Benutzerhandbuch

Nibe

Nibe F2026 Bedienungsanleitung

Nibe

Nibe AP-CS2.0 Bedienungsanleitung

Nibe

Nibe FIGHTER 1310 Bedienungsanleitung

Nibe

Nibe S1156 Benutzerhandbuch

Nibe

Nibe FIGHTER 1250 Bedienungsanleitung

Nibe

Nibe F730 Benutzerhandbuch

Nibe

Nibe F135 Benutzerhandbuch

Nibe

Nibe S1155PC Bedienungsanleitung

Nibe

Nibe FIGHTER 120 Bedienungsanleitung

Nibe

Nibe S1255 Benutzerhandbuch

Nibe

Nibe F1126 Bedienungsanleitung

Nibe

Nibe TITANIUM MEGACOIL 160L Benutzerhandbuch

Nibe

Nibe DRAZICE TJ 2 EHP 6 kW Technisches Datenblatt

Nibe

Nibe F470 Bedienungsanleitung

Nibe

Nibe FIGHTER 1120 Bedienungs- und Wartungsanleitung

Nibe

Nibe F1145 series Benutzerhandbuch

Beliebte Wärmepumpe Handbücher anderer Marken

MICROWELL

MICROWELL HP 1000 GREEN Bedienungsanleitung

Sanyo

Sanyo SAP120FCH Bedienungsanleitung

Daikin

Daikin EHYHBH05AA Bedienungsanleitung

Panasonic

Panasonic WH-SDF03E3E5 Leitfaden

Bryant

Bryant 544B Bedienungsanleitung

Airxcel

Airxcel 45000 Series Handbuch

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Bedienungsanleitung

Dimplex

Dimplex LI 16I-TUR Benutzerhandbuch

Carrier

Carrier WSHP Open v3 Kurzanleitung zur Einrichtung

TGM

TGM CTV14CN018A Bedienungsanleitung

Carrier

Carrier 38MGQ Series Bedienungsanleitung

Kokido

Kokido K2O K880BX/EU Fehlerbehebungshandbuch

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Kurzanleitung

Carrier

Carrier 48EZN Bedienungsanleitung

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Betriebsanleitung

Ariston

Ariston NIMBUS Bedienungsanleitung

Weishaupt

Weishaupt WWP L 7 Benutzerhandbuch

GE Zoneline AZ85H09EAC Bedienungsanleitung
