INSTALLER MANUAL

Ground source heat pump

NIBE S1155PC

Quick guide

NAVIGATION

Browse

Scroll

Select The dots at the bot-

tom edge show

that there are more

pages.

If the menu has

several sub-menus,

you can see more

information by

dragging up or

down with your fin-

ger.

Most options and

functions are activ-

ated by lightly

pressing on the dis-

play with your fin-

ger.

Drag to the right or

left with your finger

to browse between

the pages.

Setting the indoor temperature.

Bottom floor

Temperature

HEAT

13.45 3 October

Smartguide

Yes please, take me to Smartguide.

Hi!

Your system is working properly. Do you want help making

changes?

13.45 3 October

You can set the temperature for your installation's climate

system here.

Smartguide helps you both to view information about the

current status and to make the most common settings

easily. The information that you see depends on the

product you have and the accessories that are connected

to the product.

Product overview

PRODUCT OVERVIEW

Update

Product name

Serial number

Software

Service

13.45 3 October

Company AB

Telephone number

VVM S320

06919618030101

0.5.1

Increasing hot water temperature

HOT WATER

More hot water

13.45 3 October

Here, you can find information about product name, the

product's serial number, the version of the software and

service. When there is new software to download, you

can do it here (provided that S1155PC is connected to

myUplink).

Here, you can start or stop a temporary increase in the

hot water temperature.

This function page is only visible in installations with a

water heater.

41 Important information

4Safety information

4Symbols

4Marking

4Serial number

5Inspection of the installation

62 Delivery and handling

6Transport

6Assembly

7Supplied components

7Handling panels

103 The heat pump design

10General

11Distribution boxes

11Cooling sections

124 Pipe connections

12General

13Dimensions and pipe connections

14Brine side

14Heating medium side

15Cold and hot water

15Docking alternatives

175 Electrical connections

17General

19Connections

24Settings

266 Commissioning and adjusting

26Preparations

26Filling and venting

27Start-up and inspection

29Setting the cooling/heating curve

317 myUplink

31Specification

31Connection

31Range of services

31Mobile apps for myUplink

328 Control - Introduction

32Display unit

33Navigation

33Menu types

369 Control - Menus

36Menu 1 – Indoor climate

41Menu 2 – Hot water

42Menu 3 - Info

43Menu 4 - My system

47Menu 5 - Connection

48Menu 6 - Scheduling

49Menu 7 - Service

5710 Service

57Service actions

6311 Disturbances in comfort

63Info-menu

63Manage alarm

6512 Accessories

6713 Technical data

67Dimensions and setting-out coordinates

68Electrical data

69Technical specifications

72Energy labelling

76Item register

82Contact information

3Table of ContentsNIBE S1155PC

Table of Contents

Safety information

This manual describes installation and service proced-

ures for implementation by specialists.

The manual must be left with the customer.

Symbols

NOTE

This symbol indicates danger to person or ma-

chine .

Caution

This symbol indicates important information

about what you should consider when installing

or servicing the installation.

TIP

This symbol indicates tips on how to facilitate

using the product.

Marking

The CE mark is obligatory for most products sold

in the EU, regardless of where they are made.

Classification of enclosure of electro-technical

equipment.

IPx1B

Read the User Manual.

Read the Installer Manual.

Serial number

The serial number can be found at the bottom right on

S1155PC, in the display on the home screen "Product

overview" and on the type plate (PZ1).

Caution

You need the product's ((14 digit) serial number

for servicing and support.

NIBE S1155PCChapter 1 | Important information4

1 Important information

Inspection of the installation

Current regulations require the heating installation to be inspected before it is commissioned. The inspection must

be carried out by a suitably qualified person. In addition, fill in the page for the installation data in the User Manual.

DateSignatureNotesDescription

✔

Brine side

System flushed

System vented

Antifreeze

Level/Expansion vessel

Filterball (particle filter)

Safety valve

Shut off valves

Circulation pump setting

Heating medium side

System flushed

System vented

Expansion vessel

Filterball (particle filter)

Safety valve

Shut off valves

Circulation pump setting

Electricity

Connections

Main voltage

Phase voltage

Fuses heat pump

Fuses property

Outside sensor

Room sensor

Current sensor

Safety breaker

Earth circuit-breaker

Set emergency mode in menu 7.1.8.2

5Chapter 1 | Important informationNIBE S1155PC

Transport

S1155PC should be transported and stored vertically in

a dry place. When being moved into a building, S1155PC

may be leant back 45 °.

Ensure that S1155PC has not been damaged during

transport.

Caution

The product can be tail heavy.

If the cooling module is pulled out and transported up-

right, S1155PC can be transported on its back.

Remove the outer panels in order to protect them when

moving in confined spaces inside buildings.

EXTRACTING THE COOLING MODULE

To simplify transport and service, the heat pump can be

separated by pulling the cooling module out from the

cabinet.

See page 59 for instructions about the separation.

Assembly

• Place S1155PC on a solid foundation indoors that can

take the heat pump's weight. Use the product's ad-

justable feet to obtain a horizontal and stable set-up.

30 - 50 mm

15 - 40 mm

20-55 mm

•Because water comes from S1155PC, the area where

the heating pump is located must be equipped with

floor drainage.

•Install with its back to an outside wall, ideally in a room

where noise does not matter, in order to eliminate

noise problems. If this is not possible, avoid placing

it against a wall behind a bedroom or other room

where noise may be a problem.

• Wherever the unit is located, walls to sound sensitive

rooms should be fitted with sound insulation.

• Route pipes so they are not fixed to an internal wall

that backs on to a bedroom or living room.

INSTALLATION AREA

Leave a free space of 800 mm in front of the product.

Approx. 50 mm free space is required on each side, to

remove the side panels (see image). The panels do not

need to be removed during service. All service on

S1155PC can be carried out from the front. Leave space

between the heat pump and the wall behind (and any

routing of supply cables and pipes) to reduce the risk of

any vibration being propagated.

(50) (50)

800

* A normal installation needs 300 – 400 mm (any side) for connection

equipment, i.e. level vessel, valves and electrical equipment.

NIBE S1155PCChapter 2 | Delivery and handling6

2 Delivery and handling

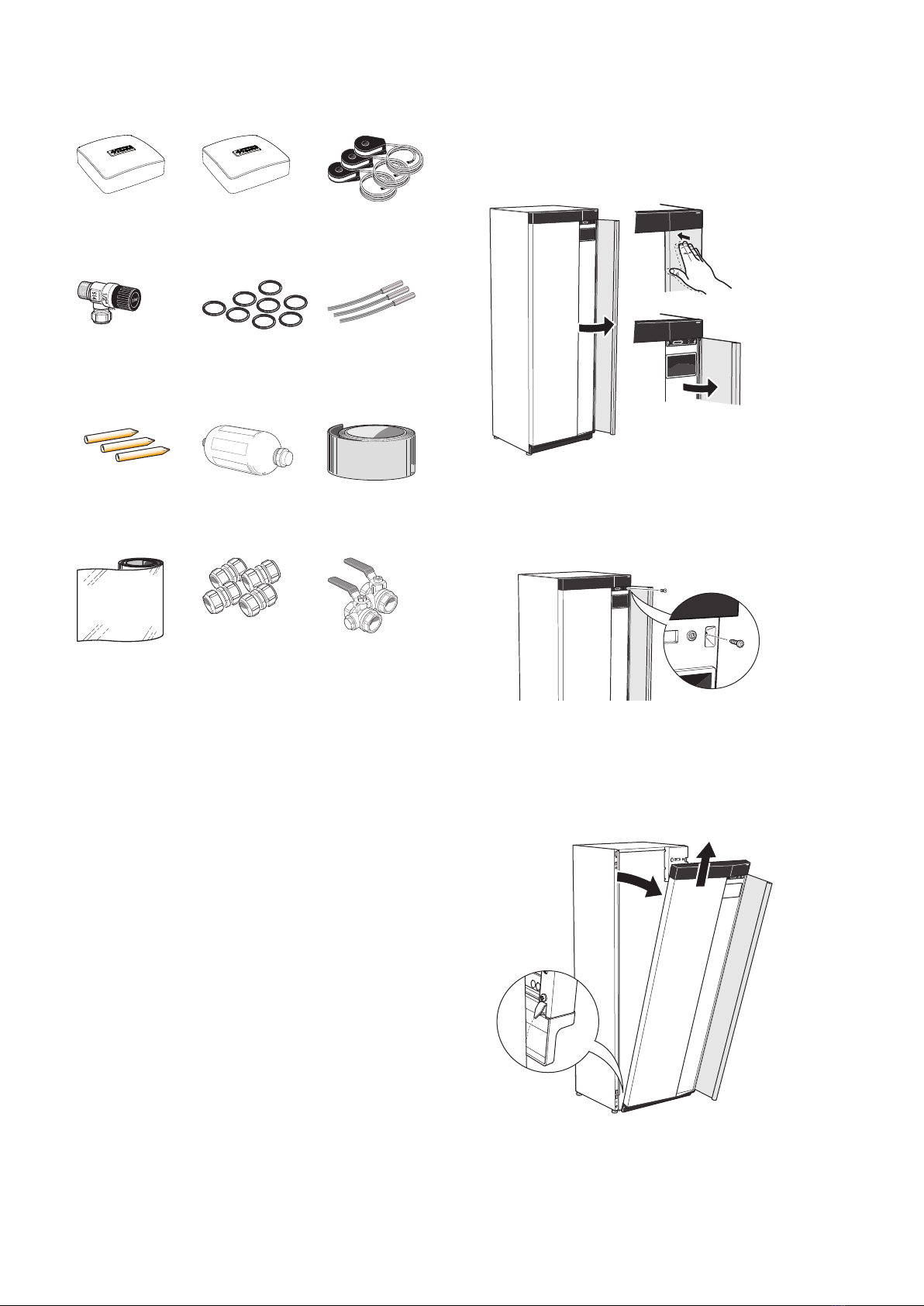

Supplied components

LEK

Current sensor1

3 x

Room sensor

1 x

Outside sensor

1 x

Temperature

sensor

3 x

O-rings

8 x

LEK

Safety valve

0.3 MPa (3 bar)1

1 x

LEK

Insulation tape

1 x

LEK

Level vessel1

1 x

Tubes for sensors

3 x

Filterball

1 x G1

1 x G3/4

Compression ring

couplings

2 x (ø28 x G25)

3 x (ø22 x G20

LEK

Aluminium tape

1 x

1Not Italy and the DACH countries.

LOCATION

The kit of supplied items is placed in packaging on top

of the heat pump.

Handling panels

OPEN FRONT HATCH

Press the hatch's top left corner to open it.

REMOVE THE FRONT

1. Remove the screw in the hole next to the on/off

button (SF1).

2. Pull the panel's top edge towards you and lift diag-

onally upwards to remove it from the frame.

7Chapter 2 | Delivery and handlingNIBE S1155PC

ASSEMBLE THE FRONT

1. Hook one bottom corner of the front onto the frame.

2. Hook the other corner in place.

3. Check the display is straight. Adjust if necessary.

4. Press the top of the front section against the frame

and screw it into place.

REMOVE SIDE PANEL

The side panels can be removed to facilitate the install-

ation.

1. Remove the screws from the upper and lower

edges.

NIBE S1155PCChapter 2 | Delivery and handling8

2. Twist the panel slightly outwards.

3. Move the panel outwards and backwards.

Assembly takes place in the reverse order.

9Chapter 2 | Delivery and handlingNIBE S1155PC

General

QN10

BT2

EB1

PZ1

QM34

QM31

QM32

QM33

PZ2

UB3

AA4

SF1

AA4-XF3

XL1

XL6

XL9

XL7

XL2

BF1

UB2

FC1

UB1

XF8

PIPE CONNECTIONS

Connection, heating medium flowXL1

Connection, heating medium returnXL2

Connection, brine inXL6

Connection, brine outXL7

Connection, hot water heaterXL9

HVAC COMPONENTS

Shut-off valve, heating medium flowQM31

Shut off valve, heating medium returnQM32

Shut off valve, brine outQM33

Shut-off valve, brine inQM34

Shuttle valve, climate system/water heaterQN10

SENSORS ETC.

Flow meterBF1

Temperature sensors, heating medium flowBT2

ELECTRICAL COMPONENTS

Display unitAA4

AA4-XF3 USB port

Immersion heaterEB1

Miniature circuit breaker1

FC1

On/off buttonSF1

Network connection for myUplinkXF8

1S1155PC-6 3x400 V is not equipped with miniature circuit breakers

(FC1).

MISCELLANEOUS

Rating platePZ1

Identification plate, cooling modulePZ2

Cable glandUB1

Cable glandUB2

Cable gland, rear side, sensorUB3

Designations according to standard EN 81346-2.

NIBE S1155PCChapter 3 | The heat pump design10

3 The heat pump design

Andere Handbücher für S1155PC

Inhaltsverzeichnis

Andere Nibe Wärmepumpe Handbücher

Nibe

Nibe FIGHTER 1127 Bedienungsanleitung

Nibe

Nibe F2120 Series Benutzerhandbuch

Nibe

Nibe ClimateMaster Tranquility TCW Series Leitfaden

Nibe

Nibe F470 Bedienungsanleitung

Nibe

Nibe F1345 Series Benutzerhandbuch

Nibe

Nibe HMF 10-55 Benutzerhandbuch

Nibe

Nibe F470 Bedienungsanleitung

Nibe

Nibe S1256 Benutzerhandbuch

Nibe

Nibe FIGHTER 410P Bedienungsanleitung

Nibe

Nibe F2040 Series Bedienungsanleitung

Nibe

Nibe F1345 Series Bedienungsanleitung

Nibe

Nibe F750 Bedienungsanleitung

Nibe

Nibe F1155 Series Bedienungsanleitung

Nibe

Nibe F110 Bedienungsanleitung

Nibe

Nibe SPLIT AMS 10 Bedienungsanleitung

Nibe

Nibe F1245 Betriebsanleitung

Nibe

Nibe F2300 Benutzerhandbuch

Nibe

Nibe MT-WH 2029-1FS Bedienungsanleitung

Nibe

Nibe F1245 Bedienungsanleitung

Nibe

Nibe F750 Benutzerhandbuch

Nibe

Nibe F1245PC Bedienungsanleitung

Nibe

Nibe F2120-16 Bedienungsanleitung

Nibe

Nibe CLIMATEMASTER TRT Series Betriebsanleitung

Nibe

Nibe F370 Benutzerhandbuch

Beliebte Wärmepumpe Handbücher anderer Marken

MICROWELL

MICROWELL HP 1000 GREEN Bedienungsanleitung

Sanyo

Sanyo SAP120FCH Bedienungsanleitung

Daikin

Daikin EHYHBH05AA Bedienungsanleitung

Panasonic

Panasonic WH-SDF03E3E5 Leitfaden

Bryant

Bryant 544B Bedienungsanleitung

Airxcel

Airxcel 45000 Series Handbuch

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Bedienungsanleitung

Dimplex

Dimplex LI 16I-TUR Benutzerhandbuch

Carrier

Carrier WSHP Open v3 Kurzanleitung zur Einrichtung

TGM

TGM CTV14CN018A Bedienungsanleitung

Carrier

Carrier 38MGQ Series Bedienungsanleitung

Kokido

Kokido K2O K880BX/EU Fehlerbehebungshandbuch

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Kurzanleitung

Carrier

Carrier 48EZN Bedienungsanleitung

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Betriebsanleitung

Ariston

Ariston NIMBUS Bedienungsanleitung

Weishaupt

Weishaupt WWP L 7 Benutzerhandbuch

GE Zoneline AZ85H09EAC Bedienungsanleitung
