Nibe VVM 500 Benutzerhandbuch

Installer manual

Indoor module

NIBE VVM 500

IHB EN 2235-1

731222

Quick guide

Navigation Ok button (confirm/select)

Back button (back/undo/exit)

Control knob (move/increase/reduce)

A detailed explanation of the button functions can be found on page 37.

How to scroll through menus and make different settings is described on page 39.

Set the indoor climate

MY INSTALLATION

INDOOR CLIMATE HOT WATER

INFO

The mode for setting the indoor temperature is accessed by pressing the OK button twice, when in the start mode in

the main menu.

Increase hot water volume

1X INDOOR CLIMATE HOT WATER

MY INSTALLATION INFO

To temporarily increase the amount of hot water, first turn the control knob to mark menu 2 (water droplet) and then

press the OK button twice.

41 Important information

4Safety information

4Symbols

4Marking

4Serial number

5Recovery

5Inspection of the installation

6Outdoor modules

72 Delivery and handling

7Transport

7Assembly

8Supplied components

9Removing panels

103 Design VVM 500

11List of components

124 Pipe connections

12General pipe connections

15Dimensions and pipe connections

16Connecting air/water heat pump

16Connection during use without heat pump

16Climate system

16Cold and hot water

16Installation alternative

185 Electrical connections

18General

21Connections

25Settings

26Optional connections

30Connecting accessories

316 Commissioning and adjusting

31Preparations

31Filling and venting

32Start-up and inspection

34Setting the heating curve

35Cooling in 2-pipe system

35Setting hot water circulation

35Pool

35SG Ready

377 Control - Introduction

37Display unit

37Menu system

418 Control – Menus

41Menu 1 - INDOOR CLIMATE

42Menu 2 - HOT WATER

42Menu 3 - INFO

43Menu 4 - MY SYSTEM

44Menu 5 - SERVICE

539 Service

53Service actions

5610 Disturbances in comfort

56Info-menu

56Manage alarm

56Troubleshooting

58Electrical addition only

5911 Accessories

6112 Technical data

61Dimensions

62Technical specifications

63Electrical circuit diagram

68Item register

71Contact information

3Table of ContentsNIBE VVM 500

Table of Contents

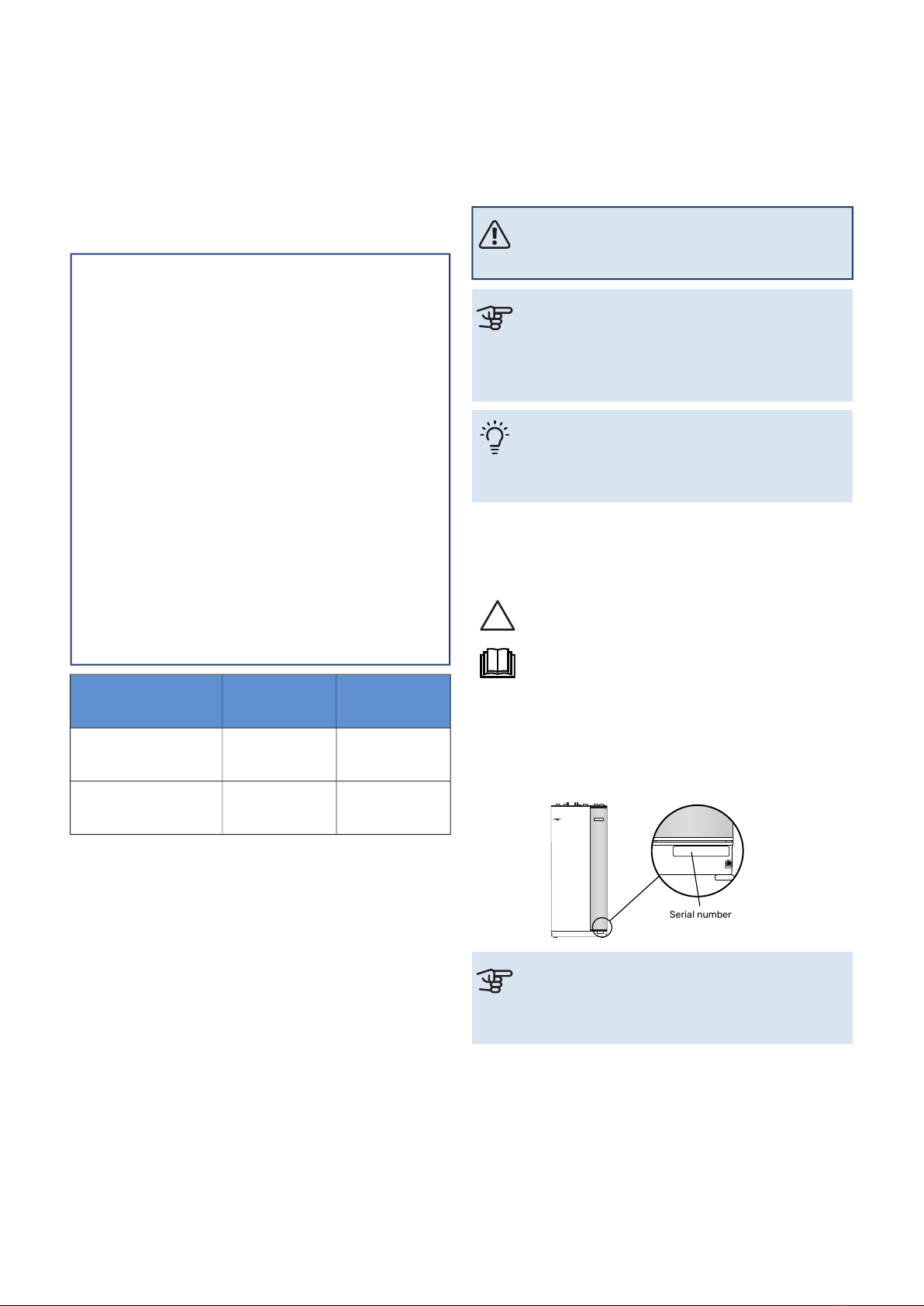

Safety information

This manual describes installation and service procedures

for implementation by specialists.

The manual must be left with the customer.

This appliance can be used by children

aged from 8 years and above and per-

sons with reduced physical, sensory or

mental capabilities or lack of experience

and knowledge if they have been given

supervision or instruction concerning use

of the appliance in a safe way and under-

stand the hazards involved. Children shall

not play with the appliance. Cleaning and

user maintenance shall not be made by

children without supervision.

This is an original manual. It may not be

translated without the approval of NIBE.

Rights to make any design or technical

modifications are reserved.

©NIBE 2022.

MinMaxSystem pres-

sure

0.05 MPa

(0.5 bar)

0.3 MPa

(3 bar)

Heating medium

0.01 MPa

(0.1 bar)

1.0 MPa

(10 bar)

Domestic water

Water may drip from the safety valve’s

overflow pipe. The overflow pipe must be

routed to a suitable drain, so hot water

splashes cannot cause harm. The entire

length of the overflow pipe must be inclined

to prevent water pockets, and must also be

frost-proof. The overflow pipe must be at

least the same size as the safety valve. The

overflow pipe must be visible and its mouth

must be open and not placed close to elec-

trical components.

VVM 500 must be installed via an isolator

switch. The cable area has to be dimen-

sioned based on the fuse rating used.

Symbols

Explanation of symbols that may be present in this manual.

NOTE

This symbol indicates danger to person or machine.

Caution

This symbol indicates important information about

what you should consider when installing or servi-

cing the installation.

TIP

This symbol indicates tips on how to facilitate us-

ing the product.

Marking

Explanation of symbols that may be present on the product’s

label(s).

Danger to person or machine.

Read the User Manual.

Serial number

The serial number can be found at the bottom right of the

front cover, in the info menu (menu 3.1) and on the type

plate (PZ1).

Serial number

Caution

You need the product’s (14 digit) serial number for

servicing and support.

NIBE VVM 500Chapter 1 | Important information4

Important information

Recovery

Leave the disposal of the packaging to the installer

who installed the product or to special waste sta-

tions.

Do not dispose of used products with normal

household waste. It must be disposed of at a special waste

station or dealer who provides this type of service.

Improper disposal of the product by the user results in ad-

ministrative penalties in accordance with current legislation.

Inspection of the installation

Current regulations require the heating installation to be inspected before it is commissioned. The inspection must be

carried out by a suitably qualified person.

In addition, fill in the page for the installation data in the User Manual.

DateSignatureNotesDescription

✔

Heating medium, see section "System diagram"

System flushed

System vented

Expansion vessel

Particle filter

Safety valve

Shut off valves

System pressure

Connected according to outline diagram

Hot water, see section "Cold and hot water"

Shut off valves

Mixing valve

Safety valve

Electricity, see section "Electrical connections"

Connected communication

Fuses, indoor module

Fuses property

Outside sensor

Room sensor

Current sensor

Safety breaker

Earth circuit-breaker

Setting of emergency mode thermostat

Miscellaneous

Docked to

5Chapter 1 | Important informationNIBE VVM 500

Outdoor modules

COMPATIBLE AIR/WATER HEAT PUMPS

F2040

F2040-16

Part no. 064 108

F2040-12

Part no. 064 092

F2050

F2050-10

Part no. 064 318

F2050-6

Part no. 064 328

F2120

F2120-20 3x400V

Part no. 064 141

F2120-16 3x400V

Part no. 064 139

S2125

S2125-8 3x400V

Part no. 064 219

S2125-8 1x230V

Part no. 064 220

S2125-12 3x400V

Part no. 064 217

S2125-12 1x230V

Part no. 064 218

F2300

F2300-20

Part no. 064 064

NIBE SPLIT HBS 05

HBS 05-12

Part no. 067 480

AMS 10-12

Part no. 064 110

HBS 05-16

Part no. 067 536

AMS 10-16

Part no. 064 035

NIBE SPLIT

HBS 20-6

Part no. 067 668

AMS 20-6

Part no. 064 235

HBS 20-10

Part no. 067 819

AMS 20-10

Part no. 064 319

Check the software version of compatible older NIBE

air/water heat pumps, see page 17.

NIBE VVM 500Chapter 1 | Important information6

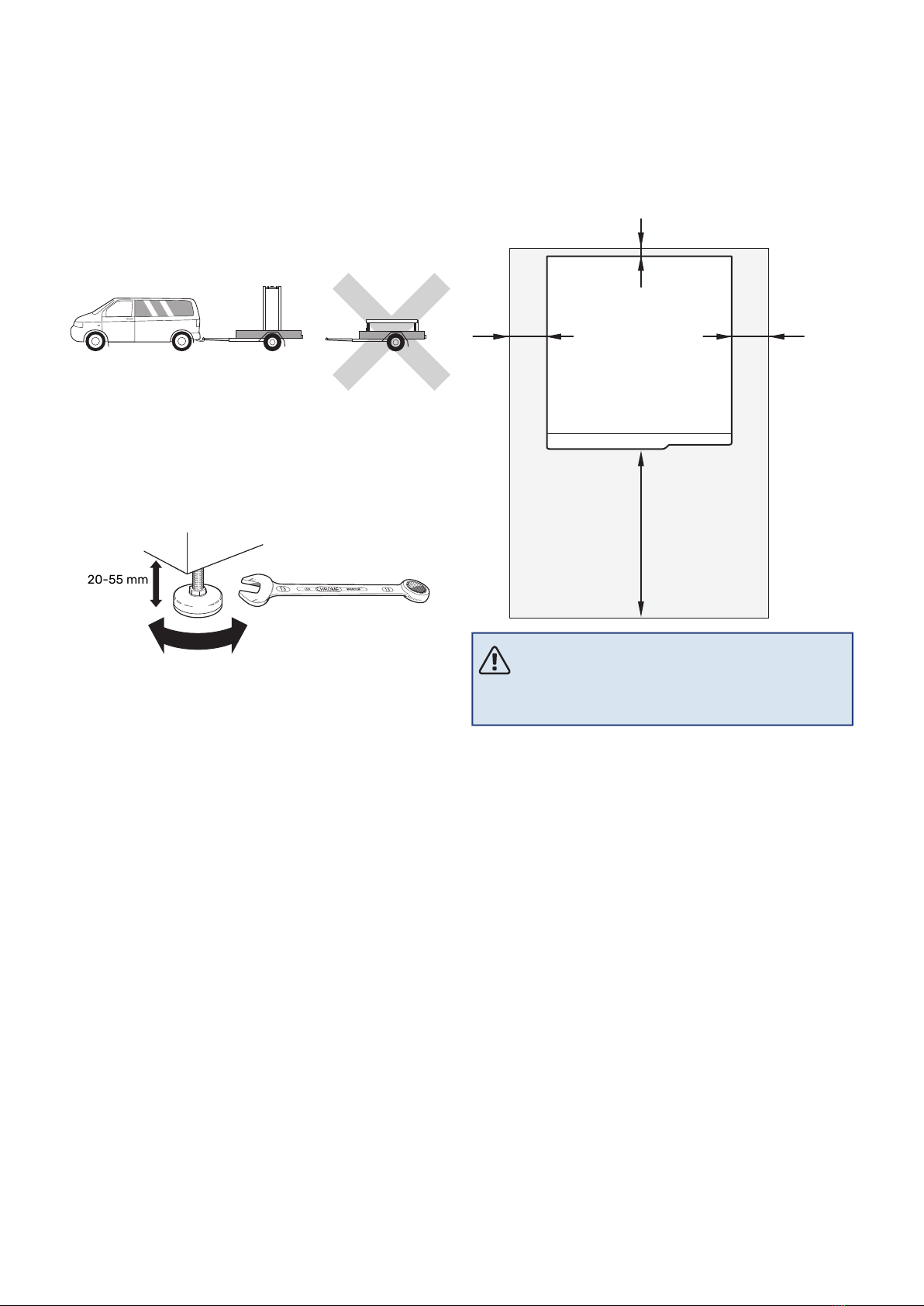

Transport

VVM 500 should be transported and stored vertically in a

dry place.

However, the VVM 500 can be carefully laid on its back when

being moved into a building.

Assembly

•Place VVM 500 on a solid foundation indoors that can take

its weight.

Use the product’s adjustable feet to attain a horizontal

and stable set-up.

30 - 50 mm

15 - 40 mm

20-55 mm

•The space where VVM 500 is located must be frost-free.

•Because water can exit the safety valve1for hot water,

when connected to VVM 500, the space where VVM 500

is placed must be provided with a floor drain.

1Not enclosed.

INSTALLATION AREA

Leave a free space of 800 mm in front of the product. All

service on VVM 500 can be carried out from the front.

800

10-25

NOTE

Leave 10 – 25 mm free space between VVM 500

and the wall behind for routing cables and pipes.

7Chapter 2 | Delivery and handlingNIBE VVM 500

Delivery and handling

Supplied components

Room sensorOutside sensor

O-rings

LEK

Current sensor

LEK

Cable*

APH

Flow meter*

Union nut*

Copper pipe with flange to

energy meter*

*Only applies to Norway.

LOCATION

The kit of supplied items is placed on top of the product.

NIBE VVM 500Chapter 2 | Delivery and handling8

Removing panels

FRONT PANEL

LEK

1. Remove the screws from the lower edge of the front

panel.

2. Lift the panel out at the bottom edge and up.

SIDE PANELS

LEK

The side panels can be removed to make installation easier.

Caution

50 mm space required to remove the side panels.

1. Remove the screws from the upper and lower edges.

2. Twist the panel slightly outwards.

3. Move the panel backwards and slightly to the side.

4. Pull the panel to one side.

5. Pull the panel forwards.

6. Assembly takes place in the reverse order.

9Chapter 2 | Delivery and handlingNIBE VVM 500

APH

VVM 500

AA3

QM1

AA1

EB1

FQ10

FC1

QN35

PZ3PZ1

GP12

QN10

AA2

SF1

UB1

AA4-XF4

AA4

AA4-XF3

GP1

BT63

BT2

UB2

XL8

XL9

XL4

XL30

XL2

XL3

XL14

XL13XL19

XL18XL1

QN11

BT6

BT54

QM20

BT7

PZ3

PZ1

XL39

XL18

XL14

XL19

XL13

AA7

W130

BT3

NIBE VVM 500Chapter 3 | Design VVM 50010

Design VVM 500
