Night Watcher Nw1003X Montageanleitung

Motion tracking

sensor halogen light

Installation & operating manual

NIGHTWATCHER SUR EILLANCE PLUS

Wireless Handheld monitor

Model no:

nw1003X

INTRODUCTION

Congratulations on the purchase of your new Nightwatcher Security Light. Before installation of the

unit, please read the operating instructions and safeguards carefully. It is important that you read and

follow the instructions in the manual, even if you feel you are familiar with this type of product.

SPECIFICATIONS

Model Number:

NW1 3x

AC Input:

22 -24 V 5 Hz

Time Adjustment:

3 / 6 Seconds

Sensor Range:

1 m x 21 °

Power Consumption:

15 Watts

IP Weather Rating:

IP54

Lamp:

15 , J type Halogen Lamp

Camera:

Color CMOS image sensor

View angle 6 °

Transmission frequency: ISM 2.4GHz ARIB-T66

Sensiti ity Adjustment:

5m / 1 m

Operation Temperature:

~ + 5

IMPORTANT SAFEGUARDS

WHEN USING ELECTRICAL APPLIANCES, IN ORDER TO REDUCE THE RISK OF FIRE,

ELECTRIC SHOCK, AND/OR INJURY, THESE BASIC SAFETY PRECAUTIONS SHOULD

ALWAYS BE FOLLOWED:

FOR YOUR SAFETY

Read all instructions carefully, even if you feel you are quite familiar with the appliance.

• Any alterations or additions to building wiring, must be completed by a licensed electrical mechanic, or

person authorised by legislation to work on the fixed wiring of any electrical installation

• To prevent electric shock, please ensure that power is disconnected before installing.

• The appliance is not intended for use by children or infirm persons without supervision.

• Children should be supervised to ensure that they do not play with the appliance.

• This unit must be connected to a 22 -24 V 5 Hz power source

• The lamp must be earthed

• The cable installed shall be 3 x 1. mm² at least

• The unit is for outdoor use only

• The unit is for wall mounting

COMPULSORY WARNING

Note: No user serviceable parts inside. The Halogen Lamp is the only part that can be replaced. Unauthorised

modification voids warranty, Return to place of purchase for replacement or service under warranty.

SAVE THESE INSTRUCTIONS

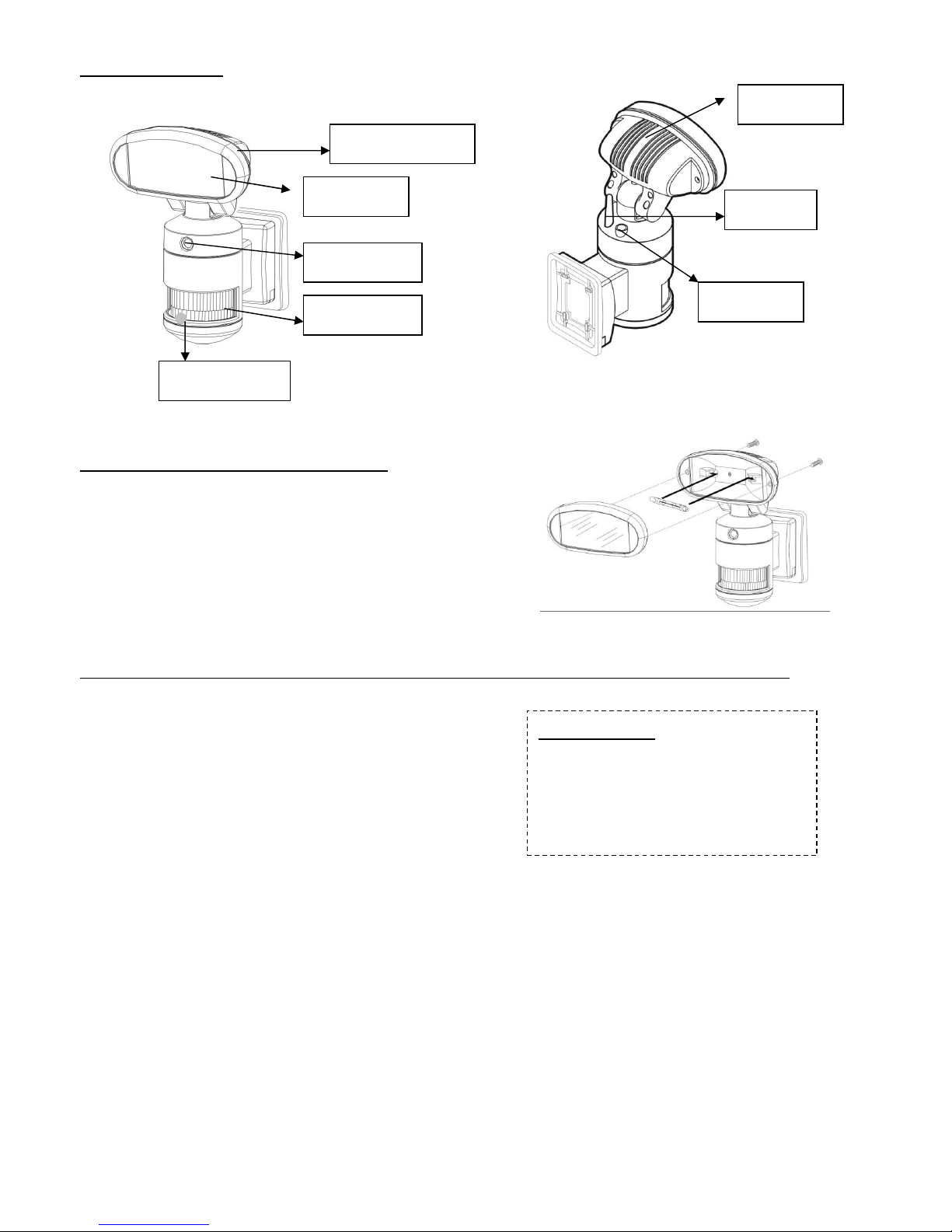

O ER IEW

INSTALLING THE BULB

 Unscrew the lamp cover of the fitting and install a 15 W J-type lamp.

 Re-fit the lamp cover and tighten the screws.

IMPORTANT: THE INTALLATION OF THIS FITTING MUST BE DONE BY A QUALIFIED ELECTRICIAN.

 This fitting must be earthed.

 Do not mount the light against near flammable surfaces.

 The motion detector will not operate correctly if it is installed:

() Near the outlet of a central heating boiler

() Near air conditioning plant

() Pointing directly at moving vehicles

() Within sight of reflection from moving water

() Where other lamps could shine onto the detector

 The maximum rating of this light is 15 Watts. Check that the total load of the circuit. Including this luminaire. Does

not exceed the rating of the circuit cable.

NOTE: This highly responsive unit may occasionally activate due to rapid environmental changes. Allow for approximately

3 seconds warm-

up time before the sensor resumes normal activity.

FFhg

Video Camera

Sensor

LED indicator

Dip Switch

Antenna

Front housing

Lamp 15 W

Lamp Cover

WARNING ! ! !

BEFORE ATTEMPTING ANY INSTALLATION OR

MAINTENANCE, ENSURE THAT THE

ELECTRICAL SUPPLY IS SWITCHED OFF AND

THE CIRCUIT FUSES REMOVED OR THE

CIRCUIT BREAKER IS IN THE “OFF”POSITION.

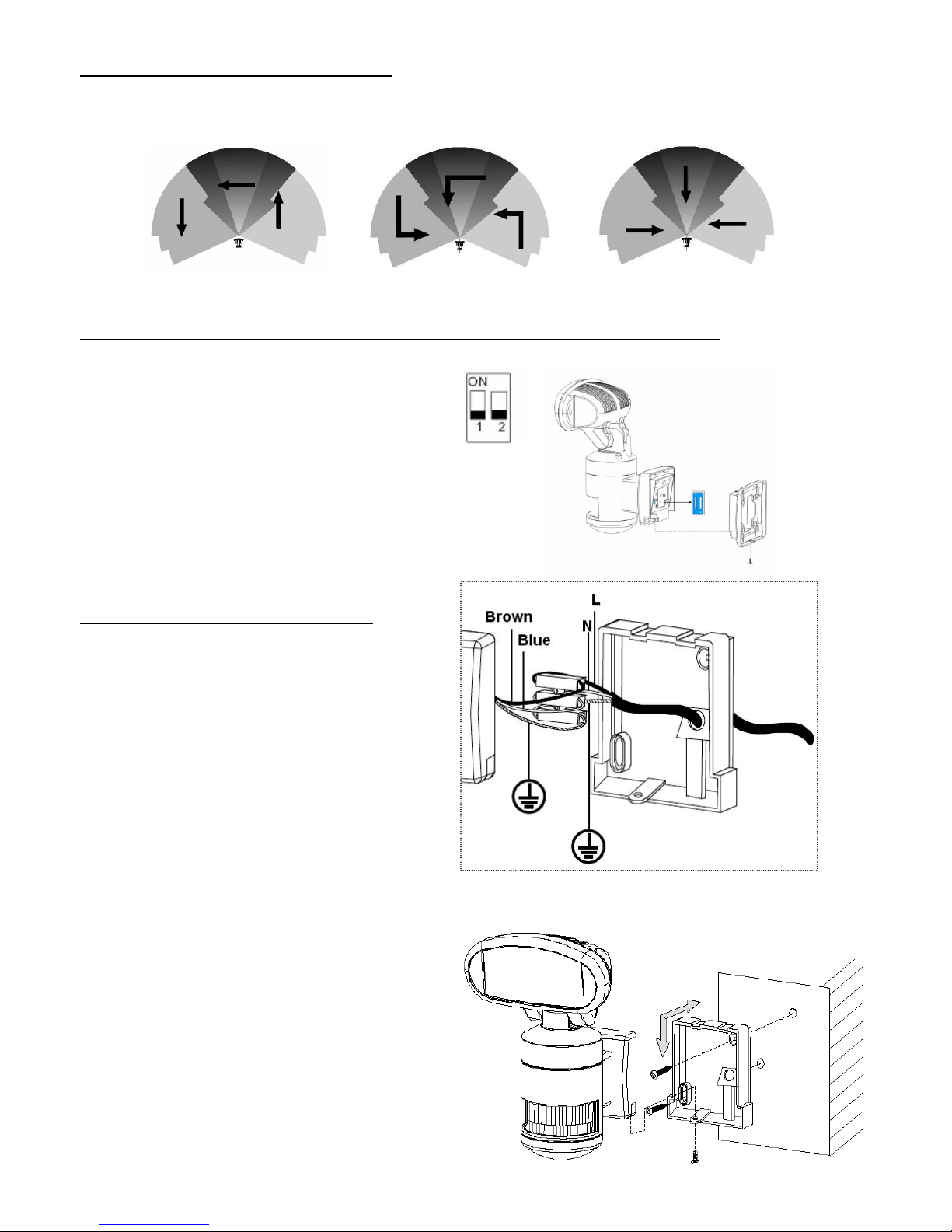

MOUNTING THE FITTING

To ensure correct operation of the sensor, mount the fitting where traffic passes across the detector.

SETTING THE LIGHT UP TIME & SENSITI TY

 Remove the back mounting box from the fixture by unscrewing the screw at the bottom.

 Set the Light up time & Sensitivity you preferred

１： Light up time (OFF：3 seconds／ON：6 seconds)

２： Sensitivity (OFF：5m／ON：1 m)

 Re-fit the back mounting box and tighten the screw.

WIRING INSTRUCTIONS

 Feed the cable through the back mounting box

and bush the cable entry to avoid abrasion to

the cable.

 Connect the earth wire to the connector

opposite the green/yellow cable.

 Connect the brown phase conductor active to

the connector opposite the brown cable and

tighten the screws.

 Connect the blue neutral conductor to the

connector opposite the blue cable and tighten

the screws.

 Check that all connections are correct and tight, as any misconnections will damage the detector.

 Re-fit the fitting to the back mounting box.

TOP VIEW

GOOD SENSITIVITY

LESS SENSITIVITY

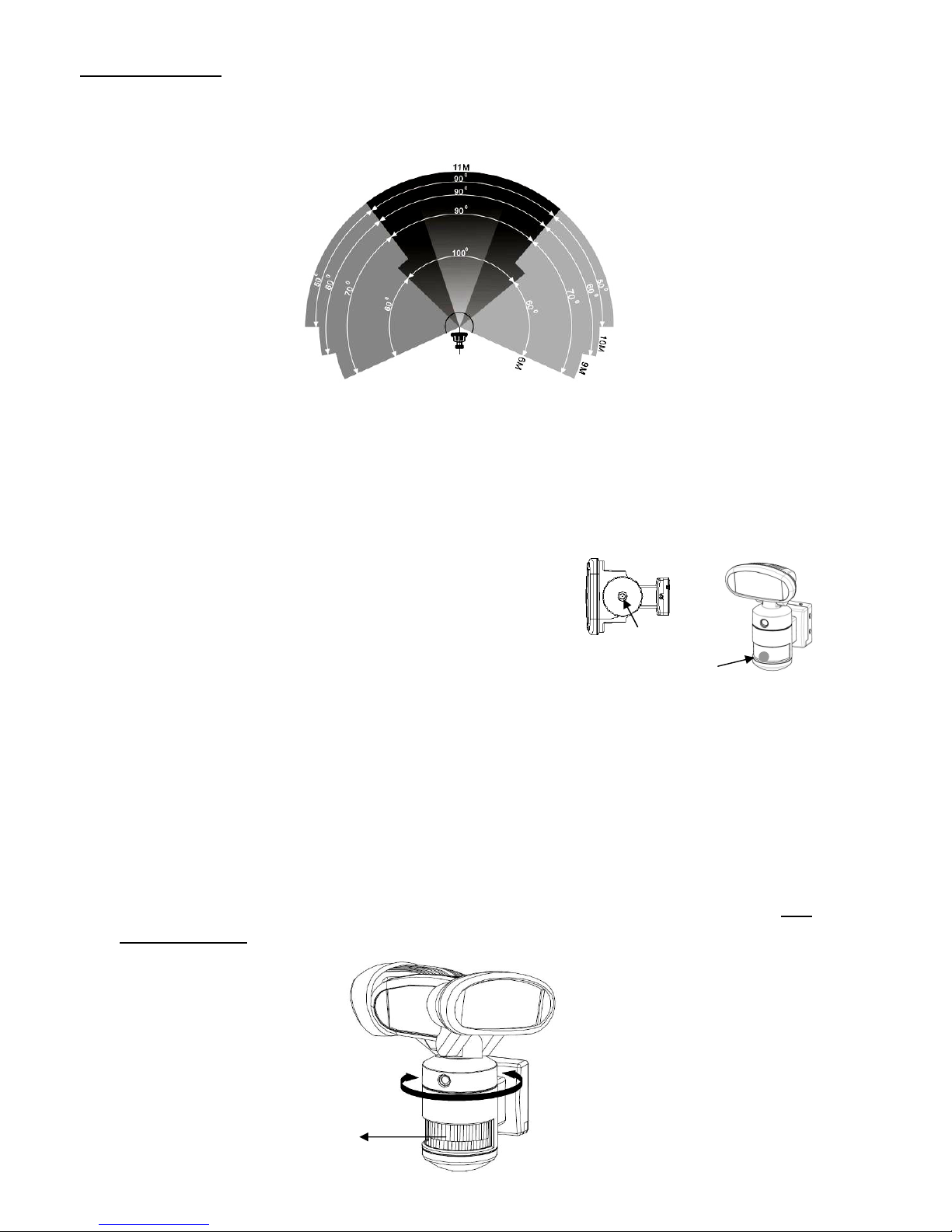

FUNCTION

This light is equipped with 3 motion sensors: zone 1 covers 6 degree; zone 2 covers 1 degrees and zone 3

covers 6 degrees.

22 degrees (maximum) in total for 3 zones.

 The light will switch on for 3 /6 seconds and off automatically when heat/ movement is detected.

 The factory default: the mode is「Auto mode」for night time operation, camera works all day.

 To change the mode to night time only (Auto mode), push the button at the bottom of the housing and the

hidden LED indicator will turn off at this mode. The light will be on at 3 /6 seconds when detecting any

movement at night.

 Push-button for programmable functions:

- Test mode: light and camera work all day

- Auto mode: light works at night, camera works all day

 Reset function: If the stepper motor of tracking light works abnormally, the hidden LED indicator will flash

red and the light will stop turning automatically. In Test mode, the red LED will flash for 3 times and off for

5 seconds; in “Normal mode”, the red light will flash in a regular pattern. Please simply switch off and on

the main power to resume the tracking light. Below are the possible abnormal situations.

- External force: the light head is blocked by objects or is blown by strong wind and is unable to turn

properly, the hidden LED will flash in red to signal users the abnormal situation.

- Stepper motor: when the stepper motor has reached the end of its life time or is damaged, the hidden LED

will flash in red to signal users the abnormal situation. Please switch off and on the main power, the

tracking light now may or may not resume its operation. If the stepper motor stops working, NW

Surveillance Plus becomes a regular motion sensor security light.

Left Right 70°

°°

Hidden LED

ZONE 1

ZONE 2

ZONE 3

TOTAL DETECTION RANGE

Push-button

LED indicator

OPERATION

1. Insert the plug to activate the light, the light is now under Test mode: light works on day and night

NOTE: Allow for approximately 3 seconds warm-up time before the sensor resumes normal activity.

2. To test, walk through the sensor’s detection area.

3. Movement will activate the sensor and turn the light on; the light will turn to the detected zone automatically.

4. After the light is activated, keep out of the detection area and the light will switch off automatically after

light up time (3 /6 seconds). The light will be activated again when detecting any movement.

If there is continuing movement in the detection zone, the light will stay on until movement ceases. (After

light up time)

LAMP REPLACEMENT

To isolate the unit, first switch off the unit from the mains power. Allow bulb to cool before attempting to

remove it. Unscrew the lamp cover and take the old lamp out and replace with a new one, close the lamp

cover and tighten the screws.

WARNING: This fitting will become hot when in use. Allow bulb to cool before touching.

CLEANING

• Before Cleaning make sure that the power is cut off and allow to cool before commencing.

• Care must be taken while cleaning to avoid scratching the fitting and glass. A soft cloth or a fine hair brush should

be used with a non-abrasive cleaner.

DO NOT use sol ents or abrasi e cleaners on any part of the Nightwatcher.

NOTE: THE INTELLIGENT MOTION SENSOR TRACKING LIGHT IS DESIGNED TO ILLUMINATE

WHEN THE DETECTION AREA IS ENTERED BY A PERSON AND WILL DETECT A MOVING

HEAT SOURCE. THERE IS NO GUARANTEE IMPLIED THAT IT WILL PROVIDE TOTAL

SECURITY OR PREVENT ILLEGAL ENTRY.

NIGHTWATCHER SUR EILLANCE PLUS

Wireless Handheld monitor

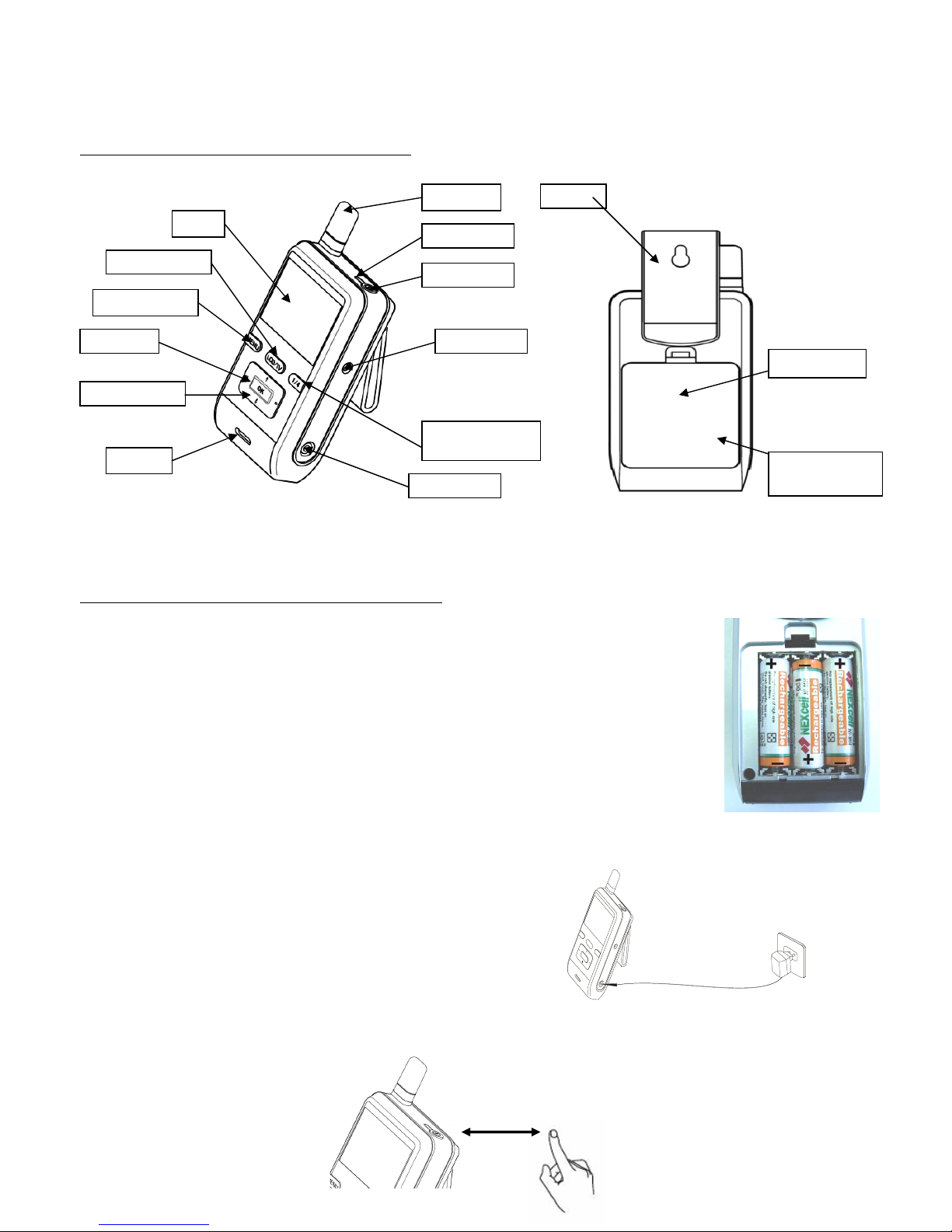

I. O ER IEW OF AEC-711C

II. ASSEMBLY INSTRUCTION

1. Install 3pcs NI-MH rechargeable batteries to the battery compartment with its polarities

matched.

Note:

- This receiver can also be powered on by adapter (DC 6V 1.5A).

- The rechargeable battery will be charged after the adapter is plugged in, and the charge indicator

lights up during charging and will turn off after a full charge.

- A full charge will take about 6 hours, which can power the receiver for about 4 hours

continuously.

- You are recommended to have the battery fully charged before its first installation to optimize its life.

- Do not burn or disassemble the rechargeable battery.

- Do not short-circuit the battery; it may cause fire or electric shock.

2. Push the power switch to ON position.

Battery case

Rechargeable

battery (inside)

LCD

LCD/TV Button

MENU Button

OK Button

Channel Button

Buzzer

Antenna

LED indicator

Power switch

Video Output

Power Socket

Holder

View Button (1/4)

(Single/Quad)

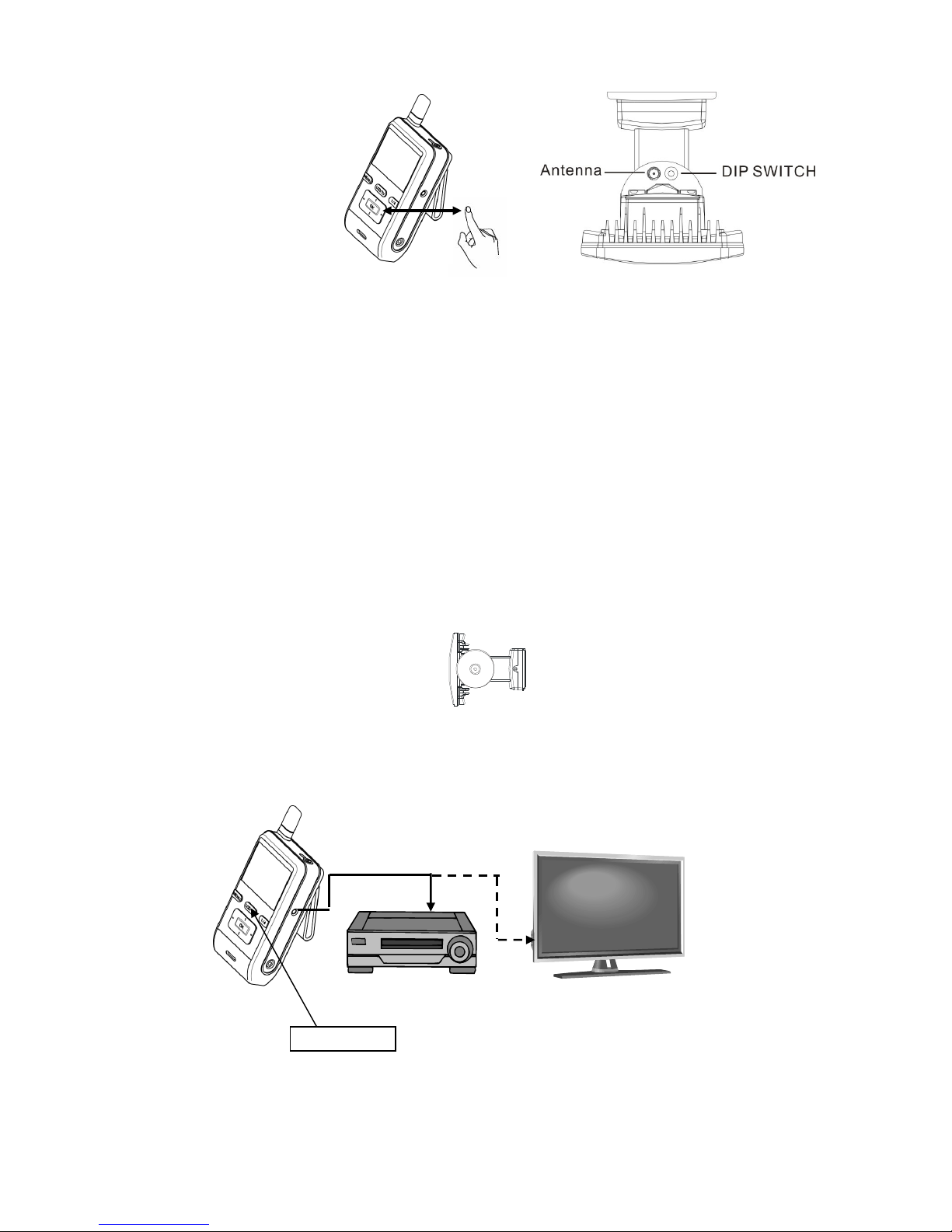

3 . Set the channel of receiver same as that of NW22 2 by pressing the channel button continuously, and the pictures are

displayed on the monitor/TV.

- Press “MENU Button” then press hannel Button to select “MONITOR” and press “OK button”.

- Press “ hannel Button” to select”Pair am” and then press “OK button”.

- There is”1 2 3 4” shown on the L D, to select which number of channel you want to set up this fitting. Within 10 seconds, press

“ hannel Button” to select the number of the channel you want then press”OK button”. Within 10 seconds, press the “Dip Switch”

on the fitting and when you see detecting image displayed on the L D, it means the channel setting is completed. If it shows “No

onnection”, repeat these steps again.

- For other three different fittings, repeat the above same steps to set up the different channel. Press”View Button” for Quad View

condition, you can see 4-split view from 4 different fittings.

NOTE: 1. when you make the channel setting, L D must be under “Single View” condition.

2. Before setting the channel between the fitting and L D, press “Push-button” switch on the bottom of the fitting firstly, the

stepper motor will stop working (the RED LED will keep flashing) in order to keep “Dip Switch” on the fitting not moving and can be

easily pressed when setting up the channel later.

4. for more clear pictures or record image:

○

1Please connect the receiver to a TV with video cable.

○

2 Please connect the receiver to a TV and a video recorder with video cable.

LCD/TV Button

○

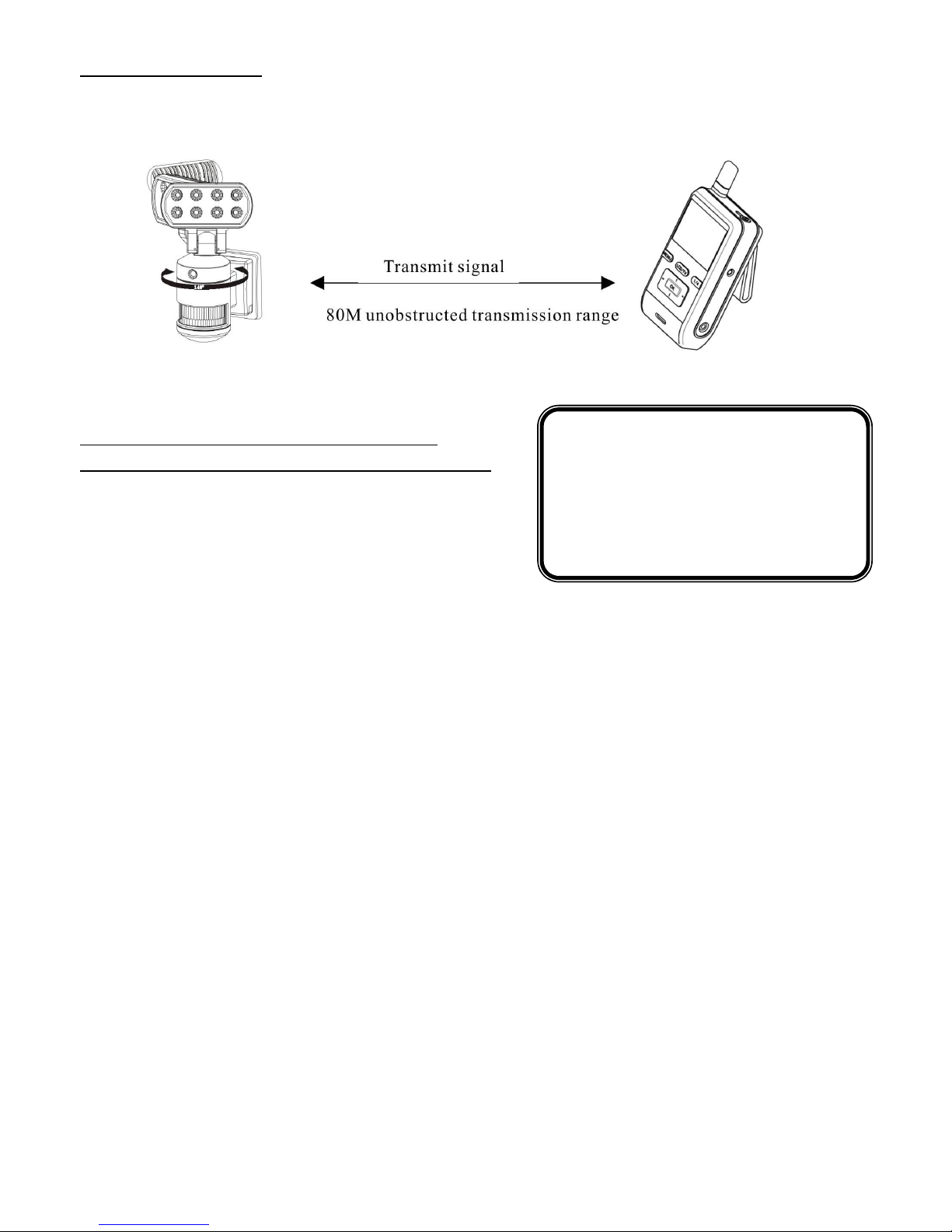

III. OPERATION

When NW22 2 detects any movement, the wireless LCD monitor is triggered for 30/60 seconds image at the same time. The

unobstructed transmission effective range is about 8 meters, but actual transmission range may vary according to

weather, location, interference and building. One wireless LCD monitor is possible to display 4 camera images.

OPERATION OF WIRELESS

HANDHELD SCREEN RECEI ER

1. LCD image display： push view button「1/4」for image display

-Single View： single CAMERA view (initial image<original default>)

display image from one camera at one time

-Quad View ： 4 split view (able to connect 4 CAMERAS and

display 4 images on screen at the same time)

☆When SENSOR is triggered, the monitor will sound ”BEEP”

(“BEEP” is set “ON” condition)

No. 1 sensor light detects motions, sound”BEEP” once

No. 2 sensor light detects motions, sound”BEEP-BEEP” twice

No. 3 sensor light detects motions, sound”BEEP-BEEP-BEEP”3 times

No. 4 sensor light detects motions, sound”BEEP-BEEP-BEEP-BEEP” 4 times

☆BEEP will sound continuously for 2 times and stops if there is no further detection.

During 2 times of BEEP if this unit detects any motions, it will recount for 2 times.

☆ Push any of the buttons to stop”BEEP”.

☆When BEEP is set “OFF”, there will be no sound.

☆「View Mode」is set”MENU”(manual) , the number of camera will flash under quad-view.

2. Function settings：push “MENU “button to choose settings.

IMPORTANT

IMPORTANTIMPORTANT

IMPORTANT

This is only for connecting 1 CAMERA.

For connecting several CAMERAS, make sure to return

to quad-view after finishing setting in single view.

-CAMERA：

-MONITOR：

Beep：ON/OFF(original default ON) When SENSOR detects motions, monitor will

beep.

Beep Vol：High/Low(original default High) Volume adjustment for beep

Brightness：~1 ( original default 5) LCD brightness adjustment

OSD Disp：ON/OFF Date and antenna icon display set

View Mode：AUTO/MENU( original default

AUTO)

Single view and quad-view setting

(AUTO/MENU):

Under AUTO mode, single view will return to

quad-view automatically 2 seconds later；under

MENU mode, please switch from single view to

quad-view by manual.

Under MENU mode, if switch to single view,

there will no display on the screen if other sensor

lights detect motions.

Scan time：OFF/5SEC/1 SEC/15SEC

(original default OFF)

Looping function, 4 CAMERAS display single

view on the screen in order.

Pair Cam：1/2/3/4 Register CAMERA ID。(up to 4 CAMERAS)

Version：software program version

Reset：YES/NO Back to original default.

-Other：Date/Time：set time and date

CHARGE

Cam1 EV：-

2. ~+2.

Cam2 EV：-2. ~+2.

Cam3 EV：-2. ~+2.

Cam4 EV：-2. ~+2.

Set the brightness of CAMERA. Standard value is

, turn the knob to”-“side to reduce the brightness,

turn the knob to”+”side to increase the brightness.

Before attempting any setting, please power sensor

light. For multiple cameras, the brightness of each

CAMERA may be different, please adjust the

brightness to preferred value.

(Every adjustment value is .5. Original default is .)

Freq：5 / 6 Hz

Version：software program version

Reset：Yes/No Back to original default.

IMPORTANT

IMPORTANTIMPORTANT

IMPORTANT

Before registering ID, please push the

bottom button to stop sensor light

turning.

Inhaltsverzeichnis

Andere Night Watcher Scheinwerfer Handbücher

Night Watcher

Night Watcher SWNW520 Bedienungsanleitung

Night Watcher

Night Watcher NW1200X Montageanleitung

Night Watcher

Night Watcher NW720 Bedienungsanleitung

Night Watcher

Night Watcher NW750 Bedienungsanleitung

Night Watcher

Night Watcher NW520 Bedienungsanleitung

Night Watcher

Night Watcher NW765 Bedienungsanleitung

Night Watcher

Night Watcher NW750 Bedienungsanleitung

Night Watcher

Night Watcher NW1203x Montageanleitung

Beliebte Scheinwerfer Handbücher anderer Marken

VIZULO

VIZULO Micro Martin Benutzerhandbuch

EuroLite

EuroLite LED IP FL-100 SMD Bedienungsanleitung

Cooper Wheelock

Cooper Wheelock XB12 Bedienungsanleitung

Allen + Roth

Allen + Roth 17624-000 Bedienungsanleitung

ADJ

ADJ 4 STAGE PAK Bedienungsanleitung

Cooper Lighting

Cooper Lighting EGL91SW233 Bedienungsanleitung

Max

Max 37496 Bedienungsanleitung

BEGA

BEGA 85 143 Bedienungsanleitung

Beamz

Beamz 151.226 Bedienungsanleitung

EuroLite

EuroLite LED IP FL-8 Bedienungsanleitung

Ledj

Ledj PERFORMER 36 RGB Bedienungsanleitung

Perel

Perel ELS3 Bedienungsanleitung

Perel

Perel ELS3WD Bedienungsanleitung

LumX

LumX LM 36130 Bedienungsanleitung

Xtricity

Xtricity 4-80053 Bedienungsanleitung

Stahl

Stahl 6521/4 Series Bedienungsanleitung

Ecosense

Ecosense EcoSpec Bedienungsanleitung

Ayrton

Ayrton minipanel FX Bedienungsanleitung

Night Watcher nw1003X Montageanleitung

Beliebte Scheinwerfer Handbücher anderer Marken
