Norcold DE-0751S Montageanleitung

DUAL VOLTAGE REFRIGERATORS

220/240 VOLTS AC AND

12/24 VOLTS DC

INSTALLATION AND OWNER’S

MANUAL

Service Information

Ifserviceorparts are required, contactthenearestNorcoldServiceCenter. Tofindan

authorizedNorcoldServiceCenternearyou,please telephone the NorcoldCustomer

Support Dept. at 800-543-1219 (option-1) or visit our web site at www.norcold.com.

Norcold Customer Support Dept.

Telephone : 800-543-1219

Fax : 937-497-3183

Web Site: www.norcold.com

ModelNo. Serial No.

PrintedinTaiwan

5/01

Part No. 622504A

NORCOLD AC/DC Models - Two Year Limited Warranty Policy

Norcold,Inc. warrantsthat whenproperlyinstalledand placed under normalservice and

useitsrefrigeration equipment is freefrom defects inmaterial and workmanship for two

years commencing from the original date of purchase of the new equipment.

Limitations of Warranty

1. This Warranty is the only warranty for a NorcoldAC/DC refrigerator. This Warranty

doesnot extend toglassware,electric light bulbs,andreplaceable fuses.

2. This warranty does not apply to parts and assemblies that have been subjected to

misuse,improper installation,abnormalservice, transit damage,recharging of cooling

system,accident, fire, improperrepair, tamperingor abuse.

3. Irrespective of the nature of the warranty protection offered or claimed, the period of

warranty shall in no case extend beyondtwo years commencing from theoriginal date

of purchase of the new equipment.

Limitation of Remedy

1.The responsibility of NORCOLDunderthisor any warranty is limited to the repairor

replacement(at NORCOLD’S option) of thedefective partor assembly.

2. In no event and under no circumstances shall NORCOLD be responsible under this

LimitedWarrantyforany other charge whatsoever, includingbut not limited to charges

orclaimsforlabor, lost business, lost time, lost profits,loss of use, or any kind of

incidentalor consequentialdamages, however denominated ordescribed. Theremedy

underthis warranty islimitedto repairor replacement.

3. Somestates donotallow the exclusion or limitationof incidentalor consequential

damages,so the above exclusion may notapplyto you.

Disclaimer of Other Warranties

This Warranty isexpressly in lieu ofall other warranties eitherexpressed or implied. All

otherwarranties, expressed orimplied, including anywarranty of merchantabilityorfitness

fora particularpurpose,arehereby disclaimed andexcluded.

Legal Rights

ThisWarrantygivesyou specific legal rights,and you mayhave other legal rightswhich

varyfrom stateto state.

Safety Awareness

Readthis manual carefully andunderstand thecontents beforeyouinstall therefrigerator.

Beaware of possible safety hazards whenyousee the safety alert symbol on the

refrigeratorand in this manual. Asignalword followsthesafety alert symbol andidentifies

thedanger of the hazard. Carefully read the descriptions ofthesesignal words to fully

knowtheir meanings. They are for your safety.

WARNING: This signal word means a hazard, which if ignored, can cause

dangerouspersonal injury,death, or much property damage.

CAUTION: This signal word means a hazard, which if ignored, can cause small

personalinjury or much property damage.

Model No. and Serial No.

The model and serial number are on a label which is inside the refrigerator on the left

side and on the cover of this manual.

Operation

Thisrefrigerator is made for refrigerating purposesand operates on220/240 voltsAC

and12/24 volts DC power supplyieswheninstalledas written in thismanual.

NOTE: The refrigerator operates automatically onAC or DC power. When both

power sources are supplied to the refrigerator, it defaults toAC. When the

refrigeratoris disconnected from the shoreline power (whenACpoweris

nolonger available), therefrigeratorswitches to DCoperation.

CAUTION: Neverstore combustible materials near therefrigerator. Storing

combustiblematerials near therefrigerator creates asafety hazard andalso

decreasesthe ventilation ofthe cooling systemwhichdecreases the refrigerator

performance.

Donottouchtheevaporatororothermetalpartsinside the refrigerator cabinet with

wethands because they can freezetothe refrigerator.

Alwaysdisconnect all power sources from therefrigerator when doing routine

maintenance.Have service workdone only bya qualified servicetechnician.

Therefrigerator temperature is controlled byathermostat, locatedonthe panelabove the

door. Agreen power light, located on the panel comes on when the refrigerator is “ON”.

Number “1” is the warmest and number “5” is the coldest thermostat position. For

efficient operation, change the thermostat according to the types of food stored and the

ambienttemperature.

If you are not going to use the refrigerator for an extended period of time, put the thermo-

stat to the “OFF” position and open the door so the latch pin is in the storage position.

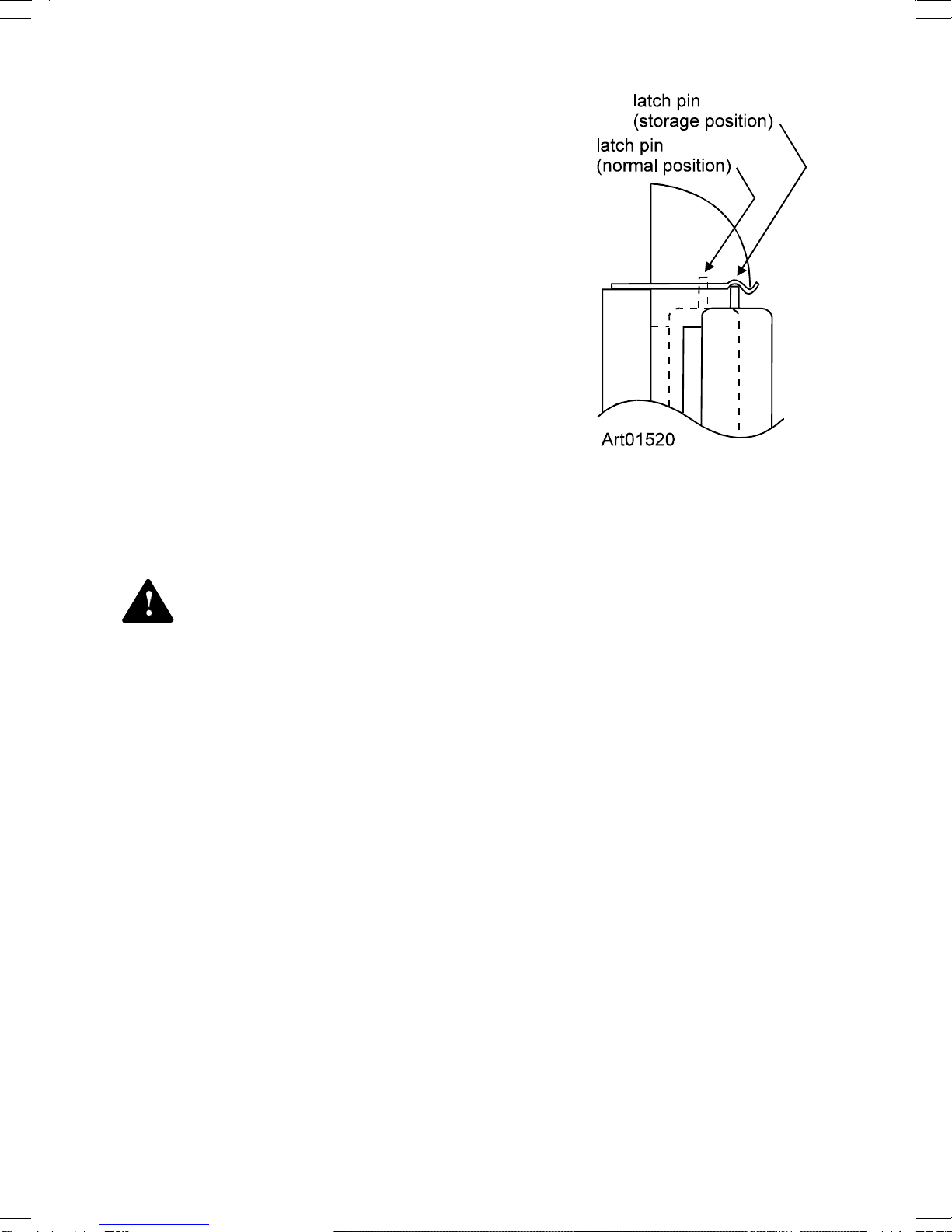

(SeeArt01520).

Protection System

Yourrefrigeratorhas an over currentprotection

systemin the electronic circuit toprevent damage to

theinverter which may occur duetoa reverse polarity

connection.

If the refrigerator does not operate and the green

power light does not come on, check the fuse,

which is located on the side of the inverter case, and

thepolarityofthe DC power supply. Ifthe refrigerator

stilldoes not operate, another problemcan exist in

theinverter. Have an authorizedNorcold Service

Centercheck the refrigerator.

Cleaning and Defrosting

Defrosting

Itis normal for frost to collecton the freezer plate inside therefrigerator. Excess frost

decreasesthe cooling performance of therefrigerator. Defrostthe refrigerator as neces-

sary.

CAUTION: Do not use sharp objects, a hair dryer, a heat gun, etc. to defrost the

refrigerator. Damage to theinteriorof the refrigerator can occur.

- Turn the thermostat to “OFF”.

- Removeallfood from the refrigerator.

NOTE: Defrostingthe refrigerator makesexcess water inside therefrigerator.

- Putdry towels (etc.) inside the refrigerator toabsorbthe excess water.

- Put trays of hot water in the freezer until the frost is melted.

- Empty the drip tray.

- Remove the wet towels (etc.) and dry the inside of the refrigerator

- Turn the thermostat to the desired setting.

- Put the drip tray and all food in the refrigerator.

Cleaning

Agood time to clean the refrigerator is just after you defrost it.

Cleanthe inside of the refrigerator as oftenas necessary to avoid food odors:

- Removeallfood from the refrigerator.

NOTE: Donot use abrasive cleaners, chemicals, or scouring pads because they can

damagethe inside of therefrigerator.

- Wash the inside of the refrigerator and the door gasket with a solution of liquid dish

detergentand warm water.

- Rinse with clean water and dry.

- After cleaning, put a thin coating of petroleum jelly on the hinge side of the gasket to

keep it soft and to prevent it from rolling.

Battery Maintenance

Over cooling drains your battery

- When the ambient temperature is between 70° and 90° F, keep the thermostat at the “3“

position to avoid an excessive drain of the battery. When making ice, or storing frozen

foods, turn the thermostat to the coldest setting “5“.

Maintain the battery

Ifthe charge of your battery is notsufficient, the coolingperformanceof your refrigerator

decreases.

CAUTION: Only use a “quick charger” on the battery if the thermostat is turned to

“OFF”.

Check the Battery charge Level

Afullychargedbattery willhave a specificgravity reading ofbetween 1.260and1.280. The

batteryvoltage isbestindicated when the refrigerator is“ON”and the battery charging sys-

temis “OFF”. Charge the battery when the specific gravityreadingis less than 1.200.

Installation

Therefrigerator should be located and secured on a solid surface in the vehicle.

Beforeinstalling therefrigeratorinto the opening, make surethe DC supply is properly

connected. In many cases, the DC supply can be connected from outside the vehicle

by means of the baggage or access door.

Measurethe opening to determineif you have proper clearancefor installation.

Additionalinsulation spacearoundthe refrigerator isnotnecessary.

For your reference

The wiring diagram shown below is recommended for dual battery hookup (See

Art01516).

Be sure the refrigerator is not in direct sunlight or near a gas stove, a heater, or other

heat-generatingappliances. Avoidinstallingyour refrigerator closeto warm waterlines

or warm air ducts.

Yourrefrigeratorwas thoroughly cleaned beforeshipment from the factory.

Itis advisable, however, to cleantheinterior once more before using. Wipethe interior

with a cloth and warm water. Then wipe with a dry cloth.

Ventilation

Sufficientventilation (airflow) overtherear mounted condenserofthe refrigerator is

necessaryfor the refrigerator tooperate correctly (SeeArt01582).

* NOTE: The fan will operate only when

theambient temperature is

higherthan approximately 95° F.

CAUTION: Do not remove the

bottomrails from therefrigerator

cabinet. Therails supply space

underthe refrigerator that is neces-

saryfor correctventilation.

If you do not make sure that the

ventilationis correct,ashortened

refrigeratorlife expectancy,poor

refrigeration,continuous operation,

acceleratedbattery dischargeanda

voidwarranty willresult.

Installation Options

Install a decorative door panel

NOTE: The decorative door panel must be

4 mm or less in thickness.

1. Remove the door from the refrigerator

by removing the two (2) bolts that attach

the door hinge to the bottom of the

refrigerator(SeeArt01583).

2. Removethe panelretainer by removing

the two (2) screws that attach the panel

retainer(SeeArt01511).

3. Gently pull the door panel out of the

door (Art01512).

4. Push a new door panel into the door

slot.

CAUTION: Do not overtighten the

screwsand bolts.

5. Put the panel retainer in the original

location and attach with two (2) screws.

6. Put the door in the original location and

tighten the two (2) bolts.

Reverse the door swing:

1. Remove the door from the refrigerator

by removing the two (2) bolts that attach

the door hinge to the bottom of the

refrigerator

2. Remove the two (2) bolts that attach the

upperhinge.

3. Remove the bolt that attaches the door

latch plate to the top of the refrigerator

(SeeArt01513).

4. Remove the upper hinge and the door

latchplate from therefrigerator.

5.Attach the upper hinge and the door

latch plate to the opposite sides of the

refrigerator.

6. Move the latch to the opposite side of

the door (SeeArt01514):

- Remove the screw that attaches the

hinge insert to the door.

- Remove the hinge insert, the latch

handle, and the coil spring from the

door.

- Pull the latch handle pin out of the

recessin the latch handle.

- Move the latch handle pin to opposite

side of the latch pin (SeeArt01515).

- Turn the latch handle upside down and

push the latch handle pin into the

recessof the latch handle.

- Make sure the angled top faces

thedoor latch plate.

- Assemble the coil spring, the latch

handle, and the hinge insert into the

opposite side of the door.

- Install and tighten the screw that

attaches the hinge insert to the door.

7. Put the door onto the refrigerator

8. Install and tighten the two (2) screws

that attach the door hinge to the bottom

ofthe refrigerator.

Connect the 220/240 volts AC and 12 volts DC supplies

This refrigerator operates on 220/240 volts (50 hertz)AC current and 12/24 volts DC

currentfrom a battery.

CAUTION: Onlyconnect the refrigerator directly to the battery. Because they

oftengeneratehigh voltagepulsesand cause transistor defectsinthe inverter, no

otherswitches, lead wires, orelectrical equipment should share thewiring between

the refrigerator and battery. Do not use an extension cord.

When using either a converter or a battery charger, make sure that they are connected in

parallelbetween the battery and the refrigerator. Donot use a converter or battery charger

to supply the DC power directly to the refrigerator because these two devices do not

supplyfiltered DC power (SeeArt01521).

Asthe distancefromthe vehicle battery to the refrigeratorincreases,the correctAWG wire

sizealso increases. If he wire size istoosmall for the distance,a voltagedrop occurs.

Thevoltage dropdecreasesthe cooling performance of therefrigerator.

1. Norcold recommends that you use the following wire and fuse sizes:

- Measurethe distancefromthe vehicle battery to therefrigerator:

- If the distance is less than 12 feet, use 16AWG wire and a 10Amp fuse.

- If the distance is between 12 and 20 feet, use 14AWG wire and a 10Amp fuse.

- If the distance is more than 20 feet, use 12AWG wire and a 10Amp fuse.

Andere Handbücher für DE-0751S

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Norcold Kühlschrank Handbücher

Norcold

Norcold DE-351D-F Bedienungsanleitung

Norcold

Norcold N8DC Series Bedienungsanleitung

Norcold

Norcold N109X Series Bedienungsanleitung

Norcold

Norcold 322 Series Montageanleitung

Norcold

Norcold NR740 Series Bedienungsanleitung

Norcold

Norcold 2117x series Bedienungsanleitung

Norcold

Norcold 6000 - 11-6-2010 Bedienungsanleitung

Norcold

Norcold 1082 Bedienungsanleitung

Norcold

Norcold SCQT-4407 Bedienungsanleitung

Norcold

Norcold MRFT615C Bedienungsanleitung

Norcold

Norcold DC-0040 Bedienungsanleitung

Norcold

Norcold DC-3984 Kurzanleitung

Norcold

Norcold N305X Bedienungsanleitung

Norcold

Norcold DE-540 Bedienungsanleitung

Norcold

Norcold N621 - Bedienungsanleitung

Norcold

Norcold DE / EV 0041 Bedienungsanleitung

Norcold

Norcold N410 Bedienungsanleitung

Norcold

Norcold 8682 Montageanleitung

Norcold

Norcold 121X AC Series Bedienungsanleitung

Norcold

Norcold N260 Reparaturanleitung

Norcold

Norcold 442 Bedienungsanleitung

Norcold

Norcold N400 Bedienungsanleitung

Norcold

Norcold DE-560 Bedienungsanleitung

Norcold

Norcold DC-440 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
