Norcold M1095BKV - Bedienungsanleitung

PART NO. 624870

NORCOLD 10/15/2010

PARTS LIST

N1095 SERIES

WRAPPED DOOR MODELS

N1095BK

M1095BKV

N1095IMBK

N1095SS

N1095IMSS

N1095WH *

PANEL DOOR MODELS

N1095

N1095IM

N1095IMV

N1095V

* WHITE WRAPPED MODELS NO LONGER PRODUCED

N1095 SERIES PARTS LIST - PAGE 2

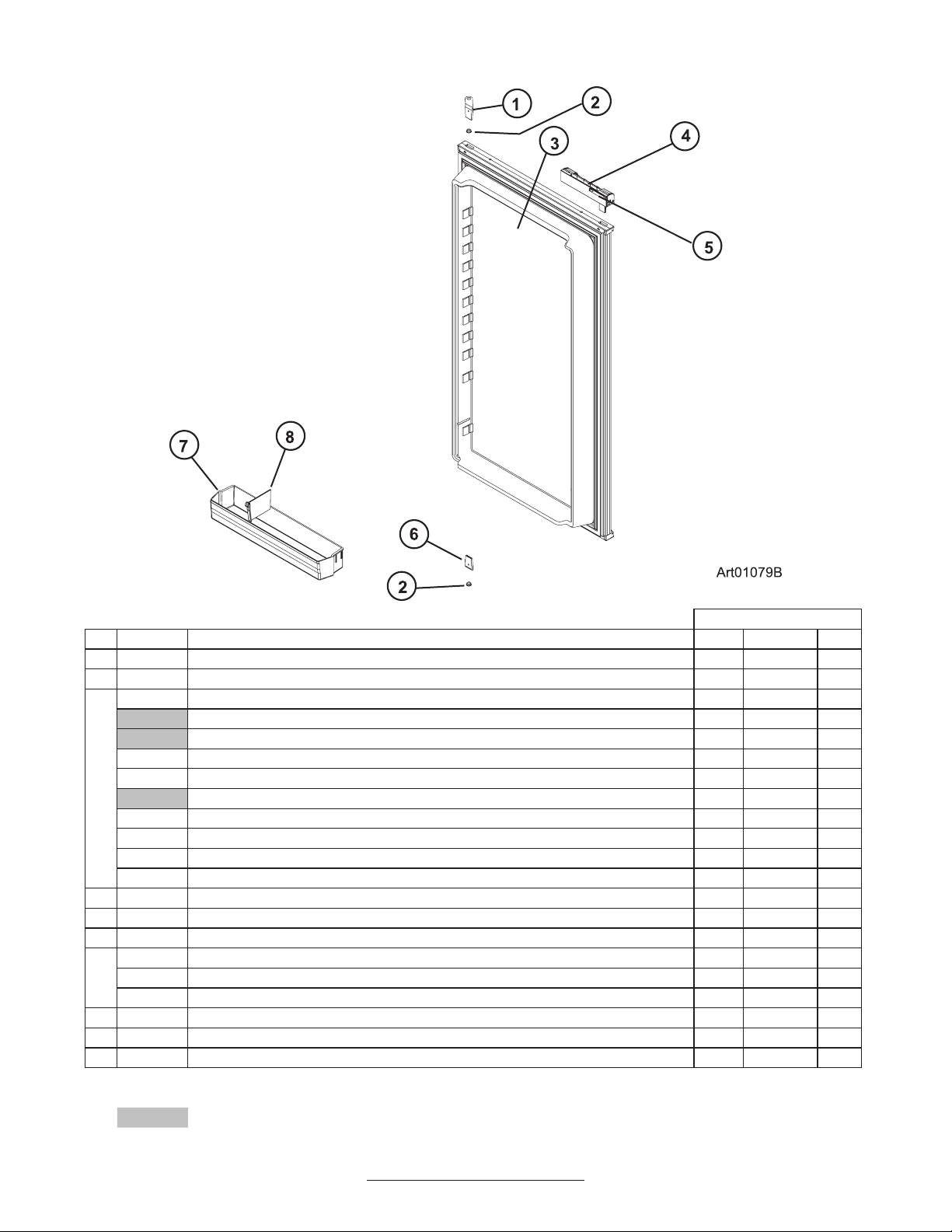

UPPER DOOR (FREEZER) - MODEL SERIES N1095 - PANEL TYPE

N1095 PANEL DOOR MODELS

NO. PART # DESCRIPTION N1095 N1095IM N1095V

N1095IMV

1 619558 PANEL RETAINER-UPPER DOOR/BLACK/WDL X X

623943 PANEL RETAINER-UPPER DOOR/PANEL/BLACK/SDL X X X

2 618511 HINGE-DOOR SIDE/TOP RH/BTM LH/BLACK/WDL X X

3 619671 HINGE BUSHING-DOOR/WARM GRAY/WDL/SDL X X X

4 619627 DOOR LINER ASSY-UPPER/PANEL/BLACK FRAME/WDL X X

623945 DOOR LINER ASSY-UPPER/PANEL/BLACK FRAME/SDL X X X

5 618160 CAP-HINGE PLUG/BLACK X X X

6 621465 DOOR HANDLE ASSY-LOWER DOOR/RH SWING/PLASTIC/BLACK X X X

7 622313 LATCH-STORAGE/DOOR/PLASTIC HANDLE/WARM GRAY X X X

8 618510 HINGE-DOOR SIDE/TOP LH/BTM RH/BLACK/WDL X X

9 619006 BIN-DOOR SHELF/SMALL/CLEAR/WDL X X

624864 BIN-DOOR SHELF/CLEAR/SDL X X X

10 619008 DIVIDER-DOOR BIN/CLEAR/WDL/SDL X X X

NS 619569 BOLT-CAP SHOULDER/TORX HEAD X X X

WDL = WAFFLE DOOR LINER SDL = SMOOTH DOOR LINER

N1095 SERIES PARTS LIST - PAGE 3

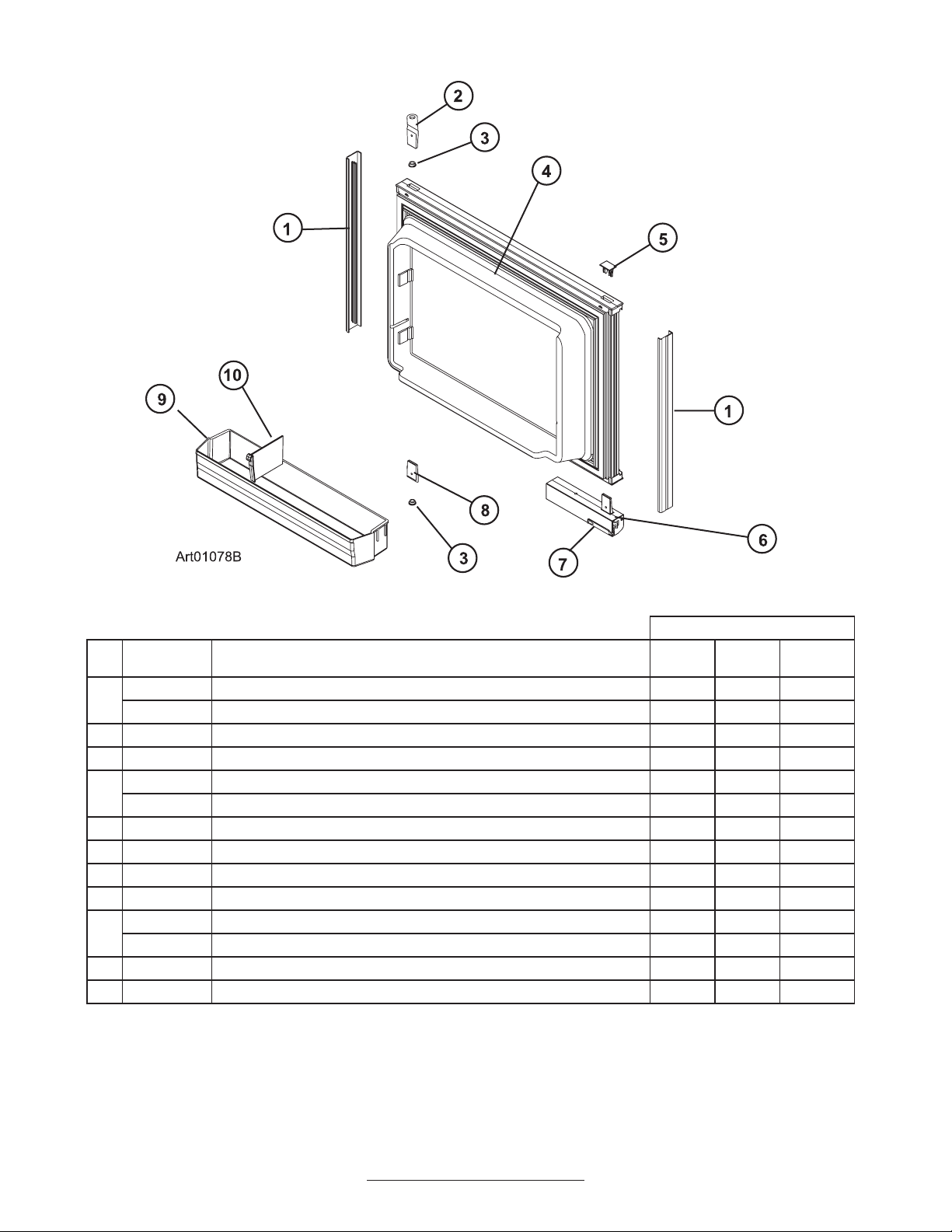

LOWER DOOR (FRESH FOOD) - MODEL SERIES N1095 - PANEL TYPE

N1095 PANEL DOOR MODELS

NO. PART # DESCRIPTION N1095 N1095IM N1095V

N1095IMV

1 619560 PANEL RETAINER-LOWER DOOR/8’/BLACK/WDL X X

623760 PANEL RETAINER-LOWER DOOR/8’/BLACK/SDL X X X

2 618511 HINGE-DOOR SIDE/TOP RH/BTM LH/BLACK/WDL X X

3 619671 HINGE BUSHING-DOOR/WARM GRAY (2 PER DOOR) X X X

4 619631 DOOR LINER ASSY-LOWER/8’/PANEL/BLACK FRAME/WDL X X

623942 DOOR LINER ASSY-LOWER/8’/PANEL/BLACK FRAME/SDL X X X

5 621469 DOOR HANDLE ASSY-UPPER DOOR/RH SWING/PLASTIC/BLACK X X X

6 622313 LATCH-STORAGE/DOOR/PLASTIC HANDLE/WARM GRAY X X X

7 618510 HINGE-DOOR SIDE/TOP LH/BTM RH/BLACK/WDL X X

8 619006 BIN-DOOR SHELF/SMALL/CLEAR/WDL (3 PER DOOR) X X

619005 BIN-DOOR SHELF/LARGE/CLEAR/WDL (1 PER DOOR) X X

8 619006 BIN-DOOR SHELF/SMALL/CLEAR/WDL (3 PER DOOR) X X

9 624864 BIN-DOOR SHELF/CLEAR/SDL X X X

NS 619569 BOLT-CAP SHOULDER/TORX HEAD (NOT SHOWN) X X X

NS 632458 WIRE-BIN/SDL X X X

WDL = WAFFLE DOOR LINER SDL = SMOOTH DOOR LINER

N1095 SERIES PARTS LIST - PAGE 4

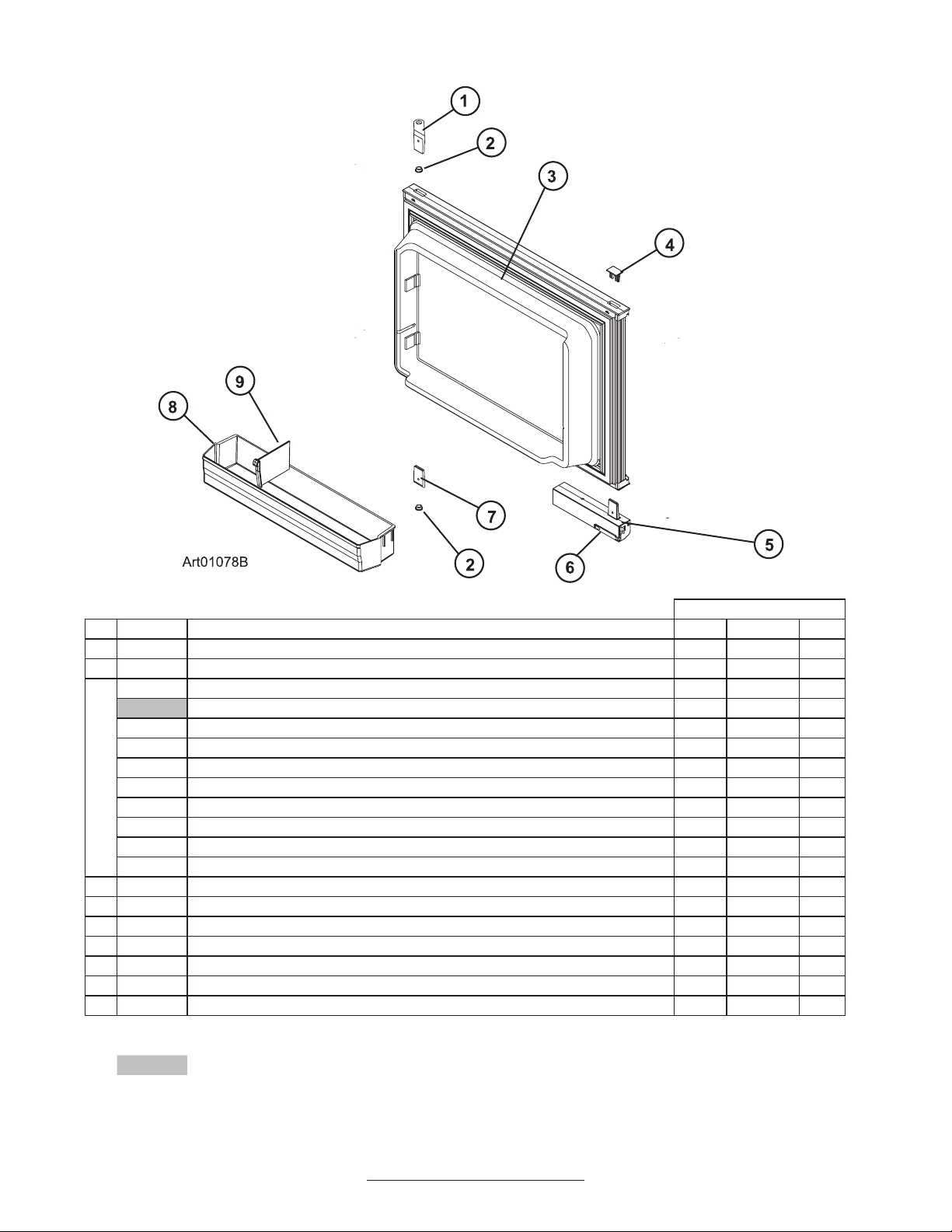

UPPER DOOR (FREEZER) - MODEL SERIES N1095 - WRAP TYPE

N1095 WRAPPED DOORS

NO. PART # DESCRIPTION BLACK STAINLESS WHITE

1 618511 HINGE-DOOR SIDE/TOP RH/BTM LH/BLACK/WDL X X X

2 619671 HINGE BUSHING-DOOR/WARM GRAY/WDL/SDL X X X

625874 DOOR ASSY-UPPER/WRAP/BLACK/WDL X

627121 DOOR ASSY-UPPER/WRAP/BLACK/SDL (USE 632732) X

632732 DOOR ASSY-UPPER/AT/WRAP/BLACK/SDL (FROM 07/10/08 TO S/N 12965198) X

634065 DOOR ASSY-UPPER/ANCO/WRAP/BLACK/SDL (SERIAL # 12965199 & ABOVE)

623272 DOOR ASSY-UPPER/WRAP/STAINLESS STEEL/WDL X

630091 DOOR ASSY-UPPER/WRAP/STAINLESS STEEL/SDL X

632731 DOOR ASSY-UPPER/AT/WRAP/SS/SDL (FROM 06/25/08 TO S/N 12985380) X

634062 DOOR ASSY-UPPER/ANCO/WRAP/SS/SDL (SERIAL # 12985381 & ABOVE) X

624143 DOOR ASSY-UPPER/WRAP/WHITE/WDL X

627120 DOOR ASSY-UPPER/WRAP/WHITE/SDL X

4 618160 CAP-HINGE PLUG/BLACK X X X

5 621465 DOOR HANDLE ASSY-LOWER DOOR/RH SWING/PLASTIC/BLACK X X X

6 622313 LATCH-STORAGE/DOOR/PLASTIC HANDLE/WARM GRAY X X X

7 618510 HINGE-DOOR SIDE/TOP LH/BTM RH/BLACK/WDL X X X

8 619006 BIN-DOOR SHELF/SMALL/CLEAR/WDL X X X

9 619008 DIVIDER-DOOR BIN/CLEAR/WDL/SDL X X X

NS 619569 BOLT-CAP SHOULDER/TORX HEAD (NOT SHOWN) X X X

WDL = WAFFLE DOOR LINER SDL = SMOOTH DOOR LINER

BK - BLACK SS = STAINLESS STEEL WH = WHITE (NO LONGER PRODUCED)

PART IS NO LONGER AVAILABLE

N1095 SERIES PARTS LIST - PAGE 5

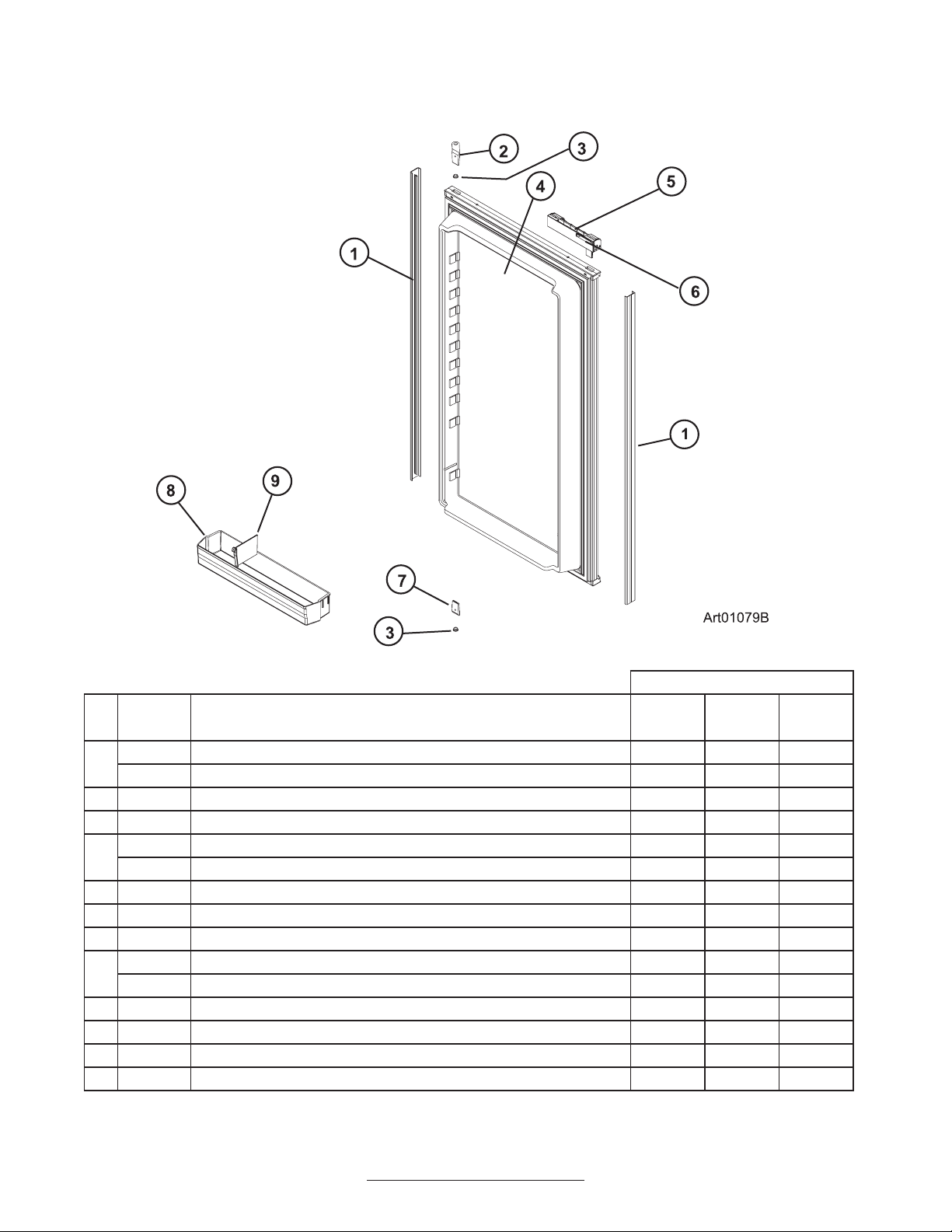

LOWER DOOR (FRESH FOOD) - MODEL SERIES N1095 - WRAP TYPE

N1095 WRAPPED DOORS

NO. PART # DESCRIPTION BLACK STAINLESS WHITE

1 618511 HINGE-DOOR SIDE/TOP RH/BTM LH/BLACK/WDL X X X

2 619671 HINGE BUSHING-DOOR/WARM GRAY/WDL/SDL X X X

3 625875 DOOR ASSY-LOWER/8’/WRAP/BLACK/WDL/POWDER COAT X

627129 DOOR ASSY-LOWER/8’/WRAP/BLACK/SDL (USE 634067) X

632738 DOOR ASSY-LOWER/8’/WRAP/AT/BLACK/SDL (FROM 07/10/08 TO S/N 12965198) (USE 634067) X

634067 DOOR ASSY-LOWER/8’/WRAP/ANCO/BLACK/SDL (SERIAL # 12965199 & ABOVE) X

623273 DOOR ASSY-LOWER/8’/WRAP/STAINLESS STEEL/WDL X

630093 DOOR ASSY-LOWER/8’/WRAP/STAINLESS STEEL/SDL (USE 632737) X

632737 DOOR ASSY-LOWER/8’/WRAP/AT/SS/SDL (FROM 06/25/08 TO S/N 12985380) X

634064 DOOR ASSY-LOWER/8’/WRAP/ANCO/SS/SDL (SERIAL # 12985380 & ABOVE) X

624145 DOOR ASSY-LOWER/8’/WRAP/WHITE/WDL X

627128 DOOR ASSY-LOWER/8’/WRAP/WHITE/SDL X

4 621469 DOOR HANDLE ASSY-UPPER DOOR/RH SWING/PLASTIC/BLACK X X X

5 622313 LATCH-STORAGE/DOOR/PLASTIC HANDLE/WARM GRAY X X X

6 618510 HINGE-DOOR SIDE/TOP LH/BTM RH/BLACK/WDL X X X

7 619006 BIN-DOOR SHELF/SMALL/CLEAR/WDL (3 PER DOOR) X X

619005 BIN-DOOR SHELF/LARGE/CLEAR/WDL (1 PER DOOR) X X X

624864 BIN-DOOR SHELF/CLEAR/SDL X X X

8 619008 DIVIDER-DOOR BIN/CLEAR (1 PER DOOR SHELF BIN) X X X

NS 632458 WIRE-BIN/SDL X X X

NS 619569 BOLT-CAP SHOULDER/TORX HEAD (NOT SHOWN) X X X

WDL = WAFFLE DOOR LINER SDL = SMOOTH DOOR LINER

BK - BLACK SS = STAINLESS STEEL WH = WHITE (NO LONGER PRODUCED)

PART IS NO LONGER AVAILABLE

N1095 SERIES PARTS LIST - PAGE 6

CABINET AREA (FRONT VIEW) - MODEL SERIES N1095

N1095 SERIES PARTS LIST - PAGE 7

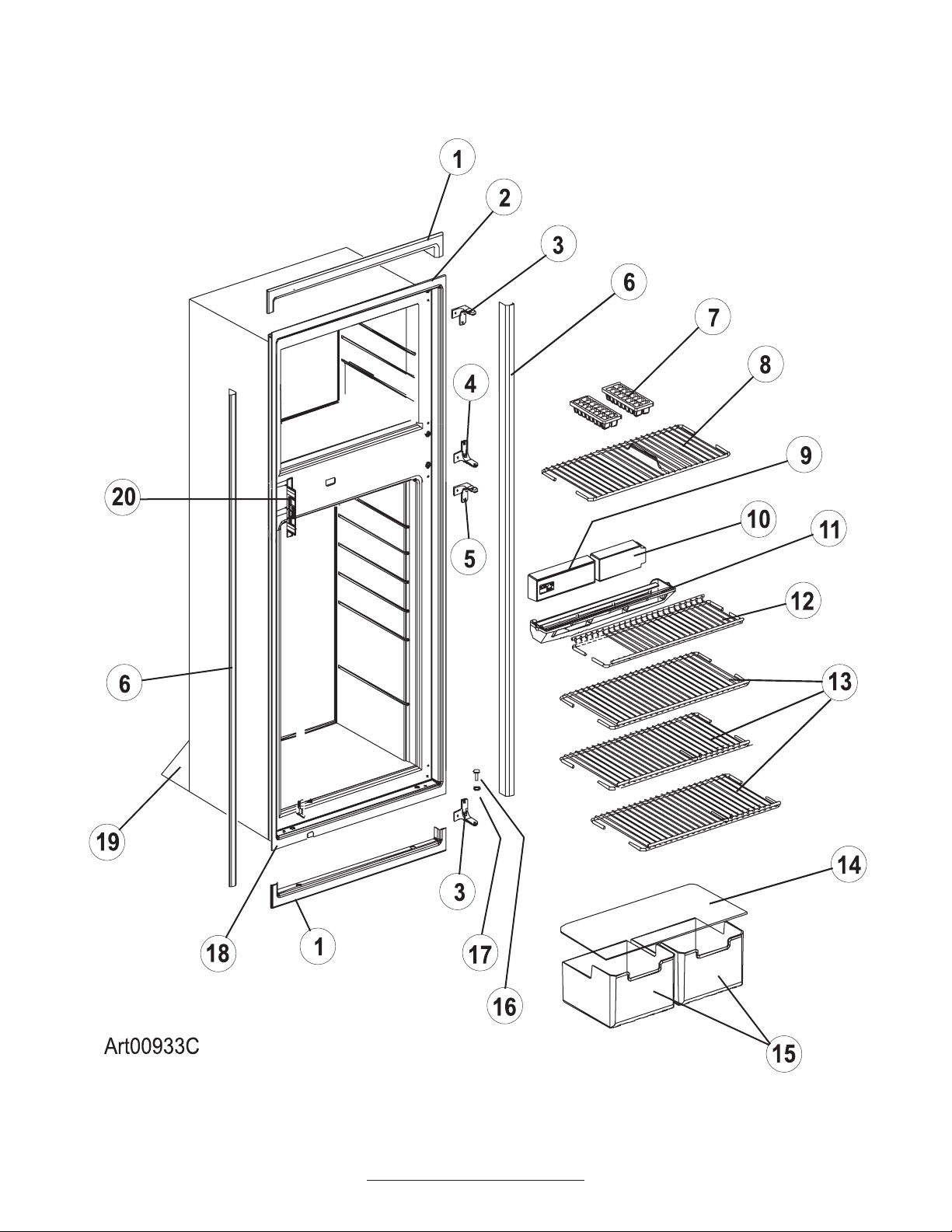

CABINET AREA (FRONT VIEW) - MODEL SERIES N1095

NO. PART # DESCRIPTION N1095 N1095IM

1 620915 KIT-INSTALLATION/BLACK (TRIM PIECES/SCREWS) X X

2 625184 BRACKET FOAM TAPE ASSY-TOP/MOUNTING X X

3 623550 HINGE-CABINET/TOP/BOTTOM/(PANEL/WDL)(WRAP/SDL) X X

626659 HINGE-CABINET/TOP/BOTTOM/PANEL/SDL X X

619335 HINGE-CABINET/3 POINT/TOP RH/BTM LH/BLACK/WDL X X

623771 HINGE-CABINET/3 POINT/TOP RH/BTM LH/PANEL/BLACK/SDL X X

624785 HINGE-CABINET/3 POINT/TOP RH/BTM LH/WRAP/BLACK/SDL X X

4 619336 HINGE-CABINET/3 POINT/TOP LH/BTM RH/BLACK/WDL X X

623772 HINGE-CABINET/3 POINT/TOP LH/BTM RH/PANEL/BLACK/SDL X X

624786 HINGE-CABINET/3 POINT/TOP LH/BTM RH/WRAP/BLACK/SDL X X

5 619335 HINGE-CABINET/3 POINT/TOP RH/BTM LH/BLACK/WDL X X

623771 HINGE-CABINET/3 POINT/TOP RH/BTM LH/PANEL/BLACK/SDL X X

624785 HINGE-CABINET/3 POINT/TOP RH/BTM LH/WRAP/BLACK/SDL X X

6 625185 TRIM PIECE FOAM TAPE ASSY-CABINET/SIDE/10’/BLACK X X

7 61630422 ICE CUBE TRAY-PLASTIC (NON ICE MAKER MODELS ONLY)(2 PER CABINET) X

8 620982 SHELF-WIRE/FREEZER X X

9 628976 CONTROL ASSY-OPTICAL/BLACK (SERIAL# 9045738 & ABOVE) X X

619665 CONTROL ASSY-OPTICAL/BLACK (SERIAL# 9045737 & BELOW)(LIMITED QUANTITIES) X X

633287 KIT-CONTROL ADAPTER (SERIAL# 9045737 & BELOW) X X

10 619282 FRONT BOX-BLACK X X

11 623250 DRIP TRAY-INSIDE (ONE PIECE) X X

12 623713 SHELF-WIRE/CUTOUT X X

13 623712 SHELF-WIRE/FULL X X

NS 623121 CLAMP-SHELF RETAINING LOOP 3/8” X X

14 620985 CRISPER COVER-GLASS SHELF X X

15 621070 BIN-CRISPER X X

16 618145 HINGE PIN (PANEL/WDL)(WRAP/SDL) X X

61550722 HINGE PIN-BOTTOM/SDL X X

623899 HINGE PIN-UPPER/LOWER/BLACK (PANEL/SDL) X X

17 619671 HINGE BUSHING-DOOR/WARM GRAY X X

18 625183 BRACKET FOAM TAPE ASSY-BOTTOM/MOUNTING X X

19 61586722 BRACE-CABINET/BACK X X

20 618167 STRIKE PLATE-BLACK X X

WDL = WAFFLE DOOR LINER SDL = SMOOTH DOOR LINER

N1095 SERIES PARTS LIST - PAGE 8

CABINET AREA (REAR VIEW/COOLING UNIT) - MODEL SERIES N1095

NO. PART # DESCRIPTION N1095 N1095IM

1 632316 NSC SYSTEM PACK-COOLING UNIT/N1095/ (BACKER HEATER) X X

2M0802 KIT-THERMAL SWITCH/BRACKET ASSY (SEE NOTE) X X

NS 618111 BAFFLE DIFFUSER/WIRE ASSY-COOLING UNIT (NOT SHOWN) X X

2 622391 DRAIN HOSE ASSY X X

3 622546 DRIP CUP-REAR/PLASTIC X X

4 61712637 COVER ASSY-BURNER BOX X X

5 61695322 BASE-BURNER BOX X X

6 621702 HEATER-AC (COOLING UNIT SERIAL# 11232007 & BELOW) X X

630811 HEATER-AC/BACKER (COOLING UNIT SERIAL# 11232008 & ABOVE) X X

7 61695022 CAP-HEAT DEFLECTOR X X

8 61586722 BRACE-CABINET/BACK X X

9 61686823 FINS X X

NS 625005 BAFFLE ASSY-REAR HEAT (NOT SHOWN) X X

NOTE: FOR COOLING UNITS WITH A THERMAL SWITCH.

N1095 SERIES PARTS LIST - PAGE 9

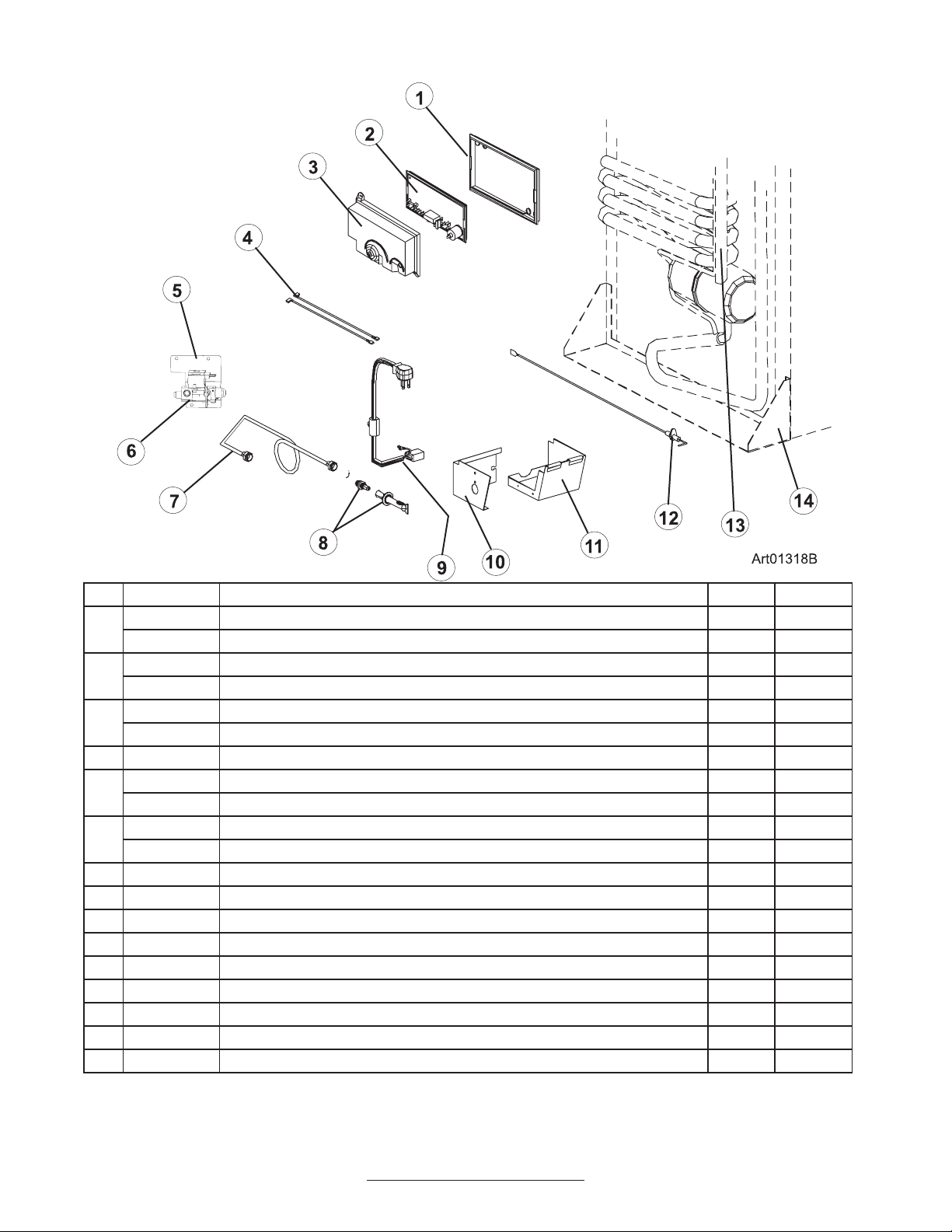

CONTROLS (REAR VIEW) - MODEL SERIES N1095

NO. PART # DESCRIPTION N1095 N1095IM

1 618186 BASE-POWER BOARD (9045737 & BELOW) X X

628674 BASE-POWER BOARD (9045738 & ABOVE) X X

2 621269001 KIT-POWER BOARD (9045737 & BELOW) X X

628661 POWER BOARD (9045738 & ABOVE) X X

3 618185 COVER-POWER BOARD (9045737 & BELOW) X X

628677 COVER-POWER BOARD (9045738 & ABOVE) X X

4 621448 WIRE-WHITE/9”/GAS VALVE X X

5 624681 BRACKET-MOUNTING/GAS VALVE (9185698 & BELOW) X X

628993 BRACKET-MOUNTING/GAS VALVE (9185699 & ABOVE) X X

6 621334 KIT-GAS VALVE/BRACKET/WIRES (9185698 & BELOW) X X

633726 GAS VALVE-SOLENOID (9185699 & ABOVE) X X

7 624682 BURNER TUBE X X

8 621957 KIT-BURNER/ORIFICE ADAPTER ASSY X X

9 61554422 CORD-AC POWER/BLACK X X

NS 621755 CORD-POWER/ICE MAKER/WHITE (NOT SHOWN) X

10 61712637 COVER ASSY-BURNER BOX X X

11 61695322 BASE-BURNER BOX X X

12 61692222 ELECTRODE-SPARK/SENSE/SINGLE ELECTRODE/0.25” X X

13 632316 NSC SYSTEM PACK-COOLING UNIT/N1095 (BACKER HEATER) X X

14 61586722 BRACE-CABINET/BACK X X

NS = NOT SHOWN

NOTE: IF THE CONTROL ASSY-OPTICAL HAS BEEN REPLACED WITH A KIT-CONTROL ADAPTOR, THE POWER BOARD MUST

BE REPLACED WITH A NEW KIT-CONTROL ADAPTER.

N1095 SERIES PARTS LIST - PAGE 10

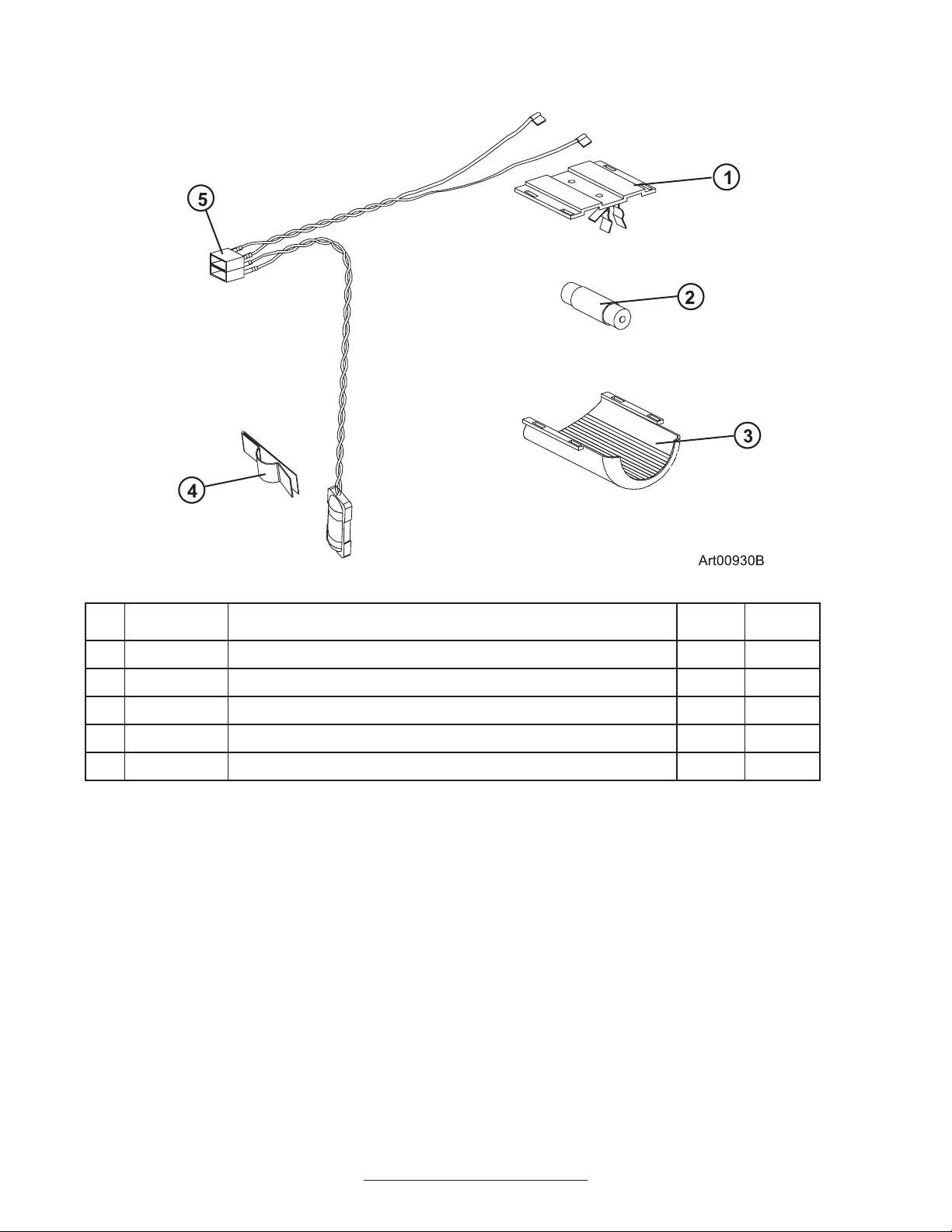

INTERIOR LIGHT AND THERMISTER ASSY - MODEL SERIES N1095

NO. PART # DESCRIPTION N1095 N1095IM

1 61629722 LAMP BRACKET ASSY X X

2 632545 LAMP-DC LIGHT BULB X X

3 621827 COVER-LAMP BRACKET X X

4 620875 CLIP-THERMISTER MOUNTING/ADHESIVE BACK X X

5 620871 LAMP THERMISTER WIRE ASSY X X
