NORDIC SEASON SEATTLE Kurzanleitung zur Einrichtung
SEATTLE
Assembly,use and maintenance
Gas Barbecue SEATTLE – GG301402B
WARNING: Do not light the
grill before you have read the
LIGHTING INSTRUCTIONS in this
manual.
READ THIS MANUAL AND
FAMILIARIZE YOURSELF WITH
THE PRODUCT BEFORE USE
Keep this manual for later
reference. It should follow the
owner of the product.
FOR OUTDOORS USE ONLY.
!
NB: READ AND FOLLOW
THE INSTRUCTIONS ON LEAK
TESTING IN THE MANUAL
!
NB: Read the chapter on
MAINTENANCE AND CLEANING.
The guarantee can be invalid if
correct maintenance is not
performed.
!
FAT FIRE:
• Shut off gas supply to the grill.
• Disconnect gas regulator.
• Open lid.
• Wait until the fire goes out.
Do not use water to extinguish the fire!
!
Revised
October 2016
2
Table of contents
Warnings . . . . . . . . . . . . . . . . . . . . . . 3
Technical data . . . . . . . . . . . . . . . . . .4
Gas Category . . . . . . . . . . . . . . . . . . . . . . . .4
Parts Overview . . . . . . . . . . . . . . . . . 5
Parts List . . . . . . . . . . . . . . . . . . . . . 6
Assembly Instructions . . . . . . . . . . .7
Connecting Gas . . . . . . . . . . . . . 19
Leak Test . . . . . . . . . . . . . . . . . . . . . . . . 20
Lighting the barbecue . . . . . . . . . . 21
Safety instructions . . . . . . . . . . . . 22
Tips . . . . . . . . . . . . . . . . . . . . . . . . 23
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . 24
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . 24
Troubleshooting . . . . . . . . . . . . . . . 25
Consumer Contact. . . . . . . . . . . . . . 26
WARNINGS !
3
Failure to follow the instructions provided can imply a risk of serious injury to
personnel and fixed installations.
!
Some grill parts can be sharp, we recommend wearing gloves when
assembling and lifting. Sharp edges can cause injury.
!
The grill is intended for outdoor use only in well-ventilated areas. Never grill in
enclosed spaces or under a roof, due to the danger of the lack of oxygen.
!
Accessible parts of the grill become very hot during use. Keep children and
others who need supervision at a safe distance. Do not move the grill while in use
or connected to the gas bottle.
!
Shut off the gas on the regulator after use and disconnect from the gas bottle.
!
Modification of the grill can cause danger and will invalidate the warranty.
!
Never keep the gas bottle under the grill when in use. Gas leaks can cause
serious damage. Place the gas bottle by the side of the grill during use.
Do not place the grill cover or other flammable material in the compartment under
the grill when it is in use or hot.
!
Do not use lava stones, charcoal or briquettes.
!
Clean the grill regularly and thoroughly.
!
!
TECHNICAL DATA
Total output:15,22kW
(Main burners 4 x 2,93 kW )
(Side burner 3,5 kW)
Gas consumption:1085 gram/time.
(Main burners 835 gram/hour)
(Side burner 250 gram/hour)
Hose and regulator: Must be approved according to EN standard.
Gas bottle (not included): Use standard bottle approved for use in the Nordic
Region. 10/11kg. recommended.
Even though butane and propane gas can be used, we recommend propane
for use in the Nordic Region.
Approved hoses and regulators are available from most outlets selling gas
equipment.
NB! Gas hoses used for this product must not exceed 150 cm in length
This product is produced according to EUROPEAN GAS APPLIANCE
STANDARD EN498 AND EN484 and is CE certified.
4
1008 CP 2791
Gas category information
For use in (country) Valve size Gas type Gas category
BE, CH, CY, CZ, ES,
FR, GB,
GR, IE, IT, LT, PT,SI,
SK, TR
Dia. 0,86 mm Butan (28~30) mbar
Propan 37 mbar;
Category
I3+(28-
30/37)
BE, BG, CY, CZ, DK,
EE, FI, FR,
GB, GR, HR, HU, IT, LT,
MT,
NL, NO, RO, SE, SI, SK,
TR
Dia. 0,86mm
G30(Butan),G31(Propan)
and mixtures of the same,
LPG30mbar
Category I3B/P(30)
AT,CH,DE,SK Dia. 0,76mm G30(Butan),G31(Propan)
and mixtures of the
same, LPG50mbar
Category I3B/P(50)
PARTS OVERVIEW
13
5
1 2
3
4
20
17
18
19
16
15
12
14
78
10
11
9
6
5
PARTS LIST
Item Part Qty.Item Part Qty.
1Lid and Body Assembly 111 Casters (No Locking) 2
2Warming Rack 112 Left Door 1
3Cooking Grid 213 Back Board 1
4Flame Tamer 414 Bottom Shelf 1
5Side Burner Grate 115 Right Rear Support Leg 1
6Left Side Burner Assembly 116 Right Side Table 1
7Left Rear Support Leg 117 Right Front Support Leg 1
8Left Front Support Leg 118 Oil Cup 1
9Knob 519 Upper Leg Support 1
10 Cart Side Panel 220 Locking Casters 2
6
ASSEMBLY INSTRUCTIONS
We reserve the right to make technical changes and cannot be held
responsible for printing errors.
Always quote the part number on the parts list when ordering spare parts.
PLEASE FOLLOW THESE INSTRUCTIONS STEP BY STEP.
WE RECOMMEND TWO PEOPLE TO ASSEMBLE THE
GRILL TO AVOID HEAVY LIFTING.
TOOLS FOR ASSEMBLY (not included):
Medium size flat blade or Philips/cross-point screwdriver
Adjustable spanner or metric spanner set
NB:
Exercise caution when using electric tools –
their strength can damage the screws.
7
AM6 x 12 Combo Truss Head Bolts 28
BM6 x 55 Combo Truss Head Bolts 8
CNippel 1
The following screws and nuts are supplied with the grill and must be fitted
1
2
Fig 1
Fix the Cabinet Side Panel(10) on the Left Rear Support Leg (7) and Left Front
Support Leg (8) using
4 pcs M6x12 (A) as Fig 1.
Fig 2
Fix the Cabinet Side Panel (10) on the Right Rear Support Leg (15) and the Right
Front Support Leg (17) using 4pcs M6x12(A) as Fig 2.
8
7
8
A
10
15
10
A
17
3
Fig 3
Fix Bottom Shelf (14) on Left Leg Assembly (7+8) and Right Leg Assembly (15+17) ,
using 4pcs M6x12 (A).
Note: The direction of bottom shelf should be front direction assemble with front left/right leg.
4
Fig 4
Fix Upper Leg Support Of Door(19) on front Left Leg (8) and Right front Leg (17) using 2pcs
M6x12 (A) as Fig 4.
9
8
17
A
14
15
7
17
A
8
19
5
6

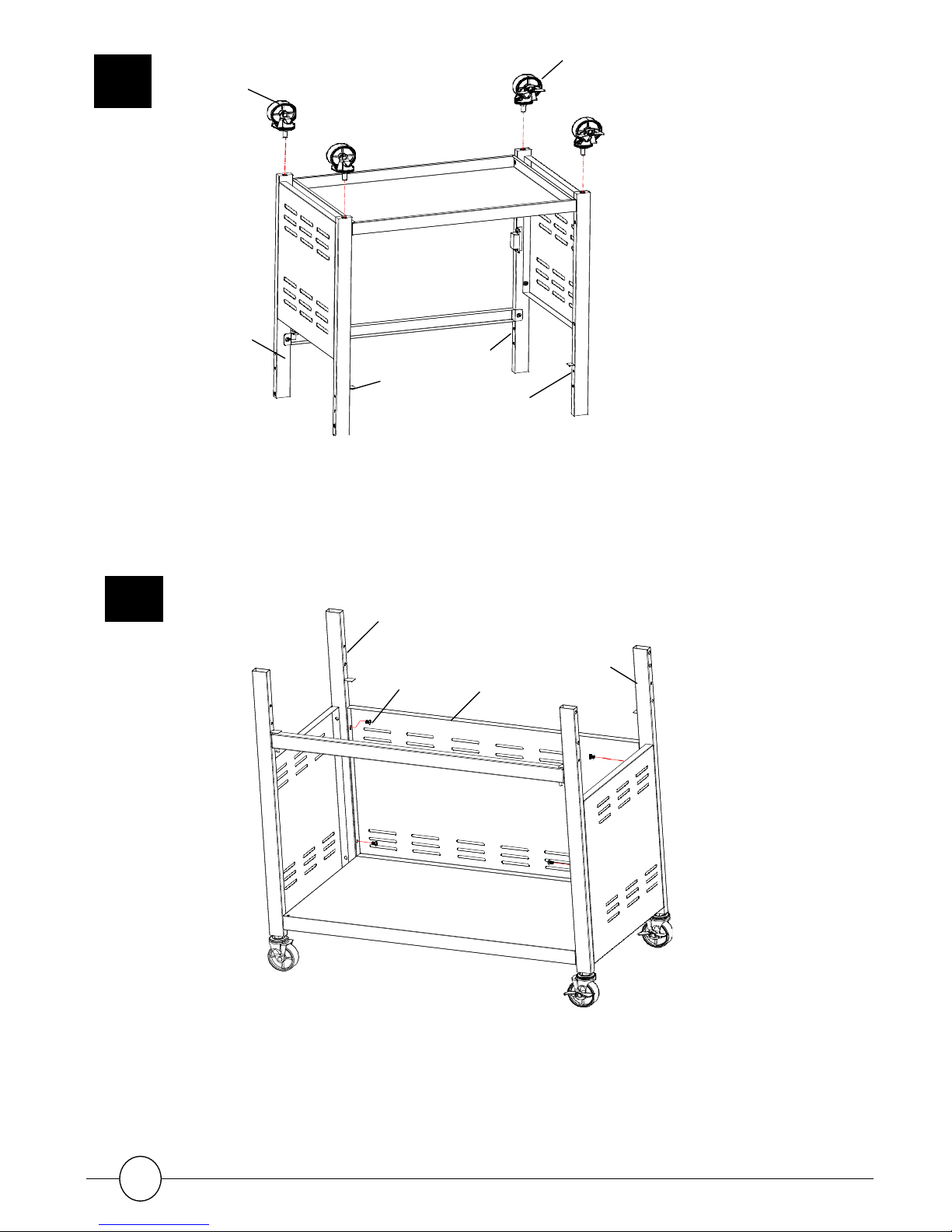

Fig 5
Fix 2pcs Casters (11) on Left Leg Assembly and 2pcs Casters (20) on Right Leg Assembly
as Fig 5..
Fig 6
Fix shelf backboard(13) on Left Rear Support Leg (7) and Right Rear Support Leg (15)
using 4pcs M6x12 (A) as Fig 6.
10
7
11
15
8
17
20
13
A
7
15
