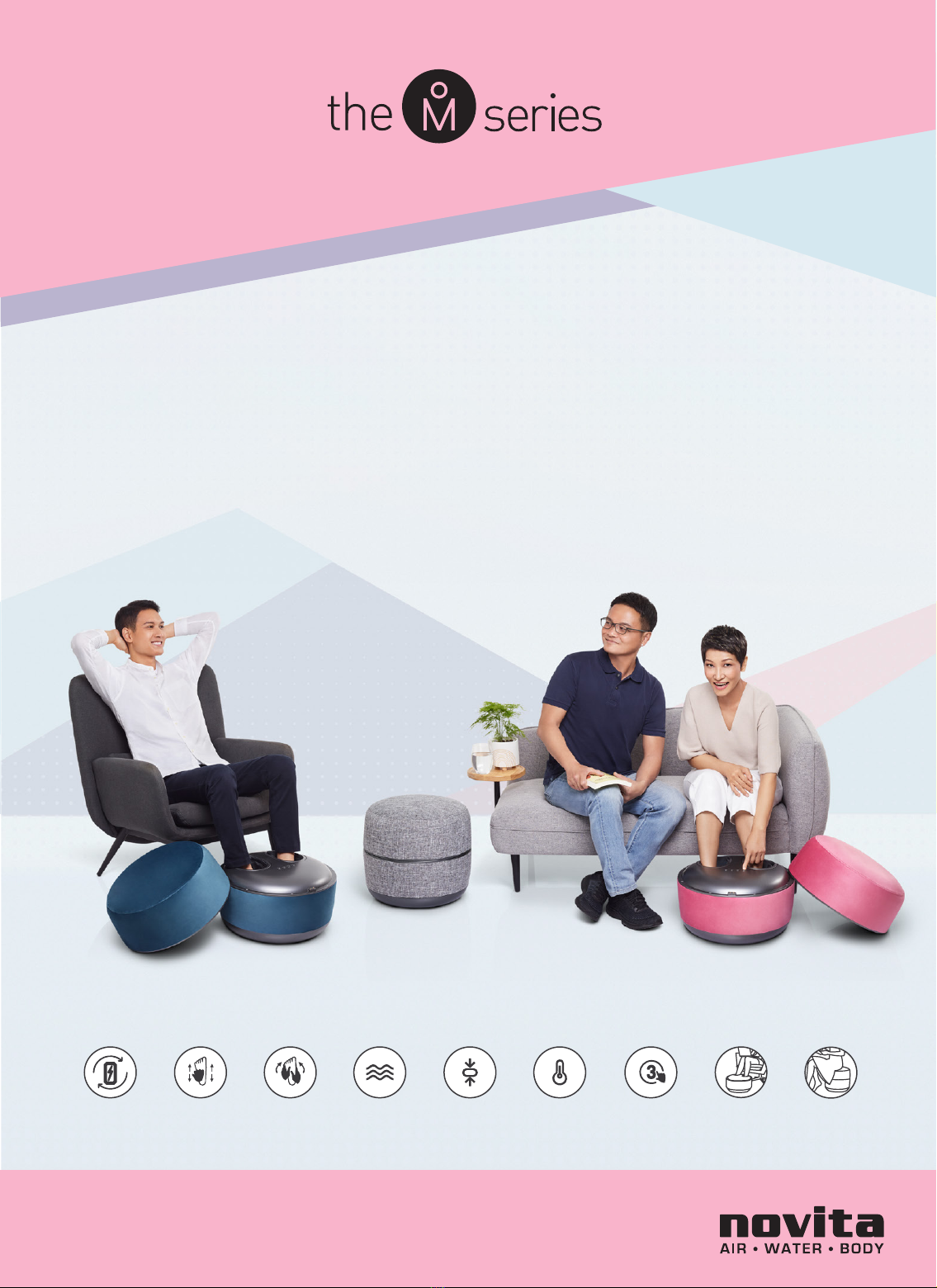

Novita M Series Installationsanleitung

FOOT

MASSAGER

Operating Instructions & e-Warranty Application

Built-in

lithium-ion

battery

Scraping

Massage

Technique

Shiatsu

Massage

Technique

Vibration

Massage

Technique

Air

Pressure

Heat

Therapy

Trio Auto

Program Mode

Portable

& Handy

2-in-1

Stool

B8 Feature Icon

05-06

06-07

Safety Instructions

Product Descriptions

Control Panel Descriptions

Using the M Series®B8

• Setting Up

• Operating Notes

• Storage

Cleaning & Maintenance

Troubleshooting

Technical Specifications

novita Customer Service Guarantee

e-Warranty Application

Limited Warranty Terms & Conditions

Product Warranty Extension – Extended Carry-In Warranty

CONTENT

Please contact us immediately if any of the above-mentioned items are not included.

•

1 x novita The M Series®

Foot Massager B8

•

Starter Guide

•

Operating

Instructions &

e-Warranty

Application (e-Copy)

This Product Includes:

•

Adapter

SAFETY INSTRUCTIONS

Read the operating instructions manual carefully before using novita the M Series® Foot Massager and keep it

for later reference.

Improper operation may cause injury to users or product damage.

1. Serious hyperostosis

2. Swollen lump and thrombosis

3. Severe cardiovascular conditions

4. Pregnant

5. Person who consumes large amount of alcohol

6. Diabetes

7. High fever

Please consult the general practitioner or physician before using.

This foot massager is not intended for self-diagnosis or self-treatment of medical conditions that should be managed by qualified

health care provider. It is not recommended for user who experience the following medical conditions to use the foot massager.

MEDICAL CONDITIONS

ELECTRICAL SAFETY

DO NOT use wet hands to operate the control panel or pull the adapter wire.

DO NOT splash water onto the control panel to avoid malfunction.

DO NOT place heavy objected on the control panel.

Only use the provided adapter. Usage of any third party, non-original or unauthorized adapter could damage

the unit and void the limited warranty.

Charging duration of the adapter should not exceed 3 hours.

DO NOT plug the adapter with wet hands to avoid electric shock accident.

Remove the adapter by holding onto the plug, DO NOT pull the power cord.

DO NOT excessively bent, pull, twist or entangle the adapter wire.

When the adapter wire is damaged, DO NOT dissemble or replace it yourselves.

Servicing should only be conducted by professional service technicians from novita.

Always remove the adapter from the power socket during maintenance, after usage and when not in use.

In the event of power failure, please immediately turn off the power switch and unplug the adapter from the

power socket.

10.

11.

12.

CAUTION

8. Malignant tumors or malignant abscesses

9. Serious or injured skin conditions

10. Psychological condition

11. Paralysis

12. Osteoporosis or sensory impairment

13. Distorted joints

14. Recent surgery

DO NOT use the unit in environment lower than 0oC or higher than 40 oC.

DO NOT use the unit in damp or dusty environment to avoid electric shock or unit malfunction.

DO NOT use the unit in the event of lightning. Please unplug the adapter from the power socket.

DO NOT place the unit on an uneven ground for usage.

DO NOT place the unit near a stock or expose to direct sunlight.

DO NOT disassemble the internal component of the unit. Doing so would void the limited warranty.

This unit can accommodate user weight up to 120 Kg.

DO NOT use other therapeutic equipment when using the foot massager.

This unit can only be used by one person at a time. DO NOT allow two or more people to use at the same

time.

Before using the unit, please remove any ankle accessories.

Before usage, please check to ensure all the fabric of the contact part is not damaged. If any damaged

is spotted, please stop using the unit immediately and contact novita customer care centre.

Please stop using the unit immediately and consult a doctor if the user experiences any physical

abnormalities during usage.

Ensure there are no pets or other items on/near the unit before usage.

If the unit is not being used for an extended period time, please charge it monthly to prevent battery

damage.

DO NOT stand on the unit to avoid injury or unit malfunction.

DO NOT push or pull the unit on the delicate flooring/carpet to prevent damage/scratches.

Please keep the unit in a well-ventilated space and not expose to strong/direct sunlight.

If any of the below phenomenon occurs, please stop using the unit immediately to prevent occurrence of

faults and accidents.

• Burnt smell

• The electricity is abnormal

• The power cord heats up

• Other abnormal phenomenon

10.

11.

12.

13.

14.

15.

16.

17.

18.

OPERATION SAFETY

Connecting Joint

PRODUCT DESCRIPTIONS

EXTERIOR

INTERIOR

Top Cover Vibration

Massage Button

Power Connector

Top Cover

Base Unit

BACK VIEW

Top Cover

Vibration Joint

Built-In Airbags

Main Body

Control Panel

Built-In Heating Mechanism

Built-In Massage Roller

Detachable Fabric Cover

TOP VIEW

CONTROL PANEL DESCRIPTIONS

Power On/Off Button

Mode Button

Heat Button

Intensity Button

Ensure the power plug is disconnected from the power supply at all times during installation, maintenance and

transportation.

Remove all packaging materials and place the unit on a dry, stable and level surface.

SETTING UP

1M 1M

• DO NOT place the unit on uneven ground.

• The unit must be grounded and keep away from damp places to avoid electrical shock.

• Keep the unit away from high temperature/heat sources to avoid fire or damage to the materials.

• DO NOT use the unit with a surrounding temperature higher than 40oC.

To prevent from signal interference, please keep the unit at least 1 metre away from the IV, radio

and other video and audio devices.

• When charging, please straighten the adapter wire so that it does not get entangled or damaged.

• Charing duration should not exceed 3 hours.

• DO NOT charge the unit with third-party, non-original or unauthorized adapter.

• The adapter indicator illuminates in green when it is connected to a power supply.

• The foot massager has a built-in lithium-ion battery to facilitate unit portability.

• A fully charged battery can support up to 2.5 to 3 hours of full foot massage function.

• A fully charged battery can support up to 5 hours of top cover vibration massage function.

Connect the adapter to the unit and turn on the power supply to power the unit/charge the built-in

lithium-ion battery. When the battery runs low, user can charge it with the adapter provided. The

battery will take about 3 hours to be fully charged.

This product can accommodate user up to 120 Kg.

OPERATING NOTES

Remove the top cover to use the base unit as a foot massager.

Follow the operating notes as follows.

FOOT MASSAGER

Each foot massage cycle is programmed with an auto timer of 10 minutes.

Press the power on/off button to power on/off the unit.

flashes in red to indicate battery power is running low.

Press the mode button consecutively to select the preferred

operating mode and its corresponding indicator illuminates on the

selected setting.

Press the heat button to activate/deactivate the heating function.

Illuminates in red indicates heating function is activated.

Press the intensity button consecutively to select the preferred

massage intensity and its corresponding indicator illuminates on

the selected setting.

Illuminates in green indicates vibration, airbags and massage roller functions

are activated.

Illuminates in yellow indicates only the airbags function is activated.

Illuminates in red indicates both vibration and massage roller functions are

activated.

Illuminates in green indicates low massage intensity.

Illuminates in yellow indicates medium massage intensity.

Illuminates in red indicates high massage intensity.

Power On/Off Mode Heat Intensity

TOP VIEW

02 THE TOP COVER VIBRATION

When the top cover is capped onto the base unit, press the vibration massage button to activate the top

cover vibration massage function. To deactivate, press the button again.

FRONT VIEW

Align the connecting joint of the top cover to the base unit.

STORAGE

• Ensure the top cover and base unit is carefully aligned in order to cap it properly.

• Failure to properly align the top cover to the base unit may cause surface imperfection.

Tips: User may align the top cover and base unit vertical stitches

as a reference guide to cap the unit properly.

Vertical Stitches

OPENED VIEW

Press to activate top cover vibration massage function.

TROUBLESHOOTING

Condition Possible Solution

Please charge the battery.

Possible Cause

Turn on the power switch.

Remove the adapter and reattached

into the power socket snugly.

Unit cannot be turned on

There is tapping and

humming sound.

The battery is flat.

The adapter is not connected

properly.

The power switch is not turned on.

This is a normal phenomenon.

Contact novita customer care centre.Internal component is faulty.

The sound is arised from the

friction between massage roller

mechanism and the fabric cover.

Please refer to the operating instructions manual for full cleaning and maintenance instructions.

It is recommended to regularly use a damp cloth to wipe the surface of the foot massager to prevent accumulation

of dust.

EXTERIOR MAINTENANCE

CLEANING THE DETACHABLE FABRIC COVERS

• DO NOT use any chemicals or aggressive solvents as these substances may discolour

the unit and results in permanent stains.

• DO NOT splash water onto the control panel to prevent unit malfunction.

CLEANING & MAINTENANCE

Please unplug the power plug from the power supply before cleaning and maintenance.

DO NOT wash the fabric covers inside the washing machine or comb it with a brush to prevent deformation.

01 Pull up 02 Unzip 03 Wash 04 Air dry

Zipper

Gently pull up the fabric covers to detach them from the bottom Velcro.

Unzip the fabric covers to detach it from the base unit.

Handwash the fabric covers with tap water or mild detergent.

Air dry it thoroughly before attaching the fabric covers back into the unit.

TECNICAL SPECIFICATIONS

Frequency

Dimension

Weight

Noise Level

Safety Design

Li-ion Battery Capacity

Power Consumption

Rated Voltage

Colour Available

440 x 440 x 410 mm

9.96 Kg

≤ 55 dB

Class I

4400 mAh, 19 V

38 Watts

AC 110 V - AC 220 V

50 Hz/ 60 Hz

Atlantic Blue | Blush Pink | Stilo Grey

210256-12Adapter Safety Mark

NOVITA CUSTOMER SERVICE GUARANTEE

At the cornerstone of novita’s core values is the importance we place in Continuous Relationships. Consequently, we

believe in harnessing the relationship we have with our customers. The first step in establishing this relationship is to

ensure that we are always there for the customers whenever we’re needed. These are just a few ways that we look out

for you.

FREE CARRY-IN EVALUATION

Check in your product for a FREE assessment and evaluation by our qualified technician. Upon your

confirmation, charges only apply when there is replacement of technical parts.

MINIMUM DOWNTIME

Understanding that time is of the essence, for each servicing or repair, novita guarantees that we will

only take up to 7 working days to get your product up and ready for collection.

OPTIONAL HOME DELIVERY

Time and convenience might not always be in the advantage of customers, hence, for a nominal fee of

$18 one-way and $36 two-ways, customer can choose to use our delivery service instead of bringing in

the product themselves.

OPTIONAL LOAN SET*

Knowing how inconvenient it can get when your product is sent for servicing or repair, novita lends a

hand by offering you a temporary loan set at no charge.

* Please note that this service is upon request and subjected to the availability of the product. Temporary

loan set might be of a different model from original set brought in for repair.

SERVICE TREKKING*

With everyone’s busy schedule, it’s sometimes hard to keep track of everything. Sit back, relax and leave

the fussing to us. Instead of calling and checking up on the status of your product, let novita keeps you

updated.

* Customers can choose to be updated via email, phone or even sms.

DEDICATED CUSTOMER CARE PERSONNEL

WhatsApp us at 8182 7665 for any enquiry or feedback. Alternatively, you can drop us an email at

custcar[email protected] or visit our website at novita.com.sg. Our friendly customer care personnel will

be glad to assist you.

Andere Handbücher für M Series

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Novita Massagegerät Handbücher

Novita

Novita M Series Bedienungsanleitung

Beliebte Massagegerät Handbücher anderer Marken

ELEEELS

ELEEELS P2 Bedienungsanleitung

Cenocco

Cenocco CC-9111 Bedienungsanleitung

Panasonic

Panasonic EP790-C1 Bedienungsanleitung

Human Touch

Human Touch NOVO Bedienungsanleitung

Adler

Adler AD 2167 Bedienungsanleitung

Taurus

Taurus Wellness TW-MC-M Bedienungsanleitung

Infinity

Infinity Syner-D Circadian Bedienungsanleitung

Hydas

Hydas LH-095 Bedienungsanleitung

AEG

AEG FM 5567 Bedienungsanleitung

OBH Nordica

OBH Nordica Shiatus Tunes Bedienungsanleitung

Hutech

Hutech Q9 Bedienungsanleitung

Medisana

Medisana MM 825 Bedienungsanleitung

SOLAC

SOLAC Therma Hydro Bedienungsanleitung

Invacare

Invacare Texas Bedienungsanleitung

Casada

Casada Bismarck II Bedienungsanleitung

Fujiiryoki

Fujiiryoki Cyber-Relax EC-1700 Bedienungsanleitung

Medisana

Medisana HM 886 Bedienungsanleitung

HoMedics

HoMedics BA-C200 Bedienungsanleitung
