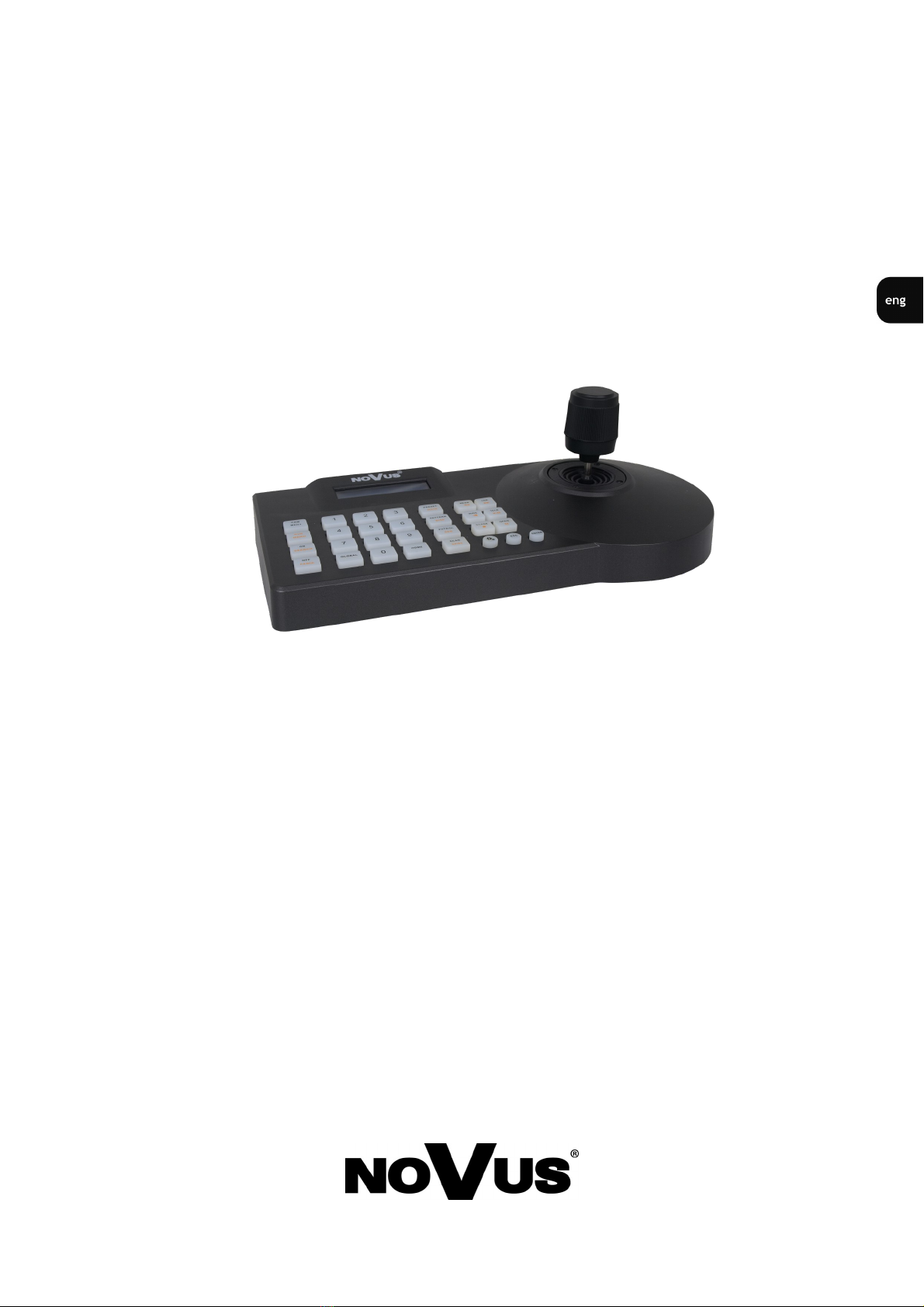

Novus NV-KBD50 Bedienungsanleitung

NV-KBD50

u s e r ’s m a n u a l

NV-kBD50 ver. 1.0 - User’s manual

EMC (2004/108/EC) and LVD (2006/95/EC ) Directives

CE Marking

Our products are manufactured to comply with the requirements of the following directives and

national regulations implementing the directives:

 Electromagnetic compatibility EMC 2004/108/EC.

 Low voltage LVD 2006/95/EC with further amendment. The Directive applies to electrical

equipment designed for use with a voltage rating of between 50VAC and 1000VAC as well

as 75VDC and 1500VDC.

WEEE Directive 2002/96/EC

Information on Disposal for Users of Waste Electrical and Electronic Equipment

This appliance is marked according to the European Directive on Waste Electrical and Electronic

Equipment (2002/96/EC) and further amendments. By ensuring this product is disposed of correctly,

you will help to prevent potential negative consequences for the environment and human health,

which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product, or the documents accompanying the product, indicates that this

appliance may not be treated as household waste. It shall be handed over to the applicable collection

point for used up electrical and electronic equipment for recycling purpose. For more information

about recycling of this product, please contact your local authorities, your household waste disposal

service or the shop where you purchased the product.

RoHS Directive 2002/95/EC

Out of concern for human health protection and friendly environment, we assure that our

products falling under RoHS Directive regulations, regarding the restriction of the use of

hazardous substances in electrical and electronic equipment, have been designed and manufactured

in compliance with the above mentioned regulations. Simultaneously, we claim that our products

have been tested and do not contain hazardous substances whose exceeding limits could have

negative impact on human health or natural environment.

Information

The device, as a part of professional CCTV system used for surveillance and control, is not designed for

self installation in households by individuals without technical knowledge.

The manufacturer is not responsible for defects and damages that result from improper or

inconsistent with user’s manual installation of the device in the system.

INFORMATION

NV-KBD50 ver. 1.0 - User’s manual

WARNING!

THE KNOWLEDGE OF THIS MANUAL IS AN INDESPENSIBLE CONDITION OF A PROPER DEVICE

OPERATION. YOU ARE KINDLY REQUSTED TO FAMILIRIZE YOURSELF WITH THE MANUAL PRIOR TO

INSTALLATION AND FURTHER DEVICE OPERATION.

WARNING!

USER IS NOT ALLOWED TO DISASSEMBLE THE CASING AS THERE ARE NO USER-SERVICEABLE

PARTS INSIDE THIS UNIT. ONLY AUTHORIZED SERVICE PERSONNEL MAY OPEN THE UNIT

INSTALLATION AND SERVICING SHOULD ONLY BE DONE BY QUALIFIED SERVICE PERSONNEL AND

SHOULD CONFORM TO ALL LOCAL REGULATIONS

WARNING!

PRIOR TO UNDERTAKING ANY ACTION THAT IS NOT DESCRIBED FOR THE GIVEN PRODUCT IN USER’S

MANUAL AND OTHER DOCUMENTS DELIVERED WITH THE PRODUCT, OR IF IT DOES NOT ARISE FROM

THE USUAL APPLICATION OF THE PRODUCT, MANUFACTURER MUST BE CONTACTED UNDER THE

RIGOR OF EXCLUDING THE MANUFACTURER’S RESPONSIBILITY FOR THE RESULTS OF SUCH AN

ACTION.

IMPORTANT SAFEGUARDS AND WARNINGS

1. Prior to undertaking any action please consult the following manual and read all the safety and

operating instructions before starting the device.

2. Please keep this manual for the lifespan of the device in case referring to the contents of this

manual is necessary;

3. All the safety precautions referred to in this manual should be strictly followed, as they have a

direct influence on user’s safety and durability and reliability of the device;

4. All actions conducted by the servicemen and users must be accomplished in accordance with the

user’s manual;

5. The device should be disconnected from power sources during maintenance procedures;

6. Usage of additional devices and components neither provided nor recommended by the producer

is forbidden;

7. Device should be supplied only from a power sources whose parameters are in accordance with

those specified by the producer in the camera technical datasheet. Therefore, it is forbidden to

supply the camera from a power sources with unknown parameters, unstable or not meeting

producer’s requirements;

8. User cannot repair or upgrade the equipment himself. All maintenance actions and repairs should

be conducted only by qualified service personnel;

10. Unplug the keyboard from the power source immediately and contact the proper maintenance

department in case of:

 Damages to the power cord or to the plug itself;

 Liquids getting inside the device or exposure to strong mechanical shock;

 Device behaves in a way not described in the manual and all adjustments approved by the

manufacturer and possible to apply by user himself, seem not to have any effect;

 Keyboard is damaged;

 Atypical behaviour of the keyboard components may be seen (heard).

ATTENTION!

TECHNICAL CHANGES RESERVED WITHOUT PRIOR NOTICE AND PRINTING ERRORS POSSIBLE.

SAFETY REQUIREMENTS

NV-kBD50 ver. 1.0 - User’s manual

1. PACKAGE CONTENTS

 Keyboard

 User’s manual

 Power supply 12VDC

If any of the listed equipment has been damaged during transport or if the package is

incomplete, the contents of package should be packed back in to the original box. Please contact

your local NOVUS distributor for further assistance.

2. MAIN CHARACTERISTICS

 Keyboard for remote control of NOVUS DVRs and cameras;

 Implemented DVR control protocols: N-Control;

 Able to control cameras utilizing N-Control, Pelco-D protocols;

 Three level access: ADMINISTRATOR, SUPERVISOR and USER;

 Control of up to 256 cameras, 256 DVRs is possible;

 29 multifunctional buttons;

 1 x 16 characters LCD display;

 12 VDC power supply.

Warning !

Due to risk of water condensation, if the device was brought from a colder environment, please

wait until it achieves its ambient temperature.

FOREWORD INFORMATION

NV-KBD50 ver. 1.0 - User’s manual

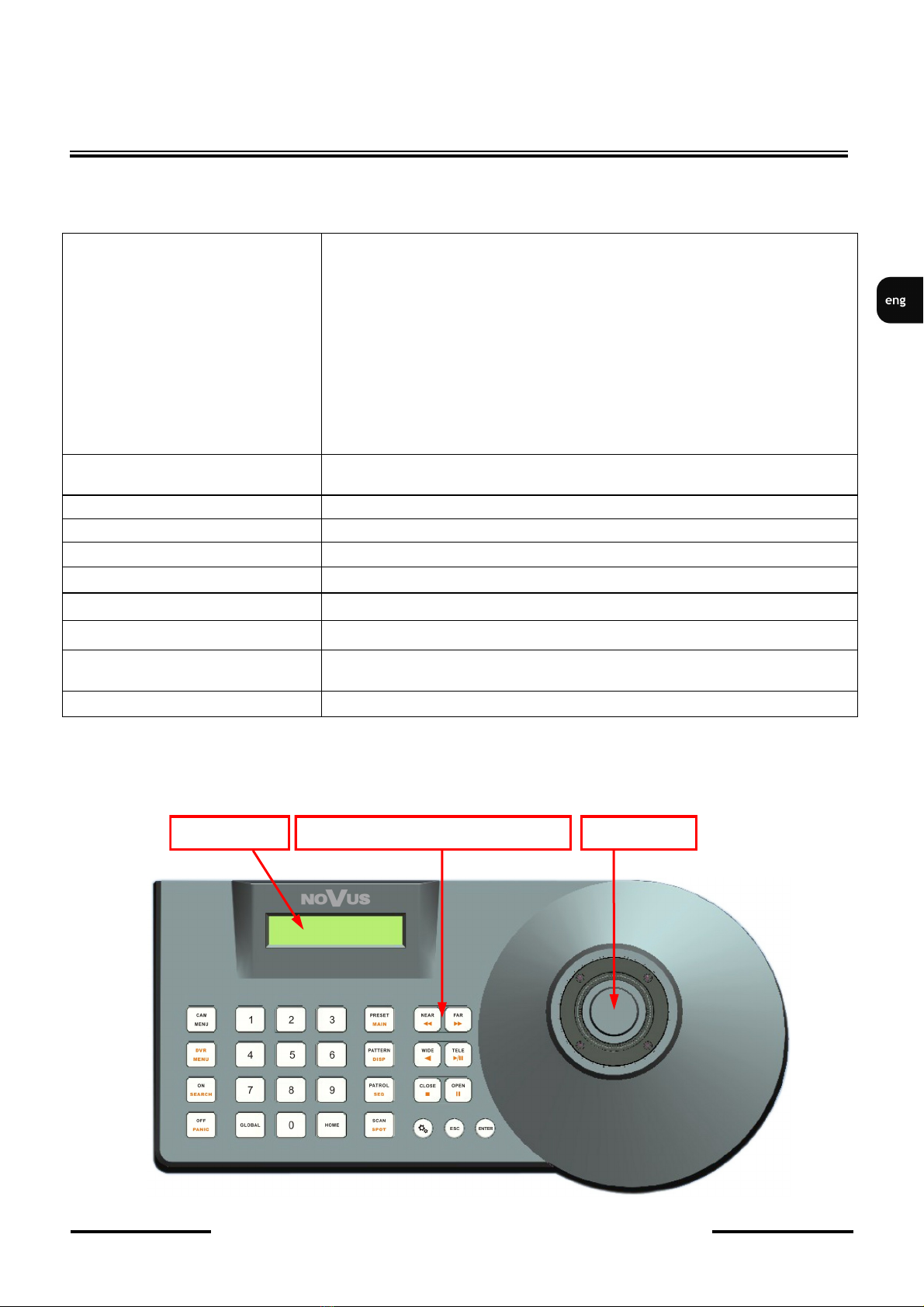

TECHNICAL SPECIFICATION

3. TECHNICAL SPECIFICATION

3.1. Specification

3.2. Front panel description

LED display Numerical and function buttons Joystick

Supported devices

NOVUS digital video multiplexers:

 B series

 E series

cameras:

 N-Control, Pelco-D controlled

DVR control protocols N-Control

Buttons 29, multifunctional

Display 1x16 characters LED

External ports 2 x RS-485

Power supply 12 VDC

Power consumption 3W

Operating temperature -10°C ~ 55°C

Dimensions (mm) 305(W) x 82 (H) x 148(L)

Weight 720g

NV-kBD50 ver. 1.0 - User’s manual

TECHNICAL SPECIFICATION

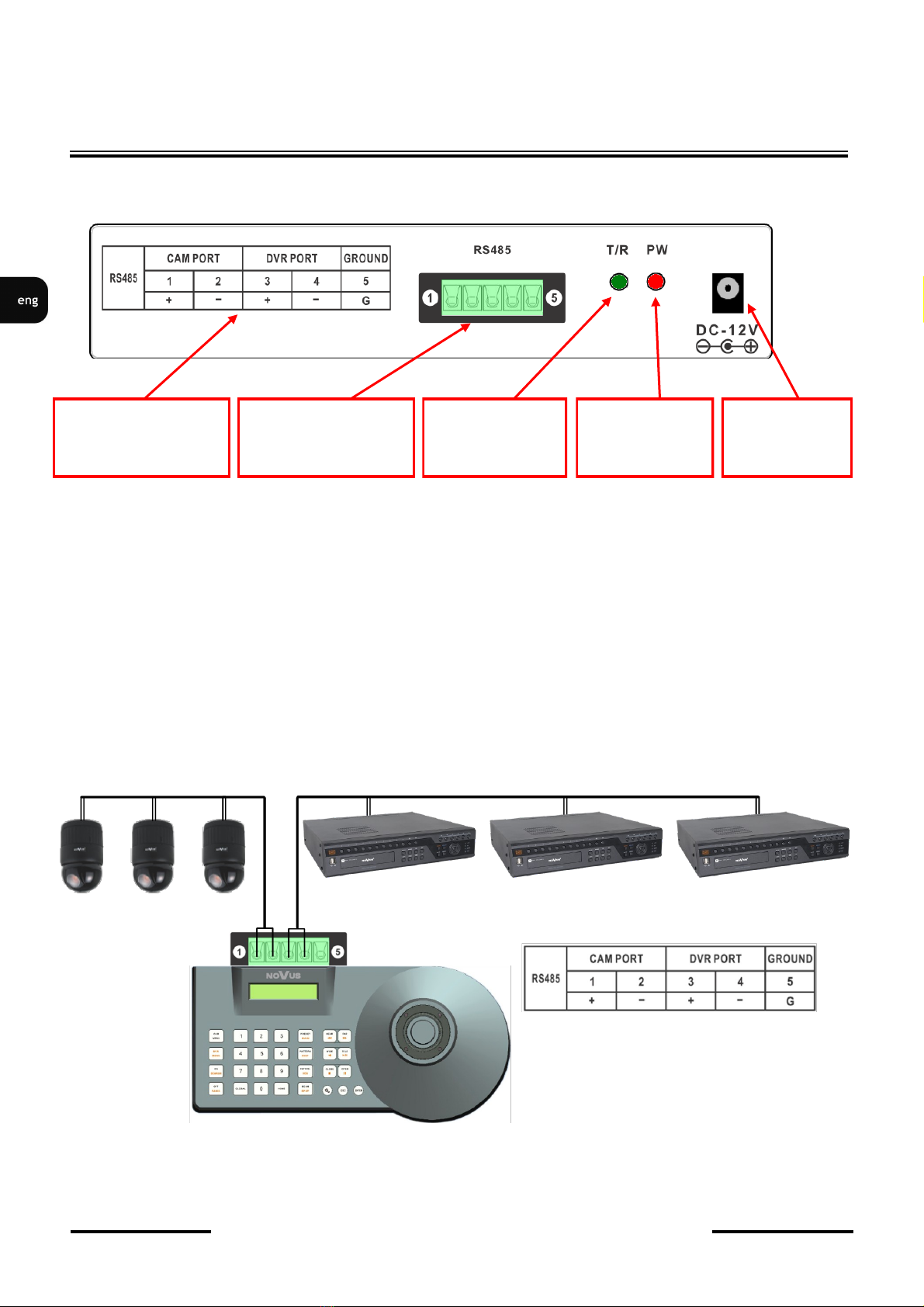

3.3. Rear panel description

3.4. Bus connection

Keyboard has two RS485 ports, which allow for connection with DVRs and cameras. Please

take notice of proper connections. Connect camera bus to 1st, 2nd pin in RS485 socket. Connect

DVR bus 3rd, 4th pin in RS485 socket.

Please use UTP cat.5.when connecting the devices, furthermore please keep in mind the

correct polarization of the pins.

NOTE: Please strictly follow the cascade topology, i.e. use a single line with only short (up to

1.5m) taps allowed. Total bus length should not exceed 1200m. When implementing star

connection usage of active signal splitter, e.g. NVRS-016DD is required.

RS485 screw socket

scheme

Power supply

connector

RS485 screw socket Transmition LED Power Supply

LED

NV-KBD50 ver. 1.0 - User’s manual

KEYBOARD HANDLING

4. KEYBOARD HANDLING

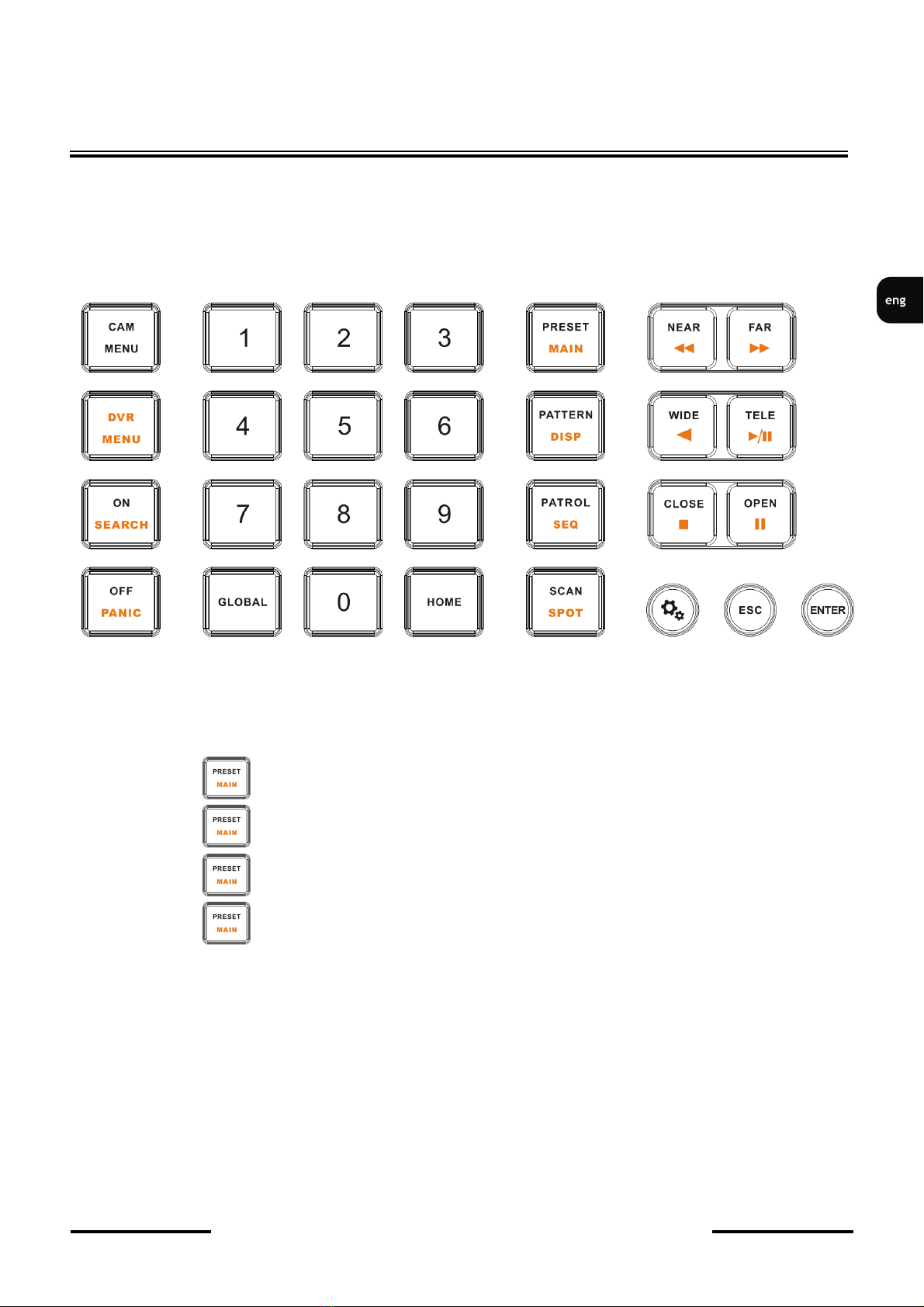

4.1. Keyboard layout

Keyboard layout is shown below. Numerical keyboard is located in the centrer. On the both

sides there are function keys. Black font refers to PTZ camera functions. Orange font refers to DVR

functions.

Functions depend on button pushing method, combination and keyboard mode. All the

functions are listed and described in further chapters.

For example, when in manual is shown key combination:

- Push the button;

- Push the button and hold for three seconds;

- First choose the preferred number, then push the button;

- First choose the preferred number, then push the button and hold for

three seconds.

4.2. Privilage levels

Keyboard has three privilage levels. Each of them is protected by 4 digit password. After

power on keyboard waits for log on prefered level.

Default passwords are as fallows:

USER : 1111

SUPERVISOR (SUPER) : 6666

ADMINISTRATOR (ADMIN) : 9999

Privilage level determine access to keyboard functions. Only the user with Administrator right can

change keyboard configuration. Passwords can be changed in keyboard menu

(3s)

No.+

NV-kBD50 ver. 1.0 - User’s manual

4.3. Keyboard menu

To establish a communication between a keyboard and camera or DVR, an appropriate control

protocol must be selected in the keyboard settings. An ID number is assigned permanently to the

DVR/camera, i.e. to control a DVR numbered “1”, selection of address no. 1 is required, when

controlling a DVR no. “2” selection of “2” address is required etc. Free assignment of DVRs/cameras

to the addresses is not possible, however assigning different protocols to different cameras is

possible.

Only the user with Administrator right is allowed to configure the keyboard Push and hold

for 3 second to enter the keyboard configuration menu.

For navigation through keyboard’s menu please joystick and ESC, ENTER buttons:

 Move joystick up or down to change the parameter;

 Move joystick left or right to change value of the parameter;

 Push the ENTER button to enter a particular submenu or apply changes;

 Push the ESC button to discard changes and exit menu or submenu.

Keyboard menu is divided into three sections: SYSTEM SETUP, CAM SETUP, DVR SETUP.

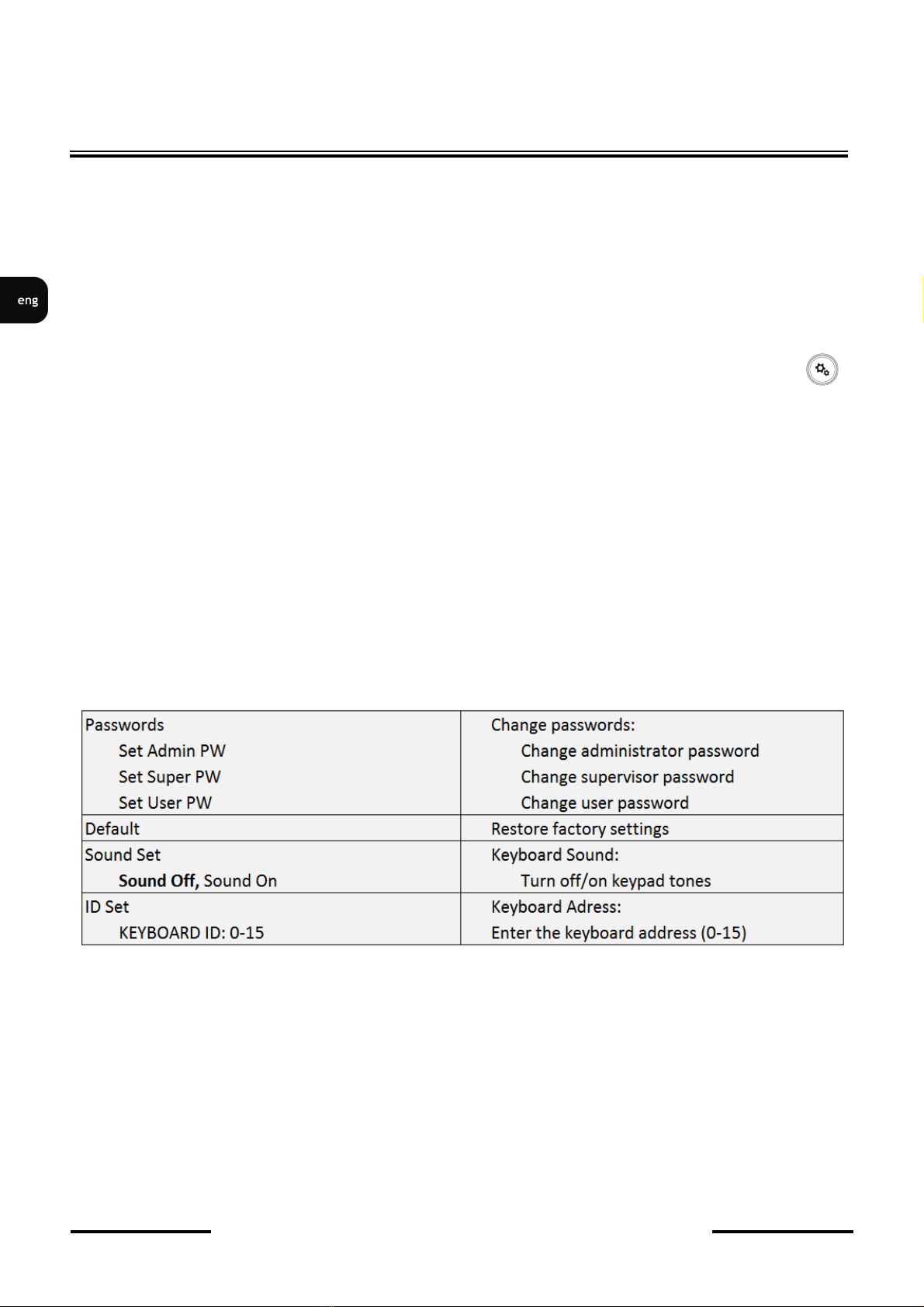

4.3.1. „SYSTEM SETUP” menu

This menu contain keyboard settings. Scheme is shown below. Default values are bolded.

 To change the password in order:

 Enter the old password (OLD PW)

 Enter the new password (NEW PW)

 Confirm the new password (Again PW)

 To restore factory settings (Default), it is necessary to confirm (Sure?), by push the ENTER

button.

KEYBOARD HANDLING

NV-KBD50 ver. 1.0 - User’s manual

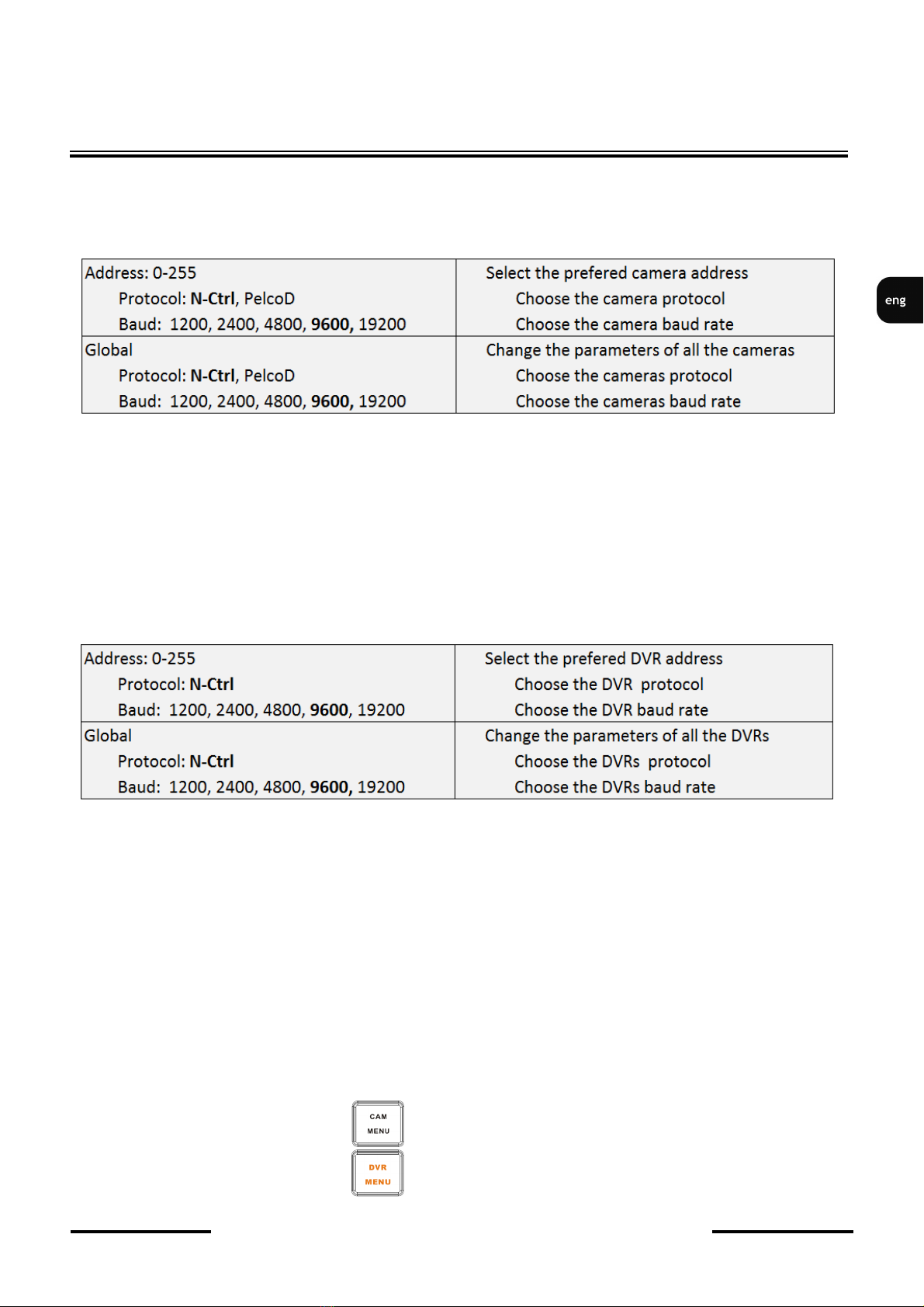

4.3.2. „CAM SETUP” menu

This menu contain cameras settings. Allows to choose the protocol and baud rate. Scheme is

shown below. Default values are bolded.

 Parameters could be changed for particular camera (Address 0-255), or simultaneously for

each cameras (Global).

 Available protocols: N-Control (N-Ctrl) and Pelco-D (Pelco-D);

 Available baud rates 1200, 2400, 4800, 9600, 19200 kb/s.

4.3.3. „DVR SETUP” menu

This menu contain DVRs settings. Allows to choose baud rate. Scheme is shown below. Default

values are bolded.

 Parameters could be changed for particular DVR (Address 0-255), or simultaneously for each

DVRs (Global).

 Protocol is N-Control (N-Ctrl), and can not be changed;

 Available baud rates 1200, 2400, 4800, 9600, 19200 kb/s.

4.4. CAM and DVR mode

Keyboard NV-KBD50 can work in CAM mode (used to control PTZ cameras) or DVR mode (used

to control DVR). Active mode is pointed by > on screen.

Keyboard is in camera mode >CAM001 DVR001

Keyboard is in DVR mode CAM001 >DVR001

Pushing the button activates the CAM mode.

Pushing the button activates the DVR mode.

KEYBOARD HANDLING

NV-kBD50 ver. 1.0 - User’s manual

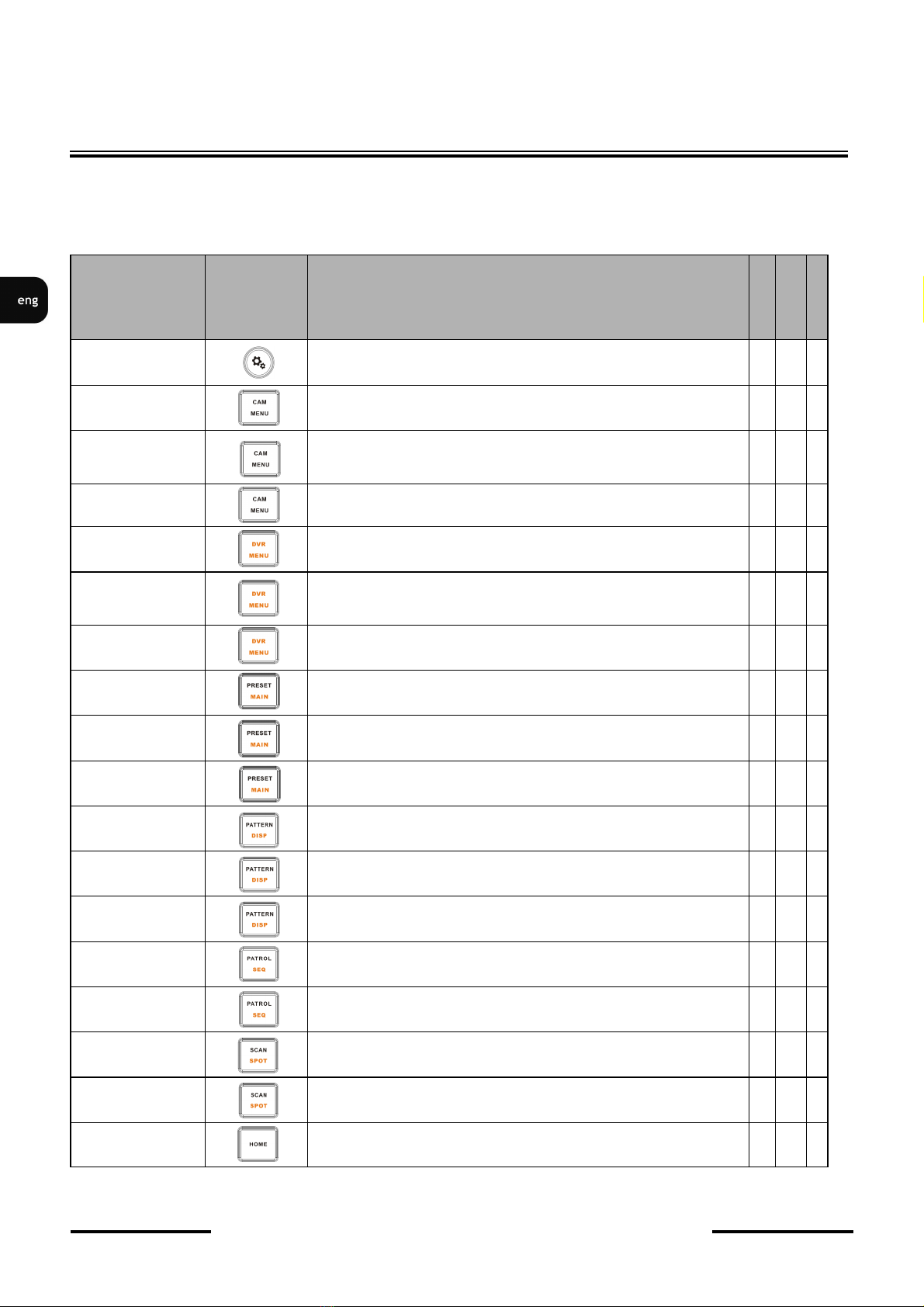

5. CONTROLLING THE PTZ CAMERAS

Table below lists the commands in N-Control protocol. User privilages are shown in User,

Supervisor, Administrator column.

Function Key

combination Description

User

Supervisor

Administrator

Keyboard menu (3s) Enters the keyboard menu x

Camera mode Activates camera mode x x x

Camera selection No.+

Switches on the remote control of the camera No.

Displays channel No. in full screen mode in DVR. It’s recommended to

connect camera No. to channel No. of the DVR.

x x x

Camera menu (3s) Enters the camera menu x x

DVR mode Activates DVR mode x x x

DVR selection No.+

Activates DVR mode

Switches on the remote control of the DVR No.

x x x

DVR menu (3s) Enters the DVR menu x x

Preset menu (3s) Opens preset menu x x

Call preset No.+ Calls a stored preset No. x x x

Save preset No.+ (3s) Saves current view as preset No. x x

Pattern menu (3s) Opens pattern menu x x

Call pattern No.+ Calls a stored pattern No. x x x

Record patternu No.+ (3s) Starts recording pattern No. x x

Patrol menu Opens patrol menu x x

Patrol call No.+ Calls patrol No. x x x

Scan menu (3s) Opens scan menu x x

Scan call No.+ Calls a stored scan No. x x x

Parking Parks the camera in home preset. x x x

CONTROLLING THE PTZ CAMERAS

Inhaltsverzeichnis

Sprachen:

Andere Novus Tastatur Handbücher

Novus

Novus NV-KBD/ACVSS Bedienungsanleitung

Beliebte Tastatur Handbücher anderer Marken

Vortexgear

Vortexgear POK3R Bedienungsanleitung

Razer

Razer RZ03-0188 Bedienungsanleitung

Logitech

Logitech RUGGED LITE Bedienungsanleitung

Honeywell

Honeywell ADEMCO 5839 Montageanleitung

Hama

Hama AK-120 Bedienungsanleitung

Rodgers

Rodgers RK-76 Bedienungsanleitung

Logic Controls

Logic Controls KB5000 Series Bedienungsanleitung

Rapoo

Rapoo E9270P Bedienungsanleitung

iKey

iKey DP-88 Bedienungsanleitung

Logitech

Logitech G413 TKL SE Montageanleitung

Keychron

Keychron C1 Bedienungsanleitung

Dahua

Dahua NKB Bedienungsanleitung

Ultimate Technology

Ultimate Technology 500 POS Bedienungsanleitung

Ducky

Ducky Shine 5 Bedienungsanleitung

Mace

Mace MACALLY MERGOKEY Bedienungsanleitung

iKey

iKey KYB-42-KIOSK Bedienungsanleitung

Akko

Akko MX108 Bedienungsanleitung

Viper

Viper V770 Bedienungsanleitung
