Quick start guide

NVIP-2H-6602-II

NVIP-2H-6602-II Quick start guide version 1.0

IMPORTANT SAFEGUARDS AND WARNINGS

THE PRODUCT MEETS THE REQUIREMENTS CONTAINED IN THE FOLLOWING DIRECTIVES:

Information

The device, as a part of professional CCTV system used for surveillance and control, is not designed for self

installation in households by individuals without technical knowledge.

Excluding of responsibility in case of damaging data on a disk or other devices:

The manufacturer does not bear any responsibility in case of damaging or losing data on a disk or other devices

during device operation.

WARNING!

PRIOR TO UNDERTAKING ANY ACTION THAT IS NOT DESCRIBED FOR THE GIVEN PRODUCT IN

USER’S MANUAL AND OTHER DOCUMENTS DELIVERED WITH THE PRODUCT, OR IF IT DOES

NOT ARISE FROM THE USUAL APPLICATION OF THE PRODUCT, MANUFACTURER MUST BE

CONTACTED UNDER THE RIGOR OF EXCLUDING THE MANUFACTURER’S RESPONSIBILITY FOR

THE RESULTS OF SUCH AN ACTION.

DIRECTIVE 2014/30/EU OF THE EUROPEAN PARLIAMENT AND OF THE

COUNCIL of 26 February 2014 on the harmonisation of the laws of the Member States

relating to electromagnetic compatibility (OJ L 96, 29.3.2014, p. 79–106, with changes)

DIRECTIVE 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE

COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE)

(OJ L 197, 24.7.2012, p. 38–71, with changes)

DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE

COUNCIL of 8 June 2011 on the restriction of the use of certain hazardous substances in

electrical and electronic equipment (OJ L 174, 1.7.2011, p. 88–110, with changes)

NVIP-2H-6602-II Quick start guide version 1.0

IMPORTANT SAFEGUARDS AND WARNINGS

WARNING!

THE KNOWLEDGE OF THIS MANUAL IS AN INDESPENSIBLE CONDITION OF A PROPER

DEVICE OPERATION. YOU ARE KINDLY REQUSTED TO FAMILIRIZE YOURSELF WITH

THE MANUAL PRIOR TO INSTALLATION AND FURTHER DEVICE OPERATION.

WARNING!

USER IS NOT ALLOWED TO DISASSEMBLE THE CASING AS THERE ARE NO USER

-SERVICEABLE PARTS INSIDE THIS UNIT. ONLY AUTHORIZED SERVICE PERSONNEL

MAY OPEN THE UNIT

INSTALLATION AND SERVICING SHOULD ONLY BE DONE BY QUALIFIED SERVICE

PERSONNEL AND SHOULD CONFORM TO ALL LOCAL REGULATIONS

1. Prior to undertaking any action please consult the following manual and read all the safety and operating

instructions before starting the device.

2. Please keep this manual for the lifespan of the device in case referring to the contents of this manual is

necessary;

3. All the safety precautions referred to in this manual should be strictly followed, as they have a direct

influence on user’s safety and durability and reliability of the device;

4. All actions conducted by the servicemen and users must be accomplished in accordance with the user’s

manual;

5. The device should be disconnected from power sources during maintenance procedures;

6. Usage of additional devices and components neither provided nor recommended by the producer is forbidden;

7. You are not allowed to use the camera in high humidity environment (i.e. close to swimming pools, bath tubs,

damp basements);

8. Mounting the device in places where proper ventilation cannot be provided (e. g. closed lockers etc.) is not

recommended since it may lead to heat build-up and damaging the device itself as a consequence;

9. Mounting the camera on unstable surface or using not recommended mounts is forbidden. Improperly

mounted camera may cause a fatal accident or may be seriously damaged itself. The camera must be mounted

by qualified personnel with proper authorization, in accordance with this user’s manual;

10. Device should be supplied only from a power sources whose parameters are in accordance with those

specified by the producer in the camera technical datasheet. Therefore, it is forbidden to supply the camera

from a power sources with unknown parameters, unstable or not meeting producer’s requirements;

Due to the product being constantly enhanced and optimized, certain parameters and functions

described in the manual in question may change without further notice.

We strongly suggest visiting the www.novuscctv.com website in order to access the newest manual.

NVIP-2H-6602-II Quick start guide version 1.0

TABLE OF CONTENTS .................................................................................................... 4

1. FOREWORD INFORMATION................................................................................... ..5

1.1. General characteristics......................................................................................... 5

1.2. Technical specification .................................................................................... ...6

1.3. Camera dimensions .......................................................................................... ...7

1.4. Package contents .............................................................................................. ...7

2. START-UP AND INITIAL IP CAMERA CONFIGURATION ................................. 8

2.1. Description of connectors and control tools........................................................ 8

2.2. Ethernet cable connecting .................................................................................. 9

2.3. Camera mounting .............................................................................................. 10

2.4. Starting the IP camera ....................................................................................... 11

2.5. Initial configuration via the web browser.......................................................... 12

2.6. Security recommendations for network architecture and configuration ......... 13

3. NETWORK CONNECTION USING WEB BROSWER ......................................... 14

3.1. Recommended PC specification for web browser ............................................. 14

3.2. Connection with IP camera via web browser..................................................... 14

4. WWW INTERFACE - WORKING WITH IP CAMERA......................................... 16

4.1. Displaying live video. ........................................................................................ 16

5. ELECTRIC CONNECTORS AND ACCESORIES ................................................. 17

5.1. MicroSD card installation ................................................................................. 17

6. FACTORY SETTINGS RESTORING ...................................................................... 18

6.1. Software factory settings restoring via web browser ......................................... 18

6.2. Software factory settings restoring via NMS IPTool………... ………………..18

6.3. Hardware factory settings restoring ...................... ………………..…………...19

TABLE OF CONTENTS

NVIP-2H-6602-II Quick start guide version 1.0

1. FOREWORD INFORMATION

1.1. General Characteristics

• Sensor resolution: 2.0 megapixels

• Mechanical IR cut filter (IR operation capability)

• Min. Illumination from 0.0003 lx

• Wide Dynamic Range (WDR) for enhanced image quality in diverse light conditions

• Built-in webserver: camera configuration through the website

• Video compression: H.264, H.265, MJPEG

• Max. video resolution up to 1920 x1080

• Electronic Shutter from 1 s to 1/100000 s.

• Digital Noise Reduction (DNR)

• Highlight Compensation

• Back Light Compensation

• Reduction of image flicker (Antiflicker)

• The compression, resolution, speed and quality can be defined individually for each stream

• Supports up to 2 streams

• ONVIF Protocol Support

• RTSP protocol support for video transmission

• ROI zones

• Privacy Zones

• Micro SD Card Slot, capacity up to 128 GB

• Reset button

• Wide range of responses to alarm events: e-mail with attachment, SD card

• Software: NMS (NOVUS MANAGEMENT SYSTEM) for video recording, live monitoring,

playback and remote IP devices administration

• Power supply: 12 VDC / PoE

FOREWORD INFORMATION

NVIP-2H-6602-II Quick start guide version 1.0

1.2. Technical specification

FOREWORD INFORMATION


Image Sensor 2 MPX CMOS sensor 1/2.8” SmartSens

Number of Effective Pixels 1922 (H) x 1088 (V)

Min. Illumination 0.003 lx/F1.4 - color mode,

0.0003 lx/F1.4 - B/W mode,

Electronic Shutter auto/manual: 1 s ~ 1/100000 s

Digital Slow Shutter (DSS) up to 1 s

Wide Dynamic Range (WDR) yes

Digital Noise Reduction (DNR) 2D, 3D

Defog Function (F-DNR) yes

Highlight Compensation (HLC) yes

Back Light Compensation (BLC) yes

Reduction of image flicker

(Antiflicker) yes

LENS

Lens Type varifocal, f=2.8 ~ 12 mm/F1.4

DAY/NIGHT

Switching Type mechanical IR cut filter

Switching Mode auto, manual, time

Switching Level Adjustment yes

Switching Delay 2 ~ 120 s

Switching Schedule yes

Visible Light Sensor yes

NETWORK

Stream Resolution 1920 x 1080 (Full HD), 1280 x 720 (HD), 640 x 480 (VGA), 480 x 240,

Frame Rate 30 fps for 1920 x 1080 (Full HD) and lower resolutions

Multistreaming Mode 2 streams

Video/Audio Compression H.264, H.265, MJPEG/G.711

Number of Simultaneous

Connections max. 3

Bandwidth 12 Mb/s in total

Network Protocols Support HTTP, TCP/IP, IPv4, IPv4/v6, UDP, HTTPS, Multicast, FTP, DHCP,

DDNS, NTP, RTSP, UPnP, QoS/DSCP, IEEE 802.1X, PPPoE, SMTP, ICMP,

ONVIF Protocol Support Profile S/G

Camera Configuration from Internet Explorer browser

Compatible Software NMS, N Control 6000

Mobile applications SuperLive Plus (iPhone, Android)

OTHER FUNCTIONS

Privacy Zones 4 video mask type: single color

Motion Detection yes

Region of interest (ROI) 3

Video Content Analysis (VCA) line cross, zone entrance, Video Blurred

Image Processing sharpening, mirror effect, vertical flip, horizontal flip

Prealarm/Postalarm up to 6 s/up to 120 s

System Reaction to Alarm Events e-mail, e-mail with attachment, saving file on FTP server, saving file on

SD card

Restoring default settings via web browser, using reset button, via NMS IPTool software

NVIP-2H-6602-II Quick start guide version 1.0

FOREWORD INFORMATION

1.3. Camera dimensions (mm)

Camera NVIP-2H-6602-II

1.4. Package contents

After opening, make sure that the following elements are inside:

• IP camera

• Accessories bag

• Short version of user’s manual

If any of this elements has been damaged during transport, pack all the elements back into the original

box and contact your supplier for further assistance.

CAUTION!

It is forbidden to use – as the camera power source – PoE equipment (adapters, etc.) not

compatible with IEEE 802.3at/af standard (items called “passive PoE power supply”). Damages

caused by the usage of improper power supply source are not covered by the warranty.

IR LED

LED Number 2

Range 50 m

Angle 90°

INTERFACES

Audio Input/Output 1 x Jack (3.5 mm)/-

Network Interface 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s

Memory Card Slot microSD - capacity up to 128GB

INSTALLATION PARAMETERS

Dimensions (mm) with bracket: 81 (W) x 81 (H) x 220 (L)

Weight 0.7 kg

Degree of Protection IP 67 (details in the other chapters of this user’s manual)

Enclosure aluminium, white, fully cable managed wall mount bracket in-set

included , IK10 impact rating

Power Supply PoE, 12 VDC

Surge protection TVS 4000 V

Power Consumption 3 W, 8 W (IR on)

Operating Temperature -30°C ~ 60°C

Humidity max. 95%, relative (non-condensing)

220

NVIP-2H-6602-II Quick start guide version 1.0

START-UP AND INITIAL IP CAMERA CONFIGURATION

2. START-UP AND INITIAL IP CAMERA CONFIGURATION

CAUTION!

If the device was brought from a location with lower temperature, please wait until it reaches

the temperature of location it is currently in. Turning the device on immediately after bringing it

from a location with lower ambient temperature is forbidden, as the condensing water vapour

may cause short-circuits and damage the device as a result.

Before starting the device familiarize yourself with the description and the role of particular

inputs, outputs and adjusting elements that the device is equipped with.

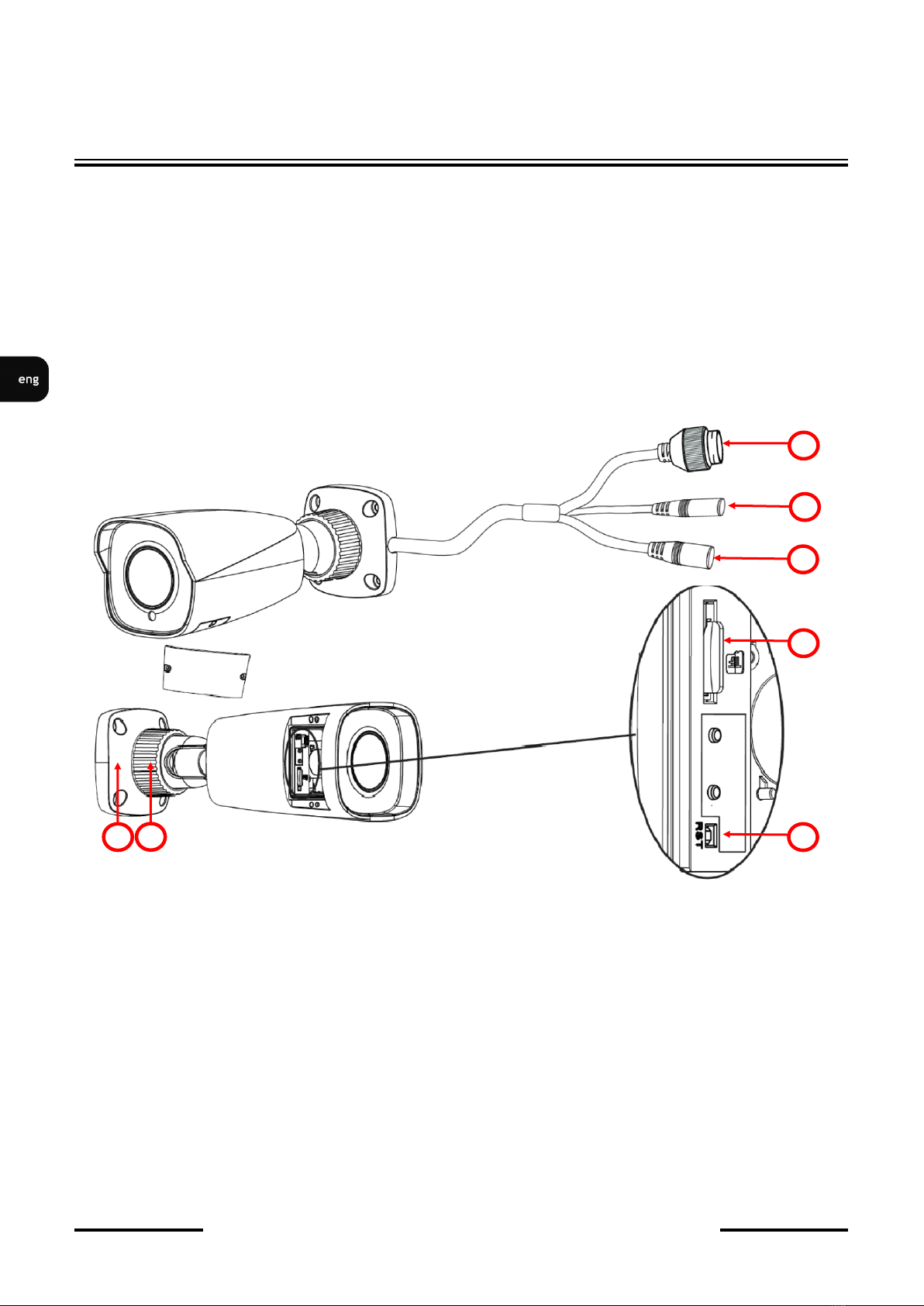

2.1 Description of connectors and control tools

1. 100 Mb/s Ethernet port (PoE RJ-45 connector)

2. Audio input (Jack 3.5 mm)

3. Power supply 12VDC

4. Base of camera

5. Counter nut

6. MicroSD card slot

7. Reset button

NVIP-2H-6602-II Quick start guide version 1.0

START-UP AND INITIAL IP CAMERA CONFIGURATION

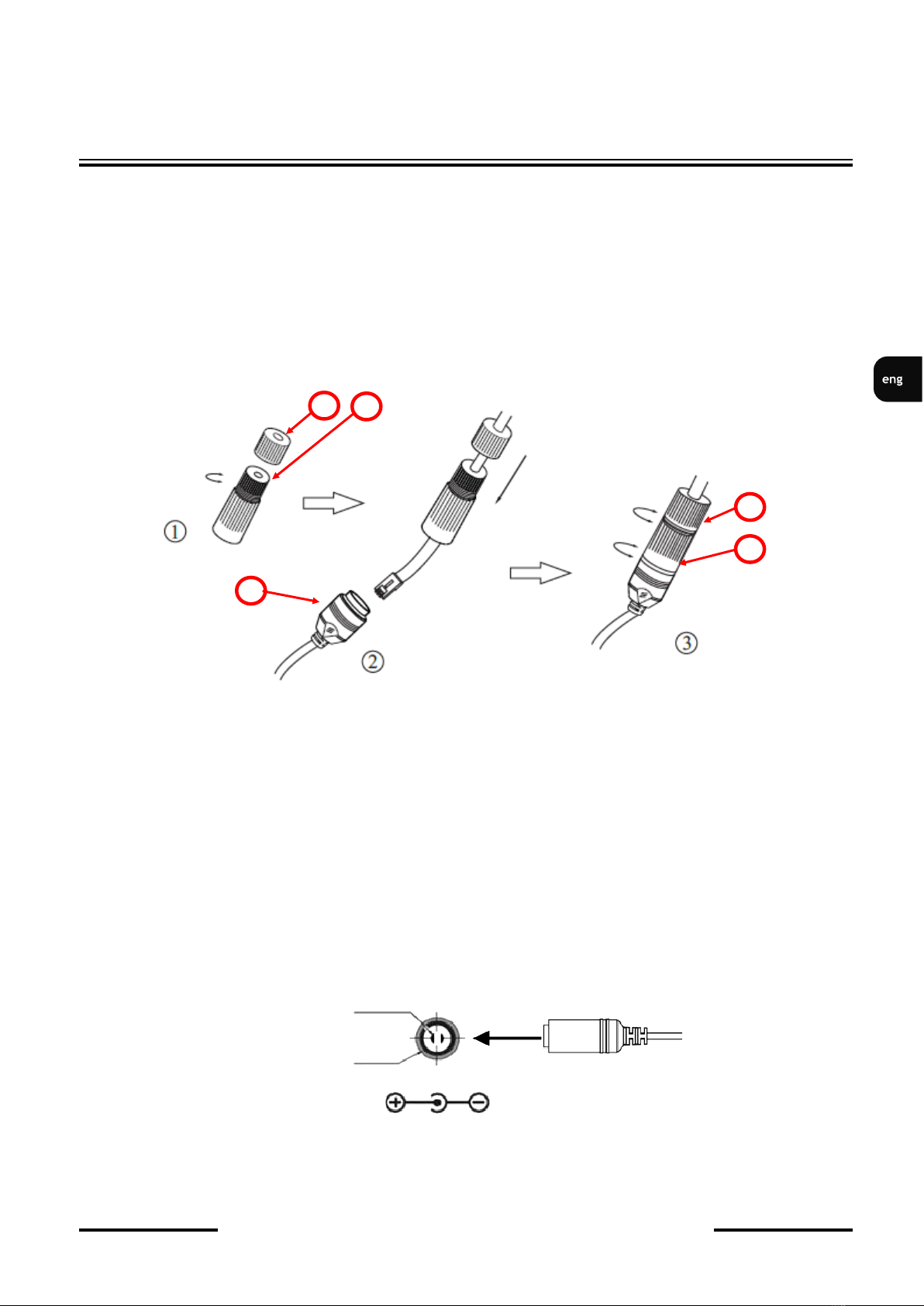

2.2. Ethernet cable connecting

To maintain tightness of ethernet cable connection, please follow instruction below:

1. Unscrew the nut (1) from the connector cover (2).

2. Route the network cable (without the RJ-45 plug) through the components (1) and (2), than crimp the

RJ-45 connector.

3. Plug the RJ-45 connector into the hermetic socket (3), screw the connector cover (2), and than the

nut (1).

CAUTION!

The declared degree of protection of the camera relates to its housing and does not take into

account the possibility of moisture infiltration into the camera by connection cables. Connection

cables protection through i.e. sealing up is the camera installer duty. The manufacturer is not

liable for any camera damages caused as a result of failing in performing that activity by

installer, which also means that camera damaged in that way is not subject to warranty repairs.

CAUTION!

Camera power supply connector is not hermetic. Installer should seal this connector by himself.

Camera can be supplied using external power supply unit corresponding with the camera parameters or

by using RJ45 network socket and PoE (802.3at/af) power supply unit. If you’re using external power

supply please connect wires according to polarisation shown on picture:

CAUTION!

In order to provide protection against voltage surges/lightning strikes, usage of appropriate surge

protectors is advised. Any damages resulting from surges are not eligible for service repairs.

12 VDC +

GND

Schema of 12VDC power supply connector

NVIP-2H-6602-II Quick start guide version 1.0

2.3. Camera mounting

To mount a camera please follow the instructions below:

• Unscrew the counter nut (2).

• Put the bracket to the wall in a desired mounting place (with cable hole). Take the drill pattern

and mark future drilling holes for screws and wires.

• Drill holes for screws, wires and base.

• Mount the camera base (1) using the supplied plugs and screws.

• If necessary, unscrew the camera service panel (3), mount microSD card in the socket (4) and

screw the camera service panel (3).

• Connect the camera wires.

• Adjust camera position, if necessary, unscrew the camera service panel (3), using Zoom/Focus

levers adjust the lens and screw the camera service panel (3).

• Tighten to the stop counter nut (2).

CAUTION!

Please note that the wall or ceiling must have enough strength to carry the IP Camera.

CAUTION!

In order to obtain declared degree of protection please seal the camera bracket to prevent water

getting inside. Furthermore, when installing the bracket on rough/uneven surfaces, please

additionally seal the junction with appropriate sealing mass. Please pay special attention to any

mounting holes and if they are a loop-through ones, seal them too.

START-UP AND INITIAL CAMERA CONFIGURATION

Inhaltsverzeichnis

Sprachen:

Andere Novus Sicherheitskamera Handbücher

Novus

Novus NVIP-3DN3012V/IR-1P Bedienungsanleitung

Novus

Novus NVIP-4V-6201 Bedienungsanleitung

Novus

Novus NVIP-2DN5000V/IR-1P Bedienungsanleitung

Novus

Novus NVIP-5DN2008V/IR-1P Bedienungsanleitung

Novus

Novus NVIP-4VE-4202M Bedienungsanleitung

Novus

Novus NVIP-5VE-4201 Bedienungsanleitung

Novus

Novus NVAHD-1DN5101V/IR-1 Bedienungsanleitung

Novus

Novus NVIP-5H-4502M/F Bedienungsanleitung

Novus

Novus NVIP-5H-6401/F Bedienungsanleitung

Novus

Novus NVIP-5DN3625AV/940IR-1P Bedienungsanleitung

Novus

Novus NVIP-2VE-6501/F-II Bedienungsanleitung

Novus

Novus NVIP-2VE-6232-II Bedienungsanleitung

Novus

Novus NVIP-2SD-6100/20/F Bedienungsanleitung

Novus

Novus NVIP-5V-6202M Bedienungsanleitung

Novus

Novus NVIP-2H-6631 Bedienungsanleitung

Novus

Novus NVIP-4VE-6502M/F Bedienungsanleitung

Novus

Novus NVIP-2VE-6231-II Bedienungsanleitung

Novus

Novus NVIP-5000 series Bedienungsanleitung

Novus

Novus NVIP-4DN5002H/IRH-1P Bedienungsanleitung

Novus

Novus NVAHD-2DN5202V/IR-1 Bedienungsanleitung

Novus

Novus NVAHD-2DN3201MH/IR-1-II Bedienungsanleitung

Novus

Novus NVIP-8VE-6201 Bedienungsanleitung

Novus

Novus NVAHD-2DN3202MH/IR-1-II Bedienungsanleitung

Novus

Novus NVAHD-5DN5102MV/IR-1 Bedienungsanleitung

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Vicon

Vicon V662-D-1 Betriebsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung
