Novus NVIP-2SD-6540/25/F Bedienungsanleitung

Quick start guide

NVIP-2SD-6540/25/F

NVIP-2SD-6540/25/F Quick start guide version 1.3

THE PRODUCT MEETS THE REQUIREMENTS CONTAINED IN THE FOLLOWING DIRECTIVES:

Information

The device, as a part of professional CCTV system used for surveillance and control, is not designed

for self installation in households by individuals without technical knowledge.

Excluding of responsibility in case of damaging data on a disk or other devices:

The manufacturer does not bear any responsibility in case of damaging or losing data on a disk or other

devices during device operation.

WARNING!

PRIOR TO UNDERTAKING ANY ACTION THAT IS NOT DESCRIBED FOR THE GIVEN

PRODUCT IN USER’S MANUAL AND OTHER DOCUMENTS DELIVERED WITH THE

PRODUCT, OR IF IT DOES NOT ARISE FROM THE USUAL APPLICATION OF THE

PRODUCT, MANUFACTURER MUST BE CONTACTED UNDER THE RIGOR OF EXCLUDING

THE MANUFACTURER’S RESPONSIBILITY FOR THE RESULTS OF SUCH AN ACTION.

IMPORTANT SAFEGUARDS AND WARNINGS

Pictures in this publication showing camera views can be simulations. Actual camera

images may vary depending on the type, model, settings, observation area, or

environmental conditions.

DIRECTIVE 2014/30/EU OF THE EUROPEAN PARLIAMENT AND OF THE

COUNCIL of 26 February 2014 on the harmonization of the laws of the Member States

relating to electromagnetic compatibility (OJ L 96, 29.3.2014, p. 79–106, with changes)

DIRECTIVE 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE

COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE)

(OJ L 197, 24.7.2012, p. 38–71, with changes)

DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE

COUNCIL of 8 June 2011 on the restriction of the use of certain hazardous substances in

electrical and electronic equipment (OJ L 174, 1.7.2011, p. 88–110, with changes)

NVIP-2SD-6540/25/F Quick start guide version 1.3

WARNING!

THE KNOWLEDGE OF THIS MANUAL IS AN INDESPENSIBLE CONDITION OF A PROPER

DEVICE OPERATION. YOU ARE KINDLY REQUSTED TO FAMILIRIZE YOURSELF WITH

THE MANUAL PRIOR TO INSTALLATION AND FURTHER DEVICE OPERATION.

WARNING!

USER IS NOT ALLOWED TO DISASSEMBLE THE CASING AS THERE ARE NO USER

-SERVICEABLE PARTS INSIDE THIS UNIT. ONLY AUTHORIZED SERVICE PERSONNEL

MAY OPEN THE UNIT

INSTALLATION AND SERVICING SHOULD ONLY BE DONE BY QUALIFIED SERVICE

PERSONNEL AND SHOULD CONFORM TO ALL LOCAL REGULATIONS

1. Prior to undertaking any action please consult the following manual and read all the safety and

operating instructions before starting the device.

2. Please keep this manual for the lifespan of the device in case referring to the contents of this manual

is necessary;

3. All the safety precautions referred to in this manual should be strictly followed, as they have a direct

influence on user’s safety and durability and reliability of the device;

4. All actions conducted by the servicemen and users must be accomplished in accordance with the

user’s manual;

5. The device should be disconnected from power sources during maintenance procedures;

6. Usage of additional devices and components neither provided nor recommended by the producer is

forbidden;

7. You are not allowed to use the camera in high humidity environment (i.e. close to swimming pools,

bath tubs, damp basements);

8. Mounting the device in places where proper ventilation cannot be provided (e. g. closed lockers etc.)

is not recommended since it may lead to heat build-up and damaging the device itself as a

consequence;

9. Mounting the camera on unstable surface or using not recommended mounts is forbidden.

Improperly mounted camera may cause a fatal accident or may be seriously damaged itself. The

camera must be mounted by qualified personnel with proper authorization, in accordance with this

user’s manual.

10. Device should be supplied only from a power sources whose parameters are in accordance with

those specified by the producer in the camera technical datasheet. Therefore, it is forbidden to

supply the camera from a power sources with unknown parameters, unstable or not meeting

producer’s requirements;

Due to the product being constantly enhanced and optimized, certain parameters and functions

described in the manual in question may change without further notice.

We strongly suggest visiting the www.novuscctv.com/en website in order to access the newest full

manual

IMPORTANT SAFEGUARDS AND WARNINGS

NVIP-2SD-6540/25/F Quick start guide version 1.3

TABLE OF CONTENTS

1. FOREWORD INFORMATION .....................................................................................5

1.1. General characteristics.........................................................................................5

1.2. Technical specification .......................................................................................6

1.3. Camera dimension ..............................................................................................8

1.4. Package contents..................................................................................................8

2. START-UP AND INITIAL CONFIGURATION .........................................................9

2.1. Description of connectors....................................................................................9

2.2. Connecting ethernet cable ...................................................................................9

2.3. Description of the camera components .............................................................10

2.4. Power supply connection ..................................................................................10

2.5. Wall mounting of the camera. ...........................................................................11

2.6. Starting the camera ............................................................................................12

2.7. Initial configuration via the web browser..........................................................13

2.8. Security recommendations for network architecture and configuration ...........14

3. NETWORK CONNECTION UTILIZING WEB BROSWER ................................15

3.1. Recommended PC specification for web browser connections .........................15

3.2. Connection with camera via web browser .........................................................15

4. WEB INTERFACE - WORKING WITH THE CAMERA .......................................17

4.1. The remote preview interface.............................................................................17

5. SD CARD INSTALLATION .......................................................................................20

6. RESTORING FACTORY DEFAULTS .....................................................................21

6.1. Software factory reset.........................................................................................21

6.2. Software factory reset using the NMSiptool ......................................................21

6.3. Hardware factory reset ......................................................................................21

7. SPECIAL PRESETS.....................................................................................................22

8. FACE RECOGNITION AND COMPARISON .........................................................23

8.1. Installation recommendations.............................................................................23

8.2. Camera configuration .........................................................................................23

8.3. View the results of face recognition and comparison .......................................27

8.4. Saving of recognized faces on a memory card - search for recordings.............30

9. CONFIGURATION OF OBJECT TRACKING OPTIONS ....................................34

TABLE OF CONTENTS

NVIP-2SD-6540/25/F Quick start guide version 1.3

1. FOREWORD INFORMATION

1.1. General Characteristics

• Sensor resolution: 2 megapixels

• Mechanical IR cut filter, IR operation capability

• Min. Illumination from 0,001 lx/F1.65 (0 lx with IR LED on)

• Wide Dynamic Range (WDR) for enhanced image quality in diverse light conditions

• Digital Slow Shutter (DSS)

• Digital Noise Reduction (DNR)

• Defog Function (F-DNR)

• Highlight Compensation (HLC)

• Back Light Compensation (BLC)

• Lens type: motorzoom with AF and AI, f=4.8 ~ 120mm/F1.65 ~ 3.8

• Optical zoom: 25x

• Built-in IR LED illuminator

• 8 cruises (16 presets per cruise)

• 4 traces (up to 180 seconds each)

• 2 scan modes

• 360 presets

• Auto-flip - automatic camera rotation 180°

• The ability to control zoom, tilt and pan directly via the website and from the NMS program

(NOVUS MANAGEMENT SYSTEM)

• Motion detection

• Compression: H.264, H.265, MJPEG

• Max video processing resolution: 1920 x 1080

• Operation in 3-stream mode: ability to define compression, resolution, speed and quality for each

stream

• IP Camera with video content analysis based on Deep Learning

• The ability to track recognized objects

• Pre & post-alarm functions

• Built-in web server - the ability to view and configure camera settings via the website

• Support for micro SD memory cards up to 256 GB

• Possibility to broadly define the system's reaction to alarm events

• NMS (Novus Management System) software - for video recording, live viewing, playback and

remote configuration of IP video devices

• Degree of protection IP66

• Power supply: 12VDC, PoE+ (IEEE 802.3at)

FOREWORD INFORMATION

NVIP-2SD-6540/25/F Quick start guide version 1.3

1.2. Technical specification

FOREWORD INFORMATION


Image Sensor 2 MPX CMOS sensor 1/2.8” , SONY

Number of Eecve Pixels 1920 (H) x 1080 (V)

Min. Illuminaon

0.005 lx/F1.65 - color mode,

0.001 lx/F1.65 - B/W mode,

0 lx (IR on) - B/W mode

Electronic Shuer auto: 1 s ~ 1/100000 s

Digital Slow Shuer (DSS) up to 1 s

Wide Dynamic Range (WDR) yes (double scan sensor), 120dB

Digital Noise Reducon (DNR) 2D, 3D

Defog Funcon (F-DNR) yes

Highlight Compensaon (HLC) yes

Back Light Compensaon (BLC) yes

Reducon of image icker (Anicker) yes

LENS

Opcal Zoom 25x

Lens Type motorized, auto-iris funcon, f=4.8 ~ 120 mm/F1.65 ~ F3.8

Auto-focus zoom trigger, day/night mode trigger, manual trigger

DAY/NIGHT

Switching Type mechanical IR cut lter

Switching Mode auto, manual, me

Switching Level Adjustment yes

Switching Schedule yes

Visible Light Sensor yes

NETWORK

Stream Resoluon 1920 x 1080 (Full HD), 1280 x 720 (HD), 704 x 576, 704 x 480,

640 x 480 (VGA), 352 x 288 (CIF), 352 x 240

Frame Rate 30 fps for each resoluon

Mulstreaming Mode 3 streams

Video/Audio Compression H.264, H.265, MJPEG/-

Number of Simultaneous Connecons max. 6

Bandwidth 50 Mb/s in total

Network Protocols Support

HTTP, TCP/IP, IPv4/v6, UDP, HTTPS, FTP, DHCP, DNS, DDNS, NTP,

RTSP, RTP, UPnP, SNMP, QoS, IEEE 802.1X, PPPoE, SMTP, RTCP,

ICMP

ONVIF Protocol Support Prole S

Camera Conguraon from Internet Explorer browser

languages: Polish, English, and others

Compable Soware NMS, N Control 6000

Mobile applicaons SuperLive Plus (iPhone, Android)

NVIP-2SD-6540/25/F Quick start guide version 1.3

FOREWORD INFORMATION

PTZ

Preset Commands 360 including 20 special (funcon) presets

Tours 8 (up to 16 presets per tour)

Paerns 4 (max. 360 commands or 180 s for each paern)

Tilt/Pan Range -3° ~ 90°/360° (connuous)

Pan/Tilt Speed up to 80°/s (proporonal to zoom)

Preset Speed up to 80°/s

OTHER FUNCTIONS

Privacy zones 4

Moon Detecon yes

Video Content Analysis (VCA)

Auto Tracking linked to Video Content Analysis (VCA) funcons,

tamper, line cross, zone entrance, zone exit, cross counng, Scene

Change, Video Blurred, Video Color Cast, zone entrance detecon

and object tracking, objects disnguishing, face recognion

Image Processing 180˚ image rotaon, sharpening, mirror eect

Prealarm/Postalarm up to 6 s/up to 120 s

System Reacon to Alarm Events e-mail with aachment, saving le on FTP server, saving le on SD

card, object tracking

Restoring default sengs via web browser, via NMS IPTool soware

IR LED

LED Number 6

Range up to 150 m (depends on current opcal zoom value)

Smart IR yes (hardware support)

INTERFACES

Network Interface 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s

Memory Card Slot microSD - capacity up to 256GB

INSTALLATION PARAMETERS

Dimensions (mm) 173 (Ф) x 268 (H) with bracket: 173 (W) x 415 (H) x 300 (L)

Weight 2.1 kg with bracket: 2.8 kg

Degree of Protecon IP 66 (details in the user’s manual)

Enclosure aluminium, white, in set: outdoor housing (integrated with the

camera), wall mount bracket

Power Supply PoE+, 12 VDC

Surge protecon TVS 4000 V

Power Consumpon 6 W, 15.5 W (IR on), 20 W (IR and heater on)

Operang Temperature -30°C ~ 55°C

Humidity max. 90%, relave (non-condensing)

Built-in Heater/Fan yes/yes

NVIP-2SD-6540/25/F Quick start guide version 1.3

FOREWORD INFORMATION

1.3. Camera dimensions

1.4. Package contents

After you open the package make sure that the following elements are inside:

• IP camera

• Wall mount

• Accessories bag

• Quick start guide

If any of this elements has been damaged during transport, pack all the elements back into the original

box and contact your supplier for further assistance.

Before starting the device familiarize yourself with the description and the role of particular

inputs, outputs and adjusting elements that the device is equipped with.

Caution!

If the device was brought from a location with lower temperature, please wait until it reaches the

temperature of location it is currently in. Turning the device on immediately after bringing it from a

location with lower ambient temperature is forbidden, as the condensing water vapour may cause

short-circuits and damage the device as a result.

NVIP-2SD-6540/25/F Quick start guide version 1.3

START-UP AND INITIAL CONFIGURATION

2.START-UP AND INITIAL CONFIGURATION

2.2. Connecting ethernet cable

To maintain tightness of ethernet cable connection, please follow instruction below:

1. Unscrew the nut (b) from the connector cover (a), put the sealing ring on the socket (c)

2. Route the network cable through parts (a) and (b). Insert the RJ-45 plug into the socket (c)

3. Screw the connector cover (a) onto the socket (c). Press the cable seal (d) into the upper part of the

connector cover (a) as far as it will go - the seal has a cut enabling it to be put on the cable.

4. Tighten the nut (b) as far as it will go.

Warning! The 12VDC power connector, the audio and alarm I/O connectors are not hermetic. The user

should ensure the tightness of these sockets on his own.

2.1. Description of connectors

1. 100 Mb/s Ethernet port (RJ-45

connector)

2. 12 VDC Power connector

3. Grounding

NVIP-2SD-6540/25/F Quick start guide version 1.3

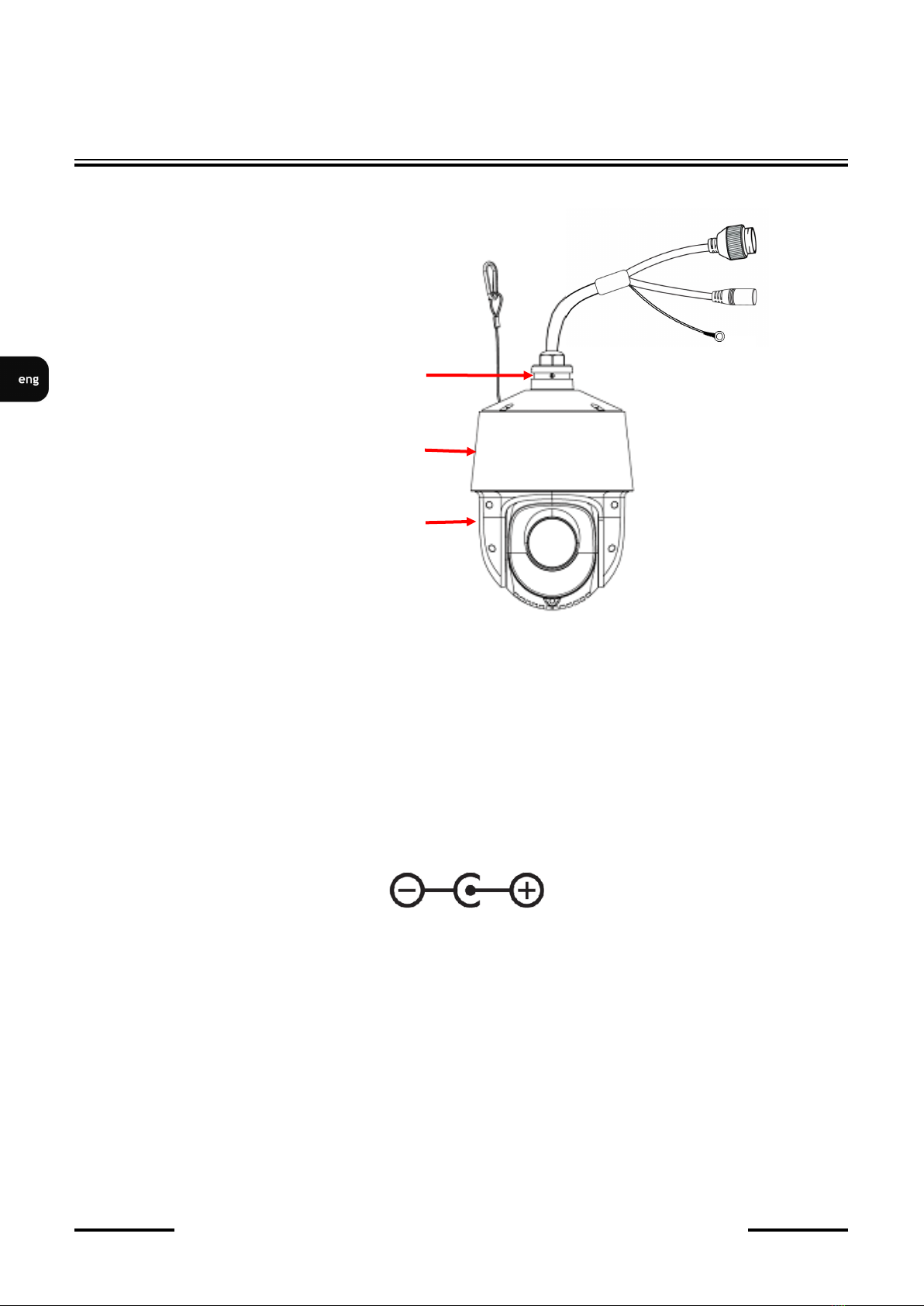

2.3. Description of the camera components

1. Electrical connectors

2. Safety cable

3. Place of installation of the wall bracket

4. Camera housing

5. PTZ dome

2.4. Power supply connection

The camera can be powered from the AC/DC adapter. It is allowed to power the camera from other

sources, provided that they meet the technical requirements of the camera. The source must provide

stabilized 12VDC voltage, must allow the consumption of at least 25W of power, and have a

cylindrical DC 2.1 / 5.5 plug with the correct polarity of the contacts. It is also possible to power the

camera via the RJ45 network socket, using PoE + technology (IEEE 802.3at).

Caution!

Do not use power supplies and POE adapters that do not comply with the IEEE 802.3at standard, the

so - called "passive POE" power supplies. Damage resulting from the use of an unsuitable adapter is

not covered by the warranty!

In order to provide protection against voltage surges/lightning strikes, usage of appropriate surge

protectors is advised. Any damages resulting from surges are not eligible for service repairs.

START-UP AND INITIAL CONFIGURATION

Inhaltsverzeichnis

Sprachen:

Andere Novus Sicherheitskamera Handbücher

Novus

Novus NVIP-2DN5002V/IRH-1P Bedienungsanleitung

Novus

Novus NVIP-5H-6202M-II Bedienungsanleitung

Novus

Novus NVIP-4H-6522M/F-II Bedienungsanleitung

Novus

Novus NVIP-5VE-4501 Bedienungsanleitung

Novus

Novus NVIP-2H-6601-II Bedienungsanleitung

Novus

Novus VSS MULTI HD 6000 Bedienungsanleitung

Novus

Novus NVIP-4DN3062V/IR-1P Bedienungsanleitung

Novus

Novus NVIP-8VE-6201 Bedienungsanleitung

Novus

Novus NVAHD-2DN3201MH/IR-1-PIR Bedienungsanleitung

Novus

Novus NVIP-5DN2004H/IR-1P-II Bedienungsanleitung

Novus

Novus NVIP-4H-6702M/FWLAD Bedienungsanleitung

Novus

Novus NVIP-2H-6511/F-II Bedienungsanleitung

Novus

Novus NVIP-1DN3030H/IR-1P Bedienungsanleitung

Novus

Novus NVAHD-2ATM-4011 Bedienungsanleitung

Novus

Novus NVIP-6DN5022H/IRH-1P Bedienungsanleitung

Novus

Novus NVIP-3DN7500V/IRH-2P Produktinformationsblatt

Novus

Novus NVIP-2V-6501/F Bedienungsanleitung

Novus

Novus NVIP-3DN3011H/IR-1P Bedienungsanleitung

Novus

Novus NVIP-2DN5001V/IRH-1P Bedienungsanleitung

Novus

Novus NVIP-8V-6402M/F Bedienungsanleitung

Novus

Novus NVDN-401H/IR Bedienungsanleitung

Novus

Novus NVIP-3DN3552H/IR-1P Bedienungsanleitung

Novus

Novus NVIP-4SD-6550F Bedienungsanleitung

Novus

Novus NVC-6127SD-II Bedienungsanleitung

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Vicon

Vicon V662-D-1 Betriebsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung
