User’s ma n ual

(sh o r t form)

NVIP-2V-6401

NVIP-2V-6401 - User’s manual (short form) ver 1.0

IMPORTANT SAFEGUARDS AND WARNINGS

EMC (2014/30/EU) and LVD (2014/35/UE) Directives

CE Marking

Our products are manufactured to comply with requirements of the following directives and national

regulations implementing the directives:

• Electromagnetic compatibility EMC 2014/30/EU.

• Low voltage LVD 2014/35/UE with further amendment. The Directive applies to electrical

equipment designed for use with a voltage rating of between 50VAC and 1000VAC as well as

75VDC and 1500VDC.

WEEE Directive 2012/19/EU

Information on Disposal for Users of Waste Electrical and Electronic Equipment

This appliance is marked according to the European 1000VAC Directive on Waste Electrical and

Electronic Equipment (2012/19/EU) and further amendments. By ensuring this product is disposed of

correctly, you will help to prevent potential negative consequences for the environment and human health, which

could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product, or the documents accompanying the product, indicates that this appliance may not be

treated as household waste. It shall be handed over to the applicable collection point for used up electrical and

electronic equipment for recycling purpose. For more information about recycling of this product, please contact

your local authorities, your household waste disposal service or the shop where you purchased the product.

RoHS Directive 2011/65/EU

Out of concern for human health protection and friendly environment, we assure that our products falling under

RoHS Directive regulations, regarding the restriction of the use of hazardous substances in electrical and

electronic equipment, have been designed and manufactured in compliance with the above mentioned

regulations. Simultaneously, we claim that our products have been tested and do not contain

hazardous substances whose exceeding limits could have negative impact on human health or natural

environment

Information

The device, as a part of professional CCTV system used for surveillance and control, is not designed for self

installation in households by individuals without technical knowledge.

Excluding of responsibility in case of damaging data on a disk or other devices:

The manufacturer does not bear any responsibility in case of damaging or losing data on a disk or other devices

during device operation.

WARNING!

PRIOR TO UNDERTAKING ANY ACTION THAT IS NOT DESCRIBED FOR THE GIVEN PRODUCT IN

USER’S MANUAL AND OTHER DOCUMENTS DELIVERED WITH THE PRODUCT, OR IF IT DOES

NOT ARISE FROM THE USUAL APPLICATION OF THE PRODUCT, MANUFACTURER MUST BE

CONTACTED UNDER THE RIGOR OF EXCLUDING THE MANUFACTURER’S RESPONSIBILITY FOR

THE RESULTS OF SUCH AN ACTION.

NVIP-2V-6401 - User’s manual (short form) ver 1.0

IMPORTANT SAFEGUARDS AND WARNINGS

WARNING!

THE KNOWLEDGE OF THIS MANUAL IS AN INDESPENSIBLE CONDITION OF A PROPER

DEVICE OPERATION. YOU ARE KINDLY REQUSTED TO FAMILIRIZE YOURSELF WITH

THE MANUAL PRIOR TO INSTALLATION AND FURTHER DEVICE OPERATION.

WARNING!

USER IS NOT ALLOWED TO DISASSEMBLE THE CASING AS THERE ARE NO USER

-SERVICEABLE PARTS INSIDE THIS UNIT. ONLY AUTHORIZED SERVICE PERSONNEL

MAY OPEN THE UNIT

INSTALLATION AND SERVICING SHOULD ONLY BE DONE BY QUALIFIED SERVICE

PERSONNEL AND SHOULD CONFORM TO ALL LOCAL REGULATIONS

1. Prior to undertaking any action please consult the following manual and read all the safety and operating

instructions before starting the device.

2. Please keep this manual for the lifespan of the device in case referring to the contents of this manual is

necessary;

3. All the safety precautions referred to in this manual should be strictly followed, as they have a direct

influence on user’s safety and durability and reliability of the device;

4. All actions conducted by the servicemen and users must be accomplished in accordance with the user’s

manual;

5. The device should be disconnected from power sources during maintenance procedures;

6. Usage of additional devices and components neither provided nor recommended by the producer is forbidden;

7. You are not allowed to use the camera in high humidity environment (i.e. close to swimming pools, bath tubs,

damp basements);

8. Mounting the device in places where proper ventilation cannot be provided (e. g. closed lockers etc.) is not

recommended since it may lead to heat build-up and damaging the device itself as a consequence;

9. Mounting the camera on unstable surface or using not recommended mounts is forbidden. Improperly

mounted camera may cause a fatal accident or may be seriously damaged itself. The camera must be mounted

by qualified personnel with proper authorization, in accordance with this user’s manual;

10. Device should be supplied only from a power sources whose parameters are in accordance with those

specified by the producer in the camera technical datasheet. Therefore, it is forbidden to supply the camera

from a power sources with unknown parameters, unstable or not meeting producer’s requirements;

Due to the product being constantly enhanced and optimized, certain parameters and functions

described in the manual in question may change without further notice.

We strongly suggest visiting the www.novuscctv.com website in order to access the newest manual.

NVIP-2V-6401 - User’s manual (short form) ver 1.0

TABLE OF CONTENTS.....................................................................................................4

1. FOREWORD INFORMATION .....................................................................................5

1.1. General characteristics.........................................................................................5

1.2. Technical specification .......................................................................................6

1.3. Camera dimension ..............................................................................................7

1.4. Package contents..................................................................................................7

2. START-UP AND INITIAL IP CAMERA CONFIGURATION .................................8

2.1. Description of connectors and control tools ........................................................8

2.2. Connecting ethernet cable ...................................................................................9

2.3. Camera mounting ..............................................................................................10

2.4. Starting the IP camera........................................................................................11

2.5. Initial configuration via the web browser..........................................................12

2.6 Security recommendations for network architecture and configuration ...........13

3. NETWORK CONNECTION UTILIZING WEB BROSWER ................................14

3.1. Recommended PC specification for web browser .............................................14

3.2. Connection with IP camera via web browser.....................................................14

4. WWW INTERFACE - WORKING WITH IP CAMERA.........................................16

4.1. Displaying live video..........................................................................................16

5. ELECTRIC CONNECTORS AND ACCESORIES .................................................17

5.1. SD card installation ...........................................................................................17

5.2. Alarm input and output connection ....................................................................17

6. RESTORING FACTORY DEFAULTS .....................................................................18

6.1. Restoring software factory defaults via web browser ........................................18

6.2. Restoring software factory defaults via NMS IPTool……… ..………………..18

6.3 Restoring hardware factory defaults by hardware..………………..…………...19

TABLE OF CONTENTS

NVIP-2V-6401 - User’s manual (short form) ver 1.0

1. FOREWORD INFORMATION

1.1. General Characteristics

• Sensor resolution: 2.0 megapixels

• Mechanical IR cut filter IR operation capability

• Min. Illumination from 0.12 lx

• Wide Dynamic Range (WDR) for enhanced image quality in diverse light conditions

• Standard lens

• Built-in webserver: camera configuration through the website

• Video compression: H.264, H.265, MJPEG / Audio compression: G711

• Max video resolution up to 1920 x 1080

• The compression, resolution, speed and quality can be defined individually for each stream

• Supports up to 3 streams

• RTSP protocol support for video transmission

• ROI zones

• Micro SD Card Slot up to 128 GB

• Audio input

• BNC output

• Reset button

• Wide range of responses to alarm events: e-mail with attachment, saving file on FTP, SD card

• Software: NMS (NOVUS MANAGEMENT SYSTEM) for video recording, live monitoring,

playback and remote IP devices administration

• Video Content Analysis (VCA):

- tamper

- line cross

- zone entrance

- scene change

- video blurred

- video color cast

• Power supply: 12 VDC / PoE

FOREWORD INFORMATION

NVIP-2V-6401 - User’s manual (short form) ver 1.0

1.2. Technical specification

FOREWORD INFORMATION


Image Sensor 2 MPX CMOS sensor 1/2.7” APTINA

Number of Effective Pixels 1920 (H) x 1080 (V)

Min. Illumination 0.12 lx/F1.85 - color mode,

0 lx (IR on) - B/W mode

Electronic Shutter auto/manual: 1/25 s ~ 1/10000 s

Wide Dynamic Range (WDR) yes (double scan sensor), 120dB

Digital Noise Reduction (DNR) 3D

Defog Function (F-DNR) yes

Highlight Compensation (HLC) yes

Back Light Compensation (BLC) yes

LENS

Lens Type standard, f=2.8 mm/F1.85

DAY/NIGHT

Switching Type mechanical IR cut filter

Switching Mode auto, manual, time

Switching Level Adjustment yes

Switching Schedule yes

Visible Light Sensor yes

NETWORK

Stream Resolution 1920 x 1080 (Full HD), 1280 x 720 (HD), 640 x 480 (VGA),

320 x 240 (QVGA)

Frame Rate 30 fps for 1920 x 1080 (Full HD) and lower resolutions

Multistreaming Mode 3 streams

Video/Audio Compression H.264, H.265, MJPEG/G.711

Number of Simultaneous

Connections max. 4

Bandwidth 8 Mb/s in total

Network Protocols Support HTTP, TCP/IP, IPv4, FTP, DHCP, DDNS, NTP, RTSP, UPnP, PPPoE,

SMTP

ONVIF Protocol Support Profile S

Camera Configuration from Internet Explorer browser

languages: Polish, English, Russian, and others

Compatible Software NMS, NVR-6000 Viewer

Mobile applications SuperLive Plus (iPhone, Android)

OTHER FUNCTIONS

Privacy Zones 4

Motion Detection yes

Region of interest (ROI) 3

Video Content Analysis (VCA) tamper, line cross, zone entrance, Scene Change, Video Blurred,

Video Color Cast

Image Processing 180˚ image rotation, sharpening, mirror effect, corridor mode

Prealarm/Postalarm -/up to 120 s

System Reaction to Alarm Events e-mail with attachment, saving file on FTP server, saving file on SD

card

NVIP-2V-6401 - User’s manual (short form) ver 1.0

FOREWORD INFORMATION

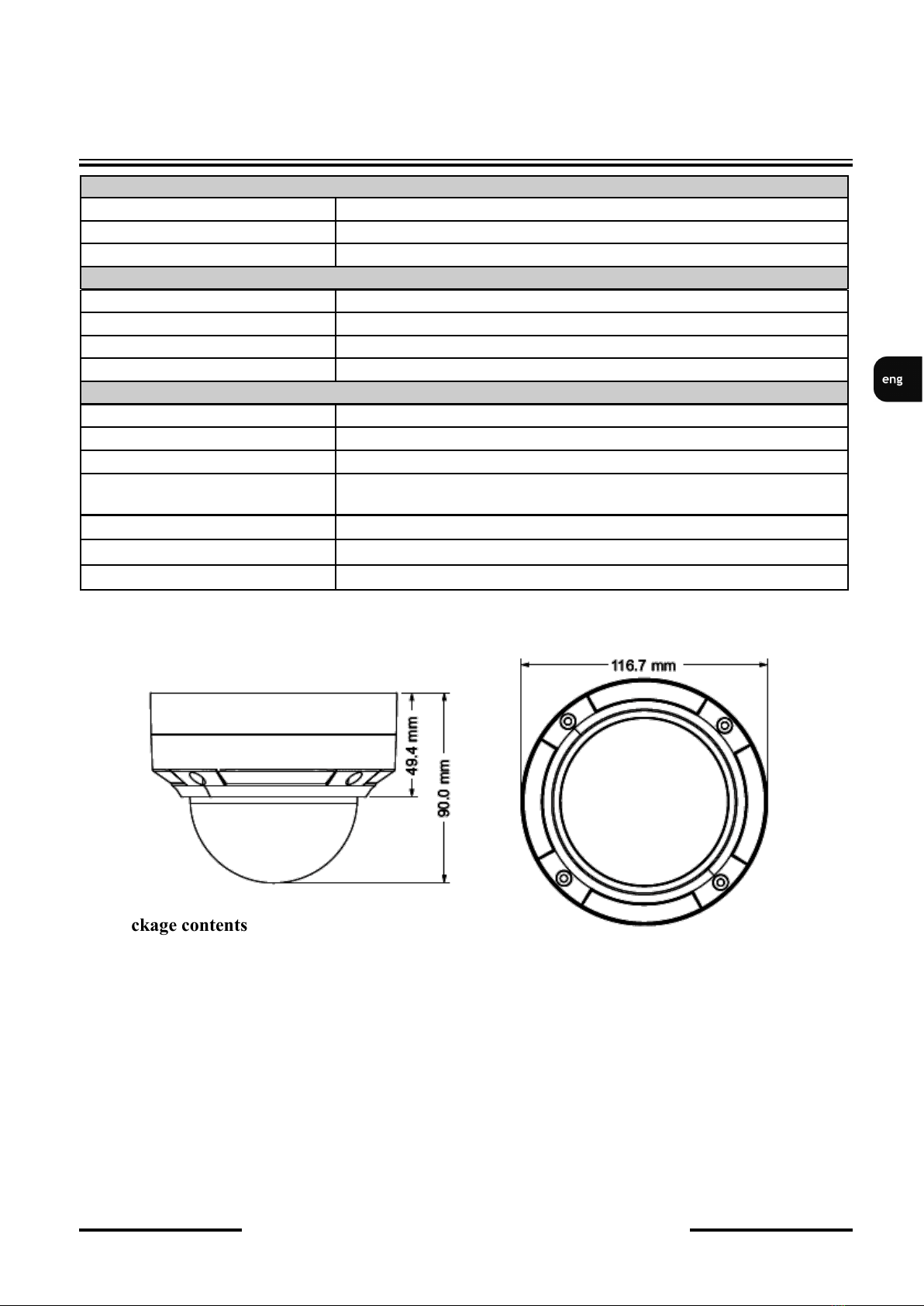

1.3. Camera dimensions (mm)

Camera NVIP-2V-6401

1.4. Package contents

After you open the package make sure that the following elements are inside:

• IP camera

• Accessories bag

• Short version of user’s manual

If any of this elements has been damaged during transport, pack all the elements back into the original

box and contact your supplier for further assistance.

CAUTION!

It is forbidden to use – as the camera power source – PoE equipment (adapters, etc.) not

compatible with IEEE 802.3af standard (items called “passive PoE power supply”). Damages

that results from the usage of improper power supply source are not covered by the warranty.

IR LED

LED Number 16

Range 20 m

Angle 90°

INTERFACES

Video Output BNC, 1.0 Vp-p, 75 Ohm

Audio Input/Output 1 x Jack (3.5 mm)/-

Network Interface 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s

Memory Card Slot microSD - capacity up to 128GB

INSTALLATION PARAMETERS

Dimensions (mm) 117 (Ф) x 90 (H)

Weight 0.65 kg

Degree of Protection IP 66 (details in the user’s manual)

Enclosure vandalproof IK10 impact rating aluminium, white poly-carbonate

bubble

Power Supply PoE, 12 VDC

Power Consumption 3 W, 6 W (IR on)

Operating Temperature -30°C ~ 60°C

NVIP-2V-6401 - User’s manual (short form) ver 1.0

START-UP AND INITIAL IP CAMERA CONFIGURATION

2. START-UP AND INITIAL IP CAMERA CONFIGURATION

CAUTION!

If the device was brought from a location with lower temperature, please wait until it reaches

the temperature of location it is currently in. Turning the device on immediately after bringing it

from a location with lower ambient temperature is forbidden, as the condensing water vapour

may cause short-circuits and damage the device as a result.

Before starting the device familiarize yourself with the description and the role of particular

inputs, outputs and adjusting elements that the device is equipped with.

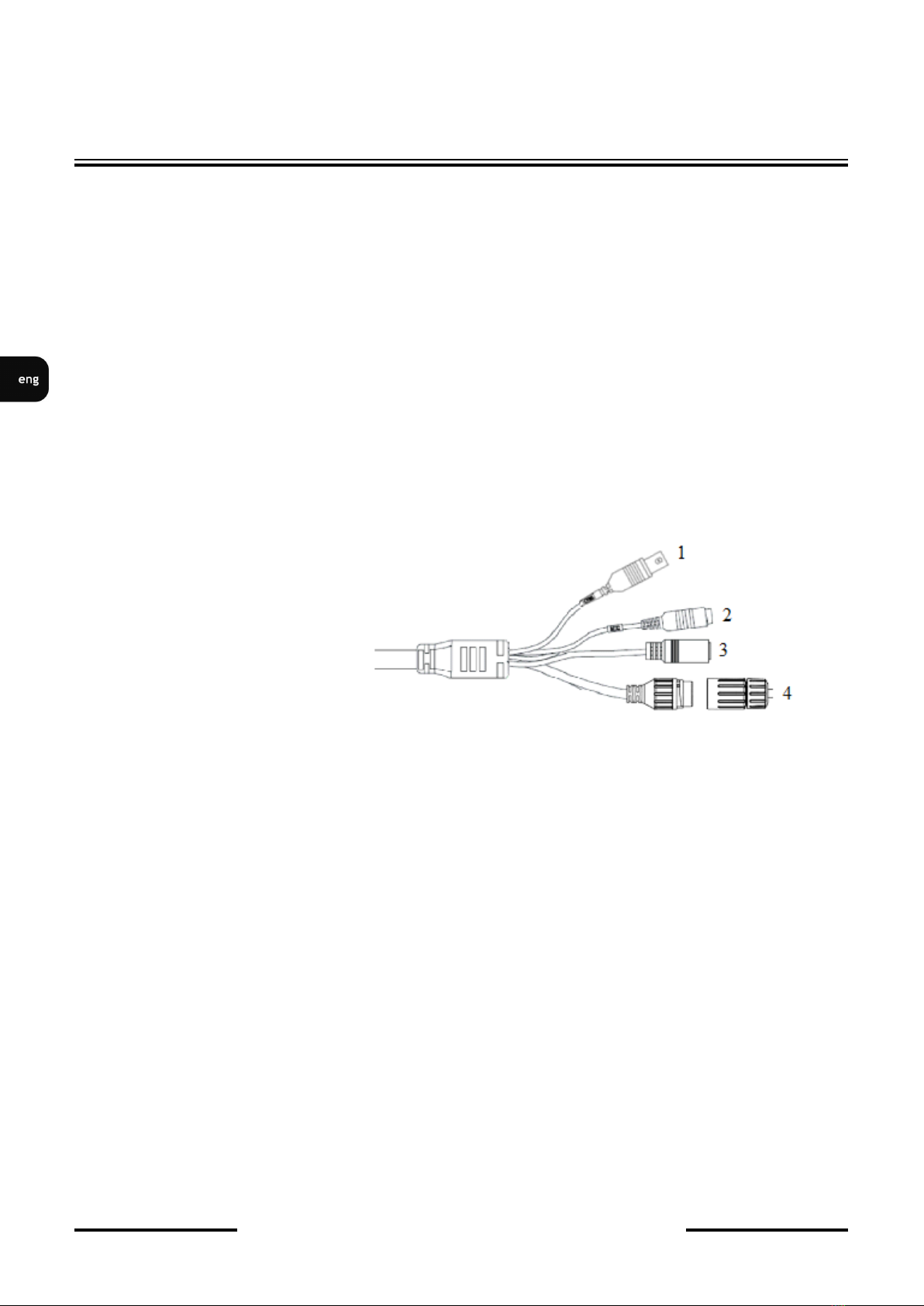

2.1 Description of connectors and control tools

1. BNC video output

2. Audio input

3. Power supply 12VDC

4. 100 Mb/s Ethernet port (RJ-45 connector)

NVIP-2V-6401 - User’s manual (short form) ver 1.0

START-UP AND INITIAL IP CAMERA CONFIGURATION

2.2. Connecting ethernet cable

To maintain tightness of ethernet cable connection, please follow instruction below:

1. Unscrew the nut (2) from the connector cover (1), mount the sealing ring on the socket (3).

2. Route the network cable through the components (1) and (2). Plug the RJ-45 connector into the

socket (3).

3. Screw the connector cover (1) on the socket (3). Inside the upper part of the connector cover (1) push

in to the stop the seal of the cable (4) - the seal is cut to insert on the network cable.

4. Tighten up to the stop nut (2).

CAUTION!

The declared degree of protection of the camera relates to its housing and does not take into

account the possibility of moisture infiltration into the interior of the camera by connecting

cables. Connection cables protection through i.e. sealing up is the responsibility of the camera

installer. The manufacturer is not liable for any damages to the camera caused as a result of

failing in performing that activity by installer, which also means that camera damaged in that

way is not subject to warranty repairs.

Camera power supply connector is not hermetic. User should seal this connector by himself.

Camera can be supplied using external power supply unit corresponding with the camera parameters or

by using RJ45 network socket and PoE (802.3af) power supply unit. If you’re using external power

supply please connect wires according to polarisation shown on picture:

CAUTION!

In order to provide protection against voltage surges/lightning strikes, usage of appropriate surge

protectors is advised. Any damages resulting from surges are not eligible for service repairs.

12 VDC +

GND

Schema of 12VDC power supply connector

NVIP-2V-6401 - User’s manual (short form) ver 1.0

2.3. Camera mounting

To mount a camera please follow the instructions below:

• Put the bracket to the wall in a desired mounting place (with cable hole). Take the drill pattern

and mark future drilling holes for screws and wires.

• Drill holes in accordance with previously done markings and base hole placement.

• Mount the camera using the supplied plugs and screws.

• If necessary, unscrew the camera bubble, insert memory card, adjust camera position and

screw camera bubble.

• Connect the camera wires,

CAUTION!

Please note that the wall or ceiling must have enough strength to support the IP Camera.

CAUTION!

In order to obtain declared degree of protection please seal the camera bracket to prevent water

getting inside. Furthermore, when installing the bracket on rough/uneven surfaces, please

additionally seal the junction with appropriate sealing mass. Please pay special attention to any

mounting holes and if they are a loop-through ones, seal them too.

START-UP AND INITIAL CAMERA CONFIGURATION

Inhaltsverzeichnis

Sprachen:

Andere Novus Sicherheitskamera Handbücher

Novus

Novus NVIP-2DN2101H/IR-1P Bedienungsanleitung

Novus

Novus NVIP-2C2001D-P/GO Bedienungsanleitung

Novus

Novus NVIP-5DN3615AV/IR-1P/F Bedienungsanleitung

Novus

Novus NVIP-4SD-6543/25/F Bedienungsanleitung

Novus

Novus NVIP-2DN5001V/IRH-1P Bedienungsanleitung

Novus

Novus NVIP-5DN3614V/IR-1P/F Bedienungsanleitung

Novus

Novus NVIP-2VE-6231-II Bedienungsanleitung

Novus

Novus NVIP-4DN5002V/IRH-1P Bedienungsanleitung

Novus

Novus NVIP-5F-4301 Bedienungsanleitung

Novus

Novus NVAHD-2DN5202MV/IR-1 Bedienungsanleitung

Novus

Novus NVIP-2DN5000H/IR-1P Bedienungsanleitung

Novus

Novus NVIP-4DN3552AH/IR-1P Bedienungsanleitung

Novus

Novus NVIP-4H-6702M/FWLAD Bedienungsanleitung

Novus

Novus NVAHD-2DN5202V/IR-1 Bedienungsanleitung

Novus

Novus NVIP-3SD-6300/30/F Bedienungsanleitung

Novus

Novus NVIP-6DN5022H/IRH-1P Bedienungsanleitung

Novus

Novus NVIP-2H-6502M/F Bedienungsanleitung

Novus

Novus NVIP-2VE-6232-II Bedienungsanleitung

Novus

Novus NVAHD-1DN3101V/IR-1 Bedienungsanleitung

Novus

Novus NVIP-4H-6202M Bedienungsanleitung

Novus

Novus NVIP-4H-6511/F Bedienungsanleitung

Novus

Novus NVIP-12DN7021V/IR-1P Bedienungsanleitung

Novus

Novus NVIP-5DN3613V/IR-1P Bedienungsanleitung

Novus

Novus NVIP-2DN6020SD-2P Bedienungsanleitung

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Vicon

Vicon V662-D-1 Betriebsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung
