Quick start guide
NVIP-5H-4502M/F
NVIP-5H-4502M/F Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
2
SAFEGUARDS AND WARNINGS
THE PRODUCT MEETS THE REQUIREMENTS CONTAINED IN THE FOLLOWING DIRECTIVES:
Information
The device, as an element of a professional CCTV system used for supervision and control, is not
intended for self-installation in households by people without specialist knowledge.
Exclusion of liability in case of damage data on disks or other devices or media:
The manufacturer is not liable in the event of damage or loss of data contained on disks or other
devices or media during the operation of the Product.
Obligation to consult with the Manufacturer before performing an activity not provided for in
the operating manual or other documents:
Before performing an action that is not provided for in the Product manual, other documents attached to
the Product or does not result from the normal purpose of the Product, please contact the Manufacturer
under the pain of excluding the Producer's liability for the consequences of such an action.
DIRECTIVE 2014/30/EU OF THE EUROPEAN PARLIAMENT AND OF THE
COUNCIL of 26 February 2014 on the harmonization of the laws of the Member States
relating to electromagnetic compatibility (OJ L 96, 29.3.2014, p. 79–106, with changes)
DIRECTIVE 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE
COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE) (OJ L
197, 24.7.2012, p. 38–71, with changes)
DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE
COUNCIL of 8 June 2011 on the restriction of the use of certain hazardous substances in
electrical and electronic equipment (OJ L 174, 1.7.2011, p. 88–110, with changes)
Pictures in this publication showing camera views can be simulations. Actual camera
images may vary depending on the type, model, settings, observation area, or
environmental conditions.
NVIP-5H-4502M/F Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
3
SAFEGUARDS AND WARNINGS
WARNING!
THE KNOWLEDGE OF THIS MANUAL IS AN NECESSARY CONDITION OF PROPER USE OF
THE DEVICE. PLEASE READ IT BEFORE INSTALLING AND OPERATING THE DEVICE.
WARNING!
USER IS NOT ALLOWED TO DISASSEMBLE THE CASING AS THERE ARE NO USER
-SERVICEABLE PARTS INSIDE THIS UNIT. ONLY AUTHORIZED SERVICE PERSONNEL
MAY OPEN THE UNIT
1. Prior to undertaking any action please consult the following manual and read all the safety and
operating instructions before starting the device.
2. Please keep this manual for the lifespan of the device in case referring to the contents of this manual
is necessary;
3. All the safety precautions referred to in this manual should be strictly followed, as they have a direct
influence on user’s safety and durability and reliability of the device;
4. All actions conducted by the servicemen and users must be accomplished in accordance with the
user’s manual;
5. The device should be disconnected from power sources during maintenance procedures;
6. Usage of additional devices and components neither provided nor recommended by the producer is
forbidden;
7. Mounting the device in places where proper ventilation cannot be provided (e. g. closed lockers etc.)
is not recommended since it may lead to heat build-up and damaging the device itself as a
consequence;
8. Mounting the camera on unstable surface or using not recommended mounts is forbidden.
Improperly mounted camera may cause a fatal accident or may be seriously damaged itself. The
camera must be mounted by qualified personnel with proper authorization, in accordance with this
user’s manual.
9. Device should be supplied only from a power sources whose parameters are in accordance with
those specified by the producer in the camera technical datasheet. Therefore, it is forbidden to
supply the camera from a power sources with unknown parameters, unstable or not meeting
producer’s requirements;
Due to the product being constantly enhanced and optimized, certain parameters and functions
described in the manual in question may change without further notice.
We strongly suggest visiting the www.novuscctv.com/en website in order to access the newest full
manual
NVIP-5H-4502M/F Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
4
FOREWORD INFORMATION
1. TECHNICAL SPECIFICATION
Image Sensor 5 MPX CMOS sensor 1/2.7” OV
Number of Eecve Pixels 2592 (H) x 1944 (V)
Min. Illuminaon 0.1 lx/F1.2 - color mode,
0 lx (IR on) - B/W mode
Electronic Shuer auto/manual: 1/5 s ~ 1/20000 s
Digital Slow Shuer (DSS) up to 1/5 s
Wide Dynamic Range (WDR) yes (double scan sensor), 120dB
Digital Noise Reducon (DNR) 2D, 3D
Defog Funcon (F-DNR) yes
Highlight Compensaon (HLC) yes
Back Light Compensaon (BLC) yes
Reducon of image icker (Anicker) yes
LENS
Lens Type motorized, f=2.7 ~ 13.5 mm/F1.8
Auto-focus zoom trigger, manual trigger
DAY/NIGHT
Switching Type mechanical IR cut lter
Switching Mode auto, manual, me
Switching Delay 1 ~ 36 s
Visible Light Sensor yes
NETWORK
Stream Resoluon
2592 x 1944, 2592 x 1520, 2304 x 1296, 2048 x 1536 (QXGA),
1920 x 1080 (Full HD), 1280 x 960, 1280 x 720 (HD), 640 x 480
(VGA), 320 x 240 (QVGA)
Frame Rate 30 fps for each resoluon
Mulstreaming Mode 3 streams
Video/Audio Compression H.264, H.264+, H.265, H.265+/G.711
Number of Simultaneous Connecons max. 10
Bandwidth 60 Mb/s in total
Network Protocols Support HTTP, TCP/IP, IPv4, HTTPS, FTP, DHCP, DNS, DDNS, NTP, RTSP,
RTP, UPnP, SNMP, SMTP, P2P, HTML5
ONVIF Protocol Support Prole S/G
Camera Conguraon from Internet Explorer, Firefox, Chrome, Opera, Safari browser
languages: Polish, English, Russian, and others
Compable Soware NMS
Mobile applicaons RxCamView (iPhone, Android)
NVIP-5H-4502M/F Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
5
FOREWORD INFORMATION

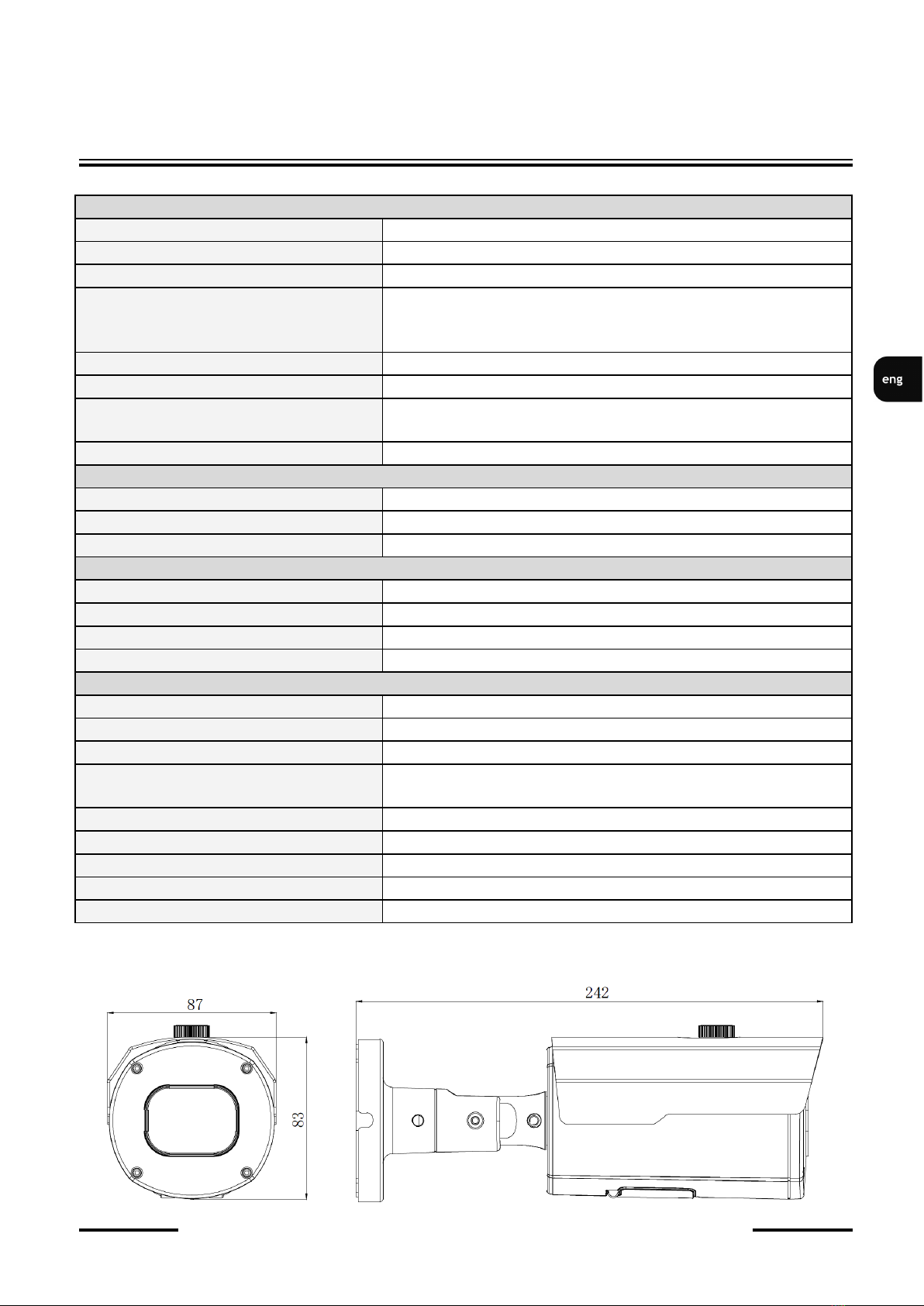

1.1. Camera dimensions (in millimeters)
OTHER FUNCTIONS
Privacy Zones 4 video mask type: single color
Moon Detecon yes
Audio Detecon yes
Video Content Analysis (VCA)
abandoned object, object disappearance, line cross, zone
entrance, zone exit, mul loiter, cross counng, objects
disnguishing, face recognion, comparing faces
Image Processing 180˚ image rotaon, vercal ip, horizontal ip
Prealarm/Postalarm up to 5 s/up to 30 s
System Reacon to Alarm Events e-mail with aachment, saving le on FTP server, saving le on
SD card, alarm output acvaon, saving in the cloud storage
Restoring default sengs via web browser, using reset buon
IR LED
LED Number 4
Range 45 m
Smart IR yes (hardware support)
INTERFACES
Audio Input/Output 1 x RCA/1 x RCA
Alarm Input/Output 1 (NO/NC)/1 relay type
Network Interface 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s
Memory Card Slot microSD - capacity up to 256GB
INSTALLATION PARAMETERS
Dimensions (mm) with bracket: 87 (W) x 83 (H) x 242 (L)
Weight 0.82 kg
Degree of Protecon IP 66 (details in the user’s manual)
Enclosure aluminium, white, fully cable managed wall mount bracket in-set
included
Power Supply PoE, 12 VDC
Surge protecon TVS 4000 V
Power Consumpon 2 W, 5 W (IR on)
Operang Temperature -30°C ~ 60°C
Humidity max. 95%, relave (non-condensing)
NVIP-5H-4502M/F Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
6
Caution:
If the device was brought from a room with a lower temperature, wait until it reaches the
temperature of the room in which it is to work. Do not switch the device immediately after
bringing from a cooler place. The condensation of water vapor can cause short circuits and
consequently damage the device.
2. START-UP AND INITIAL CONFIGURATION
Before starting the device familiarize yourself with the description and the role of particular
inputs, outputs and adjusting elements that the device is equipped with.

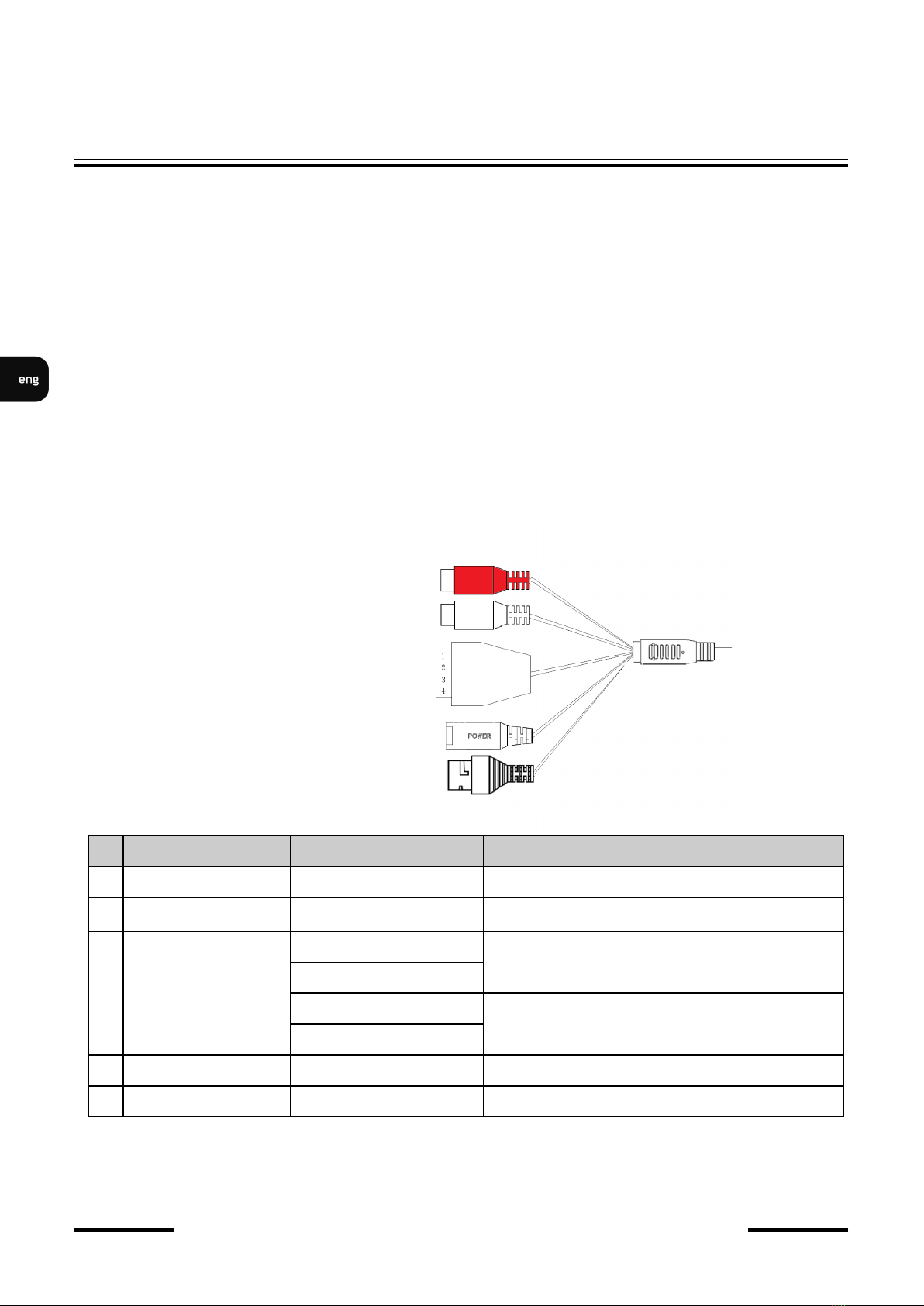

2.1. Description of the camera's electrical connectors
START-UP AND INITIAL CONFIGURATION
1. Audio line in
2. Audio line out
3. Alarm input/output block
4. 12VDC power supply
connector
5. 100 Mbps Ethernet port
Nr Connector Type/Color Funcon Descripon
1RCA socket, red Audio line in For connecng external audio devices
2RCA socket, white Audio line out For connecng external audio devices
3ARK type screw
terminal block
1. Alarm input A Alarm input, congurable: NC or NO
2. Alarm input B
3. Alarm output A Alarm output, NO (relay, 12VDC/24VAC 0.3A max)
4. Alarm output B
4DC2,5/5,5 socket Power connector Power supply, 12VDC ± 10%
5RJ45 socket, white Port Ethernet 100Mbps Ethernet connector
NVIP-5H-4502M/F Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
7
2.2. Power supply connection
When powering the camcorder from an external 12VDC power supply, make sure it has the correct
settings and that the power supply connector has the correct polarity. Using an incorrect power supply
may result in malfunction or damage.
The camera can also be powered via an RJ45 network connector, using PoE (IEEE 802.3af) technology.
Please, use a network switch or an IEEE 802.3af compliant PoE power supply to power the camera
through the PoE.
CAUTION!
It is forbidden to use – as the camera power source – PoE equipment (adapters, etc.) not compatible with
IEEE 802.3af standard (items called “passive PoE power supply”). Damages that results from the usage of
improper power supply source are not covered by the warranty.
2.2. Connecting ethernet cable
To maintain hermeticity network cable connection, follow the instructions below:
1. Unscrew the nut (b) from the connector cover (a), mount the sealing ring on the socket (c)
2. Route the network cable through the components (a) and (b). Plug the RJ-45 connector into the
socket (c)
3. Screw the connector cover (a) on the socket (c). Inside the upper part of the connector cover (a) push
in to the stop the seal of the cable (d) - the seal is cut to insert on the network cable.
4. Tighten up to the stop nut (b)
Caution:
The 12VDC power connector is not hermetic. The user should seal them on his own.
START-UP AND INITIAL CONFIGURATION
ba
b
a
c
d
Center pin +12V
GND
NVIP-5H-4502M/F Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
8
2.3. "Two way power" function
The camera is equipped with the "Two way power" function. When the camera is connected to the PoE
switch, 12VDC is available in the 12V camera power socket. This allows user to power the receiver
with low power consumption, e.g. a microphone, from the camera power socket.
2.4. Camera mounting
To mount a camera please follow the instructions below:
• Put the bracket or template to the wall in a desired mounting place
• Mark future drilling holes for screws.
• Drill mounting holes and a hole for the signal cable
• Mount the camera using the provided dowels and screws.
• Loosen screws “A”.
• Adjust camera position. If necessary, adjust the field of view (zoom) using the buttons located
under the lid on the bottom of the housing.
• Tighten screws “A”.
Caution:
Please note that the wall or ceiling must have enough strength to support the camera.
Caution:
The declared degree of protection of the camera relates to its housing and does not take into
account the possibility of moisture infiltration into the interior of the camera by connecting
cables. Connection cables protection through i.e. sealing up is the responsibility of the camera
installer. The manufacturer is not liable for any damages to the camera caused as a result of
failing in performing that activity by installer, which also means that camera damaged in that
way is not subject to warranty repairs.
START-UP AND INITIAL CONFIGURATION
The maximum power consumption of the device using the “Two way power” function is 3W.
A
NVIP-5H-4502M/F Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
9

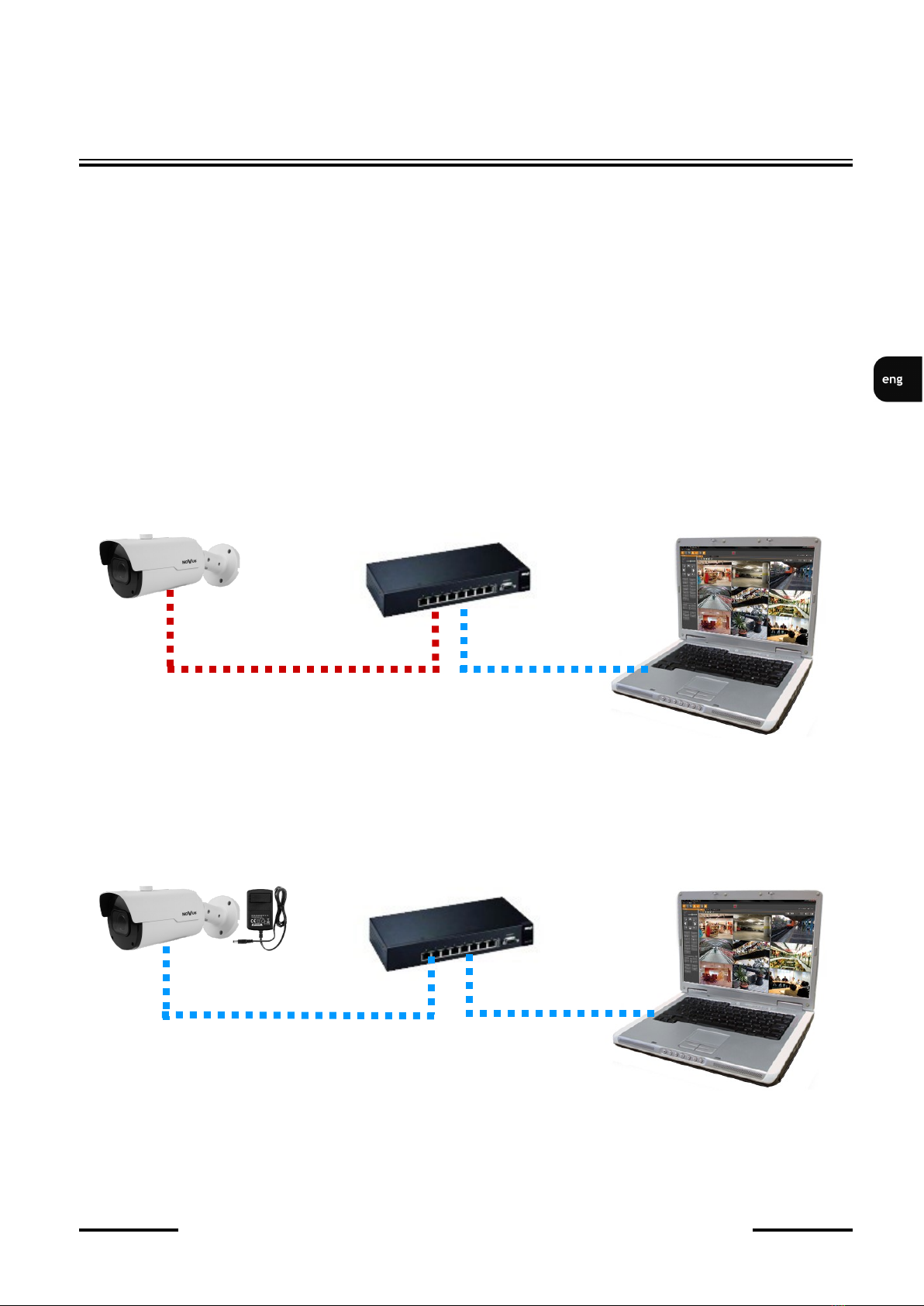

2.5. Starting the camera
To start the camera, connect the Ethernet cable to the RJ45 network socket of the IP camera, and the
other end to the network switch. As a power source, it is possible to use an external stabilized power
supply with parameters that meet the requirements of the camera or PoE network switch.
The recommended method of starting and configuring the IP camera is to connect it to a PC or laptop
in a dedicated network switch to which no other devices are connected. In case of power supply from
an external power supply, it is enough to use any network switch or a cable connected directly to the
computer. For network configuration data (IP address, gateway, netmask etc.), please contact the
administrator of the network in which the device is to work.
• Connection using network switch with PoE support
• Connection using external power supply and network switch
START-UP AND INITIAL CONFIGURATION
PCIP camera
Power and data transmission Data transmission
PoE network switch
IP camera
Data transmission Data transmission
Network switch PC
NVIP-5H-4502M/F Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
10
• Connection using the camera's external power supply and an Ethernet crossover cable
2.6. Parameter configuration using a web browser
The default network settings for camera are:
1. IP address= 192.168.1.200
2. Network mask - 255.255.255.0
3. Gateway - 192.168.1.1
4. User name - root
5. Password - pass
Knowing the camera’s IP address you need to appropriately set PC IP address, so the two devices can
operate in one network subnet ( e.g. for IP 192.168.1.1, appropriate address for the camera ranges from
192.168.1.2 to 192.168.1.254, for example 192.168.1.60). It is not allowed to set the same addresses for
camera and PC computer
You can either set a network configuration (IP address, gateway, net mask, etc.) of NOVUS IP camera
yourself or select DHCP mode (DHCP server is required in this method in target network) by using
web browser or by NMS software. When you use DHCP server check IP address lease and its linking
with camera MAC address to avoid changing or losing IP address during device operation or network/
DHCP server breakdown. You have to remember to use a new camera IP address after changing
network parameters.
After network setting configuration has been done, the camera can be connected to a target network.
START-UP AND INITIAL CONFIGURATION
PCIP camera
Data transmission - Ethernet crossover cable
Dieses Handbuch passt für folgende Modelle
1
Inhaltsverzeichnis
Sprachen:
Andere Novus Sicherheitskamera Handbücher
Novus
Novus NVIP-1DN3000V/IR-1P-II Bedienungsanleitung
Novus
Novus NVIP-4DN3512H/IR-1P Bedienungsanleitung
Novus
Novus NVIP-5C7000D-P Bedienungsanleitung
Novus
Novus NVIP-2VE-6232/WL-II Bedienungsanleitung
Novus
Novus NVC-VS10BD Bedienungsanleitung
Novus
Novus NVIP-4DN2002V/IR-1P-II Bedienungsanleitung
Novus
Novus NVIP-4H-6711/FWLAD Bedienungsanleitung
Novus
Novus NVAHD-2DN5202MH/IR-1 Bedienungsanleitung
Novus
Novus NVC-HC4600V Bedienungsanleitung
Novus
Novus NVIP-2H-4201 Bedienungsanleitung
Novus
Novus NVIP-8H-6511/F Bedienungsanleitung
Novus
Novus NVIP-8VE-4511/FWLAD Bedienungsanleitung
Novus
Novus NVIP-2DPT-8731/30/T Bedienungsanleitung
Novus
Novus NVAHD-1DN3102SD/IR-1 Bedienungsanleitung
Novus
Novus NVIP-8SD-6550/32/F Bedienungsanleitung
Novus
Novus NVAHD-2DN5202H/IR-1 Bedienungsanleitung
Novus
Novus NVC-422H/IR Bedienungsanleitung
Novus
Novus NVAHD-2DN5504MV/IR-1 Bedienungsanleitung
Novus
Novus NVAHD-1DN3101D/IR-1 Bedienungsanleitung
Novus
Novus NVIP-4DN5002V/IRH-1P Bedienungsanleitung
