Quick start guide

NVIP-5VE-4502M/F

NVIP-5VE-4502M/F Quick start guide version 1.1

SAFEGUARDS AND WARNINGS

THE PRODUCT MEETS THE REQUIREMENTS CONTAINED IN THE FOLLOWING DIRECTIVES:

Information

The device, as an element of a professional CCTV system used for supervision and control, is not

intended for self-installation in households by people without specialist knowledge.

Exclusion of liability in case of damage data on disks or other devices or media:

The manufacturer is not liable in the event of damage or loss of data contained on disks or other

devices or media during the operation of the Product.

Obligation to consult with the Manufacturer before performing an activity not provided for in

the operating manual or other documents:

Before performing an action that is not provided for in the Product manual, other documents attached to

the Product or does not result from the normal purpose of the Product, please contact the Manufacturer

under the pain of excluding the Producer's liability for the consequences of such an action.

DIRECTIVE 2014/30/EU OF THE EUROPEAN PARLIAMENT AND OF THE

COUNCIL of 26 February 2014 on the harmonization of the laws of the Member States

relating to electromagnetic compatibility (OJ L 96, 29.3.2014, p. 79–106, with changes)

DIRECTIVE 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE

COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE) (OJ L

197, 24.7.2012, p. 38–71, with changes)

DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE

COUNCIL of 8 June 2011 on the restriction of the use of certain hazardous substances in

electrical and electronic equipment (OJ L 174, 1.7.2011, p. 88–110, with changes)

Pictures in this publication showing camera views can be simulations. Actual camera

images may vary depending on the type, model, settings, observation area, or

environmental conditions.

NVIP-5VE-4502M/F Quick start guide version 1.1

SAFEGUARDS AND WARNINGS

WARNING!

THE KNOWLEDGE OF THIS MANUAL IS AN NECESSARY CONDITION OF PROPER USE OF

THE DEVICE. PLEASE READ IT BEFORE INSTALLING AND OPERATING THE DEVICE.

WARNING!

USER IS NOT ALLOWED TO DISASSEMBLE THE CASING AS THERE ARE NO USER

-SERVICEABLE PARTS INSIDE THIS UNIT. ONLY AUTHORIZED SERVICE PERSONNEL

MAY OPEN THE UNIT

1. Prior to undertaking any action please consult the following manual and read all the safety and

operating instructions before starting the device.

2. Please keep this manual for the lifespan of the device in case referring to the contents of this manual

is necessary;

3. All the safety precautions referred to in this manual should be strictly followed, as they have a direct

influence on user’s safety and durability and reliability of the device;

4. All actions conducted by the servicemen and users must be accomplished in accordance with the

user’s manual;

5. The device should be disconnected from power sources during maintenance procedures;

6. Usage of additional devices and components neither provided nor recommended by the producer is

forbidden;

7. Mounting the device in places where proper ventilation cannot be provided (e. g. closed lockers etc.)

is not recommended since it may lead to heat build-up and damaging the device itself as a

consequence;

8. Mounting the camera on unstable surface or using not recommended mounts is forbidden.

Improperly mounted camera may cause a fatal accident or may be seriously damaged itself. The

camera must be mounted by qualified personnel with proper authorization, in accordance with this

user’s manual.

9. Device should be supplied only from a power sources whose parameters are in accordance with

those specified by the producer in the camera technical datasheet. Therefore, it is forbidden to

supply the camera from a power sources with unknown parameters, unstable or not meeting

producer’s requirements;

Due to the product being constantly enhanced and optimized, certain parameters and functions

described in the manual in question may change without further notice.

We strongly suggest visiting the www.novuscctv.com/en website in order to access the newest full

manual

NVIP-5VE-4502M/F Quick start guide version 1.1

FOREWORD INFORMATION

1. TECHNICAL SPECIFICATION


Image Sensor 5 MPX CMOS sensor 1/2.7” OV

Number of Eecve Pixels 2592 (H) x 1944 (V)

Min. Illuminaon 0.03 lx/F1.2 - color mode,

0 lx (IR on) - B/W mode

Electronic Shuer auto/manual: 1/5 s ~ 1/20000 s

Digital Slow Shuer (DSS) up to 1/5 s

Wide Dynamic Range (WDR) yes (double scan sensor), 120dB

Digital Noise Reducon (DNR) 2D, 3D

Defog Funcon (F-DNR) yes

Highlight Compensaon (HLC) yes

Back Light Compensaon (BLC) yes

Reducon of image icker (Anicker) yes

LENS

Lens Type motorized, f=2.7 ~ 13.5 mm/F1.8

Auto-focus zoom trigger, manual trigger

DAY/NIGHT

Switching Type mechanical IR cut lter

Switching Mode auto, manual, me

Switching Delay 1 ~ 36 s

Visible Light Sensor yes

NETWORK

Stream Resoluon

2592 x 1944, 2592 x 1520, 2304 x 1296, 2048 x 1536 (QXGA),

1920 x 1080 (Full HD), 1280 x 960, 1280 x 720 (HD), 640 x 480

(VGA), 320 x 240 (QVGA)

Frame Rate 30 fps for each resoluon

Mulstreaming Mode 3 streams

Video/Audio Compression H.264, H.264+, H.265, H.265+/G.711

Number of Simultaneous Connecons max. 10

Bandwidth 60 Mb/s in total

Network Protocols Support HTTP, TCP/IP, IPv4, HTTPS, FTP, DHCP, DNS, DDNS, NTP,

RTSP, RTP, UPnP, SNMP, SMTP, P2P, HTML5

ONVIF Protocol Support Prole S/G

Camera Conguraon

from Internet Explorer, Firefox, Chrome, Opera, Safari

browser

languages: Polish, English, Russian, and others

Compable Soware NMS

Mobile applicaons RxCamView (iPhone, Android)

NVIP-5VE-4502M/F Quick start guide version 1.1

FOREWORD INFORMATION

1.1. Camera dimensions (in millimeters)

OTHER FUNCTIONS

Privacy Zones 4 video mask type: single color

Moon Detecon yes

Audio Detecon yes

Video Content Analysis (VCA)

abandoned object, object disappearance, line cross, zone entrance, zone

exit, mul loiter, cross counng, objects disnguishing, face recognion,

comparing faces

Image Processing 180˚ image rotaon, vercal ip, horizontal ip

Prealarm/Postalarm up to 5 s/up to 30 s

System Reacon to Alarm

Events

e-mail with aachment, saving le on FTP server, saving le on SD card,

alarm output acvaon, saving in the cloud storage

Restoring default sengs via web browser, using reset buon

IR LED

LED Number 4

Range 45 m

Smart IR yes (hardware support)

INTERFACES

Audio Input/Output 1 x RCA/1 x RCA

Alarm Input/Output 1 (NO/NC)/1 relay type

Network Interface 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s

Memory Card Slot microSD - capacity up to 256GB

INSTALLATION PARAMETERS

Dimensions (mm) 135 (Ф) x 128 (H)

Weight 0.9 kg

Degree of Protecon IP 66 (details in the user’s manual)

Enclosure vandalproof aluminium, white

Power Supply PoE, 12 VDC

Surge protecon TVS 4000 V

Power Consumpon 3 W, 6 W (IR on)

Operang Temperature -30°C ~ 55°C

Humidity max. 95%, relave (non-condensing)

NVIP-5VE-4502M/F Quick start guide version 1.1

Caution:

If the device was brought from a room with a lower temperature, wait until it reaches the

temperature of the room in which it is to work. Do not switch the device immediately after

bringing from a cooler place. The condensation of water vapor can cause short circuits and

consequently damage the device.

2. START-UP AND INITIAL CONFIGURATION

Before starting the device familiarize yourself with the description and the role of particular

inputs, outputs and adjusting elements that the device is equipped with.

2.1. Description of the camera's electrical connectors

START-UP AND INITIAL CONFIGURATION

1. Audio line in

2. Audio line out

3. Alarm input/output block

4. 12VDC power supply

connector

5. 100 Mbps Ethernet port

Nr Connector Type/Color Funcon Descripon

1RCA socket, red Audio line in For connecng external audio devices

2RCA socket, white Audio line out For connecng external audio devices

3ARK type screw

terminal block

1. Alarm input A Alarm input, congurable: NC or NO

2. Alarm input B

3. Alarm output A Alarm output, NO (relay, 12VDC/24VAC 0.3A max)

4. Alarm output B

4DC2,5/5,5 socket Power connector Power supply, 12VDC ± 10%

5RJ45 socket, white Port Ethernet 100Mbps Ethernet connector

NVIP-5VE-4502M/F Quick start guide version 1.1

2.2. Power supply connection

When powering the camcorder from an external 12VDC power supply, make sure it has the correct

settings and that the power supply connector has the correct polarity. Using an incorrect power supply

may result in malfunction or damage.

The camera can also be powered via an RJ45 network connector, using PoE (IEEE 802.3af) technology.

Please, use a network switch or an IEEE 802.3af compliant PoE power supply to power the camera

through the PoE.

CAUTION!

It is forbidden to use – as the camera power source – PoE equipment (adapters, etc.) not compatible with

IEEE 802.3af standard (items called “passive PoE power supply”). Damages that results from the usage of

improper power supply source are not covered by the warranty.

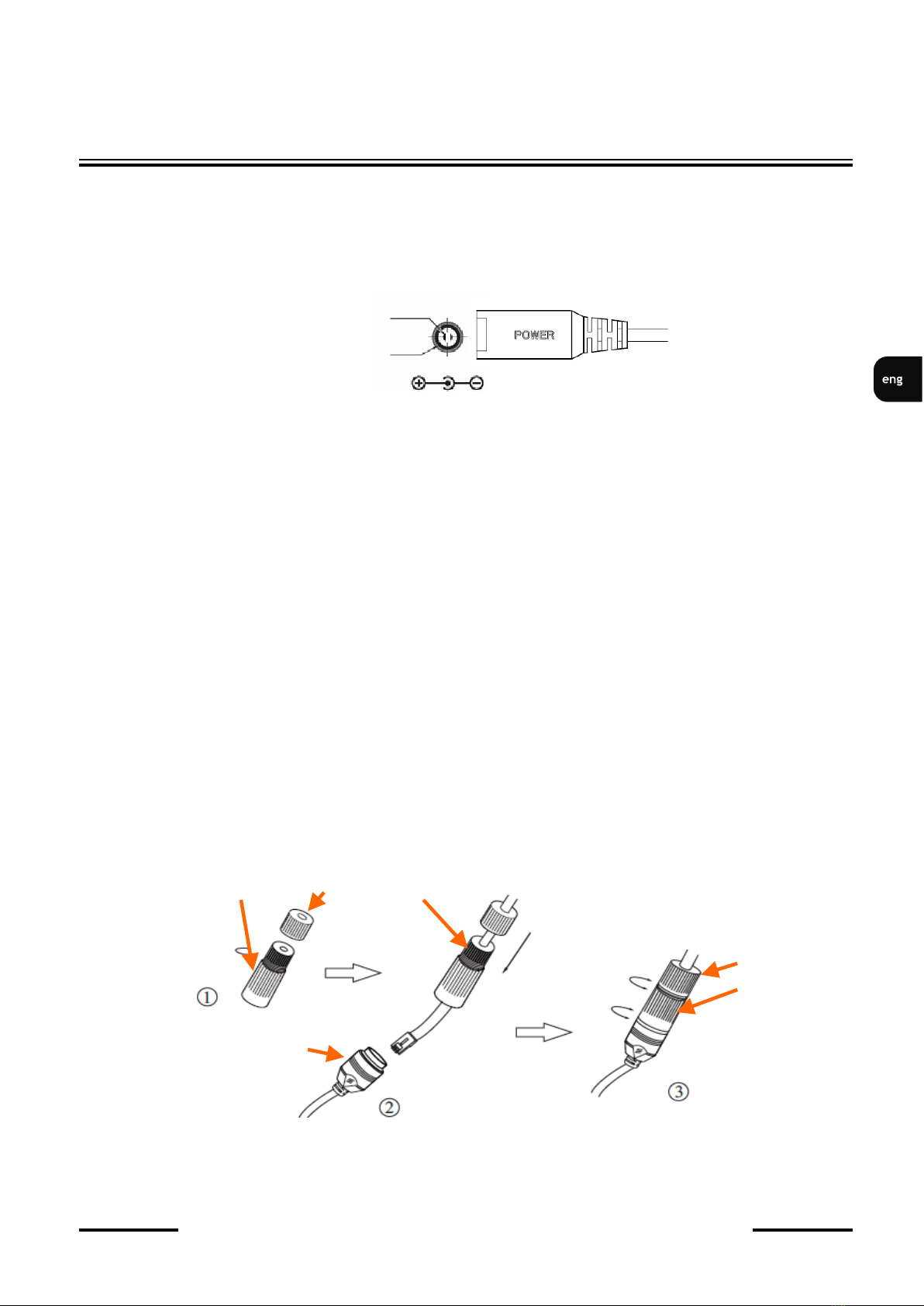

2.2. Connecting ethernet cable

To maintain hermeticity network cable connection, follow the instructions below:

1. Unscrew the nut (b) from the connector cover (a), mount the sealing ring on the socket (c)

2. Route the network cable through the components (a) and (b). Plug the RJ-45 connector into the

socket (c)

3. Screw the connector cover (a) on the socket (c). Inside the upper part of the connector cover (a) push

in to the stop the seal of the cable (d) - the seal is cut to insert on the network cable.

4. Tighten up to the stop nut (b)

Caution:

The 12VDC power connector is not hermetic. The user should seal them on his own.

START-UP AND INITIAL CONFIGURATION

Center pin +12V

GND

NVIP-5VE-4502M/F Quick start guide version 1.1

2.3. "Two way power" function

The camera is equipped with the "Two way power" function. When the camera is connected to the PoE

switch, 12VDC is available in the 12V camera power socket. This allows user to power the receiver

with low power consumption, e.g. a microphone, from the camera power socket.

2.4. Camera mounting

To mount a camera please follow the instructions below:

• Remove the retaining ring (A) by turning it counter-clockwise

• Remove the camera cover (B), remove the camera from the base

• Use the template or the location of the holes on the base of the camera to mark the points for

future mounting holes and cable entry.

• Drill holes in accordance with previously done markings .

• Mount the camera base using the supplied dowels and screws.

• Connect the camera cables, put camera on the base, attach the cover (B) and pre-tighten the

retaining ring (A)

• Adjust the position of the camera

• Tighten to the stop retaining ring (A)

Caution:

Please note that the wall or ceiling must have enough strength to support the camera.

Caution:

The declared degree of protection of the camera relates to its housing and does not take into

account the possibility of moisture infiltration into the interior of the camera by connecting

cables. Connection cables protection through i.e. sealing up is the responsibility of the camera

installer. The manufacturer is not liable for any damages to the camera caused as a result of

failing in performing that activity by installer, which also means that camera damaged in that

way is not subject to warranty repairs.

START-UP AND INITIAL CONFIGURATION

The maximum power consumption of the device using the “Two way power” function is 3W.

NVIP-5VE-4502M/F Quick start guide version 1.1

2.5. Starting the camera

To start the camera, connect the Ethernet cable to the RJ45 network socket of the IP camera, and the

other end to the network switch. As a power source, it is possible to use an external stabilized power

supply with parameters that meet the requirements of the camera or PoE network switch.

The recommended method of starting and configuring the IP camera is to connect it to a PC or laptop

in a dedicated network switch to which no other devices are connected. In case of power supply from

an external power supply, it is enough to use any network switch or a cable connected directly to the

computer. For network configuration data (IP address, gateway, netmask etc.), please contact the

administrator of the network in which the device is to work.

• Connection using network switch with PoE support

• Connection using external power supply and network switch

START-UP AND INITIAL CONFIGURATION

PCIP camera

Power and data transmission Data transmission

PoE network switch

IP camera

Data transmission Data transmission

Network switch PC

NVIP-5VE-4502M/F Quick start guide version 1.1

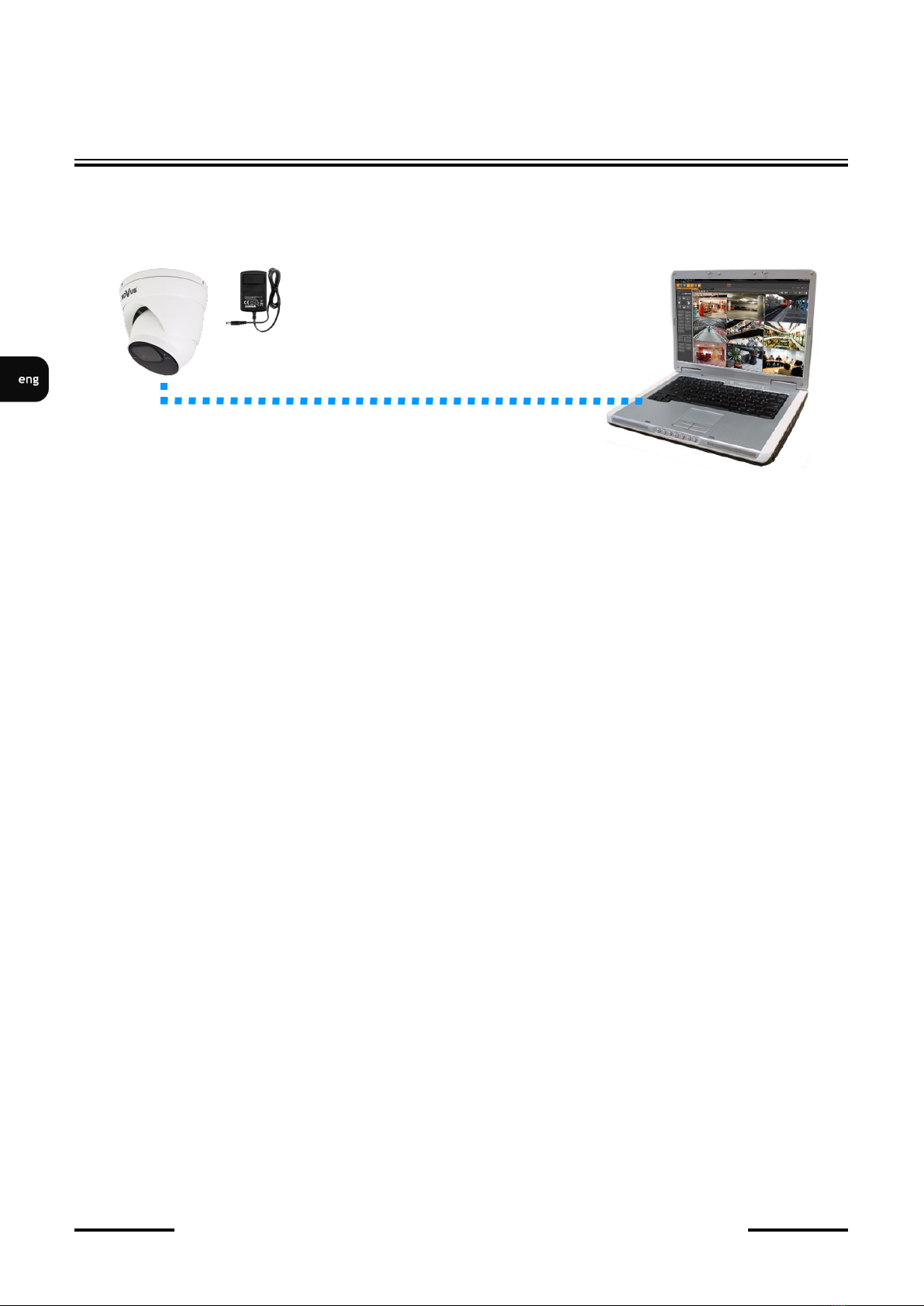

• Connection using the camera's external power supply and an Ethernet crossover cable

2.6. Parameter configuration using a web browser

The default network settings for camera are:

1. IP address= 192.168.1.200

2. Network mask - 255.255.255.0

3. Gateway - 192.168.1.1

4. User name - root

5. Password - pass

Knowing the camera’s IP address you need to appropriately set PC IP address, so the two devices can

operate in one network subnet ( e.g. for IP 192.168.1.1, appropriate address for the camera ranges from

192.168.1.2 to 192.168.1.254, for example 192.168.1.60). It is not allowed to set the same addresses for

camera and PC computer

You can either set a network configuration (IP address, gateway, net mask, etc.) of NOVUS IP camera

yourself or select DHCP mode (DHCP server is required in this method in target network) by using

web browser or by NMS software. When you use DHCP server check IP address lease and its linking

with camera MAC address to avoid changing or losing IP address during device operation or network/

DHCP server breakdown. You have to remember to use a new camera IP address after changing

network parameters.

After network setting configuration has been done, the camera can be connected to a target network.

START-UP AND INITIAL CONFIGURATION

PCIP camera

Data transmission - Ethernet crossover cable

Inhaltsverzeichnis

Sprachen:

Andere Novus Sicherheitskamera Handbücher

Novus

Novus NVAHD-2DN5100MC-1 Bedienungsanleitung

Novus

Novus NVAHD-2DN5220MSD/IRH-2 Bedienungsanleitung

Novus

Novus NVIP-H-8501/T Bedienungsanleitung

Novus

Novus NVAHD-2DN5103MV/IR-1 Bedienungsanleitung

Novus

Novus NVIP-5VE-4511/FWLAD Bedienungsanleitung

Novus

Novus NVIP-6DN5060V/IRH-2P Bedienungsanleitung

Novus

Novus NVIP-2VE-6501/F-II Bedienungsanleitung

Novus

Novus NVIP-2H-4201/PIR Bedienungsanleitung

Novus

Novus NVIP-9F-4301 Bedienungsanleitung

Novus

Novus NVAHD-2DN5120MSD/IRH-2 Bedienungsanleitung

Novus

Novus NVIP-3DN7030SD/IRH-2P Bedienungsanleitung

Novus

Novus NVIP-3DN3011H/IR-1P Bedienungsanleitung

Novus

Novus NVAHD-2DN5204V/IR-1 Bedienungsanleitung

Novus

Novus NVIP-5C7000D-P Bedienungsanleitung

Novus

Novus NVIP-TDN2401D/IR/MPX1.0 Bedienungsanleitung

Novus

Novus NVIP-4DN2004V/IR-1P-II Bedienungsanleitung

Novus

Novus NVH-300H/230 Bedienungsanleitung

Novus

Novus NVC-60CH Bedienungsanleitung

Novus

Novus NVAHD-2DN5102V/IR-1 Bedienungsanleitung

Novus

Novus NVIP-3DN3012V/IR-1P Bedienungsanleitung

Novus

Novus NVIP-2DN3038D/IR-1P Bedienungsanleitung

Novus

Novus NVAHD-1DN5100C-1 Bedienungsanleitung

Novus

Novus NVAHD-2DN3201MH/IR-1-II Bedienungsanleitung

Novus

Novus NVIP-5H-4202 Bedienungsanleitung

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Vicon

Vicon V662-D-1 Betriebsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung
