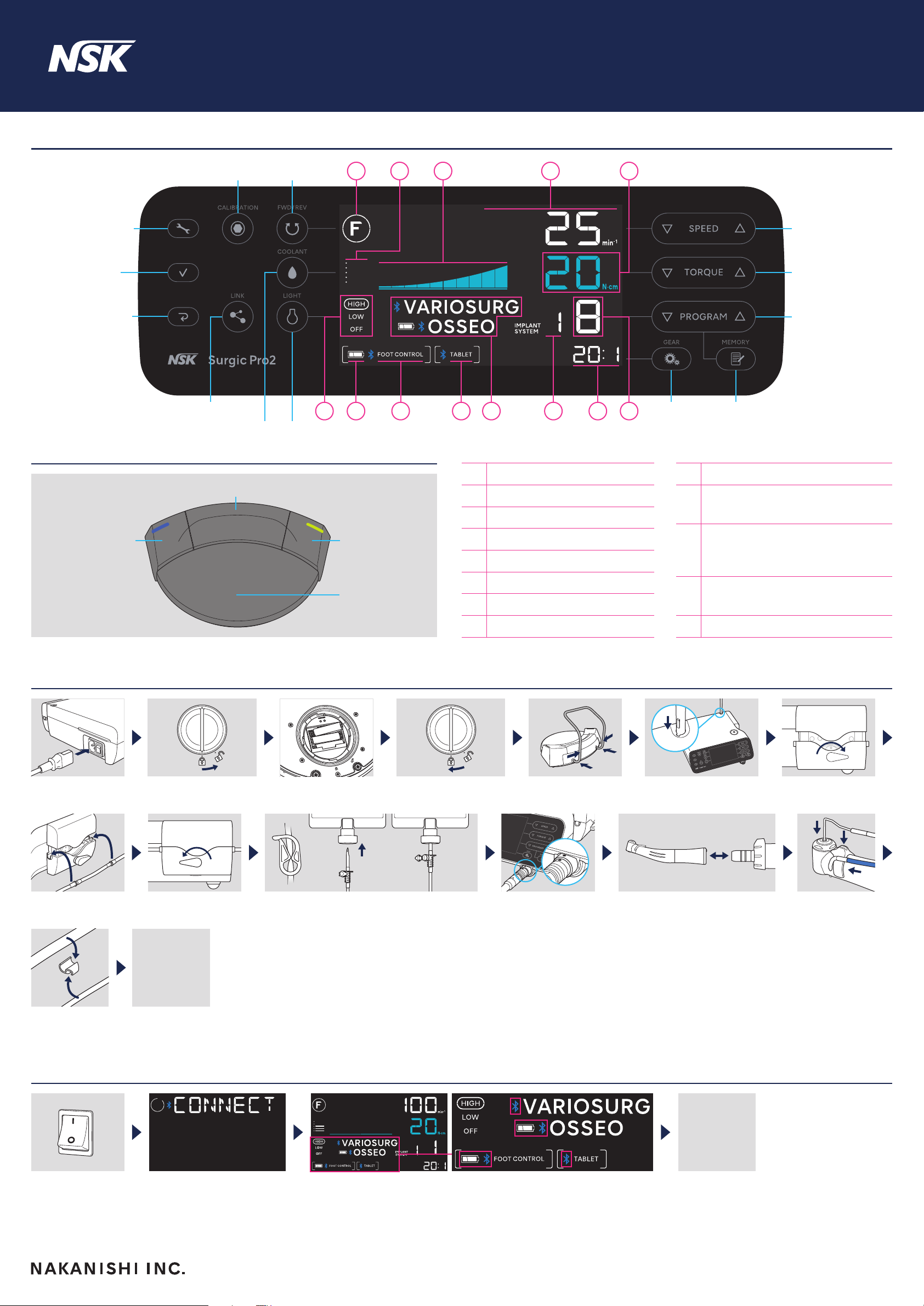

Surgic Pro2 Quick Operation Guide

Control panel

Preparation for Use

Starting operation

Connect the AC

power cord.

Remove the battery cover

from the foot control.

Insert three AAA

batteries.

Attach the battery cover. Install the foot

control hanger.

Mount the coolant

solution hanger post.

Turn the pump cover

clockwise 180°.

Turn on the power of

Surgic Pro2 and each

paired device.

The above is displayed. The normal screen is displayed.

Make sure that each device is connected.

Insert the irrigation

tube.

Turn the pump cover

counterclockwise 180°.

Insert the irrigation tube into a pack. Connect the motor

cord.

Connect the handpiece. Attach the

irrigation nozzle.

Attach the tube

holders.

“Starting

operation”

Rotation speed

Torque

Program No.

Gear ratio

Implant system No.

Rotation direction

Coolant solution flow level

Light level

Battery level of the foot control

Current operating torque level

Status of connection between

VarioSurg 3 and Osseo 100+

Status of connection between

an external terminal and the

control unit

Status of connection between

the foot control

Ready for

operation

For details, see the operation manual.

700 Shimohinata, Kanuma, Tochigi 322-8666, Japan

Foot control

Change coolant

solution flow

Change program

Change motor

direction

Speed control

pedal

OM-DE0939EN 000

LINK Key

SETTING Key

ENTER Key

CANCEL Key

SPEED Key

TORQUE Key

PROGRAM Key

MEMORY KeyGEAR Key

FWD/REV KeyCALIBRATION Key

LIGHT KeyCOOLANT Key

IH J K L E D C

BAMGF

DataLog Viewer

PDFMANUAL

Press the operating

key to turn on the

power.

Press and hold the

operating key.

“PA” is displayed. The control unit makes a beep and then “OK” will

appear. Pairing is done. Make sure that the device is

connected.

Press the CANCEL

Key to return to

the normal screen.

Turn on the power. Press and hold the

button.

When the LED turns blue,

release the button.

The control unit makes a beep and then “OK” will appear.

Pairing is done. Make sure that the device is connected.

Also the LED of link module turns green.

Press the CANCEL

Key to return to

the normal screen.

Launch the App.

Install the App beforehand.

Touch the icon. Touch ”Start”. Enter the code

“123456” and touch

“Pair”.

Press the CANCEL

Key to return to

the normal screen.

The control unit makes a beep and then ”OK”

will appear. Pairing is done. Make sure that

the device is connected.

www.nsk-dental.com/qr/app-surgicpro2

Osseo 100+

Foot control

VarioSurg3

External terminal

×2

Press the CANCEL

Key to return to

the normal screen.

Press the ENTER

Key.

Press and hold the

Left and Right buttons

and the pedal at the

same time.

The control unit makes a beep and then "OK" will

appear. Pairing is done. Make sure that the device is

connected.

×2

Connected

Power ON At least

3 sec.

×2

The first step after purchase

（Pairing with each device）

This operation is not necessary

when using Surgic Pro2 for the

first time after purchase.

If the foot control is unpaired or

when using another foot control

newly purchased, conduct the

following operation.

NOTICE : Paring can be done

within 10 minutes after inserting

the battery.

Connected

Approx. 10 sec.

Press and hold the

SETTING Key.

“BLE SET” is displayed.

At least 2 sec.

Press the ENTER

Key.

Press the TORQUE Key to select the device.

NOTICE : The letters on the screen except “BLE SET”

and “PAIRING”flash on and off.

Foot control

Osseo 100+

VarioSurg3

External terminal

Press the ENTER Key.

12 3

Connected

Connect the link

cable beforehand.

20XX.XX.XX XXX
