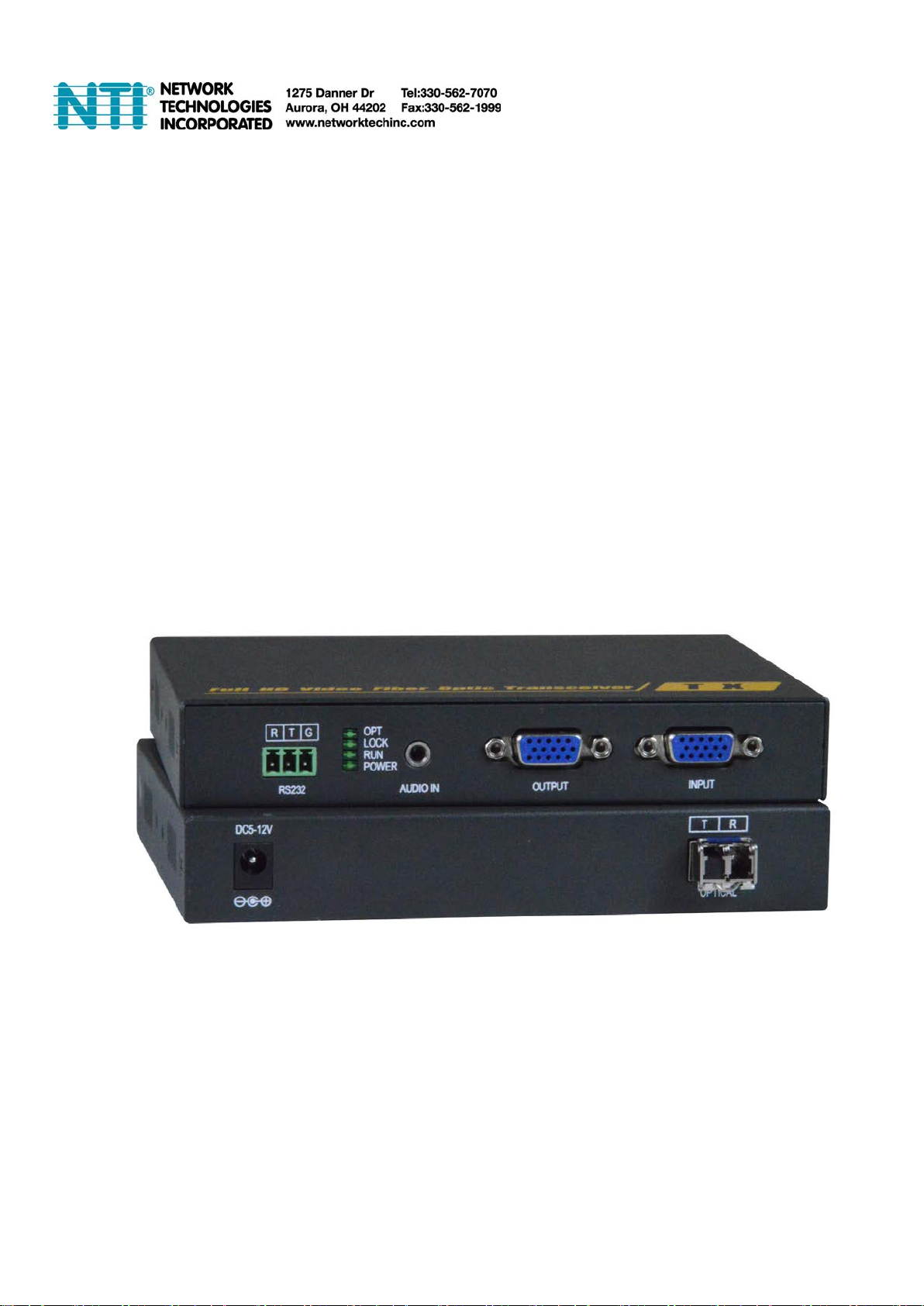

NTI ST-FOVARS-LC Bedienungsanleitung

ST-FOVARS-LC

VGA Extender via Fiber Optic Cable

User Manual

1. Description

The ST-FOVARS-LC Fiber optic extender provides extension of VGA signals

long distances over one simplex LC single-mode or multimode fiber optic cable.

It supports high resolution up to 1080P, transmitter local output, RS232

signal and external audio transmission function. The extender can be used for

a wide range of applications requiring long distance transmission of high

resolution with high quality,good stability and powerful security.

2. Features

Transmits VGA video signals up to 6.2 miles (10km)over one simplex

single-mode LC fiber optic cable or up to 1640 feet (500 meters) over one

simplex 50 or 62.5-micron multimode LC fiber optic cable

Supportsvideo resolution up to 1920*1080@60Hz

Supportsexternal stereo audio unidirectional transmission

Supportslocal and remote VGA monitors

Support RS232 signal bidirectional transmission, baud rate self-adaptive

Supports the DDC2B protocol

Built-in default EDID table

Low RFI/EMI for sensitive applications

Plug-and-play functionality- no software needed

3. Specifications

Parameter

Description

Video

Standards

VGA

Maximum pixel

clock

380MHz

Resolution

1920x1080@60Hz

1600x1200@60Hz / 1680x1050@60Hz

1280x1024@60Hz / 75Hz

1280x800@60Hz / 1280x768@60Hz

1280x720@60Hz /

1024x768@60Hz / 75Hz

800x600@60Hz / 75Hz

Impedance

75Ω

Audio

Interface

3.5mm stereo audio jack

Format

44.1K,48K,96K,176K,192K

Signal type

Stereo

RS232

Interface

3-pin screw terminals

Signal direction

Bidirectional

Baud rate

Self-adaptive, Max：115200bps

Data bits

Optical

fiber

Interface

LC connector

Fiber type

simplex LC Single-mode fiber

simplex LC Multimode fiber

Transmission

distance

10km (single-mode)

500m (multimode (50 or 62.5 micron))

Other

Power supply DC 12V/1A

Power dissipation MAX 6W

Temperature Operating: -5℃~ +70℃

Humidity Operating: 5% ~ 90%

Dimension (WxDxH) 6.06 x 4.53 x 0.99 In. (154*115*25mm )

Note: The "VGA Out" port on the Transmitter supports 1920x1200@60Hz resolution,

but only that port will support it. The maximum resolution supported by the

Receiver is 1920x1080@60Hz.

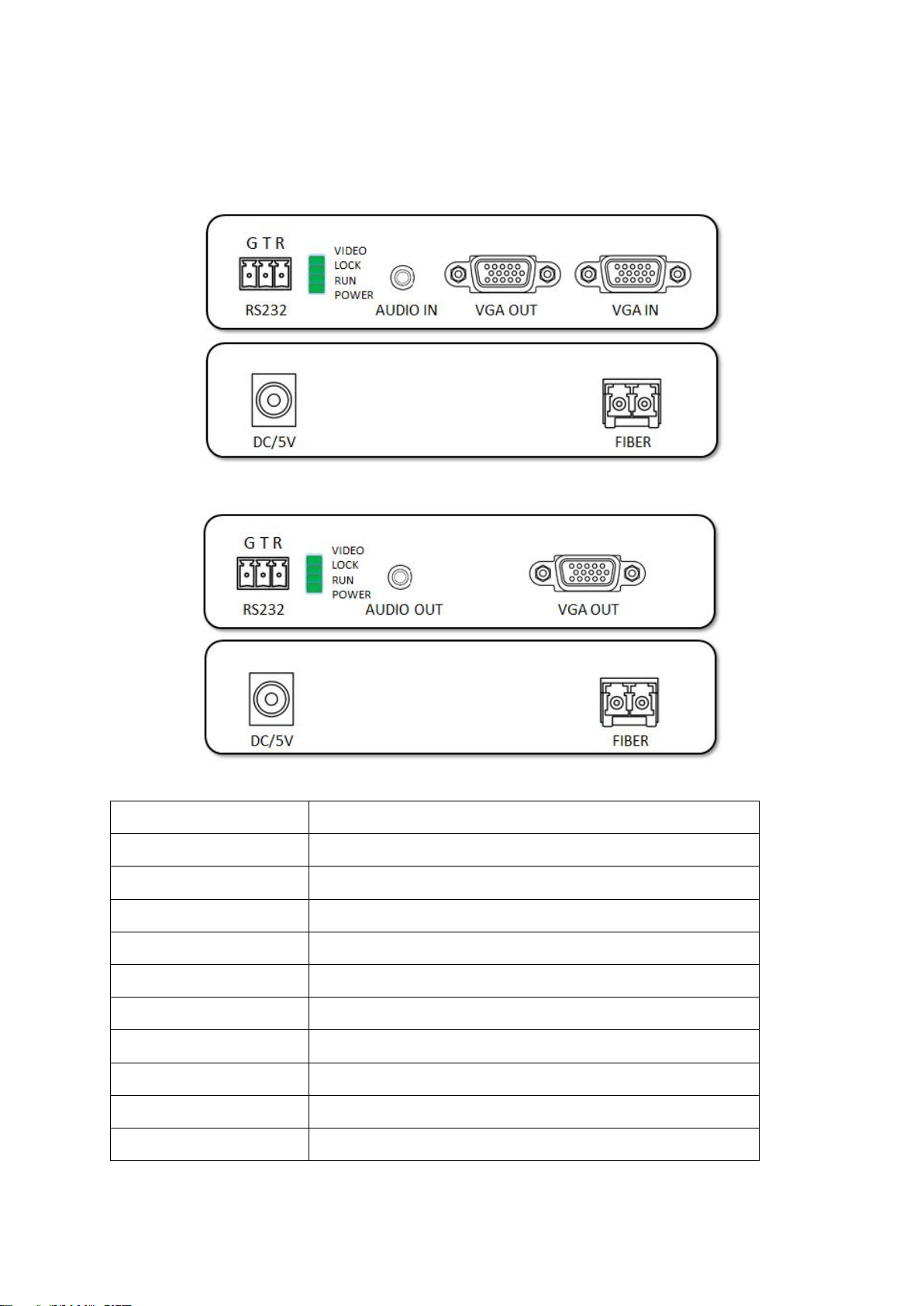

4. Panel

Transmitter:

Receiver:

Port name

Description

VGA IN/OUT

VGA signal input/output

AUDIO IN/OUT

Stereo audio signal input/output

RS232

Serial port（G: Ground, T: transmit, R: receive）

DC/5V

Power adapter socket

FIBER

SFP module---LC connector

LED indicator

Description

VIDEO

Video signal connection indicator

LOCK

Video signal lock indicator

RUN

System status indicator

POWER

System power indicator

5. Package list

VGA optical fiber transmitter ………. 1 pc

VGA optical fiber receiver ……………. 1 pc

Fiber optic module TX/RX ……………. 1 set

Power adapter ………………………………2 pcs

User manual ………………………………… 1 pc

6. Installation

1. Connect the provided DC/12V power supplies to the power socket of

the Transmitter and the Receiver.

2. Connect a VGA cable between the VGA input port of the Transmitter

and the VGA output port of the video source.

3. Connect the VGA output port of Receiver to the display device with

VGA cable.

4. Connect the Transmitter optical port to the Receiver optical port using

one simplex LC fiber optic cable.

7. Diagram

3-Position Terminal Block……………….. 2pc
