N-Tron 7014 Series Firmware Upgrade Procedure
TFTP Method:
Please refer to the user's guide found the ProductCD or on-line at:
www.n-tron.com/html/tech_docs.html
Note: Although the download speed may be quicker, this method requires third party TFTP server
software to be installed on a PC connected to the LAN. When updating a few units, you may find
it quicker to simply use the Serial Port method listed below.
Serial/COM Port method:
Save the included 7014 Series Flash Image file to a local drive location such as c:\
Log in to the switch using HyperTerminal and use a straight through serial cable.
(115200, 8, N, 1, No Flow Control)
Hit <ENTER> to login [Enter]
Allowing Serial Session
Product Name : N-TRON 7000 Series
Product Configuration : 7014xxx
Product Software Version : x.x.x
Product BOOT ROM Version : LOADER1.20
Product Build Date : xxx xx xxxx at xx:xx:xx
Product CopyRight : N-TRON Corp.
Product URL : http://www.n-tron.com
N-TRON Managed Switch
login: admin [Enter]
Password: admin [Enter]
N-TRON/Admin#[1]> image [Enter]
N-TRON/Admin#[2]image> download [Enter]
Download Image Using xModem (Serial Download) [y/n] y [Enter]
Start Image Download Using xModem
xModem Download Starts From HERE.

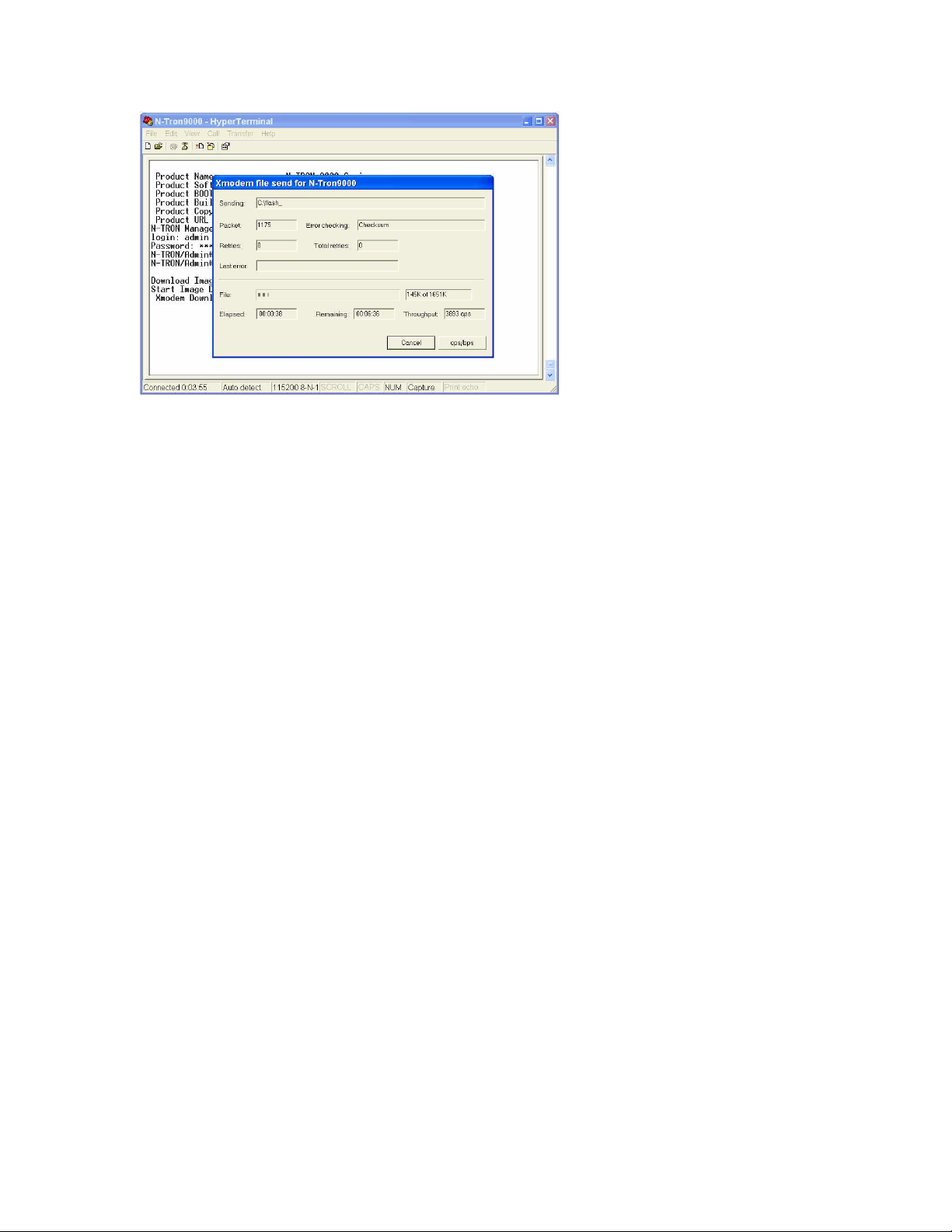

From the Transfer Pull down menu in
Hyper terminal select --> Send File... -
-> Browse to select saved flash file -->
Set Transfer to xModem --> Send
Button as shown to the right:
Once you have selected the file
location and xModem protocol, you
must click the Send button with your
mouse to begin downloading the
image to the switch.
2
Checking the Image length and verifying checksum
Checksum Satisfied, Saving image to flash..
Downloaded Image Size:[xxxxxxx] Bytes
May take a few Minutes.....
...........................................................................................................................................................
...........................................................................................................................................................
.......................................................................................................
Do you Want to Restart the System Now: [y/n] y [Enter]
Do you Want to Save the Configuration: [y/n] n [Enter]
Device is Going for Reboot....
Once unit has rebooted, manually cycle the power on the 7014 and verify the update has been
processed.
Hit <ENTER> to login [Enter]
Allowing Serial Session
Product Name : N-TRON 7000 Series
Product Configuration : 7014xxx
Product Software Version : x.x.x
Product BOOT ROM Version : LOADER1.20
Product Build Date : xxx xx xxxx at xx:xx:xx
Product CopyRight : N-TRON Corp.
Product URL : http://www.n-tron.com
N-TRON Managed Switch
login: admin [Enter]
Password: admin [Enter]
N-TRON/Admin#[1]> config erase [enter]
Load Factory Default Setting? [y/n] y [enter]
Keep IP, SubNet and Gateway Addresses? [y/n] n [enter]
Restart the switch to effect this change
N-TRON/Admin#[2]config> (manually cycle power of switch)
3
Re-Configure the IP Address and Subnet Mask of the 7014 in CLI
Note: The factory default IP Configuration of this switch is:
IP: 192.168.1.201
Subnet Mask: 255.255.255.0
Gateway: 192.168.1.1
Hit <ENTER> to login [Enter]
Allowing Serial Session
Product Name : N-TRON 7000 Series
Product Configuration : 7014xxx
Product Software Version : x.x.x
Product BOOT ROM Version : LOADER1.20
Product Build Date : xxx xx xxxx at xx:xx:xx
Product CopyRight : N-TRON Corp.
Product URL : http://www.n-tron.com
N-TRON Managed Switch
login: admin [Enter]
Password: admin [Enter]
N-TRON/Admin#[1]> system [Enter]
N-TRON/Admin#[2]system> set [Enter]
N-TRON/Admin#[3]system/set> ip 192.168.1.210 255.255.255.0 [Enter] (sample settings)
The IP Address has been changed to : 192.168.1.133
The Subnet Mask has been changed to : 255.255.255.0
Do you Want to Restart the System Now: [y/n] y [Enter]
Do you Want to Save the Configuration: [y/n] y [Enter]
................
................
Device is Going for Reboot....
4
Manually re-configure the optional Gigabit Ports from the web browser
Launch your web browser and enter the assigned IP Address and login to the switch.
Verify the Software Revision at the main menu when presented.
5
Browse to the Gigabit Ports submenu found under the Administration menu and configure
modules for each slot respectively. Then, click the update button.
To verify the configuration has been saved, allow the switch to reboot and log back in to the web
browser interface and compare the Logical View with the physical switch to confirm the settings
were saved correctly.
Note: 7014FX2 without optional Gigabit Ports installed shown above.
This completes the firmware upgrade process.
