105M12 and 108M12

Industrial Ethernet Switches

Installation

Guide

(Revised 2010-11-15)

105M12 & 108M12 Industrial Ethernet Switches Installation Guide

(Revised 2010-11-15)

820 S. University Blvd., Suite 4E

Mobile, AL 36609 USA

Corp. is prohibited, except as allowed under copyright laws.

Ethernet is a registered trademark of Xerox Corporation. All other product names, company names, logos

or other designations mentioned herein are trademarks of their respective owners.

The information contained in this document is subject to change without notice. N-TRON Corp. makes no

warranty of any kind with regard to this material, including, but not limited to, the implied warranties of

merchantability or fitness for a particular purpose. In no event shall N-TRON Corp. be liable for any

incidental, special, indirect or consequential damages whatsoever included but not limited to lost profits

arising out of errors or omissions in this manual or the information contained herein.

(Revised 2010-11-15)

SAFETY WARNINGS

ELECTRICAL SAFETY

WARNING: Disconnect the power cable before removing the end plates.

WARNING: Do not operate the unit with the end plates removed.

WARNING: Properly ground the unit before connecting anything else to the unit. Units not properly

grounded may result in a safety risk and could be hazardous and may void the warranty. See the

grounding technique section of this user manual for proper ways to ground the unit.

WARNING: Do not work on equipment or cables during periods of lightning activity.

WARNING: Do not perform any services on the unit unless qualified to do so.

WARNING: Observe proper DC Voltage polarity when installing power input cables. Reversing

voltage polarity can cause permanent damage to the unit and void the warranty.

HAZARDOUS LOCATION INSTALLATION REQUIREMENTS

1. WARNING: Explosion hazard. Do not remove or replace the device unless power has been switched off

or the area is known to be non-hazardous.

2. WARNING: Explosion hazard. Do not disconnect while the circuit is live or unless the area is known to

be non-hazardous..

3. WARNING: Explosion hazard. Substitution of components may impair suitability for Class I, Division 2.

4. WARNING: Install only in accordance with Local & National Codes of Authorities Having Jurisdiction.

5. Class I, Div 2 installations require that all devices connected to this product must be UL listed for the area in

which it is installed.

6. Limited Operating Voltage: 12-30V for Class I, Div 2 installations.

7. This equipment is suitable for use in Class I, Div 2, Groups A, B, C, and D, or non-hazardous locations

only.

(Revised 2010-11-15)

105M12 Industrial Ethernet Switch

The 105M12 is an unmanaged industrial Ethernet switch providing five Fast Ethernet copper ports in an

IP65/IP67 rated enclosure for protection against temporary immersion in water. The switch provides

Category-5 compliant 10/100BaseTX connections with IP65/67 rated M12 D-code connectors for high

performance network design, and hub/repeater upgrades. The switch is capable of auto negotiating 10/100

Mb and half/full duplex communications.

108M12 Industrial Ethernet Switch

The 108M12 is an unmanaged industrial Ethernet switch providing eight Fast Ethernet copper ports in an

IP65/IP67 rated enclosure for protection against temporary immersion in water. The switch provides eight

Category-5 compliant 10/100BaseTX connections with IP65/67 rated M12 D-code connectors for high

performance network design, and hub/repeater upgrades. The switch is capable of auto negotiating 10/100

Mb and half/full duplex communications.

Key Features

IP65 Rated for protection against low pressure jets of water from any direction

IP66 Rated for protection against high pressure jets of water from any direction

IP67 Rated for protection against temporary immersion in water

Full IEEE 802.3

Extended Environmental Specifications

Support for Full/Half Duplex Operation

Auto MDI/MDIX (crossover) on all ports

LED Link/Activity Status Indication

Autonegotiation, Autosensing Speed, Duplex, and Flow Control

Up to 1.0 Gb/s maximum throughput for the 105M12 and 1.6 Gb/s for the 108M12 model

Redundant power input

Bulk head mountable (optional Industry Standard 35mm DIN rail mounting available)

108M12-HV Only

(Revised 2010-11-15)

INGRESS PROTECTION IP67

The classification of degrees of protection provided by the enclosures is defined by IEC 60529. Each rating is

defined by specific tests.

The IP number is comprised of two numbers, the first referring to the protection against solid objects and the

second against fluids. The higher the number, the better the device is protected against contact with moving

parts and the harmful entry of various forms of moisture.

1st IP

Protection against ingress of solids

2nd IP

Protection against ingress of liquids

No protection

Protected against solid objects over 50mm e.g. hands,

large tools.

Protected against vertically falling drops of water.

Protected against solid objects over 12mm e.g. hands,

large tools.

Protected against direct sprays of water up to 15° from

vertical.

Protected against solid objects over 2.5mm e.g. wire,

small tools.

Protected against direct sprays of water up to 60° from

vertical.

Protected against solid objects over 1.0mm e.g. wires.

Protected against water sprayed from any direction.

Limited ingress permitted.

Limited protection against dust ingress (no harmful

deposit)

Protected against low pressure water jets from any

direction. Limited ingress permitted.

Totally protected against dust ingress.

Protected against high pressure water jets from any

direction. Limited ingress permitted.

Protected against temporary immersion between 15cm

to 1m.

Protected against long periods of immersion under

pressure.

The 105M12 and 108M12 Industrial Ethernet Switches are fully protected against dust and will remain sealed

when immersed in water to a depth of 1 meter for 1 hour when all the ports are properly mated or sealed.

These IP67 caps seal off the unused ports protecting them from dirt, water, oil or any other

contaminants which might be present in the close proximity of the switch.

PACKAGE CONTENTS

Please make sure the Ethernet Switch package contains the following items:

1. 105M12 or 108M12 Industrial Ethernet Switch

2. Product CD

UNPACKING

Remove all the equipment from the packaging, and store the packaging in a safe place. File any damage

claims with the carrier.

(Revised 2010-11-15)

INSTALLATION

Read the following warning before beginning the installation:

WARNING

Never install or work on electrical equipment or cabling during periods of lightning activity.

BULKHEAD MOUNTING

The following are the mechanical dimensions and drill hole placements to consider when mounting the

105M12 and 108M12 Industrial Ethernet Switches:

(Revised 2010-11-15)

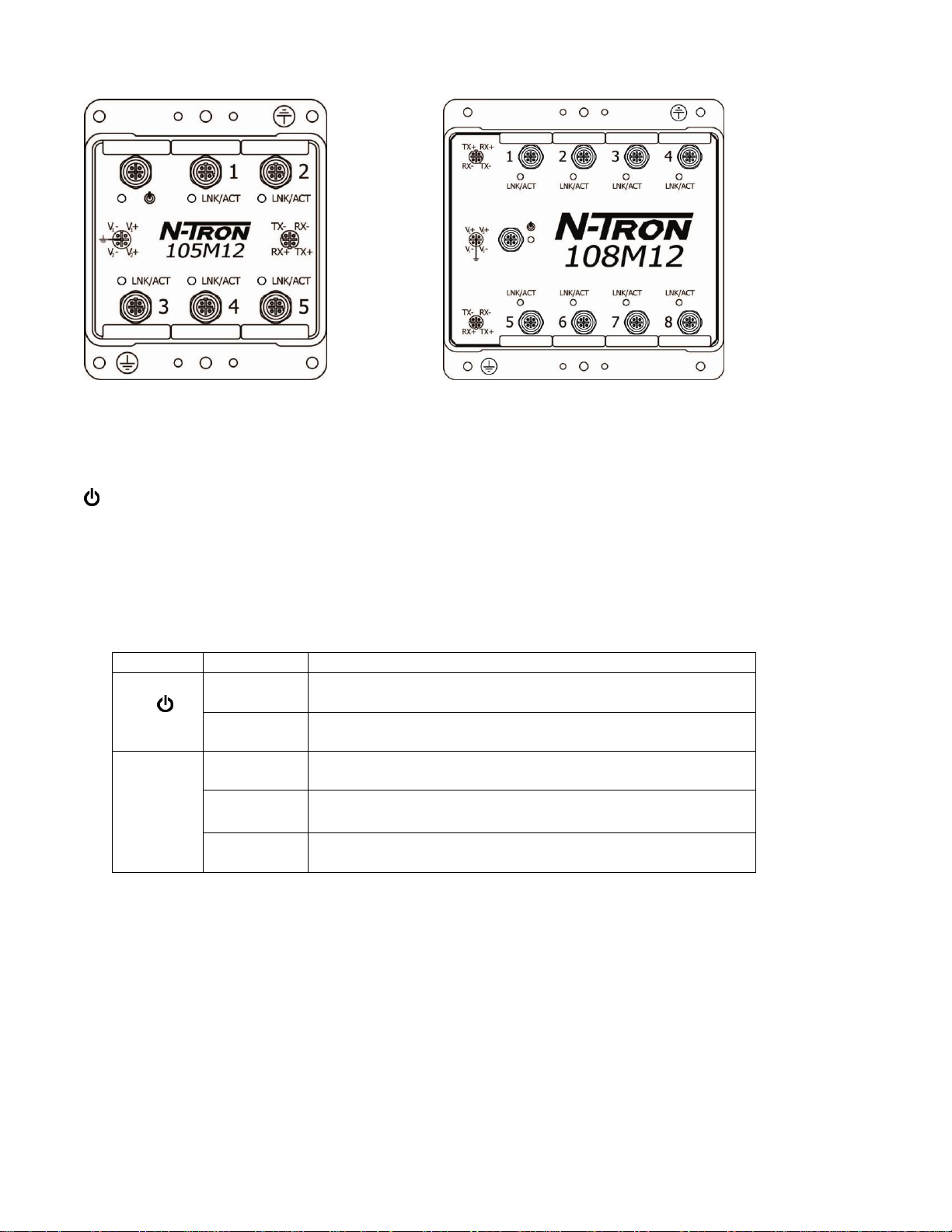

FRONT PANEL

LNK/ACT Link/Activity LED

M12 D-Coded Female Ports All ports are Auto sensing 10/100BaseTX Connections

M12 A-Coded Male Port Redundant Power Input (10-30VDC)

Green LED lights when Power is connected

LED’s: The table below describes the operating modes:

LED

Color

Description

Power is Applied.

OFF

Power is OFF.

LNK/ACT

Link established, no Activity on cable.

BLINKING

Link established, Activity on cable

OFF

No link established

(Revised 2010-11-15)

APPLYING POWER

The M12 A coded power connector is keyed, where the mating connection from the power supply can

be made only when the male and female ends are lined up properly.

When the power is first connected all LED’s will flash ON Momentarily.

Verify the Power LED stays ON (GREEN).

Note: Either V1or V2can be connected to power for minimal operation. For redundant power

operation, V1and V2 must be connected to separate DC Voltage sources. The power cord should be

limited to less than 10 meters in order to ensure optimum performance.

Recommended 24V DC Power Supplies, similar to:

100VAC/240VAC:

N-Tron NTPS-24-1.3, DC 24V/1.3A

(Revised 2010-11-15)

N-TRON 105M12 AND 108M12 GROUNDING TECHNIQUES

Drain wire with lug connecting switch chassis to known grounding point.

CONNECTING THE UNIT

For 10Base-T ports, plug a Category 3 (or greater) twisted pair cable into the M12 connector. For

100Base-T ports, plug a Category 5 (or greater) twisted pair cable into the M12 connector. Connect the

other end to the far end station. Verify that the LNK LED’s are ON once the connection has been

completed. To connect any other port to another Switch or Repeater, use a standard Cat5 straight

through or crossover cable.

Warning: Creating a port to port connection on the same switch (i.e. loop) is an illegal operation and

will create a broadcast storm which will crash the network!

TROUBLESHOOTING

1. Make sure the (Power LED) is ON.

2. Verify that Link LED’s are ON or BLINKING for connected ports.

3. Verify cabling used between stations.

4. Verify that cabling is Category 5 (or greater) for 100Mbit Operation.

SUPPORT

Contact N-TRON Corp. at:

TEL: 251-342-2164

FAX: 251-342-6353

www.n-tron.com

[email protected]
