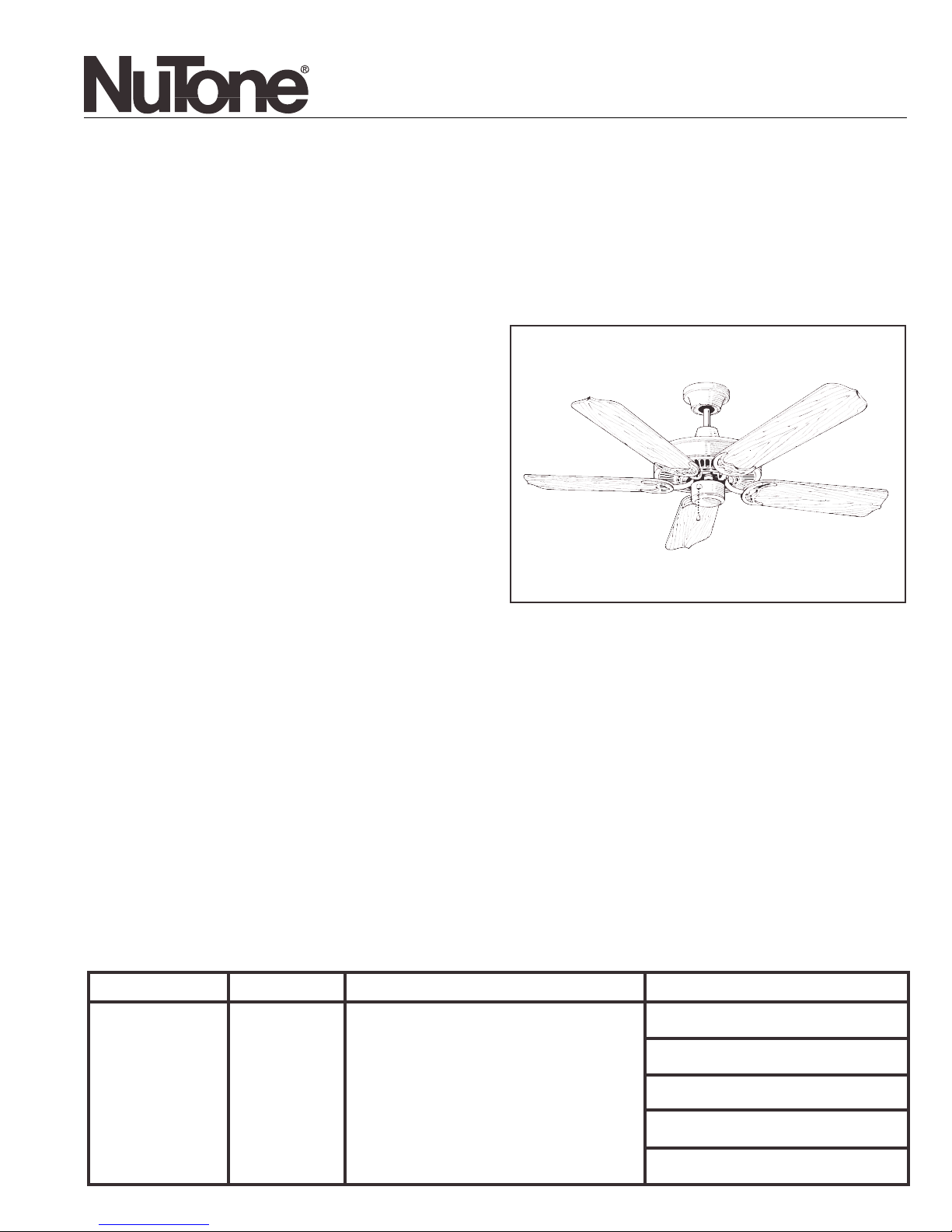

Architectural & Engineering Specifications

August 2001

Weather Resistant

Paddle Fan

MODEL: PFOB-52

DESCRIPTION

• 52" all white paddle fan. Includes five molded plastic

blades and stainless steel hardware.

•Designed for outdoor use; creates a cooling breeze

on patios, decks, porches and balconies.

• Sealed motor with totally enclosed motor case.

•Corrosion resistant components.

•Three-speed reversible with pull chain control.

• Use with downrod (included) or install close

to the ceiling.

•8' minimum ceiling height required.

•Detailed installation instructions included.

DESIGN FEATURES

Air Delivery: 9100 CFM at high speed.

Speed Range: 81-220 RPM.

Electrical Rating: 0.8 amps, 120 volts, 60 Hz.

Motor: Reversible three speed, PSC,

ball bearing.

Material: Blades: White polymeric.

Blade Brackets: Zinc diecast with

white enamel finish.

Assembly Screws: stainless steel.

Miscellaneous: Blade Brackets balanced with

one (1) gram.

Blades balanced within two (2) grams.

Wire lead length: 56"

Blade Sweep: 52". Distance from ceiling to bottom

of blades: 131⁄4".

ARCHITECT'S SPECIFICATIONS

Paddle Fan for outdoor use shall be Model PFOB-52

as manufactured by NuTone according to listed

specifications.

NUTONE, INC. / 4820 RED BANK ROAD, CINCINNATI, OHIO 45227

Product specifications subject to change without notice.

REFERENCE QTY. REMARKS Project

Location

Architect

Engineer

Contractor

Submitted by Date
