Nuvico CB-HD21N-L Bedienungsanleitung

2• Color Bullet Camera

Disclaimer

• While every effort has been made to ensure that the information contained in this guide

is accurate and complete, no liability can be accepted for any errors or omissions.

• NUVICO reserves the right to change the specications of the hardware and software

described herein at any time without prior notice.

• No part of this guide may be reproduced, transmitted, transcribed, stored in a retrieval

system, or translated into any language in any form, by any means, without prior written

permission of NUVICO.

• NUVICO makes no warranties for damages resulting from corrupted or lost data due to a

mistaken operation or malfunction of the cameras, peripheral devices, or unapproved/un

supported devices.

Color Bullet Camera • 3

WARNING!

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT

TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE

VENTILATION GRILLS OR OPENINGS ON THE EQUIPMENT.

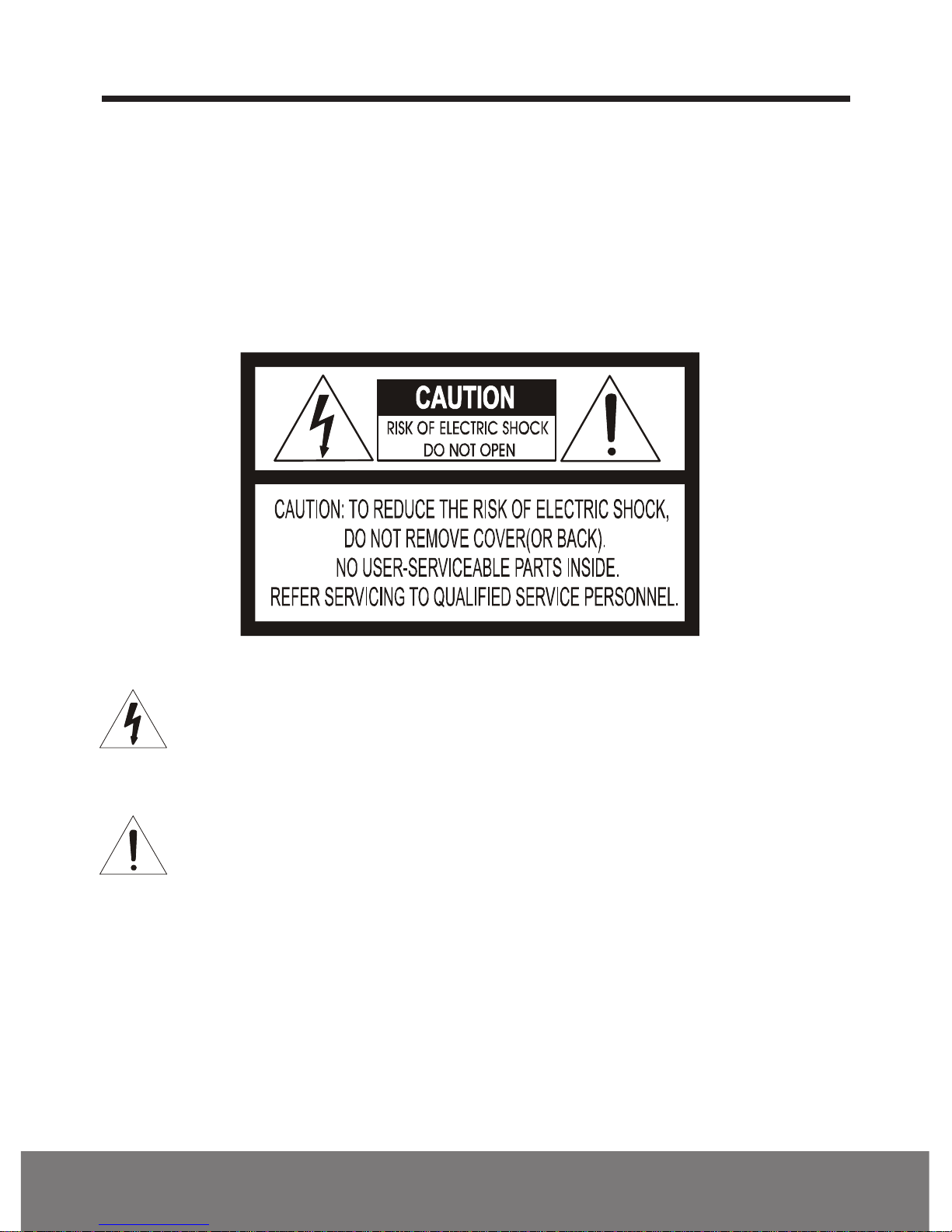

Warning and Caution

The lightning ash with arrowhead symbol, within an equilateral triangle, is intended to

alert the user to the presence of uninsulated “dangerous voltage” within the product’s

enclosure that may be of sufcient magnitude to constitute a risk of electric shock to

persons.

CAUTION!

The exclamation point within an equilateral triangle is intended to alert the user to the

presence of important operating and maintenance (servicing) instruction in the literature

accompanying the product.

4• Color Bullet Camera

Important Safeguards

• Read these instructions.

• Heed all warnings.

• Follow all instructions.

• Do not use this equipment near water.

• Clean only with dry cloth.

• Do not block any ventilation openings. Install in accordance with the manufacturer’s

instructions.

• Do not install near any heat sources such as radiators, heat registers, stoves, or other

equipment (including ampliers) that produce heat.

• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized

plug has two blades with one wider than the other. A grounding type plug has two blades

and a third grounding prong. The wide blade or the third prong is provided for your safety. If

the provided plug does not t into your outlet, consult an electrician for replacement of the

obsolete outlet.

• Protect the power cord from being walked on or pinched, particularly at plugs, conve-

nience receptacles, and the point where they exit from the equipment.

• Only use attachments/accessories specied by the manufacturer.

• Unplug this equipment during lightning storms or when unused for long periods of time.

• Refer all servicing to qualied service personnel. Servicing is required when the equip-

ment has been damaged in any way, such as power-supply cord or plug is damaged,

liquid has been spilled or objects have fallen into the equipment, the equipment has been

exposed to rain or moisture, does not operate normally, or has been dropped.

• CAUTION - THIS MANUAL IS FOR USE BY QUALIFIED SERVICE PERSONNEL ONLY. TO

REDUCE THE RISK OF ELECTRIC SHOCK DO NOT PERFORM ANY SERVICING OTHER THAN

THAT CONTAINED IN THE OPERATING INSTRUCTIONS UNLESS YOU ARE QUALIFIED TO DO

SO.

• Use Certied/Listed Class 2 power supply transformer only.

Color Bullet Camera • 5

Table of Contents

...............................................................................................

..............................................................................

.............................................................................

....................................................................................

...................................................................

................................................................................

...............................................................................

................................................................................

..........................................................................

.....................................................

...........................................

.....................................................

...........................................................

..................................................................................................

...................................................................................

........................................................................

Disclaimer

Warning and Caution

Important Safeguards

Table of Contents

Introduction / Key Features

Content Verication

Parts & Descriptions

Camera Dimensions

Connecting to Monitors

Adjusting the Pan, Tilt and Rotation

Adjusting the Vari-focal DC Auto Iris Lens

Dip Switch Functions and Operation

Dip Switch Menu Control Terms

Technical Specications

A. Switching OFF/ON the IR LEDs

B. FLK

C. BLC

D. White Balance

6• Color Bullet Camera

Introduction

ABOUT THIS MANUAL

Thank you for purchasing our camera.

Before installing and using this camera, please read this manual fully and carefully, and

be sure to keep it handy for later use.

• 1/3” CCD Sensor

• 550 TV Lines (Color), 600 TV Lines (B/W)

• 2.8~10mm DC Auto Iris Lens

• Day/Night Functionality w/ ICR

• 0.1 Lux(Color), 0.00 Lux (B/W, IR LEDs On)

• 36 IR LEDs

• Built-in IR LEDs On/Off Dip Switch

• Dip Switch Menu

• Service Monitor Output

• 12VDC/24VAC Dual Voltage

Key Features

Color Bullet Camera • 7

Content Verication

Before installing the camera, please make sure that all of the following items are

included in the box.

IR LED Bullet CAMERA

1. Bullet Camera

2. Bullet Camera Sun Shield

3. Installation Manual

4. Service Monitor Cable - Model#: CA-SMC30

5. Assembly & Mounting Accessories

• (x1) L-Wrench

• (x3) Philips ST5x26 Mounting Screws

These screws are used to rmly attach the bracket to a wall or ceiling.

• (x1) Bolt

This bolt is used to afx the Sun Shield to the Bullet Camera.

IR LED Bullet Camera Sun Shield Service Monitor Cable

(CA-SMC30)

Assembly & Mounting Accessories

8• Color Bullet Camera

Parts & Descriptions

For longer, more consistant performance, avoid

installation locations prone to direct sunlight.

Bolt

Sun Shield

Front Case

Back Case

Service Monitor Output Cap

Bracket

Power Input (24VAC / 12VDC)

Video Output Connector

24VAC / 12VDC

Color Bullet Camera • 9

Dimensions Unit: Inch (mm)

6.22” (158)

2.95” (75)

3.43” (87)

3.62” (92)

7.13” (181)

4.05” (103)

See the diagrams below for the exact dimensions of the color bullet camera.

10 • Color Bullet Camera

• Power Connection - 12VDC/24VAC Dual Voltage (Auto polarity detection and protection)

• This camera is equipped with a service monitor output on the camera module.

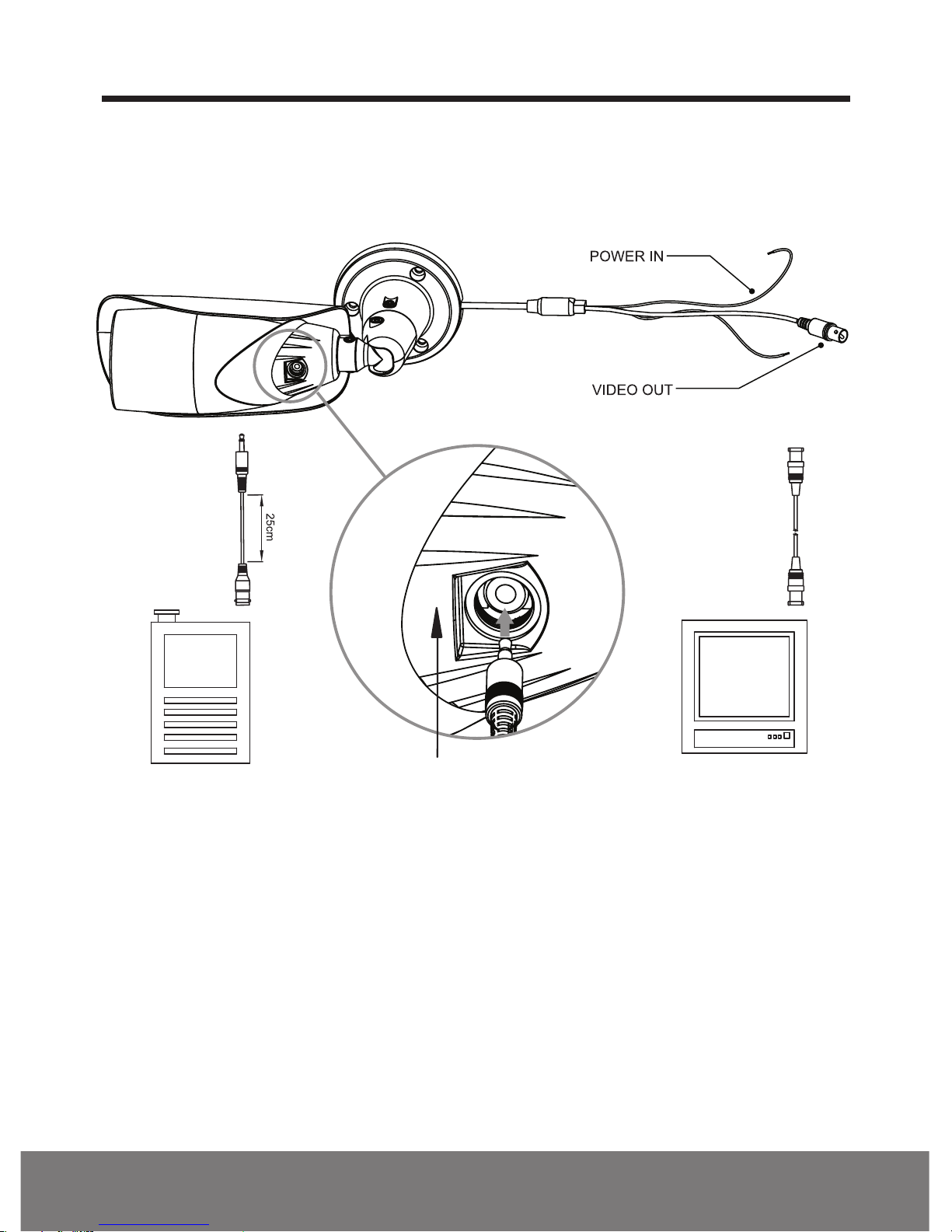

Connecting to Monitors

Follow the diagram below to make proper connections to the CRT Monitor or the Service

Monitor.

SERVICE MONITOR OUTPUTSERVICE MONITOR

(Not Included)

CCTV MONITOR
