NuTiny-SDK-NUC123 User Manual

ARM Cortex™-M0

32-BIT MICROCONTROLLER

Aug. 30, 2012 Revision V1.0

NuTiny-SDK-NUC123 User Manual

for NuMicro™NUC123 Series

The information described in this document is the exclusive intellectual property of

Nuvoton Technology Corporation and shall not be reproduced without permission from Nuvoton.

Nuvoton is providing this document only for reference purposes of NuMicro™microcontroller based system design. Nuvoton

assumes no responsibility for errors or omissions.

All data and specifications are subject to change without notice.

For additional information or questions, please contact: Nuvoton Technology Corporation.

Downloaded from Arrow.com.

NuTiny-SDK-NUC123 User Manual

Aug. 30, 2012 2 Revision V1.0

Table of Contents

1Overview ........................................................................................................3

2Introduction to NuTiny-SDK-NUC123 ......................................................................3

2.1 Jumper Description...............................................................................................4

2.2 Pin Assignment for Extended Connectors.................................................................5

2.3 PCB Placement.....................................................................................................6

3Starting to Use NuTiny-SDK-NUC123 with Keil μVision®IDE..........................................7

3.1 Downloading and Installing Keil uVision®IDE Software..............................................7

3.2 Downloading and Installing Nuvoton Nu-Link Driver ..................................................7

3.3 Hardware Setup ...................................................................................................7

3.4 Smpl_NuTiny-NUC123 Example Program .................................................................8

4Starting to Use NuTiny-SDK-NUC123 with IAR Embedded Workbench .............................9

4.1 Downloading and Installing IAR Embedded Workbench Software ................................9

4.2 Downloading and Installing Nuvoton Nu-Link Driver ..................................................9

4.3 Hardware Setup ...................................................................................................9

4.4 Smpl_NuTiny-NUC123 Example Program ............................................................... 10

5NuTiny-SDK-NUC123 Schematics ....................................................................... 11

5.1 NuTiny-EVB-NUC123 Schematic ...........................................................................11

5.2 Nu-Link-Me Schematic ........................................................................................ 12

6Downloading NuMicro™Related Files from Nuvoton Website ....................................... 13

6.1 Downloading NuMicro™Keil μVision®IDE Driver ..................................................... 13

6.2 Downloading NuMicro™IAR EWARM Driver............................................................. 15

6.3 Downloading NuMicro™NUC123 Series BSP Software Library ...................................17

7Revision History.............................................................................................. 19

Downloaded from Arrow.com.Downloaded from Arrow.com.

NuTiny-SDK-NUC123 User Manual

Aug. 30, 2012 3 Revision V1.0

1Overview

The NuTiny-SDK-NUC123 is a specific development tool for NuMicro™NUC123 series. User can use NuTiny-SDK-

NUC123 to develop and verify the application program easily. The NuTiny-SDK-NUC123 includes two parts: NuTiny-

EVB-NUC123 and Nu-Link-Me. The NuTiny-EVB-NUC123 is the evaluation board and Nu-Link-Me is its Debug Adaptor.

Therefore, user does not need other additional ICE or debug equipment.

2Introduction to NuTiny-SDK-NUC123

The NuTiny-SDK-NUC123 uses the NUC123SD4AN0 as the target microcontroller. Figure 2-1 shows the NuTiny-SDK-

NUC123 for NUC123 series, in which the left portion is called NuTiny-EVB-NUC123 and the right portion is called Nu-

Link-Me.

The NuTiny-EVB-NUC123 is similar to other development boards. User can use it to develop and verify applications to

emulate the real behavior. The on-board chip covers NUC123 series features. The NuTiny-EVB-NUC123 can be a real

system controller to design users’ target systems.

The Nu-Link-Me is a Debug Adaptor, which connects your PC's USB port to your target system (via Serial Wired Debug

port) and allows you to program and debug embedded programs on the target hardware. To use the Nu-Link-Me Debug

Adaptor with IAR or Keil, please refer to the “Nuvoton NuMicro™IAR ICE Driver User Manual“or “Nuvoton NuMicro™Keil

ICE Driver User Manual” for details. The two documents will be stored in the local hard disk when each driver is installed.

Figure 2-1 NuTiny-SDK-NUC123 (Purple PCB Board)

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

NuTiny-SDK-NUC123 User Manual

Aug. 30, 2012 4 Revision V1.0

2.1 Jumper Description

2.1.1 Power Settings

J1: USB port in NuTiny-EVB-NUC123

JP1: VCC voltage connecter in NuTiny-EVB-NUC123

J2: USB port in Nu-Link-Me

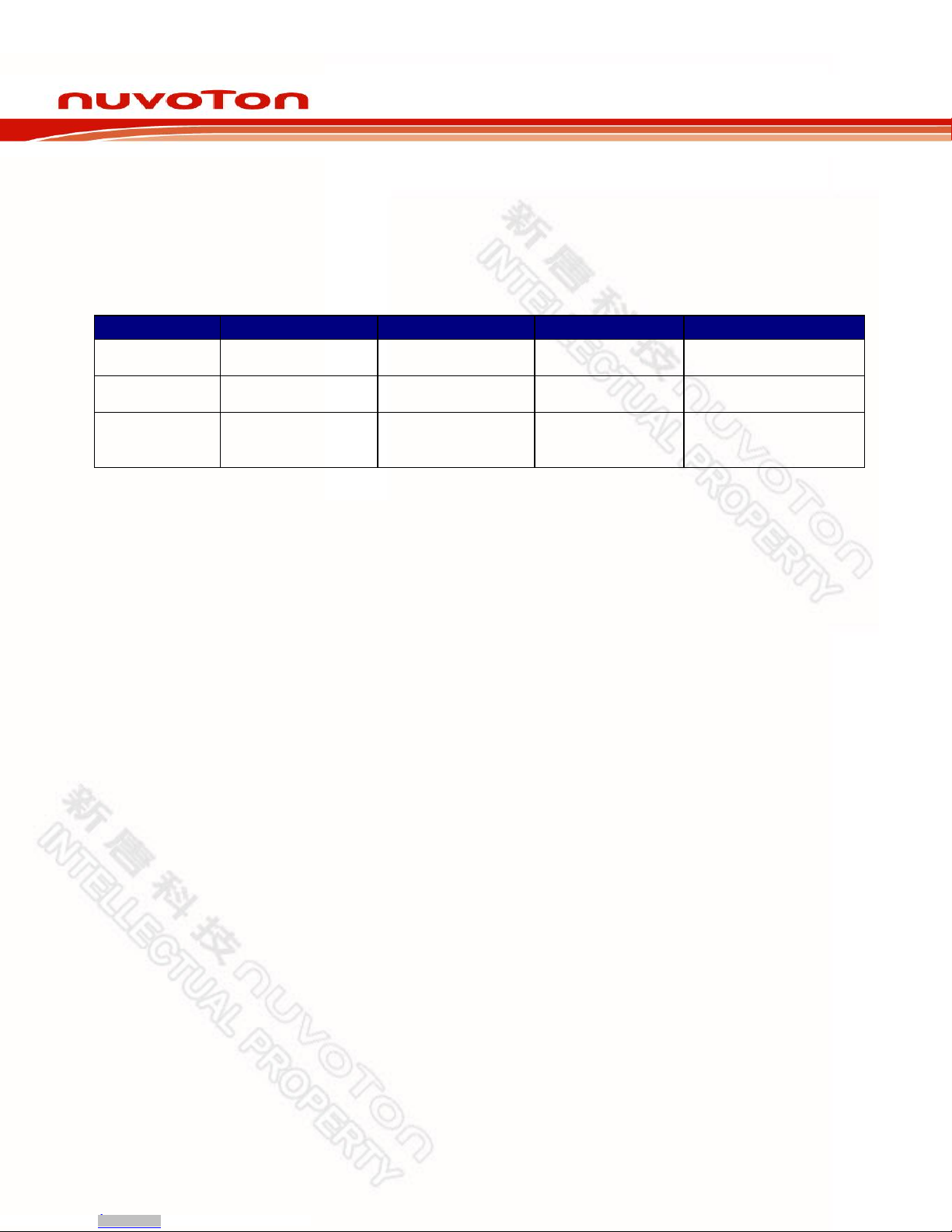

POWER Mode

J2 USB Port

J1 USB Port

JP1 VCC

MCU Voltage

Mode 1

Connected to PC

DC 3.3 V or 5 V

Output [1]

DC 3.3 V or 5 V [1]

Mode 2

Connect to PC

DC 4.8 V or 5 V

Output [2]

DC 4.8 V or 5 V [2]

Mode 3

DC 2.5 V ~ 5.5 V

Input

DC 2.5 V ~ 5.5 V

Decided by JP1VCC

Input

X: Unused.

Note [1]: It depends on the setting (VCC via connecting to 3.3 V or 5 V) at JPR jumper in the Nu-Link-Me.

Note [2]: A diode device (4.8 V) must be put or both pins should be short (5 V) at D1 in the NuTiny-EVB-NUC123.

2.1.2 Debug Connectors

JP3: The connector in the target board (NuTiny-EVB-NUC123) for connecting with Nuvoton ICE adaptor (Nu-

Link or Nu-Link-Me)

JP9: The connector in the ICE adaptor (Nu-Link-Me) for connecting with a target board (e.g. NuTiny-EVB-

NUC123)

2.1.3 USB Connectors

J1: Mini USB connector in NuTiny-EVB-NUC123 for application use

J2: Mini USB connector in Nu-Link-Me connected to a PC USB port

2.1.4 Extended Connectors

JP5, JP6, JP7 and JP8: Show all chip pins in NuTiny-EVB-NUC123

2.1.5 Reset Button

SW1: Reset button in NuTiny-EVB-NUC123

2.1.6 Power Connectors

JP1: VCC connector in NuTiny-EVB-NUC123

JP2: GND connector in NuTiny-EVB-NUC123

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

NuTiny-SDK-NUC123 User Manual

Aug. 30, 2012 5 Revision V1.0

2.2 Pin Assignment for Extended Connectors

The NuTiny-EVB-NUC123 provides the NUC123SD4AN0 target chip on board and the extended connectors (JP5, JP6,

JP7 and JP8) for LQFP 64-pin.

Pin Name

PB.14/

0INT

VBUS

VSS

PD.0/ADC0/

SPISS20/SPISS11

PB.13

VDD33

PC.13/MOSI11/

PWM3/CLKO

PD.1/ADC1/

SPICLK2/SPISS01

PB.12/SPISS10/

CLKO

D-

PC.12/MISO11/

PWM2/I2SMCLK

PD.2/ADC2/

MISO20/MISO01

PA.11/SPICLK1/

MOSI20/I2C1SCL

D+

PC.11/MOSI10

PD.3/ADC3/

MOSI20/MOSI01

PA.10/MISO10/

MISO20/I2C1SDA

PB.0/RXD0

PC.10/MISO10

PD.4/ADC4/

MISO21

PD.8/MOSI10

PB.1/TXD0

VDD

PD.5/ADC5/

MOSI21

PD.9

PB.2/RTS0/

T2EX

PC.9/SPICLK1

PB.15/

1INT

T0EX

PD.10/CLKO

PB.3/CTS0/

T3EX

PC.8/SPISS10

PF.0/XT1_OUT

PD.11/

1INT

PC.5/MOSI01/

TXD0

PA.15/PWM3/

I2SMCLK/CLKO

PF.1/XT1_IN

PB.4/RXD1/

SPISS20/SPISS11

PC.4/MISO01/

RXD0

VSS

/RESET

PB.5/TXD1

SPICLK2

PC.3/MOSI00/

I2SDO

PA.14/PWM2

VSS

PB.6/RTS1

MOSI20

PC.2/MISO00/

I2SDI

PA.13/PWM1

VDD

PB.7/CTS1

MISO20

PC.1/SPICLK0/

I2SBCLK

PA.12/PWM0

PF.2/ADC6/

I2C0SDA/PS2DAT

LDO

PC.0/SPISS00/

I2SLRCLK

ICE_DAT

PF.3/ADC7/

I2C0SCL/PS2CLK

VDD

PB.10/SPISS01/

TM2

ICE_CK

PVSS

VSS

PB.9/SPISS11/

TM1

AVDD

PB.8/TM0

Table 2-1 NUC123SD4AN0 LQFP 64-pin Assignment for Extended Connectors

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

NuTiny-SDK-NUC123 User Manual

Aug. 30, 2012 6 Revision V1.0

2.3 PCB Placement

The following figure shows the NuTiny-SDK-NUC123 PCB placement.

Figure 2-2 NuTiny-SDK-NUC123 PCB Placement

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

NuTiny-SDK-NUC123 User Manual

Aug. 30, 2012 7 Revision V1.0

3Starting to Use NuTiny-SDK-NUC123 with Keil μVision®IDE

3.1 Downloading and Installing Keil uVision®IDE Software

Please visit the Keil company website (http://www.keil.com) to download the Keil μVision®IDE and install the RVMDK.

3.2 Downloading and Installing Nuvoton Nu-Link Driver

Please visit Nuvoton NuMicro™website (http://www.nuvoton.com/NuMicro) to download the “NuMicro™Keil μVision®IDE

driver” file. Please refer to 6.1 Downloading NuMicro™Keil μVision®IDE Driver for the detailed download flow. After the

Nu-Link driver is downloaded, please unzip the file and execute the “Nu-Link_Keil_Driver.exe” to install the driver.

3.3 Hardware Setup

The hardware setup is shown in the following figure.

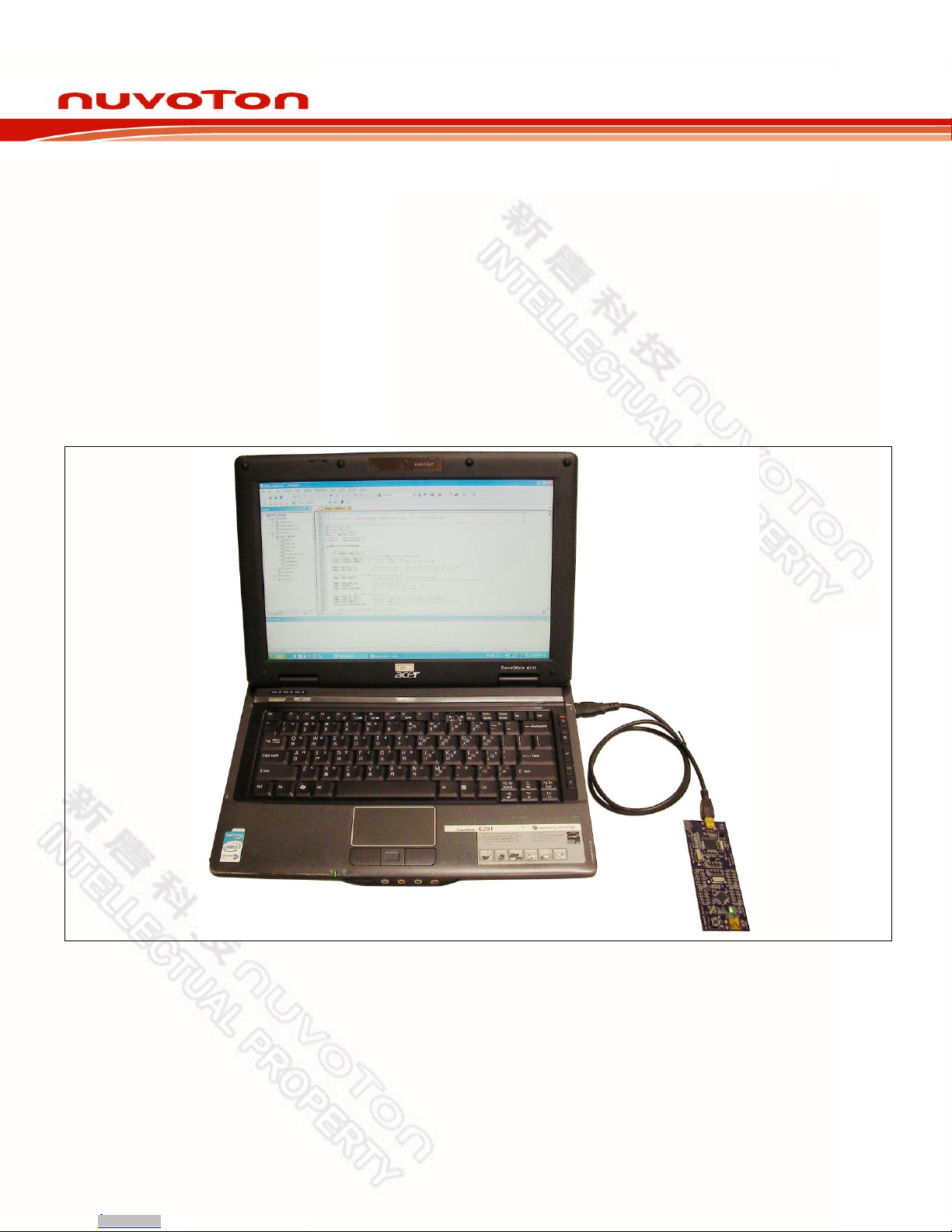

Figure 3-1 NuTiny-SDK-NUC123 Hardware Setup
