O.S. engine MAX-12CV-R Einrichtungshandbuch

It is of vital importance, before attempting to

operate your engine, to read the general

'SAFETY INSTRUCTIONS AND WARNINGS'

section on pages 2-5 of this booklet and to strictly

adhere to the advice contained therein.

•Also, please study the entire contents of this

instruction manual, so as to familiarize yourself

with the controls and other features of the

engine.

Keep these instructions in a safe place so that

you may readily refer to them whenever

necessary.

It is suggested that any instructions supplied

with the vehicle, radio control equipment, etc.,

are accessible for checking at the same time.

•

CONTENTS

SAFETY INSTRUCTIONS AND

WARNINGS ABOUT YOUR O.S. ENGINE

INTRODUCTION, BASIC ENGINE PARTS

INSTALLATION

AIR CLEANER

NOTES CONCERNING THE RECOIL STARTER

GLOWPLUG

TOOLS, ACCESSORIES, etc.

CARBURETTOR CONTROLS

PRESSURIZED FUEL SYSTEM

STARTING THE ENGINE &

RUNNING-IN('Breaking-in)

FINALADJUSTMENT

CARBURETTOR CLEANLINESS

CARE AND MAINTENANCE

O.S. GENUINE PARTS &

ACCESSORIES

ENGINES EXPLODED VIEW &

PARTS LIST

CARBURETTOR EXPLODED VIEW &

PARTS LIST

THREE VIEW DRAWING

IF THE ENGINE FAILS TO START

517

Remember that your engine is not a "toy", but a highly efficient internal-

combustion machine whose power is capable of harming you, or others, if it is

misused.

As owner, you, alone, are responsible for the safe operation of your engine, so act

with discretion and care at all times.

If at some future date, your O.S. engine is acquired by another person, we would

respectfully request that these instructions are also passed on to its new owner.

SAFETY INSTRUCTIONS AND WARNINGS ABOUT YOUR O.S. ENGINE

The advice which follows applies basically to ALL MODEL ENGINES and is

grouped under two headings according to the degree of damage or danger

which might arise through misuse or neglect.

WARNINGS NOTES

These cover events which

might involve serious (in

extreme circumstances, even

fatal) injury.

These cover the many other

possibilities, generally less obvious

sources of danger, but which, under

certain circumstances, may also

cause damage or injury.

WARNINGS

Model engine fuel is poi-

sonous. Do not allow it to

come into contact with the

eyes or mouth. Always

store it in a clearly marked

container and out of the

reach of children.

Model engine fuel is also

highly flammable. Keep it

away from open flame,

excessive heat, sources of

sparks, or anything else

whichmightigniteit.Donot

smokeorallowanyoneelse

to smoke, near to it.

Never operate your engine in an en-

closed space. Model engines, like

automobile engines, exhaust deadly

carbon-monoxide. Run your engine

only in an open area.

Model engines generate

considerable heat. Do not

touch any part of your

engine until it has cooled.

Contact with the muffler

(silencer), cylinder head

or exhaust header pipe, in

particular, may result in a

serious burn.

••

•

This engine is intended for model cars.

Do not attempt to use it for any other

purpose.

Mount the engine in your model

securely, following the manufacturers'

recommendations, using appropriate

screws and locknuts.

Fit an effective silencer (muffler).

Frequent close exposure to a noisy

exhaust (especially in the case of the

more powerful highspeed engines)

may eventually impair your hearing

and such noise is also likely to cause

annoyance to others over a wide area.

The wearing of safety glasses is also

strongly recommended.

Take care that the glowplug clip or

battery leads do not come into contact

with rotating parts. Also check that the

linkage to the throttle arm is secure.

For their safety, keep all onlookers

(especially small children) well back

(at least 20 feet or 6 meters) when

preparing your model for running.

NOTES

•

NOTES

To stop the engine, fully retard the

throttle stick and trim lever on the

trans-mitter, or, in an emergency, cut

off the fuel supply by pinching the fuel

delivery line from the tank.

•

Warning! Immediately after a glowplug-

ignition engine has been run and is still

warm, conditions sometimes exist

whereby it is just possible for the engine

to abruptly restart if it is rotated over

compression WITHOUT the glowplug

battery being reconnected.

•

Do not attempt to disassemble the

recoil starter of the 12CV-RX.

If you do so, the very strong spring

inside will be suddenly ejected. This

can be very dangerous.

Do not extend the starter cord more

than 45cm (18"). Do not abruptly

release the operating handle. Allow

the cord to rewind smoothly while

still holding the handle.

•

Pull the operating handle straight out

when starting the engine, so that the

cord does not rub against the vehicle

body or engine. This will help prevent

the cord from being damaged by

abrasion or engine heat.

•

INSTALLING THE GLOWPLUG

Carburettor

NOTE:

With this engine, the piston will feel tught at

the top of its stroke when the engine is cold.

This is normal. The piston and cylinder are

designed to achieve a perfect running

clearance when they reach their normal

running temperatures.

Install washer on glowplug

and insert carefully into

cylinder-head, making sure

that it is not cross-threaded

before tightening firmly.

BASIC ENGINE PARTS

The MAX-12CV-R and MAX-12CV-RX are

high-perfomance engines for 1/10 class

R/Cracing cars.There aretwoverions,the

one with 10E-R carburettor and the other

with 10C carburettor. The MAX-12CV-R

has a conventional crankshaft, while the

MAX-12CV-R(P) employs a special

crankshaft with integral pilot shaft.

Crankshaft

Glow plug

Washer

Drive Hub Crankcase

Beam Mount Recoil Starter

Assembly No.5

Heatsink Heat

Starter Handle

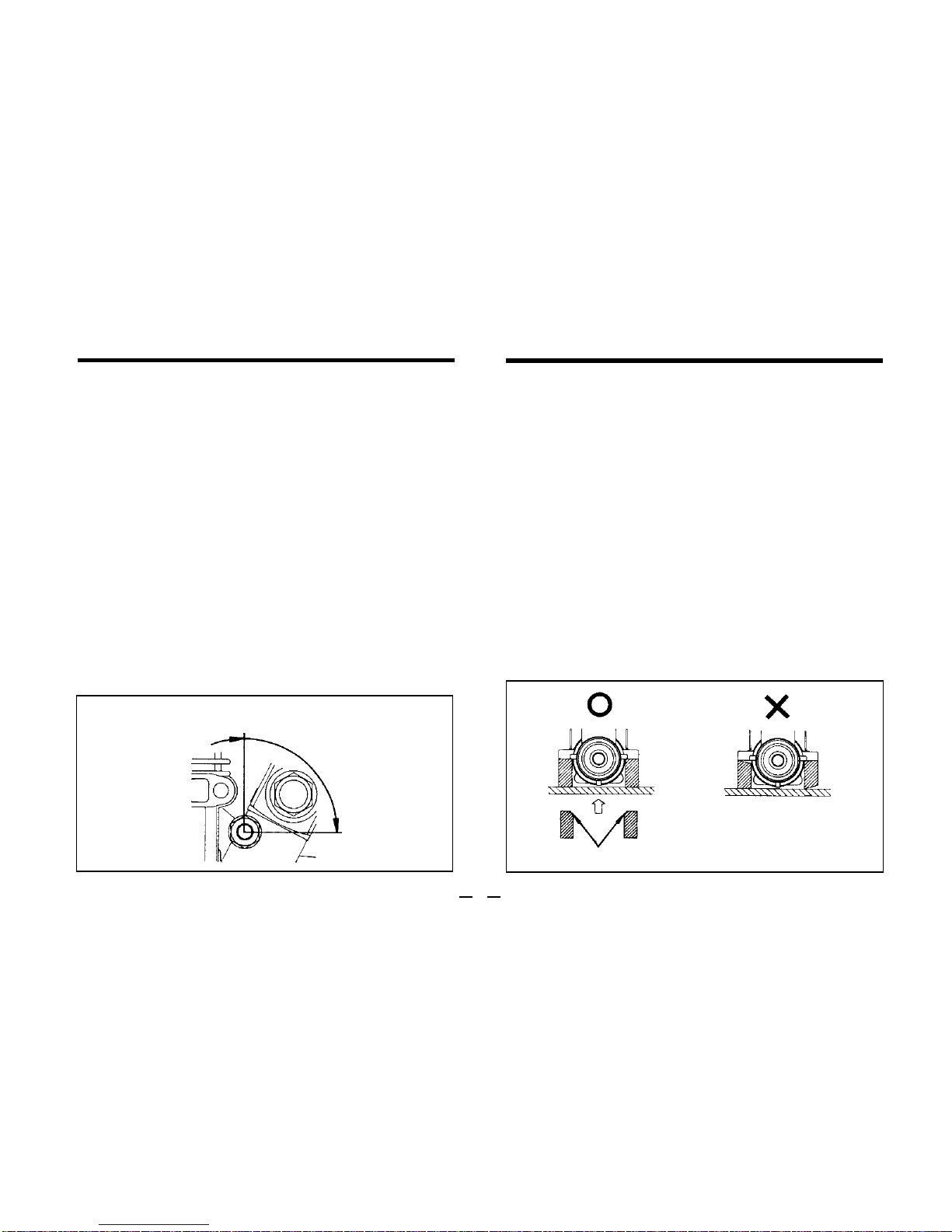

ENGINE INSTALLATION

Make sure that the vehicle's engine mounting

surfaces are level and in the same plane. Poor

installation may cause distortion of the

crankcase, bearings, etc., resulting in erratic

running and loss of performance.

The recommended screws for securing the

engine are 3mm or 4-40 steel Allen hexagon

socket type.

If existing holes in the engine mount do not align

perfectly with engine mounting lugs, enlarge

them slightly with a needle-file so that screws

enter vertically.

Chassis

Chamfer inside edges of bearers.

INSTALLATION OF THE CARBURETTOR

As delivered, the engine has its carburettor

lightly fit into the intake boss. Secure it as

follows.

Loosen the retainer screw, rotate the

carburettor to its correct position and make

sure that it is pressed well down into the

intake boss, compressing the rubber gasket,

before retightening screw.

Rotate the retainer screw gently until it

stops, then tighten a further 60-90˚.

Do not overtighten the screw as this will

damage the carburettor body.

Rotate the retainer nut

gently until it stops. Tighten a further 60-90˚

NOTE:

Where spacers are supplied joined in pairs

(see sketch) separate them as shown.

Either face may be placed downwards.

Avoid forcing the screws. Secure with locknuts.

If the bottom of the recoil starter housing would

otherwise touch the car chassis, fit the engine

mount spacers (supplied) between the engine's

mounting lugs and the engine mount. Use the

M3x15 screws provided. With some vehicles, it

may be necessary to make minor trimming

modifications to chassis or body when fitting the

engine.

Mount Spacer

Engine Mount Spacer

Separate

Engine Mount

This is a heavy-duty wet type air cleaner that has

been developed specifically for the O.S. MAX-CV

series model car engines.

It contains specially impregnated filter elements which

prevent highly damaging dust and dirt from being

drawn into the engine through the carburettor, yet

allow engine performance to be maintained for longer

periods between element renewals. The Type 102 air

cleaner has a special rubber body which facilitates

easy yet secure fitting, with positive sealing at the

carburettor air intake.

AIR CLEANER TYPE 102

INSTALLATION OF AIR CLEANER

Carefully clean the carburettor,

removing any old adhesive or

sealant that may have been

previously used on the outside

of the air intake.

•

Press the air cleaner body firmly

over the carburettor air intake. Make sure that the

outer rim of the air intake engages the internal

annular groove in the air cleaner: failure to do so

may result in the air cleaner falling off. See sketch,

right.

•

Always remove contaminated elements carefully, to

ensure that dirt cannot enter the carburettor.

AIR CLEANER TYPE 102S

INSTALLATION OF AIR CLEANER

Carefully clean the carburettor,

removing any old adhesive or

sealant that may have been

previously used on the outside

of the air intake.

•

Press the air cleaner body firmly

over the carburettor air intake. Make sure that the

outer rim of the air intake engages the internal

annular groove in the air cleaner: failure to do so

may result in the air cleaner falling off.

•

It has a single filter element and is intended primarily

for circuit racing, where conditions are less damaging

thantheverydusty,loosesurfacesofoff-roadoperation

for which the double-element Type 101 and 102 Air

Cleaners are recommended.

The lower height of the Super Air-Cleaner 102S also

facilitates easier installation in cars where available

space may be restricted.

Position the air cleaner correctly, so that it does not

foul the cylinder-head or obstruct the needle-valve.

•

AIR CLEANER ELEMENTS

•

Lower Filter

Element Upper Filter

Element

Insert beneath flanges.

Replacement elements

arealreadyimpregnated

withfilteroil.Asthis oilis

very sticky, take cere,

whenhandlingelements

to prevent dust or dirt

from adhering them. If

your fingers become

contaminated, wash them with soap and water.

During storage, the oil may have become unevenly

dispersedthrough theelements. Thiswillbeindicated

ifthebluecoloroftheelementmaterialappearspatchy.

In this case, place the elements in a small plastic bag

and gently rub them between finger and thumb to

redistribute the oil.

REPLACEMENT OF ELEMENTS

It is advisable to replace the upper filter element with

a new one after not more than one hour of running

time. It is not necessary to discard the lower element

so frequently, but be sure to change it when it

becomes soiled.

•

Andere Handbücher für MAX-12CV-R

Inhaltsverzeichnis

Andere O.S. engine Motor Handbücher

O.S. engine

O.S. engine MAX-21VZ-R Einrichtungshandbuch

O.S. engine

O.S. engine O.S.MOTOR OMA-2820-950 Einrichtungshandbuch

O.S. engine

O.S. engine MAX-61SX-H RING WC Series Einrichtungshandbuch

O.S. engine

O.S. engine MAX-46FX-Hring Series Einrichtungshandbuch

O.S. engine

O.S. engine Max-50SX-H Ring Einrichtungshandbuch

O.S. engine

O.S. engine MAX-37SZ-H RING Einrichtungshandbuch

O.S. engine

O.S. engine O.S. Motor OMH-5825-520 Einrichtungshandbuch

O.S. engine

O.S. engine max-18tz series Einrichtungshandbuch

O.S. engine

O.S. engine MAX-15CV-R Series Einrichtungshandbuch

O.S. engine

O.S. engine GF40 Einrichtungshandbuch

O.S. engine

O.S. engine OMA-2820-950 Einrichtungshandbuch

O.S. engine

O.S. engine MAX-90FSR Bedienungsanleitung

O.S. engine

O.S. engine FS-70S Bedienungsanleitung

O.S. engine

O.S. engine Sirius 7 Bedienungsanleitung

O.S. engine

O.S. engine FSA-72 Einrichtungshandbuch

O.S. engine

O.S. engine GT15HZ600 Einrichtungshandbuch

O.S. engine

O.S. engine GT15HZ600 Einrichtungshandbuch

O.S. engine

O.S. engine MAX-55HZ HYPER Einrichtungshandbuch

O.S. engine

O.S. engine GT120T Bedienungsanleitung

O.S. engine

O.S. engine max 21 RZ-M Bedienungsanleitung

O.S. engine

O.S. engine MAX-32SX-H Series Einrichtungshandbuch

O.S. engine

O.S. engine FS-70S Bedienungsanleitung

O.S. engine

O.S. engine FS-120S-E Bedienungsanleitung

O.S. engine

O.S. engine 49-PI II Bedienungsanleitung

Beliebte Motor Handbücher anderer Marken

Rotax

Rotax 125 senior MAX evo Bedienungsanleitung

Kohler

Kohler K361 Bedienungsanleitung

MTD

MTD OHV Series Bedienungsanleitung

Kohler

Kohler COMMAND CH18-745 Bedienungsanleitung

Mercury

Mercury D4.2L D-Tronic Bedienungsanleitung

Selve

Selve SE Plus-RC Series Bedienungsanleitung

Perkins

Perkins 1206E-E66TA Bedienungsanleitung

Skov

Skov DA 174 Handbuch

Rossi

Rossi TX11 Series Bedienungsanleitung

Siemens

Siemens SIMOTICS T-1FW3 Merkblatt

AL-KO

AL-KO PRO 350 Bedienungsanleitung

MTU

MTU 12 V 4000 Lx4 Bedienungsanleitung

Nanni

Nanni N3.30 Gebrauchsanweisung

Nanni

Nanni N5.160 CR2 Bedienungsanleitung

KSB

KSB SuPreme Series Montageanleitung

Hiwin

Hiwin EM1 Series Bedienungsanleitung

Rotax

Rotax 912 i series Betriebsanleitung

Siemens

Siemens SIMOTICS XP 1MB1 Bedienungsanleitung
