O.S. engine MAX-32SX-H Series Einrichtungshandbuch

It is of vital importance, before attempting to

operate your engine, to read the general

'SAFETY INSTRUCTIONS AND WARNINGS'

section on pages 2-5 of this booklet and to strictly

adhere to the advice contained therein.

•Also, please study the entire contents of this

instruction manual, so as to familiarize yourself

with the controls and other features of the

engine.

Keep these instructions in a safe place so that

you may readily refer to them whenever

necessary.

It is suggested that any instructions supplied

with the model, radio control equipment, etc.,

are accessible for checking at the same time.

•

CONTENTS

SAFETY INSTRUCTIONSAND WARNINGS

ABOUT YOUR O.S. ENGINE

INTRODUCTION

BASIC ENGINE PARTS,

INSTALLATION

NOTES CONCERNING

THE RECOIL STARTER

BEFORE STARTING

FACTS ABOUT GLOW PLUGS

FUEL

CARBURETOR CONTROLS

STARTING

RUNNING-IN,ADJUSTMENT

SUBSEQUENT READJUSTMENTS

CARBURETOR CLEANLINESS

ADJUSTING CHART

INSTALLATION OF THROTTLE SERVO

CARE AND MAINTENANCE

ENGINE EXPLODED VIEW &

PARTS LIST

CARBURETOR EXPLODED

VIEW & PARTS LIST

THREE VIEW DRAWING

O.S. GENUINE PARTS & ACCESSORIES

Remember that your engine is not a "toy", but a highly efficient internal-

combustion machine whose power is capable of harming you, or others, if it is

misused.

As owner, you, alone, are responsible for the safe operation of your engine, so act

with discretion and care at all times.

If at some future date, your O.S. engine is acquired by another person, we would

respectfully request that these instructions are also passed on to its new owner.

SAFETY INSTRUCTIONS AND WARNINGS ABOUT YOUR O.S. ENGINE

The advice which follows is grouped under two headings according to the

degree of damage or danger which might arise through misuse or neglect.

WARNINGS NOTES

These cover events which

might involve serious (in

extreme circumstances, even

fatal) injury.

These cover the many other

possibilities, generally less obvious

sources of danger, but which, under

certain circumstances, may also

cause damage or injury.

WARNINGS

••

•

Never touch, or allow any

object to come into contact

with, the rotating parts.

Model engine fuel is poison-

ous. Do not allow it to come

into contact with the eyes or

mouth. Always store it in a

clearly marked container and

out of the reach of children.

Model engine fuel is also

highly flammable. Keep it

away from open flame,

excessive heat, sources of

sparks,oranythingelsewhich

might ignite it. Do not smoke

orallowanyoneelsetosmoke,

near to it.

Model engines generate

considerable heat. Do not

touch any part of your

engine until it has cooled.

Contact with the muffler

(silencer), cylinder head or

exhaust header pipe, in

particular, may result in a

serious burn.

Never operate your engine in an en-

closed space. Model engines, like auto-

mobile engines, exhaust deadly carbon-

monoxide. Run your engine only in an

open area.

NOTES

•

These engine were designed for model

helicopters. Do not attempt to use it for any

other purpose.

Mount the engine in your model securely, fol-

lowing the manufacturers' recommendations,

using appropriate screws and locknuts.

Install an effective silencer (muffler). Frequent

close exposure to a noisy exhaust (especially

in the case of the more powerful high-speed

engines) may eventually impair your hearing

and such noise is also likely to cause

annoyance to others over a wide area.

Check the linkage to the throttle arm before

each flight.

Avoid sudden high r.p.m. immediately after the

engine is started, as the clutch will engage and

you may be struck by the rotor.

•

After starting the engine, carry out any needle-

valve readjustments after stopping the rotor by

closing the throttle to the lowest r.p.m..

Stop the engine before attempting to make

other adjustments to the carburettor.

Use an electric starter. The wearing of safety

glasses is also strongly recommended.

Press the rotor head down securely.

Take care that the glow plug clip or battery

leads do not come into contact with rotating

parts.

Adjust the throttle linkage so that the engine

stops when the throttle stick and trim lever on

the transmitter are fully retarded. Alternatively,

the engine may be stopped by cutting off the

fuel supply. Never try to stop the engine

physically.

•

NOTES

•

Take care that loose clothing (ties, shirt sleeves,

scarves etc.) do not come into contact with the

rotor. Do not carry loose objects (such as pen-

cils, screwdrivers, etc.) in a shirt pocket from

where they could fall through the rotor disc.

For their safety, keep all onlookers (especially

small children) well back (at least 20 feet or 6

metres) when preparing your model for flight. If

you have to carry the model to the take-off point

with the engine running, be especially cautious.

Hold the rotor securely and keep well clear of

spectators.

Warning! lmmediately after a glowplug-ignition

engine has been run and is still warm,

conditions sometimes exist whereby it is just

possible for the engine to restart when turned

over WITHOUT the glowplug battery being

reconnected. Remember this if you wish to

avoid the risk of accidents.

Do not attempt to disassemble the recoil

starter (if fitted). If you do so, the very strong

spring inside will be suddenly ejected. This can

be very dangerous.

Do not extend the starter cord more than 45cm

(18"). Do not abruptly release the operating

handle. Allow the cord to rewind smoothly

while still holding the handle.

Pull the operating handle straight out when

stating the engine, so that the cord does not

rub against the helicopter structure or engine.

This will help prevent the cord from being

damaged by abrasion or engine heat.

Because of this initial tightness, a standard

electric starter may have difficulty in rotating

the engine when cold, before it has been

adequately run-in. In this case, use a high-

torque type starter. DO NOT,however, confuse

tightness with the symptoms of hydraulic lock

caused by an excess of fuel within the cylinder

- often the result of over-priming.

Attempting to force the engine to turn over in

this condition may cause internal damage.

Instead, remove the glowplug,invert the

engine and eject surplus fuel from the

combustion-chamber.

Note:

These engines are produced by the world's

oldest and largest model engine

manufacturing company ; a company that

has designed and manufactured all types of

engines, large and small : two-stroke, four-

stroke, Wankel-rotary, supercharged, twin

nand multi-cylinder four-strokes and has

also produced more helicopter units than

any other maker worldwide.

Highperformance motors, designed for

small-sized radio-controlled helicopters,

the MAX-32SX-H Series is available in a

choice of three versions. The standard

32SX-H features ABC cylinder/piston

construction, whereas the 32SX-H Ring

employs a compression-ring equipped

piston, while the 32SX-HX Ring has the

addition of an O.S. Recoil Starting System

to eliminate the need for a separate electric

starter and battery.

INTRODUCTION The close-fitting ringless piston of the

standard 32SX-H will feel tight at the top of

its stroke when the engine is cold.

This is normal. The piston and cylinder are

designed to achieve a perfect running

clearance when they reach their normal

running temperature.

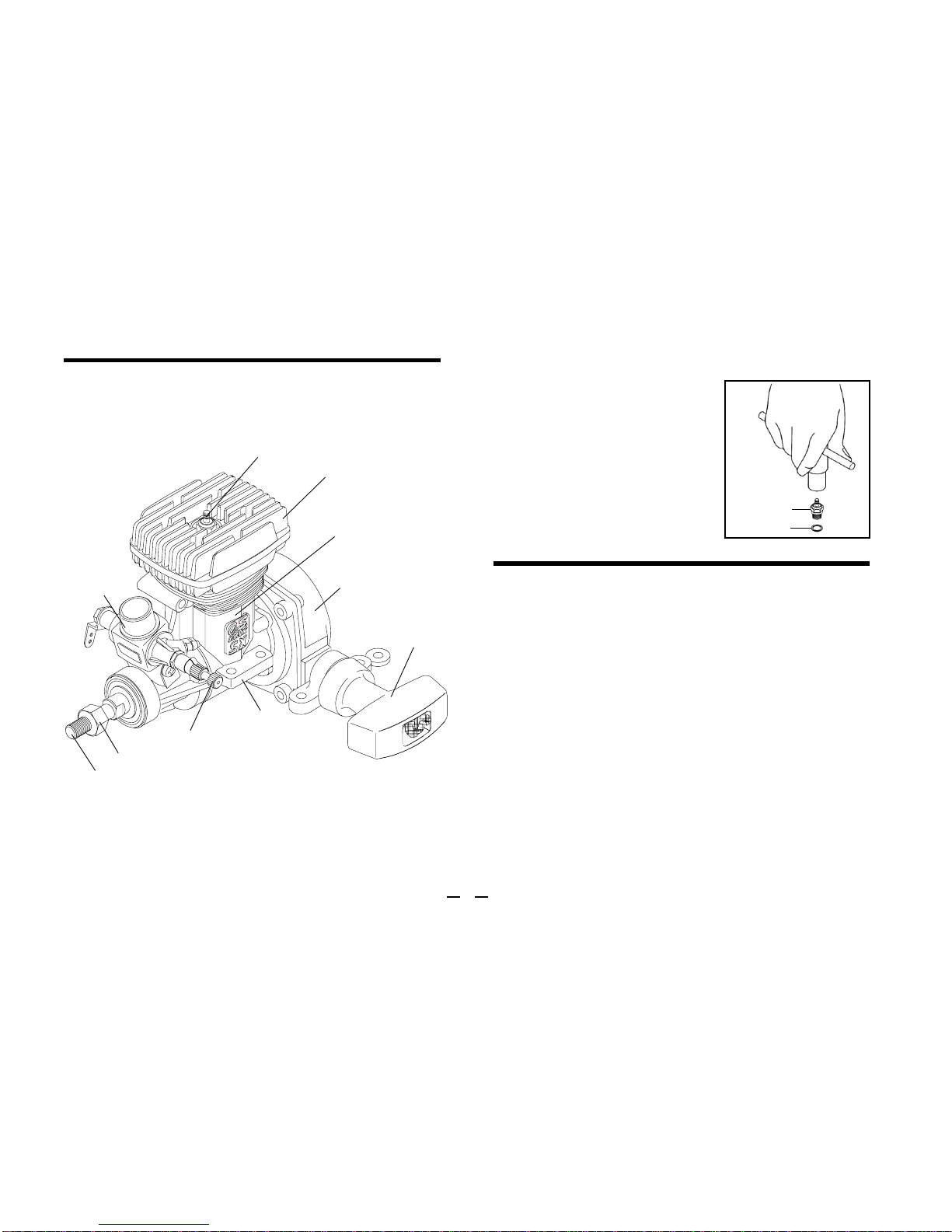

BASIC ENGINE PARTS

Heatsink Head

Carburetor

Typr 20C

Crankshaft

Propeller nut

Crankcase

Needle valve

Glowplug

Beam Mount

Recoil Starter

Assembly No.O

MAX-32SX-HX

Starter Handle

INSTALLING THE GLOWPLUG

Install washer on glowplug

and insert carefully into

cylinder-head, making sure

that it is not cross-threaded

before tightening firmly. Glow plug

Washer

INSTALLATION

The under-surfaces of all O.S. engine beam

mounting lugs are precision machined flat and

exactyly parallel to the engine's horizontal axis. It is

essential that the engine mounts in the model are

also accurately made and aligned. If they are not,

they will cause stress and distortion within the engine

itself, probably resulting in loss of performance and

internal damage.

The recommended screws for securing the engine to

the engine mounts in the model are 3mm or 4-40

steel Allen type. It is also advisable to use lock

washers or LOCTITE to prevent nuts from loosening.

As the recoil starter is of unit construction, re-

placement parts are not available. Replace-

ment recoil starters are obtainable only as

complete units.

Do not pull the starter cord more than 50cm (20

in.). Do not abruptly release the starter knob.

Allow the cord to rewind slowly by holding on

to the knob.

Pull the knob straight so that the cord does not

touch the helicopter body, etc.

Warning!

Note:

Do not attempt to disassemble the recoil starter:

the very strong spring inside will spring out,

which is very dangerous.

Front view

CORRECT

Side view

Top surfaces are in the same plane.

Re-align the surfaces as necessary

INCORRECT

Top surfaces are not

in the same plane. Top surfaces are not in the

same plane.

Engine does not rest firmly.

BEFORE STARTING

Tools, accessories, etc.

The following items are necessary for operating the

engine.

1 Fuel

Model glowplug engine fuel of good quality, preferably

containing a small percentage of nitromethane.

2 Glowplug

O.S. A3 glowplug is installed in the engine.

NOTES CONCERNING THE RECOIL STARTER

( 32SX-HX ONLY)

3 Glowplug battery

The power source for heating the glowplug may be

either a large heavy-duty 1.5volt dry cell, or preferably,

a 2-volt rechargeable lead-acid cell.

1.5 volt heavy-duty

dry battery or 2 volt rechargeable

lead-acid cell (at least 5Ah)

If a 2-volt cell is employed,

use a resistance wire, as

shown, to reduce applied

voltage, otherwise element

will overheat and burn out.

Resistance coil

(nichrome wire)

Adjust applied voltage by changing the position of clip on

resistance coil until glowplug element is glowing bright red.

Battery leads

Raise

voltage to

increase

brightness.

Lower voltage to

reduce brightness.

Warning (Very hot)

Never touch the nichrome wire while the battery is

connected.

4 Plug wrench

Used for tightening glowplug. The

O.S. long plug wrench is available

as an optional accessory.

5 Battery leads

These are used to conduct current

from the battery to the glowplug.

Basically, two leads, with clips, are

required, but, for greater conve-

nience, twin leads with special

glowplug connectors, as shown on

the right, are commercially

available.

6 Fuel bottle or pump

For filling the fuel tank, a simple,

polyethylene"squeeze"bottle,with

a suitable spout,is all that is

required. Alternatively, one of the

purpose-made manual or electric

fuelpumpsmaybeusedto transfer

fuel directly from your fuel

container to the fuel tank.

For tightening

glowplug

Fuel bulb

Battery leads

Manual

Electric

Fuel pumps

Inhaltsverzeichnis

Andere O.S. engine Motor Handbücher

O.S. engine

O.S. engine Max-50SX-H Ring Einrichtungshandbuch

O.S. engine

O.S. engine MAX-12CV-R Einrichtungshandbuch

O.S. engine

O.S. engine Alpha Series Einrichtungshandbuch

O.S. engine

O.S. engine FSA-81-P Einrichtungshandbuch

O.S. engine

O.S. engine FS-52S Einrichtungshandbuch

O.S. engine

O.S. engine MAX-21XM Einrichtungshandbuch

O.S. engine

O.S. engine MaX-37SZ-HRING Einrichtungshandbuch

O.S. engine

O.S. engine MAX-15CV-R Series Einrichtungshandbuch

O.S. engine

O.S. engine GGT15 Einrichtungshandbuch

O.S. engine

O.S. engine FS-40S Einrichtungshandbuch

O.S. engine

O.S. engine OMA-2820-950 Einrichtungshandbuch

O.S. engine

O.S. engine GT15HZ600 Einrichtungshandbuch

O.S. engine

O.S. engine MAX-15CV Series Einrichtungshandbuch

O.S. engine

O.S. engine FL-70 Einrichtungshandbuch

O.S. engine

O.S. engine GT15 Einrichtungshandbuch

O.S. engine

O.S. engine FS-70S Bedienungsanleitung

O.S. engine

O.S. engine GT120T Bedienungsanleitung

O.S. engine

O.S. engine FSa-155-P Einrichtungshandbuch

O.S. engine

O.S. engine MaX-37SZ-HRING Bedienungsanleitung

O.S. engine

O.S. engine MAX-15LA-S Bedienungsanleitung

O.S. engine

O.S. engine GF40U-FI Bedienungsanleitung

O.S. engine

O.S. engine MAX-25XZ Bedienungsanleitung

O.S. engine

O.S. engine OMA-3825-750-W Einrichtungshandbuch

O.S. engine

O.S. engine MAX-21RG Series Einrichtungshandbuch

Beliebte Motor Handbücher anderer Marken

Rotax

Rotax 125 senior MAX evo Bedienungsanleitung

Kohler

Kohler K361 Bedienungsanleitung

MTD

MTD OHV Series Bedienungsanleitung

Kohler

Kohler COMMAND CH18-745 Bedienungsanleitung

Mercury

Mercury D4.2L D-Tronic Bedienungsanleitung

Selve

Selve SE Plus-RC Series Bedienungsanleitung

Perkins

Perkins 1206E-E66TA Bedienungsanleitung

Skov

Skov DA 174 Handbuch

Rossi

Rossi TX11 Series Bedienungsanleitung

Siemens

Siemens SIMOTICS T-1FW3 Merkblatt

AL-KO

AL-KO PRO 350 Bedienungsanleitung

MTU

MTU 12 V 4000 Lx4 Bedienungsanleitung

Nanni

Nanni N3.30 Gebrauchsanweisung

Nanni

Nanni N5.160 CR2 Bedienungsanleitung

KSB

KSB SuPreme Series Montageanleitung

Hiwin

Hiwin EM1 Series Bedienungsanleitung

Rotax

Rotax 912 i series Betriebsanleitung

Siemens

Siemens SIMOTICS XP 1MB1 Bedienungsanleitung
