Chapter 2: Introduction

2.1 Overview of the Router

The RW400G Wireless Router integrates 4-port Switch, firewall, NAT-router and Wireless

AP. Its design is dedicated to Small Office/Home Office (SOHO) wireless network solutions.

The RW400G Wireless Router will allow you to connect your network wirelessly better than

ever, sharing Internet Access, files and fun, easily and securely.

In the most attentive wireless security, the RW400G Wireless Router provides multiple

protection measures. It can be set to turn off wireless network name (SSID) broadcast so

that only stations that have the SSID can be connected. The router provides wireless

LAN 64/128/152-bit WEP encryption security, and WPA/WPA2 and

WPA-PSK/WPA2-PSK authentication, as well as TKIP/AES encryption security. It also

supports VPN pass-through for sensitive data secure transmission.

The RW400G Wireless Router complies with the IEEE 802.11g/b standards. The RW400G

Wireless Router provides flexible access control so that parents or network administrators

can establish restricted access policies for children or staff. It has built-in NAT and DHCP

server supporting static IP address distributing. It also supports Virtual Server and DMZ host

for Port Triggering needs, and remote management and log so that network administrators

can manage and monitor the network on real time.

The RW400G Wireless Router is easy-to-manage. Quick Setup is supported and friendly

help messages are provided for every step. So you can configure it quickly and share

Internet access, files and fun.

2.2 Features

¾Complies with IEEE802.11g, IEEE802.11b, IEEE802.3, IEEE802.3u standards

¾Built in 4-port 10/100Mbps Switch

¾Ethernet connection to a WAN device, such as a cable modem or DSL modem

¾Shares data and Internet access for the network, connecting Internet through

PPPoE on demand and disconnecting when idle

¾Supports 54/48/36/24/18/12/9/6Mbps or 11/5.5/3/2/1Mbps wireless LAN data

transfer rates

¾Provides 64/128/152-bit WEP encryption security

¾Provides WPA/WPA2 and WPA-PSK/WPA2-PSK authentication and TKIP/AES

encryption security

¾Provides wireless LAN ACL (Access Control List)

¾Built-in NAT and DHCP server supporting static IP address distributing

¾Supports Virtual Server, Port Triggering, and DMZ host

¾Built-in firewall supporting IP address filtering, Domain Name filtering, and MAC

address filtering

¾Supports connecting/disconnecting Internet at a specified time of day

¾Supports access control, allowing parents and network administrators to establish

- 1-

restricted access policies based on the time of day for children or staff

¾Supports TCP/IP, PPPoE, DHCP, ICMP, NAT, SNTP

¾Supports UPnP, Dynamic DNS, Static Routing, VPN pass-through

¾Supports Traffic Statistics

¾Supports ICMP-FLOOD, UDP-FLOOD, TCP-SYN-FLOOD filter

¾Ignores Ping packets from WAN or LAN ports

¾Supports firmware upgrade

¾Supports Remote and Web management

2.3 Panel Layout

2.3.1 The Front Panel

The front panel of the RW400G consists of several LED indicators, which is designed to

indicate connections. Viewed from left to right. Table 2-1 describes the LEDs on the front

panel of the router.

Figure 2-1: Front Panel sketch

Name Action Description

Not lit No Power

Power Lit up Power on

Lit up The router is initialising

Flashing The router is working properly

STATUS

Not lit The router has a hardware error

Not lit There is no device linked to the corresponding port

Lit up There is a device linked to the corresponding port but no

activity

WAN/LAN

Flashing There is an active device linked to the corresponding port

Not lit The Wireless Radio function is disabled

WLAN Flashing The Wireless Radio function is enabled

Table 2-1 The LEDs description

2.3.2 The Rear Panel

The rear panel contains the following features. (Viewed from left to right:)

¾Wireless antenna

¾Factory Default Reset button

¾There are two ways to reset the router's factory defaults:

1) Use the Factory Defaults function on System Tools -> Factory Defaults page in the

router's Web-based Utility.

2) Use the Factory Default Reset button: First, turn off the router's power. Second, press and

- 2-

hold the default reset button then turn on the router's power, until the system LED lights up

(about 3 seconds). Last, release the reset button and wait for the router to reboot.

Note: Ensure the router is powered on before it restarts completely.

¾WAN RJ45 port for connecting the router to a cable, DSL modem, or Ethernet

¾Four LAN 10/100Mbps RJ45 ports for connecting the router to the local PCs

¾AC power socket: only use the power adapter supplied with the RW400G Wireless

Router, use of a different adapter may result in product damage.

1WAN 2 3 4

RESET

Figure 2-2: Rear Panel sketch

- 3-

Chapter 3: Connecting the Router

3.1 System Requirements

¾Broadband Internet Access Service (DSL/Cable/Ethernet)

¾One DSL/Cable modem that has an RJ45 connector (you do not need it if you

connect the router to Ethernet)

¾Each PC on the LAN needs a working Ethernet Adapter and an Ethernet cable with

RJ45 connectors

¾TCP/IP protocol must be installed on each PC

¾Web browser, such as Microsoft Internet Explorer 5.0 or later, Netscape Navigator

6.0 or later

3.2 Installation Environment Requirements

¾Not in direct sunlight or near a heater or heating vent

¾Not cluttered or crowded. There should be at least 2 inches (5 cm) of clear space on

all sides of the router

¾Well ventilated (especially if it is in a closet)

¾Operating temperature: 0℃~40℃(32℉~104℉)

¾Operating Humidity: 10%~90%RH, Non-condensing

3.3 Connecting the Router

Before you install the router, you should connect your PC to the Internet through your

broadband service successfully. If there is any problem, please contact your ISP. After

that, please install the router according to the following steps. Don't forget to pull out the

power plug and keep your hands dry.

1. Power off your PC(s), Cable/DSL modem, and the router.

2. Locate an optimum location for the router. The best place is usually near the center

of the area in which your PC(s) will wirelessly connect. The place must accord with

the Installation Environment Requirements.

3. Adjust the direction of the antenna. Normally, upright is a good direction.

4. Connect the PC(s) and each Switch/Hub on your LAN to the LAN Ports on the router,

shown in figure 3-1.

5. Connect the DSL/Cable Modem to the WAN port on the router, shown in figure 3-1.

6. Connect the AC power adapter to the AC power socket on the router, and the other

end into an electrical outlet. The router will start to work automatically.

7. Power on your PC(s) and Cable/DSL modem.

- 4-

To LAN

Switch/Hub

4321WAN

To WAN

RESET

（）

XDSL Cable Ethernet

、、

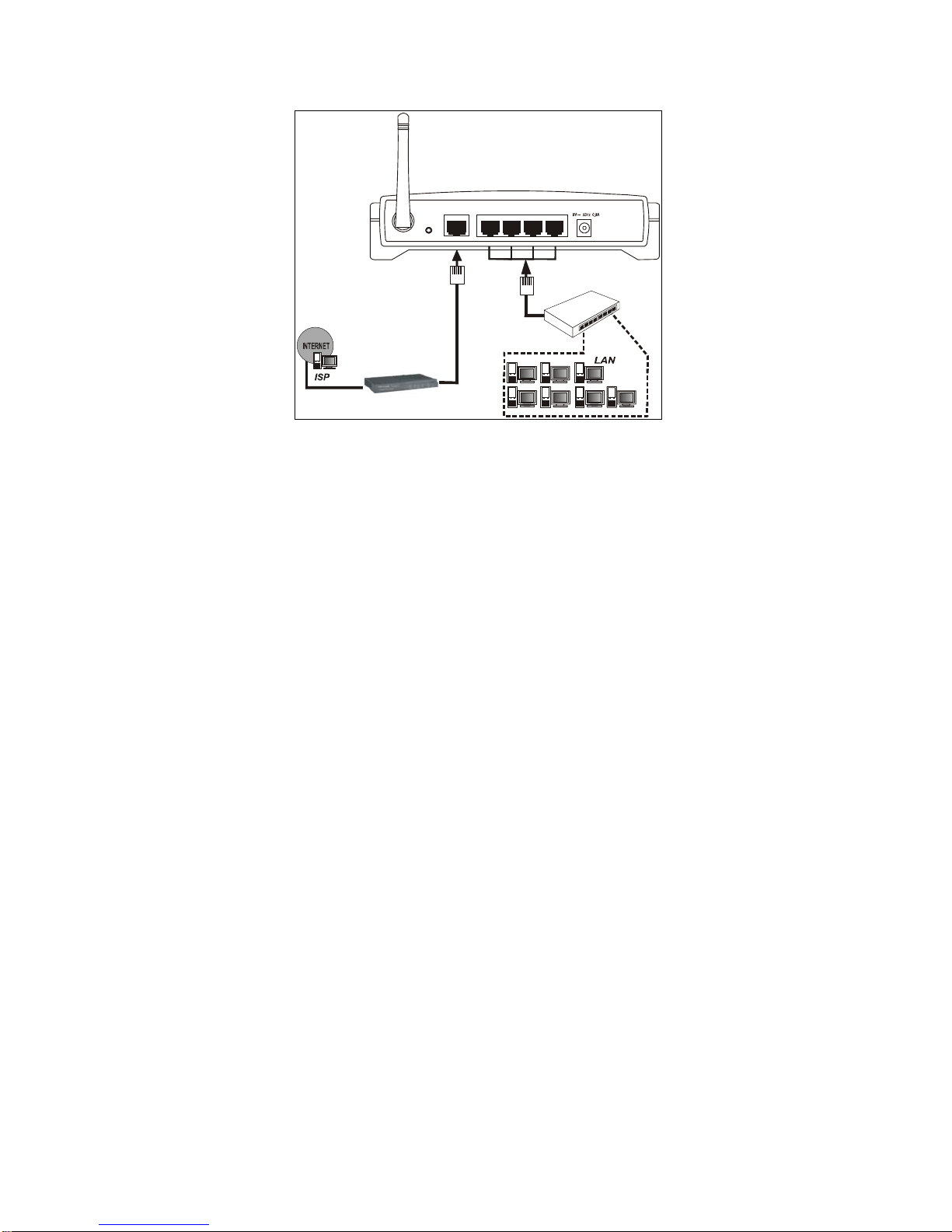

Figure 3-1: Hardware Installation of the RW400G Wireless Router

- 5-

Chapter 4: Quick Installation Guide

After connecting the RW400G Router into your network, you should configure it. This

chapter describes how to configure the basic functions of your RW400G Wireless Router.

These procedures only take you a few minutes. You can access the Internet via the

router immediately after successfully configured.

4.1 TCP/IP configuration

The default IP address of the RW400G Wireless Router is 192.168.1.1, and the default

Subnet Mask is 255.255.255.0. These values can be seen from the LAN. They can be

changed as you desire, as an example we use the default values for description in this

guide.

Connect the local PCs to the LAN ports on the router. There are then two means to

configure the IP address for your PCs.

¾Configure the IP address manually

1) Set up the TCP/IP Protocol for your PC(s). If you need instructions as to how to

do this, please refer to Appendix B: "Configuring the PCs."

2) Configure the network parameters. The IP address is 192.168.1.xxx ("xxx" is

from 2 to 254), Subnet Mask is 255.255.255.0, and Gateway is 192.168.1.1

(The router's default IP address)

¾Obtain an IP address automatically

1) Set up the TCP/IP Protocol in "Obtain an IP address automatically" mode on

your PC(s). If you need instructions as to how to do this, please refer to

Appendix B: "Configuring the PCs."

2) Power off the router and PC(s). Then turn on the router, and restart the PC(s).

The built-in DHCP server will assign IP addresses for the PC(s).

Now, you can run the Ping command in the command prompt to verify the network

connection between your PC(s) and the router. The following example is in Windows

2000 OS.

Open a command prompt, and type ping 192.168.1.1, then press Enter.

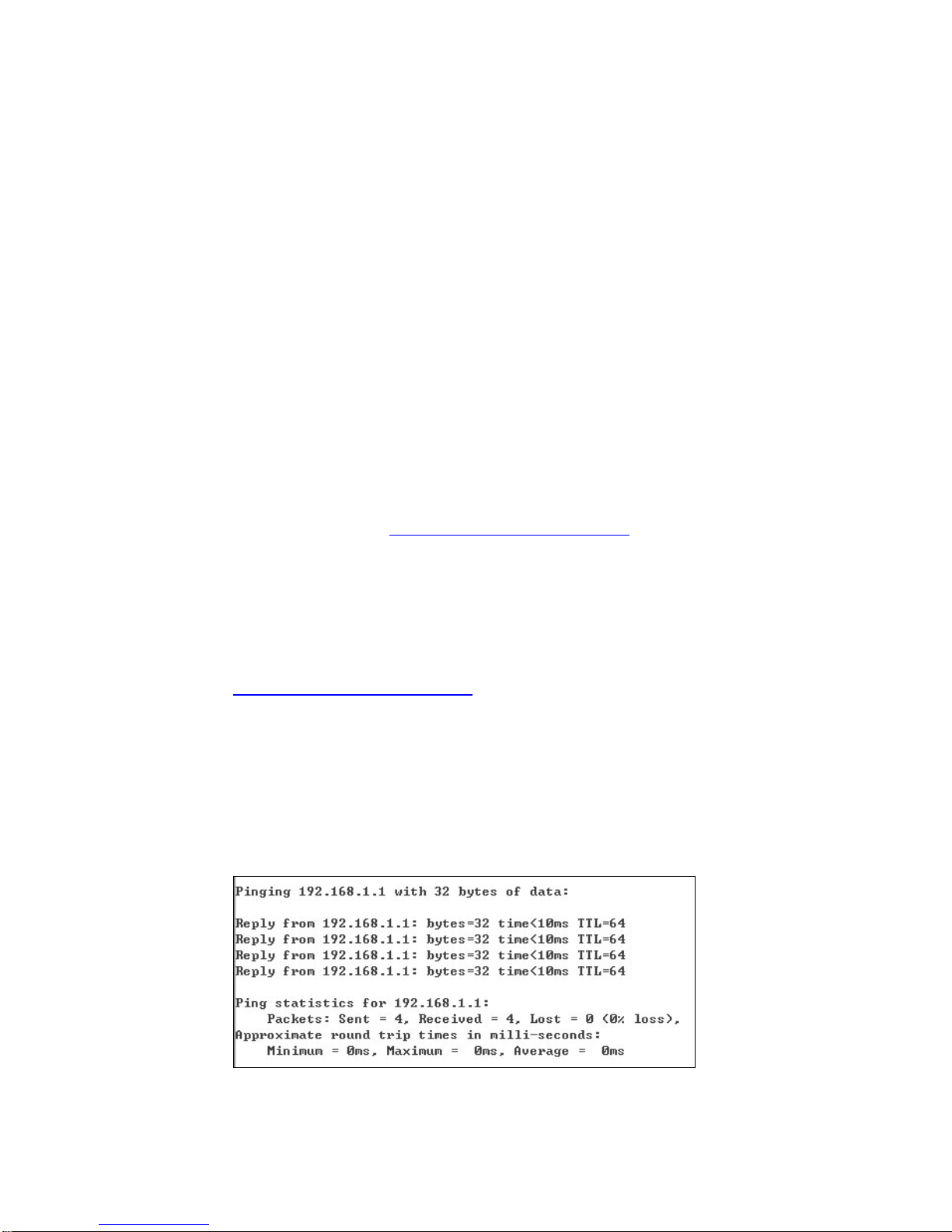

Figure 4-1: Successful result of Ping command

- 6-

Inhaltsverzeichnis

Andere Olitec Netzwerk-Router Handbücher

Olitec

Olitec RW400SG Bedienungsanleitung

Beliebte Netzwerk-Router Handbücher anderer Marken

Allnet

Allnet ALL0333AU Bedienungsanleitung

HomeSeer

HomeSeer HT-SEL Bedienungsanleitung

Sercomm

Sercomm Genesis OC3505D Bedienungsanleitung

Billion

Billion BIPAC 5102 Series Bedienungsanleitung

TP-Link

TP-Link TD-8817 Bedienungsanleitung

Motorola

Motorola MR1900 Bedienungsanleitung

Digi

Digi IX14 Bedienungsanleitung

Cisco

Cisco NCS 540 Handbuch

XAVi

XAVi X8821e Bedienungsanleitung

BEC

BEC 6200WZL Bedienungsanleitung

MikroTik

MikroTik hAP ac3 Series Bedienungsanleitung

Korenix

Korenix JetNet 5428G Series Bedienungsanleitung

NETGEAR

NETGEAR FS526T - Switch Bedienungsanleitung

Korenix

Korenix JetNet 5710G Series Bedienungsanleitung

Automated Logic

Automated Logic ZN551 Betriebsanleitung

Cisco

Cisco ASR 1000 Series Bedienerhandbuch

EnGenius

EnGenius ESR-9710 Bedienungsanleitung

Cisco

Cisco 805 Series Bedienungs- und Sicherheitshinweise
