OLT FL Bevel Bedienungsanleitung

12x4 GardenSaver Shed

Sliding Doors - FJ Bevel & Ply Roof

Assembly Manual

1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 1

In the event of a missing or broken piece, call the Outdoor Living Today Customer Support Line @ 1-888-658-1658 with-

in 30 days of the delivery of your purchase. It is our commitment to you to courier replacement parts, free of charge,

within 10 business days of this notification. Replacement parts will not be provided free of charge after the 30 day

grace period.

All structures purchased from Outdoor Living Today are covered for a period of one year for defects in manufacturing

and workmanship. Costs incurred for customer installations are not included.

Failure to use supplied parts included in this kit could result in poor product performance and may void your warranty.

Please contact Outdoor Living Today’s Customer Toll Free Line if you plan to deviate from our written instructions.

Thank you for purchasing a

12x4 GardenSaver Shed with

Sliding Double Doors. Please take

the time to identify all the parts

prior to assembly.

Safety Points and Other Considerations

Our products are built for use based on

proper installation on level ground and

normal residential use. Please follow the

instruction manual when building your

shed and retain the manual for future

maintenance purposes.

Customers are responsible for ensuring

a solid, level, well-draining site for

construction.

Please check with your local municipal

or county by-laws before ordering this

product to confirm it complies with

building codes.

- Snow load ratings vary by geographical location. If heavy or wet snowfall occurs, it

is advisable to sweep snow off roof frequently.

- If the product is elevated, any structural and building code requirements are solely

the customer's responsibility, and should be abided by.

- In areas with high or gusty wind conditions, it is advisable to install the structure

securely to the ground.

- Have a regular maintenance plan to ensure screws, doors, windows and parts are

tightly affixed.

Customer agrees to hold Outdoor Living Today and any Authorized

Dealers free of any liability for improper installation, maintenance and

repair.

Version #2.0

March 16, 2021

Stock Code:

GS124-Slider-FJ-Ply

Roof Area: 55 sqft

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 2

Thank you for purchasing our 12x4 Slider Lean-To Storage Shed.

Please take the time to identify all the parts prior to assembly.

1. Floor Section

Floors

1A: 2 - 45 ½” x 70 ¾” - Floor Frames

1B: 4 - 1 ½” x 3 ½” x 67 3/4” - Floor Joists

1C: 2 - 1 ½” x 3 ½” x 45 ½” - Floor Runners - Short

1CC: 5 - 1 ½” x 3 ½” x 47 ½” - Floor Runners - Long

1D: 2 - 5/8” x 45 3/8” x 70 5/8” - Plywood Floor

2. Wall Section

Main Wall Panels

2AA: 5 - 45 ½” x 75” - Side/Rear Wall Panels

2AB: 5 - 1 5/8” x 2 ½” x 45 ½” - Bottom Wall Plates - Side/Rear Walls

2BA: 2 - 35” x 73” - Front Wall Panels

2BB: 2 - 1 5/8” x 2 ½” x 35” - Bottom Wall Plates - Front Walls

Door Headers

2C: 2 - 2” x 3 ½” x 26 ¼” - Door Headers - Short

2D: 1 - 2” x 3 ½” x 84” - Door Header - Long (88” Aluminum Strip Attached)

2E: 1 - 1 ½” x 3” x 66 ½” - Interior Door Header

Extender Walls

2F: 2 - Top Triangular Siding Pc for Angle Wall Extenders

2G: 2 - 45 ¼” - Angle Wall Extenders - Left/Right

2H: 3 - 9” x 45 ½” - Wall Extenders

2I: 3 - 1 1/2” x 2 1/2” x 42 3/8” - Wall Extender Cleats

Wall Cleats

2J: 1 - ¾” x 3 ½” x 84” - Horizontal Wall Cleat - Long

2K: 2 - ¾” x 3 ½” x 26 ¼” - Horizontal Wall Cleats - Short

3. Rafter and Roof Section

Rafters

3A: 9 - 1 ½” x 2 ½” x 54” - Rafters

3B: 2 - ½” x 3 ½” x 48” - Front Soffits - Left/Right

3C: 1 - ½” x 3 ½” x 45 ½” - Front Soffit - Center

3D: 2 - ½” x 3 ½” x 48” - Rear Soffits - Left/Right

3E: 1 - ½” x 3 ½” x 45 ½” - Rear Soffit - Center

Roofs

3F: 2 - 5/8” x 48” x 50” - Outside Large Roof Plywood Panels

3G: 1 - 5/8” x 48” x 45 1/2” - Center Large Roof Plywood Panel

3H: 2 - 5/8” x 50” x 5 3/4” - Outside Small Roof Plywood Panels

3I: 1 - 5/8” x 45 1/2” x 5 3/4” - Center Small Roof Plywood Panel

3J: 2 - ¾” x ¾” x 51” - Facia Nailing Strips

14-15, 23

Steps

16-21

Steps

31-36

7-13

1-6

25-30

Parts List - Pages 2, 3, and 4

Continued on next page

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 3

4. Trim & Miscellaneous Section

Bottom Skirting

4A: 5 - ¾” x 4 ½” x 45 ¼” - Side/Rear Bottom Skirting (FJ Bevel Siding)

4B: 3 - ½” x 4 ½” x 45 ¼” - Front Bottom Skirting

4BB: 3 - ½” x 1 ½” x 45 ¼” - Top Wall Trims (FJ Bevel Siding)

Filler Trim

4C: 4 - ½” x 2 ½” x 42” - Front Corner Filler Trims

4D: 4 - ¾” x 2 ½” x 38” - Rear Corner Filler Trims

Door System

4E: 2 - Aluminum Door Tracks (with brackets attached)

4F: 2 - 36” x 73” - Sliding Doors

4G: 2 - 1 ½” x 2 ½” x 61 1/8” - Lower Door Track

4HA: 3 - ½” x 4 ½” x 44 ¼” - Lower Door Track Cover

4IA: 3 - 1 ½” x 3 ½” x 3” - Sliding Door Track Stops

4J: 1 - ¾” x 3 ½” x 71 ½” - Interior Door Flange

4KA: 2 - 1 ½” x 3 ½” x 66 ½” - Track Overlay - Top

4KB: 2 - ¾” x 5 ½” x 67” - Track Overlay - Front

4KC: 2 - ½” x 3 ½” x 5 ½” - Track Overlay - Ends

4KD: 3 - ½” x 4 ¼” x 44 ¼” - Track Overlay - Sill (Bevel)

Outer Wall Trim

4L: 2 - ½” x 5 ½” x 88 ¾” - Front Corner Trims

4M: 2 - ½ x 2 ½” x 88 ¾” - Side Front Corner Trims

4N: 2 - ½” x 5 ½” x 78 ½” - Rear Corner Trims

4O: 2 - ½” x 2 ½” x 80” - Side Rear Corner Trims

4P: 2 - ½” x 2 ½” x 78 ½” - Rear Middle Trims

4Q: 2 - ½” x 2 ½” x 7 ½” - Front Middle Trims

Facia

4R: 2 - ½” x 5 ½” x 54 1/8” - Side Facia (Angle Cut Ends)

4S: 4 - ½” x 5 ½” x 50 ½” - Front and Rear Facia - Left/Right

4T: 2 - ½” x 5 ½” x 45 ½” - Front and Rear Facia - Center

4U: 5 - Trim Detail Plates (5 ½” high)

Windows

4W: 2 - Window Inserts 18 1/4”w x 23”h

4X: 2 - Window Trim Kits

1 - Top pc - 24 1/16” Length - Angle Cut Ends

3 - Side/Bottom pcs - 23” Length

Miscellaneous

4Y: 1 - 45 ¼” - Extra Piece of Bevel Wall Siding

- Use if side/rear wall panel siding is damaged or to shim floor or door.

4Z: 1 - 36” - Extra Piece of Lap Siding

- Use if front wall panel siding is damaged

60-62

55-59

51-54

37-39

40-41

42-50

Steps

Advice: Wood has a tendancy to split when

screwing near the ends of a board. To prevent

splitting, it is always recommended to pre-drill

pilot holes before screwing into these areas.

Note: All Trim, Facia and Bottom Skiring pieces will be positioned rough face out when installed.

S1 - 2 1/2” Screws

S4 - 3” Screws

x 245

x 25

x 210

x 330

S2 - 1 1/4” Screws

N1 - 1 1/2” Finishing Nails

BR1 - Square Drive Bit x 2

Y3 - Black Handle x 2

Y11 - Black Hasp x 1

x 18

SB1 - 3/4” Screws

Black Headed

Ladder

Screw Gun/Drill Tape Measure

Hammer

Level

Pliers

Tools Required (Not Provided)

1/8” Drill Bit

Wood Clamp

Utility Knife

12X4 GardenSaver Shed with Sliding Double Doors and Plywood Roof HARDWARE PACKAGE

Y35 - Roller

Assembly x 4

Safety Glasses Work Gloves

Safety Equipment Required

(Not Provided)

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 4

ST1 - 1 1/2” Torx Screws x 12

S5 - 4” Screws

Y2 - 90° Metal

Bracket (Roof) x 4

x 8

BT2 - Torx Drive Bit x 1

Before starting your project become familiar with this assembly manual and determine if you can

complete the project yourself or will require a professional contractor. Please note that certain

counties and municipalities require building permits prior to installation. We recommend to all

consumers that they check with their local county/municipality for these specifics prior to purchasing

any of our products since this is your sole responsibility.

Prior to the product arriving, clear the construction area. Remove all debris; roots, grass, rocks, etc.

Make sure the ground slopes away from the site at least 10 feet in all directions. If necessary, build

up the soil in the center of the site and slope away for the high point to provide drainage. Fill in any

low spots within the perimeter of the site. A slope of 1/8 inch per foot is enough to prevent water

accumulation. We recommend excavating the site 4-6 inches deep and laying gravel or crushed

rock where drainage may be a concern.

What type of foundation should I use?

Patio Stone Foundation : If the ground is stable and has sufficient drainage, you can set patio

stones directly on firm compacted soil. If not, consider laying down sand and then gravel or crushed

rock. Excavate the site making it about 12” wider and longer than the floor footprint. Excavate down

approximately 4-6 inches deep. Lay 1-2 inches of sand first and then fill with 3-4 inches of gravel or

rock for good drainage and support. Most of our sheds and playhouses include floors with support

runners. Support each runner with 4-5 patio stones (less for smaller sheds). Patio stones can be

anything from a mid size brick to a round our square 12” long by 1 1/2” thick stone. Place stones

directly under the floor runners, check for level and adjust height as necessary. Having a solid and

level foundation is the most critical piece of work you can do to make the project go smoothly. Most

of this work can be done prior to your shed arriving!

4x4 Pressure Treated Beam Foundation : You can build directly on pressure-treated beams or

railroad ties laid on a properly prepared construction site as mentioned above. Run beams

perpendicular to floor runners. Use a 2x4 straight piece of lumber on edge and a carpenter's level

to position correctly. To prevent the beams from shifting, secure them with ½ inch rebar inserted

through holes drilled in the beams and driven 3 to 4 feet into the ground. Leave each side or end of

the foundation open to promote drainage and air circulation beneath the floor. Consider using a wire

mesh or equivalent to prevent pesky critters from gaining access on ends.

Concrete - Slab Foundation : Typically a slab 3-4 inches thick laid over a sub-base of 4 inches of

gravel or crushed rock is sufficient but may vary depending on your geographic location. Using

either mix your own concrete or having it delivered by truck, ready to pour, depends on how much

time and effort you have to dedicate to the project. In any event, make sure you excavate the slab

area to a depth 6 inches. This would put the finished slab surface approximately 2 inches above

ground (remember you will be using 4 inches of gravel as your subbase). For example, a slab for

our 8’x12’ SpaceMaker Shed will require approximately 1 cubic yard of premixed concrete.

For more detailed information on how to pour your concrete-slab foundation or any other questions

regarding specifications, foundations and permits, please visit our website at

www.outdoorlivingtoday.com or call our Customer Support Line at 1-888-658-1658 to speak with

a Product Representative.

* Please note that all measurements in our Detailed Assembly Manuals may be subject to change without notice. Please

confirm exact foundation size with Outdoor Living Today if you have any concerns or questions.

What Can I Do Before My Shed Arrives?

1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 5

You can find BR1 - Square

Drive Bit for the screws in

with the Hardware Kit Bag.

1. Floor Section

Flush with framing

top/bottom.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 6

Exploded view of all parts necessary to complete

Floor Section. Identify all parts prior to starting.

Note: Floor Footprint is 141 1/2” wide x 45 1/2” deep.

2. Lay out both complete floor joist frames as illustrated. The footprint for the

floor when attached together will be 141 1/2” wide x 45 1/2” deep. Attach

frames together with 6 - 2 1/2” Screws.

Hardware

S1 - 2 1/2” Screws x 16 total

1. Lay out 1A - Floor Frame and two 1B - Floor Joists as illustrated

above. Position the center of each Joist 15” from the outer edge of Floor

Frame. When correctly positioned, attach each Joist with

4 - 2 1/2” Screws (2 per end). You can find the Square Drive Screw

Bit in the Hardware Kit Bag. Complete remaining Floor Frame the

same.

Parts

1A - Floor Joist Frames

(45 1/2” x 70 3/4”) x 2

1B - Floor Joists

(1 1/2” x 3 1/2” x 67 3/4”) x 4

Hardware

S1 - 2 1/2” Screws

x 6 total

141 1/2”

45 1/2”

15”

Plywood Floor - 2pcs.

(Part 1D)

Floor Frames - 2pcs.

(Part 1A)

Floor Runners - 2pcs.

(Part 1C)

Concrete Pad

(optional foundation method)

Center Floor

Joists - 4pcs.

(Part 1B)

Floor Runners - 5pcs.

(Part 1CC)

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 7

3. Position 1C - Floor Runners - Short on each

side of the completed floor frame. Runners should

be flush with corners but not overhanging. Attach

with 4 - 2 1/2” Screws per Runner.

Parts

1C - Floor Runners - Short

(1 1/2” x 3 1/2” x 45 1/2”) x 2

Hardware

S1 - 2 1/2” Screws

x 8 total

4. Align 1CC - Floor Runners - Long evenly spaced as shown above and

flush with the back of the Floor Frame. On the front, Runners will extend 2”

past the Floor Frame to provide support for the Sliding Door Track later in

the Assembly. Attach with 4 - 2 1/2” Screws per Runner.

With Floor Runners attached, carefully flip the floor over and place on your

foundation. Caution - Be careful when laying floor down not to bend or twist

floor. Note: Having a level foundation is critical. Choosing a foundation will

vary between regions. Typical foundations can be concrete pads or patio

stones positioned underneath the floor runners.

5. Position 1D - Plywood Floor on top of completed floor frames.

Plywood will sit slightly inset from outside of floor frame.

Parts

1D - Plywood Floor

(5/8” x 45 3/8” x 70 5/8”) x 2

Note: Plywood is cut slightly

smaller than floor framing.

Keep plywood seams tight.

Parts

1CC - Floor Runners - Long

(1 1/2” x 3 1/2” x 47 1/2”) x 5

Hardware

S1 - 2 1/2” Screws

x 20 total

Long Floor Runners overhanging Floor Frame on front.

Floor Runners flush with Floor Frame on back.

Concrete Slab

Foundation

Front

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 8

6. With Plywood positioned correctly on floor framing, attach with 1 1/4” Screws.

Use screws every 16” around perimeter of each floor section and 3 screws

through each mid joists.

Hardware

S2 - 1 1/4” Screws

x 40 total (approx.)

Advice: Use chalk line to

mark location of mid

joists for interior screws.

2. Wall Section Exploded view of all parts necessary to

complete the Wall Section. Identify all

parts prior to starting.

Angled Wall

Extenders

- 2pcs. (Part 2G)

Side/Rear Wall

Panels - 5pcs.

(Part 2AA)

Bottom Wall Plates

- 5pcs. (Part 2AB)

Front Wall Panels - 2pcs.

(Part 2BA)

Horizontal Wall Cleats

- 3pcs. (Parts 2J & 2K)

Wall Extenders

- 3pcs. (Part 2H)

Top Triangular

Siding Piece - 2pcs.

(Part 2F)

Front Wall Bottom

Plates - 2pcs.

(Part 2BB)

Interior Door Header

- 1pc. (Part 2E)

Door Headers - 3pcs.

(Parts 2C & 2D)

Wall Extender

Cleats - 3pcs.

(Part 2I)

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 9

Bottom Wall Plate

You can find BR1 -

Square Drive Bit for

the screws in with the

Hardware Kit Bag.

7. Carefully lay 2AA - Side/Rear Wall Panels face

down. Position and attach 2AB - Bottom Wall

Plates to bottom of wall studs of each wall panel

with 3 - 2 1/2” Screws. Position so plates are flush

with framing. Complete 4 remaining solid walls.

Parts

2AA - Side/Rear Wall Panels

(45 1/2” wide x 75” high) x 5

2AB - Bottom Wall Plates

(1 5/8” x 2 1/2” x 45 1/2”) x 5

Hardware

S1 - 2 1/2” Screws

x 15 total

Ensure bottom plate

is flush side-to-side

with wall studs

Important: Make sure all walls are aligned in their

upright position. If not, water may leak into your shed.

Unsure if panel is facing up or down?

Recently attached Bottom Plate is on bottom of panel.

Outside 2x3 framing of wall panel should

be positioned flush with the outside of

floor framing when properly aligned.

9. The rear wall panels will sit even with the floor frame and the sidewall panels will be sandwiched

between the front and rear wall panels. The floor plywood may be slightly recessed.

Note: Siding will overhang the floor frame by approximately 1/2”.

8. Starting on one side, position a Solid Wall Panel on top of plywood floor. The Wall Panel bottom framing

will sit flush with the outside of the floor frame. Wall siding will overhang the floor.

Siding overhangs

floor frame by 1/2”

Floor plywood

may be slightly

recessed

Do Not Attach Walls

To Floor until Step 24.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 10

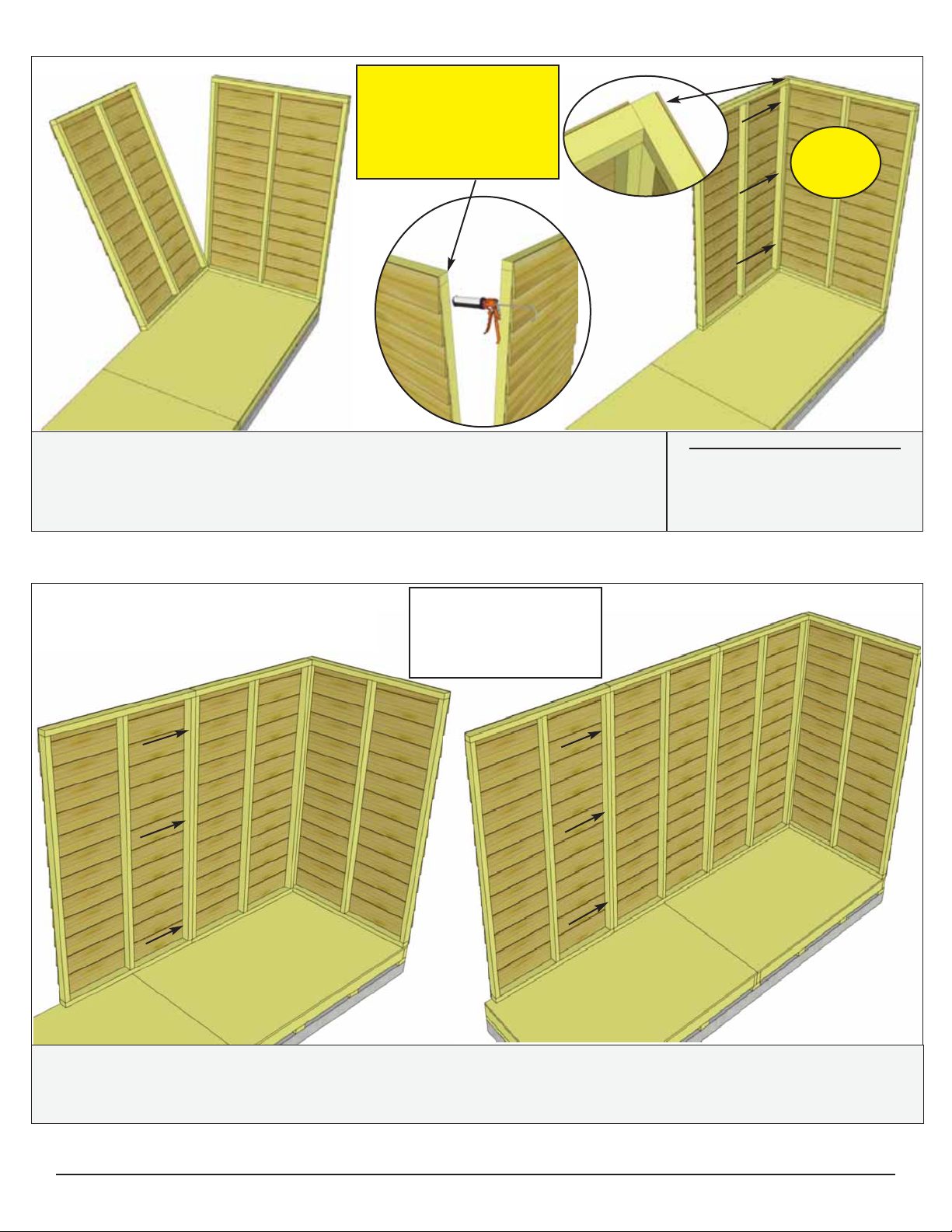

Side Solid Wall

Rear Solid Wall

Be sure that the rear

wall panels fit

between the side wall

panels (sandwiched).

Optional - Caulking

seams will help prevent

moisture from entering

at seam. Caulking not

included in kit.

11. With the corner wall attachment complete, position a second rear wall panel in place so bottom

2x3 wall framing is sitting flush with outside floor joists. Wall siding should overhang floor by

approximately 3/4”. When positioned correctly, attach both side wall panel studs together as per Step 10.

10. Position rear solid wall into place on plywood floor. Butt both vertical wall

studs of side and rear walls together and attach with 3 - 2 1/2” Screws.

Screw at the bottom, middle and top of stud to secure properly.

Note: Drill pilot holes in studs to prevent splitting.

Hardware (Steps 10 - 12)

S1 - 2 1/2” Screws

x12 total

Pilot Hole

first.

Side Wall

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere OLT Gartenhaus Handbücher

OLT

OLT 12x12 SpaceMaker Garden Shed Bedienungsanleitung

OLT

OLT 8x8 Pine SpaceMaker Bedienungsanleitung

OLT

OLT PEN99 Bedienungsanleitung

OLT

OLT SS84-SLIDER-Ply-AK Bedienungsanleitung

OLT

OLT 6x6 Maximizer Storage Shed Bedienungsanleitung

OLT

OLT SunShed SSGS1216-FJ-Metal Bedienungsanleitung

OLT

OLT SunShed SSGS1216-AK-Ply Bedienungsanleitung

OLT

OLT GardenSaver GS84D-Plywood Bedienungsanleitung

OLT

OLT CB128-FJ-PLY Bedienungsanleitung

OLT

OLT SM812-FJ-Cedar Bedienungsanleitung

OLT

OLT 84-D-BASE-BEV Bedienungsanleitung

OLT

OLT FJ Bevel Bedienungsanleitung

OLT

OLT SunShed Garden Shed SSGS1212-AK-METAL Bedienungsanleitung

OLT

OLT SSGS1212 Bedienungsanleitung

OLT

OLT 8x12 Santa Rosa Bedienungsanleitung

OLT

OLT CB128-SLIDER-METAL-BEV Bedienungsanleitung

OLT

OLT 6x6 Apex Bedienungsanleitung

OLT

OLT GS84-SLIDER-CEDAR-AK Bedienungsanleitung

OLT

OLT SunShed Garden Shed SSGS1212-FJ-METAL Bedienungsanleitung

OLT

OLT Studio Garden Shed STU128-FJ-Metal Bedienungsanleitung

OLT

OLT SunShed SSGS1216-FJ-Cedar Bedienungsanleitung

OLT

OLT SpaceSaver SS124-SLIDER-CEDAR-FJ Bedienungsanleitung

OLT

OLT GS63-TG-METAL Bedienungsanleitung

OLT

OLT Gardener's Shed GAR88-FJ-METAL Bedienungsanleitung

Beliebte Gartenhaus Handbücher anderer Marken

Mercia Garden Products

Mercia Garden Products 0628LOG181-V4 Bedienungsanleitung

Lemeks

Lemeks Palmako PA120-5930-6 Installationshandbuch

Gartenhaus-King

Gartenhaus-King Valery Bedienungsanleitung

Rion

Rion Hobby Gardener Bedienungsanleitung

POD

POD Camping 480 Bedienungsanleitung

Select

Select ISAAC E9682 Bedienungsanleitung

Mercia Garden Products

Mercia Garden Products 01DTSHPWOR1010DDOW-V4 Gebrauchsanweisung

Palmako

Palmako Saale Bedienungsanleitung

Lemeks

Lemeks Palmako Kira EL16-3623 Installationshandbuch

Mercia Garden Products

Mercia Garden Products 0644LOG186-V4 Gebrauchsanweisung

Palmako

Palmako Roger FR44-5953-2 Bedienungsanleitung

Mercia Garden Products

Mercia Garden Products 03DTSHHP1206HGD4MW-V1 Gebrauchsanweisung

WAR-LOCK

WAR-LOCK GARDENSHED Skillion Series Bedienungsanleitung

Pergola kits USA

Pergola kits USA PREMIUM VINYL PAVILION Bedienungsanleitung

G21

G21 Boston 882 Bedienungsanleitung

Lemeks

Lemeks Palmako Grace PM56-4529 Installationshandbuch

Mercia Garden Products

Mercia Garden Products 03WES0808-V1 Gebrauchsanweisung

Shire

Shire Salcey Bedienungsanleitung
