OLT STU128 Bedienungsanleitung

12x8 Studio Garden

Shed Interior Wall Kit

Assembly Manual

Version #1.2

Sept 19th, 2019

1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 1

In the event of a missing or broken piece, call the Outdoor Living Today Customer Support Line @ 1-888-658-1658 with-

in 30 days of the delivery of your purchase. It is our commitment to you to courier replacement parts, free of charge,

within 10 business days of this notification. Replacement parts will not be provided free of charge after the 30 day

grace period.

All structures purchased from Outdoor Living Today are covered for a period of one year for defects in manufacturing

and workmanship. Costs incurred for customer installations are not included.

Failure to use supplied parts included in this kit could result in poor product performance and may void your warranty.

Please contact Outdoor Living Today’s Customer Toll Free Line if you plan to deviate from our written instructions.

Thank you for purchasing a 12x8

Studio Garden Shed Interior Wall

Kit. Please take the time to identify

all the parts prior to assembly.

Customer agrees to hold Outdoor Living Today and any Authorized

Dealers free of any liability for improper installation, maintenance and

repair.

Thank you for purchasing our 12x8 Studio Garden Shed Interior Wall.

Please take the time to identify all the parts prior to assembly.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 2

1. Ceiling Plywood

Ceiling

1A: 1 - 3/8” thick x 47 3/4” x 92 1/2” Center Ceiling Panel

1B: 2 - 3/8” thick x 41 1/2” x 92 1/2” - Left/Right Ceiling Panel

2. Interior Wall Section

Main Wall Panels

2A: 4 pcs - 1 1/2” x 2 1/2” x 30”l - Rear Wall Nailing Cleats

2B: 2 pcs - 42 3/4”w x 44 1/2”h - Bottom Rear Wall Panels- Left/Right Side

2C: 2 pcs - 42 3/4”w x 40 1/4”h - Top Rear Wall Panels- Left/Right Side

2D: 1 - 45 1/4”w x 44 1/2”h - Bottom Center Wall Panel

2E: 1 - 45 1/4”w x 40 1/4”h - Top Center Wall Panel

2F: 2 pcs - 46 1/2”w x 78”h - Large Window Wall Panels - Left/Right Sides

2G: 2 pcs - 46 1/2”w x 23 1/4”h - Transom Window Wall Panels - Left/Right Sides

2H: 1 - 39 1/4”w x 22 1/4”h - Transom Window Wall Panel - Center

2I: 2 pcs - 45 1/4”w x 44 1/2”h - Bottom Side Wall Panels- Left/Right Side- (front)

2J: 2 pcs - 45 1/4”w x 57 5/8”h -Top Side Wall Panel- Left/Right - Angled (front)

2K: 2 pcs - 44 7/8”w x 44 1/2”h - Bottom Side Wall Panels- Left/Right Side- (rear)

2L: 2 pcs - 44 7/8”w x 49”h -Top Side Wall Panel- Left/Right - Angled (rear)

3. Trim Section

Large Window Sash

3A: 2 - 1/2” x 2 7/8” x 35 7/8” Straight Cut Top Sash (1/ window)

3B: 4 - 5/8” x 2 7/8” x 35 3/8” Straight Cut Vertical Sash (2/ window)

3C: 2 - 5/8” x 3 3/8” x 29 1/8” Straight Cut Ledge (1/ window)

Transom Window Sash

3D: 6 - 1/2” x 2 7/8” x 35 1/4” Straight Cut Top/Bottom Sash (2/ window)

3E: 6 - 1/2” x 2 7/8” x 9 1/4” Straight Cut Side Sash (2/ window)

Corner Trim - Moulded

3F: 2 - Rounded - 85 3/8” with 11 deg. one end - Rear Corner

3G: 2 - Rounded - 70” Straight Cut- Front Corner

3H: 2 - Rounded - 32” with 11 deg. one end - Front Corner

Horizontal Rear/Front/Side Trims -

3I: 2 - 1/4” x 1 1/2” x 45 1/2” -11 deg both end - Side Walls

3J: 2 - 1/4” x 1 1/2” x 44 3/8” -11 deg both end - Side Walls

3K: 4 - 1/4” x 1 1/2” x 64” - Straight Cut - Rear and Front Walls

Side/Rear Wall Vertical Trims -

3L: 2 - 1/4” x 1 1/2” x 60” -11 deg. one end Side Walls

3M: 2 - 1/4” x 1 1/2” x 32” -Straight cut- Side Walls

3N: 2 - 1/4” x 1 1/2” x 83 1/2” -Straight cut- Rear Walls

Door and Window Trims -

3O: 2 - 1/2” x 2 1/2” x 80 3/4” -45 deg. one end. Vertical Door Trims

3P: 1 - 1/2” x 2 1/2” x 41” -45 deg. both ends. Horizontal Door Trim

3Q: 4 - 1/2” x 1 1/2” x 36 7/8” 45 deg.1 end Vertical Large Window Trim (2/window)

3R: 2 - 1/2” x 1 1/2” x 32 1/4” 45 deg both ends Top Hor. Large Window Trim (1/window)

3S: 4 - 1/2” x 1 1/2” x 37 1/2” -45 deg. both ends Top/Bottom Transom L/R (2/ window)

3T: 4 - 1/2” x 1 1/2” x 12 1/2” -45 deg. both ends Side Transom L/R (2/ window)

3U: 2 - 1/2” x 1 1/2” x 34 1/2” -Straight cut ends Top/Bottom Transom-Center (2/ window)

3V: 2 - 1/2” x 3” x 20” -Straight cut ends Sides Transom-Center(2/ window)

Ceiling Trim

3W: 2 - 1/4” x 1 1/2” x 92 1/4” -Straight cut- Ceiling

Floor Base Trims -

3X: 9 - 1/4” x 1 1/2” x 48” -Straight cut- (customer to cut to length)

Steps

1&2

4 & 6

10 & 11

12 & 13

18 &19

5 & 7

20-21

22-23

2 1/2”

1 1/4” Square Drive Bit

Hardware Kit (Provided)

Safety Glasses Work Gloves

Safety Equipment Required (Not Provided)

Ladders

Screw Gun/Drill Tape Measure

Hammer

Level Pliers

Tools Required (Not Provided)

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 3

1/8” Drill Bit

1 1/2” Finishing

12X8 Studio Interior Wall Kit HARDWARE PACKAGE

Optional Materials and Tools - Not Included in Kit

Materials to Insulate Shed prior to installing Interior Wall Kit

2” thick Foam Board Insulation

364 sq ft. (covers walls and ceiling)

96 sq ft additional for floor

6 mm Poly - Air Vapor Barrier -

Tools -

Staple Gun

Utility Knife

Caulking Gun and Caulking

x 15

x 126

x 430

x 1

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 4

Ceiling Plywood

Part 1

Bottom Rear Wall Panel-

Left Side-1 pc. (Part 2B)

Exploded view of all parts necessary to complete Interior Wall Section Ceiling and Panelized Walls.

Identify all parts prior to starting.

Bottom Rear Wall Panel-

Right Side-1 pc. (Part 2B)

Bottom Rear Wall Panel-

Center -1 pc. (Part 2D)

Top Rear Wall Panel-

Left Side-1 pc. (Part 2C)

Top Rear Wall Panel-

Right Side-1 pc. (Part 2C)

Top Rear Wall Panel-

Center -1 pc. (Part 2E)

Top Side Wall Panel- Rear

Right Side- Angled - 1 pc. (Part 2L)

Bottom Side Wall Panel- Rear

Right Side-1 pc. (Part 2K)

Bottom Side Wall Panel- Rear

Left Side-1 pc. (Part 2K)

Top Side Wall Panel- Rear

Left Side- Angled - 1 pc. (Part 2L)

Top Side Wall Panel- Front

Right Side-1 pc. (Part 2J)

Bottom Side Wall Panel- Front

Right Side-1 pc. (Part 2I)

Bottom Side Wall Panel- Front

Left Side-1 pc. (Part 2I)

Top Side Wall Panel- Front

Right Side-1 pc. (Part 2J)

Transom Window Walls-

Left/Right -2 pc. (Part 2G)

Large Window Wall Panel-

Left -1 pc. (Part 2F)

Large Window Wall Panel-

Right -1 pc. (Part 2F)

Left Ceiling Panel

1 pc. (Part 1B)

Center Ceiling Pane

-1 pc. (Part 1A)

Panelized Wall Sections

Part 2

Right Ceiling Panel

1 pc. (Part 1B)

Rear Wall

Nailing

Cleats

4 pcs

(Part 2 A)

Transom Window Wall

Center -1 pc. (Part 2H)

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 5

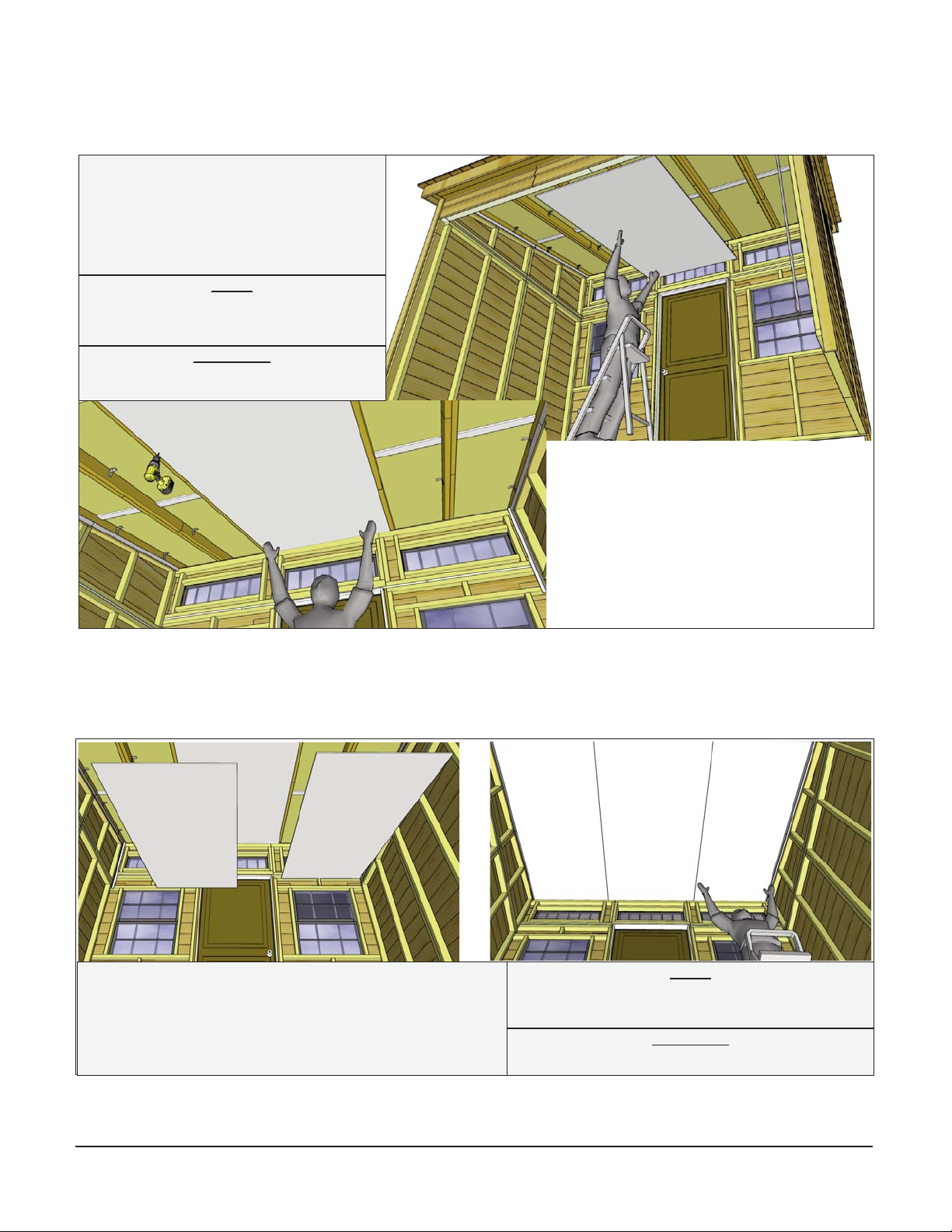

1. Lift Center Ceiling Panel up

positioning evenly on center rafters.

Attach with 10 - 1 1/4” Screws.

You can find the Square Drive

Screw Bit in the Hardware Kit Bag.

Parts

1A - Center Ceiling Panel

(3/8” x 47 3/4” x 92 1/2”) x 1

Hardware

S2 - 1 1/4” Screws x 10 total

2. Lift Left/Right Ceiling Panels up positioning evenly

on rafters and tight against center ceiling panel.

Attach with 10 - 1 1/4” Screws per panel.

Parts

1B - Left/Right Ceiling Panels

(3/8” x 41 1/2” x 92 1/2”) x 2

Hardware

S2 - 1 1/4” Screws x 20 total

1. Ceiling Plywood Section

2. Wall Section

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 6

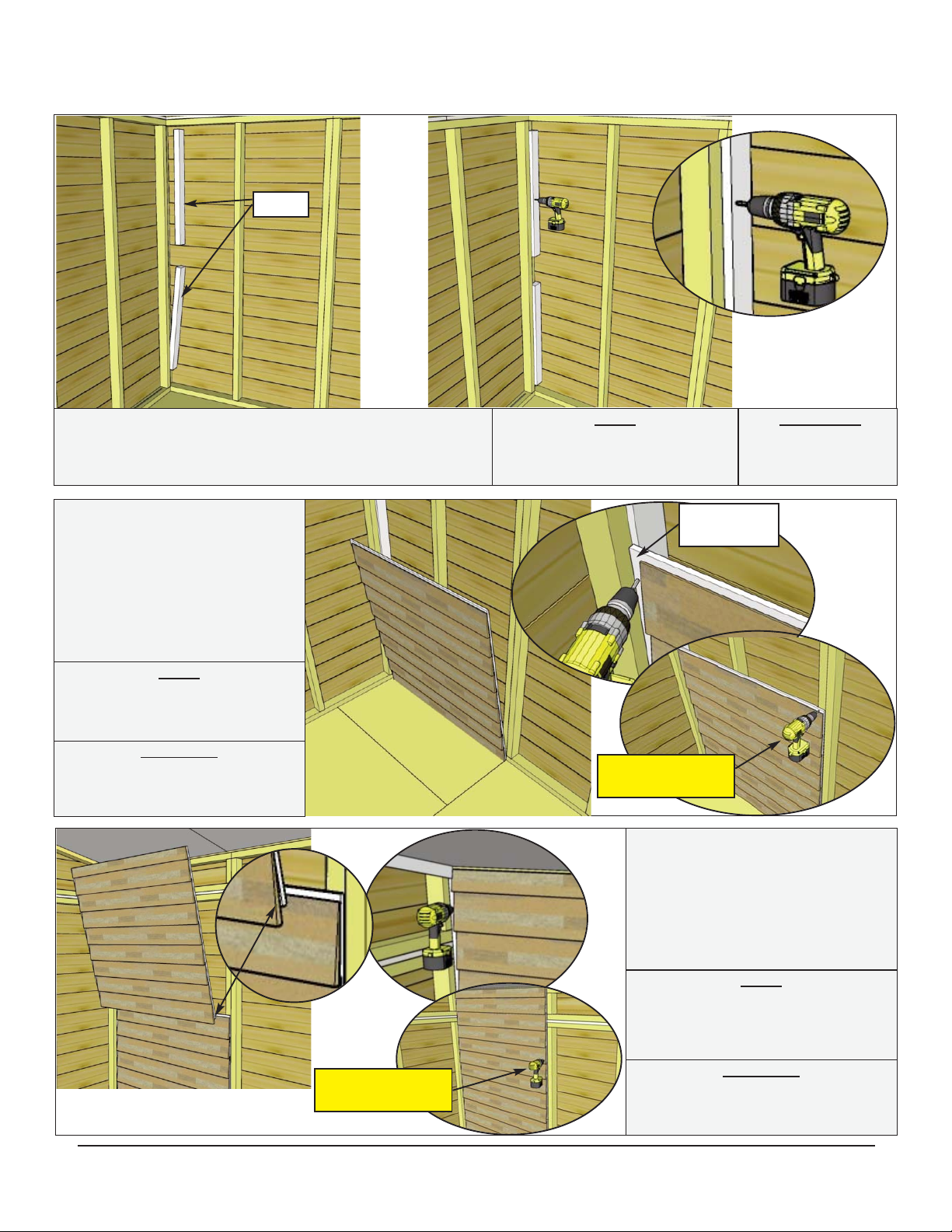

3. Position and attach Rear Wall Nailing Cleats in

rear wall corners only. There are 2 cleats per corner.

Evenly space. Attach with 3 - 2 1/2” Screws per piece.

Parts

2A - Rear Wall Nailing Cleats

(1 1/2” x 2 1/2” x 30”) x 4

Rear Walls

Cleats

Hardware

S1 - 2 1/2” Screws

x 12 total

4. Position and attach Bottom

Rear Wall Panel against cleat.

Plywood extends past siding

on left side. Attach with

4 - 1 1/4” Screws per piece.

1 screw per corner.

Parts

2B - Bottom Rear Wall Panel

(42 3/4”w x 44 1/2”h) x 1

Hardware

S2 - 1 1/4” Screws

x 4 total

Siding gap

on left side.

5. Position and attach Top Rear

Wall Panel against cleat. Plywood

extends past siding on left side.

Attach with 4 - 1 1/4” Screws per

piece. 1 screw per corner.

Parts

2C - Top Rear Wall Panel

(42 3/4”w x 40 1/4”h) x 1

Hardware

S2 - 1 1/4” Screws

x 4 total

Pre-drill siding

with 1/8” drill bit.

Pre-drill siding

with 1/8” drill bit.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 7

6. Position and attach Bottom Rear

Wall Panel against cleat. Plywood

extends past siding on right side.

Attach with 4 - 1 1/4” Screws per

piece. 1 screw per corner.

Parts

2B - Bottom Rear Wall Panel

(42 3/4”w x 44 1/2”h) x 1

Hardware

S2 - 1 1/4” Screws

x 4 total

7. Position and attach Top Rear Wall Panel

against cleat. Plywood extends past siding on

right side. Attach with 4 - 1 1/4” Screws per

piece. 1 screw per corner.

Parts

2C - Top Rear Wall Panel

(42 3/4”w x 40 1/4”h) x 1

Hardware

S2 - 1 1/4” Screws

x 4 total

8. Position and attach Bottom Center Wall

Panel against middle wall studs. Attach with

4 - 1 1/4” Screws per piece. 1 screw per corner.

Parts

2D - Bottom Center Wall Panel

(45 1/4”w x 44 1/2”h) x 1

Hardware

S2 - 1 1/4” Screws

x 4 total

Pre-drill siding

with 1/8” drill bit.

1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 8

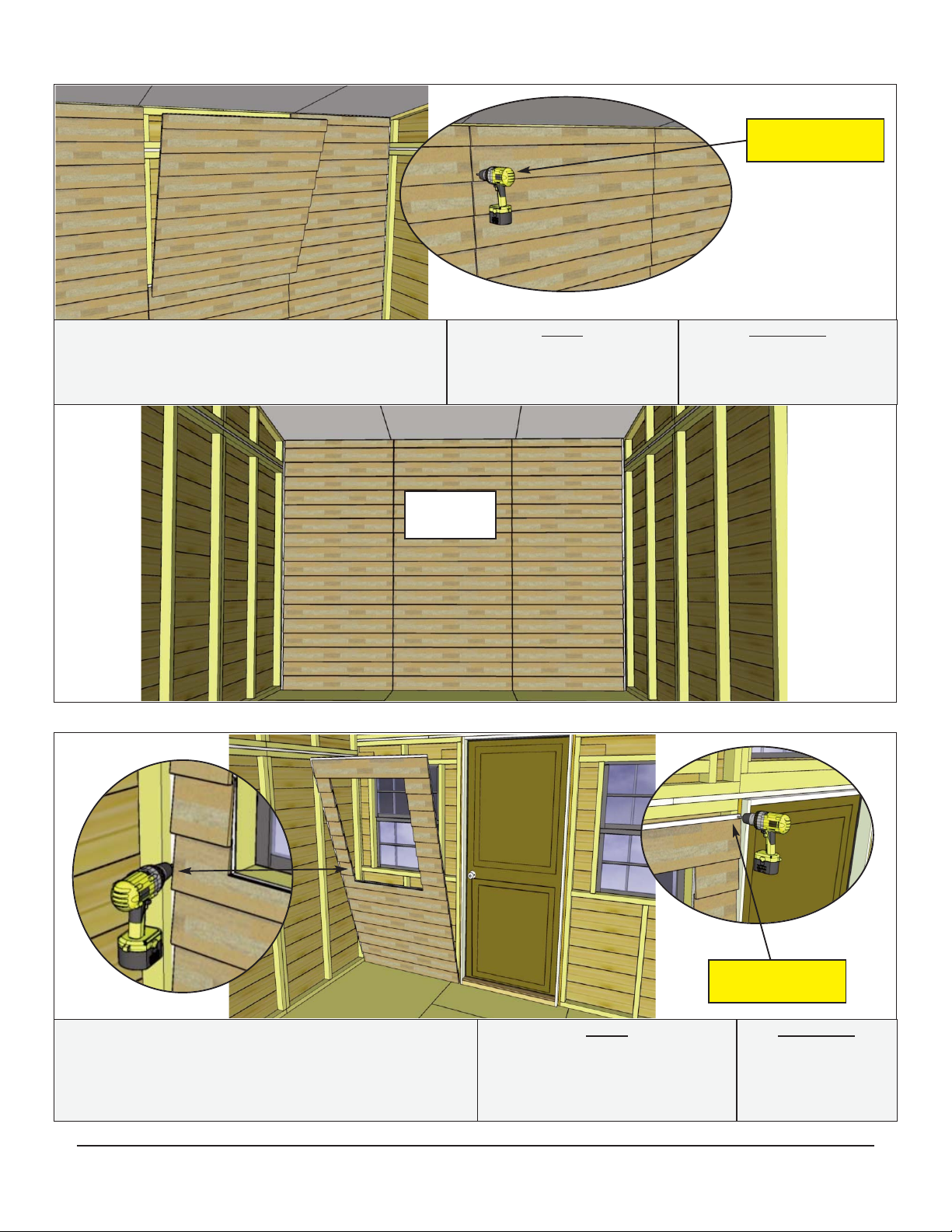

9. Position and attach Top Center Wall Panel

against middle wall studs. Attach with

4 - 1 1/4” Screws per piece. 1 screw per corner.

Parts

2E - Top Center Wall Panel

(45 1/4”w x 40 1/4”h) x 1

Hardware

S2 - 1 1/4” Screws

x 4 total

Pre-drill siding

with 1/8” drill bit.

Completed

rear walls.

10. Position and attach Large Window Wall Panel

against wall studs in left corner. Plywood extends

past siding on left side. Attach with

6 - 1 1/4” Screws per piece.

Parts

2F - Large Window Wall Panel

(46 1/2”w x 78”h) x 1

Hardware

S2 - 1 1/4” Screws

x 6 total

Pre-drill siding

with 1/8” drill bit.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 9

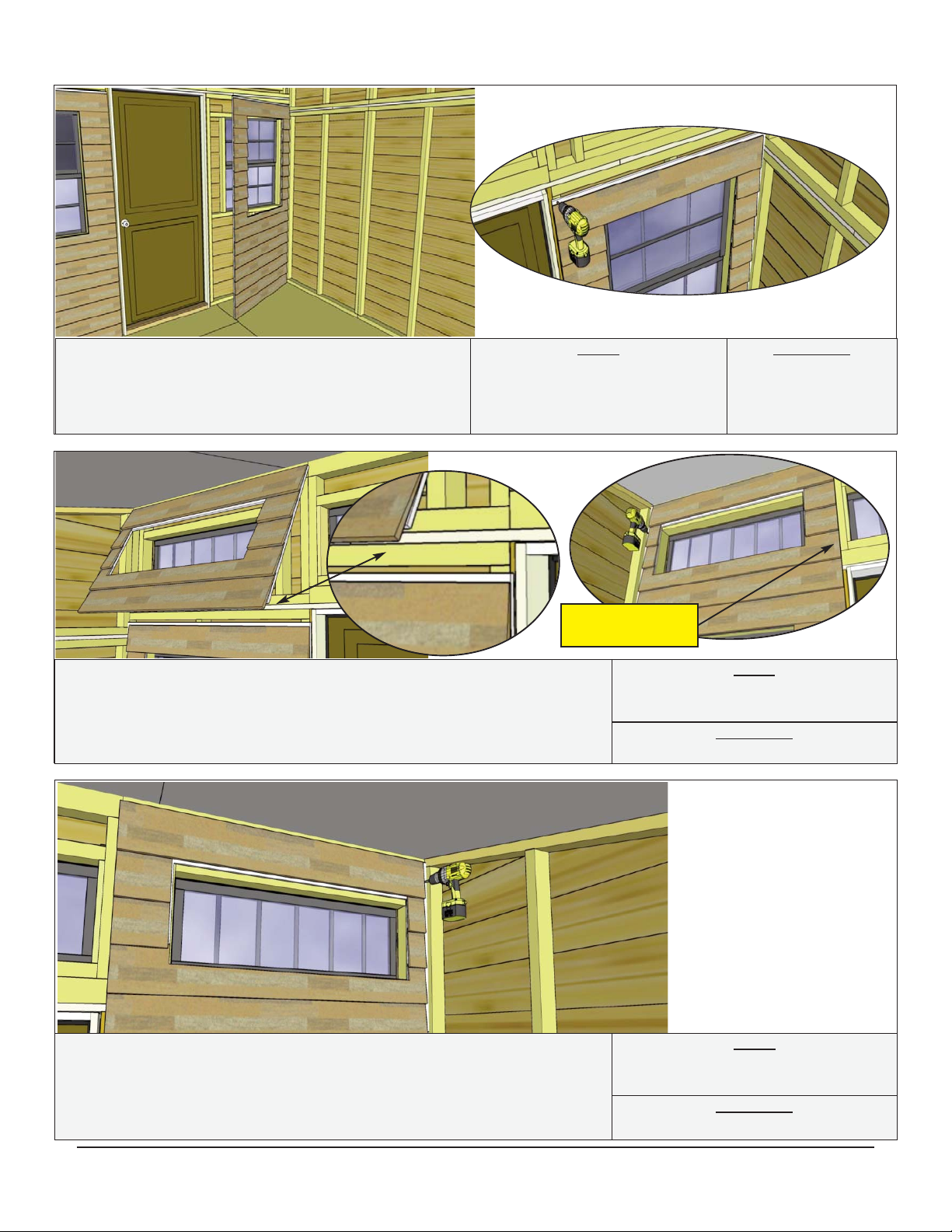

11. Position and attach Large Window Wall Panel

against wall studs in right corner. Plywood extends

past siding on right side. Attach with

6 - 1 1/4” Screws per piece.

Parts

2F - Large Window Wall Panel

(46 1/2”w x 78”h) x 1

Hardware

S2 - 1 1/4” Screws

x 6 total

12. Position and attach Transom Window Wall Panel in left top

corner. Plywood extends past siding on left side. Siding will

overhange window wall siding on bottom. Attach with

4 - 1 1/4” Screws per piece.

Parts

2G - Transom Window Wall Panel

(46 1/2”w x 23 1/4”h) x 1

Hardware

S2 - 1 1/4” Screws x 4 total

Pre-drill siding

with 1/8” drill bit.

13. Position and attach Transom Window Wall Panel in right top

corner. Plywood extends past siding on right side. Siding will

overhang window wall siding on bottom. Attach with

4 - 1 1/4” Screws per piece.

Parts

2G - Transom Window Wall Panel

(46 1/2”w x 23 1/4”h) x 1

Hardware

S2 - 1 1/4” Screws x 4 total

1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 10

14. Position and attach Transom

Window Wall Panel in center betweem

left/right transom windows. Attach with

4 - 1 1/4” Screws per piece.

Parts

2H - Transom Window Wall Panel - Center

(39 1/4”w x 22 1/4”h) x 1

Hardware

S2 - 1 1/4” Screws

x 4 total

Pre-drill siding

with 1/8” drill bit.

15. Position and attach Bottom Right Side

Wall Panel in front corner. Panel will slide in

between window panel in corner. Attach with

4 - 1 1/4” Screws per piece.

Parts

2I - Bottom Right Side Wall Panel

- Front

(45 1/4”w x 44 1/2”h) x 1

Hardware

S2 - 1 1/4” Screws

x 4 total

Pre-drill siding

with 1/8” drill bit.

16. Position and attach Top Right Side Wall

Panel Angled in front corner. Panel will slide

in between window panel in front corner.

Attach with 4 - 1 1/4” Screws per piece.

Parts

2J - Top Right Side Wall Panel

- Angle Front

(45 1/4”w x 57 5/8”h) x 1

Hardware

S2 - 1 1/4” Screws

x 4 total

Andere Handbücher für STU128

Inhaltsverzeichnis

Andere OLT Gartenhaus Handbücher

OLT

OLT SR812-FJ-Ply Bedienungsanleitung

OLT

OLT GC42-FJ-CEDAR Bedienungsanleitung

OLT

OLT 12x16 Sunshed Garden Bedienungsanleitung

OLT

OLT T&G Bedienungsanleitung

OLT

OLT SunShed Greenhouse 8x12 Bedienungsanleitung

OLT

OLT SSGS1216-FJ-Ply Bedienungsanleitung

OLT

OLT CABANA CB128-SLIDER-CEDAR-BEV Bedienungsanleitung

OLT

OLT 12x8 Cabana Bedienungsanleitung

OLT

OLT 8x12 Santa Rosa Bedienungsanleitung

OLT

OLT Muskoka Cabin 9x9 Bedienungsanleitung

OLT

OLT SpaceSaver SS124-SLIDER-METAL-FJ Bedienungsanleitung

OLT

OLT 12x8 Cabana Garden Shed Bedienungsanleitung

OLT

OLT GS84-SLIDER-CEDAR-FJ Bedienungsanleitung

OLT

OLT SS84-SLIDER-METAL-AK Bedienungsanleitung

OLT

OLT Santa Rosa SR812-FJ-Metal Bedienungsanleitung

OLT

OLT CB96-AK-METAL Bedienungsanleitung

OLT

OLT GS84-SLIDER-METAL-AK Bedienungsanleitung

OLT

OLT GAR88-AK-METAL Bedienungsanleitung

OLT

OLT CB128-SLIDER-METAL-BEV Bedienungsanleitung

OLT

OLT GardenSaver GS124-SLIDER-METAL-FJ Bedienungsanleitung

OLT

OLT SunShed SSGS1216-FJ-Metal Bedienungsanleitung

OLT

OLT 12x16 SunShed Bedienungsanleitung

OLT

OLT Studio Garden Shed STU128-FJ-Metal Bedienungsanleitung

OLT

OLT SSGS1212 Bedienungsanleitung

Beliebte Gartenhaus Handbücher anderer Marken

Mercia Garden Products

Mercia Garden Products 0628LOG181-V4 Bedienungsanleitung

Lemeks

Lemeks Palmako PA120-5930-6 Installationshandbuch

Gartenhaus-King

Gartenhaus-King Valery Bedienungsanleitung

Rion

Rion Hobby Gardener Bedienungsanleitung

POD

POD Camping 480 Bedienungsanleitung

Select

Select ISAAC E9682 Bedienungsanleitung

Mercia Garden Products

Mercia Garden Products 01DTSHPWOR1010DDOW-V4 Gebrauchsanweisung

Palmako

Palmako Saale Bedienungsanleitung

Lemeks

Lemeks Palmako Kira EL16-3623 Installationshandbuch

Mercia Garden Products

Mercia Garden Products 0644LOG186-V4 Gebrauchsanweisung

Palmako

Palmako Roger FR44-5953-2 Bedienungsanleitung

Mercia Garden Products

Mercia Garden Products 03DTSHHP1206HGD4MW-V1 Gebrauchsanweisung

WAR-LOCK

WAR-LOCK GARDENSHED Skillion Series Bedienungsanleitung

Pergola kits USA

Pergola kits USA PREMIUM VINYL PAVILION Bedienungsanleitung

G21

G21 Boston 882 Bedienungsanleitung

Lemeks

Lemeks Palmako Grace PM56-4529 Installationshandbuch

Mercia Garden Products

Mercia Garden Products 03WES0808-V1 Gebrauchsanweisung

Shire

Shire Salcey Bedienungsanleitung
