OLT STU128 Bedienungsanleitung

12x8 Studio Garden

Shed - Plywood Roof -

Assembly Manual

Version #1.5

July 19, 2021

1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 1

In the event of a missing or broken piece, call the Outdoor Living Today Customer Support Line @ 1-888-658-1658 with-

in 30 days of the delivery of your purchase. It is our commitment to you to courier replacement parts, free of charge,

within 10 business days of this notification. Replacement parts will not be provided free of charge after the 30 day

grace period.

All structures purchased from Outdoor Living Today are covered for a period of one year for defects in manufacturing

and workmanship. Costs incurred for customer installations are not included.

Failure to use supplied parts included in this kit could result in poor product performance and may void your warranty.

Please contact Outdoor Living Today’s Customer Toll Free Line if you plan to deviate from our written instructions.

Thank you for purchasing a

12x8 Studio Garden Shed.

Please take the time to

identify all the parts prior to

assembly.

Safety Points and Other Considerations

Our products are built for use based on

proper installation on level ground and

normal residential use. Please follow the

instruction manual when building your

shed and retain the manual for future

maintenance purposes.

Customers are responsible for ensuring

a solid, level, well-draining site for

construction.

Please check with your local municipal

or county by-laws before ordering this

product to confirm it complies with

building codes.

- Snow load ratings vary by geographical location. If heavy or wet snowfall occurs, it

is advisable to sweep snow off roof frequently.

- If the product is elevated, any structural and building code requirements are solely

the customer's responsibility, and should be abided by.

- In areas with high or gusty wind conditions, it is advisable to install the structure

securely to the ground.

- Have a regular maintenance plan to ensure screws, doors, windows and parts are

tightly affixed.

Customer agrees to hold Outdoor Living Today and any Authorized

Dealers free of any liability for improper installation, maintenance and

repair.

Stock Code: STU128 - Plywood

Roof Area: 119 sqft

What to do before my Shed arrives?

Become familiar with this assembly manual and determine if you can•

complete the project yourself or will require a professional contractor.

Clear the construcon area and ensure a clear pathway for delivery when•

the freight company arrives. Remove all debris: roots, grass, rocks, etc.

Excavate the site. Contact your local ulies company to ensure there are•

no gas or electric lines buried in the area before digging.

Decide on the type of foundaon you will be using:•

 Concrete slab, or

 46 inches of crushed gravel with paver stones or 4x4 stringers.

You can ﬁnd the footprint for your shed on Page 3 of your Assembly Manual.

If doing the assembly yourself, have all the necessary tools ready to go and in•

working condion. A list of required tools can be found aer the parts list.

One helper is recommended to assist in construcng your shed.•

It generally takes two people over two days to assemble a shed. If you’re

hiring a contractor, their rate should be in line with that duraon of work.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 2

Foundation Types for 8x12 Garden Shed

Concrete Slab Foundation:

- Slab must be at least the same size as assembled floor frame (136 1/2” x 96”) or larger.

- 6” Deep foundation.

- 1.7 Cubic Yards of concrete required.

- A concrete slab will have the longest durability out of your foundation options.

Once level, a concrete slab is the easiest surface to build on.

Gravel with 4x4 Pressure Treated Stringers:

- Excavate at least 6” deep, and 6” wider than floor frame on each side.

- 2.1 Cubic Yards of gravel required, approximatley 19 wheelbarrows.

- 7 - 4x4 Pressure Treated Stringers 8’ long required.

- Evenly spaced, with one at each end of floor frame.

Saves money on materials, easy to level and work with.

Gravel with Patio Paver Stones:

- Excavate at least 6” deep, and 6” wider than floor frame on each side.

- 2.1 Cubic Yards of gravel required, approximatley 19 wheelbarrows.

- 25 patio pavers (8” x 8” or larger).

- Center patio paver stones underneath floor runners and underneath seams in floor joists.

Patio paver stones are widely available from most landscape stores.

96”

136 1/2”

6” Deep

108”

148 1/2”

7 - 4”x4”x96”

25 Patio Stones

Floor FrameConcrete Foundation Completed Foundation

18 5/8”

Gravel Foundation Gravel Foundation with treated stringers Completed Foundation

Gravel Foundation Gravel Foundation with Patio Pavers Completed Foundation

96”

136 1/2”

108”

148 1/2”

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 3

Thank you for purchasing our 12x8 Studio Garden Shed.

Please take the time to identify all the parts prior to assembly.

1. Floor Section

Floors

1A: 3 - 45 1/2” x 75” - Floor Joist Frames

1B: 6 - 1 1/2” x 3 1/2” x 71 3/4” - Center Floor Joists - Unattached

1C: 3 - 45 1/2” x 21” - Floor Joist Frames

1D: 3 - 45 1/2” x 75” - Plywood Floor - Large

1E: 3 - 45 1/2” x 21” - Plywood Floor - Small

1F: 10 - 1 1/2” x 3 1/2” x 68 3/16” Floor Runners

2. Wall Section

Main Wall Panels

2A: 2 - 48 3/4”w x 80 1/4”h - Front Window Wall Panels

2B: 7 - 45 1/2”w x 75”h - Solid Wall Panels (Bottom Plates Unattached)

2C: 7 - 1 5/8” x 2 1/2” x 45 3/8” - Bottom Wall Plates

Main Wall Plates

2D: 5 - 3/4” x 2 1/2” x 65 3/4” - Rear/Side/Middle Front

2E: 2 - 3/4” x 2 1/2” x 35 3/8” - Front

2F: 2 - 3/4” x 2 1/2” x 27 3/4” - Side

Rear Extender Walls - Rectangular

2G: 3 - 45 1/2”w x 9”h - Rear Extender Walls

Side Gable Walls (Trapezoid Shape)

2H: 2 - 45 1/2” w x 19” h x 10” h - Rear Side Gable Walls (R/L)

2I: 2 - 45 1/2” w x 28” h x 19” h - Front Side Gable Walls (R/L)

Upper Wall Plates

2J: 2 - 3/4” x 2 1/2” x 68 1/4” - 11 degree angle - Front

2K: 2 - 3/4” x 2 1/2” x 68 1/4” - 11 degree angle - Rear

Door Jambs

2L: 2 - 3/4” x 3 1/2” x 80 1/4” - Vertical Door Jambs

Upper Front Walls

2M: 2 - 48 1/2”w x 22 3/4”h - Upper Front Window Walls

2N: 1 - 39 1/2”w x 22 3/4”h - Centre Upper Front Window Wall

3. Rafter and Roof Section

Rafters

3A: 14 - 1 1/2” x 3 1/2” x 47” - Rafters (11° angle cut on ends)

3B: 14 - 1 1/2” x 3 1/2” x 72” - Rafters (11° angle cut on ends)

3C: 4 - 1 3/8” x 3 1/2” x 59 1/2” - Rafter Facia (11° angle cut on ends)

Rafter Spacers

3D: 2 - 1/2” x 2 1/2” x 60” Plywood Spacer Jig - Sides

3E: 1 - 1/2” x 2 1/2” x 44 7/8” Plywood Spacer Jig - Center

3F: 2 pcs - Front Rafter Overhang Spacer - 14 1/2” long (shingle marked)

Plywood Roof Panels (5)

3G: 3 - 5/8” x 48” x 86” - Large Roof Panels

3H: 2 - 5/8” x 33” x 72” - Small Roof Panels

Facia/Roof Nailing Strips

3M: 2 - 3/4” x 1 1/2” x 72”

3N: 2 - 3/4” x 1 1/2” x 44”

4. Trim Section

Soffits Front

4A: 2 - 3/4” x 3” x 14” (Outside L/R Cap)

4B: 8 - 3/4” x 3 1/2” x 67” (Tongue & Groove)

4C: 2 - 3/4” x 2 1/4” x 67” (Tongue cut off - positioned against shed)

4D: 1 - 1/2” x 2 1/2” x 13 3/4” (Center Cap)

21-22, 30

Steps

23-24

25-27

28, 30, 34

31-33

Steps

40-47

48-53

Steps

13-20

1-12

37-47

55-58

Parts List - Pages 2 and 3

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 4

4. Trim Section Cont.

Soffits Rear

4E: 2 - 3/4” x 3” x 6 1/2” (Outside L/R Cap)

4F: 2 - 3/4” x 3 1/2” x 67” (Tongue & Groove)

4G: 2 - 3/4” x 3” x 67” (Tongue cut off - positioned against shed)

4H: 1 - 1/2” x 2 1/2” x 5 1/4” (Center Cap)

Top Horizontal Wall Trim

4I: 1 - 3/4” x 1” x 39” - Front

4J: 2 - 3/4” x 1” x 48 3/4” - Front

4K: 3 - 3/4” x 1” x 45 1/2” - Rear

Facia Trim

4L: 4 - 3/4” x 5 1/2” x 72 3/4” - Front/Rear

4M: 4 - 3/4” x 5 1/2” x 60” - Side (11° cut ends- mirror Image)

4N: 4 - 1/2” x 7 1/2” w x 5 1/2” - Facia Detail Plates

Bottom Skirting Trim

Side and Rear

4O: 7 - 3/4” x 4 1/2” x 45 1/2” - Bottom Skirting

Front

4P: 1 - 3/4” x 4 1/2” x 39” - Center Bottom Skirting

4Q: 2 - 3/4” x 4 1/2” x 48 3/4” - Outside Bottom Skirting

Corner & Wall Trim

Filler

4R: 4 - 7/8” x 2 1/2” x 72” - Filler Trims (all corners)

4S: 2 - 7/8” x 2 1/2” x 28 1/2” - Filler Trims (Front top)

4T: 2 - 7/8” x 2 1/2” x 12” - Filler Trims (Rear top)

Corner

4U: 2 - 1/2” x 2 1/2” x 46” - Top Front Narrow Corner (22° scarf cut)

4V: 2 -1/2” x 5 1/2” x 46 1/2 -Top Front Side Wide Corner (22° scarf /11°cut top)

4W: 2 - 1/2” x 2 1/2” x 62” - Bottom Front Narrow Corner (22° scarf cut)

4X: 2 - 1/2” x 5 1/2” x 62” - Bottom Front Side Wide Corner (22° scarf cut)

4Y: 2 - 1/2” x 5 1/2” x 91” - Rear Side Wide Corner (11° cut top - mirror)

4Z: 2 - 1/2” x 2 1/2” x 89” - Rear Corner Narrow

Side

4AB: 2 - 1/2” x 2 1/2” x 37 3/4” - Top Side (22° scarf /11° cut top - mirror image)

4AC: 2 - 1/2” x 2 1/2” x 62” - Bottom Side (22° scarf cut)

Rear

4AD: 2 - 1/2” x 2 1/2” x 89” - Rear Walls

Pre-Hung Door (Fiberglass - primed white)

4AE: 1 - 37 1/2” x 80”

Door Trim

4AF: 1 - 3/4” x 2 1/2” x 40” - Above Door Filler Trim (Bevel-install thick end up)

4AG: 2 - 1/2” x 2 1/2” x 84” - Vertical Door Trim

4AH: 1 - 1/2” x 3” x 44 1/2” - Horizontal Door Trim (angle cut - bottom corners)

Windows

4AI: 2 - Large Window Inserts - 30 1/4”w x 35” h

4AJ: 3 - Transom Window Inserts - 35”w x 10 1/8” h

Window Trim Pkgs.

4AK: Large Windows (2 Pkgs)

Top-1 -36 1/4” 11° cut / Sides - 2 -36 1/8” sq.cut / Bottom- 1 -35 1/4” sq.cut

4AL: Transom Windows (Left/Right) 2 Pkgs

Top-1 - 41” 11° cut / Sides- 2 -10 5/8” sq.cut / Bottom-1 -40” sq.cut

4AM: Transom Window (Center) 1 Pkg

2 Horizontal - 35 3/4” - sq.cut / 2 Vertical - 20 1/2” - sq.cut

Miscellaneous Pieces

4AN: 2 pc - Spare Wall Siding (48 1/2” long)

4AO: 8 pcs - Shim Shingles- use to shim door, etc.

Steps

59-60

62-67

68-70

72-74

77-78

79-80

81-84

If you plan on painting your door, we

suggest doing it prior to construction

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 5

S1 - 2 1/2” Screws

S3 - 2” Screws

Hardware Kit (Provided)

Safety Glasses Work Gloves

Safety Equipment Required (Not Provided)

Ladders

Screw Gun/Drill Tape Measure

Hammer Wood Clamp

Level Pliers

Tools Required (Not Provided)

Y2 - 90° Metal

Bracket (Roof)

1/8” & 3/8” Drill Bits

12X8 Studio Garden Shed - PLYWOOD - HARDWARE PACKAGE

Phillips

Screwdriver

x 20

x 425

x 71

x 356

x 475

S2 - 1 1/4” Screws

N1 - 1 1/2” Finishing Nails

BR1 - Square Drive Bit x 2

Door Handle

with hardware

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 6

Regular Maintenance & Tips to prolong the life of your shed.

Before/During Assembly:

1.) Paint each face and edge of your plywood floor with a latex exterior paint.

2.) Caulk wall seams if gaps appear.

3.) Caulk around window framing.

4.) Caulk perimeter between floor plywood and bottom wall plate.

5.) Caulk channels in lap siding at the top of your door above the trim, just a drop in each channel.

6.) Caulk edge of door threshold.

7.) Optional: Install a Sill Gasket between floor runners and foundation.

8.) Optional: Install an 8” strip of roofing paper below Cedar Ridge Caps for Cedar Roof Sheds.

Routine Maintenance:

- Routinely check all fasteners are tight (ex. Door Hinges, Nails)

- Brush off dirt from walls.

- Brush off snow from roof regularly.

- Routinely remove needles and leaves from roof.

Painting/Staining

- Your cedar shed, if left untreated, will weather to a silvery grey colour.

- Painting or staining your structure is highly recommended and will prolong the life of your shed.

- You do not need to wait to paint or stain your shed, the wood in your kit has been dried and can be

—stained or painted immediately.

- Consult your local paint store for the best paint or stain for cedar.

- Optional: stain the inside of your shed. (Note: this will remove the fresh cedar smell.)

1. 2. 3.

4. 5. 6.

Sill Gasket

Floor Joists

Floor Runner

Foundation

Floor Plywood

Wall Panel

Small gap between

bevel siding and

window trim

Dab of caulking

Strip of roofing paper over

apex of roof panels

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 7

1. Floor Section

Flush

with

framing

Plywood Floor

Large - 3pcs. (Part 1D)

Floor Joist

Frames Large -

3pcs. (Part 1A) Floor Runners -

10pcs. (Part 1F)

Plywood Floor

Small - 3pcs.

(Part 1E)

Concrete Pad

(optional foundation method)

Floor Joist

FramesSmall -

3pcs. (Part 1C)

Exploded view of all parts necessary to complete

Floor Section. Identify all parts prior to starting.

Note: Floor Footprint is 136 1/2” wide x 96” deep.

2. When correctly positioned, attach each Joist with 4 - 2 1/2” screws

(2 per end). You can find the Square Drive Screw Bit in the Hardware

Kit Bag. Complete 2 remaining Large Floor Joist Frames.

Hardware

S1 - 2 1/2” Screws

x 24 total

1. Lay out 1A - Floor Joist Frames and two of 1B - Floor Joists as

illustrated above. Position Joists equally in Floor Joist Frame. Use

1C - Small Floor Joist Frame as a template to determine joist

position. Position Joist so flush with framing.

Parts (Steps 1 - 2)

1A - Large Floor Joist Frames

(45 1/2” x 75”) x 3

1B - Floor Joists

(1 1/2” x 3 1/2” x 71 3/4”) x 6

Center Floor

Joists - 6pcs.

(Part 1B)

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 8

96”

136 1/2”

Front of Shed

You can find BR1 - Square

Drive Bit for the screws in

with the Hardware Kit Bag.

8. Make sure Runners are flush with outside

and front and rear floor framing but not

overhanging.

7. Attach 1F - Floor Runners

to completed floor frame. There

are 2 floor runners per 136 1/2”

side and 5 completed runners

in total. Use 3 - 2 1/2” screws

per runner section.

Parts (Steps 7 - 9)

1F - Floor Runners

(1 1/2” x 3 1/2” x 68 3/16”)

x 10

Hardware (Steps 7 - 9)

S1 - 2 1/2” Screws

x 30 total

6. When completed, your floor footprint

should be 136 1/2” wide x 96” deep.

5. Complete all large and small

frame attachments. Screw each

completed section together with

8 - 2 1/2” screws.

Hardware

S1 - 2 1/2” Screws

x 16 total

4. Attach each large and small floor joist

frame together with 6 - 2 1/2” screws per

section.

Hardware

(S1 - 2 1/2” Screws) x 18 total

3. Lay out 1A & 1C - Floor Joist Frames as illustrated.

There are 3 larger and 3 smaller Frame Sections. The

Footprint for the floor when attached together will be

136 1/2” wide x 96” deep.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 9

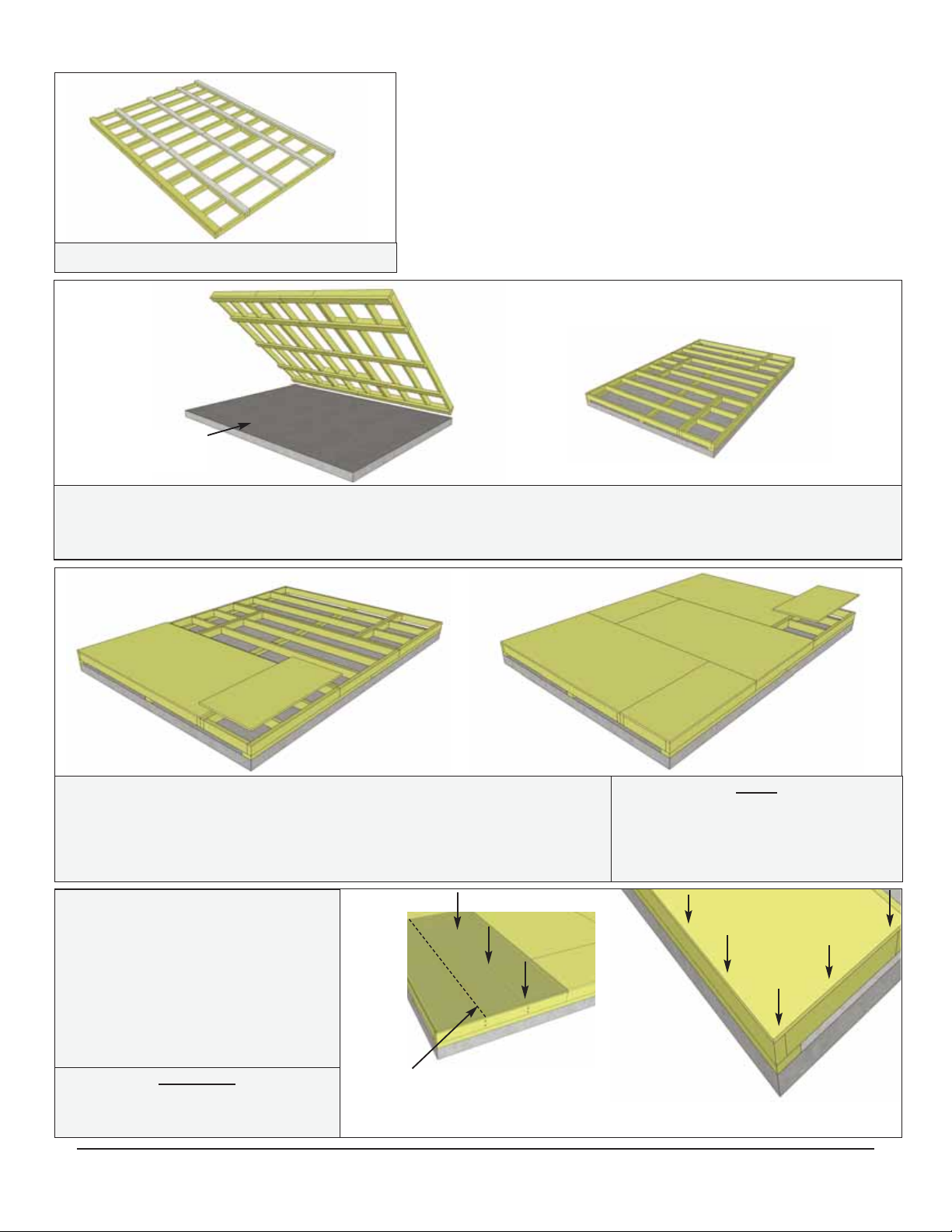

Note: The floor will be flipped over and the floor

runners will sit on your foundation. It is important

to note, that having a level foundation is critical.

Choosing a foundation will vary between regions.

Typical foundations can be concrete pads or patio

stones positioned underneath the floor runners.

Concrete Slab

Foundation

Foundations

Use chalk line to mark

location of mid joists for

interior screws.

Front

12. With Plywood positioned

correctly on floor framing, attach

with 1 1/4” Screws. Use screws

every 16” around perimeter of each

large floor section and 3 screws

through each mid joists. Adjust for

smaller floor sections accordingly.

11. Position parts 1D & 1E - Plywood Floor on top of completed

floor joists. Plywood will sit flush with outside of floor joist frame.

Parts

1D - Plywood Floor - Large

(5/8” x 45 3/8” x 74 7/8”) x 3

1E - Plywood Floor - Small

(5/8” x 45 3/8” x 20 7/8”) x 3

Hardware

S2 - 1 1/4” Screws

x 100 total (approx.)

10. With Floor Runners attached, carefully flip the floor over and place on your foundation.

Caution: you will need 2 people to assist you. Be careful when laying floor down not to bend or twist floor.

When in place, level floor completely.

9. Complete remaining Floor Runners.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 10

Andere Handbücher für STU128

Inhaltsverzeichnis

Andere OLT Außenlagerung Handbücher

OLT

OLT Maximizer Bedienungsanleitung

OLT

OLT GS84-S-FJ-Plywood Bedienungsanleitung

OLT

OLT SM64-TG-D-METAL Bedienungsanleitung

OLT

OLT GS124-SLIDER-CEDAR-FJ Bedienungsanleitung

OLT

OLT SS84-D-METAL Bedienungsanleitung

OLT

OLT SS84-SLIDER-CEDAR-AK Bedienungsanleitung

OLT

OLT 12x4 SpaceSaver Shed Bedienungsanleitung

OLT

OLT SpaceSaver SS84D-FJ-METAL Bedienungsanleitung

OLT

OLT STU128-FJ-Cedar Bedienungsanleitung

OLT

OLT 12x4 SpaceSaver Shed Bedienungsanleitung

OLT

OLT SpaceMaker Bedienungsanleitung

OLT

OLT 6x4 SPACE MASTER Bedienungsanleitung

OLT

OLT 6x6 Maximizer Bedienungsanleitung

OLT

OLT 8x12 SpaceMaker Garden Shed Bedienungsanleitung

OLT

OLT GardenSaver GS84-Slider Bedienungsanleitung

OLT

OLT 8x12 SpaceMaker Bedienungsanleitung

OLT

OLT GS84-S-FJ-Metal Bedienungsanleitung

OLT

OLT GS84-S-Plywood Bedienungsanleitung

OLT

OLT STU128-FJ-Ply Bedienungsanleitung

OLT

OLT GS84-D-METAL Bedienungsanleitung

OLT

OLT 8x12 SpaceMaker Shed Bedienungsanleitung

OLT

OLT GS124-SLIDER-METAL-AK Bedienungsanleitung

OLT

OLT GardenSaver GS124-SLIDER-PLY-AK Bedienungsanleitung

OLT

OLT GardenSaver GS84-S-FJ Bedienungsanleitung

Beliebte Außenlagerung Handbücher anderer Marken

USP

USP DURAMAX 10 Ft x 8 Ft StoreMax Plus Bedienungsanleitung

TYGO

TYGO Nyland Bedienungsanleitung

Duratuf

Duratuf GL105 Bedienungsanleitung

Viking

Viking SD5300SS Technisches Handbuch

USP

USP DURAMAX Apex Pro 10.5 Ft x 8 Ft 40116 Bedienungsanleitung

ModuLaro

ModuLaro Lojo WC202200 Bedienungsanleitung

Lifetime

Lifetime 6418 Bedienungsanleitung

rollaway container

rollaway container ARPCA24 Bedienungsanleitung

Duratuf

Duratuf Havelock Bedienungsanleitung

X-METAL

X-METAL 4065 Bedienungsanleitung

Outdoor Life Products

Outdoor Life Products FP2030 F Bedienungsanleitung

Royalcraft

Royalcraft Faro 295L Storage Box Bedienungsanleitung

Riverlea

Riverlea Duratuf KIWI KS3 Bedienungsanleitung

Rubbermaid

Rubbermaid 5L45 Bedienungsanleitung

garofalo

garofalo TUSCANY EVO Bedienungsanleitung

Duratuf

Duratuf Kiwi MK1 Bedienungsanleitung

Eden

Eden CA2988 Bedienungsanleitung

Palram

Palram CANOPIA RUBICON 6x10 Administratorhandbuch
