INTRODUCTION

Thisinstrumentisaportableeasyusecompact-sizeddigitalinfraredtempera-

ture transducer with laser marker designed for simple one hand operation.

SAFETY INFORMATION

It is recommended that you read the safety and operation instructions before

using the infrared thermometer.

The symbol on the instrument indicates that the operator must refer to an

explanation in this manual.

DANGER

Pressing the button turns the laser marker on and off. Exercise extreme care and do

not allow the laser beam to enter your eye or those of any other person or animal.

• Do not look directly into the laser light from the optical system.

• Whenmeasuringthetemperatureofanobjectwhichhasamirrorfinish,becarefulnot

to allow the laser light beam to be reflected off the surface into your eyes or those of

anotherperson.

• Do not allow the laser light beam to impinge upon any gas which can explode.

CAUTION

• Donotusetheunit nearanydevicewhichgeneratesstrongelectromagneticradiation

or near a static electrical charge, as these may cause errors.

• Donotusetheunitwhereitmaybeexposedtocorrosiveorexplosivegases.Theunit

may be damaged, or explosion may occur.

• Do not keep or use this unit in an environment where it will be directly illuminated by

sunshine, or where it will be exposed to high temperatures, high humidity or conden-

sation.Ifyoudo,itmaybedeformed,itsinsulationmaybedamaged,oritmaynolonger

function according to specification.

• Donotpointthelensatthesunoratanyothersourceofstronglight.Ifyou do,thesensor

may be damaged.

• Donotcontactthelensagainsttheobjectwhosetemperatureistobemeasured,orget

it dirty, allow it to be scratched, or allow any foreign material to adhere to it. Doing so

may cause errors.

• Do not touch or hold by the front cone. Temperature reading can be affected by heat

fromhand.

• Do not place the meter on or around hot objects (70°C/158°F). It may cause damage

to the case.

• Ifthemeterisexposedtosignificantchangesinambienttemperature(hottocoldorcold

to hot). Allow 20 minutes for temperature stabilization, before taking measurement.

• Condensationmayformonthelenswhengoingfromacoldtohotenvironment-wait10

minutes for conden sation to dissipate before taking measurements.

• Thisunitisnotconstructedtobewaterproofordustproof,sodonotuseitinaverydusty

environment or in one where it will get wet.

SPECIFICATIONS

GENERAL

Low battery indication: the "Red LED " is displayed when the battery voltage

drops below the operating level.

Operating Environment: 0°C to 50°C at < 70% relative humidity.

Storage Temperature: -20°C to 60°C, 0 to 80% R.H. with battery removed from

meter.

Battery: 4 pcs 1.5V (AAA size).

Battery Life: 100 hours (continuity) typical (Laser marker not illuminated).

Dimensions: 170mm(H) x 44mm(W) x 40mm(D).

Weight: 200g including batteries.

ELECTRICAL

Temperature Range: -20°C to 260°C.

Analog Output: 1mV/°C.

Accuracy: ±3% of reading or ±3°C, whichever is greater @ 18 to 28°C ambient

operating temperature.

Temperature Coefficent: ±0.2% of reading or ±0.2°C, whichever is greater,

change in accuracy per °C change in ambient operating temperature above

28°C or below 18°C.

Response Time: 1 second.

Spectral Response: 6 to 14µm nominal.

Emissivity: Pre-set 0.95.

Detection Element: Thermopile.

Optical Lens: Fresnal Lens.

Sighting: 1-beam laser marker <1mW(class 2).

Field of View: 65mmØ at 1000mm.

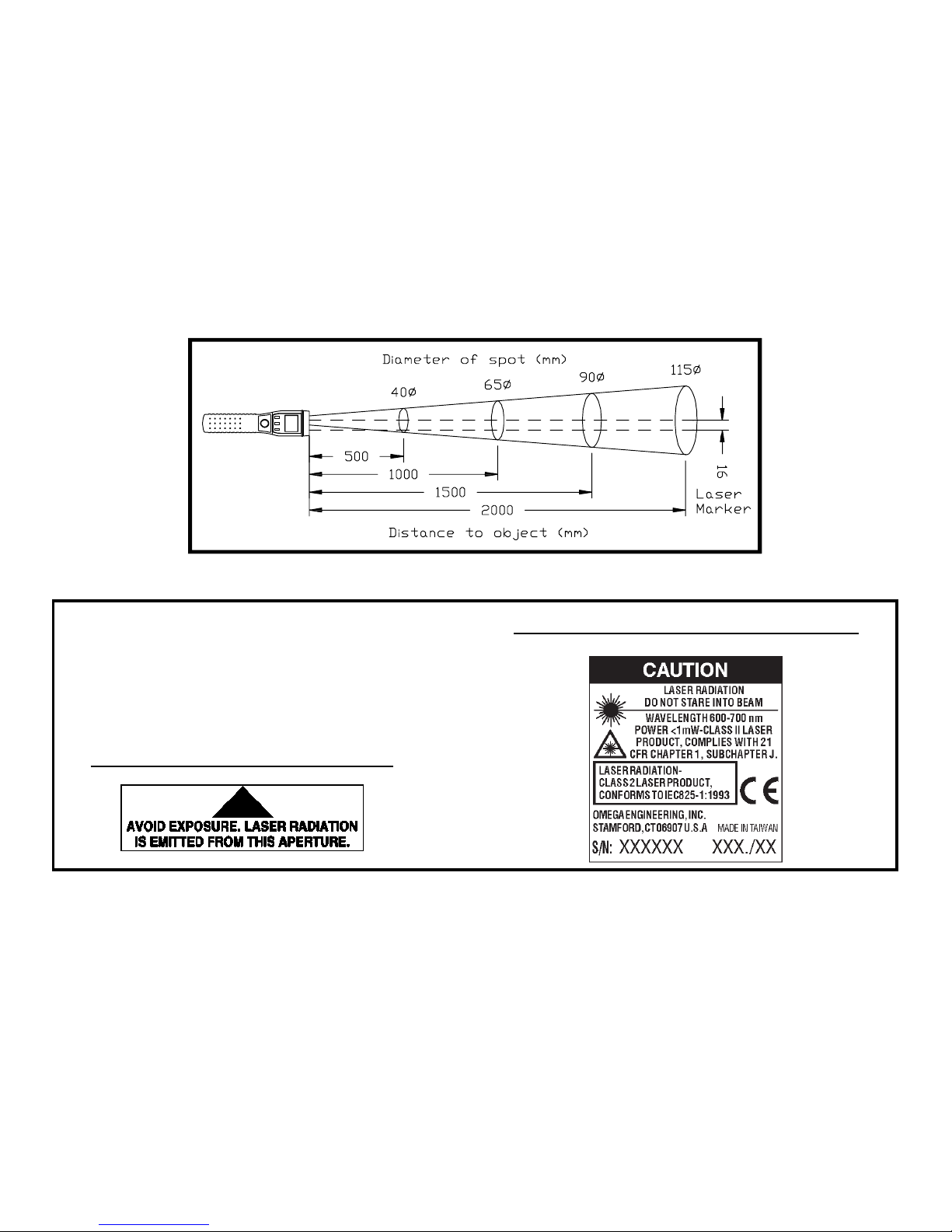

Spot size increases with distance from the probe tip as shown

CAUTION: Use of controls or Adjustments

or performance of Procedures other than

those Specified herein may result in

Hazardous radiation exposure.

Aperture Label (on front):

Danger, Certification & ID Label:

(Located on back of unit)

OPERATING INSTRUCTIONS

Push buttons

Laser Marker Button

Release MEAS button then press " " button to toggle between turn on and turn

off the Laser Marker annunciator, If " " annunciator turn on, press MEAS button

the laser marker beam is being emitted, releasing MEAS button turn off the laser

marker beam.

MEAS (MEASURE) Button

Depress MEAS button to turn on the meter for temperature measurement.

Release the MEAS button to stop temperature measurement.

OPERATION

1.Plugtheinfraredtemperature transducer test leads into the Vdc input jack and

common or ground input jack on the DMM. Observe polarity.

2. Set the DMM to the 2V range only, ignore the decimal point.

3. Use " " button to select turn on or turn off the Laser Marker.

4. Point the lens at the object whose temperature is to be measured.

5. Press the MEAS button. Measurement is performed as long as the MEAS

button is kept pressed.

6. Referring to the spot size figure, aim the laser beam at the object whose

temperature is to be measured.

NOTE: Although the field of measurement (or Field of View) and the spot almost

coincide, actually the field of measurement corresponds to the diameter for

90%opticalresponse.Theobjectwhosetemperatureistobemeasuredneeds

to be larger than the measurement diameter (spot of size) by an adequate

margin at least 1.5 to 2 times larger.

7. Read the DMM diaplay.

MEASUREMENT CONSIDERATIONS

1. Theory of Measurement

Every object emits infrared energy in accordance with its temperature. By

mesuring the amount of this radiant energy, it is possible to determine the

temperature of the emitting object.

2. About Infrared

Infrared radiation is a form of light (electromagnectic radiation), and has the

property that it, passes easily through air while it is easily absorbed by solid

matter. With an emission thermometer which operates by detecting infrared

radiation accurate measurement is possible, irrespective of the air tempera-

ture or the measrement distance.

3. Emission Thermometer Structure

Infrared radiation which has been emitted from the object is focused upon an

infrared radiation sensor, via an optical system which includes a lens is

transparent to infrared rediation, an 5.3µm cut off filter. The output signal from

the infrared radiation sensor is input to an electronic circuit along with the

output signal from a standard tempeature sensor (Thermopile).
