Instructions for the Use and Care and Installation of
ORW6XA
ORW9XA
Wall Canopy Rangehoods
CONTENTS
1 Notice
2 Features
3 Installation
4 Notice of installation
5 Safety Warning
6 Use Instructions
7 Maintenance
8 Troubleshooting
9 Specification
It is important that you retain these instructions, proof of purchase as
well as other important documents about this product for future
reference.
Due to continual product development, Omega reserves the right to alter
specifications or appearances without notice.
Dispose of packaging responsibly –recycle where facilities are
available.
1
(1) NOTICE
1. Thank you for choosing our cooker hood. Please read the
instruction manual carefully before use.
2. The installation work must be undertaken by a qualified
electrician and competent installer.
3. The manufacturer disclaims all liability for any damage or
injury caused as a result of not following instructions for
installation contained in the following text.
The cooker hood is rated for use on 220/240v, 50Hz.
2
(2) FEATURES
1. The cooker hood uses high quality materials, and is made
with a streamlined design.
2. Equipped with a high power electric motor and centrifugal fan,
it produces strong suction with low noise, and features a non stick
grease filter which is easy to clean.
3. The isolated low voltage (12 volt) circuit board control, means
the halogen lights are brighter and safer than incandescent
alternatives.
4. Due to the special wind tunnel construction and filter design,
any odours and dust will be absorbed quickly.
3
(3) INSTALLATION
3.1 The cooker hood should be placed
at a distance of 65-75cm (26-30inch)
from the cooking surface for the best
effect. See Pic 1.
3.2 Install the hook in a suitable place
once the installation height is fixed, and
keep it vertically aligned. The fixed
position of the inside chimney bracket
determines the location of the chimney.
3.3 Fix the outside chimney bracket on
the outside chimney, and be sure that
the inside chimney can be adjusted in
height freely, as well as being able to fix the exhaust pipe.
Afterwards, install the exhaust pipe and chimney on the cooker
hood. See Pic 3.
3.4 Lift the cooker hood onto the hook. See Pic 4.
3.5 Adjust the height of the inside chimney to the position of the
inside chimney bracket, and fix by screw. After adjusting the
position, fix the body with safety screws. See Pic 5.
Note: The two safety screw holes are positioned on the back
casing, with diameter of 6mm.
(4) NOTICE OF INSTALLATION
1. Before installation, please ensure the area is clean, to avoid
suction of the remaining bits of broken wood and dust.
2. The canopy hood cannot share the same air ventilation
ducting as other appliances, such as gas and electric
heaters.
3. The bending of the ventilation ducting should be ≥120°,
parallel or above the exit vent, and should be connected
through the external wall.
4. After installation, make sure that the extractor is level to
avoid grease collection at one end.
NOTE: Remove all protective plastic coatings from the stainless
steel surfaces before use.
6
6
(5) SAFETY WARNING
Keep your children from using the cooker hood.
Your cooker hood is for domestic use only, not suitable for
barbecue, fast - food shops, and other commercial use.
Any installation work must be carried out by a qualified
electrician or competent person.
The cooker hood and its filter mesh should be cleaned regularly
in order to keep in good working order.
Before cleaning, always ensure that you have switched your
cooker hood off.
Clean the cooker hood according to the instruction manual, and
keep the cooker hood away from the danger of flames.
If there is any fault with your cooker hood, please call the
customer service number in the Warranty Card.
Please keep the room adequately ventilated when your cooker
hood and gas hob are working.
Do not exhaust the gas from cooker hood through the same
heated flue which is for the gas from gas hob and other kitchen
appliances.
Before installation and usage, read all the instructions and
make sure that the voltage (V) and the frequency (Hz) indicated
on your cooker hood are exactly the same as the voltage (V)
and the frequency (Hz) in your home.
To ensure that you get the best Warranty experience for your
cooker hood, please provide copies of the Warranty Card and
purchase receipt, when booking warranty work with the
Customer Service department.
7
(6) USE INSTRUCTIONS
The re-usable aluminium grease filters supplied with this
rangehood should be cleaned every month or so to avoid grease
build-up.

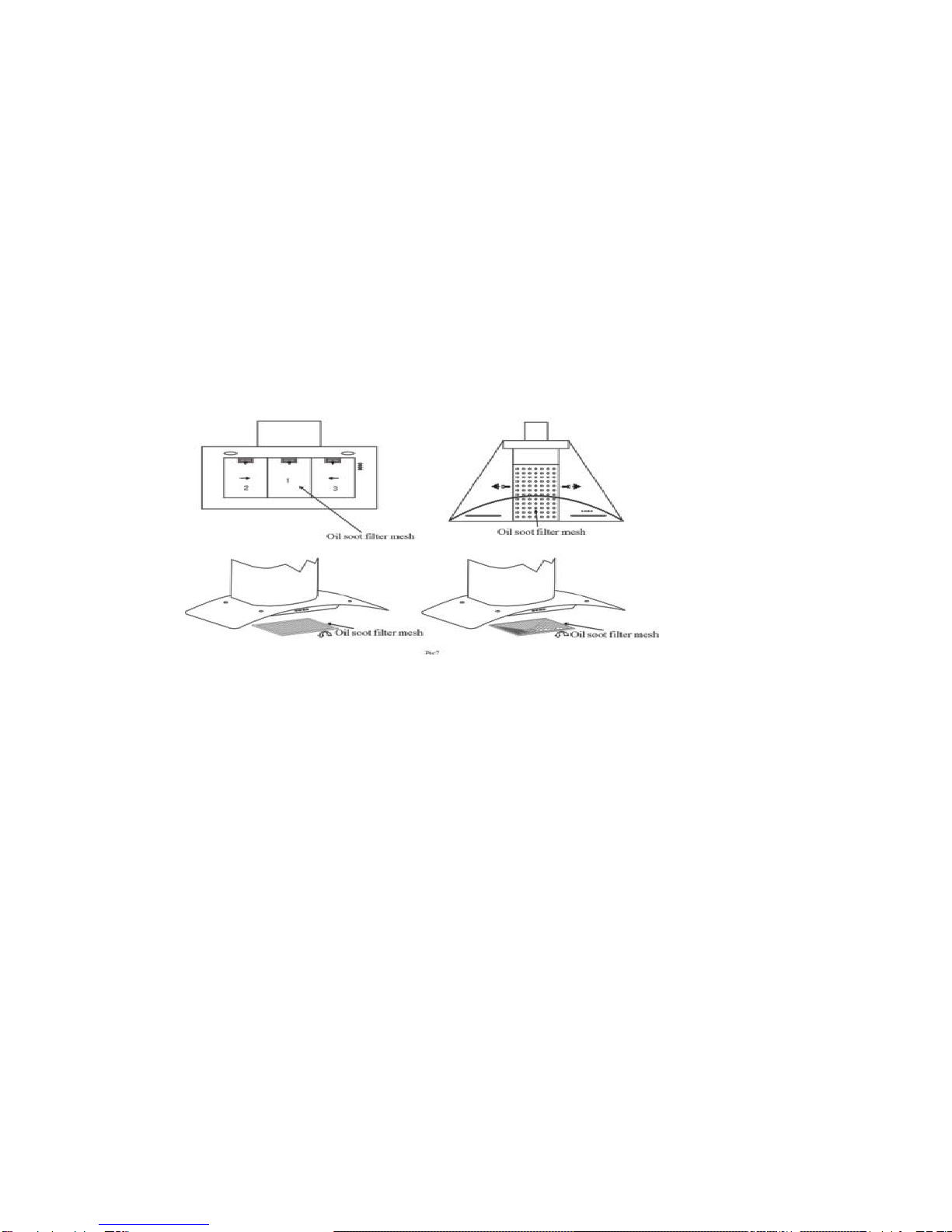

To remove the grease filter, release the locking mechanism at the
front of the filter, and lower the filter slightly to unhook it at the back.
Whilst the filter is removed, clean off any residual grease from the
housing to avoid fire risk.
When replacing the grease filters, ensure that the locking
mechanism is facing down.
If the rangehood is used in re-circulation mode, the activated
charcoal filter must be in place. These charcoal filters are designed
to absorb cooking odours and are located in the canopy above the
grease filters. Before fitting or replacing charcoal filters, the grease
filters must first be removed.
To remove, or instal, the charcoal filter - twist the charcoal filter in
the direction shown below.
SPEED ADJUSTMENT - See pictures
1. Push ‘Stop’button, and the motor will stop.
2. Push the ‘Low’button, the buzzer will buzz once, and the motor
runs at low speed.
3. Push the ‘Mid’ button, the buzzer will buzz once, and the motor
runs at mid speed.
4. Push the ‘High’button, the buzzer will buzz once, and the motor
runs at high speed.
5. Push the ‘Light’button and the two lights will come on. Push it
again and the light will turn off.
pic6C
Low
Mid
High
Light
Stop
pic6C
Low
Mid
High
Light
Stop
pic6C
Low
Mid
High
Light
Stop
(7) MAINTENANCE
7.1 Cleaning the grease filter mesh
The filter mesh is made of high-density stainless steel. Please do
not use corrosive detergent on it. Keeping this filter clean will keep
the appliance running correctly. Please strictly follow the guidelines
below.
Method 1: Place the mesh in 40 - 50 DegC clean water, add in a
small amount of detergent, and soak for 2 - 3 minutes. Wear
gloves, and clean with a soft brush. Do not apply too much
pressure, as the mesh is delicate and will damage easily.
Method 2: The grease filters can be put into a dishwasher. To do
so, set the temperature at around 60 degrees.
7.2 Notice of cleaning cooker hood
A. To protect the main body from corrosion over a long period
of time, the cooker hood should be cleaned with hot water
plus non corrosive detergent every two months.
B. Please do not use abrasive detergent for it will damage the
body.
C. Keep the motor and other spare parts free from water, as
this will cause damage to the appliance.
D. Before cleaning the appliance please remember to turn off
power
E. If fitted with active charcoal filters, the charcoal filter should
not be exposed to heat.
F. Please do not tear open the fixed bar around the active
charcoal filter.
G. If the plug or cord is damaged, please have it replaced by an
authorised service centre.
