For High Pressure Operation

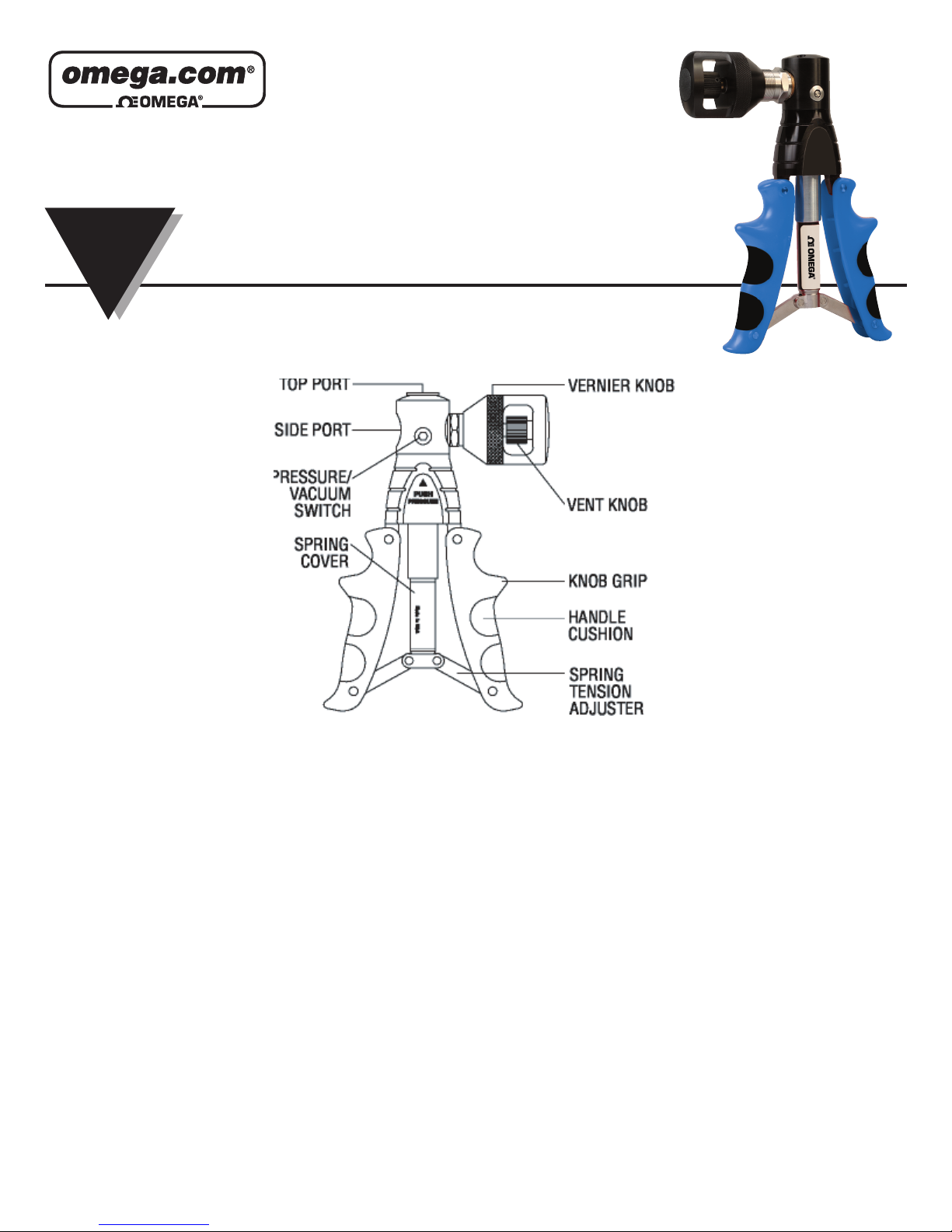

Prior to pressurizing, back out the Vernier knob until the ring on the Vernier shaft
is showing. Pump to pressurize. Turn the Vernier knob towards the pump
housing and the pressure should easily be able to reach 600 psi.
NOTE:
The pump uses a Schrader valve instead of a needle valve. Thus, full open or
closed is several turns from the end of the travel. Over-tightening does not
increase the seal.
Fittings
The pump is equipped with 1/8" and 1/4" BSP ports. In order to use NPT fittings, a
NPT to BSP Parallel Thread Adapter is required. These adapters, which are
included with the pump, have a bonded washer attached to the male end of the
adapter.
MAINTENANCE
No routine maintenance is required. A periodic check of system calibration is
recommended. The Pump is not field serviceable and should be returned to
Omega Engineering if repair is needed (field repair should not be attempted and
may void warranty). Be sure to include a brief description of the problem plus
any relevant application notes. Contact customer service to receive a return
goods authorization number before shipping.
