Omron CP1L CPU UNIT - 03-2009 Bedienungsanleitung

Cat. No. W462-E1-06

CP1L CPU Unit

SYSMAC CP Series

CP1L-L_0D_

CP1L-M_0D_

OPERATION MANUAL

CP1L-L10D@-@

CP1L-L14D@-@

CP1L-L20D@-@

CP1L-M30D@-@

CP1L-M40D@-@

CP1L-M60D@-@

CP1L CPU Unit

Operation Manual

Revised March 2009

Notice:

OMRON products are manufactured for use according to proper procedures

by a qualified operator and only for the purposes described in this manual.

The following conventions are used to indicate and classify precautions in this

manual. Always heed the information provided with them. Failure to heed pre-

cautions can result in injury to people or damage to property.

!DANGER Indicates an imminently hazardous situation which, if not avoided, will result in death or

serious injury. Additionally, there may be severe property damage.

!WARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or

serious injury. Additionally, there may be severe property damage.

!Caution Indicates a potentially hazardous situation which, if not avoided, may result in minor or

moderate injury, or property damage.

OMRON Product References

All OMRON products are capitalized in this manual. The word “Unit” is also

capitalized when it refers to an OMRON product, regardless of whether or not

it appears in the proper name of the product.

The abbreviation “Ch,” which appears in some displays and on some OMRON

products, often means “word” and is abbreviated “Wd” in documentation in

this sense.

The abbreviation “PLC” means Programmable Controller. “PC” is used, how-

ever, in some CX-Programmer displays to mean Programmable Controller.

Visual Aids

The following headings appear in the left column of the manual to help you

locate different types of information.

Note Indicates information of particular interest for efficient and convenient opera-

tion of the product.

1,2,3... 1. Indicates lists of one sort or another, such as procedures, checklists, etc.

©OMRON, 2007

by any means, mechanical, electronic, photocopying, recording, or otherwise, without the prior written permission o

OMRON.

No patent liability is assumed with respect to the use of the information contained herein. Moreover, because OMRON is con-

stantly striving to improve its high-quality products, the information contained in this manual is subject to change without

notice. Every precaution has been taken in the preparation of this manual. Nevertheless, OMRON assumes no responsibility

for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained in

this publication.

Unit Versions of CP-series CPU Units

Unit Versions A “unit version” has been introduced to manage CPU Units in the CP Series

according to differences in functionality accompanying Unit upgrades.

Notation of Unit Versions

on Products

The unit version is given to the right of the lot number on the nameplate of the

products for which unit versions are being managed, as shown below.

Confirming Unit Versions

with Support Software

CX-Programmer version 7.3 or higher can be used to confirm the unit version

of the CP1L CPU Unit with 10 I/O points.

CX-Programmer version 7.1 or higher can be used to confirm the unit version

of the CP1L CPU Unit with 14, 20, 30, 40 or 60 I/O points.

Note CX-Programmer version 7.2 or lower cannot be used to confirm unit versions

for CP1L CPU Units with 10 I/O points.

CX-Programmer version 7.0 or lower cannot be used to confirm unit versions

for CP1L CPU Units with 14, 20, 30, 40 or 60 I/O points.

■Confirmation Procedure

Procedure When the Device Type and CPU Type Are Known

1,2,3... 1. Set the Device Type Field in the Change PLC Dialog Box to CP1L.

Lot No.

Product nameplate

CP-series CPU Unit

Unit version (Example for Unit version 1.0)

CP1L-M40DR-A

CPU UNIT

Lot No. 28705 0000 Ver.1.0

OMRON Corporation MADE IN CHINA

vii

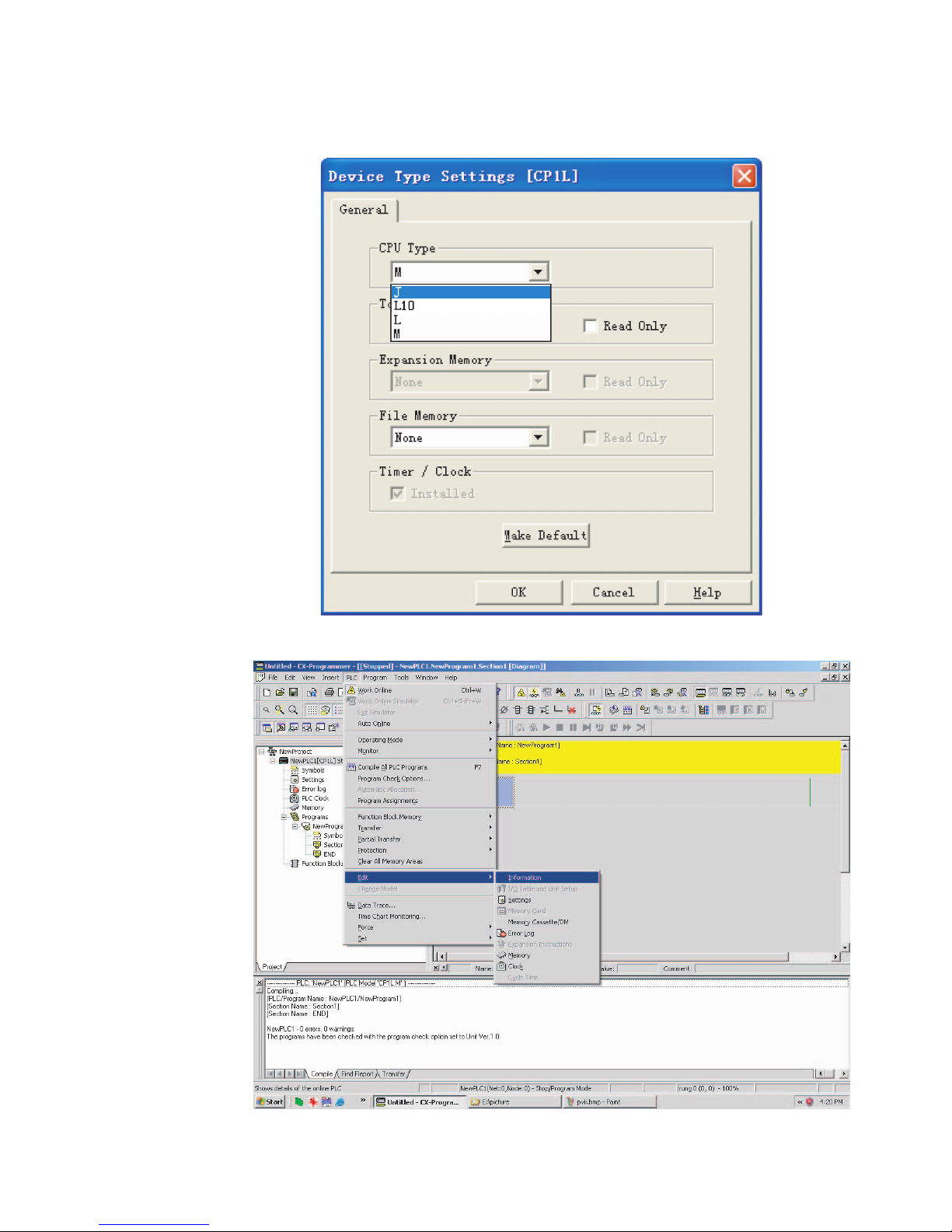

2. Click the Settings Button by the Device Type Field and, when the Device

Type Settings Dialog Box is displayed, set the CPU Type Field to J, L, L10

or M.

3. Go online and select PLC - Edit - Information

The PLC Information Dialog Box will be displayed.

viii

Use the above display to confirm the unit version of the CPU Unit.

Procedure When the Device Type and CPU Type Are Not Known

This procedure is possible only when connected directly to the CPU Unit with

a serial connection.

If you don't know the device type and CPU type that are connected directly to

the CPU Unit on a serial line, select PLC - Auto Online to go online, and then

select PLC - Edit - Information from the menus.

The PLC Information Dialog Box will be displayed and can be used to confirm

the unit version of the CPU Unit.

Unit version

▲

Unit version

▲

Using the Unit Version

Labels

The following unit version labels are provided with the CPU Unit.

These labels can be attached to the front of previous CPU Units to differenti-

ate between CPU Units of different unit versions.

Functions Supported by Unit Version for CP-series CPU Units

Functions Supported by Unit Version 1.0 and 1.1

Functionality is the same as that for CS/CJ-series CPU Units with unit version

3.0. The functionality added for CS/CJ-series CPU Unit unit version 4.0 is not

supported.

CP1H CPU Units

• CX-Programmer version 6.11 or higher is required to use CP1H-X@@@@-

@/XA@@@@-@with unit version 1.1 or 1.0.

• CX-Programmer version 6.20 or higher is required to use CP1H-Y@@@@-

@with unit version 1.1.

Note 1. The unit version for the CP1H-X@@@@-@/XA@@@@-@begins at 1.0.

2. The unit version for the CP1H-Y@@@@-@begins at 1.1.

3. CX-Programmer version 7.11 or higher is required to use CP1L CPU Units

with unit version 1.0.

4. CX-Programmer version 7.3 or higher is required to use CP1L CPU Units

with 10 I/O points.

Ver.

1.0

Ver.

1.0

Ver.

These Labels can be used

to manage differences

in the available

functions among the Units.

Place the appropriate label

on the front of the Unit to

show what Unit

version is actually being

used.

CPU Unit CP1H CPU Unit

Model CP1H-@@@@-@

CP1H-XA@@@@-@

(See note 1.)

CP1H-Y@@@@-

(See note 2.)

Unit version

Function

Ver. 1.1 or later Ver. 1.0 Ver. 1.1

Pulse

outputs

Allocated built-

in I/O terminals

4 axes at 100 kHz 2 axes at 100 kHz

2 axes at 30 kHz

2 axes at 100 kHz

Special pulse

output terminals

None 2 axes at 1 MHz
