Omron Promi-SD Bedienungsanleitung

Promi-SD™ User Manual ver 1.0 Model: Promi-SD202-OA

www.initium.co.kr

by Bluetooth

Enabling Wireless Serial Communications

Promi-SD™

User Manual

Promi-SD-OA

Version 1.0

Promi-SD™ User Manual ver 1.0 Model: Promi-SD202-OA

www.initium.co.kr

Contents

1. Product Description .........................................4

1.1 About Promi-SD™....................................................................................................... 4

1.2 External View............................................................................................................... 7

1.3 LED Indicator ............................................................................................................... 8

1.4 Block Diagram .............................................................................................................8

1.5 Power Supply............................................................................................................... 9

1.6 Interface- RS232 / Bluetooth ..................................................................................... 10

1.6.1 RS232 Interface 10

1.6.2 Bluetooth Interface 11

2. Configuration ..................................................12

2.1 Using Promi-WIN™ ................................................................................................... 12

2.1.1 Making the first Promi-SDTM/Bluetooth connection 12

2.1.2 Setting Operating Mode for Automatic Connection 18

2.2. Using a Terminal Program ........................................................................................ 20

2.2.1 Connecting Promi-SD™ to host. 20

2.2.2 Making the first Promi-SD™/Bluetooth connection 20

2.2.3 Making Promi-SD™ do INQUIRY SCAN and PAGE SCAN 21

2.2.4 Releasing the existing Bluetooth connection 22

2.2.5 Automatic connection of two Promi-SD™ Units 23

2.2.6 AT command vs. Operational Status 25

3. Technical Specifications ................................26

3.1 Default Serial Settings ............................................................................................... 26

3.2 Power Consumption .................................................................................................. 26

3.3 Environmental............................................................................................................ 27

3.4 Serial Interface........................................................................................................... 27

3.5 Maximum distance between Promi-SD™s ................................................................ 27

4. Troubleshooting..............................................28

4.1 Enabling/Disabling of Response Signals................................................................... 28

Promi-SD™ User Manual ver 1.0 Model: Promi-SD202-OA

www.initium.co.kr

-OK, CONNECT, DISCONNECT & ERROR ............................................................. 28

4.2 Hardware Reset......................................................................................................... 29

5. Optional Antennas .........................................30

6. For Multi-Serial Connections ........................32

6.1 Promi-MSP™ ............................................................................................................ 32

7. Legal Notice ....................................................33

8. Contact Information........................................35

Appendix A: Power Adaptor Specification.........36

Appendix B: AT command sets ...........................39

Promi-SD™ User Manual ver 1.0 Model: Promi-SD202-OA

www.initium.co.kr

1. Product Description

1.1 About Promi-SD™

Promi-SD™ is developed for long range, easy-to-install, low-cost, wireless serial

communications. Provided is point-to-point wireless connection without standard

RS232 cables.

For point-to-multipoint connections, please refer to our Promi-MSP™, providing all

the features of RS485.

Product line

Model Name Part No. Spec.

Promi-SD202-OA

PSD00-202OA Class 1 / Output Power: 63mW (18dBm)

5V DC power supply

w/o Battery & Power Adapter

w/ Special RS232 cable

w/ Setup Software & manual on CD

w/ USB Power Cable & DC Power Cable

(Optional: 5V Power Adapter)

Fig. 1.1.1 A CD-ROM inclusive a setup software (Promi-WIN™) and user manual

Promi-SD™ User Manual ver 1.0 Model: Promi-SD202-OA

www.initium.co.kr

Fig. 1.1.2 Optional Power Adaptor

Part no. PSD00-00010

Fig. 1.1.3 USB Power Adaptor

Part no. PSD00-00020

*You may use USB port to supply power to Promi-SD™ using this USB power cable

Fig. 1.1.4 DC Power Cable

Part no. PSD00-00030

*Red colored line of DC power cable is for ‘+’

Promi-SD™ User Manual ver 1.0 Model: Promi-SD202-OA

www.initium.co.kr

Fig. 1.1.5 Special RS232 Cable

(Female-Female)

ONLY for PC to PROMI-SD202-OA connection

Part no. PSD00-00070

Promi-SD™ User Manual ver 1.0 Model: Promi-SD202-OA

www.initium.co.kr

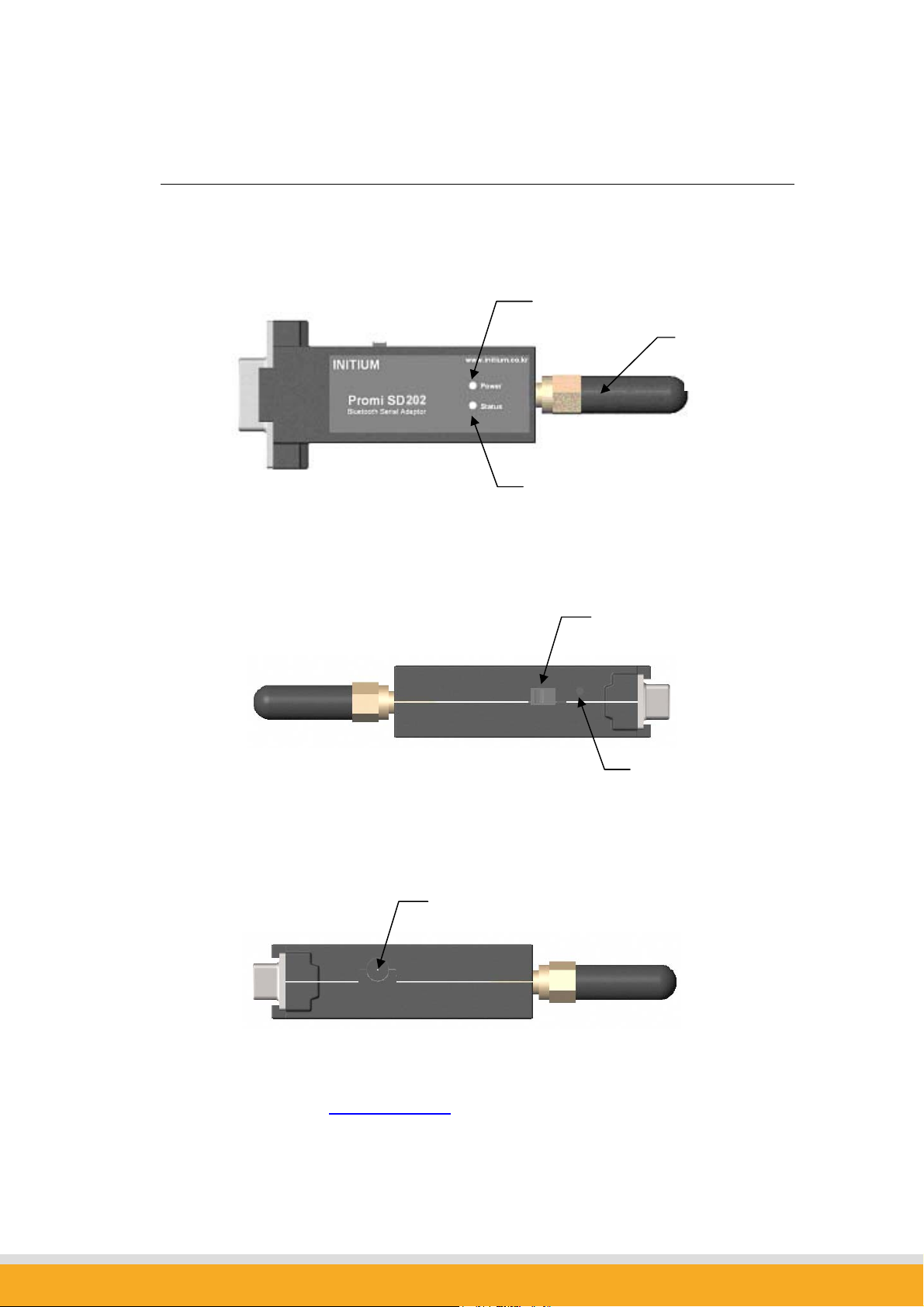

1.2 External View

Promi-SD™

Dimensions: 60 x 26 x 16 (mm)

Figure 1.2.1 Promi-SDTM top view

Figure 1.2.2 Promi-SDTM right side view

Figure 1.2.3 Promi-SDTM left side view

Please refer to the 1.5 Power Supply section for Promi-SD™ power options

STATUS LED

STUB ANTENNA

P/N: PSD00-00040

POWER LED

ON/OFF SWITCH

HARD RESET SWITCH

DC Connector

Promi-SD™ User Manual ver 1.0 Model: Promi-SD202-OA

www.initium.co.kr

1.3 LED Indicator

The Promi-SD™ STATUS LED indicates the following:

zAmber STATUS LED indicates standard mode on Promi-SD™ power-up.

zGreen STATUS LED indicates Promi-SD™ is connected to another Bluetooth

device

zGreen flashing STATUS LED every second indicates Promi-SD™ INQUIRY

operation

zGreen flashing STATUS LED every 3 seconds indicates Promi-SD™ INQUIRY

SCAN or PAGE SCAN operation

zGreen POWER LED of Promi-SD indicates power is being supplied.

1.4 Block Diagram

Promi-SD™ User Manual ver 1.0 Model: Promi-SD202-OA

www.initium.co.kr

1.5 Power Supply

Power may be supplied by following ways:

- Power via a standard AC-plug DC-adapter (p/n: PSD00-00010)

- Power via USB power cable (p/n: PSD00-00020)

- Power via DC power cable (p/n: PSD00-00030)

- Power via pin 9 of D-SUB connector.

Promi-SD101 can be recharged by 4 ways above.

Figure 1.5.1. DC plug polarity

Promi-SD202-OA (Class1): 4V~12V, 150mA minimum

Current Consumption Data at different speeds of serial communications:

Current Consumption

Condition of Baud Rate

(Promi-SD202-OA)

9600bps 40 mA

115200bps 72 mA

Promi-SD™ User Manual ver 1.0 Model: Promi-SD202-OA

www.initium.co.kr

1.6 Interface- RS232 / Bluetooth

1.6.1 RS232 Interface

Promi-SDTM has a 9-PIN DSUB (Male) connector as shown below in Fig 1.7.1.

Figure 1.7.1 9-PIN DSUB (Male)

zThe serial interface is RS232 DCE configured; a DTE device can be

connected.

zBaud rate: 1200~115200 bps

Pin Signal Direction

1 N/A -

2 RxD Input

3 TxD Output

4 N/A -

5 N/A -

6 Vcc Input

7 N/A -

8 N/A -

9 GND -

Table 1.7.1. Promi-SD-OA, 9-PIN Specification
