One Forall URC-7140 Bedienungsanleitung

• What is my

“Set Up Code again?

Find out which code is currently

set under each of the 4 device

modes.

My Code is?

1 5 5 6

DVDDVD

OFF

e.g. Macro on “red key”

STOP

& OFF

English

Extra features URC-7140

e.g.

Original

LOST

BROKE

remote

• Key Magic®

Allows you to obtain functions

from your LOST or BROKEN

original remote control.

• Mode Reassignment

How to set up two (or more)

devices of the same type.

• Macro

Allows you to send a se uence

of commands with the press

of a single key.

Command 3

page 2

Key Magic®

Missing function after

Set Up procedure

Philips

Sony

TV1

TV2

Command 1

Command 2

Macro on “red key” =

command 1: dvd STOP

command 2: dvd OFF

command 3: tv OFF

Obtain your Missing function through

our Customer Service requesting a

(5-digit) Key Magic® function code.

Then, simply follow the procedure

from page 3.

page 3

page 4

page 5

ress and release

the magic key.

Congratulations! You have successfully reassigned “sat” mode to become a

second “tv” mode.

ow simply follow “O E FOR ALL SimpleSet”, “Direct Code Set Up” or the

“Search Method” to program your television in sat mode.

How to reset a device mode to its original mode?

1) ress and hold magic for 3 seconds until a mode indicator (Blue LED) stays lit.

2) ress 9 9 2.

3) Select the corresponding device mode you wish to reset to its original mode

(e.g. select sat).

4) ress the MAGIC key twice. The blue LED will blink twice.

ress and release the magic key. --> The blue LED will blink twice.

Select the

destination

device e.g. sat

ress and hold magic for 3 seconds until a mode indicator (Blue LED) stays lit.

ress 9 9 2. --> The blue LED will blink twice.

This feature gives you the possibility to program 2 (or more) of the same device types onto the O E FOR ALL remote (e.g. two tv’s).

In the following example you wish to set up an additional television. Therefore we will reassign (change) “sat” mode into “tv” mode.

e.g. How to reassign “sat” into “tv” so you can control your second

televion as well:

Philips Sony

TV1

TV2 +

Mode Reassignment

3 sec.

Select the

corresponding

device e.g. TV

< select >

3 sec.

Select the

source

device e.g. tv

Key Magic®

How to reset a key to obtain its original function?

1) Select the corresponding device mode (e.g. tv).

2) ress and hold magic for 3 seconds until a mode indicator (Blue LED)

stays lit.

3) ress 9 9 4.

4) ress the corresponding key (e.g. red) twice.

Congratulations! You have successfully programmed the “I/II (mono/streo)”

function from your original remote control onto your O E FOR ALL remote

control. OW whenever you press the “red key” (in tv mode) you will obtain the

“I/II (mono/streo)” function.

ress and hold magic for 3 seconds until a mode indicator (Blue LED) stays lit.

ress 9 9 4.--> The blue LED will blink twice.

Enter the 5-digit function-code provided by Customer Service.

(e.g. 00123)

--> The blue LED will blink twice.

ress the key to which the function will

be assigned (e.g. red key).

Example: How to get the “I/II (mono/stereo)“ function from your original LOST or

BROKE remote onto the “red key” on your O E FOR ALL remote control.

Key Magic®

e.g.

Original

LOST

BROKE

remote

Key Magic® is an exclusive ONE FOR ALL feature. The design of the ONE FOR ALL ensures that many functions of your original remote control can be operated - even those that do not have

their own key on the ONE FOR ALL keypad. Frequently used functions can be assigned to a key of your choice using the Key Magic® feature of your ONE FOR ALL. In order to program a certain

function with Key Magic® you need to know the corresponding function code. As the function codes vary with different types of devices, they cannot be found in the manual. You can request

your function codes through our consumer service help-line or by letter, fax or e-mail.

When you contact us please make sure to mention the following:

• The Current code you are using (see “What is my Set Up Code again?” )

• Device-type, Brand & Model-number of the corresponding device.

• Model-number of the original LOST or BROKEN remote control.

• How the function was labeled on your original remote control.

then;

Customer Service will provide you:

• A funcion-code (5-digit) for every requested function.

Once you obtain your function code(s) from customer service, programming

the code is easy:

3 sec.

ress and release

the magic key.

< select >

ress the key to which

the function will be

assigned (e.g. red key).

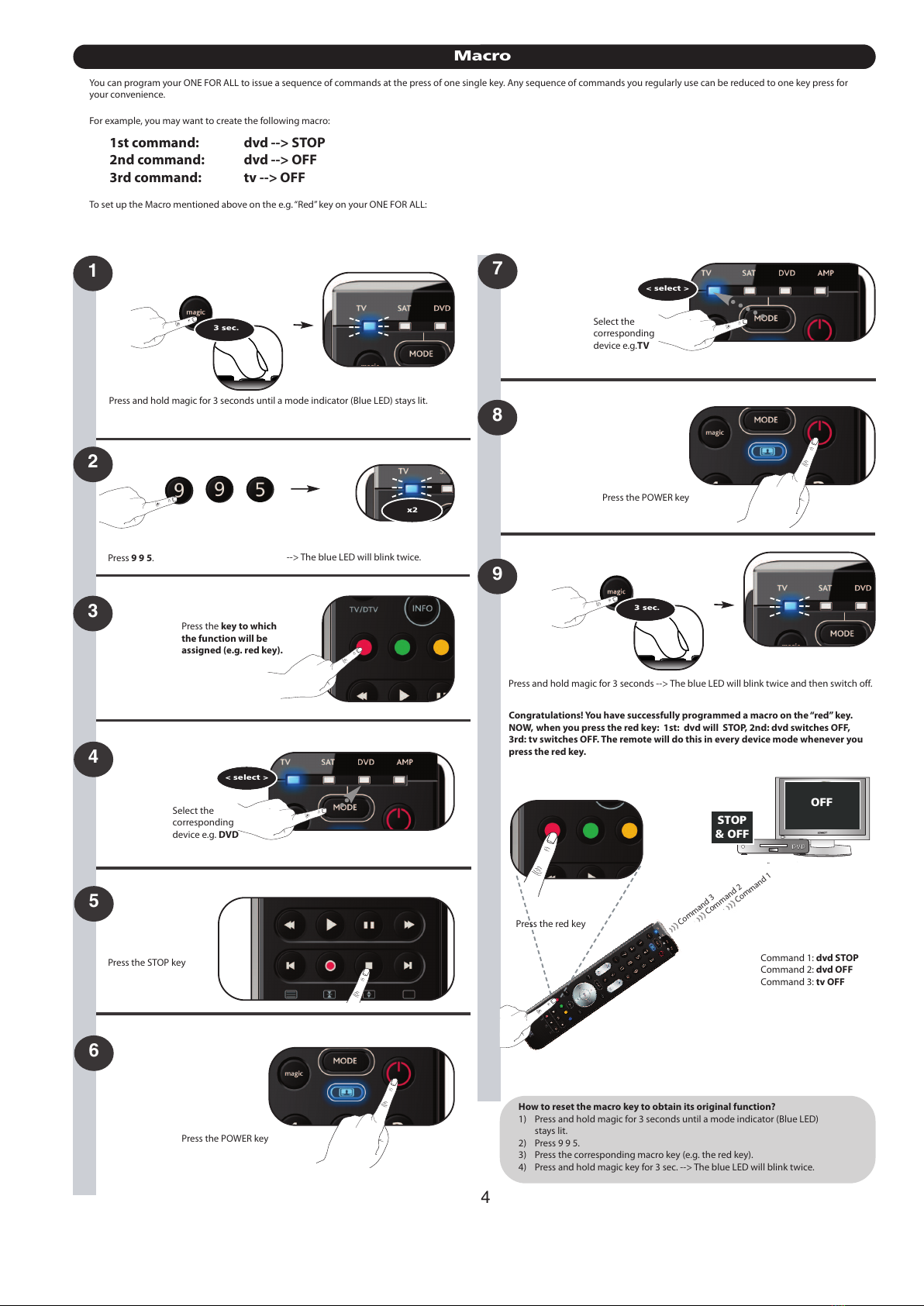

Macro

ress and hold magic for 3 seconds --> The blue LED will blink twice and then switch off.

Congratulations! You have successfully programmed a macro on the “red” key.

OW, when you press the red key: 1st: dvd will STOP, 2nd: dvd switches OFF,

3rd: tv switches OFF. The remote will do this in every device mode whenever you

press the red key.

DVDDVD

OFF

Command 1: dvd STOP

Command 2: dvd OFF

Command 3: tv OFF

STOP

& OFF

ress the red key

You can program your ONE FOR ALL to issue a sequence of commands at the press of one single key. Any sequence of commands you regularly use can be reduced to one key press for

your convenience.

For example, you may want to create the following macro:

1st command: dvd --> STOP

2nd command: dvd --> OFF

3rd command: tv --> OFF

To set up the Macro mentioned above on the e.g. “Red” key on your ONE FOR ALL:

ress and hold magic for 3 seconds until a mode indicator (Blue LED) stays lit.

ress 9 9 5.--> The blue LED will blink twice.

ress the STO key

Command 1

Command 2

Command 3

How to reset the macro key to obtain its original function?

1) ress and hold magic for 3 seconds until a mode indicator (Blue LED)

stays lit.

2) ress 9 9 5.

3) ress the corresponding macro key (e.g. the red key).

4) ress and hold magic key for 3 sec. --> The blue LED will blink twice.

ress the OWER key

3 sec.

< select >

3 sec.

ress the OWER key

Select the

corresponding

device e.g. DVD

< select >

Select the

corresponding

device e.g.TV

W at is my “Set Up Code” again?

Congratulations! You have successfully blinked out your current Set Up Code in tv

mode.

ress 4for the 1st digit of your 4-digit set up code and count how many times the LED

blinks. If the LED does not blink, the digit is “0”.

Your “Set Up Codes” :

You either set up your O E FOR ALL by:

• O E FOR ALL SimpleSet

• Direct Code Set Up

• Search Method

Example! How to find out which “Set Up Code” is currently set in tv mode:

ress and hold magic for 3 seconds until a mode indicator (Blue LED) stays lit.

ress 9 9 0.--> The blue LED will blink twice.

ress 1for the 1st digit of your 4-digit set up code and count how many times the

LED blinks. If the LED does not blink, the digit is “0”.

ress 2for the 1st digit of your 4-digit set up code and count how many times the

LED blinks. If the LED does not blink, the digit is “0”.

Operational Reset

The Operational reset will erase all learned functions across all modes and some

other programmed functions like Key Magic and Macros.

1) ress and hold magic for 3 seconds until a mode indicator (Blue LED)

stays lit.

2) ress 9 8 0. The blue LED will blink twice.

ress 3for the 1st digit of your 4-digit set up code and count how many times the

LED blinks. If the LED does not blink, the digit is “0”.

3 sec.

< select >

Select the

corresponding

device e.g.TV
