User's Guide
MICROFLASH 4T
TABLE OF CONTENTS
microFlash 4t Printer: Top View .......................1
Using Batteries: General Guidelines .................2
Installing and/or Replacing Batteries .................2
Charging the Battery .........................................3
Determining Battery Condition .........................3
Installing Paper .................................................5
Printing a Self-Test ............................................7
Configuring the Printer .....................................7
Using Printer Data Cables .................................7
Using 802.11b/Bluetooth ..................................8
802.11b Parameters .........................................8
Bluetooth Parameters .......................................8
Using Buttons, LEDs, and Audio Indicators ......9
Button Functions ..............................................9
LED Indicators .................................................9
Blue RF Power LED Indicators ...........................9
Charge LED Indicators .................................... 10
CardReader LED Indicators ............................. 10
Audio Indicators ............................................. 11
CardReader Audio Indicators ........................... 11
Using a CardReader ......................................... 12
General Guidelines ......................................... 12
Using External Charging .................................. 13
Overview ....................................................... 13
Supplies ............................................................ 17
Media Supplies ................................................. 17
MICROFLASH 4T PRINTER USER'S GUIDE
1
microFlash 4t Printer: Top View
Roller
Paper/Paper
Cavity
Power Port
Battery Retaining Clip
Self-Test Button
RF/Power Button/LED
Charge LED
Print Head
Release Lever
Data Port
Battery/Battery Well
Figure 1
MICROFLASH 4T PRINTER USER'S GUIDE
2
Using Batteries: General Guidelines
If your printer came with batteries already installed,
remove the red, battery isolator labels. If your
printer did not come with batteries installed, see
Installing and/or Replacing Batteries on this page
.
If you are storing your printer for a long period of
time, reinstall the battery isolator labels.
Both batteries must be installed for your printer to
operate properly.
Installing and/or Replacing Batteries
1. Open the printer's cover (Figure 1).
2. If applicable, remove the batteries by pressing the
retainer clip outward with your thumb (Figure 2).
3. While pressing the retainer clip, lift the outside end
of the battery past the retainer clip.
4. Insert or replace the new batteries. Verify the
battery contacts are facing down and are on the
outside edge of the printer (Figure 3).
Figure 1 Figure 2
Figure 3
MICROFLASH 4T PRINTER USER'S GUIDE
3
Charging the Battery
To charge the battery, you must first remove the red,
battery isolator labels.
If the battery is low when the printer “wakes up,” the
printer sounds three short beeps. Plug the AC Adapter
into an appropriate power source. The Charge LED
turns red when charging and turns green when fully
charged. (For more information on the Charge LED, see
Using Buttons, LEDs, and Audio Indicators on page 9
.)
A complete charge takes approximately 2 to 4 hours.
If your printer is installed with external charge
capabilities, you can also charge your printer using
O'Neil approved accessories. For more information, see
Using External Charging on page 13
.
Determining Battery Condition
To determine the battery’s condition, print a self-test.
For more information, see
Printing a Self-Test on
page 7
. The battery voltage varies between 6.2 and 8.4
volts.
Caution: To obtain full battery capacity, a new battery
must cycle through two to three charges. To restart a
charge, unplug the power cord. Wait 30 seconds, then
replug the power cord.
Caution: There is a risk of explosion if the battery is
replaced by an incorrect type. Dispose of used
batteries according to the instructions.
MICROFLASH 4T PRINTER USER'S GUIDE
4
Caution: The operating temperature of this portable
printer is 50° C. However, the operating temperature
when used with O’Neil power supply for charging the
portable printer is limited to 40° C. Please charge the
printer in a suitable location that meets this
temperature requirement.
Caution: (For US/Canada) Please only use the O’Neil
part number 220240-100 power supply with this
product.
MICROFLASH 4T PRINTER USER'S GUIDE
5
Installing Paper
1. Insert a roll of paper with the end of the roll exiting
from the bottom of the paper cavity (Figure 4).
2. Open the print head by raising the gray, print head
release lever until it is fully open. Do not stop at the
partial open position (Figure 5).
3. Wake up the printer by briefly pressing the red, self-
test button (Figure 6).
4. Feed the end of the paper under the roller. The
paper automatically feeds under the roller and exits
the top of the print head. Verify the paper exits the
print head straight (Figure 7).
Figure 4 Figure 5
Figure 6 Figure 7
MICROFLASH 4T PRINTER USER'S GUIDE
6
5. Lower the gray, print head release lever (Figure 8).
6. Feed the paper through the printer's cover
(Figure 9).
7. Close and latch the printer's cover.
Figure 8 Figure 9
MICROFLASH 4T PRINTER USER'S GUIDE
7
Printing a Self-Test
1. After installing the paper, open the printer's cover.
2. Press and hold the red, self-test button for
approximately five seconds until printing begins.
3. After printing begins, release the red, self- test
button.
Configuring the Printer
The printer has many configurable settings. To
configure or upgrade firmware, download the Windows
configuration program at www.oneilprinters.com.

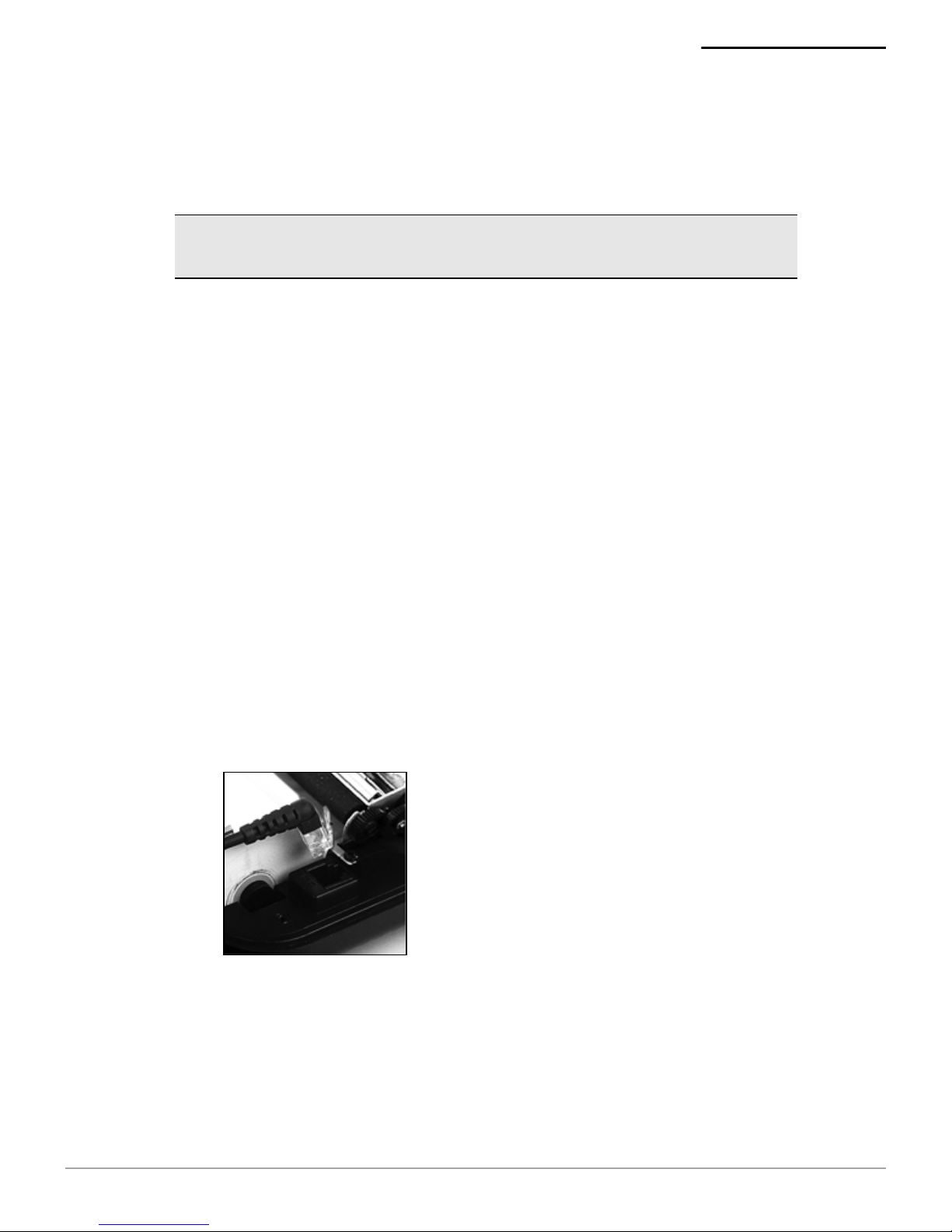

Using Printer Data Cables
1. Select the appropriate cable for use with the host
and/or device you are using.
2. Insert the plug into the printer's data port
(Figure 10).
3. Lead the cable through the notch on the outside of
the printer's cover.
4. With the cable exiting the front of the printer, close
and latch the printer's cover.
Caution: If the red, battery isolator labels are
installed, remove them.
Figure 10
