Onkyo TX-L20D Bedienungsanleitung

Before Start

What's in the box .................................................................... 2

Part Names

Front Panel ............................................................................. 3

Rear Panel .............................................................................. 4

Remote Controller .................................................................. 5

Display .................................................................................... 6

Install

1. Connect the Speakers ........................................................ 7

2. Connect the TV ................................................................... 8

3. Connect the HDMI AV Components ................................... 9

4. Connect the Audio Components ....................................... 10

5. Connect Other Cables .......................................................11

Initial Setup

Initial Setup with Auto Start-up Wizard ................................. 12

Playback

AV Component Playback ...................................................... 14

Internet Radio ....................................................................... 15

Spotify ................................................................................... 16

Music Server ......................................................................... 17

USB Storage Device ............................................................. 19

AirPlay® ................................................................................ 21

BLUETOOTH® Playback ......................................................22

Listening to the FM/DAB Radio ............................................ 23

Listening Modes ................................................................... 26

Quick Menu .......................................................................... 28

Other Functions .................................................................... 29

Supplementary Information

Supplementary information for player functions .................... 30

Advanced Setup

Setup Menu ........................................................................... 31

Firmware Update .................................................................. 43

Others

Troubleshooting .................................................................... 46

General Specifications .......................................................... 51

About HDMI .......................................................................... 52

License and Trademark Information ..................................... 53

> Before Start > Part Names > Install > Initial Setup > Playback

Supplementary Information | Advanced Setup | Others

NETWORK STEREO RECEIVER

TX-L20D

Instruction

Manual

> Before Start > Part Names > Install > Initial Setup > Playback

Supplementary Information | Advanced Setup | Others

Before Start

What's in the box

Connect speakers with

Ω to

Ω impedance.

The power cord must be connected only after all other cable connections are completed.

0We will not accept responsibility for damage arising from the connection of equipment

manufactured by other companies.

0Functionality may be introduced by firmware updates and service providers may cease

services, meaning that some network services and content may become unavailable in

the future. Furthermore, available services may vary depending on your area of

residence.

0Specifications and appearance are subject to change without prior notice.

Main unit (1)

Remote controller (RC-934R) (1), batteries (AAA/R03) (2)

DAB/FM antenna (1)

> Before Start >PartNames > Install > Initial Setup > Playback

Supplementary Information | Advanced Setup | Others

Part Names

Front Panel

1. ÍON/STANDBY button: Turns the unit on or into standby mode.

2. HYBRID STANDBY indicator: Lights if the unit enters standby mode when the features

are enabled that continue to work when this unit is in standby, such as HDMI Standby

Through and Network Standby.

3. Display (ÄP6)

4. Remote control sensor

5. Volume dial: Allows you to adjust the volume.

6. USB port: A USB storage device is connected so that music files stored in it can be

played. You can also supply power (maximum 5 V/1 A) to USB devices with a USB cable.

7. PHONES jack: Stereo headphones with a mini plug (φ3.5 mm) are connected.

8. INPUT43 button: Switches the input to be played. (BD/DVD / CBL/SAT / GAME /

STRM BOX / CD / TV / PHONO / DAB / FM / NET / USB / BLUETOOTH)

9. TUNING43buttons: Select the frequency of FM/DAB radio stations.

  

   



> Before Start >PartNames > Install > Initial Setup > Playback

Supplementary Information | Advanced Setup | Others

Rear Panel

1. ANTENNA DAB/FM jack: Connect the supplied antenna.

2. Wireless antenna: Raise for Wi-Fi connection or when using a BLUETOOTH enabled

device. The diagram shows the movable range for the wireless antenna. Do not try to

force it beyond this range otherwise you may break it.

3. AUDIO IN jacks: Input AV component audio signals with an analog audio cable.

4. GND terminal: The ground wire of the turntable is connected.

5. DIGITAL IN OPTICAL/COAXIAL jacks: Input TV or AV component digital audio signals

with a digital optical cable or digital coaxial cable.

6. Power cord

7. ETHERNET port: Connect to the network with an Ethernet cable.

8. HDMI OUT jack: Connect a HDMI cable to transfer video signals and audio signals to a

TV.

9. HDMI IN jacks: Input video signals and audio signals with a HDMI cable connected to an

AV component.

10.

SPEAKERS terminals: Connect speakers with speaker cables.

11.

SUBWOOFER PRE OUT jack: Connect a powered subwoofer with a subwoofer cable.

180°

90°



 







 







> Before Start >PartNames > Install > Initial Setup > Playback

Supplementary Information | Advanced Setup | Others

Remote Controller

1. Í button: Turns the unit on or into standby mode.

2. Input selector buttons: Switches the input to be played.

3. Q (QUICK MENU) button: You can perform common settings on the TV screen. (ÄP28)

4. Cursors, ENTER button: Select the item with the cursors and press ENTER to confirm.

5. button: Displays the Setup menu.

(

P31)

6. Volume buttons: Allows you to adjust the volume. This button also cancels the muting.

7. button: Temporarily mutes audio. Press again to cancel muting.

8. Listening mode buttons: Allows you to select the listening mode. (ÄP26)

9. Play buttons: You can start play of the Music Server or USB.

10.

button: You can start repeat or random play of the Music Server or USB.

CLEAR button: Deletes all characters you have entered when entering text on the TV

screen.

11.

DIMMER button: You can adjust the brightness of the display in three steps. It cannot be

turned off completely.

12.

button: Switches the information on the display.

13.

button: Returns the display to the previous state during setting.

14.

MODE button: Switches tuning to an FM station between automatic tuning and manual

tuning.

15.

MEMORY button: Used to register FM/DAB radio stations.































30°

Approx.5 m

(16 ft.)

> Before Start >PartNames > Install > Initial Setup > Playback

Supplementary Information | Advanced Setup | Others

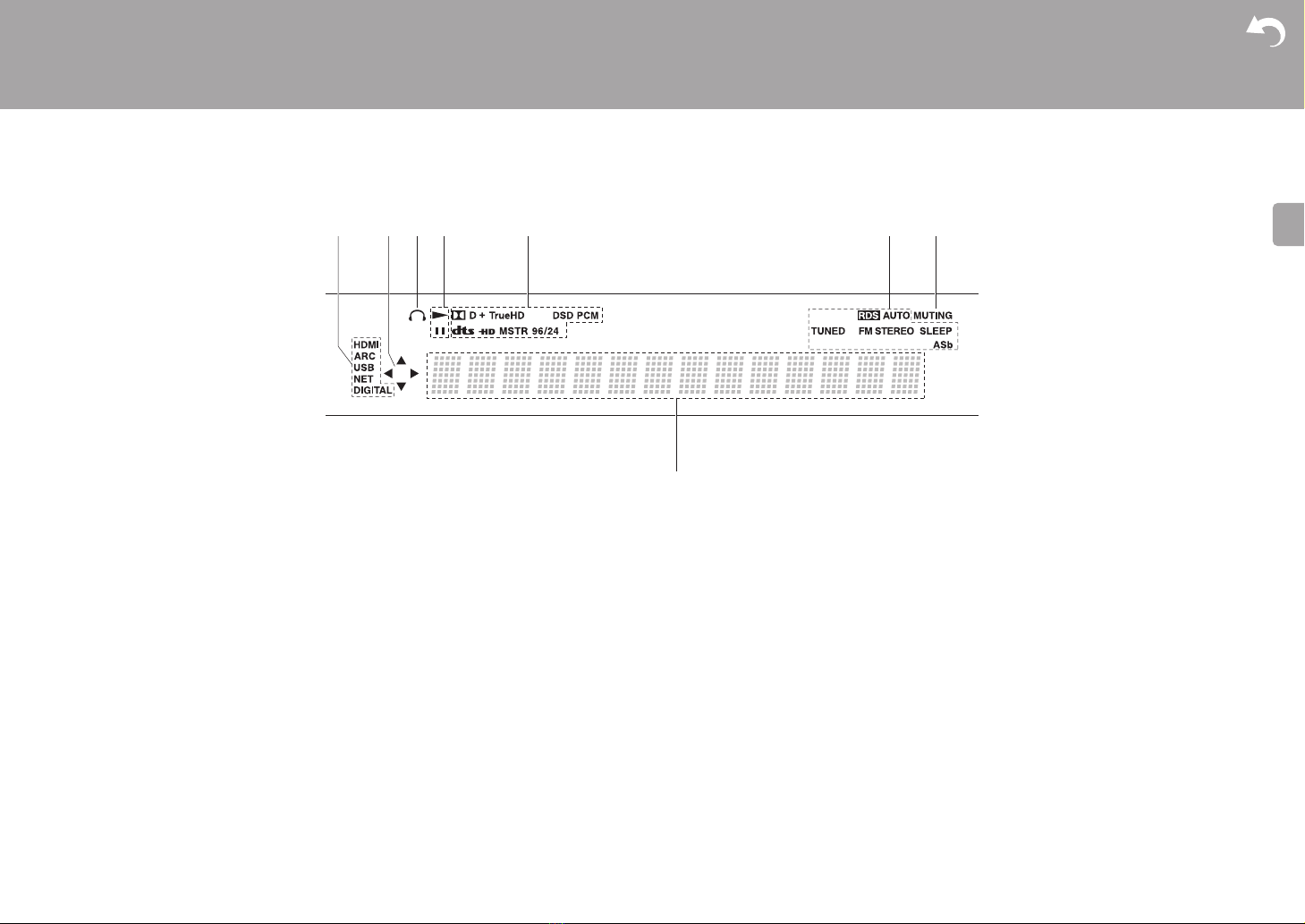

Display

1. Lights in the following conditions.

HDMI: HDMI signals are input and selected.

ARC: Audio signals from the ARC compatible TV are input and selected.

USB: When "USB" is selected with the input selector and the unit is connected by USB

and the USB device is selected. Flashes if the USB is not properly connected.

NET: When "NET" is selected with the input selector and the unit is connected to the

network. It will flash if the connection to the network is not correct.

DIGITAL: Digital signals are input and the digital input selector is selected.

2. Lights when operating the "NET" or "USB" input selector indicating remote controller

cursor operations are possible in screens showing list of tracks, for example.

3. Lights when headphones are connected.

4. Lights when operating the "NET" or "USB" input selector when tracks are played or

paused.

5. Lights according to the type of input digital audio signals and the listening mode.

6. Lights in the following conditions.

RDS: Receiving RDS broadcasting.

AUTO: When FM tuning mode is auto.

TUNED: Receiving FM radio.

FM STEREO: Receiving FM stereo.

SLEEP: Sleep timer has been set.

ASb: When Auto Standby function is enabled. (ÄP41)

7. Flashes when muting is on.

8. Displays various information of the input signals. Characters that cannot be displayed on

this unit are replaced with asterisks ( ＊).



Neo:6









 

> Before Start > Part Names >Install > Initial Setup > Playback

Supplementary Information | Advanced Setup | Others

Install

1. Connect the Speakers

a Speaker cable, b Subwoofer cable

1/2˝

(12 mm)

3 4

Refer to the illustration to connect the speaker system.

Twist the wires of the speaker cable tightly before inserting

into the SPEAKERS terminals. After inserting the cables,

tighten the terminals firmly by turning to the right. Make

correct connection between the unit’s jacks and speaker’s

jacks (+ to + and – to –) for each channel. If connection is

wrong, a bass sound may become poor due to reverse

phase.

To connect a powered subwoofer, use a subwoofer cable

and connect to the SUBWOOFER PRE OUT jack.

Make sure the exposed wires of the speaker cable do not

stick out of the speaker terminals when connecting. If the

exposed wires of the speaker cable touch the rear panel or

the + and – wires touch each other, the protection circuit will

be activated. (ÄP46)

Setup

Settings are required if a powered subwoofer is not

connected. Make settings after all connections are

complete. Press on the remote controller, and in the

Setup menu displayed set "2. Speaker" - "Configuration"-

"Subwoofer" to "No".

> Before Start > Part Names >Install > Initial Setup > Playback

Supplementary Information | Advanced Setup | Others

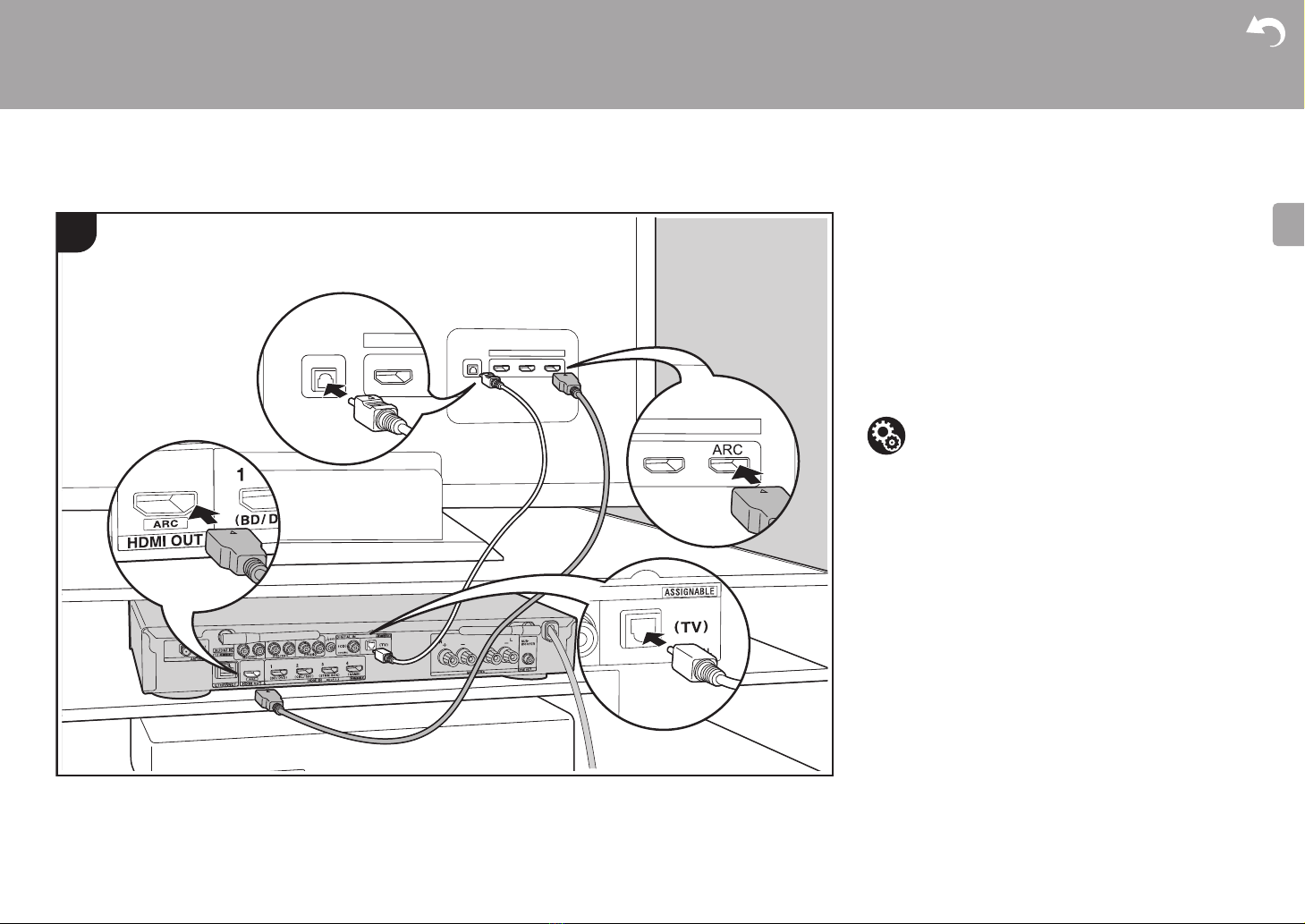

2. Connect the TV

a HDMI cable, b Digital optical cable

DIGITAL

OPTICAL OUT

To ARC TV

For a TV that supports the ARC (Audio Return Channel)

(ÄP52) feature, use an HDMI cable and connect according

to illustration "a". Choose an HDMI IN jack on the TV that

supports ARC when connecting.

To Non-ARC TV

For a TV that does not support the ARC (Audio Return

Channel) feature, connect both the HDMI cable in illustration

"a" and the digital optical cable in "b".

Setup

0Settings are required to use the ARC function. Select

"Yes" in "3. Audio Return Channel" (ÄP13) in the Initial

Setup.

0Please refer to the TV’s operation manual for directions

on connections and setup for the TV.

> Before Start > Part Names >Install > Initial Setup > Playback

Supplementary Information | Advanced Setup | Others

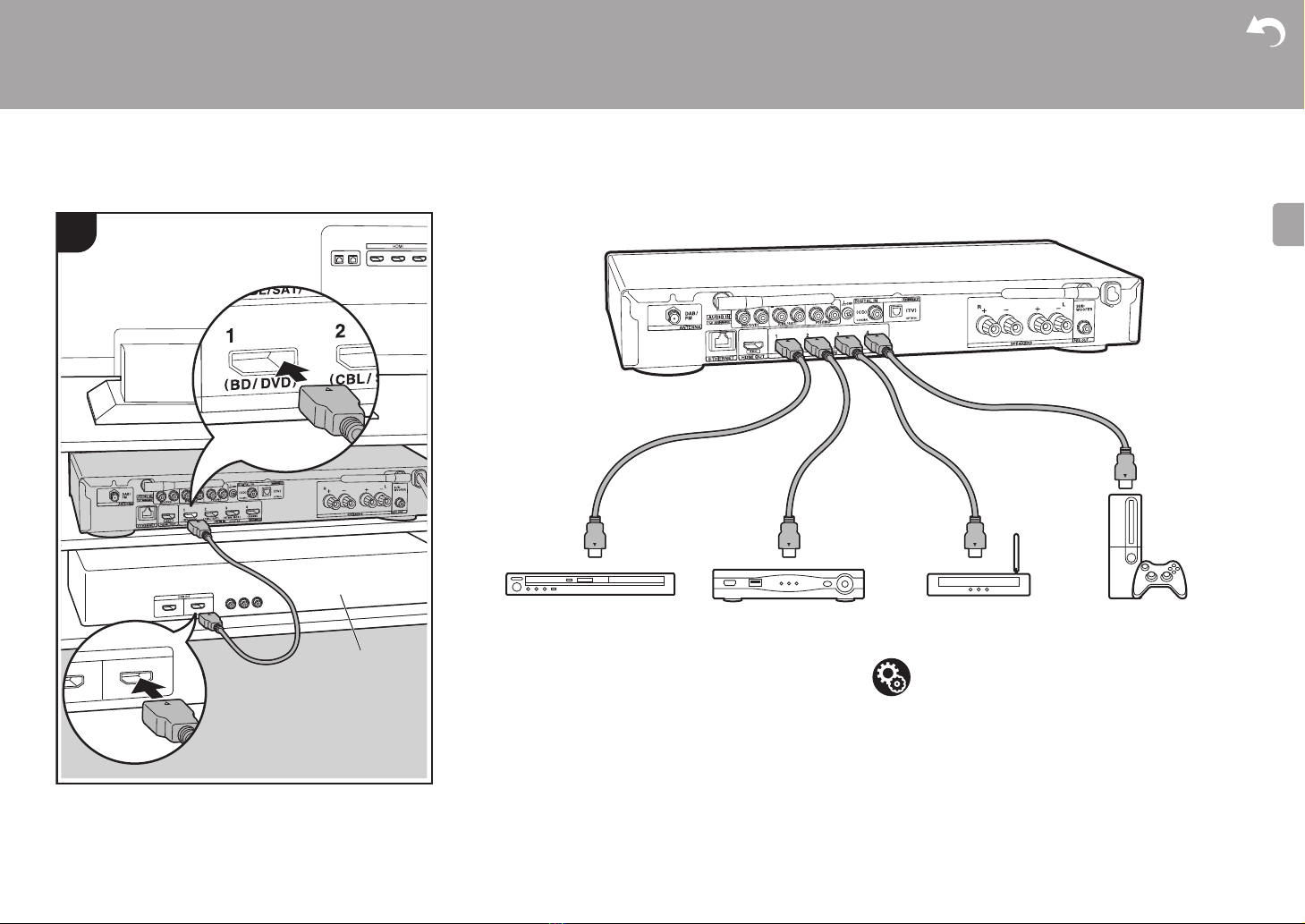

3. Connect the HDMI AV Components

a HDMI cable

e.g. BD

HDMI OUT

BD/DVD GAME

Cable/Satellite

set-top box

Streaming media

player

This is an example of connection with an AV component

that has an HDMI jack. With connection to an AV

component that conforms with the CEC (Consumer

Electronics Control) standard, you can use features such as

the HDMI CEC feature that links with the input selector, and

the HDMI Standby Through feature which allows you to

play video and audio from AV components on the TV even

when this unit is in standby mode. (ÄP52)

0To play 4K or 1080p video, use the high speed HDMI

cable.

Setup

0Settings are required to use the HDMI CEC and HDMI

Standby Through features. (ÄP37) Make settings after

all connections are complete.

0To enjoy digital surround sound including Dolby Digital,

audio output should be set to "Bitstream output" on the

connected Blu-ray Disc player or other device.

> Before Start > Part Names >Install > Initial Setup > Playback

Supplementary Information | Advanced Setup | Others

4. Connect the Audio Components

a Digital coaxial cable, b Analog audio cable

Turntable

Connecting a CD player

Use a digital coaxial cable to connect a CD player to the

DIGITAL IN COAXIAL jack.

Connecting a turntable

You can also connect a turntable that has an MM-type

cartridge to the PHONO jack.

0If the turntable has a built-in audio equalizer, connect it to

an AUDIO IN jack other than the PHONO jack. Further, if

the turntable uses an MC type cartridge, install an audio

equalizer compatible with the MC type cartridge between

the unit and the turntable, then connect to any AUDIO IN

jack other than the PHONO jack.

If the turntable has a ground wire, connect it to the GND

terminal of this unit.

Andere Handbücher für TX-L20D

Inhaltsverzeichnis

Andere Onkyo Stereo-Receiver Handbücher

Onkyo

Onkyo TX-8522 Bedienungsanleitung

Onkyo

Onkyo TX-8020 Bedienungsanleitung

Onkyo

Onkyo TX-8030 Bedienungsanleitung

Onkyo

Onkyo TX-NR595 Bedienungsanleitung

Onkyo

Onkyo DV-BD606 - Blu-ray Single Disc Player Bedienungsanleitung

Onkyo

Onkyo TXNR905 - AV Network Receiver Gebrauchs- und Pflegehandbuch

Onkyo

Onkyo TX-SR308 Bedienungsanleitung

Onkyo

Onkyo TX-5000 Bedienungsanleitung

Onkyo

Onkyo TX-NR801E Bedienungsanleitung

Onkyo

Onkyo TX-NR929 Einrichtungshandbuch

Onkyo

Onkyo TX-NR6100 Bedienungsanleitung

Onkyo

Onkyo TX-NR6100 Bedienungsanleitung

Onkyo

Onkyo Integra TX-DS898 Bedienungsanleitung

Onkyo

Onkyo TX-SR573 Bedienungsanleitung

Onkyo

Onkyo TX-8050 Bedienungsanleitung

Onkyo

Onkyo TX-NR818B Bedienungsanleitung

Onkyo

Onkyo TX-8160 Bedienungsanleitung

Onkyo

Onkyo TX-RZ820 Bedienungsanleitung

Onkyo

Onkyo TX-SR804 Bedienungsanleitung

Onkyo

Onkyo TX-SR576 Technisches Datenblatt

Onkyo

Onkyo TX-RZ620 Installationsanleitung

Onkyo

Onkyo TX-RZ830 Bedienungsanleitung

Onkyo

Onkyo TX-SR504 Bedienungsanleitung

Onkyo

Onkyo TX-8255 Bedienungsanleitung

Beliebte Stereo-Receiver Handbücher anderer Marken

Marantz

Marantz CINEMA 70S Bedienungsanleitung

Kenwood

Kenwood KMDX92 Bedienungsanleitung

Yamaha

Yamaha RX-830 Bedienungsanleitung

Pioneer

Pioneer AVH-Z7250BT Bedienungsanleitung

Yamaha

Yamaha RX-750 Bedienungsanleitung

Denon

Denon AVR-1311 Bedienungsanleitung

Denon

Denon AVR-S760H Bedienungsanleitung

Denon

Denon AVR-X7200W Bedienungsanleitung

Pioneer

Pioneer SC-LX904 Handbuch

Sony

Sony XAV-1500 Bedienungsanleitung

Radio Shack

Radio Shack DX-399 Bedienungsanleitung

Sony

Sony STR-DE535 - Fm Stereo/fm-am Receiver Bedienungsanleitung

Pioneer

Pioneer SX-1000TA Bedienungsanleitung

Yamaha

Yamaha MusicCast TSR-5B3D Bedienungsanleitung

Sony

Sony STR-DE335 - Fm Stereo/fm-am Receiver Bedienungsanleitung

Sony

Sony STR-DG500 - Multi Channel Av Receiver Bedienungsanleitung

Panasonic

Panasonic AJSD955B - DVCPRO50 STUDIO DECK Bedienungsanleitung

Pioneer

Pioneer SX-838 Bedienungsanleitung
