Before Start

What's in the box

1. Main unit (1)

2. Remote controller (RC-911R) (1), Batteries (AAA/R03)

(2)

3. Speaker setup microphone (1)

0Used during Initial Setup.

4. Indoor FM antenna (1)

5. AM loop antenna (1)

6. Power cord (1)

0Quick Start Guide (1)

0Basic Manual (This manual)

0Connect speakers with 4 Ω to 16 Ω impedance.

0The power cord must be connected only after all other

cable connections are completed.

0We will not accept responsibility for damage arising from

the connection of equipment manufactured by other

companies.

0Functionality may be introduced by firmware updates

and service providers may cease services, meaning that

some network services and content may become

unavailable in the future. Furthermore, available services

may vary depending on your area of residence.

0Details on the firmware update will be posted on our

website, etc.

0Specifications and appearance are subject to change

without prior notice.

> Before Start > Part Names > Install > Initial Setup > Playback > Advanced Manual

Troubleshooting | Supplementary Information, etc.

Part Names

Front Panel

1. ÍON/STANDBY button

2. MUSIC OPTIMIZER button/indicator: Turns on/off the Music Optimizer function that

provides better sound quality for compressed audio.

3. HYBRID STANDBY indicator: Lights if the unit enters standby mode when the features

are enabled that continue to work when this unit is in standby, such as HDMI Standby

Through and Network Standby.

4. Remote control sensor: Receives signals from the remote controller.

0The signal range of the remote controller is within about 16´/5 m, at an angle of 20° on

the perpendicular axis and 30° to either side.

5. ZONE 2 button: Controls the multi-zone function (P29).

6. OFF button: Switches the multi-zone function off (P29).

7. DIMMER button: You can adjust the brightness of the display in three steps. It cannot be

turned off completely.

8. Display (P4)

9. SETUP button: You can show advanced setting items on the TV and display to provide

you with an even better experience. (*)

10.

Cursor buttons (S / T / W / X) and ENTER button: Select the item with the cursors and

press ENTER to confirm. Use them to tune to stations when using TUNER (P27).

11.

RETURN button: Returns the display to the previous state.

12.

MASTER VOLUME

13.

Press the LISTENING MODE button (above) repeatedly to select a category from "Movie/

TV", "Music", "Game", then turn the LISTENING MODE dial (below) to change the mode

(P30). (*)

> Before Start > Part Names >Install >InitialSetup >Playback > Advanced Manual

Troubleshooting | Supplementary Information, etc.







  



   



(*)You can find details in the Advanced Manual.

> Before Start > Part Names >Install >InitialSetup >Playback > Advanced Manual

Troubleshooting | Supplementary Information, etc.

14.

You can adjust the sound quality of the front speakers.

Press the TONE button (above) repeatedly to select the

item to adjust from "Bass" and "Treble", and turn the

TONE dial (below) to adjust.

15.

PHONES jack: Headphones with a standard plug

(Ø1/4"/6.3 mm) are connected.

16.

Input selector buttons: Switches the input to be played.

17.

SETUP MIC jack: The supplied speaker setup

microphone is connected.

18.

AUX INPUT AUDIO/HDMI jack: Connect a video

camera, etc., using a stereo mini plug cable (Ø1/8"/

3.5 mm) or a HDMI cable.

Display

1. Speaker/Channel display: Displays the output channel that

corresponds to the selected listening mode.

2. Lights in the following conditions.

Ë: When headphones are connected.

Z2: When ZONE 2 is on.

: When connected by BLUETOOTH.

: When connected by Wi-Fi.

NET: When "NET" is selected with the input selector and the unit is

connected to the network. It will flash if the connection to the network is

not correct.

USB: When "NET" is selected with the input selector and the unit is

connected by USB and the USB device is selected. Flashes if the USB

is not properly connected.

HDMI: When HDMI signals are input and the HDMI input is selected.

DIGITAL: When digital signals are input and the digital input is

selected.

3. Lights according to the type of input digital audio signals and the

listening mode.

4. Lights in the following conditions.

TUNED: Receiving AM/FM radio.

FM ST: Receiving FM stereo.

SLEEP: When the sleep timer is set. (*)

AUTO STBY: Auto Standby is on. (*)

5. Flashes when muting is on.

6. Displays various information of the input signals. Characters that

cannot be displayed on this unit are replaced with asterisks ( ＊).

7. This may light when performing operations with the "NET" input

selector.







(*)You can find details in the Advanced Manual.

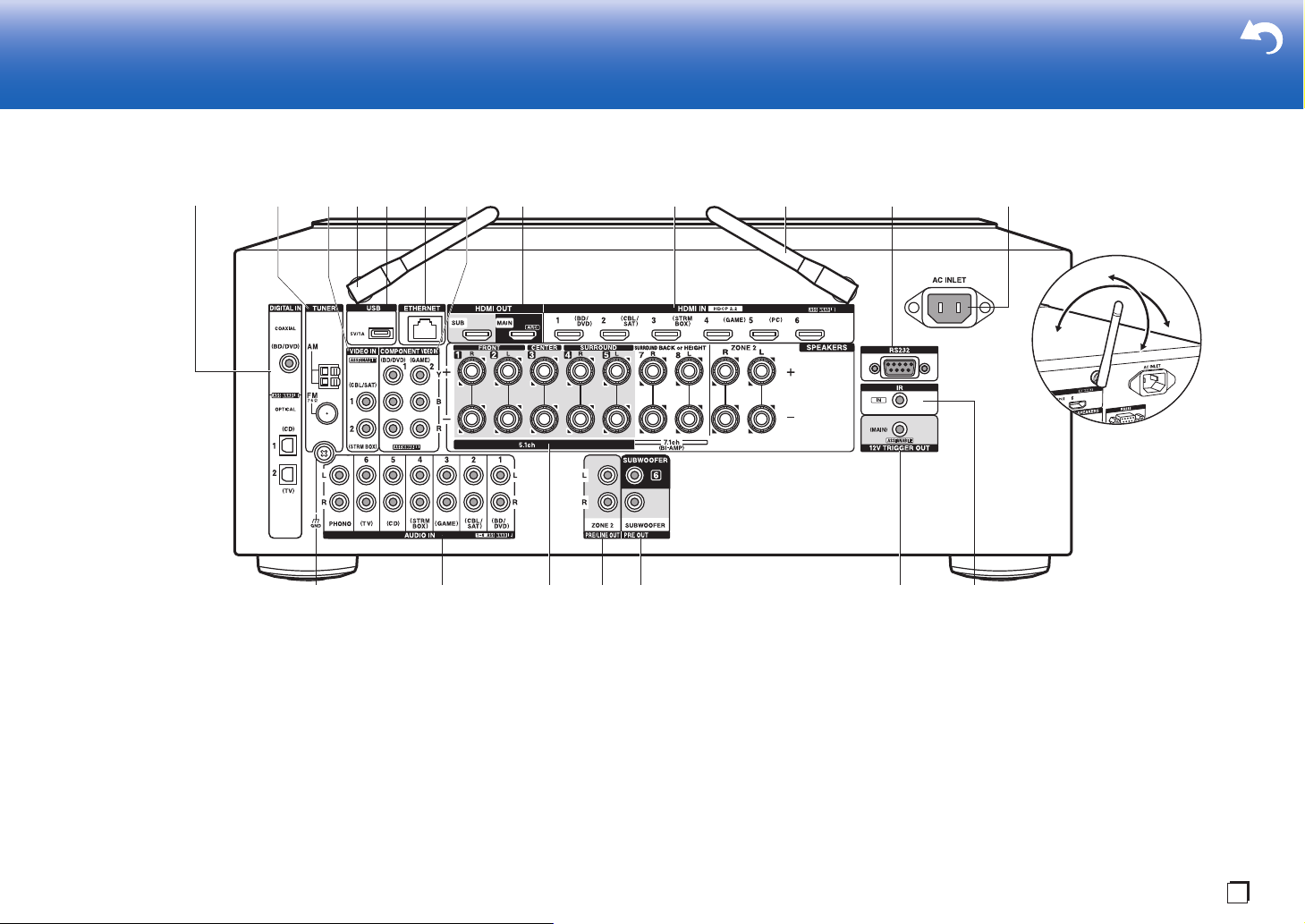

Rear Panel

1. DIGITAL IN OPTICAL/COAXIAL jacks: Input TV or AV component digital audio signals

with a digital optical cable or digital coaxial cable.

2. TUNER AM/FM 75Ω terminal: The supplied antennas are connected.

3. VIDEO IN jacks: Input the AV component video signals with an analog video cable.

4. Wireless antenna: Used for Wi-Fi connection or when using a BLUETOOTH wireless

technology enabled device. Adjust their angles according to the connection status.

5. USB port: A USB storage device is connected so that music files stored in it can be

played. You can also supply power (5 V/1 A) to USB devices with a USB cable.

6. ETHERNET port: Connect to the network with an Ethernet cable.

7. COMPONENT VIDEO IN jacks: Input the AV component video signals with a component

video cable. (Compatible only with 480i or 576i resolution.)

8. HDMI OUT jacks: Transmit video signals and audio signals with a HDMI cable connected

to a monitor such as a TV or projector.

9. HDMI IN jacks: Transmit video signals and audio signals with a HDMI cable connected to

an AV component.

10.

RS232 port: For connection to the home control system. (*)

11.

AC INLET: The supplied power cord is connected.

12.

GND terminal: The ground wire of the turntable is connected.

13.

AUDIO IN jacks: Input TV or AV component audio signals with an analog audio cable.

14.

SPEAKERS terminals: Use a speaker cable to connect multichannel speakers for the

main room and speakers for a separate room (ZONE 2). (Compatible with banana plugs)

15.

ZONE 2 PRE/LINE OUT jack: Output audio signals with an analog audio cable to a pre-

main amplifier or a power amplifier in a separate room (ZONE 2).

> Before Start > Part Names >Install >InitialSetup >Playback > Advanced Manual

Troubleshooting | Supplementary Information, etc.

180°

90°

     

  





(*)You can find details in the Advanced Manual.

> Before Start > Part Names >Install >InitialSetup >Playback > Advanced Manual

Troubleshooting | Supplementary Information, etc.

16.

SUBWOOFER PRE OUT jack: Connect a powered

subwoofer with a subwoofer cable. Up to two powered

subwoofers can be connected. The same signal is

output from each of the SUBWOOFER PRE OUT

jacks.

17.

12V TRIGGER OUT jack: Allows you to connect a

device with 12V trigger input jack to enable link

operation between the device and the unit. (*)

18.

IR IN port: Allows you to connect a multiroom remote

control kit. (*)

Remote Controller

1. ÍON/STANDBY button

2. Input selector buttons: Switches the input to be played.

3. Q (QUICK MENU) button: Settings such as "Tone" and "Level" can be made

quickly during play on the TV screen. "Other" has settings to switch the speakers

given priority for output and to switch HDMI output (P16). (*)

4. Cursor buttons and ENTER button: Select the item with the cursors and press

ENTER to confirm your selection. When the folder or file lists are not shown on

one screen on the TV, press W/X to change the screen.

5. button: You can show advanced setting items on the TV and display to

provide you with an even better experience. (*)

6. Volume buttons

7. button: Temporarily mutes audio. Press again to cancel muting.

8. LISTENING MODE buttons: Allows you to select the listening mode (P30). (*)

MAIN/ZONE 2 buttons: Controls the multi-zone function (P29). (The ZONE 3

button is not used with this unit.)

9. Play buttons: Used for play operations when playing Music Server or USB.

10.

button: You can start repeat/random play of the Music Server or USB.

Each time you press the button, the mode switches from (1-track repeat), to

(folder repeat), to (random).

CLEAR button: Deletes all characters you have entered when entering text on

the TV screen.

11.

button: Switches the information on the display.

12.

button: Returns the display to the previous state.

13.

MODE button: Switches tuning to an AM/FM station between automatic tuning

and manual tuning (P27), and also used to control the multi-zone feature (P29).

14.

MEMORY button: Used to register AM/FM radio stations.





























Tips

When the remote controller isn't working: The

remote controller may have switched to the mode

for controlling ZONE 2. While holding down

MODE, press MAIN for 3 seconds or more until

the remote indicator flashes once to switch it to

the mode to control the main room.

(*)You can find details in the Advanced Manual.

Install

Installation procedure

This unit can be used in a number of ways, depending on

the layout of the speakers you are installing, and the

connections made to external devices. Read the following

to help make the installation process smoother.

Step1: Speaker Layout

Select the speaker layout that suits the types of speakers

you have and the conditions they will be used in from the

choices presented on pages P8 to P12, then install the

speakers by referring to the illustrations and explanations

on the relevant page. Speaker layouts include systems that

use surround back speakers, systems that use height

speakers, and systems that use Bi-Amping speakers. Also

refer to the combinations available in "Speaker

combinations" on P13.

Step2: Connect the Speakers

To connect the speaker systems to this unit, refer to P14 if

you are using a speaker layout described on one of P8 to

P11, and to P15 to use a speaker layout using Bi-Amping

speakers described on P12. The connection process will be

smoother if you refer to the illustrations and explanations

and prepare the required cables before hand.

Step3: Connect the TV & AV Components

Refer to P16 to P21 to connect your external devices such

as your TV, Blu-ray Disc Player, and also supplied

accessories such as the antennas. Also, P20 introduces

the Multi-zone Connection option that allows you to play

audio into rooms other than the main room. The connection

process will be smoother if you refer to the illustrations and

explanations, confirm the connection types on the external

devices, and prepare the required cables before hand.

> Before Start > Part Names >Install > Initial Setup > Playback > Advanced Manual

Troubleshooting | Supplementary Information, etc.

2 3

Step1: Speaker Layout

7.1 Channel System

Front speakers output front stereo sound and a center

speaker outputs center sound such as dialogs and vocals.

Surround speakers create back sound field. Powered

subwoofer reproduces bass sounds and creates rich sound

field.

This basic 5.1 Channel System with surround back

speakers added is called a 7.1 Channel System. The

connection of surround back speakers improves the sense

of envelopment and connectivity of sound created by the

back sound field and provides a more real sound field.

Furthermore, by installing surround back speakers, you can

select the Dolby Atmos listening mode, which realizes the

most up-to-date 3D sound, when the input format is Dolby

Atmos.

The front speakers should be positioned at ear height, while

the surround speakers should be positioned just above ear

height. Center speaker should be set up facing the listening

position. Placing the powered subwoofer between the

center speaker and a front speaker gives you a natural

sound even when playing music. The optimal positioning is

for surround back speakers to be at ear height.

0If you are including surround back speakers in the setup,

surround speakers are required.

0"Speaker combinations" (P13) introduces some detailed

examples of speaker combinations.

1,2 Front Speakers

3 Center Speaker

4,5 Surround Speakers

6 Powered Subwoofer

7,8 Surround Back Speakers

> Before Start > Part Names >Install > Initial Setup > Playback > Advanced Manual

Troubleshooting | Supplementary Information, etc.

＊1

＊2

＊3

½1: 22e to 30e, ½2: 90e to 110e, ½3: 135e to 150e

5.1.2 Channel System-1

(Front High Speakers/Rear High Speakers)

This is a basic 5.1 channel system consisting of front

speakers, a center speaker, surround speakers, and a

powered subwoofer, with the addition of front height

speakers or rear high speakers, which are both types of

height speakers. By installing height speakers, you can

select the Dolby Atmos listening mode, which realizes the

most up-to-date 3D sound including overhead sounds,

when the input format is Dolby Atmos. Front high speakers

or rear high speakers should be situated at least 3´/0.9 m

higher than the front speakers. Front high speakers should

be situated directly above the front speakers and the

distance between the rear high speakers should match the

distance between the front speakers. Both should be set up

facing the listening position.

0"Speaker combinations" (P13) introduces some detailed

examples of speaker combinations.

7,8 Height Speakers

Choose one of the following:

0Front High Speakers

0Rear High Speakers

> Before Start > Part Names >Install > Initial Setup > Playback > Advanced Manual

Troubleshooting | Supplementary Information, etc.

＊1

＊2

3´ (0.9 m)

or more

3´ (0.9 m)

or more

½1: 22e to 30e, ½2: 120e

5.1.2 Channel System-2

(Ceiling Speakers)

This is a basic 5.1 channel system consisting of front

speakers, a center speaker, surround speakers, and a

powered subwoofer, with the addition of top front speakers,

top middle speakers, or top rear speakers, which are types

of height speakers. By installing height speakers, you can

select the Dolby Atmos listening mode, which realizes the

most up-to-date 3D sound including overhead sounds,

when the input format is Dolby Atmos. Fit top front speakers

on the ceiling forward of the seating position, top middle

speakers on the ceiling directly above the seating position,

and top rear speakers on the ceiling behind the seating

position. The distance between each pair should match the

distance between the two front speakers.

0Dolby Laboratories recommends placing this type of

height speakers to obtain the best Dolby Atmos effect.

0"Speaker combinations" (P13) introduces some detailed

examples of speaker combinations.

7,8 Height Speakers

Choose one of the following:

0Top Front Speakers

0Top Middle Speakers

0Top Rear Speakers

> Before Start > Part Names >Install > Initial Setup > Playback > Advanced Manual

Troubleshooting | Supplementary Information, etc.

＊1

＊2

＊3

½1: 30e to 55e, ½2: 65e to 100e, ½3: 125e to 150e

Inhaltsverzeichnis

Andere Onkyo Stereo-Receiver Handbücher

Onkyo

Onkyo K-185X Bedienungsanleitung

Onkyo

Onkyo TX-8260 Bedienungsanleitung

Onkyo

Onkyo TX-NR929 Bedienungsanleitung

Onkyo

Onkyo TX-SR876 - AV Receiver Bedienungsanleitung

Onkyo

Onkyo TX-SR576 Technisches Datenblatt

Onkyo

Onkyo TX-8011 Bedienungsanleitung

Onkyo

Onkyo TX-NR1000E Bedienungsanleitung

Onkyo

Onkyo TX-SR55 Bedienungsanleitung

Onkyo

Onkyo TX SR875 - AV Receiver Gebrauchs- und Pflegehandbuch

Onkyo

Onkyo TX-8255 Bedienungsanleitung

Onkyo

Onkyo TX-NR929 Einrichtungshandbuch

Onkyo

Onkyo TX-NR801 - AV Receiver Bedienungsanleitung

Onkyo

Onkyo TX-RZ50 Handbuch

Onkyo

Onkyo TX-8050 Bedienungsanleitung

Onkyo

Onkyo TX-8222 Bedienungsanleitung

Onkyo

Onkyo TX-SR875 Bedienungsanleitung

Onkyo

Onkyo TX-RZ70 Handbuch

Onkyo

Onkyo TX-NR7100 Handbuch

Onkyo

Onkyo TX-NR838 Installationsanleitung

Onkyo

Onkyo TX-SR606 Bedienungsanleitung

Onkyo

Onkyo 8555 - TX AV Receiver Bedienungsanleitung

Onkyo

Onkyo TX-8255 Bedienungsanleitung

Onkyo

Onkyo TX-NR616 Gebrauchs- und Pflegehandbuch

Onkyo

Onkyo TX-SR876 - AV Receiver Technisches Datenblatt

Beliebte Stereo-Receiver Handbücher anderer Marken

Marantz

Marantz CINEMA 70S Bedienungsanleitung

Kenwood

Kenwood KMDX92 Bedienungsanleitung

Yamaha

Yamaha RX-830 Bedienungsanleitung

Pioneer

Pioneer AVH-Z7250BT Bedienungsanleitung

Yamaha

Yamaha RX-750 Bedienungsanleitung

Denon

Denon AVR-1311 Bedienungsanleitung

Denon

Denon AVR-S760H Bedienungsanleitung

Denon

Denon AVR-X7200W Bedienungsanleitung

Pioneer

Pioneer SC-LX904 Handbuch

Sony

Sony XAV-1500 Bedienungsanleitung

Radio Shack

Radio Shack DX-399 Bedienungsanleitung

Sony

Sony STR-DE535 - Fm Stereo/fm-am Receiver Bedienungsanleitung

Pioneer

Pioneer SX-1000TA Bedienungsanleitung

Yamaha

Yamaha MusicCast TSR-5B3D Bedienungsanleitung

Sony

Sony STR-DE335 - Fm Stereo/fm-am Receiver Bedienungsanleitung

Sony

Sony STR-DG500 - Multi Channel Av Receiver Bedienungsanleitung

Panasonic

Panasonic AJSD955B - DVCPRO50 STUDIO DECK Bedienungsanleitung

Pioneer

Pioneer SX-838 Bedienungsanleitung
