Opera P1210 Bedienungsanleitung

MADE IN ITALY

design & production

P1210 Pellet stoves UseR MANUAl

eNGlIsH/INGlese

index

ENGLISH

We thank you for having chosen our company; our product is a great heating solution developed from the

most advanced technology with top quality machining and modern design, aimed at making you enjoy

the fantastic sensation that the heat of a ame gives, in complete safety.

Opera

Warnings..................................................................................................................................................................................4

safety........................................................................................................................................................................................ 4

routine Maintenance.......................................................................................................................................................... 4

safety devices........................................................................................................................................................................ 5

reference standards ..........................................................................................................................................................5

General.............................................................................................................................................................................................................................6

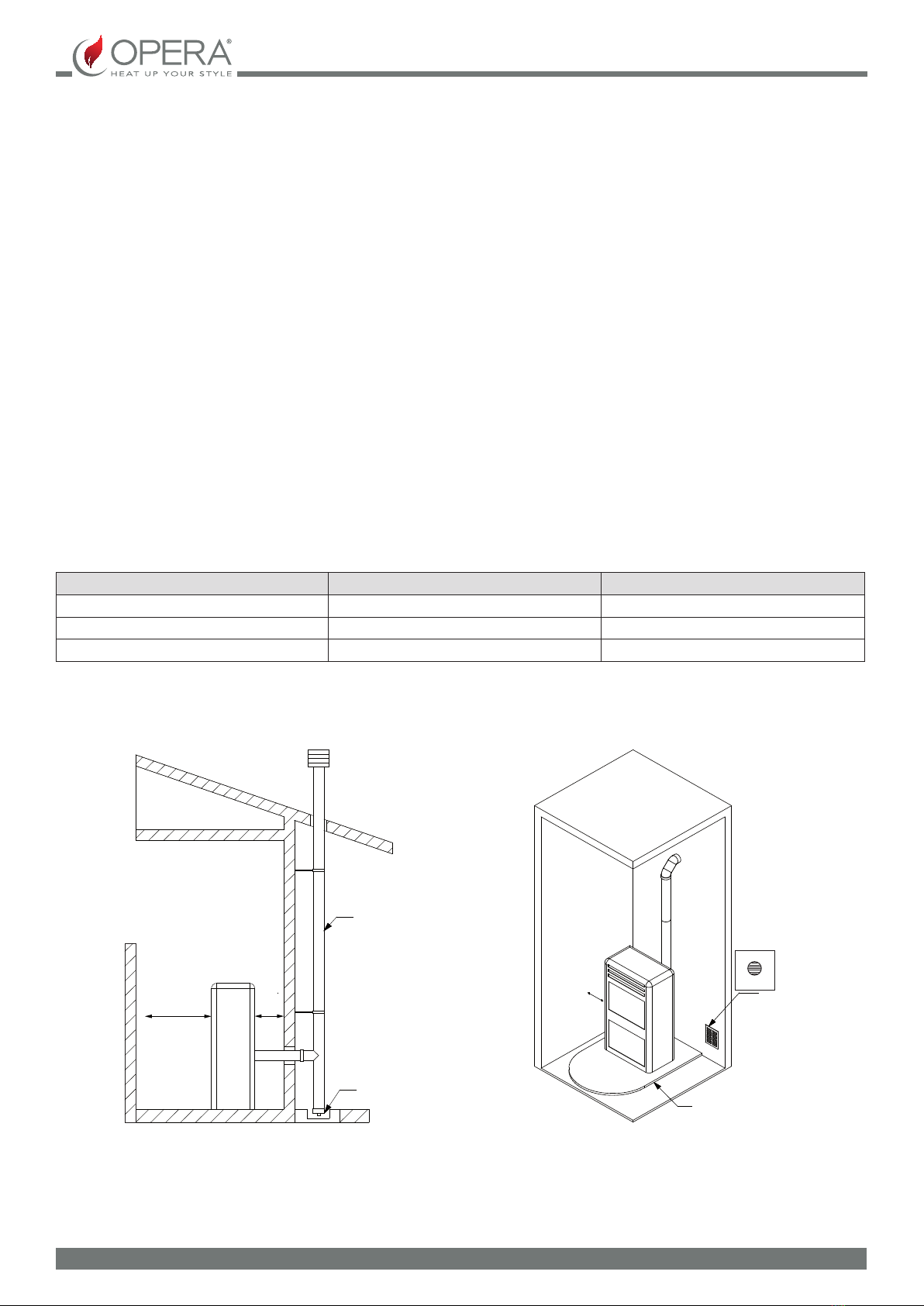

instaLLation............................................................................................................................................................................ 7

fuMes exhaust systeM.........................................................................................................................................................8

General requirements...........................................................................................................................................................................................8

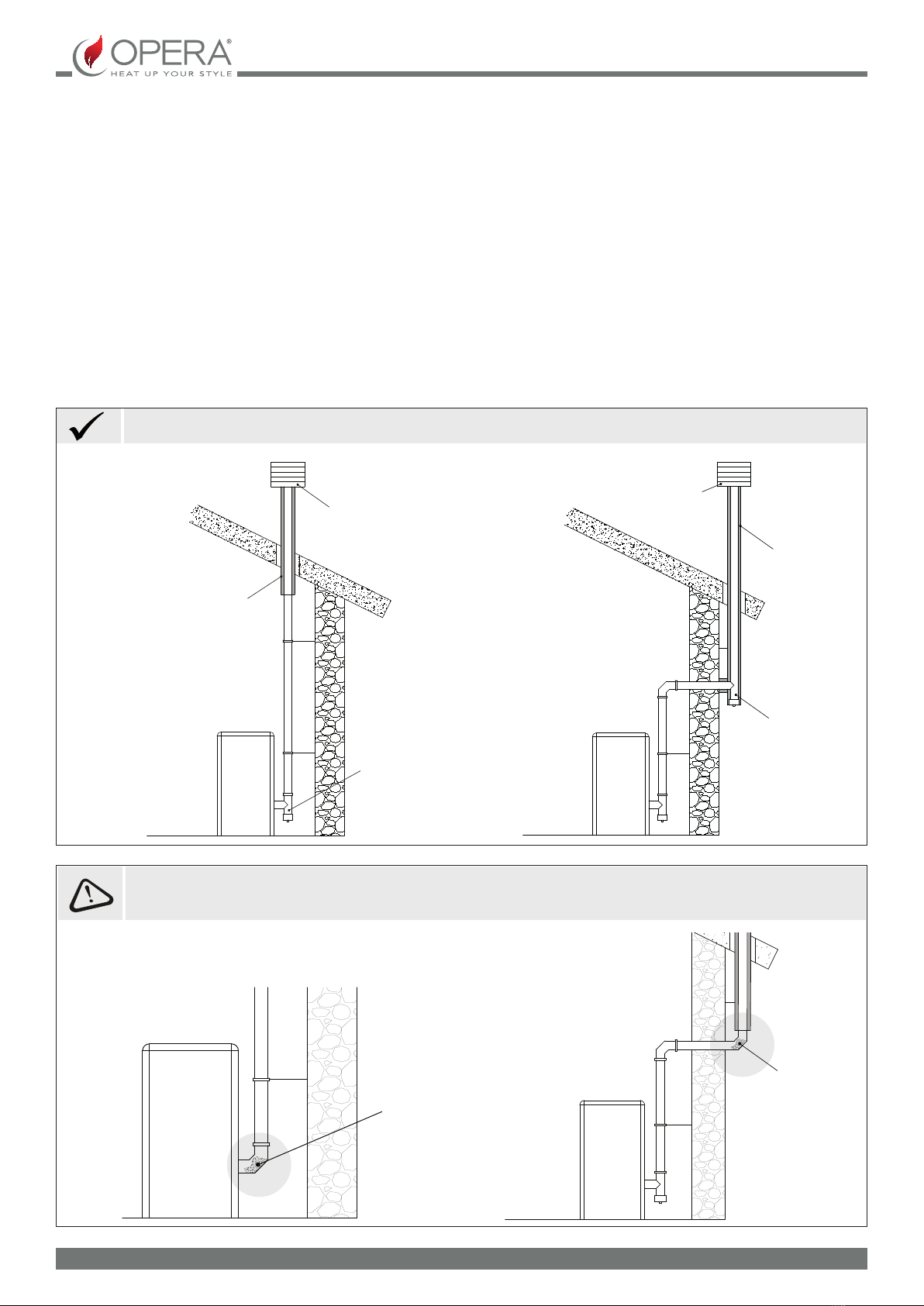

smoke duct....................................................................................................................................................................................................................9

chimney ..........................................................................................................................................................................................................................11

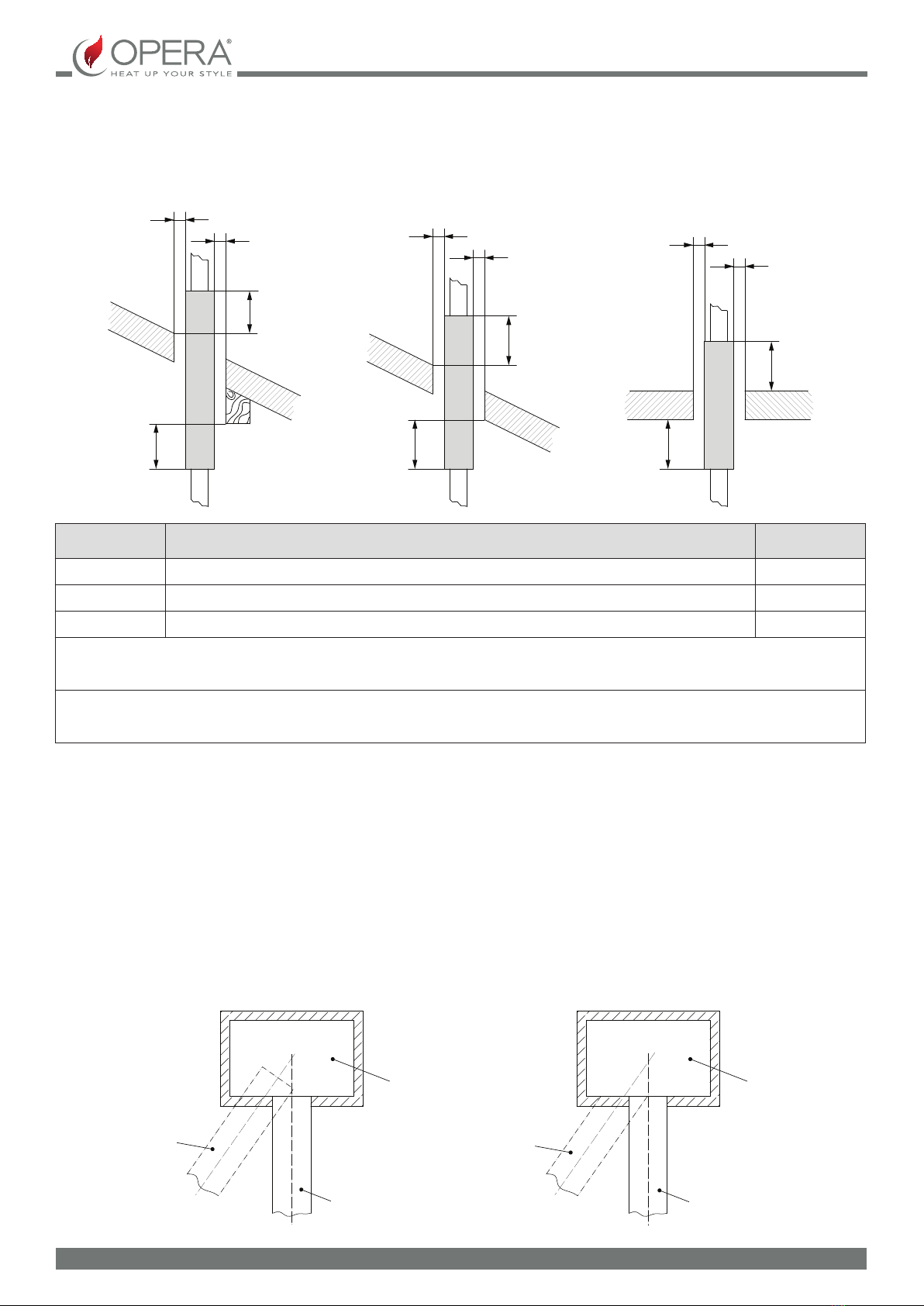

chimney caps ..............................................................................................................................................................................................................11

Fumes eXhaust system product requirements..................................................................................................................................12

combustion products outlet quota.......................................................................................................................................................12

technical installation documentation ................................................................................................................................................13

PeLLets and feeding ...........................................................................................................................................................14

instaLLation With side exhaust PiPe ............................................................................................................................15

ducting...................................................................................................................................................................................17

identification of the coMPonents in the 1210 ducted stove.............................................................................18

technical data p1210.............................................................................................................................................................................................19

oPerator interface ............................................................................................................................................................20

command console seGment............................................................................................................................................................................21

user Menu...............................................................................................................................................................................22

menu 01 - adjust blowers..................................................................................................................................................................................22

menu 02 - set clock................................................................................................................................................................................................22

menu 03 - set chrono ............................................................................................................................................................................................23

menu 04 - set lanGuaGe .......................................................................................................................................................................................25

menu 05 - stand-by..................................................................................................................................................................................................25

menu 06 - buzzer mode.........................................................................................................................................................................................25

menu 07 - initial load............................................................................................................................................................................................25

menu 08 - stove status.........................................................................................................................................................................................25

menu 09 - pellet type..............................................................................................................................................................................................26

using the reMote controL...............................................................................................................................................26

coMMissioning.....................................................................................................................................................................27

use.............................................................................................................................................................................................28

warninGs on use ......................................................................................................................................................................................................28

first stove ignition............................................................................................................................................................28

pre-iGnition (summary table)..........................................................................................................................................................................28

stove start-up ...........................................................................................................................................................................................................29

turninG oFF and shuttinG down the stove.........................................................................................................................................29

Maintenance.........................................................................................................................................................................30

notes on maintenance........................................................................................................................................................................................30

daiLy cLeaning by the user...............................................................................................................................................30

suggestions for ProPer use...........................................................................................................................................33

aLarMs ....................................................................................................................................................................................34

Warranty conditions .......................................................................................................................................................35

4ENGLISH

WARNINGS

This instructions manual is an integral part of the product: make sure that it always accompanies the appliance, even if

transferred to another owner or user, or if transferred to another place. If it is damaged or lost, request another copy from the

area technician. This product is intended for the use for which it has been expressly designed. The manufacturer is exempt from

any liability, contractual and extracontractual, for injury/damage caused to persons/animals and objects, due to installation,

adjustment and maintenance errors and improper use. Installation must be performed by qualied sta, which assumes

complete responsibility for the denitive installation and consequent good functioning of the product installed. One

must also bear in mind all laws and national, regional, provincial and town council Standards present in the country in

which the appliance has been installed.

Dal Zotto cannot be held responsible for the failure to comply with such precautions.

After removing the packaging, ensure that the content is intact and complete. Otherwise, contact the dealer where the appliance

was purchased.

All electric components that make up the product must be replaced with original spare parts exclusively by an authorised after-

sales centre, thus guaranteeing correct functioning.

SAFETY

The stove must not be used by persons (including children) with reduced physical, sensory and mental capacities or who

are unskilled persons, unless they are supervised and trained regarding use of the appliance by a person responsible for their

safety.

Children must be checked to ensure that they do not play with the appliance.

Do not touch the stove when you are barefoot or when parts of the body are wet or damp.

The safety and adjustment devices must not be modied without the authorisation or indications of the manufacturer.

Do not pull, disconnect, twist electric cables leaving the stove, even if disconnected from the electric power supply mains.

It is advised to position the power supply cable so that it does not come into contact with hot parts of the appliance.

The power supply plug must be accessible after installation.

Do not close or reduce the dimensions of the airing vents in the place of installation. The airing vents are essential for

correct combustion.

Do not leave the packaging elements within reach of children or unassisted disabled persons.

The hearth door must always be closed during normal functioning of the product.

When the appliance is functioning and hot to the touch, especially all external surfaces, attention must be paid

Check for the presence of any obstructions before switching the appliance on following a prolonged standstill period.

The stove has been designed to function in any climatic condition (even critical). In particularly adverse conditions (strong

wind, freezing) safety systems may intervene that switch the stove o. If this occurs, contact the technical after-sales service

and always disable the safety system.

If the ue should catch re, be equipped with suitable systems for suocating the ames or request help from the re

service.

This appliance must not be used to burn waste.

Do not use any inammable liquids for ignition

During the lling phase do not allow the bag of pellets to come into contact with the product

The majolicas are top quality artisan products and as such can have micro-dots, crackles and chromatic imperfections.

These features highlight their valuable nature. Due to their dierent dilation coecient, enamel and majolica produce

crackling,. which demonstrate their eective authenticity. To clean the majolicas, it is recommended to use a soft, dry cloth. If

a detergent or liquid is used, the latter could penetrate inside the crackles, highlighting the same.

ROUTINE MAINTENANCE

Based on the Decree 22 January 2008 n°37 art.2, routine maintenance means interventions aimed at reducing degradation from

normal use, as well as dealing with accidental events entailing the need of rst interventions, which however do not modify the

structure of the system upon which one is intervening or its intended use according to the prescriptions foreseen by technical

standards in force and by the manufacturer's use and maintenance booklet.

ENGLISH

SAFETY DEVICES

KEY: * = PRESENT,  = NOT PRESENT

STOVES

Circuit board: it intervenes directly sending the product

into alarm conditions until it has fully cooled down, in

the event of: fumes motor breakage, pellet feed motor

breakage, black out (if above 10 seconds), failed ignition

Door micro switch: With the door open, the operation of

the burn pot cleaning system is blocked -

Electronic pressure switch: in the event of inadequate

depression, it sends the machine in alarm conditions *

F 2.5 A 250 V fuse (stoves): protects the machine from

violent current surges *

85°C calibrated mechanical bulb with manual rearm:

intervenes by blocking fuel feed whenever the pellet tank

t° reaches the limit of 85°C. Rearm must be performed

by qualied sta and/or the manufacturer's technical

after-sales assistance.

Pellet tank temperature control probe: if the tank over-

heats, the machine automatically modulates to return to

normal temperature values (* in the applicable models)

Mechanical air pressure switch: blocks the pellet in the

event of insucient depression (in the relevant models) *

REFERENCE STANDARDS

The installation must be in compliance with:

UNI 10683 (2012) heat generators fed with wood and

other solid fuels: installation.

The chimneys must be in compliance with:

UNI EN 13063-1 and UNI EN 13063-2, UNI EN 1457, UNI

EN 1806 in the event of non-metallic chimneys:

EN 13384-1 (13384) chimneys.Thermal and uid dynamic

calculation methods.

UNI EN 1443 (2005) chimneys: general requirements.

UNI EN 1457 (2012) chimneys: clay/ceramic ue liners.

UNI/TS 11278 (2008) Metal - chimneys/ue liners/ue

ducts.

UNI 7129 point 4.3.3 Fire Brigade provisions, local rules

and regulations.

NATIONAL, REGIONAL, PROVINCIAL AND TOWN

COUNCIL REGULATIONS

One must also bear in mind all laws and national, regional,

provincial and town council Standards present in the country

in which the appliance has been installed.

TERMS AND DEFINITIONS

Aeration: Air renewal is required both for the disposal of

the combustion products, and to prevent mixtures with a

hazardous content of non-combusted gases.

Closed hearth appliance: Appliance designed for operation

with closed combustion chamber.

Forced draught appliance: Appliance with ventilation in the

fumes circuit and combustion with fumes ow at a positive

pressure with respect to the environment.

Chimney: Structure consisting in one or several walls

containing one or several outow airways.

The purpose of this predominantly vertical element is to expel

the combustion products at a convenient height from the

ground.

Smoke duct: Component or components that connect the

outlet of the heat generator to the chimney.

Chimney cap: Device that placed on the chimney outlet

allows the dispersion of the combustion products even in

presence of adverse weather conditions.

Condensation: Liquid products which form when the fumes

temperature is lower or equal to the water dew point.

Ducting pipe: Pipe made up of one or several predominantly

vertical elements, specically suitable for collecting and

expelling the fumes, as well as to withstand the relative

components and any condensate over time,

suitable to be installed in a chimney, existing or new technical

compartment, even in new buildings.

Sealed installation: Installation of an appliance with sealed

operation, so that all the air required for combustion is taken

from outside.

Maintenance: Set of procedures required to ensure and

maintain safety and functionality over time and maintain the

eciency of the system within the prescribed parameters.

Chimney system: Chimney installed using a combination

of compatible components, manufactured or specied by a

sole manufacturer whose product liability covers the entire

chimney.

Fumes exhaust system: Flue gas exhaust system,

independent from the appliance made up of a smoke duct,

chimney or individual ue and chimney cap.

Radiation area: Area immediately in front of the hearth in

which the radiant heat caused by combustion is diused.

Reux area: Area beyond the extrados of the roof in which

overpressure or depressions occur, which may aect the

proper discharge of the combustion products.

| ENGLISH

6ENGLISH

| ENGLISH

FUNCTIONAL OPERATIONS DIAGRAM

State of the art installation and proper system operation include a series of activities:

1. Preliminary activities:

verication of the suitability of the installation site,

verication of the suitability of the fumes exhaust system,

verication of the suitability of the outside air inlets;

2. Installation:

implementation of ventilation and connection to the outer air inlets,

implementation and connection to the fumes exhaust system,

assembly and installation,

electric and hydraulic connections,

installation of insulation,

ignition and operation test,

installation of nishings and coverings;

3. Issue of complementary documentation;

4. Inspection and maintenance.

Other actions may be required in relation to specic requests of the competent authority.

PRELIMINARY ACTIVITIES

GENERAL

Verication of compatibility of the system, of any restrictions required by local administrative regulations, special or conventional

requirements resulting from condominium regulations, constraints, laws or administration deeds must precede any other

assembly or installation operation.

One must especially verify the suitability:

of the installation premises, of the appliances already installed in the installation premises and in the adjacent and

adjoining premises, also powered by dierent fuels, with particular reference to non-compliant installations.

of the fumes exhaust system

of the outside air inlets

SUITABILITY OF THE FUMES EXHAUST SYSTEM

Installation must be preceded by a compatibility test between the appliance and the fumes exhaust system, by verifying:

the existence of documentation relating to the system;

existence and content of the chimney plaque;

suitability of the internal section of the chimney;

absence of obstructions all along the chimney;

predominantly vertical height and development of the chimney;

existence and suitability of the chimney cap;

distance of the outside wall of the chimney and of the smoke duct from

combustible materials;

chimney type and material;

absence of other chimney connections.

BCA

ENGLISH

| ENGLISH

INSTALLATION

Installation in premises with re hazards is forbidden. Installation in residential premises (except for sealed operation appliances)

is also forbidden:

in which there are liquid fuel-operated appliances with continuous or intermittent operation, which draw the combustion

air in the room in which they are installed, or

in which there are type B gas appliances intended for room heating, with or without production of domestic hot water and

in adjacent and adjoining premises, or

in which, in any case, the depression measured during installation between the internal and external environment is

greater than 4 Pa

Installations in bathrooms, bedrooms and studio ats

Installation in bathrooms, bedrooms and studio ats is only allowed for sealed or closed hearth appliances with ducted

combustion air taken from the outside.

Installation premises requirements

The support surfaces and/or points must have a suitable load-bearing capacity to support the weight of the appliance, of the

accessories and coatings.

The adjacent, side and rear walls and the supporting surface must be made of non-combustible material according to the table

REFERENCES INFLAMMABLE OBJECTS NONINFLAMMABLE OBJECTS

A 200 mm 100 mm

B 1500 mm 750 mm

C 200 mm 100 mm

In any case the temperature of the adjacent combustible materials must not reach a temperature equal to or greater than the

room temperature increased by 65°C.

The minimum volume of the premises in which to install the appliance must be greater than 15 m³.

Air inlet

S= oor protection

Flue

Inspection

gure 1 gure 2

8ENGLISH

| ENGLISH

VENTILATION AND AERATION OF THE INSTALLATION PREMISES

Ventilation is deemed sucient when the room is equipped with air inlets according to the table:

Air inlet

See gure 2

Appliance categories Reference standard

Percentage of the

net opening section with

respect to the appliance fumes

outlet section

Minimum net opening value of

the ventilation duct

Pellet stoves UNI EN 14785 - 80 cm²

In any case ventilation is deemed sucient when the pressure dierence between the external and internal environment is

equal to or less than 4 Pa.

In the presence of type B gas appliances with intermittent operation not intended for heating, they must have their own aeration

and/or ventilation opening. The air inlets must meet the following requirements:

they must be protected with grids, metal mesh, etc., but without reducing the net useful section;

they must be made so as to make the maintenance operations possible;

positioned so that they cannot be obstructed;

The air ow can also be obtained from a room adjacent to that of installation (indirect aeration and ventilation), as long as the

ow takes place freely through permanent openings communicating with the outside.

The adjacent room cannot be used as a garage, warehouse of combustible material or for any other activity with a re hazard,

bathroom, bedroom or common room of the building.

FUMES EXHAUST SYSTEM

GENERAL REQUIREMENTS

Each appliance must be connected to a suitable fumes exhaust system and ensure adequate dispersion of the combustion

products into the atmosphere. The combustion products must discharged above the roof. Direct discharge from the wall or

towards closed spaces is forbidden, even with clear skies.

In particular, it is forbidden to use exible and extendible metal pipes.

The chimney should only receive the exhaust of the smoke duct connected to the appliance; collective ues or conveying

exhausts from hoods above cooking appliances of any kind, or exhausts from other generators into the chimney itself or smoke

duct are not allowed.

The smoke duct and the chimney must be connected with a continuity solution, in order to prevent the chimney from resting

on the appliance.

It is forbidden to have other air supply channels and pipes for plant engineering transit inside the fumes exhaust systems,

especially if over-sized.

The components of the fumes exhaust system must be chosen in relation to the type

of appliance to be installed in compliance with:

in the event of metal chimneys, UNI/ TS 11278, with particular attention to what is stated in the specication;

in the event of non-metallic chimneys: UNI EN 13063-1 and UNI EN 13063-2, UNI EN 1457, .-UNI EN 1806; considering

especially:

temperature class;

pressure class (fumes seal) at least equal to the seal required for the appliance;

moisture resistance (resistance to condensation);

class or level of corrosion and specication of the materials constituting the inner wall in contact with the fumes.

soot re resistance class;

minimum distance from combustible materials

The installer of the fumes exhaust system, once the installation is complete and the relevant checks and inspections have been

made, must x the chimney plaque supplied by the manufacturer with the product in a visible manner, near the replace, and

which must be completed with the following information:

b.1

b b

OK OK

ENGLISH

| ENGLISH

SMOKE DUCT

General requirements

The smoke ducts must be installed in compliance with the following general requirements:

they must be insulated if they cross through rooms that are not to be heated or outside the building;

they must not cross rooms in which the installation of combustion appliances is forbidden, nor in other premises

compartmentalised against re or with a re hazard, nor in rooms and/or areas that cannot be inspected;

they must be installed so as to allow normal thermal expansion;

they must be tted to the opening of the chimney without protruding inwards;

the use of exible metal pipes to connect the appliance to the chimney is not allowed;

nominal diameter;

distance from combustible materials, indicated in millimetres, followed by the arrow and ame symbol;

installer data and date of installation.

Every time one must cross combustible materials, the following indications must be complied with:

SYMBOL DESCRIPTION QUOTAMM

bMinimum distance of combustible materials from the intrados of the framework/oor/wall 500

b.1 Minimum distance of combustible materials from the extrados of the framework/oor 500

a Minimum distance from combustible materials dened by the manufacturer G(xxx)

The single wall pipes are indicated in white.

The insulated double wall chimney systems are indicated in grey.

One can disregard the quota only in the event of using an appropriate heat protection screen (for example: wall plate) to

protect the intrados of the framework/oor

Chimney Chimney

Incorrect Correct



10 ENGLISH

counter-slope sections are not allowed;

the smoke ducts must have, along their entire length, a diameter that is no less than that of the attachment of the appliance

exhaust pipe; any section changes are allowed only on the inlet to the chimney;

they must be installed so as to limit the formation of condensation and prevent their release from the joints;

they must be positioned at a distance no less than that indicated in the product specications from combustible materials;

the smoke channel/duct must allow to collect the soot and to be cleaned using a swab and inspected after being

disassembled, or through inspection openings when not accessible from inside the appliance.

ADDITIONAL REQUIREMENTS FOR APPLIANCES FITTED WITH AN ELECTRIC FAN FOR FUMES EXPULSION

For the heat generator appliances equipped with electric fan for expelling fumes, the instructions below must be followed:

The horizontal sections must have a minimum upward slope of 3%

The length of the horizontal section must be minimal and, in any case, no longer than 3 metres

The number of direction changes including the one due to the use of the "T" element must not be more than 4.

Ash deposited in

the 90° bend

Ash deposited in

the 90° bend

Installation with internal ue

Protection from

rain and wind

Protection from

rain and wind

Insulated ue

Insulated

condensation-

proof "T" tting

with inspection

plug

Condensation-proof

"T" tting with

inspection plug

Insulated ue

Installation with internal - external

ue

| ENGLISH

IT IS NOT RECOMMENDED TO INSTALL A 90° BEND AS THE FIRST INITIAL PART, SINCE THE ASH WOULD BLOCK THE

PASSAGE OF THE FUMES IN A SHORT TIME, CAUSING PROBLEMS TO THE STOVE DRAUGHT. SEE FIGURES BELOW:

EXAMPLES OF CORRECT CONNECTION TO THE CHIMNEY

Inhaltsverzeichnis

Andere Opera Herd Handbücher

Opera

Opera Q9 Bedienungsanleitung

Beliebte Herd Handbücher anderer Marken

Arada

Arada Cassette Stove Bedienungsanleitung

Parmco

Parmco FS 600 Bedienungsanleitung

MCZ

MCZ SUITE AIR 10 M2 Bedienungsanleitung

HearthStone

HearthStone Stowe DV 8321 Fehlerbehebungshandbuch

Cattara

Cattara FAMILY Bedienungsanleitung

Stanley

Stanley Argon F500 OVAL Bedienungsanleitung

Avalon

Avalon B-VENT Bedienungsanleitung

Nordpeis

Nordpeis Vega Bedienungsanleitung

Exquisit

Exquisit EKC601-5 Bedienungsanleitung

Stanley

Stanley Oisin Oil MK II Betriebsanleitung

Thermocet

Thermocet Brookfield S/CC Bedienungsanleitung

HASE

HASE delhi Bedienungsanleitung

Vermont Castings

Vermont Castings Intrepid 2 Bedienungsanleitung

Italiana Camini

Italiana Camini CLASSICA Kurzanleitung

Avalon

Avalon Vashon Avanti DVS FS Bedienungsanleitung

Spartherm

Spartherm ambiente a1 Bedienungsanleitung

Dimplex

Dimplex MCFSTV12AU Bedienungsanleitung

Warmlite

Warmlite WL46040 Bedienungsanleitung
