Optex AP-360B Bedienungsanleitung
AP-360B(C)
Indoor Recessed Mount PIR Detector
360°/Wired model
INSTALLATION INSTRUCTIONS
No.59-3221-0 2207-04
1
- Manufacturer’ s statement
- Parts identification
- Specifications
- Dimensions
- Detection area
- Troubleshooting
- Compliance
Before installation
Others
<< Contents >>
Page
2
3
Installation
Ceiling mount
without switch box
Wiring
2
Ceiling mount
with 86-type box
Checking3
56
4
7
9
10
11
12
8
10
360° ø6.0 m (20’ ) detection area at 4.5 m (14’ 9” ) mounting height
Settings1
Indoor Recessed Mount PIR Detector
AP-360B(C) EN
- Manufacturer’ s statement
NOTE
Failure to follow the instructions provided with this indication
and improper handling may cause death or serious injury.
Failure to follow the instructions provided with this indication
and improper handling may cause injury and/or property damage.
Check mark indicates recommendation.
Nix sign indicates prohibition.
Special attention is required to the
section of this symbol.
Mounting height
2.5 to 4.5 m (8’2” to 14’9”)
Symbol Meaning
Warning
Caution
Warning
Caution
Wetting with water
2
Symbol Meaning
Before installation
Destroy
modify Outdoor installation
Detection through glass
Follow to the Regulations
Partial/complete obscuration
of the detection area.
- Parts identifications
3
Top cover
Lens
Base cover
JP2
PIR sensitivity
JP1
Alarm output mode
SW1
Tamper switch
Accessories
Retaining spring x 2
Fixing screw
Mounting Bezel
for an 86-type box
Screw cap x 2
Disassemble
Settings
1
4
Open the base cover, and to set the detector.
N.C. (default) N.O. H (recommended) M (default) L
Mounting height: > 3.5 m 3.0 to 3.5 m < 3.0 m
(11’6”) (9’10” to 11’6”) (9’10”)
Turn the jumper PIN
by 90 degrees to prevent
interference with the casing.
Jumper pin settings
Assemble
Close the base cover, and fasten the screw to fix the cover.
JP1
Alarm output mode
JP2
PIR sensitivity
Light control mode settings
1
2
3
4
30
2 120
Time(s)
&
LUX
30
2 120
Time(s)
&
LUX
Security mode (default) Light control mode
2-1. Ceiling mount without switch box
5
Installation
2

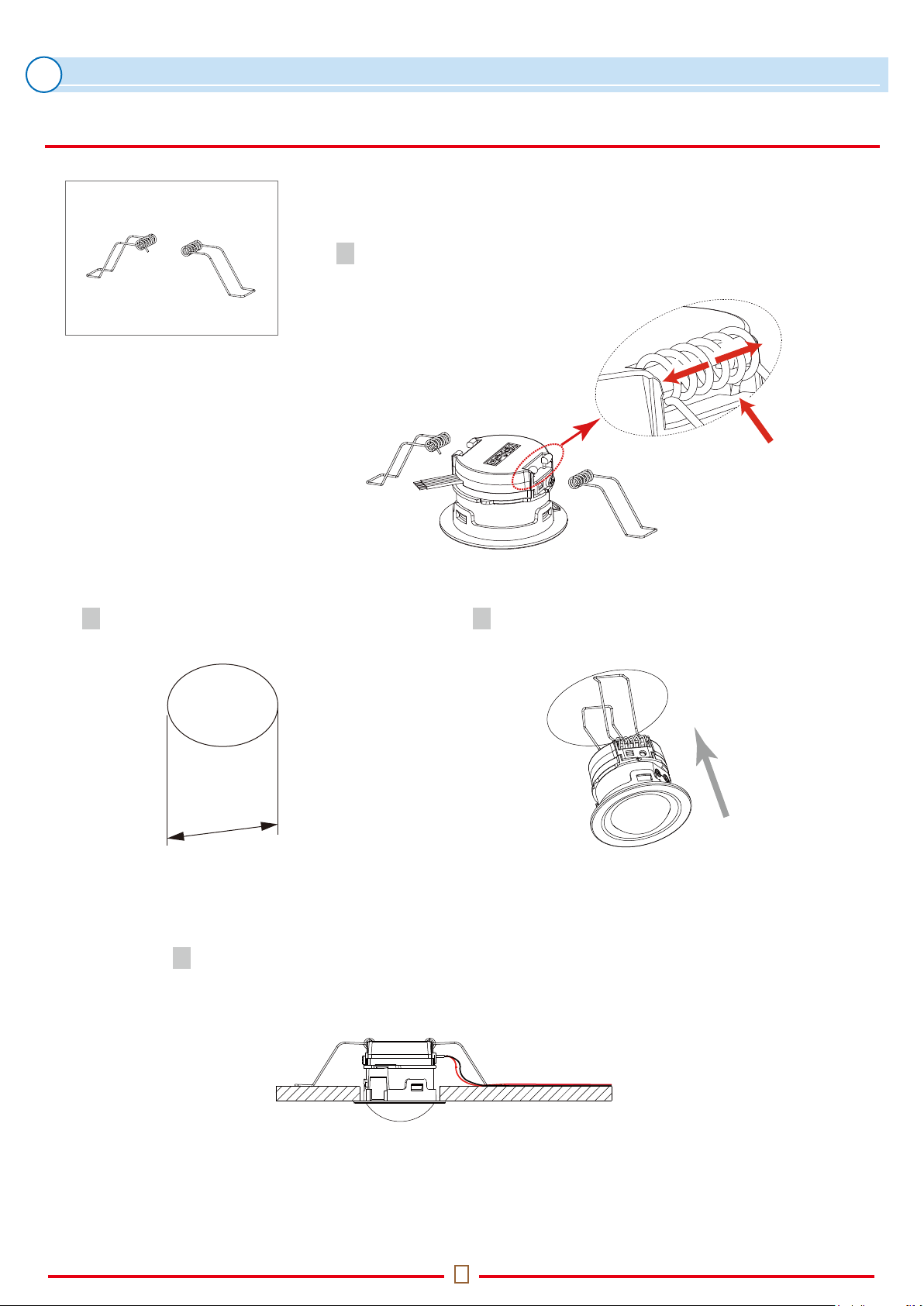

Install a retaining spring on both sides.
(follow the illustrated arrow steps to complete the assembly of the retaining spring.)
1
2
3
Mount the detector on the ceiling.
(Be sure to arrange the wires with a downward slope to prevent water igress into the detector.)
1
4
2 3
Insert the detector into the hole with the retaining spring facing up.Make a ø45 mm (1.77”) hole in the ceiling for mounting.
ø45 mm
(1.77”)
Accessories
used in this installation
Retaining spring x 2
6
2-2. Ceiling mount with 86-type box
Install the detector into the 86-type box.
2
Accessories
used in this installation
Mounting Bezel
for an 86-type box
Screw cap x 2
Options
to procure in the market
86-type box x 1
Screw x 2
1
Prepare an 86-type box on the ceiling.
Align the bump with the triangle recess as illustrated in the figure.
NOTE
Fix the detector with two screws and cover their heads with two caps.
3
NOTE Be sure to arrange the wires with a downward slope
to prevent water igress into the detector.
WIRE GAUGE
AWG 22
(0.33 mm²)
AWG 20
(0.52 mm²)
AWG 18
(0.83 mm²)
12 V DC
520 m
(1,710 ft.)
820 m
(2,690 ft.)
1,320 m
(4,330 ft.)
14 V DC
1,130 m
(3, 718 ft.)
1,790 m
(5,870 ft.)
2,850 m
(9,350 ft.)
AP-360B(C)
Power cable length
The power cable should be limited to the following length.
7
2-3. Wiring
[1] Red
[2] Black
[3] White
[4] Yellow
[5] Green
[6] Blue
Power supply: Positice
Power supply: Negative
Alarm output
Alarm output
Tamper output
Tamper output
8
Power on. Wait for 60 seconds to complete the warm-up time.
Walk in the detection area to check the detecting performance.
3-1. Walk test
3Checking
12
3Start operation.
4
60 sec.
Power
9
• Specifications and designs are subject to change without prior notice.
• These units are designed to detect an intruder and activate an alarm control panel.
Being only a part of a complete system, we cannot accept responsibility for any
damages or other consequences resulting from an intrusion.
- Specifications
Others
Detection method
Detection area
Mounting height
Mounting type
Sensitivity
Detection speed
LED indicator
Alarm cycle
Illuminance
Alarm output
Tamper switch
Warm-up time
Power supply
Current
PIR sensitivity
Weight
Operation temprature
Operation humidity
Location
Dimensions
Passive infrared
ø6 m (ø20’) at mounting height 4.5 m (14’9”)
2.5 to 4.5 m (8’2” to 14’9”)
Recessed ceiling mount/86-type box mount
2.0℃at 0.6 m/s (3.6°F at 2’/s)
0.3 to 3.0 m/s (1’/s to 9’10”/s)
N.C. 28 V DC 100 mA max.
The contact opens once the casing is detached.
Approx. 60 s
H/ M/ L
50 g (1.76 oz)
-20 to +50℃(-4°F to +122°F)
< 95%
Indoors
86 x 86 x 42.5 mm (3.39 x 3.39 x 1.67 in.): with 86-type box mount
ø52 x 42.5 mm (ø2.05 in. x 1.67 in.): without switch box mount
Model AP-360B(C)
Warm-up upon power on: blinking
Stand-by: off
Alarm: solid on
2 s to 120 s (variable)
20 to 320 lux (variable/not detected)
N.O./N.C., 28 V DC 200 mA max.
9.5 to 16 V DC
12 V DC
Stand-by: 11mA, Max.: 13 mA
10
- Dimensions
- Detection area
0
2.0 (6’7”)
2.5 (8’2”)
3.0 (9’10”)
3.5 (11’6”)
4.0 (13’1”)
4.5 (14’9”)
Without switch box mount
With 86-type box mount
Side view
Top view
Unit: mm (inch)
86 (3.39)
86 (3.39) 42.5 (1.67)
3 2 1 0 1 2 3
(9’10” 6’7” 3’3” 0 3’3” 6’7” 9’10”)
3.0 (9’10”)
2.0 (6’7”)
1.0 (3’3”)
0
1.0 (3’3”)
2.0 (6’7”)
3.0 (9’10”)
Mounting height
Detection area
Maximum detection area
2.5
(8’ 2’ )
ø3.3
(ø10’ 10” )
3.0
(9’ 10” )
ø4.0
(ø13’ 1” )
3.5
(11’ 6” )
ø4.6
(ø15’ 1” )
4.0
(13’ 1” )
ø5.4
(ø17’ 8” )
4.5
(14’ 9” )
ø6.0
(ø20’ )
Unit: m (ft., in.)
3 2 1 0 1 2 3
(9’10” 6’7” 3’3” 0 3’3” 6’7” 9’10”)
ø52 (2.05) 42.5 (1.67)
102 (4.02)
