Optex InSight INS-HX-80N Bedienungsanleitung

59-xxxx-0 2102-10

CAD 絵は線画に差替え予定

INS-HX-80N

Camera and PIR detector

INSTALLATION INSTRUCTIONS

- Parts identification

- Accessories

- Manufacture’ s statement

- Detection area

- Specifications

- Compliance

- How to reset to the factory default

Before installation

Others

<< Contents >>

- 1 -

1-1. Disassemble

1-2. Mounting

1-3. Fall prevent wire

1-4. Wiring

1-5. Assembling

4-1. PIR area direction

4-2. Detection range limit

4-3. Adjusting the vertical angle

4-4. Switch settings

4-5. Walk test

4-6. LED indicator

Page

IP camera settings

CHeKT settings

Step

IP camera settings

CHeKT settings

https://navi.optex.net/manual/50427

https://chekt.com/registration

Enable

Disable

Installation

IP address settings

Registration InSight to CHeKT portal site

DHCP

Detection area settings and walk test

Camera angle settings

System check

- Manufacture’ s statement

Mounting height

2.5 m (8’ 2” ) to 3.0 m (10’ )

Failure to follow the instructions provided

with this indication and improper handling

may cause death or serious injury.

Failure to follow the instructions provided

with this indication and improper handling

may cause injury and/or property damage.

Check mark indicates recommendation.

Nix sign indicates prohibition.

Special attention is required to the section

of this symbol.

Symbol Meaning Symbol Meaning

Warning

Caution

NOTE

Warning

Caution

Tilt

Before installation

- Parts identification - Accessories

4 x 20 mm

Mounting screws

T20 Torx wrench

Waterproof cap

for LAN connection

Bracket angle adjus�ng screw

PIR Cover Camera angle adjus�ng screw

Back cover

PIR detector

Camera unit

- 2 -

Mounting plate

1Installation

Step

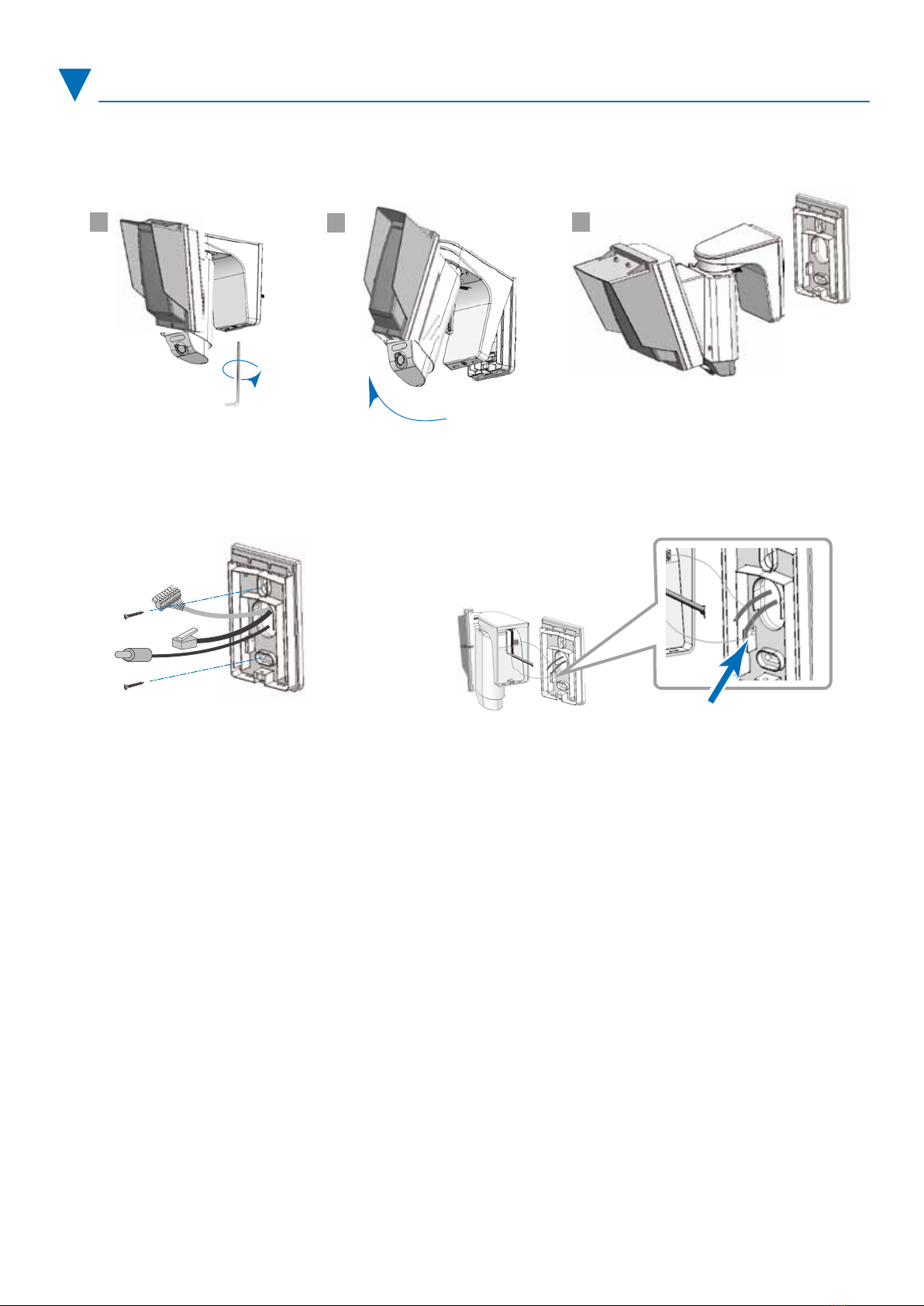

Remove the main unit and the mounting plate.

123

1-2. Mounting 1-3. Fall prevent wire

Hook the fall prevent wire.

1-1. Disassemble

- 3 -

1-5. Assembling

Replace the main unit with the mount base.

Installation

Step

- 4 -

Put the main body back on mounting plate.

Caution Do not pinch the cable when restoring the PIR detector.

1-4. Wiring

PoE LAN cable

DC power cable

12 V DC power for camera and PIR

8-pin I/O cable

Tamper

Alarm

Power

+- SP N/A COM AL TP TP

Pink

Orange

Yellow

Brown

Green

Purple

Black

Red

Do not connect to

the N/A terminal.

Waterproof cap

for LAN connection

Caution

The connector can be fixed inside

the main body with double-sided tape.

NOTE

Cut the rubber and put the LAN cable into

(a), then (b) will be assembled to (a) tightly.

As a final step, (c) need to be assembled

to (b) without making any space.

2IP address settings

Step

The default network type of InSight is dynamic. If you do not have a DHCP server,

access the following IP address. Change the InSight network type to Static and set

the IP address;

Initial address: Refer to the label on the InSight

User name: root

Default password: OPTEX

Refer to the “IP Camera Setting Manual” in more detail.

3Registration InSight to CHeKT portal site

Step

- 5 -

The default network type of InSight is dynamic. If you have a DHCP server, it will automatically set the IP address.

1. Setup your CHeKT Dealer Portal:

2. Before getting started with CHeKT, you will need access to a CHeKT dealer web portal.

Access to this portal allows you to install and manage the InSIght series.

If you do not have an account, please request a dealer account by visiting:

www.chekt.com/registration

Refer to the “https://support.chekt.com” for more detail.

IP camera settings

CHeKT settings

Detection area settings and walk test

Step

Caution

Do not use the vertical angle adjustment of the main unit other than adjusting

the detection area surface to be parallel to the ground inclination.

Pall all el Adjusting the detection range

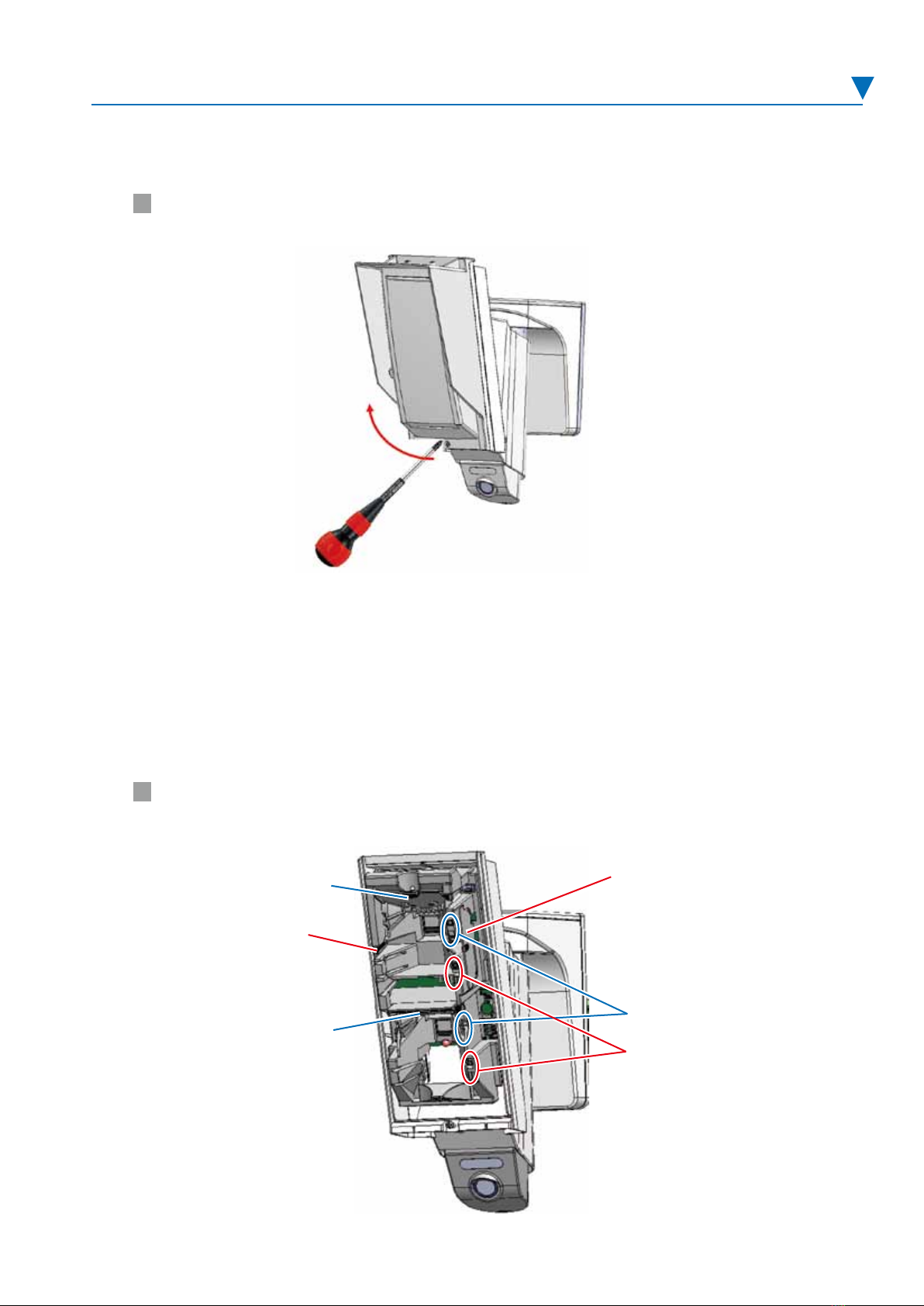

Remove the Back cover by hand.

Raise the Back cover up.

Pull it back.

Adjust PIR area direction

Angle can be adjusted with either left or right screw.

4-1. PIR area direction

The display of the detection area helps to set the area.

- 6 -

Settings on the InSight web

It is possible to refer the location of the detection area following procedure.

SETUP -> PIR DETECTOR -> PIR area viewer

In this step, do not change the camera tilt angle on InSight web settings.

Horizontal ±95°

Vertical 0° to -20°

[ Mounting height ]

3.0 m: 1 click downward

2.5 m: Default setting(No click)

NOTE

IP camera settings

Step

Detection area settings and walk test

Masking flap and plate

Upper flap

Plate 1

Lower flap

Plate 2

Flap fix position

indicator

Plate fix position

indicator

Open the PIR cover

4-2. Detection range limit

- 7 -

The detection distance in the following table can be limited by combining the positions of the flap. Use the following

table to determine the positions of the upper and lower flaps that set the required max. detection distance.

PIR long range detection area reduction

HOW TO REDUCE THE LONG RANGE DETECTION AREA

Flap fix position

indicator

Upper flap

Lower flap

Pull out the flap.

Move the flap to the position that corresponds

with the desired detection distance.

Push the flap until it clicks into the position.

If the lower flap is located

at the factory default position,

slide it out with your thumb.

To adjust the LONG range of detection, set

the upper and lower flaps as follows:

1. The distance may vary due to environmental conditions.

2. Always walk test the detector to confirm the detection distance.

Factory default

3.0 m (10 ft.)

6.5 m (22 ft.)

3.0 m (10 ft.)

13 m (43 ft.)

18 m (60 ft.)

5.0 m 10 m

5.0 m

10 m

15 m

3.0 m (10 ft.)

10 m (33 ft.)

MASK

Upper position: a, Lower position: Factory default

Upper position: a, Lower position: b

Upper position: c, Lower position: b

Upper position: c, Lower position: d

Use only the following combinations

for the flap settings.

24 m

(80 ft.)

b d

N.A.

13 m

(43 ft.)

N.A.

Factory

default

Factory

default

Lower

Upper

18 m

(60 ft.)

10 m

(33 ft.)

6.5 m

(22 ft.)

3 4

Long range settings3

Step

Detection area settings and walk test

- 8 -

NOTE

Step

Detection area settings and walk test

HOW TO DEACTIVATE THE SHORT RANGE DETECTION AREA

Remove the plate.

Insert the plate into the position determined by

the required masking distance until it clicks.

If any plate is not used, place it in

the storage position.

Be careful not to lose

the plates.

Plate 2

Plate fix position

indicator

Plate 1

* Plate 1 and 2 are identical.

To adjust the SHORT range of detection,

set the upper and lower plates follows:

Use the following table to determine the positions of the plates that set the required masked area.

PIR short range detection area deactivation

Use only the following combinations for

the plate settings.

j h

N.A.

N.A. N.A.

Not used

Factory

default

Lower

Upper

3.0 m (10 ft.)

24 m (80 ft.)

3.0 m (10 ft.)

24 m (80 ft.)

3.0 m (10 ft.)

MASK

MASK Upper position: Not used, Lower position: j

Upper position: i, Lower position: j

Upper position: i, Lower position: h

Upper position: g, Lower position: h

5.0 m 10 m 20 m

N.A.

Short range settings

- 9 -

NOTE

Step

Detection area settings and walk test

Default

DIP switch settings

4-4. Switch settings

1 2 3 4

OFF ON

Standard Immunity

AND OR

High

Middle

Low

PIR sensitivity setting

Default

LED

Immunity

Future use

PIR Logic

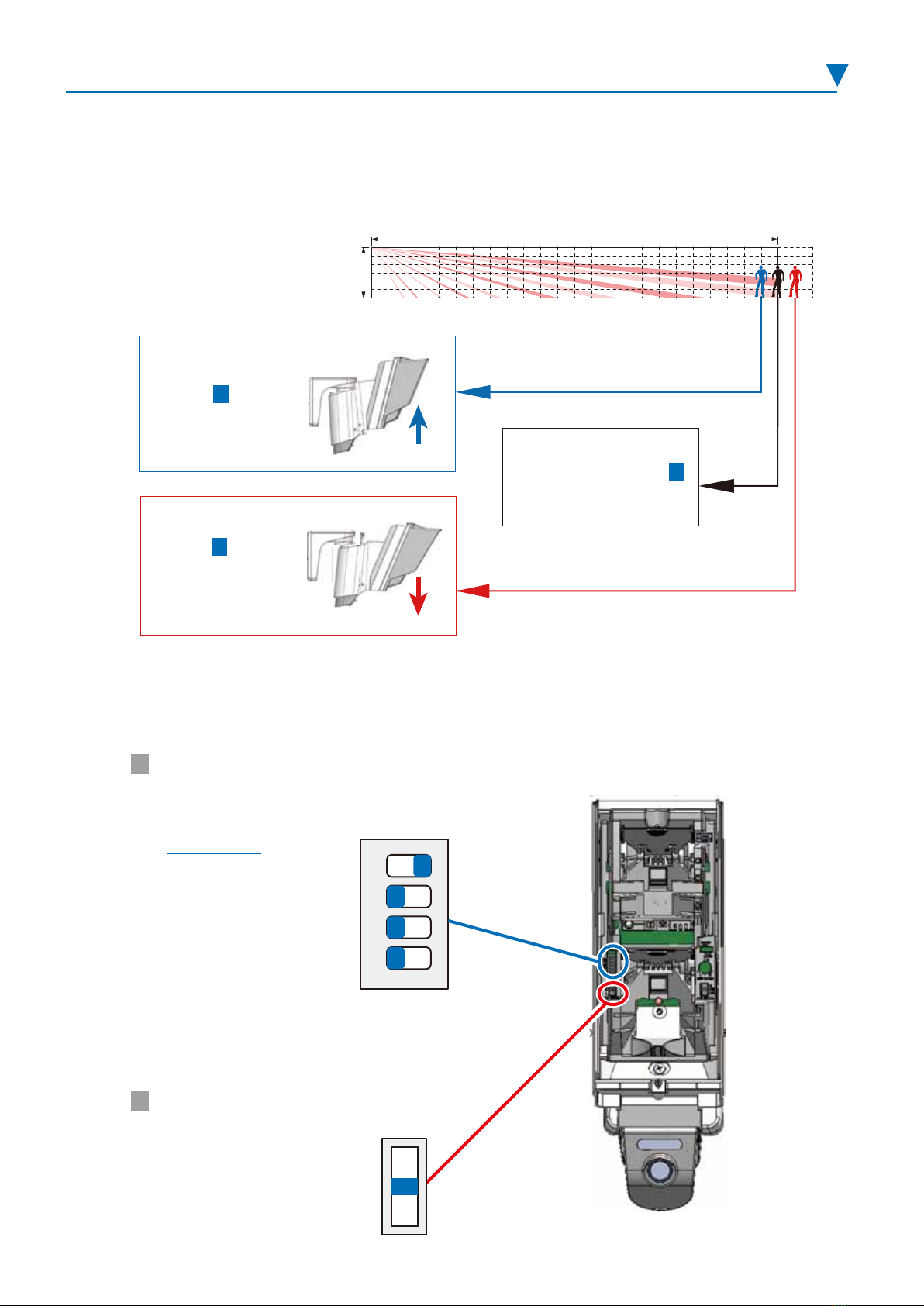

4-3. Adjusting the vertical angle

For best performance, install detector parallel to the ground.

Decide the detection length. To change the detection length, adjust the flap and plate positions.

Refer to 4-1. for the details.

Perform walk test to ensure

detector is parallel to the ground.

* This description assumes the detection length to be 0 m (0 ft.) to 24 m (80 ft.).

3.0 m (10 ft.)

24 m (80 ft.)

If the detection length is

shorter than the intentional

(refer to 4-1

), change

the detector angle upwards.

If the detection length is

longer than the intentional

(refer to 4-1 ), change the

detector angle downwards.

If the detection length is enough

to the intentional (refer to 4-1 ),

the adjustment is complete.

- 10 -
