Optiview AP58V2 Bedienungsanleitung

AP58V2 User Manual

This is the manual of outdoor CPE, which will approximate guide you how to set and apply the outdoor CPE, it provide

a convenient graphical interface for network construction and maintenance person, as well as a user through a simple

and accurate operation, and configuration management of the CPE.

1st Connection and Power Supply

1st：Port Connection and power supply

Instruction of different port：

P1 CPE Port Connection

1) Please use a power supply of 12V DC adapter or 24V POE adapter, WAN / LAN port is the PoE Port.

PayAttention

Pls make sure the CPE’s power supply is normal in reset process, or the CPE will be

damaged and can’t reboot

2) Reset:

There are two ways to reset the CPE:

a).CPE Manage page: Click “Management”, then “Save/Reload Settings”, then click“Reset Settings”to finish the CPE

Reset

b) Press the Reset Button on CPE more than 15 seconds, then release, the device will reboot and restore to factory

settings

3) The connection way of CPE, PoE Adapter and PC:

P2 Connection diagram of CPE and PoE adapter

PayAttention

Incorrect Connection or the use power adapter and PoE adapter not from our

factory, the CPE will be damaged

2nd Steps：Login

1）Connect the CPE with computer as P2 picture

2）Configure the PC’s local connection IP address as 192.168.188.X (X is number from 2 to 252), subnet mask is

255.255.255.0, follow P3 and P4 to finish.

P3 Setting of computer’s IP address

P 4 Setting of computer’s IP address

3) Input http://192.168.188.253 into IE browser, then pop up the login page, the default login user name: admin,

Passwords: admin, pls do following P5

P5 Login

4) After login, then P6 will be showed:

P6: Device Status

3rd：Quickly Configure CPE

1) Gateway Mode configuration

A. Login the Web management page, click “Gateway Mode”, then you can start configure “Gateway Mode”

P7 Gateway Mode

WAN Access Type: Dynamic IP or PPPOE(ADSL)

a).Dynamic IP:

①. If your access type is Dynamic IP, then you can get the IP address from the ISP. It means you only need connect

the ISP line with internet to the router’s WAN port, needn’t configure.

②. Wireless Basic Settings

SSID:Wireless LAN status authentication name ,User can access the wireless networking through status

authentication name only.

Channel:Choose a channel which few users use, it is clear and better. Can use Intelligent Analysis to choose the best

channel.

Key: Wi-Fi password, default password is :66666666

b).PPPOE(ADSL)

If your access type is PPPoE, with ADSL virtual dialing, you need to fill in following details:

User Name: Fill in ADSL access user name which supply by ISP, if you not sure can check with ISP.

Password: Fill in ADSL access password which supply by ISP, if you not sure can check with ISP.

2) Repeater Mode configuration

A. Login the Web management page, click “Repeater Mode”, then “Scan AP”

P8 CPE Station Mode configuration

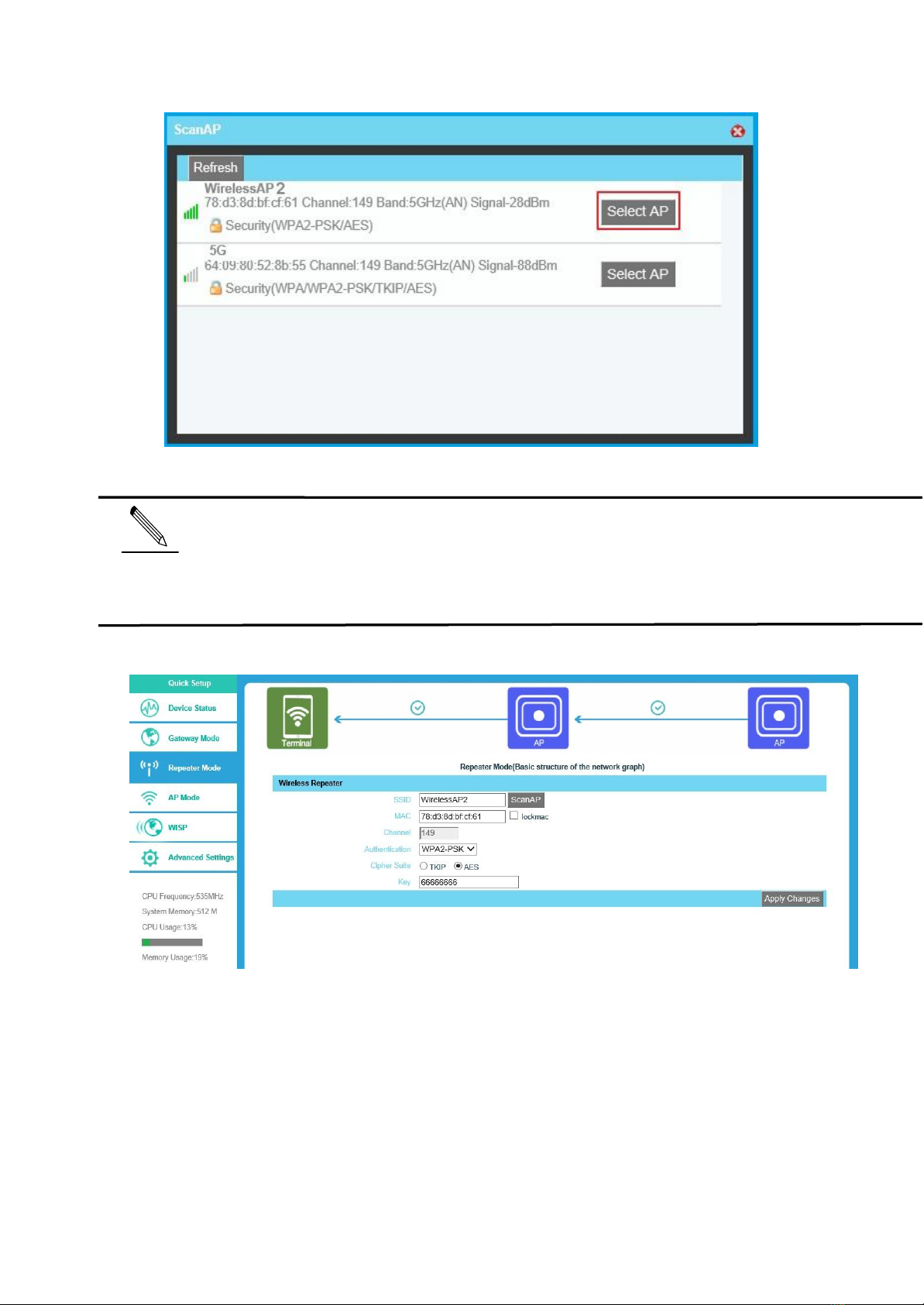

B. Click “Scan AP”, pop up the picture of P9, Take WirelessAP 2 as example, choose wirelessAP 2 and click “Select

AP” after “Refresh”

P9: Scan AP and Select AP

Instruction If your computer can’t pop up the window of P9, pls check your IE explorer and find out whether it was

blocked. And if this CPE can’t scan any SSID, pls check if there are 5G wireless signal.

C. Input the AP’s password in P10

P10: Password

D.Click “Apply Changes”, the system will reboot again

3) AP Mode Configuration:

Choose “AP mode”, outdoor CPE can work as a wireless access point in AP operation mode:

Set the SSID user required, then set it in right Authentication and input Key for outdoor CPE, then Apply Changes.

P11AP Operation Mode

SSID:Wireless LAN status authentication name ,User can access the wireless networking through status

authentication name only.

Channel:Choose a channel which few users use, it is clear and better. Can use Intelligent Analysis to choose the best

channel.

Key: Wi-Fi password, default password is :66666666

4) WISP Mode

Click “WISP” mode, outdoor CPE will work with WISP mode

P12 WISP Mode

WANAccess Type: Dynamic IP or PPPOE(ADSL),choose the right way.

a).Dynamic IP:

①. If your access type is Dynamic IP, then you can get the IP address from the ISP. It means you only need connect

the ISP line with internet to the router’s WAN port, needn’t configure.

②. WISP

Then “Scan AP”, choose the AP which do you want to link and select it

Take WirelessAP 2 as example, choose wirelessAP 2 and click “Select AP” after “Refresh”

Key: Input WirelessAP 2’s password P13 Scan AP

b).PPPOE(ADSL)

If your access type is PPPoE, with ADSL virtual dialing, you need to fill in following details:

User Name: Fill in ADSL access user name which supply by ISP, if you not sure can check with ISP.

Password: Fill in ADSL access password which supply by ISP, if you not sure can check with ISP.

5) LAN Setting

Click ”Advanced Setting”, can check as p14

P14 Advanced Settings

Click “Network Settings”→ “ LAN Interface, P15 will be showed

IP address: it is CPE’s management address. =

DHCP Sever, “ Enaled”, the default DHCP sever is Enabled, no need to change.

P 15 LAN Setting

After finish the LAN setting, user can check the LAN status from P16:

6) Management

P16: LAN Status

Time Zone Settings: User can choose the right time zone, then Apply

Log: Log info on outdoor CPE

P17 Time Zone Setting
