Oracle® ZFS Storage ZS5-4 Getting Started Guide

Contents

1 Oracle ZFS Storage ZS5-4 controller 2 Cable management arm 3 Slide rail kit

4 Four 6-meter Ethernet cables 5 Three 2.5-meter Ethernet cables 6 Eight 3-meter SAS cables (up to sixteen 3-

meter or 6-meter cables per customer request)

7 Two power cords

Front Panel Components

1 LEDs (left to right)

■ Locator

■ Service action required

■ Power/OK

2 Power button 3 Alert indicators (left to right)

■ Service Processor (SP) OK/Fault

■ Fan/ CPU/ Memory service action

required

■ Power Supply (PS) service action

required

■ Over-temperature warning

4 Permanent HDD filler panels 5 System disk 1 6 System disk 0

7 DVD filler panel 8 DB-15 VGA port 9 Two USB 2.0 ports

10 RFID tag

Back Panel Components

1 Power Supply Unit (PSU) 0 2 PSU 1 3 DB-15 VGA port

4 SER MGT port 5 Service Processor (SP) NET MGT port 6 First PCle (slot 11)

7 Fifth PCIe (slot 10) 8 Third 4x4 SAS HBA or seventh PCIe (slot

9 Second PCIe (slot 8)

10 4X4 SAS HBA (slot 7) 11 Two USB 2.0 ports 12 Network (NET) 10 Gb Ethernet ports,

NET 0 - NET 3

13 4X4 SAS HBA (slot 6) 14 Third PCIe (slot 5) 15 Cluster interface card (slot 4)

16 Fourth 4X4 SAS HBA or sixth PCIe (slot

17 Internal SAS-3 HBA (slot 2) 18 Fourth PCIe (slot 1)

19 System status LEDs (left to right)

■ Power/OK (green)

■ Attention (amber)

■ Locate (white)

20 PSU 1 AC inlet 21 PSU 0 AC inlet

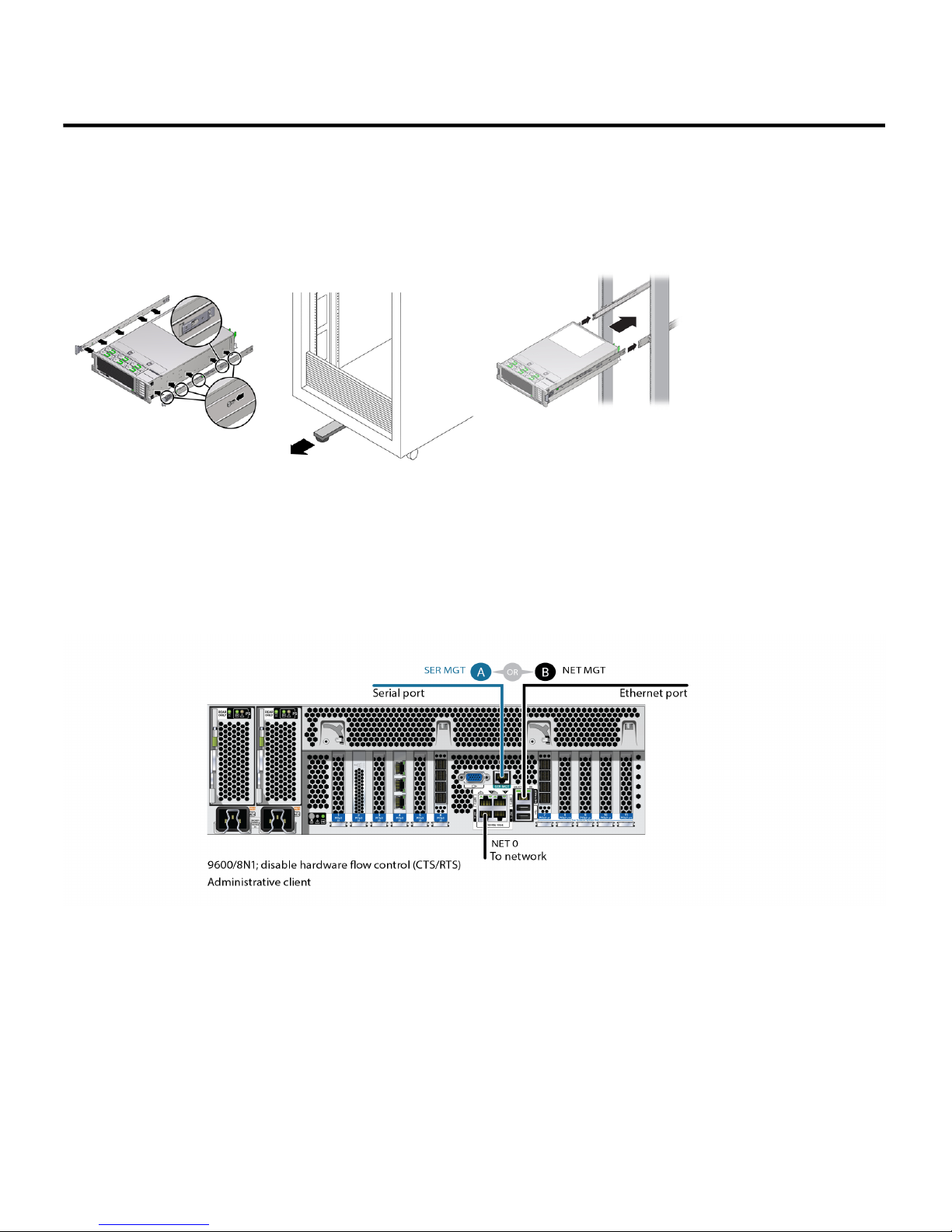

Install the Hardware

For detailed information, see the Oracle ZFS Storage Appliance Installation Guide available from http://docs.

oracle.com/en/storage.

Connect System Cables

For detailed information, see the Oracle ZFS Storage Appliance Installation Guide available from http://docs.

oracle.com/en/storage. If you have clustered controllers, connect the cables to both controllers. Do not connect

power cables to the controllers or disk shelves until instructed to do so in "Power On and Configure the System."

Connect Clustered Controllers

If you have clustered controllers, connect the two controllers together. For detailed information, see the Oracle ZFS

Storage Appliance Cabling Guide available from http://docs.oracle.com/en/storage.

Connect Disk Shelves

The following illustration shows clustered ZS5-4 controllers, each with two HBAs connected to four Oracle Storage

Drive Enclosure DE3-24 disk shelves in two chains. For additional configuration options, see the Oracle ZFS

Storage Appliance Cabling Guide available from http://docs.oracle.com/en/storage. Do not connect power

cables to the disk shelves or controllers until instructed to do so in "Power On and Configure the System."

Power On and Configure the System

Required information: A) Network host name and port of your serial connection, or B) Network management port

DHCP-assigned address. Connect disk shelf power cables, power on disk shelves, connect controller power cables,

power on controllers, and configure the system as described in the Oracle ZFS Storage Appliance Installation Guide

available from http://docs.oracle.com/en/storage.

Perform Initial Configuration

For detailed information, see the Oracle ZFS Storage Appliance Installation Guide available from http://docs.

oracle.com/en/storage, including properly configuring the management interfaces and updating the controller

software.

Product Documentation Library

Documentation for this product is available in the storage section of the Oracle Help Center, located at http://

docs.oracle.com/en/storage/.

Documentation Accessibility

For information about Oracle's commitment to accessibility, visit the Oracle Accessibility Program web site at http:

//www.oracle.com/pls/topic/lookup?ctx=acc&id=docacc.

Access to Oracle Support

Oracle customers that have purchased support have access to electronic support through My Oracle Support. For

information, visit http://www.oracle.com/pls/topic/lookup?ctx=acc&id=info or visit http://www.oracle.

com/pls/topic/lookup?ctx=acc&id=trs if you are hearing impaired.

Feedback

Provide feedback on this document at http://www.oracle.com/goto/docfeedback.

Part No: E73146-04

Mfg. No: 7341185

December 2016
