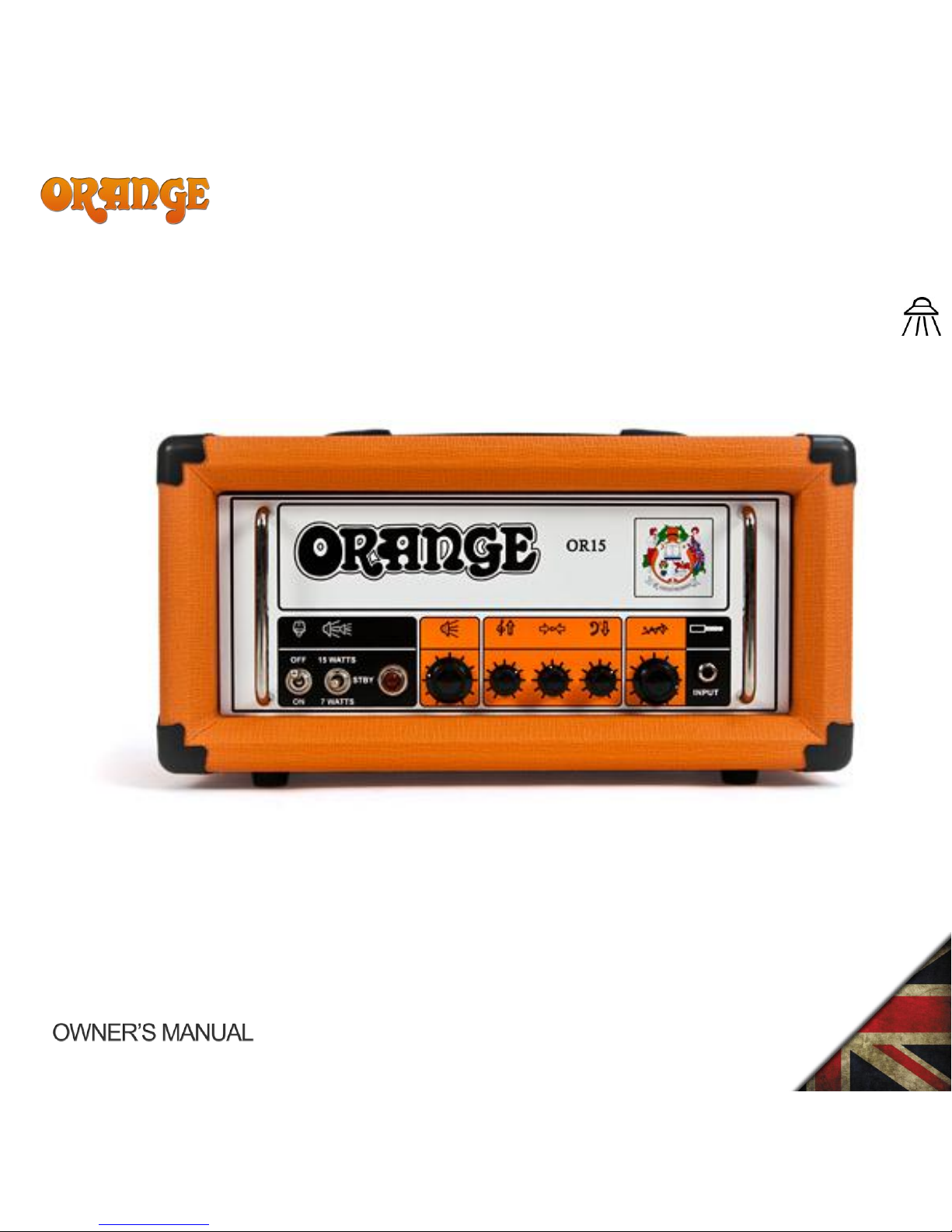

ORANGE OR15 Bedienungsanleitung

OR15

ENGLISH

OR15

ENGLISH

THANK YOU!

Thank you for choosing Orange. You are now a member of the

‘Legendary British Guitar Amplifier’ owners club!

Since 1968 when the company was founded, Orange has been a

pioneering force in the guitar amplification industry. Today, with

a team of the world’s finest amplifier engineers, Orange

continues to push back the boundaries of conventional tube

amplifier design.

Our commitment to craftsmanship and quality control has

allowed our amplifiers to stand the test of time, giving their owners as much pleasure now, as the day

they were bought. To maintain this level of excellence, each Orange amplifier is put through many

rigorous test procedures before leaving the factory.

The warmth, tonal quality and rich harmonics generated by a valve ampli fier cannot be reproduced by

‘artificial’ means. Many guitarists have reached the same conclusion: neither the transistor nor

microchip is a suitable alternative to valve technology.

This booklet contains valuable technical and safety information Please take the time to read this manual

as the information may enhance the sound and performance of your amplifier. We are confident that

you will be delighted with your new purchase and that it will provide you with many years of enjoyment.

OR15

ENGLISH

CONTENTS

CONTENTS ................................................................................................................................... 3

CONTACT DETAILS ........................................................................................................................ 4

IMPORTANT SAFETY INFORMATION .............................................................................................. 5

USING YOUR AMPLIFIER................................................................................................................ 7

FEATURES .................................................................................................................................... 9

VALVES AND FUSES CAN FAIL AT ANY TIME!................................................................................. 11

FREE EXTENDED WARRANTY OFFER............................................................................................. 11

OR15

ENGLISH

CONTACT DETAILS

Orange Amplifiers

OMEC House

108 Ripon Way

Borehamwood

Hertfordshire

WD6 2JA

ENGLAND

Tel: +44 20 8905 2828

Fax: +44 20 8905 2868

info@omec.com

Orange USA

2065 Peachtree Industrial Ct.

Suite 208

Atlanta, GA 30341

USA

Tel: 1-404-303-8196

Fax: 1-404-303-7176

info@orangeusa.com

OR15

ENGLISH

IMPORTANT SAFETY INFORMATION

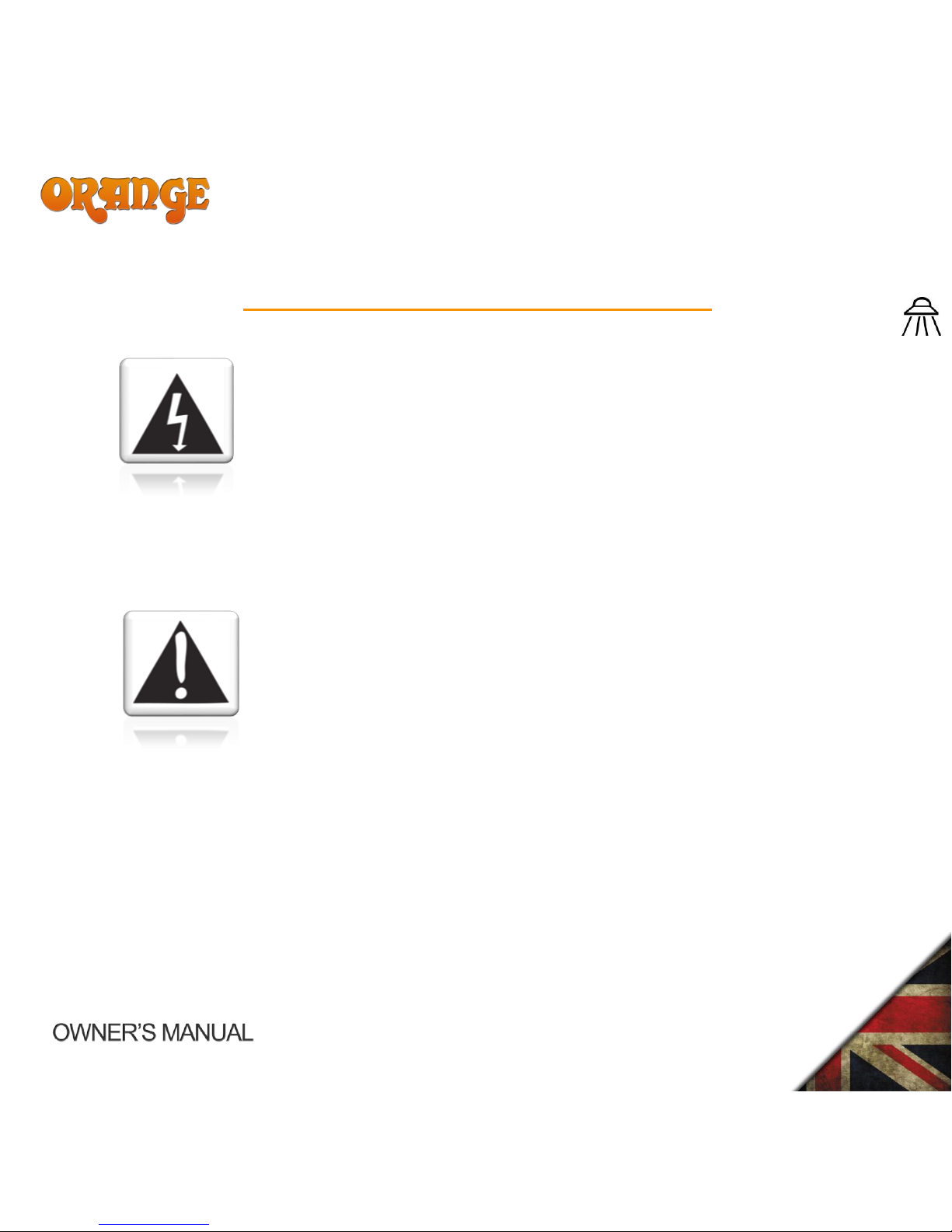

The lightning flash with arrowhead symbol, within an equilateral triangle, is

intended to alert the user to the presence of un-insulated ‘dangerous voltage’

within the product’s enclosure that may be of sufficient magnitude to constitute a

risk of electric shock to persons. Terminals labelled as

“Speaker Outputs” must be connected to a speaker cabinet of the designated

load rating using an un-shielded two conductor cable for speaker use at all times

during operation

The exclamation point within an equilateral triangle and "WARNING" are

intended to alert the user to the presence of important operating instructions.

Failure to heed the instructions will result in severe injury or death.

• Keep these instructions.

• Heed all warnings.

• Follow all instructions.

• Do not use this apparatus near liquid.

• Clean only with dry cloth.

OR15

ENGLISH

• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has

two blades, one wider than the other. A grounding type plug has two blades and a third grounding

prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit

into your outlet, consult an electrician for replacement of the obsolete outlet.

• Servicing: Do not attempt to service this product yourself as opening or removing covers may

expose you to dangerous voltage or other hazards.

• Refer all servicing to qualified service personnel.

• Damage Requiring Service: Unplug this product from the wall outlet and refer servicing to

qualified servicepersonnel under the following conditions: (a) When the power-supply cord or plug

is damaged; (b) If liquid has been spilled, or objects have fallen into the product; (c) If the product

has been exposed to rain or water; (d) If the product does not operate normally by following the

operating instructions. Adjust only thosecontrols that are covered by the operating instructions.

Improperadjustment of othercontrols may result in damage and will often require extensive work

by a qualified technician to restore the product to its normal operation; (e) if the product has been

dropped or damaged in any way; (f) when the product exhibits a distinct change in performance -

this indicates a need for service.

• Replacement Parts: When replacement parts are required, be sure the service technician has

used replacement parts specified by the manufacturer orhave the same characteristics as the

original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

OR15

ENGLISH

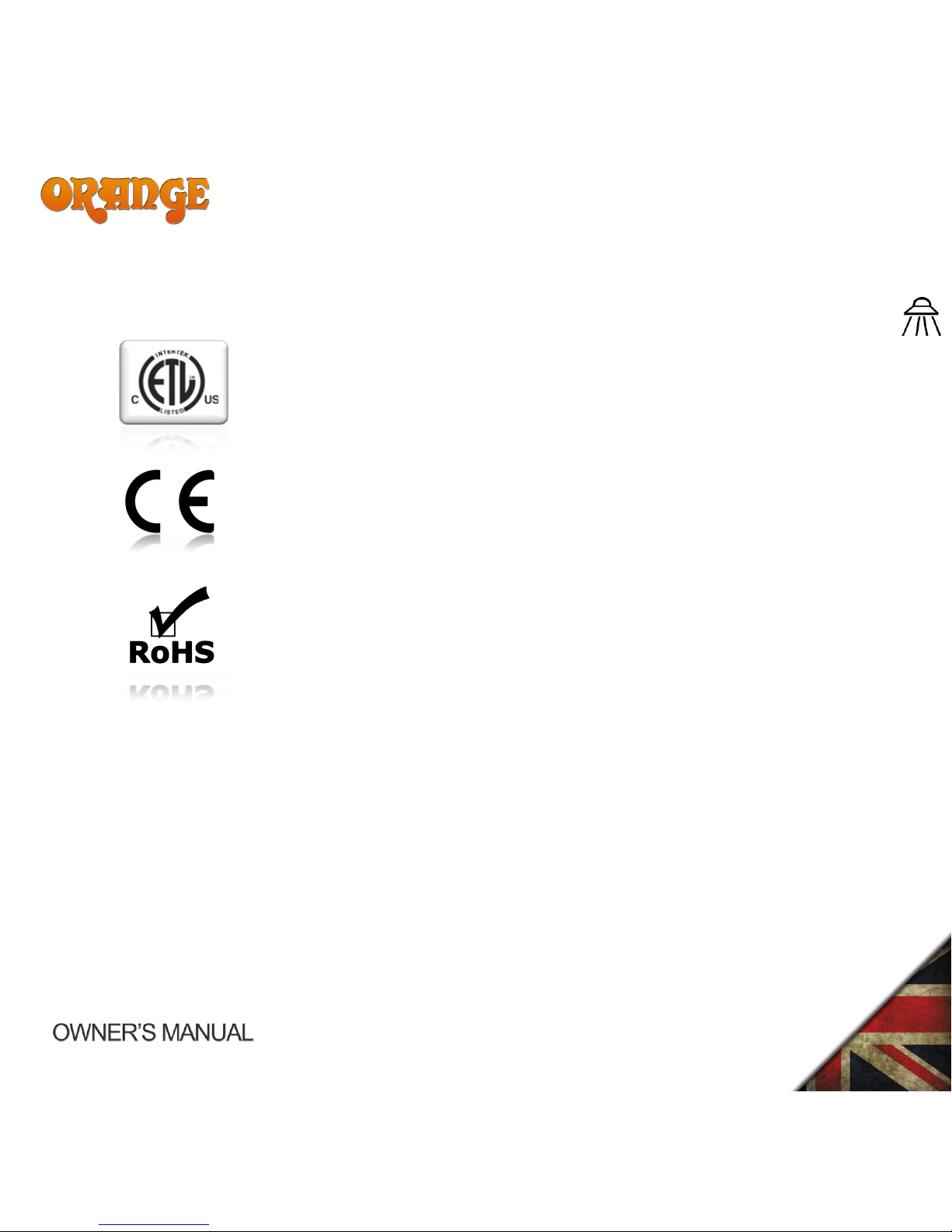

This Orange Amplifier conforms to UL Standard 60065 for Audio, Video and Similar

Electronic Apparatus - Safety Requirements;

Certified to CAN/CSA-C22.2No. 60065-03; IEC 60065 2001 + A1:2005

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

OR15

ENGLISH

USING YOUR AMPLIFIER

Mains Fuse:

T1 Amp for 100v. (Japan Only)

T1 Amp for 120v.

T500MA for 230v.

IMPORTANT!

For countries or regions with a mains voltage of 115v or 120v, please switch the small, red

mains selector to 115v or 120v and replace the fuse in the black pull out fuse tray, below the

mains inlet, with the 120v version supplied.

For countries or regions with a mains voltage of 230v, please switch the small, red mains

selector to 230v and replace the fuse in the black pull out fuse tray, below the mains inlet,

with the 230v version supplied.

OR15

ENGLISH

FEATURES

1. Connect the amplifier to a speakercabinet of the correct impedance.

Connect 1 x 16ohm cabinet to the 16ohm speaker output jack socket.

Connect 1 x 8ohm cabinet to either of the 8ohm speaker output jack socket.

Connect 2 x 16ohm cabinets to both of the 8ohm speaker output jack sockets.

2. Connect the amplifier to a mains supply of the correct voltage as marked on the amplifier.

Make sure that the HALF/STBY/FULL output switch is in the Standby (middle) position before

switching the powerswitch to the ON position.

3. GAIN CONTROL.

The gain control adjusts the gain. High levels of gain will heavilyoverdrive the pre-amp and may

sometimes be uncontrollable, especiallywhen used at high volume levels!

4. BASS CONTROL

The Bass control adjusts the level of bass after the pre-amp stages and before the FX Loop.

5. MIDDLE CONTROL

The Middle control adjusts the level of midrange after the pre-amp stages and before the FX

Loop.

6. TREBLE CONTROL

The Treble control adjusts the level of treble after the pre-amp stages and before the FX Loop.

7. VOLUME CONTROL.

The volume control adjusts the output volume.

High levels of volume will heavily overdrive the output stage.

OR15

ENGLISH

8. OUTPUT SWITCH. (HALF/STBY/FULL)

The output switch (found next to the power switch on front of amplifier) runs the valves at a low

plate voltage (reducing output power) in the HALF position and at a higher plate voltage

(increasing output power) in the FULL position.

The middle position is the standby position.

This switch should be in the standby position for around two minutes afterfirst powering up the

amplifier!

9. EFFECTS LOOP SEND AND RETURN JACK SOCKETS.

The effects loop, send and return jack sockets are intended for use with outboard pedals or rack

equipment such as delay, reverb and chorus etc.

Effects such as wah-wah, fuzz, distortion etc, would probably be best placed between the guitar

and amplifier input.

The effects loop is wired in series with the pre-amp signal and is completely valve driven.

10. VALVES.

The OR15 contains 3 x 12AX7 (ECC83) and 1 x 12AT7 (ECC81) in the pre-amp and effects loop

and 2 x EL84 in the output stage.

11. HT FUSE. (T250MA)

Please contact a qualified servicetechnician if this fuse fails!
