ORC E2V3 / ORC E3V3 / ORC E5
Quick connection Diagram v2.1
Contents
Introduction ........................................................................................................................................................ 2
ORC E - V3 range connection overview........................................................................................................ 2
Door Panel Connections.................................................................................................................................. 3
12V DC Power............................................................................................................................................... 3
Network Connection ..................................................................................................................................... 3
Optional .......................................................................................................................................................... 3
Wiegand reader to Access Controller.................................................................................................... 3
Local Door Contact / Press to Exit ......................................................................................................... 4
Using Relay on Door Panel for PTE input on Access Controller....................................................... 4
ORC-UM-R ........................................................................................................................................................ 5
Brief Description............................................................................................................................................ 5
Technical Characteristics ............................................................................................................................ 5
Timer (Relay 1).............................................................................................................................................. 5
Unused Wires................................................................................................................................................ 5
Terminal Connections .................................................................................................................................. 6
Standard Wiring ........................................................................................................................................ 6
RS485 Wiring ............................................................................................................................................ 6
Exit Wiring.................................................................................................................................................. 6
Relay 1 options.............................................................................................................................................. 7
Access Control / 3rd Party devices.......................................................................................................... 7
Fails Safe ................................................................................................................................................... 7
Fail Secure................................................................................................................................................. 7
ORC-E-V3_QUICK_CONNECTION_V2
`
Door Panel Connections
12V DC Power
Connect the 12V DC power Supply to the input of the Door Panel.
Fig 2
Network Connection
Connect the Ethernet to a network switch
Fig 3
Optional
Wiegand reader to Access Controller
Connect the GND, WD0 & WD1 to GND, D0 and D1 of the Access Controller (Wiegand 26-bit)
Fig 4
WARNING do not connect 5V (RED) to access controller
`

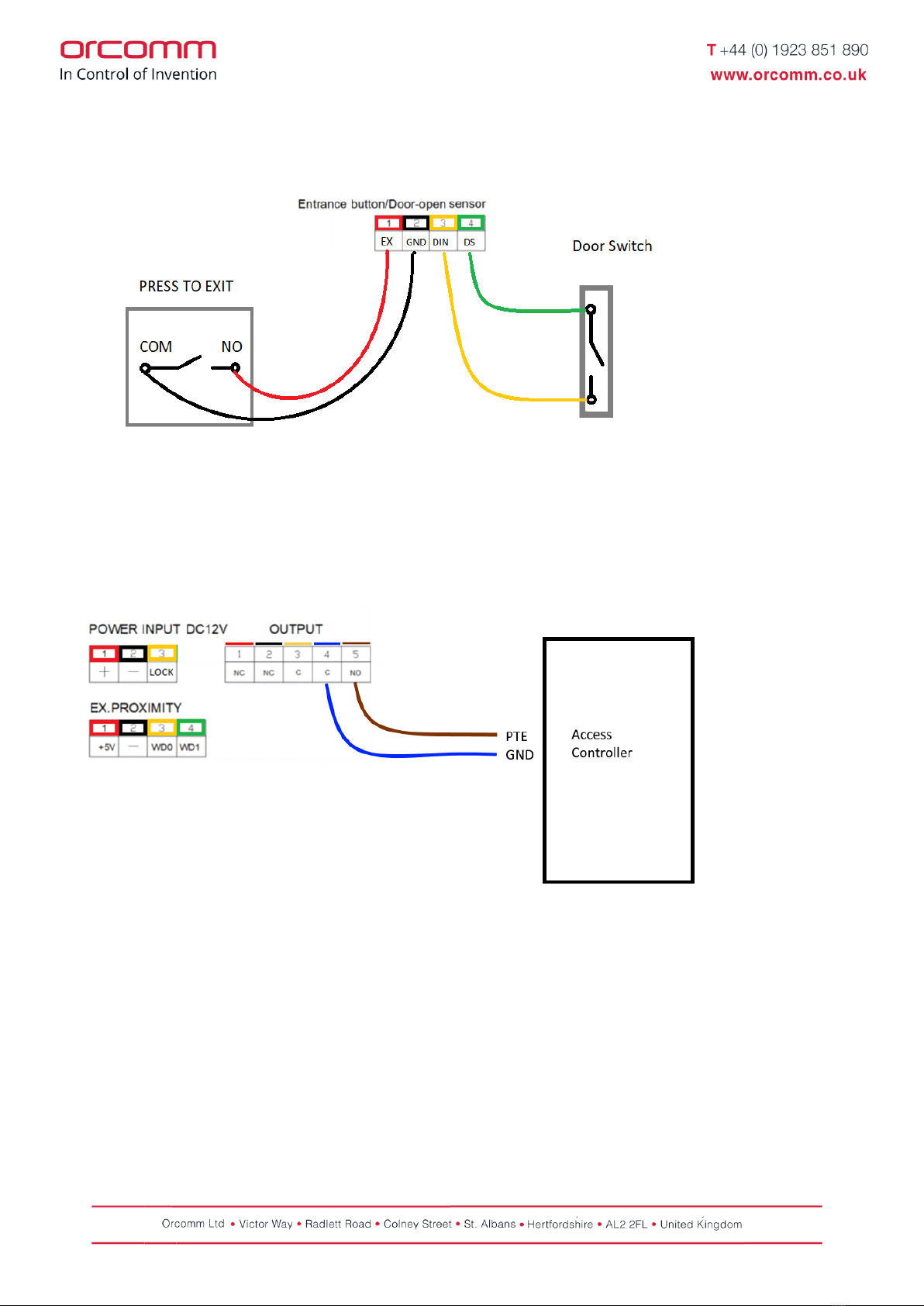

Local Door Contact / Press to Exit
Fig 5
Using Relay on Door Panel for PTE input on Access Controller
Fig 6
`
ORC-UM-R
Quick Connection Diagram
ORC-UM-R
Brief Description
The ORC-UM-R is a multipurpose Relay designed to work along side Orcomm external call panels,
ORC-E2, ORC-E3, ORC-E5.
When the door release command is pressed on the intercom screen, the Door Panel will send a
signal either through LOCK or RS485. Relay 1 will operate for a time. Note Timer for Relay 1 can be
changed via the Potentiometer.
Technical Characteristics
•Secure By Design (Must be wired secure side of Door –i.e. Riser cupboard)
•12V DC (1W)
•Working Temperature: -40 ~ +70 C
•Humidity: 20 ~ 80%
•Size: 115 x 58 x 34 mm
•Relay Max
o1A (230V AC)
o5A (24V DC)
o10A (12V DC)
Timer (Relay 1)
Relay 1 - Timer adjustment –Potentiometer
Fig7
Unused Wires
Warning all wires unused must be insulated to stop accidental triggering or damage to the ORC-UM-
R and/or External Door Panel.
`
Terminal Connections
Standard Wiring
Connect the ORC-UM-R with 12V, GND and LOCK between Door Panel and Riser
Fig 8
RS485 Wiring
Connect the ORC-UM-R with RS485 when installation requires encryption between Door Panel and
Riser (i.e. Secure By Design)
Fig 9
Exit Wiring
Temporarily connect “Exit 1” terminal to “GND” to start Relay 1 Timer
Fig 10
`
Relay 1 options
There are several options to wire the relay contact terminals.
Access Control / 3rd Party devices
The below diagram will send a short signal (close contact on trigger). Commonly used with Access
Controllers (GND and PTE), or IN1 & IN2 on Automatic door / gates.
Fig 11
Fails Safe
The below diagram will open the relay contact on trigger from Video Door Entry System. Commonly
used with Fail safe locks (Remove power to open).
Note ORC-UM-R (is designed for fire applications –thus NO1 = normally closed)
Fig 12
Fail Secure
The below diagram will close the relay contact on trigger from Video Door Entry System. Commonly
used with Fail secure locks (Power to open).
Note ORC-UM-R (is designed for fire applications –thus NO1 = normally closed)
Fig 13
