Oregon Scientific DS9320-15 Bedienungsanleitung

5.0 MEGA PIXELS DIGITAL CAMERA (DS9320-15)

USER MANUAL

Contents Page

Introduction --------------------------------------------------------------------------------------- 1

Package Contents ------------------------------------------------------------------------------- 1

System Requirements ------------------------------------------------------------------------- 2

Quick Start ----------------------------------------------------------------------------------------- 2

Name of Parts ------------------------------------------------------------------------------------- 4

Display Information ----------------------------------------------------------------------------- 5

Getting Started ----------------------------------------------------------------------------------- 7

• Installing Camera Batteries ------------------------------------------------------------- 7

• Inserting SD Card (optional) ------------------------------------------------------------ 7

• Turning On the Camera ----------------------------------------------------------------- 8

• Setting the Date, Time and Date Stamp --------------------------------------------- 8

• Power Saving ------------------------------------------------------------------------------ 9

Taking Pictures ---------------------------------------------------------------------------------- 9

• Taking a Picture --------------------------------------------------------------------------- 9

• Taking Continuous Pictures ------------------------------------------------------------ 9

• Using Digital Zoom ------------------------------------------------------------------------ 10

• Using Flash Light -------------------------------------------------------------------------- 10

• Setting Picture Quality ------------------------------------------------------------------- 11

• Putting Yourself in the Picture ---------------------------------------------------------- 11

Taking Videos ------------------------------------------------------------------------------------ 12

• Taking a Video ----------------------------------------------------------------------------- 12

Reviewing Pictures and Videos ------------------------------------------------------------ 13

• Reviewing Pictures and Videos -------------------------------------------------------- 13

• Viewing Six Pictures ---------------------------------------------------------------------- 13

• Using Slide Show ------------------------------------------------------------------------- 14

• Magnifying Pictures ----------------------------------------------------------------------- 14

• Selecting Pictures for Printing (DPOF Print Settings) ---------------------------- 14

Deleting Pictures and Videos --------------------------------------------------------------- 15

• Deleting Single Picture or Video ------------------------------------------------------- 15

• Deleting All Pictures and Videos ------------------------------------------------------ 15

• Formatting Internal Memory or SD Card --------------------------------------------- 16

Customizing Your Camera Settings ------------------------------------------------------- 17

* Capture Function Menu ----------------------------------------------------------------- 17

* Playback Function Menu ---------------------------------------------------------------- 22

Installing Your Camera Driver and Software ------------------------------------------- 23

Uninstalling Software -------------------------------------------------------------------------- 24

Downing Images to Your Computer ------------------------------------------------------- 24

ArcSoft PhotoImpression 5 ------------------------------------------------------------------ 25

ArcSoft VideoImpression 2 ------------------------------------------------------------------ 26

Using the Camera in PC Cam Mode ------------------------------------------------------- 28

Checking the Connection of Your Camera ---------------------------------------------- 29

Internet Video Conference ------------------------------------------------------------------- 30

Appendix ------------------------------------------------------------------------------------------- 31

• Specifications ------------------------------------------------------------------------------ 31

• Troubleshooting --------------------------------------------------------------------------- 32

Important Notice --------------------------------------------------------------------------------- 34

• Statement of Responsibility ------------------------------------------------------------- 34

• Notes on Copyright ----------------------------------------------------------------------- 34

General Warnings ------------------------------------------------------------------------------- 34

About Oregon Scientific ---------------------------------------------------------------------- 35

Trademark Information ------------------------------------------------------------------------ 36

FCC Statement ----------------------------------------------------------------------------------- 36

• Declaration of Conformity --------------------------------------------------------------- 37

Introduction

Thank you for choosing this camera to pursue your digital adventures. Whether you are

creating memories of your friends and family or exploring the great outdoors to get the

utmost satisfaction from your digital camera, please take a moment to read through this

manual. Its contents will send you on an educational journey into your camera's multiple

capabilities.

PackageContents

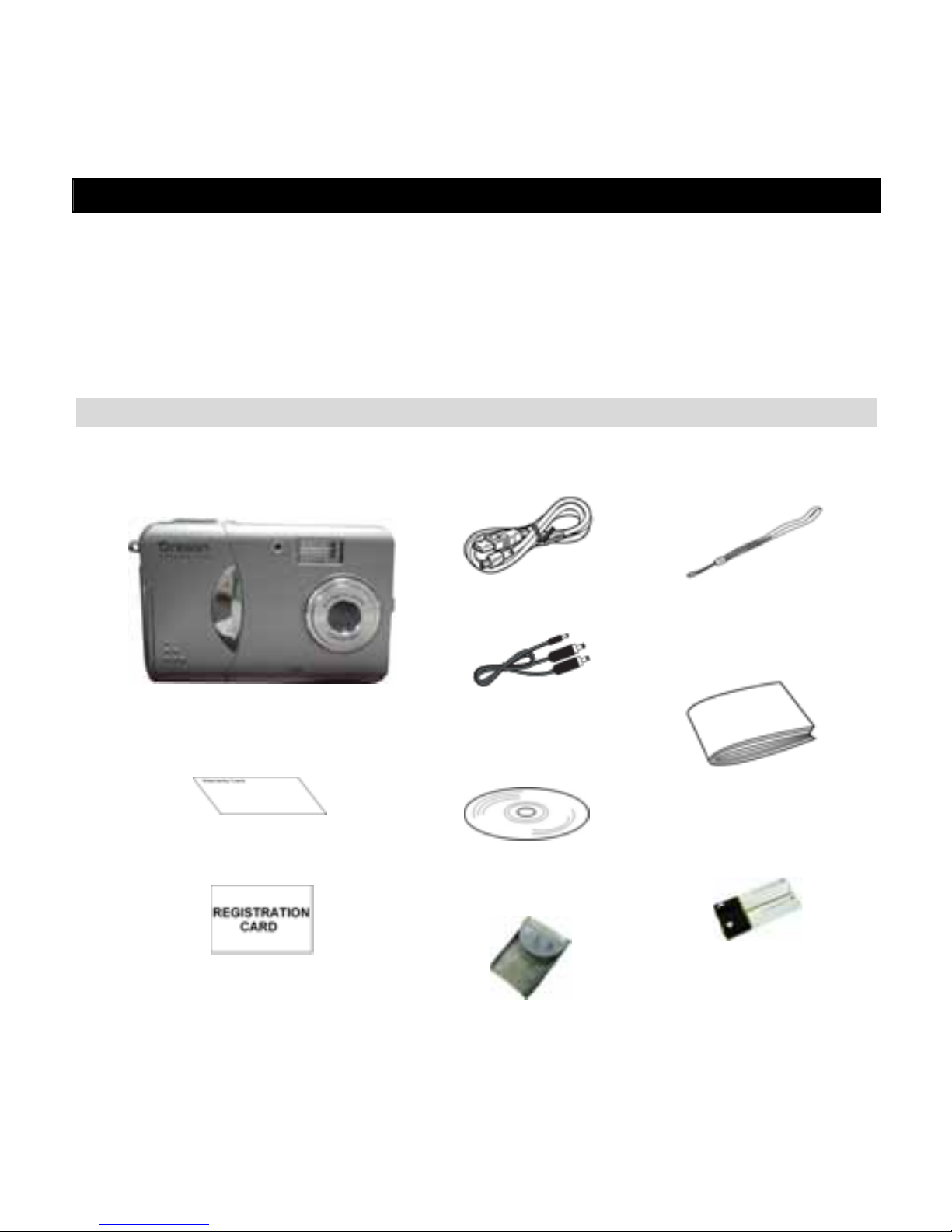

ake sure that all of the items shown below are included with your camera.

• USB cable

• Wrist strap

• DS9320-20

• Warranty card

• Registration Card

• AV Cable

• Installation CD

• Pouch

• Quick Start guide

• 2xAAA Battery

-1-

SystemRequirements

• Personal computer, laptop, desktop, or IBM compatible with Pentium 166 MHz minimum,

and with an active USB (Universal Serial Bus) port.

• Windows 98SE/ME/2000/XP, CD-ROM drive, color monitor, mouse and keyboard.

• Color printer for printing color pictures.

• For transferring still images via the Internet, or for video conferencing, your computer

must have modem and communication software for Internet connection.

QuickStart

CAUTION

• Please install the camera driver before using your camera with a PC.

• Best way to transfer picture to PC is using the Mass Storage mode to copy all your

pictures.

• Getting Ready

1. Slide open the battery compartment cover

2. Load the batteries into the camera.

3. Slide close the battery compartment cover.

• Taking a Picture

1. Turn on the camera.

2. Slide the Function switch to (capture status).

3. Point the camera at the subject, use monitor screen to compose the

picture.

4. Holding the camera still, gently press the shutter button to take a

picture.

-2-

• Reviewing a Picture

1. Turn on the camera.

2. Slide the Function switch to ►(playback status).

3. Push the joystick Left or Right to scroll through the pictures or

videos on the monitor screen.

• Deleting a Picture

1. Turn on the camera.

2. Slide the Function switch to ►(playback status).

3. Push the joystick Left or right to display the picture you want to delete.

4. Press the Mode button to turn on the menu and then push the joystick up or down to

select [Delete] on the screen. Press the OK button.

5. When the message “Delete this file?” appears on the screen. Press OK button to delete

the file; press the Menu button not to delete this file. Press the Mode button to exit the

menu.

-3-

NameofParts

The following illustrations show the names of each component, button, and switch on the

camera.

1. Shutter Button

2. Power Button

3. Self Timer Lamp

4. Flash

5. TV Out

6. Lens

7. Focus Switch

8. USB Port Terminal

9. Power Lamp

10. Strap Eyelet

11. Charge Indicator

12. Joystick/OK Button

/ : Flash

/ : Display

/ : Zoom In

/ : Zoom Out

13. MENU Button

14. Battery Compartment Cover & SD

Card Socket

15. Mode/Delete Button

16. Function Switch

17. Buzzer

18. TFT Panel

19. Tripod Socket

-4-

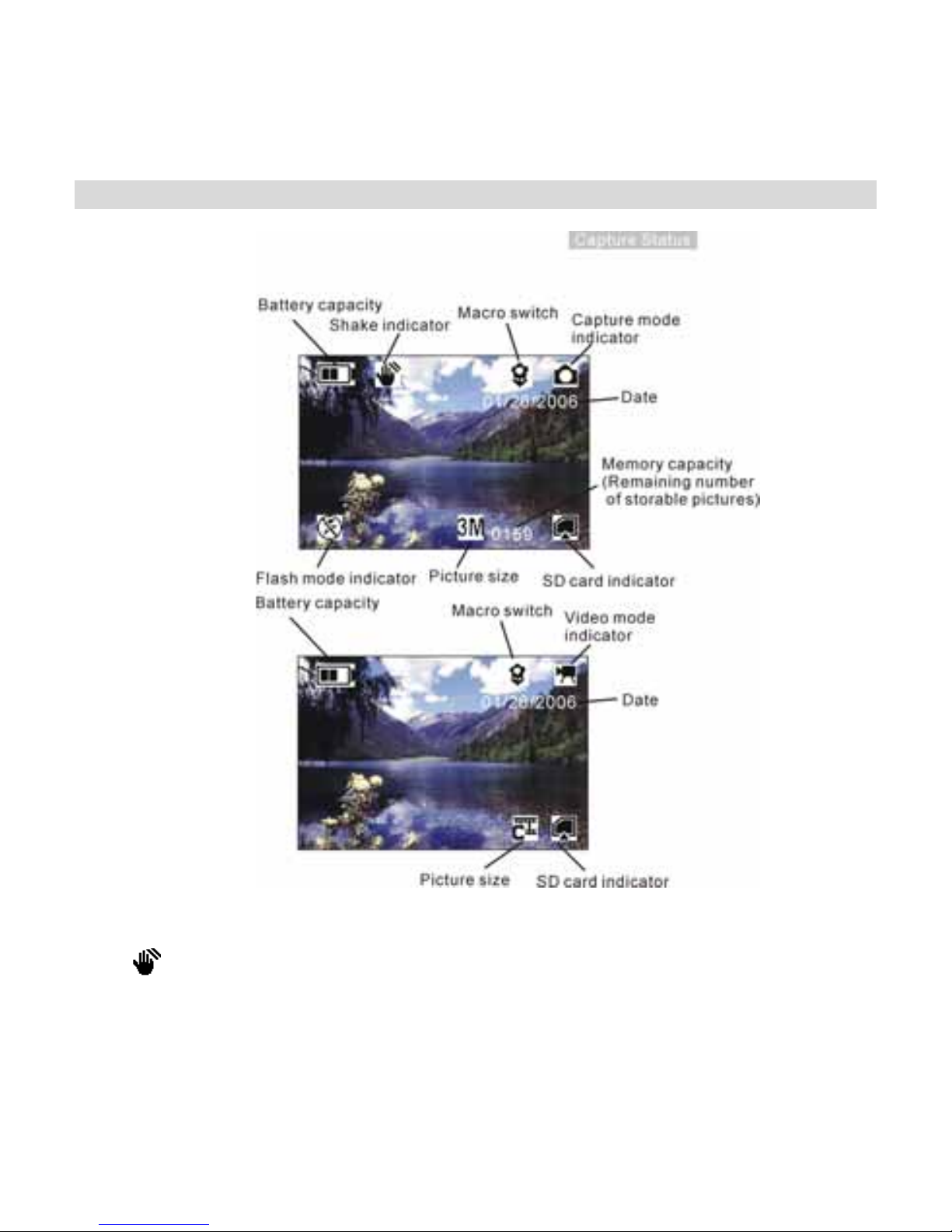

DisplayInformation

Note:

If the icon appears on the TFT panel when you take pictures in dark conditions.

Please keep your hands steady, otherwise you may capture a blur picture.

-5-

-6-

GettingStarted

• Installing Camera Batteries:

1. Slide open the battery compartment cover.

2. Insert batteries. Be sure to load batteries with + and – terminals as

shown on the camera.

3. Slide close the battery compartment cover.

• Inserting SD Card (Optional):

The camera offers two option for storing pictures and videos:

Internal Memory - Store pictures and videos in the 32 MB internal memory.

SD Card – The SD cards provide removable, reusable storage for pictures and videos.

Store as many pictures as you like, depending on the size of the card.

CAUTION:

• The card can only be inserted one way; forcing it may damage the

camera or the card.

• Do not insert or remove a card when power is on.

• Please note that not all SD cards may work in this camera. If one brand

fails to

• operate even after reformatting then another brand of SD card must be

used.

To insert an SD card:

1. Turn off the camera and open the battery compartment cover.

2. Orient the card as shown. Push the card into the slot to the

Connector.

3. Firmly to remove the card, push it in, and then release it. When the

card is partially ejected, pull it out.

4. Close the battery compartment cover.

-7-

Note:

1. If the SD card is present in the camera, and then the picture/ video will save in the SD

card. If no card is installed, the camera uses internal memory.

2. If the “MEMORY FULL” warning message appears on the TFT panel, it means the SD

card or internal memory is full. Please remove the memory and insert a new one or

move/store all picture/video in memory to your computer.

• Turning On the Camera:

1. Press the ON/OFF button on as shown in the illustration.

2. Buzzer will beep and indicator lamp will light. The TFT panel will be

turned on.

3. Press the ON/OFF button again to shutdown the camera.

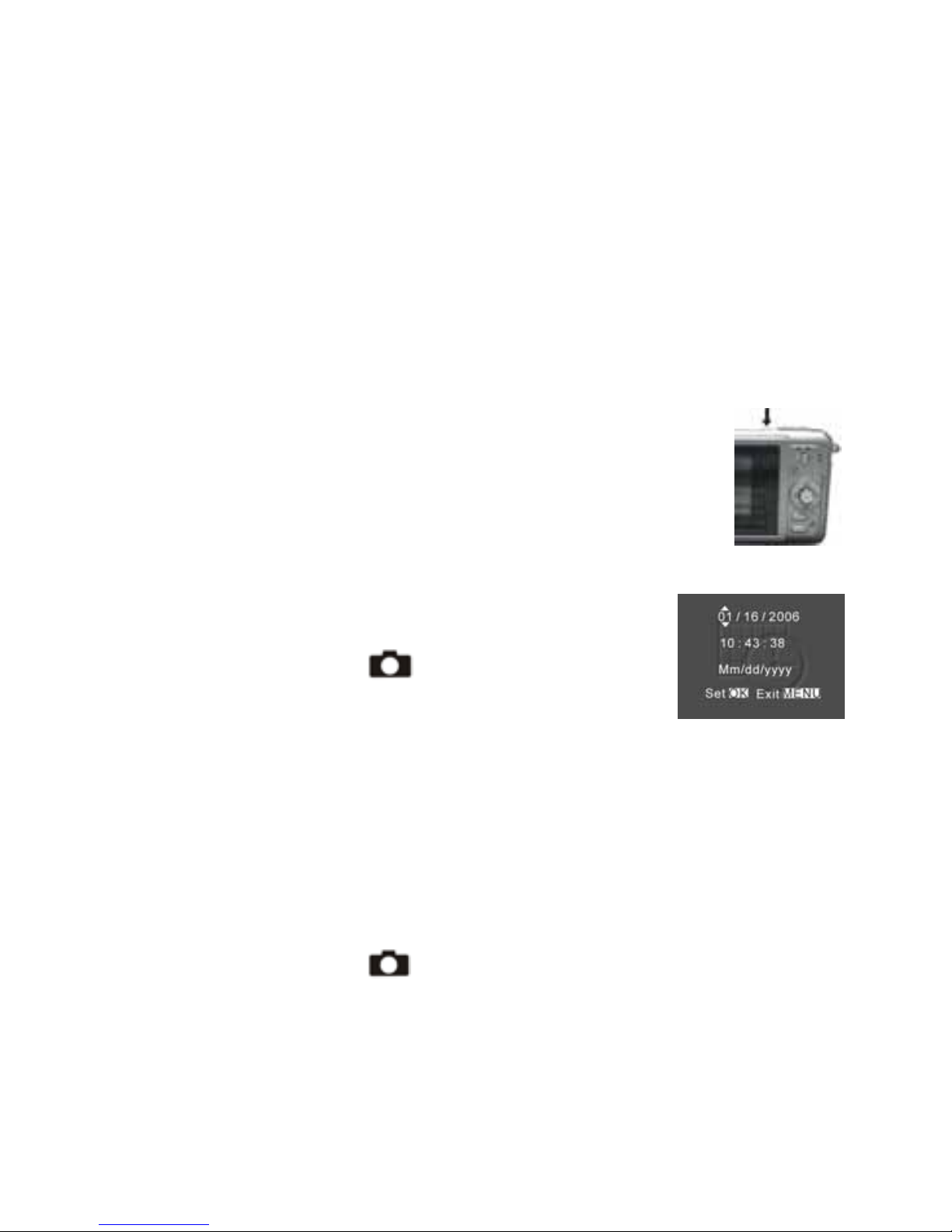

• Setting the Date, Time and Date Stamp:

1. Use the following procedure to change the date and time

setting.

2. Slide the Function switch to (capture status).

3. Press the Mode button twice to turn on function menu. Press

the OK button.

4. Push the joystick up or down to adjust the date and time.

5. Push the joystick let or right to advance to the next setting.

6. When finished, press the OK button to confirm the setting; press the Menu button to

return to main menu, press the Mode button to exit the menu.

Use the Date Stamp setting to imprint the date on your pictures.

In the Date Time Setting menu. Make sure the camera clock is set to the correct date.

1. Slide the Function switch to (capture status).

2. Press the Menu button and then push the joystick up or down to select [Time Stamp]

option.

-8-
