INTRODUCTION
Thank you for selecting the Oregon Scientific 3.0 Mega-Pixel Digital
Camera with Jumbo Display as your personal product of choice. The
camera features a large, ease-to-view 3.5-inch (diagonal) LCD and
2x digital zoom. The camera comes with 16MB of internal memory,
and is compatible with Secure Digital card to store many of your
favourite pictures and movies. Your camera is designed to give you
many years of reliable service.
Other features Include:
•Photo preview on jumbo 3.5-inch TFT display
•Auto-focus lens
•Self-timer
•Movie capture and playback
•Video output
•USB 1.1 interface
•Macro, White Balance and Exposure compensation settings
•Spot / Evaluative / Center Light Meter modes
• User interface available in 6 languages
•Compatible with Windows 98SE / ME / 2000 / XP and MAC OS
9.x / 10.x
1
PV100 Eng R7 a OP 9/9/04, 2:45 PM2
EN
1. SHUTTER RELEASE Button
2. Flash
3. ON / OFF Switch
4. Speaker
5. Microphone
6. Self Timer Lamp / Auto Focus Assist Light
7. Lens
8. Video Output
9. USB Connector
10. DC Jack
PRODUCT OVERVIEW
1. LCD
2. Cradle Connector
3. Camera Stand Connector
4. Battery / SD Card Compartment
5. Left LED (Flash Light Status)
6. Right LED (Auto-Focus Status)
7. Mode Switch
8. (Zoom In) / (Zoom Out) Buttons
9. 4-Way Direction Controller
10. Strap loop
11. DISP / OK Button
12. RESET
13. MENU Button
BACK VIEW
1. Record Mode
2. Playback Mode
MODE SWITCH
FRONT VIEW
1
3
2
4
5
6
7
8
9
10
2
1
3
4
5
6
7
8
10
11
12
13
9
12
2
PV100 Eng R7 a OP 9/9/04, 2:45 PM3
EN

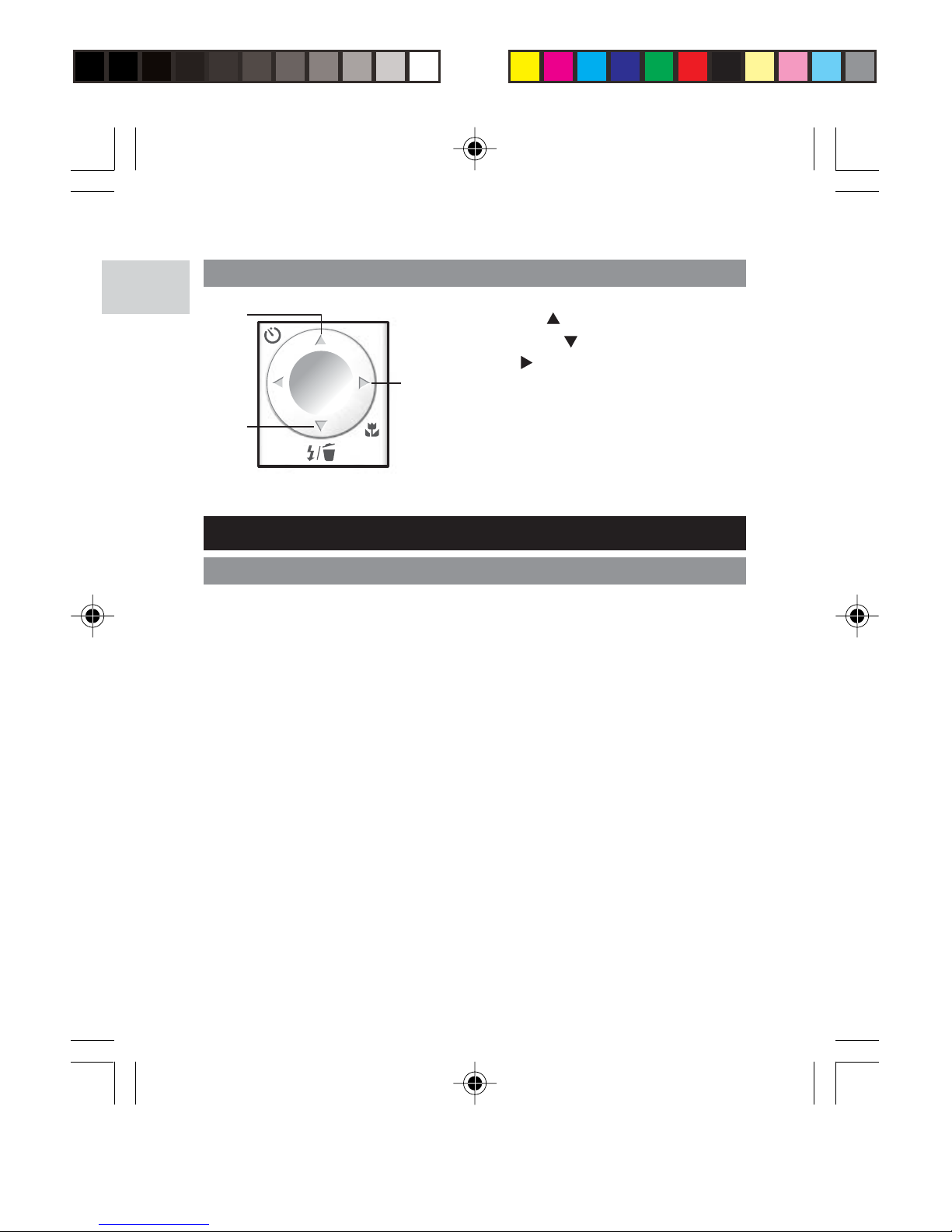

1. Self-Timer ( )
2. Flash / Trash ( )
3. Macro ( )
4-WAY DIRECTION CONTROLLER
1
2
3
GETTING STARTED
PACKAGE CONTENTS
When you unpack your digital camera, make sure to keep all the
packing materials in a safe place, in case you need to later return it for
servicing.
In the box, you will find:
•AC adaptor
•Li-Ion rechargeable battery
•Carrying pouch
•USB cable
•Video cable
•User manual
•CD-ROM
3
PV100 Eng R7 a OP 9/9/04, 2:45 PM4
EN
The camera's battery can be charged in a variety of ways:
A. Through the camera itself by connecting the AC adaptor through
the PV100's DC jack.
B. By docking the camera into a PV100D cradle and connecting
the AC adaptor through the DC jack.
C. By taking out the battery from the camera and inserting into the
battery slot of the cradle for charging.
NOTE: It takes approximately 6 hours to fully charge the Li-Ion
battery. The right LED (Refer to P.2) showing red means the camera is
being charged. When the battery is fully charged, the right LED turns off.
NOTE: In a non-controlled environment, many factors can affect battery
life such as temperature, use of the flash, photo review, LCD display
brightness levels and so on.
1. Pass the thin loop of the strap through
the camera's strap ring.
2. Pass the other end of the strap through
the loop.
3. Tighten by pulling the loop.
ATTACHING THE STRAP
Your camera comes with a
rechargeable Lithium-Ion
(Li-Ion) battery. To prevent
damage, correctly insert the
battery as shown.
TIP: To maximize the
performance of your camera
and for greater battery life,
control the use of the flash,
photo review, and LCD
brightness levels.
INSTALLING AND CHARGING THE BATTERIES
4
PV100 Eng R7 a OP 9/9/04, 2:45 PM5
EN
MEMORY STORAGE
The Secure Digital (SD) card is an external memory card that can be
plugged into your digital camera for storing images and movies. Below
is a list of compatible SD cards that have been tested and verified for
use with the PV100:
SanDisk: 64MB, 128MB, 256MB
Panasonic: 32MB, 64MB, 128MB, 256MB
Toshiba: 32MB, 64MB, 128MB, 256MB
Operation is not guaranteed for other, unlisted memory cards. For
more details on the above cards, please contact the manufacturer
directly.
The type of memory currently used by the camera is indicated on the LCD:
ICON MEMORY
TYPE
Internal
DESCRIPTION
Files are stored in the camera's internal
memory.
External
NOTE: When the SD card is installed, all images and movies taken are
automatically stored on the card. Images and movies stored in the
camera's internal memory can be viewed directly from the camera, TV
using a video output cable, or transferred to the PC via a USB connection.
They cannot be transferred or copied to the SD card.
INSTALLING THE SD CARD
1. Turn off the camera.
2. Slide the card into the memory slot until
it clicks into position.
NOTE: The SD card will not insert fully into
the slot if it is facing the wrong way. Be careful
not to apply undue force to the card.
SD card has been installed. Files are stored on
the card's memory.
5
PV100 Eng R7 a OP 9/9/04, 2:45 PM6
EN
1. Turn off the camera.
2. Push against the card lodged inside
the memory slot. The card
automatically ejects itself out of the
slot.
BASIC PHOTOGRAPHY
PREPARING THE CAMERA
1. At the camera’s handgrip position, slide the ON / OFF switch to
ON to turn on the camera.
2. Check the battery indicator to make sure there is enough power.
3. Slide the Mode Switch to the desired setting (Record Mode or
Playback Mode). The Mode Switch is used to either record or
playback images or movies taken.
4. In Record Mode, press the DISP / OK button to toggle between
3 levels of display information settings:
A. LCD with photo information displayed.
B. LCD without photo information displayed but Date / Time
and battery icon is displayed.
C. Turn off LCD.
ICON DESCRIPTION
Adequate power remains
Battery is running low
Battery is running very low
Battery is exhausted
REMOVING THE SD CARD
6
PV100 Eng R7 a OP 9/9/04, 2:45 PM7
Dieses Handbuch passt für folgende Modelle
1
Inhaltsverzeichnis
Andere Oregon Scientific Digitalkamera Handbücher
Oregon Scientific
Oregon Scientific DS6868 Bedienungsanleitung
Oregon Scientific
Oregon Scientific DS3868 Bedienungsanleitung
Oregon Scientific
Oregon Scientific DS-3898 Bedienungsanleitung
Oregon Scientific
Oregon Scientific DS8618 Bedienungsanleitung
Oregon Scientific
Oregon Scientific DS9810 Bedienungsanleitung
Oregon Scientific
Oregon Scientific DS6618 Bedienungsanleitung
Oregon Scientific
Oregon Scientific ATC-2K Bedienungsanleitung
Oregon Scientific
Oregon Scientific DS9320-15 Bedienungsanleitung
Oregon Scientific
Oregon Scientific DS6200 Bedienungsanleitung
Oregon Scientific
Oregon Scientific ATC-1000 Bedienungsanleitung
Oregon Scientific
Oregon Scientific DS6310 Bedienungsanleitung
Oregon Scientific
Oregon Scientific DS6628 Bedienungsanleitung
Oregon Scientific
Oregon Scientific DS-3899 Bedienungsanleitung
Oregon Scientific
Oregon Scientific GPS-ATC9K Bedienungsanleitung
Oregon Scientific
Oregon Scientific DCA6808 Bedienungsanleitung
Oregon Scientific
Oregon Scientific DS8238 Bedienungsanleitung
Oregon Scientific
Oregon Scientific DS6639 Bedienungsanleitung
Oregon Scientific
Oregon Scientific DS8118 Bedienungsanleitung
Oregon Scientific
Oregon Scientific DS8118 Bedienungsanleitung
Oregon Scientific
Oregon Scientific DS9610 Bedienungsanleitung
